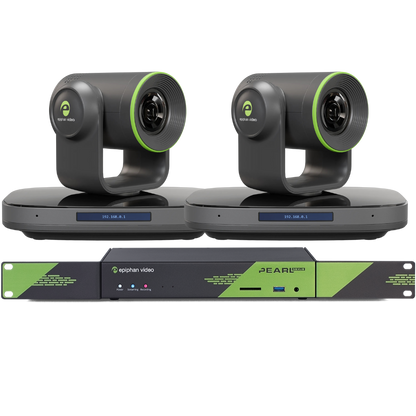

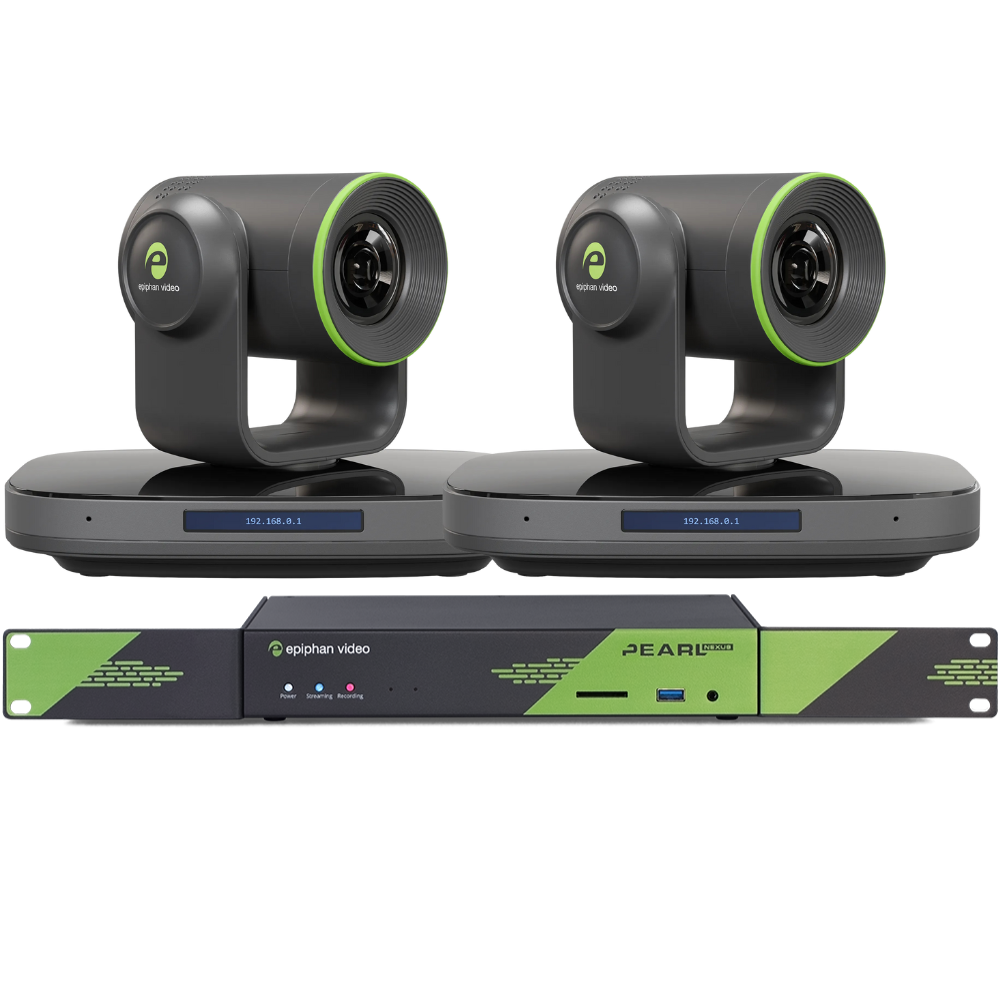

Epiphan Lecture Capture Plus Bundle

Epiphan Lecture Capture Plus Bundle
Higher-ed AV/IT professionals looking for a plug and-play video capture solution that’s reliable, easy to deploy and manage, works with their existing workflows, and can scale across campus. Enhance lecture capture with synchronized multi-angle video that delivers a richer, more engaging viewing experience for students while giving AV teams a proven, scalable solution they can deploy across campus with confidence.

Epiphan EC20 PTZ Camera
The Epiphan EC20 PTZ Camera is a high-performance solution designed for seamless integration within the Epiphan ecosystem, ensuring smooth, reliable, and professional AV performance without workarounds. With native NDI support, it eliminates excess cabling and streamlines workflows through over-the-network video streaming. Its advanced AI-powered tracking intelligently detects body shape and movement, keeping subjects centered within user-defined zones for dynamic, hands-free operation. Combining pro-grade optics with Epiphan’s trusted reliability, the EC20 delivers exceptional 4K60 video quality and broadcast-level clarity. Featuring a 60° field of view and 20x optical zoom, this flexible camera is perfectly suited for a wide range of environments, offering precise PTZ control to capture every detail effortlessly.

Epiphan Pearl Nexus
Epiphan Pearl Nexus delivers a superior, automated video capture experience for any classroom, courtroom, or presentation space. Record, enhance, and stream your video with best-in-class reliability and powerful creative tools. The included 1 TB SSD drive, robust CMS integrations, and automated file management ensure all content gets safely recorded and delivered exactly where it needs to go. Built upon the award-winning Pearl Family, Pearl Nexus records and streams up to 3 channels of 1080p video with a suite of creative controls and cloud management tools. A complete array of video inputs (SDI, HDMI, USB, SRT, and NDI), in addition to professional audio inputs (XLR, USB, and 3.5 mm), make Pearl Nexus the most flexible appliance in the industry. The included 1 TB SSD drive, CMS integrations, and automated file management ensure all content gets safely recorded and delivered exactly where it needs to go.

Video output (uncompressed)
HDMI: Up to 4K60
SDI: Up to 1080p60
Network output protocols
NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s)
Network stream resolution
First stream: Up to 4K
Second Stream: Up to 480p (preview)
Dedicated audio input
1 × 3.5 mm Line in
Sensor
1/1.8 inches CMOS
8.42 Megapixels
Zoom
20x optical, plus 16x digital
White balance
Auto, Manual, Indoor, Outdoor, One Push, VAR
Backlight compensation
Yes
3D Digital Noise Reduction
Yes
Advanced low-light performance
0.5 Lux @ (F1.8, AGC ON)
Field of view (FOV)
Horizontal: 60° – 3.5°
Vertical: 35.7° – 2.0°
Pan Angle
+162.5°
Image flip
Yes
Presets
Up to 255
Power supply
DC 12V or PoE+
Control
RS232, RS485: VISCA /Pelco-D / Pelco-P, USB: UVC, RF: Remote control unit, NDI, ONVIF
Tally light
Yes

• 2x EC20 PTZ Camera
  • 2x Ceiling Mount
  • 2x Wall Mount
• 1x Pearl Nexus
