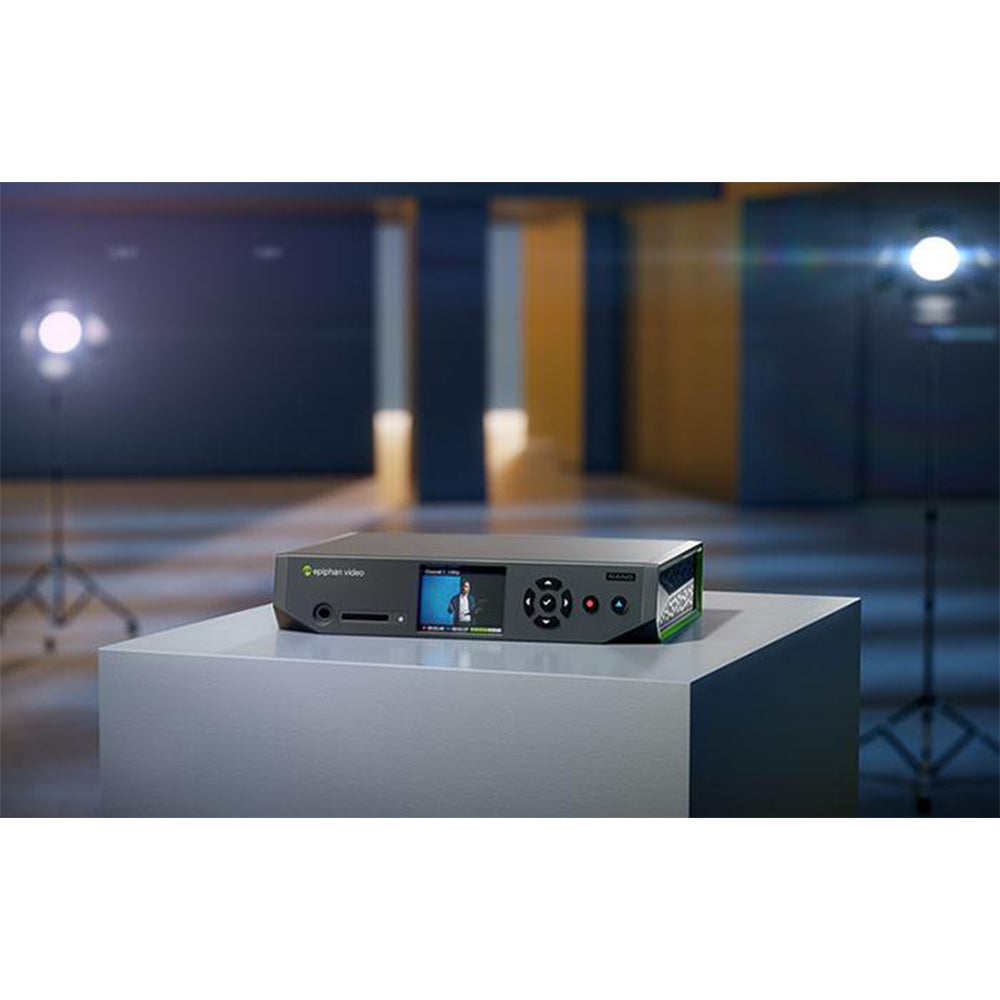

Epiphan Pearl Nano
$1,495.00
0
VideoGuys Part # (SKU):
EPIPEARLNANO
The perfect-fit streamer and recorder
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

Fine-tuned for your productions

Pearl Nano offers the ultimate blend of portability and versatility with a refined yet robust feature set that includes ingestion, encoding, HDMI pass-through, and recording. Use Nano as a powerful and reliable video distribution device or contribution encoder, or leverage the device’s streaming and recording functions as part of a more complex setup with additional production capabilities.

Key Features

  • Front screen for basic configuration/control and confidence monitoring
  • Inputs for HDMI and SDI, line-level XLR and RCA
  • HDMI program out and pass-through for zero-latency content display
  • Custom layout builder for a tailored video program
  • Intuitive browser-based UI and local console
  • Cloud-based configuration and control via Epiphan Cloud
  • SRT, HLS, MPEG-DASH, RTMP, and RTMPS streaming protocol support
  • Comprehensive integration with Kaltura and Panopto
  • Power over Ethernet Plus (PoE+) and DC power
  • SD card slot for removable storage
  • Expansion bay for user-supplied M.2 SSD
  • USB input for attached storage
  • 802.1x network access control
  • Lightweight Directory Access Protocol (LDAP)
  • Secure Sockets Layer (SSL)



Control Nano your way

Use Pearl Nano’s front screen for basic configuration and control, jump into the browser-based interface or local console to access all the features this small but mighty encoder has to offer, or centralize configuration and monitoring with Epiphan’s cloud-based platform.



Key functions at your fingertips

Nano’s front screen offers quick access to essential functions including basic configuration and easy streaming and recording. During events, the built-in screen serves as at-a-glance verification of your audio level and video program for production peace of mind.

Cloud-based configuration and monitoring

Streamline the configuration and monitoring of multiple Pearl Nanos and other Epiphan devices with centralized access to key device statistics including operational status, system load, unit temperature, available storage, and overall health.

Elevate your productions

Build a beautiful layout for your video program with Pearl Nano’s powerful custom layout designer. Create anything from simple picture-in-picture layouts to eye-popping compositions featuring dynamic backgrounds and other custom graphics – whatever suits your event best.

Ideal for SRT contributions

The compact and lightweight Pearl Nano supports Haivision’s open-source Secure Reliable Transport (SRT) protocol for secure, high-quality, low-latency video streaming over any given network.

Pair with Panopto or Kaltura

Deep integration with Panopto and Kaltura lets you start and stop scheduled streaming or recording events using Nano’s built-in screen and controls. The system can also push recordings to a user’s folder on either platform to save administration time after events.

Set up and stream

Built-in video and professional audio inputs

Simplify your streaming and recording setup with the ability to directly connect HDMI and SDI video sources to Nano along with professional XLR audio and RCA.

HDMI pass-through

For easy confidence monitoring or content projection, Nano’s HDMI pass-through can display video sources on in-room monitors with zero latency.

Broad streaming protocol support

Stream to any content distribution network or streaming server using modern protocols like SRT, HLS, or MPEG-DASH, or more common ones like RTMP or RTMPS.

Power over Ethernet Plus (PoE+)

Streamline your setup even further with the ability to power Nano over Ethernet in addition to DC power.



Flexible storage

Nano makes it easy to record, transfer, and back up files with a variety of storage options.

Remove

Pearl Nano includes an SD card slot on the front of the device for removable storage.

Expand

Need more local storage? Just add an M.2 SSD to Nano’s expansion bay.

Attach

Nano can automatically transfer recorded files to a USB drive, local server, or network-attached storage device.



No-fuss networking and security

Easily add Pearl Nano to any network and prevent unauthorized access with a bevy of security features including DHCP and LDAP support, role-based access control, 802.1x network access control, and SSL.

Video Inputs

  • Local video inputs: (1) 12G SDI
                                   (1) HDMI™ 2.01
                                   (1) USB 3.02

  • Video over Ethernet3:  (1) RTSP
                                         (1) SRT (push)

  • Connectors: (1) HDMI type A (female)
                        (1) BNC (female)
                        (1) USB-A (female)
                        (1) RJ-45

  • Aspect ratios: 3:2, 4:3, 16:9, 16:10, and custom aspect ratios

  • Standard resolutions: PAL, PAL wide, NTSC, NTSC wide

  • Input resolution range: 640×480 to 1920×1080

  • Frame rate: Up to 60 fps

  • Video input color spaces: HDMI: RGB 4:4:4, YCRCB 4:2:2, YCRCB 4:4:4
    SDI: RGB 4:4:4, YCRCB 4:2:2

  • Deinterlacing: Yes

  • Maximum cable length for SDI: 300 ft

  • Maximum cable length for USB 3.0: 6 ft



Audio Inputs



  • Analog audio inputs: (2) XLR pro line level (+4.0 dBu) up to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or two L/R stereo pairs)
    (1) RCA consumer line level -10 dBV (L/R stereo pair)

  • Connectors: (2) XLR (female)
                        (2) RCA (female)

  • Digital audio inputs4: (1) SDI5
                                      (1) HDMI
                                      (1) USB
                                      (1) RTSP (from RTSP input over Ethernet)
                                      (1) SRT (from SRT input over Ethernet)

  • Connectors: (1) SDI (female)
                        (1) HDMI (female)
                        (1) USB (female)
                        (1) RJ-45 (female)

  • Audio gain control:  0 dB to +30 dB

  • Audio mute: Yes

  • Configurable audio delay: -300 ms to +300 ms





Video Processing



  • Video output color space: 4:2:0, 8 bits per color

  • Video codec: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color
    - Encoding profile: High, Main, Baseline
    - Profile levels: 3.0, 3.1,3.2,4.0,4.1, 5.1

  • Bitrate: 1 to 50 Mbps (selectable)

  • Bitrate control: Constant

  • Hardware accelerated video encoding: Optional

  • Video scaling: Software and hardware

  • Key frames: 1/2 s, and 1 s up to 5 s in 1 second intervals



Audio Processing

  • Compression: MP3, AAC, and PCM

  • Sampling rate:  MP3: 22 kHz, 44 kHz, 48 kHz
                             AAC: 16 kHz, 22 kHz, 44 kHz, 48 kHz
                             PCM: 22 kHz, 44 kHz, 48 kHz

  • Bitrate: 64 to 320 kbps (MP3 and AAC)


Video Output

  • Signal types:
    (1) HDMI 2.0 (port 1)
    (1) HDMI 2.0a pass-through (port 2)
    (1) H.264/AVC digital video over Ethernet
    (1) RTSP
    (1) SRT (push)
    (1) HLS (push)
    (1) MPEG-DASH (push)

  • Connectors:
    (2) HDMI
    (1) RJ-45 (female)

  • Streaming protocols: MPEG-TS and FLV
    RTSP over TCP/UDP
    RTMP/RTMPS
    SRT (push) over UDP
    HLS (push) over HTTP/HTTPS
    MPEG-DASH (push) over HTTP/HTTPS
    HLS (pull) - Native Apple HTTP/HTTPS stream for iPad, iPhone and iPod Touch

  • Resolution ranges: Recorded: 480p to 1080p
    Streamed: H.264: 480p to 1080p
    HDMI output ports: 480p to 1080p

  • Frame rate: Up to 60 fps

  • Formats: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color
    - Encoding profile: High, Main, Baseline
    - Profile levels: 3.0, 3.1,3.2,4.0,4.1


Audio Output



  • Analog audio output: (1) 3.5 mm stereo headphone jack

  • Digital audio outputs:
    RTSP and SRT audio over Ethernet
    HLS and MPEG-DASH audio over HTTP/HTTPS
    HDMI audio (embedded)


Monitor and Control



  • Front screen:  2.2 inch screen monitor (built in) resolution: 320x240

  • Control key interface: Front panel control keys and multi-function keys

  • USB keyboard:  Connect a standard USB keyboard (optional)

  • USB status light: Connect a single USB status light (optional), supported models:
    -Kuando BusyLight models: UC Alpha and UC Omega
    -Delcom Products USB HID single color and multi-color signal indicators


Recording and Storage



  • Record formats:  AVI, MOV, MP4, and MPEG-TS

  • Upload image formats:  JPEG, PNG

  • SD card: Up to 512 GB6

  • Internal storage: SATA M.2 2280 SSD storage6 (M Key connector)

  • File transfer protocols: FTP, SFTP, SCP, AWS S3 client, and WebDAV client RSync

  • Network file share protocols: CIFS/SMB

  • File system for USB storage: FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS

  • External USB ports: (1) USB 3.0 (UVC/UAC)

  • Bitrate: Up to 50 Mbps

Communication



  • USB standards: USB 1.1, USB 2.0, and USB 3.0
    HDCP compliant

  • Ethernet host port: (1) RJ-45 (female)

  • Ethernet data rate: 10/100/1000 Base-T, half/full duplex with autodetect

  • Maximum Transmission Unit: 68 to 1500 MTU (configurable)

  • Protocols: DHCP Option 81, TLS 1.2, LDAP, mDNS, DDNS, UPnP, SAP, RTP, MPEG-TS & RTP and MPEG-TS/UDP, 802.1x, EAPOL, EAP-TTLS, EAP-TLS, PEAP, HTTP, HTTPS, NTP, PTP, FTP, SFTP, SCP AWS S3
  • Network discovery/Announce: UPnP, SAP


Network Security

  • 802.1x EAP methods:  PEAP, EAP-TLS, EAP-TTLS


Administration and Control

  • Admin panel: Local web UI for full administration. On-screen display and mobile UI for confidence monitoring, administration, and control.
    Local Admin panel access using an external monitor and a USB mouse or keyboard connected directly to Pearl Nano plus front screen support.

  • Epiphan Live: Local web-based UI to easily control streaming, recording, and switching.

  • Epiphan Cloud: Cloud-based platform to remotely manage and control Pearl Nano devices. Start and stop recording/streaming, monitor channels and alert dashboard, remotely login to Admin panel for rescue troubleshooting, update firmware and more from the Internet.

  • Secure access: Multiple user accounts and passwords.
    HTTPS for secure Admin panel and Epiphan Live access, as well as local network access to the live channel broadcast.

  • Remote access: Remote login7 to cloud versions of the Admin panel and Epiphan Live.

  • API:Yes (HTTP/HTTPS)


Integrations

  • Content Management Systems: Kaltura Panopto

  • Cloud access and management: Epiphan Cloud

General



  • Power supply: Internal: 100-240 VAC, 50-60 Hz
    PoE+

  • Power use: 0.8 A, 100-240 VAC

  • Operating temperature: 32° to 104° F (0° to 40° Celsius)

  • Cooling: Fan air flow: Left to right

  • Enclosure: Metal

  • Form factor:  Portable desktop model

  • Dimensions ( W × D × H ):  8.13" x 5.91" x 1.69" (206 mm x 150 mm x 43 mm)

  • Weight: 2.0 lbs (907 kg)

  • Regulatory compliance: FCC compliance: Part 15

  • CE compliance:
    Directive 2014/30/EU - Electromagnetic Compatibility
    Directive 2014/35/EU - Low Voltage Directive
    Directive 2011/65/EU - RoHS
