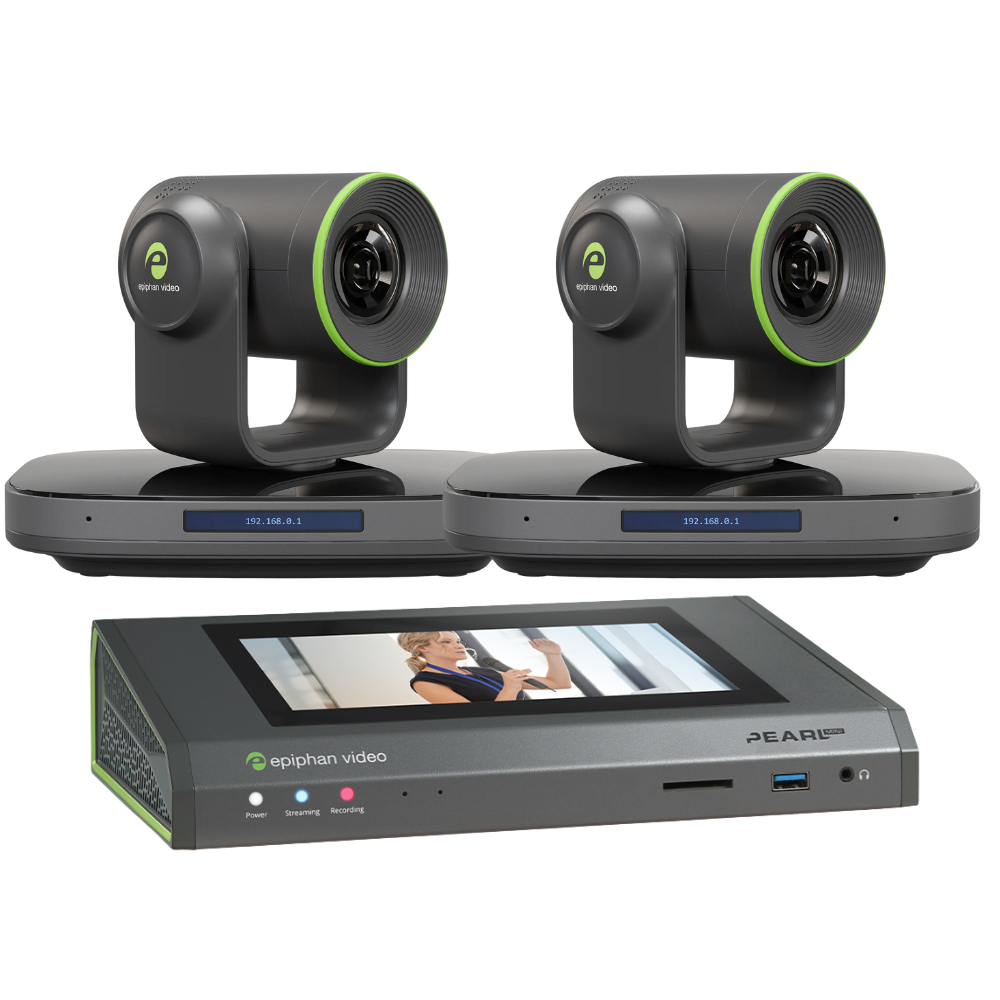

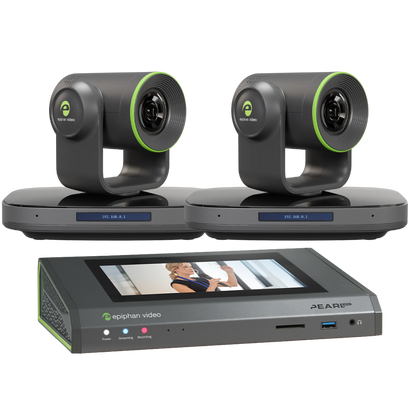

Epiphan Studio Plus Bundle

Epiphan Studio Plus Bundle
Corporate, media, or podcasting organizations looking for an automated or self-serve video studio that can be operated by anyone to get reliable recorded or live video content. A multi-camera studio setup that supports more dynamic productions and multi-person recordings, giving teams greater flexibility to create polished, professional video without needing any video experts on hand.

Epiphan EC20 PTZ Camera
The Epiphan EC20 PTZ Camera is a high-performance solution designed for seamless integration within the Epiphan ecosystem, ensuring smooth, reliable, and professional AV performance without workarounds. With native NDI support, it eliminates excess cabling and streamlines workflows through over-the-network video streaming. Its advanced AI-powered tracking intelligently detects body shape and movement, keeping subjects centered within user-defined zones for dynamic, hands-free operation. Combining pro-grade optics with Epiphan’s trusted reliability, the EC20 delivers exceptional 4K60 video quality and broadcast-level clarity. Featuring a 60° field of view and 20x optical zoom, this flexible camera is perfectly suited for a wide range of environments, offering precise PTZ control to capture every detail effortlessly.

Epiphan Pearl Mini
The most reliable, all-in-one video production system that’s small in size and big on pro features. Record, stream, and switch up to 2 HD inputs simultaneously and take your video production to the next level with Epiphan Pearl Mini. Record, stream, and switch up to three full HD video inputs from HDMI, SDI, and USB sources with Pearl Mini – or take advantage of new NDI|HX support. Use the giant touch screen or web-based interface, or access and operate the system from anywhere in the world with Epiphan Cloud.

Video output (uncompressed)
HDMI: Up to 4K60
SDI: Up to 1080p60
Network output protocols
NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s)
Network stream resolution
First stream: Up to 4K
Second Stream: Up to 480p (preview)
Dedicated audio input
1 × 3.5 mm Line in
Sensor
1/1.8 inches CMOS
8.42 Megapixels
Zoom
20x optical, plus 16x digital
White balance
Auto, Manual, Indoor, Outdoor, One Push, VAR
Backlight compensation
Yes
3D Digital Noise Reduction
Yes
Advanced low-light performance
0.5 Lux @ (F1.8, AGC ON)
Field of view (FOV)
Horizontal: 60° – 3.5°
Vertical: 35.7° – 2.0°
Pan Angle
+162.5°
Image flip
Yes
Presets
Up to 255
Power supply
DC 12V or PoE+
Control
RS232, RS485: VISCA /Pelco-D / Pelco-P, USB: UVC, RF: Remote control unit, NDI, ONVIF
Tally light
Yes

• 2x EC20 PTZ Camera
  • 2x Ceiling Mount
  • 2x Wall Mount
• 1x Pearl Mini
  • Power cable (region specific)
  • Power supply
  • Quick start guide
