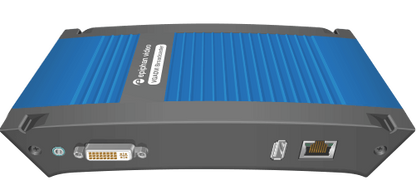

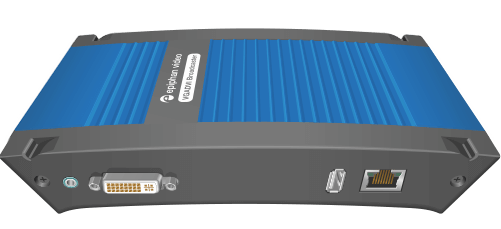

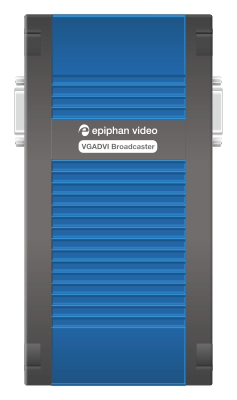

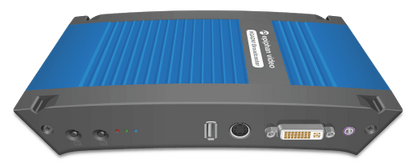

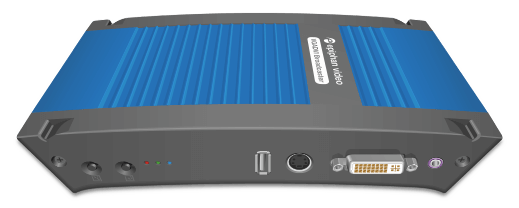

Epiphan VGADVI Broadcaster
$1,600.00$1,600.00
7
VideoGuys Part # (SKU):
EPIVGADVIBROAD
MFR Part # (MPN): ESP0440

VGADVI Broadcaster captures, combines, records and streams audio, full HD video and SD video.



  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

VGADVI Broadcaster captures, combines, records and streams audio, full HD video and SD video.



This quiet, portable recording and streaming device can stream directly to a handful of viewers or reach a broad audience via multicast or a content distribution network (CDN). VGADVI Broadcaster can also provide content to your set-top boxes and digital signs via UPnP and SAP network announce protocols.





  • Capture and live stream VGA, DVI, HDMI, S-Video + audio


  • Up to to 1920×1200 – 30 fps @ 1080p HD


  • Lightweight, portable


  • H.264, MPEG4, MJPEG, RTMP, FLV, ASF, MJPEG, RTP/RTSP, RTP/UDP, MPEG-TS, CDNs


Video Inputs
Connectors
(1) DVI / HDMI™1 / VGA1 / Component2 (1) S-Video/composite3 (NTSC/PAL)



Resolutions
VESA modes: 640×480 to 1920×1200; Custom VGA/DVI modes



HD Video Format Options
RGB plus separate HSync and VSync signals; RGB plus CSYNC signal; RGB with Sync-on-Green synchronization; DVI single link.



EDID Support
EDIDs can be uploaded to the device



Audio Input
Connector
(1) 1/8” (3.5mm) stereo analog audio



Input Levels
Mic and line-in



Video Output (Splitter / Converter)
Connector
(1) DVI-I (pass-through)



Signals
Analog and Digital versions are always output with automatic D/A or A/D applied



Audio Output
Connector
(1) 3.5mm stereo audio



Video Encoding
Video Codec
H.264, MPEG-4, Motion JPEG



Video Bit Rates
100 – 9999 kbit/sec



Key Frame Intervals
Programmable



Color Resolution
YUV 4:2:0



Frame Size
Configurable up to 1920×1200



Frame Rates4
30 fps @ 1920×1080p (or smaller) 25 fps @ 1920×1200



Audio Encoding
Audio Codec



Encoder/Bitrate/Sample Frequencies:



MP3/32-192kbps/22kHz, 44kHz
PCM/–/22kHz, 44kHz
AAC/32-192kbps/16 kHz, 22kHz, 44kHz
G.711/–/8kHz (a-Law) & 8kHz (µ-Law)



Audio Channels
1 stereo channel



Network Interfaces
Connector:
(1) 10/100 Ethernet RJ45 (PoE – spec: IEEE 802.3af class 0)



Streams:
HTTP
FLV, ASF, MJPEG
TCP/UDP RTSP



Multicast Streams:
UDP
RTP
MPEG-TS RTP
MPEG-TS



Publish to Streaming Server / CDN:
RTMP, RTSP



Network Discovery / Announce:
UPnP, SAP



Video/Audio Recording and File Management
Internal Storage
8 GB (solid state)
No recorded file size limits when configured with local or network attached storage, enabling 24/7 recording.
Automatically removes oldest recordings from internal storage as space is required.
File maintenance through admin interface (Web UI)



Local Storage
Automatic copy to local USB drives via the (2) USB 2.0 ports
Network Storage FTP server and FTP client capabilities (automatic and manual)
Copy to USB drive (automatic and manual)
RSYNC/CIFS synchronization



Playback and Recorded Formats
Download recorded videos (AVI, MPEG-TS or MOV) using the Web UI and playback through any compatible player.



Administration
Web UI allows for full administrative capabilities and includes multiple user accounts/passwords
Included API for integration into existing environments (executed via HTTP or RS-232).
RS-232 API integration requires a USB to RS-232 adapter (not included)



Time Synchronization
NTP, TIME (RFC 868), PTP v1 (IEEE-1588-2002 V1)



Product Dimensions
7.95″×4.13″×1.38″, 202×105×35 mm



Product Weight
1.4 lb, 635 g



Country of Origin
Made in North America (Canada)



Special Features
Two video input channels (1 HD, 1 SD)
Single stream or independent streaming and recording
Silent reliable operation with no fans or moving parts

The VGADVI Broadcaster device
One VGA to DVI-I cable
One HDMI™ to DVI-I adapter
One DVI-I to DVI-I cable
One composite to S-Video cable
Two Ethernet cables
One Power over Ethernet injector
