DVDO Extension Microphone for C6DL-1-G Dual-Lens All-in-One Camera

DVDO Microphone C6DL-1-G Dual-Lens Camera is an extension microphone for the DVDO-C6DL-1-G all-in-one camera with a voice pickup range up to 3m / 10ft.

It includes advanced connectivity with USB and 3.5mm audio interfaces as well as two RJ45 ports: one port that connects to the camera and a second port to daisy chain up to 2 additional microphones.

DVDO Microphone C6DL-1-G Dual-Lens Camera features cutting-edge audio technologies including echo cancellation (AEC), noise reduction (ANS) and gain control (AGC).

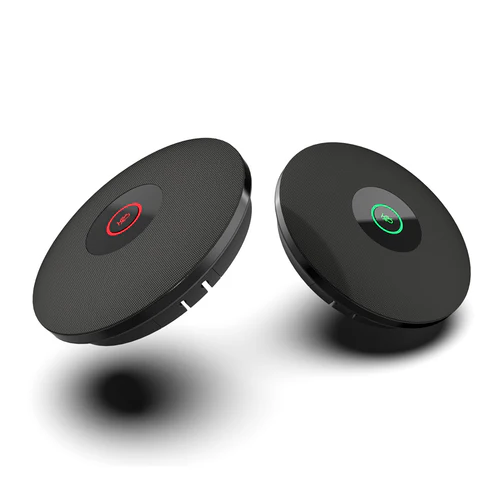

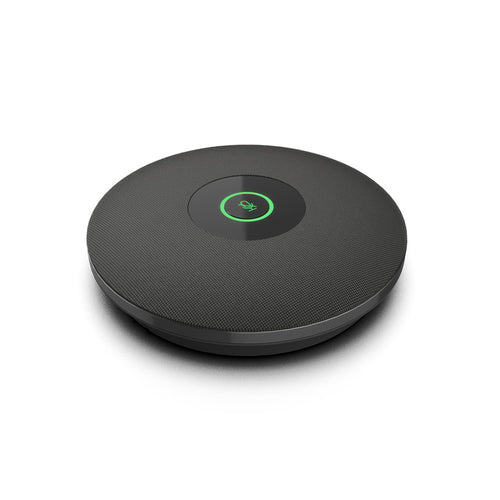

It has a mute button that is green when the microphone is enabled and turns red when it is muted.

• Up to 3 cascading microphones over LAN (PoE)
• 6 built-in digital microphones with high SNR forming a ring array
• Blind beamforming automatically detects speaker and adjusts audio pickup direction
• Advanced audio technologies including echo cancellation (AEC), noise reduction (ANS) and gain control (AGC)
• Ultra low latency for seamless conference calls
• Multiple interfaces including network, USB and 3.5mm audio

Audio Specifications

• Microphone Type 360° omnidirectional microphone
• Array Microphone 6 built-in microphones forming ring microphone array
• Sensitivity -38 dBFS
• Signal Noise to Ratio (SNR) 65 dB(A)
• Frequency Response 50Hz ~ 16kHz
• Sampling Rate 32K
• Pickup range 3m / 10ft
• Technologies Automatic Echo Cancellation (AEC), Automatic
• Noise Suppression (ANS),
• Automatic Gain Control (AGC)


Interfaces

• Network Interface 1 x UP: Up cascading network interface (PoE)
• 1 x DOWN: Down cascading network interface (PoE)
• USB Interface 1 x USB (Type C): USB audio interface connecting to USB host
• Audio Interface 1 x AECOUT: 3.5mm audio output interface
  1 x SPKOUT: 3.5mm audio output interface

General Specifications

• Dimensions 170mm [Φ] x 40mm [H]
• Net Weight 370g
• Cascade Method PoE
• Power Input Through USB (5V 500mA) or network (48V PoE) ports

Extension Microphone for C6DL-1-G Dual-Lens All-in-One Camera
