KEY FEATURES
• 108° Field of View lens
• 1/4-20 mounting screw
• NDI®|HX Network connectivity
• 4K@30 capable
• Built in beamforming dual microphone array
• Power over Ethernet

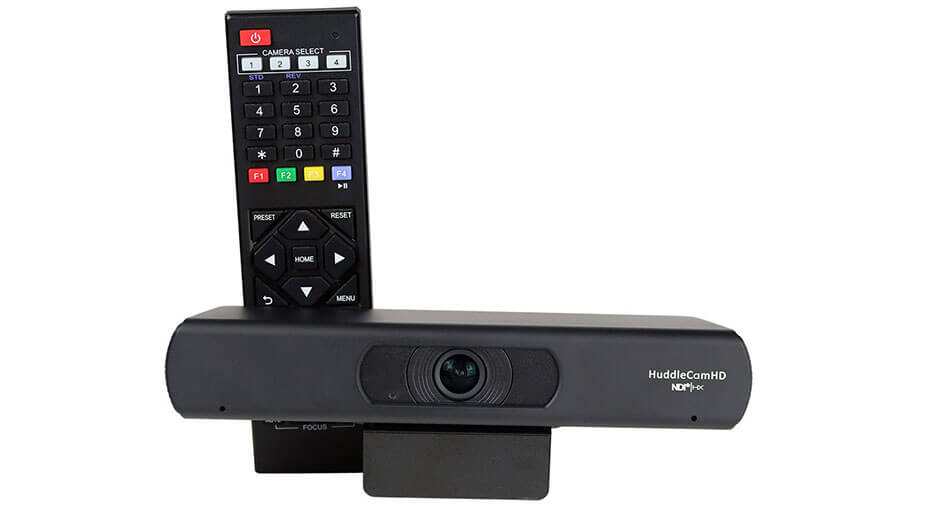

• IR Remote control
• Auto Framing
• 255 Presets via IP
CAMERA LENS & SPECIFICATIONS
Field of View
108°
Video CMOS Sensor
1/2.5” CMOS 8.51M Mega Pixel
Focal Length
2.8mm
EPTZ Control Methods
IR Remote, VISCA over IP, HTTP-CGI
Compression
MJPEG, YUY2, H.264, H.265
Resolution
3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
Frame Rate
50Hz: 1 ~ 25, 60Hz: 1 ~ 30
Min Lux
0.05 Lux @ F1.8, AGC ON
Zoom
8x Digital Zoom
PHYSCIAL SPECIFICATIONS

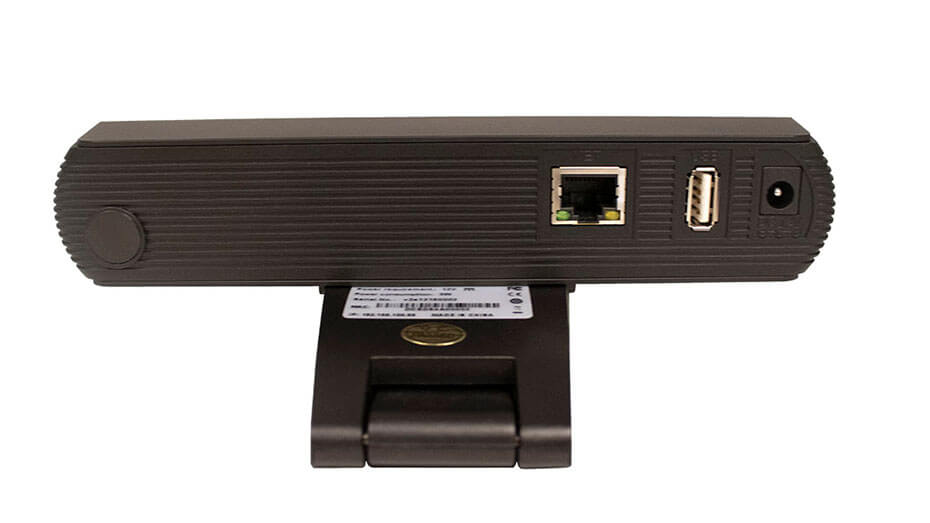

Connection Interface
RJ-45, USB 2.0 (Future use)
Material
Aluminum, Plastic
Dimensions (in)
7.63”W x 2.36”H x 3.66”D
Dimensions (mm)
194mmW x 60mmH x 93mmD
Weight
0.7 lbs | 0.34kg
Box dimensions (in)
9.375”W x 4.3125”H x 4.625“D
Box Dimensions (mm)
238mmW x 109.5mmH x 117.5mmD
Boxed Weight
2.4 lbs | 1.1kg
Input Voltage
DC 12V / PoE (IEEE 802.3af)
Operating
14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature
-40°F ~ 140°F (-40°C ~ 60°C)
