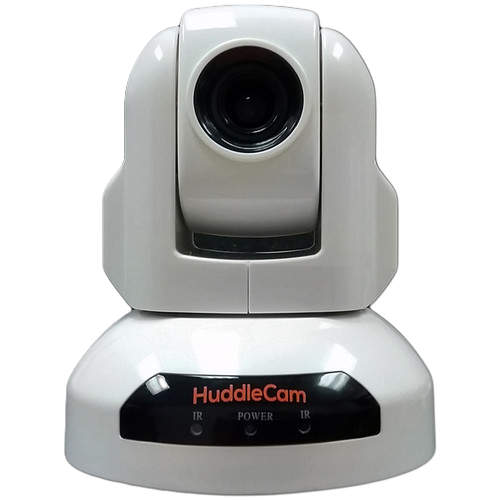

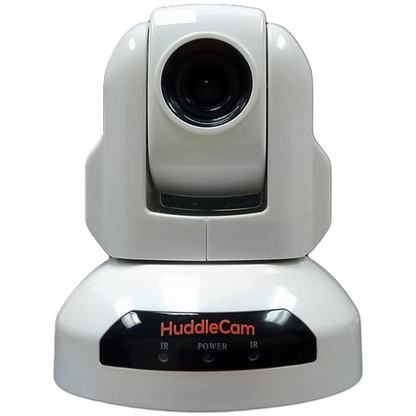

HuddleCamHD 3x Optical Zoom, PTZ USB Camera, White

The ideal entry-level conferencing camera for small to medium sized rooms

HuddleCamHD cameras are the perfect cameras for professional video conferencing. Designed with a wide variety of conferencing setups in mind, there is a HuddleCamHD solution that will work for any situation. Offering superior quality at an affordable price, the entire HuddleCamHD line of cameras is easy to setup and ready to use in a matter of minutes.

Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 3X optical zoom letting you get up close to see and interact with your team.

Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.

Plug-and-Play USB Connectivity
Easily connect your camera to a PC, Mac or ChromeBox without the need for additional software.

Wide Field of View
The HuddleCamHD 3X has a wide 81 degree field of view so you can capture your entire room and still have the ability to zoom in.

Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.

Camera Presets
Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.

Robust Installation Options
Easily invert the camera image for installation on the ceiling. Use the included Tri-Pod mount adapter to fasten the camera to a standard tri-pod or simply mount on the wall.

RS-232 Camera Control
Integrate the camera into a larger control systems such as Crestron or AMX. Even convert RS-232 to USB and control from your computer.

Features

• Zoom: 3X Optical Zoom
• Resolution: 1920x1080p
• Field of View: 36~81 Degrees
• Frames Per Second: Up to 30 fps
• Connection Cable: USB 2.0
• RS-232: Yes, In and Out
• Presets: 64
• Dimensions in: 4.88?W x 5.5?H x 4.75?D (6? Height Extended)
• Dimensions mm: 124mm x 139mm x 120mm (152mm Height Ext)
• Weight: 1.66 lbs (.75 kg)
• Box Dimensions: 8.75? x 8.88? x 7? (222mm x 225mm x 178mm)
• Box Weights: 3.66 lbs | 1.66 kg

G2 models include an updated firmware and new form factors.

Imaging

• Image Sensor: 1/2.8"-Type CMOS
• Sensor Resolution: Effective: 2.1 Megapixel
• Focus Control
  • Autofocus
  • Manual Focus

Exposure Control

• Shutter Speed: 1/10000 to 1/30 Second
• Flip / Mirror Support: Image Flip, Mirror (Vertical)
• White Balance
  • Range: 4000 to 5400K
  • Presets: Auto, Manual

Lens

• Max Optical Zoom: 3x
• Field of View: 82 to 36°
• Maximum Aperture: f/2

Video Capture

• Video Output
  • USB1920 x 1080p at 25/30.00 fps
  • 1280 x 720 at 25/30.00 fps
  • 800 x 600
• Broadcast Output: NTSC

Control

• Presets: 64
• Pan/Tilt
  • Pan: 355° at 48°/s
  • Tilt: 120° (-30 to 90°)
• Tally Light: No

Networking

• Wireless: IR

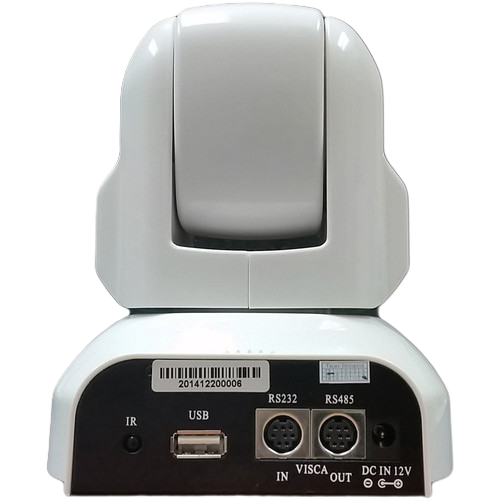

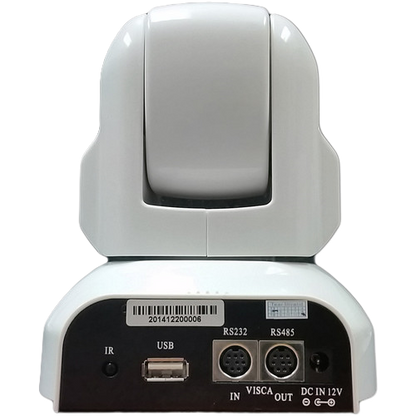

Interface

• Video I/O: 1x USB-B 2.0 Output
• Other I/O
  • 1x Mini-DIN 8-Pin (RS-232, VISCA) Control Input
  • 1x Mini-DIN 8-Pin (RS-485) Control Input
• Built-In Microphone: No
• Built-In Speaker: No

Power

• Power I/O: 1x Barrel (12VDC at 2 A) Input
• Power Consumption: Device: 24 W

Environmental

• Operating Conditions: 32 to 113°F / 0 to 45°C
• Storage Conditions: -14 to 140°F / -25 to 60°C
• Impact Resistance: No
• Environmental Resistance: No

General

• Mounting: 1x 1/4"-20 Female for Ceiling/Tripod/Wall
• Materials: Aluminum, Plastic
• OS Compatibility: Windows / macOS / Linux
• Dimensions (W x H x D): 4.88 x 5.5 x 4.75" / 12.4 x 14 x 12.06 cm
• Weight: 1.66 lb / 0.75 kg (Body Only)

• 3X Zoom USB 2.0 Camera
• 12V/2.0A DC Power Adapter
• Mounts: Tripod Mount
• USB 2.0 Data Cable (3m), Serial Control Cable, RS-232C to RS-485 Adaptor
• IR Remote Control
• User Manual (Also Downloadable Online
