GA230D-PTZ Tripod

The GA230D-PTZ from E-Image combines a durable Aluminum Tripod with a Quick Release Plate for an ideal solution for your PTZ camera. This tripod is designed for steady use, light-to-moderate loads, and a super-extensive height range. The tripod features a geared center column, various screw threads for mounting, and a heavy-duty dolly.

Key Features:

• Convenient Tripod & Dolly Kit for PTZ Camera Setups
• Extra-Tall Tripod Legs with Geared Rising Center Column
• Height Range w/ Dolly: 38.9″ – 98.3″
• Max Payload Capacity: 26.5 lbs.
• Built-in Mid-Level Spreader
• Retractable Foot Spikes for Soft Ground
• P6 Includes Adjustable Ratcheted Release Screw
• Plate Includes 1/4″-20 and 3/8″-16 Mounting Screws and Registration Pin
• Includes Stone Bag

Ideal PTZ solution

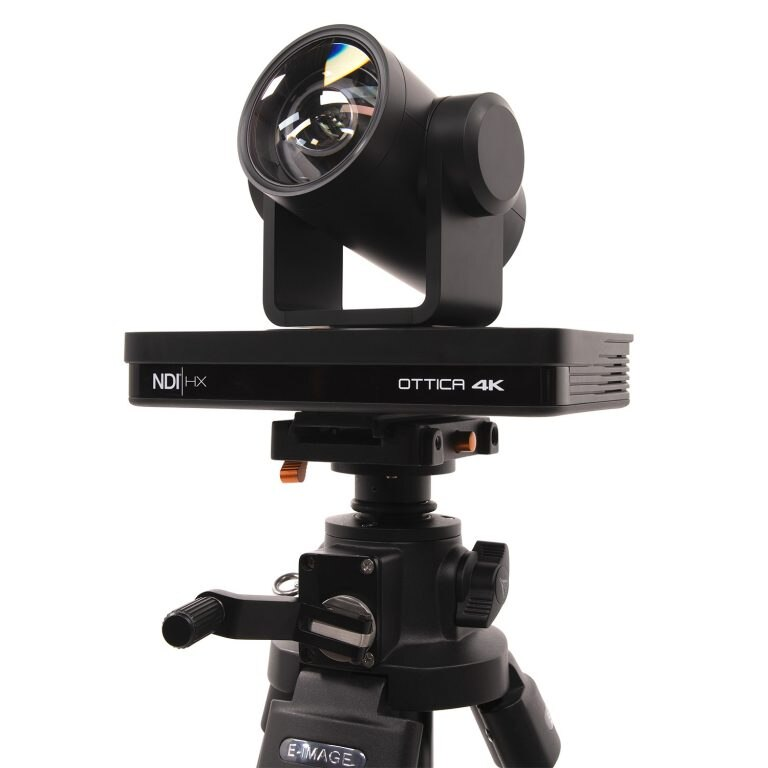

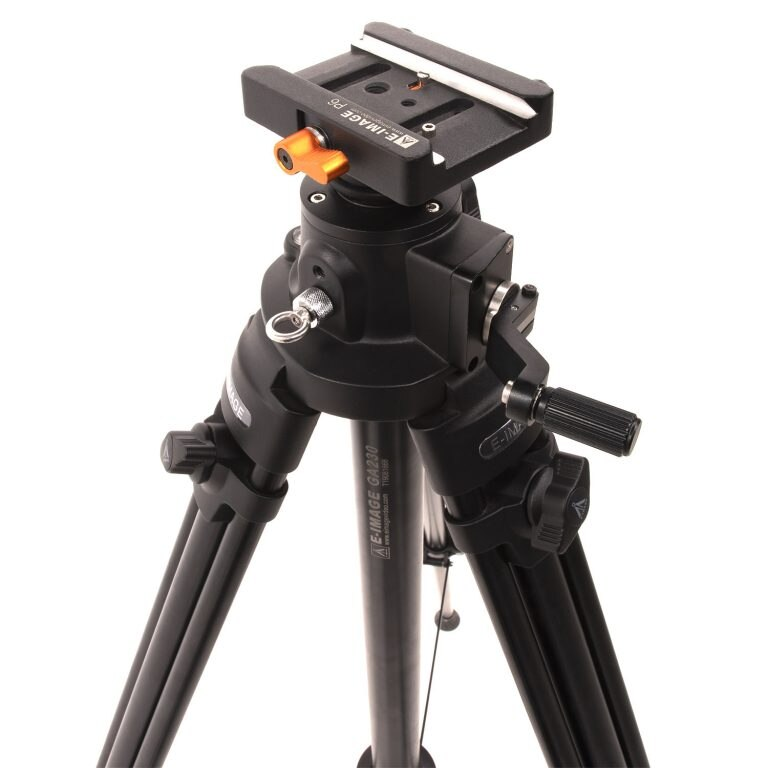

While the tripod legs are still absolutely essential for stability, using a PTZ camera eliminates the need for a tripod head. The GA230S-PTZ replaces the fluid head with a P6 Quick-Release plate, creating a more straightforward solution.

Heightened Versatility, Elevated Shots

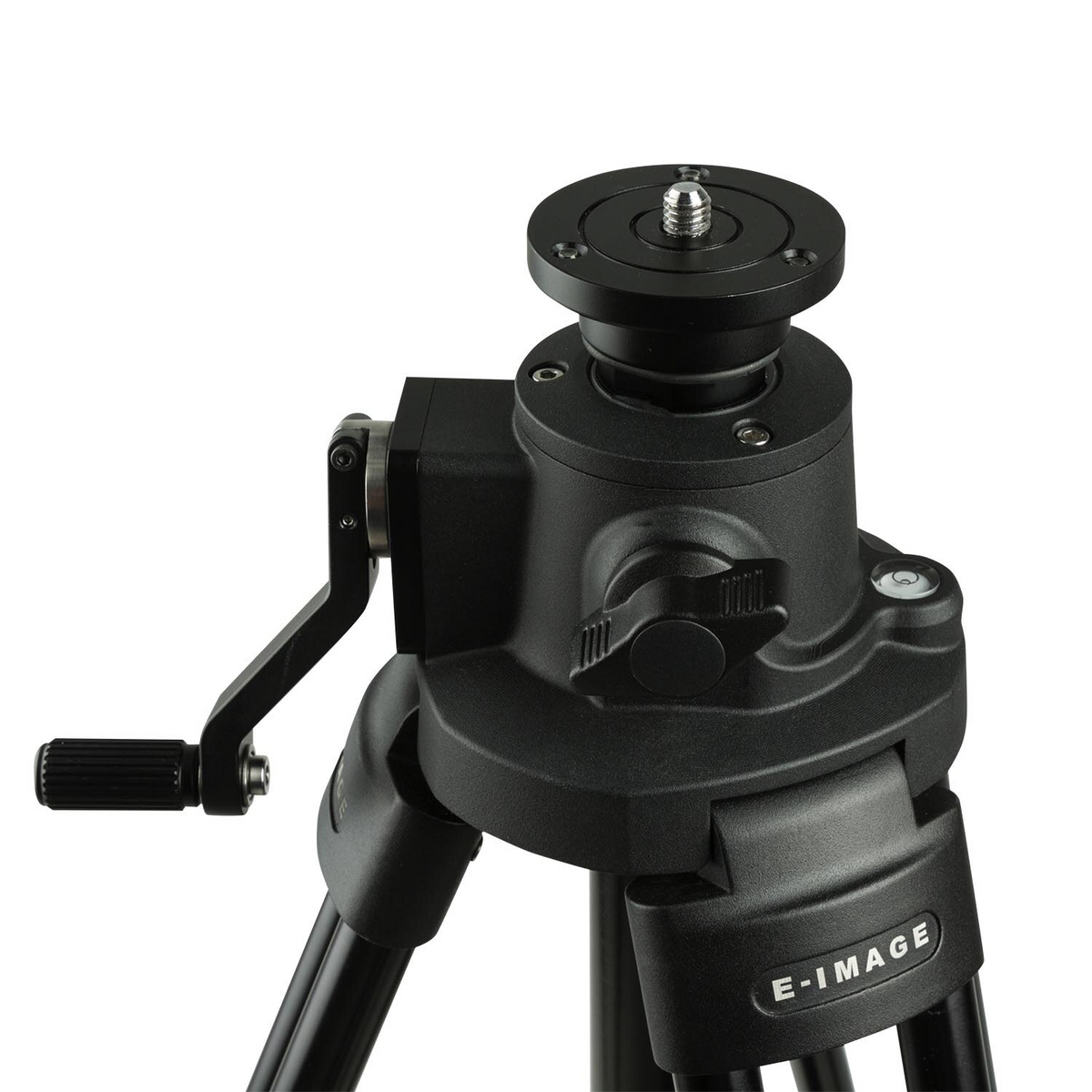

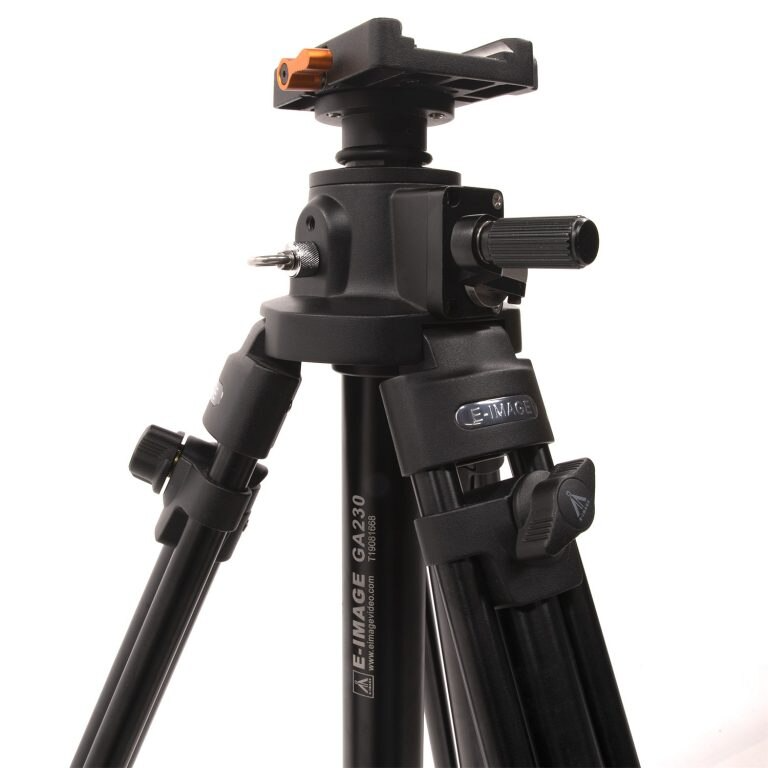

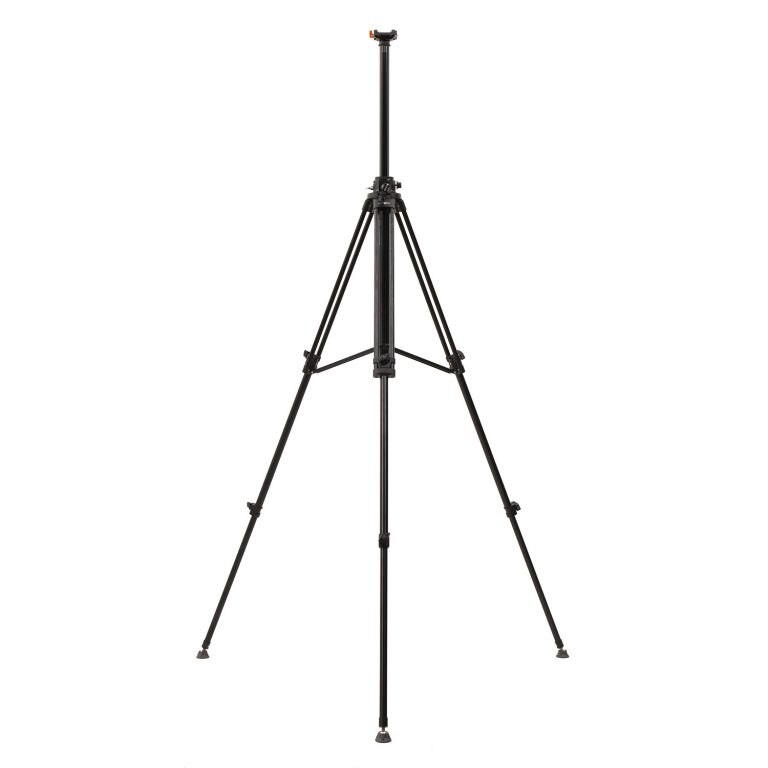

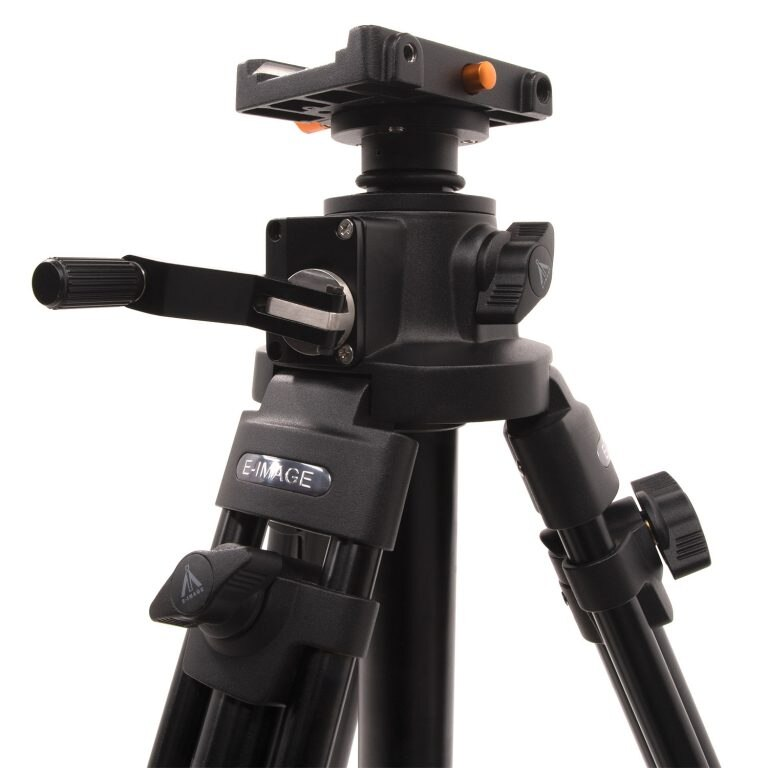

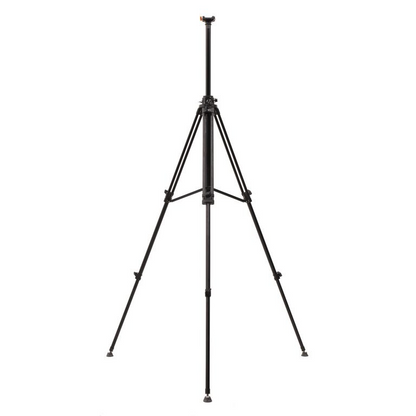

The geared center column of the tripod can extend 18″ and lock in place for high-angle shots. When mounted to the dolly, the tripod has a height range of 38.9″ – 98.3″, and is topped off by a flat mounting base with a 3/8-16 threaded screw.

Stability

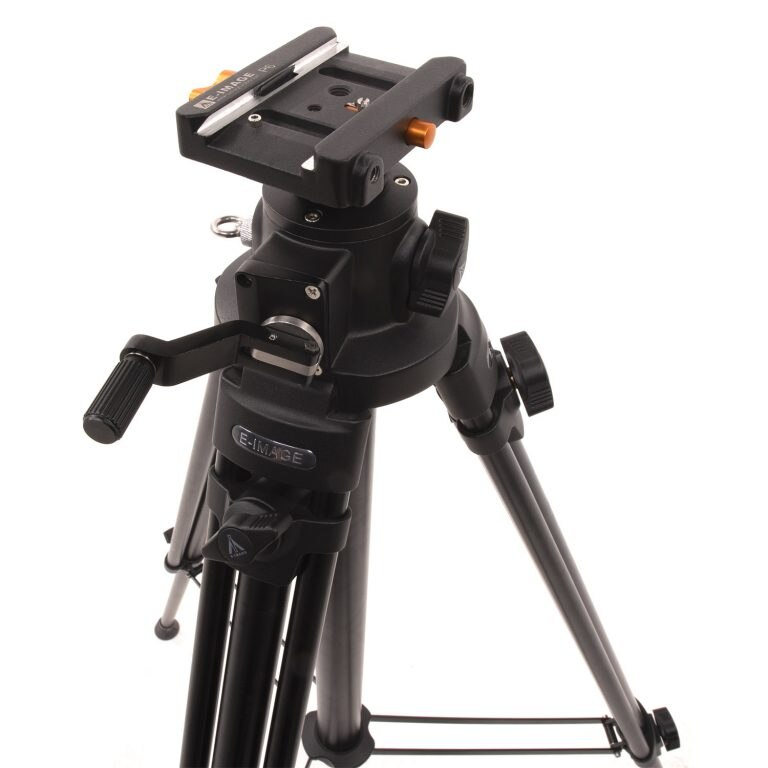

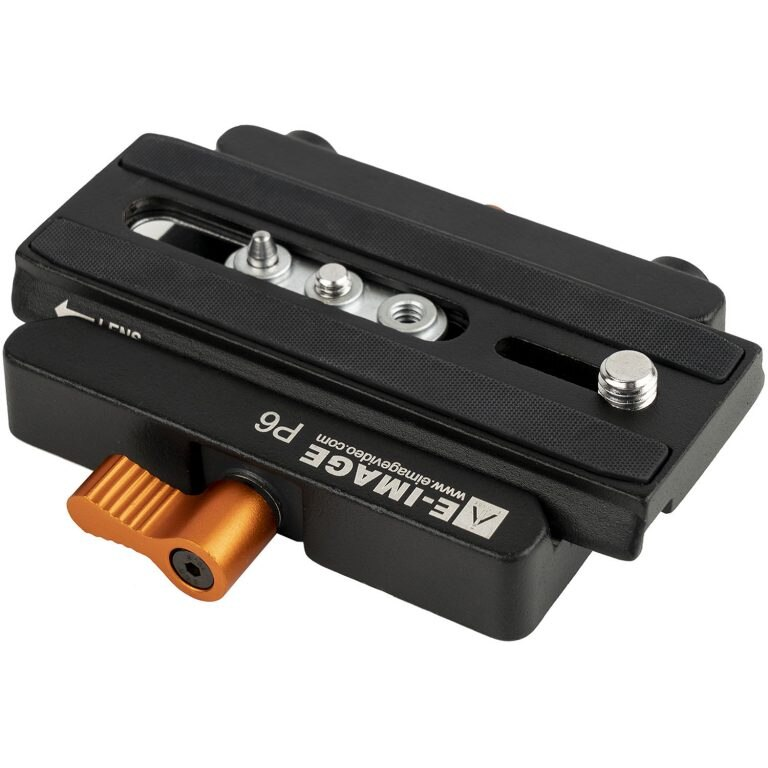

The GA230D-PTZ can hold up to 26.5 lbs and comes packaged with a flat quick release plate for extra stabilization. Also included is a camera plate that can slide forward or backward before being secured by the lock-down lever. Additionally, a safety release ensures that the camera won’t fall off the plate if it’s not secured. The camera plate is also interchangeable with Manfrotto 501 plates. The P6 plate includes a spring-loaded thumb screw that will allow you to fasten the tripod plate without ever touching the camera. This works by pulling the thumb screw outwards away from the camera and readjusting the angle of the screw to continue tightening.

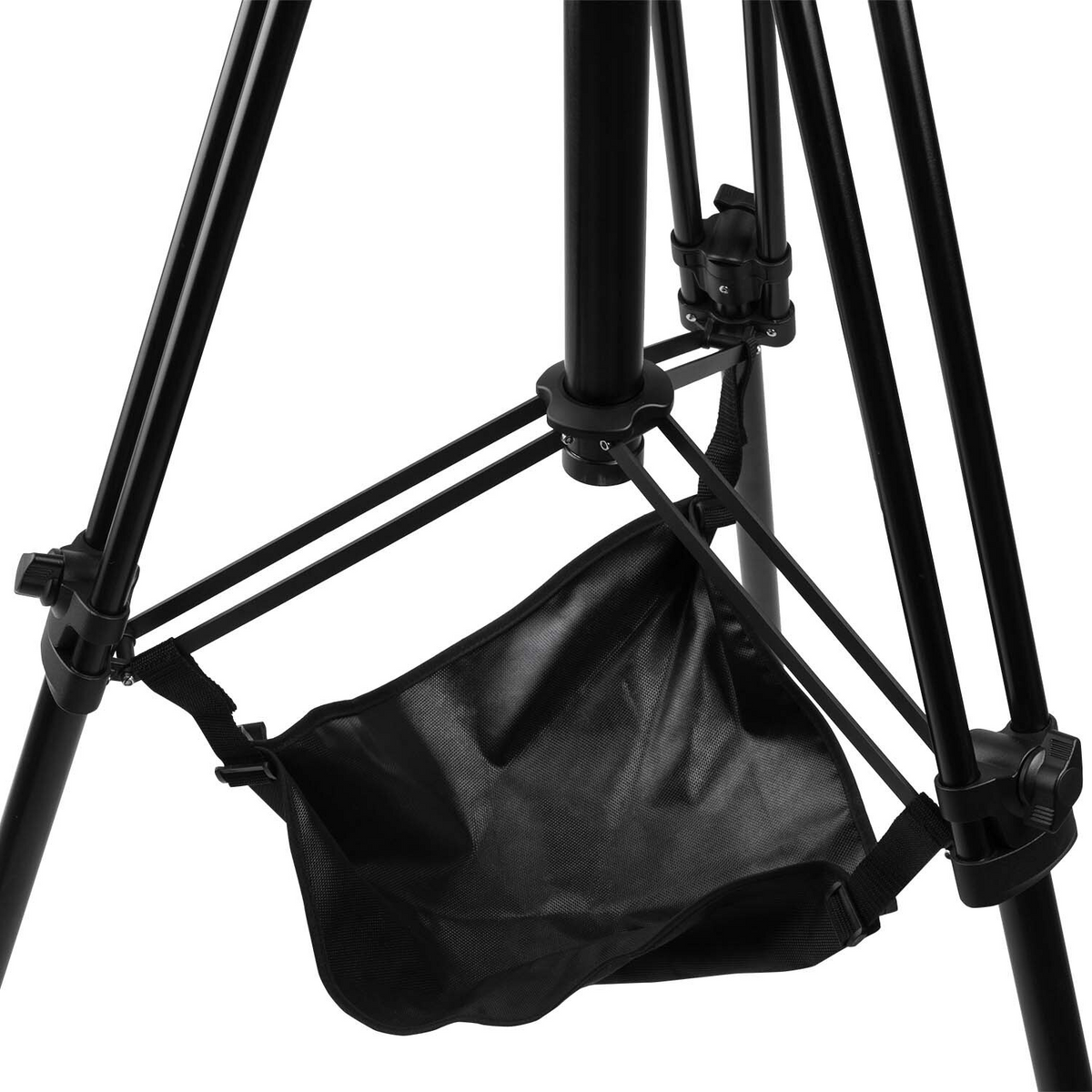

A stone bag is also included to weigh down your tripod for added stability.

Multiple Mounting Points

A threaded 1/4″-20 mounting recess is conveniently located at the base of the central column for mounting accessory arms. These will allow for mounting wireless transmitters, lights, or especially monitors, which you might need if your camera is set at the tripod’s full extension. Additionally, the quick-release plate itself also includes two mounting recesses; a 1/4″-20 thread and a 3/8″-16 thread. These would be ideal for mounting lighter accessories like a shotgun mic, LED light, or any other accessories you might need.

Bubble Level

The quick release plate incorporates a bubble level to assure proper head alignment when shooting.

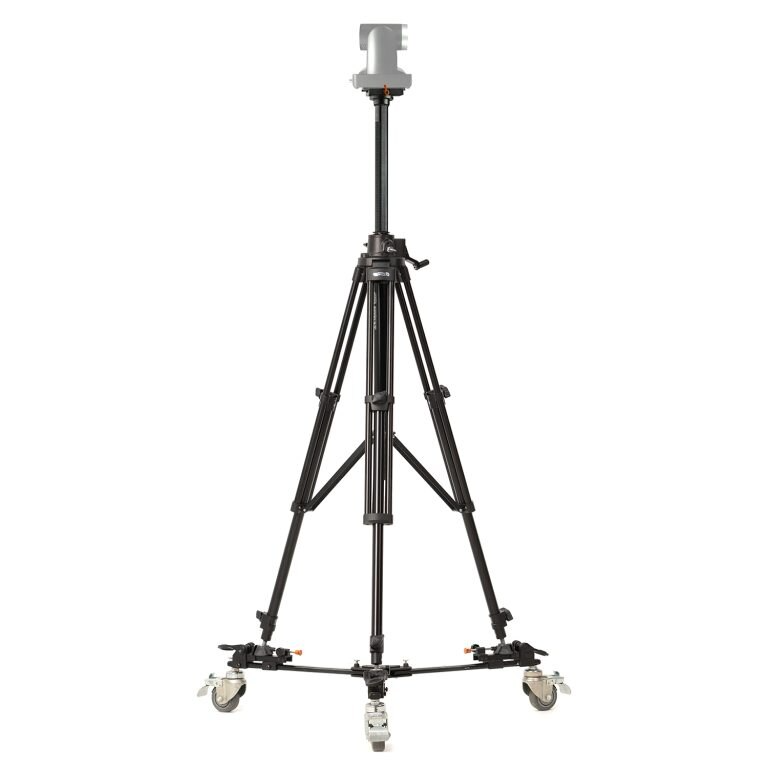

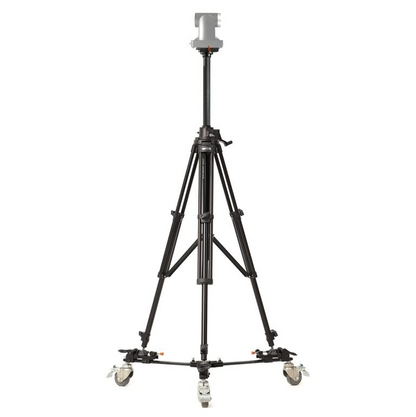

HEAVY-DUTY DOLLY

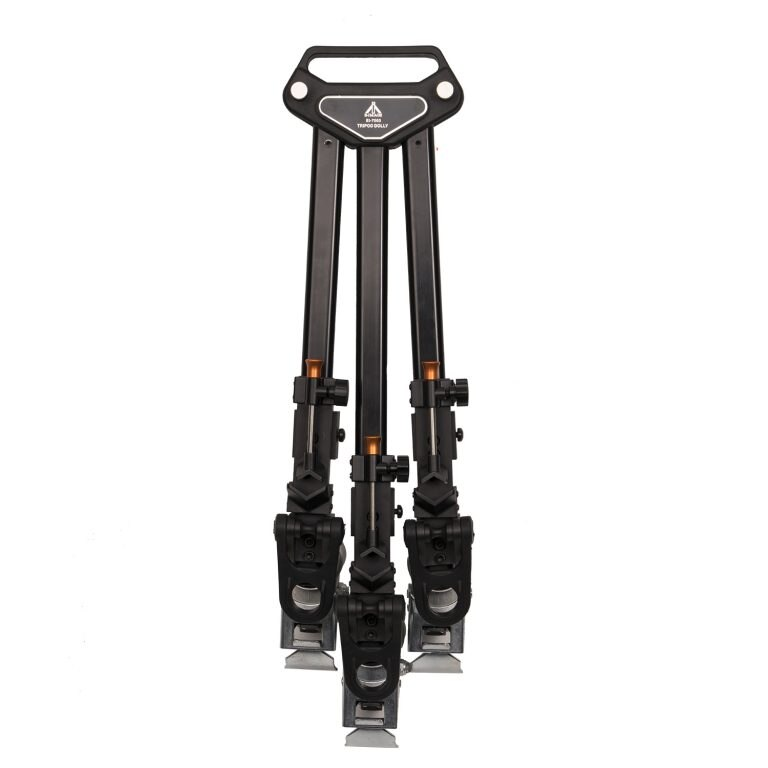

The dolly supports up to 88.2 lbs and is ideal for moving tripods along a flat surface for quick repositioning between shots. The adjustable rubber foot mounts provide a quick and easy setup. This dolly is perfect for both studio and on-location use and offers a much more safe & convenient transport.

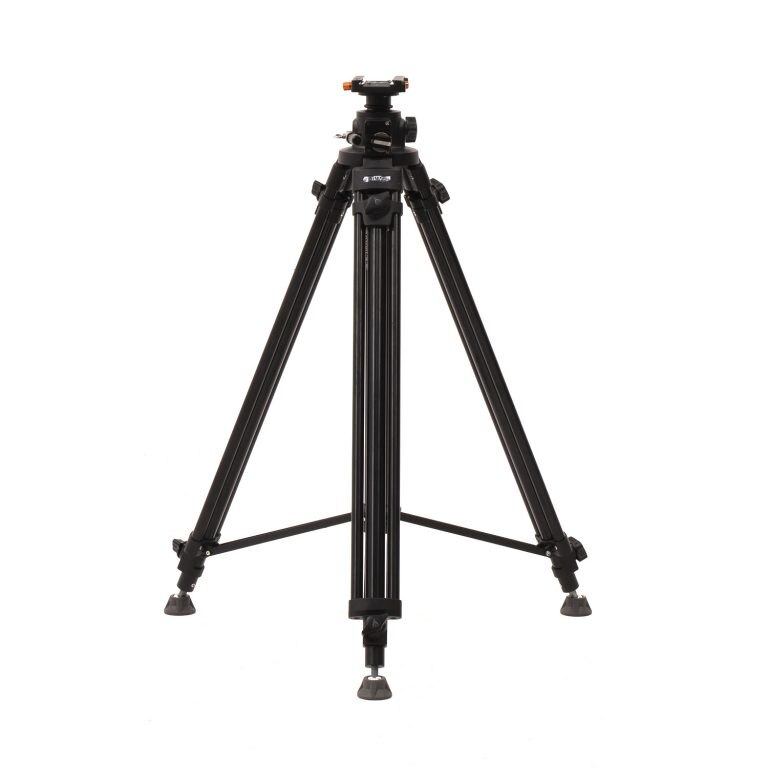

Tripod Legs

• Material: Anodized aluminum alloy
• Head Attachment Fitting: Flat Base
• Leg Stages/Sections: Two-Stage / Three-Section
• Leg Lock Type: Rotary clamp
• Spreader: Mid-Level
• Spiked/Retractable Feet: Yes/Yes
• Load Capacity: 26.5 lbs. / 12 kg
• Height Range: 33.1 in ~ 90.6 in. / 84 cm ~ 230 cm
• Transport Length: 35.0 in. / 72 cm.
• Weight: 8 lbs. / 3.6 kg.
• Elevator Height: 16.9 in./43 cm

Dolly

• Net Weight: 8.6 lbs./3.9 kg
• Footprint Diameter: 39.4 in./100 cm
• Height: 5.7 in./14.5 cm
• Radius: 19.7 in./50 cm
• Wheel Width: 2.95 in./75 mm
• Lockable Wheels: Yes
• Build Material: Legs: Aluminum | Wheels: Rubber | Screws: Steel
• Payload: 88.2 lbs./40 kg.

Quick Release Plate

• Dimensions: 4.7" x 3.9 x 1""
• Net Weight: .7 lbs

• 1 x GA230 Tripod Legs
• 1 x EI-7003C Universal Tripod Dolly
• 1 x P6 Quick Release Plate
• 1 x Tripod Shoulder Strap
• 1 x Stone Bag
