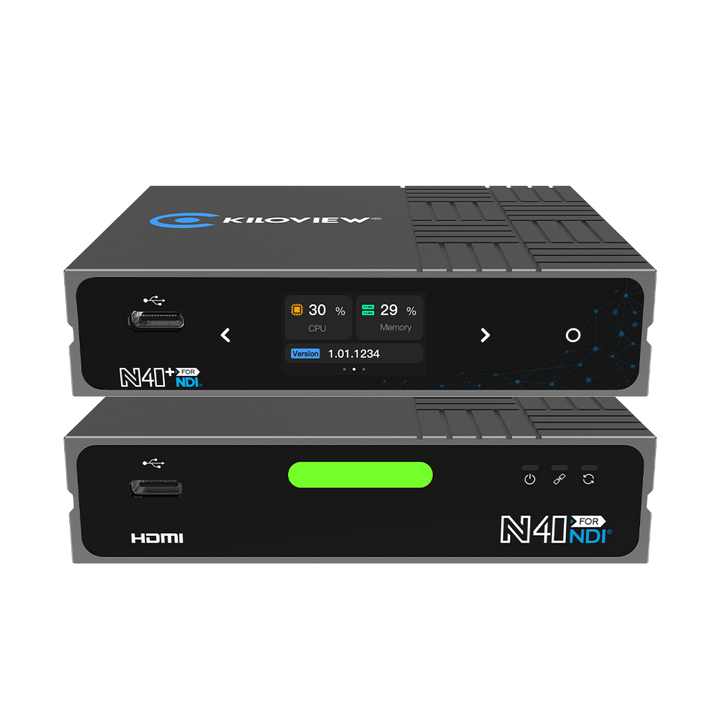

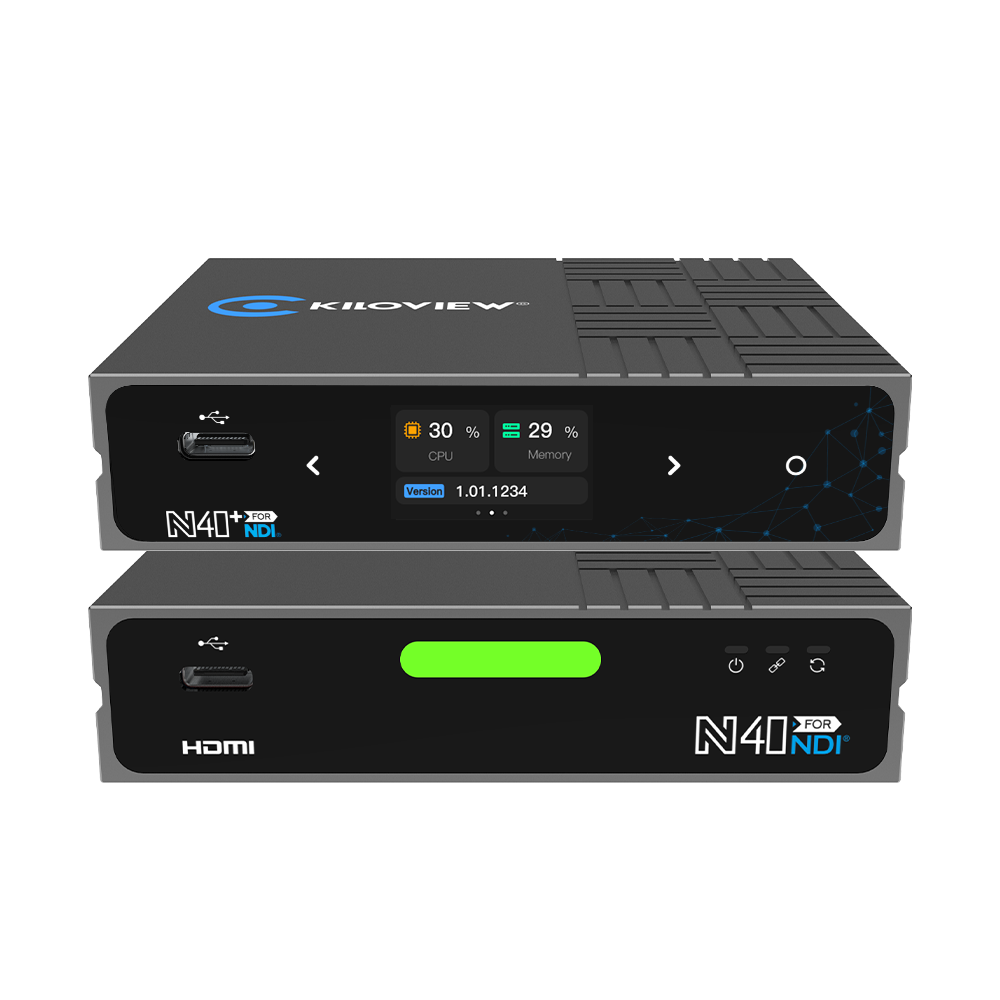

Kiloview 4K P60 HDMI encoder/decoder

Kiloview 4K P60 HDMI encoder/decoder converter is a bi-directional device that supports 4Kp60 HDMI video encoding to NDI High Bandwidth with loop-through for monitoring, as well as decoding NDI High Bandwidth to 4K HDMI video output.

Equipped with advanced features like PoE, a built-in Tally/LCD screen Tally, PTZ control, 3.5mm audio mic input, 16-channel audio support, and intercom functionality, Kiloview 4K P60 HDMI encoder/decoder is the ultimate solution for seamlessly entering the world of NDI!

Why NDI?
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.

NDI Webcam Input
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI webcam input tool.

Real 4K, Really Professional
Featuring HDMI 2.0 interfaces, N40/N40 Plus support true 4Kp60 video input, converting it to NDI High Bandwidth with loop-through for monitoring. They also enable NDI High Bandwidth to 4K HDMI output, delivering exceptional image quality as true 4K NDI converters.

Dual Functionality: NDI Encoder and Decoder
These compact devices (100*80*28mm for N40 and 100*95*23mm for N40 Plus) offer both NDI encoding and decoding, giving you two functionalities for the price of one. Simply switch the working mode via the user interface to suit your workflow needs.

Audio Intercom

• Kiloview N40/N40 Plus support 3.5mm analog audio mic in or embedded audio.
• They also support voice intercom by USB headset with Kiloview Intercom server.

Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.

LCD Screen and Versatile Tally Displays

• N40 Plus, in addition to the rear-mounted tally light, has a 1.14”LCD screen that serves as an additional tally display and allows you to monitor device status, switch modes, and more – all is to ensure perfect cooperation for your team.
• N40 features a bright and clear tally light for PVW/PGM with an additional tally light on the back panel.

PTZ Control
Kiloview N40/N40 Plus support PTZ control via USB to serial RS232/485/422, as well as IP-based PTZ control, requiring no additional cables.

Power and Data
With PoE, N40/N40 Plus can be powered with a single Ethernet cable. Additionally, it supports USB PD fast charging via USB, and can also be powered by a wide DC input range of 5V to 18V, camera batteries, or other compatible power sources.

Various mounting methods

• Exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.
• N40 4k HDMI NDI bi-directional converters in rack-mounted forms
  The groove design on both sides facilitates the rackmount installation in 1U/3U

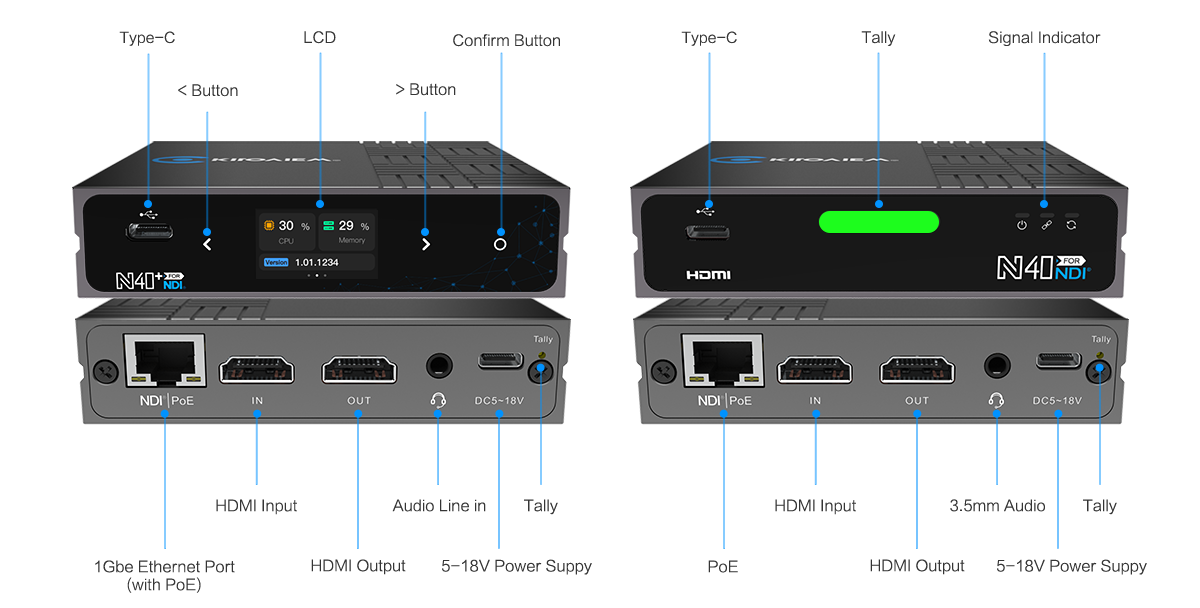

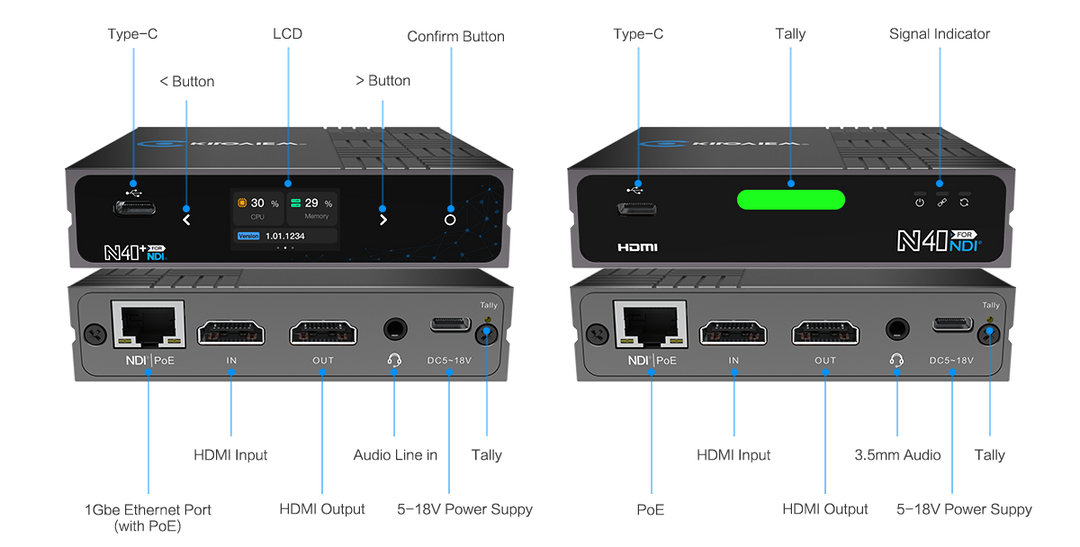

Diagram of Appearance of N40/ N40 Plus

Compatible with TriCaster, vMix, OBS and other platforms, so your video production can be carried out anytime, anywhere.

Model

• 3840x2160p 60/59.94/50/30/29.97/25/24/23.98fps
• 2048x1080p 60/59.94/50/30/29.97/25/24/23.98fps
• 1920x1080p 60/59.94/50/30/29.97/25/24/23.98fps
• 1920x1080i 60Hz/59.94/50fps
• 1280x720p 60Hz/59.94/50/30/29.97/25/24/23.98fps

Video Output

• 3840x2160p 60/59.94/50/30/29.97/25/24/23.98fps
• 2048x1080p 60/59.94/50/30/29.97/25/24/23.98fps
• 1920x1080p 60/59.94/50/30/29.97/25/24/23.98fps
• 1920x1080i 60Hz/59.94/50fps
• 1280x720p 60Hz/59.94/50f/30/29.97/25/24/23.98ps

Audio port

• 1*3.5mm Line in/out

Network

• 1*RJ45 1000Mbps Ethernet port (with PoE)

Video Resolution

• Up to UHD 4K60 (backward compatible with SD/HD/VESA)

NDI codec capacity

• 1x NDI encoding or 1x NDI decoding

NDI CODEC feature

• NDI High Bandwidth HD encoding, typical bitrate: 250Mbps@4K60, 125Mbps@1080p60

LCD Screen

• Support

LED indicator

• Tally light, power light and status connection light

Power

• PoE, USB PD fast charging (via USB), wide DC input range (5V-18V)

Voice intercom

• Customization

PTZ Control

• Network PTZ and Serial Port

DHCP

• Support

Management

• Web Console/ remote management with KILOVIEW KiloLink Server

Power Consumption

• 6w

Operating temperature

• -20~45℃ (Storage temperature: -20~70℃)

Dimensions

• 100x80x24 mm

1 X 4K P60 HDMI encoder/decoder
