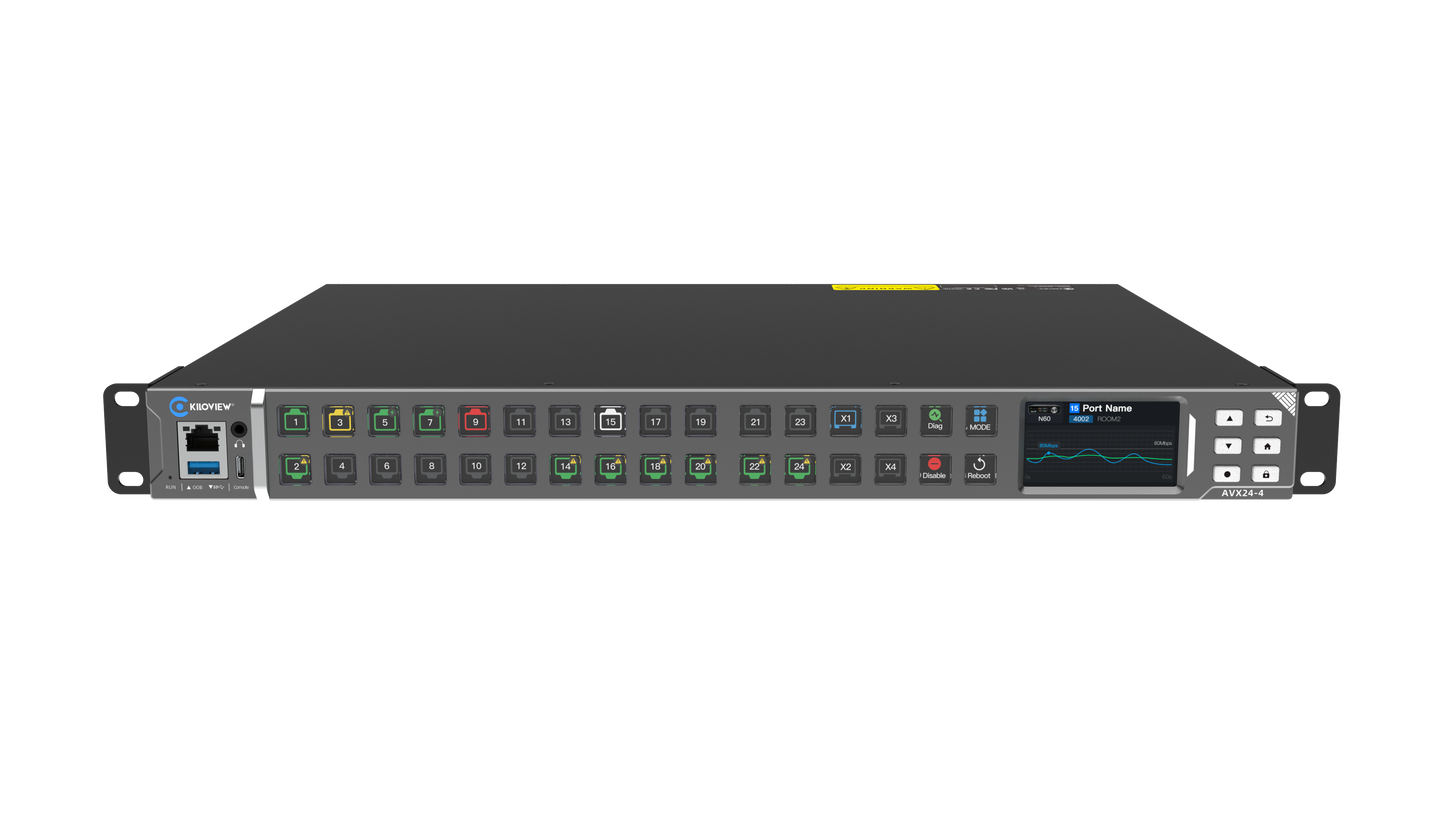

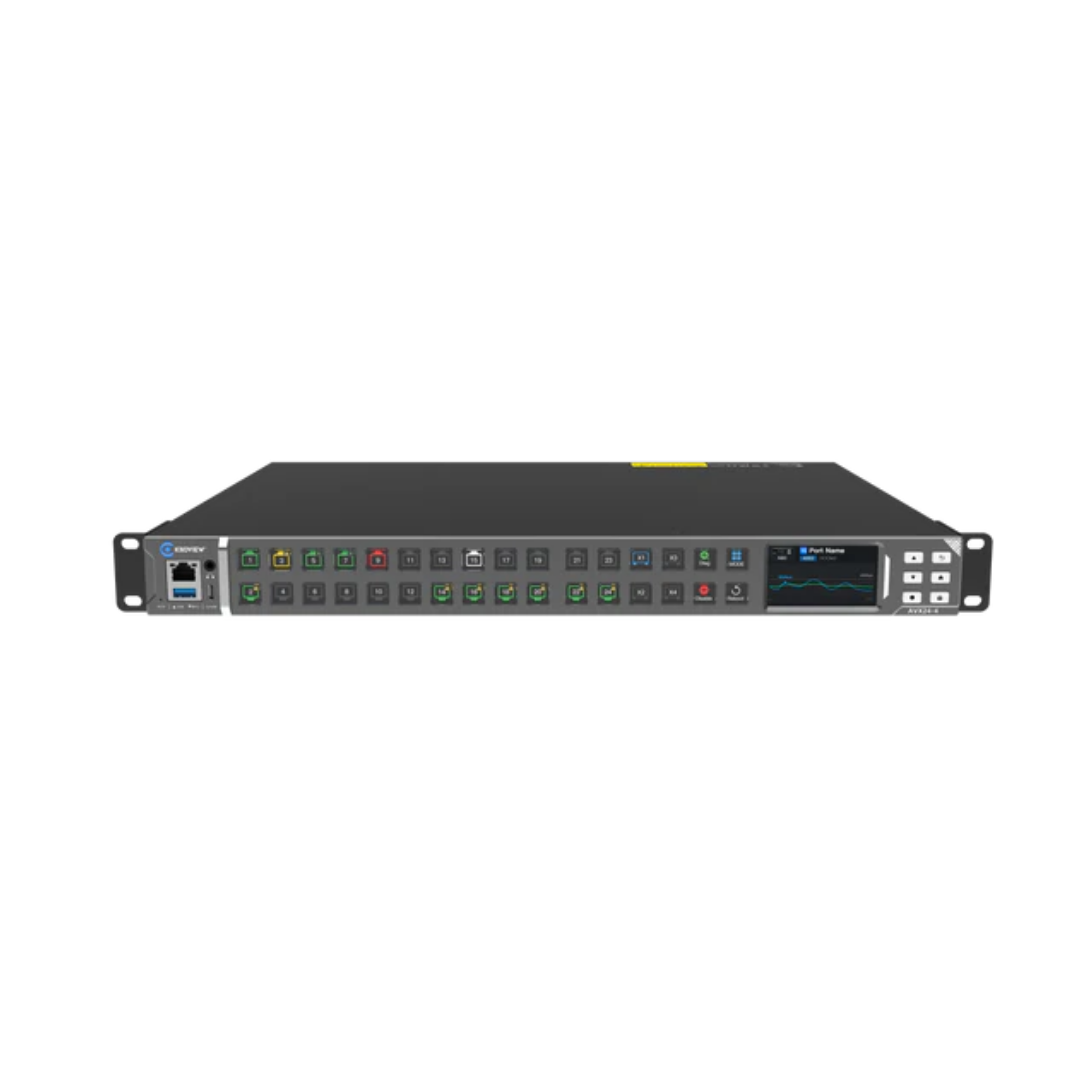

Kiloview AVX24-4 Media HUB

AVX24-4 Media HUB, Kiloview’s next-generation IP and media management platform, is designed to simplify, visualize and elevate AV-over-IP workflows. As a central media hub, it integrates visualized network topology, intelligent diagnostics, NDI-optimized routing, and centralized device management into one compact system.

Leveraging Kiloview’s extensive AV expertise and professional IT background, AVX24-4 Media HUB comes with pre-configured, optimized network architecture, supporting DHCP, IGMP Snooping, QoS prioritization, VLANs, and other AV network strategies to ensure broadcast-grade reliability with seamless NDI routing and PTP synchronization.

With functions such as intelligent diagnostics, real-time monitoring, it provides instant network health visibility, while intuitive controls and KiloLink Server integration make large-scale operation fast and effortless. Robust hardware, redundant power, and advanced cooling guarantee continuous and reliable operation.

By turning complex IP AV infrastructures into simple, efficient, and visualized workflows, AVX24-4 Media HUB bridges IT complexity and AV operation, enabling studios, production centers, and enterprise environments to efficiently manage professional IP media networks.

See, Manage, and Monitor Your AV Network Clearly
AVX24-4 Media HUB provides a real-time visual map of your AV-over-IP network, showing devices, connections, and ports in one unified view. You can understand the system, locate issues quickly, and take action directly from the map.

Real-Time Network Topology View
Displays all connected AV devices in an interactive, zoomable layout for small or large deployments.

Device-Level Visibility
Each device shows its name, model, operational status, and connection paths, making it easy to trace signal flow.

Topology-to-Port Mapping
Visually links each device to its exact switch port, allowing quick cabling checks port-level issues identification.

Direct Control from the Map
Perform diagnostics, access device management, or reboot devices directly from the topology view, reducing operational steps and response time.

Visual Status Indicators & Alerts
Color-coded indicators and alerts highlight abnormal devices, links, or network conditions for faster fault identification and monitoring.

Intelligent Diagnostics & Monitoring for Instant Network Issues
AVX24-4 Media HUB gives you confidence in your AV network. It provides fast and flexible network visibility and intelligence to ensure your AV network stays fully connected and performing without interruption.

• Multiple Diagnostics Options: One-click, global, and single-device diagnostics for fast, flexible network analysis.
• Continuous Network Monitoring: Real-time SNMP-based monitoring tracks link status, latency, and throughput with color-coded feedback and automatic logs.
• Automatic Issue Detection: Anomalies are flagged visually, with end-to-end analysis ensuring full connectivity.

Enjoy Seamless NDI Routing with Zero Compromise
AVX24-4 Media HUB delivers broadcast-grade, low-latency NDI routing with sub-frame switching, ensuring smooth, reliable, and seamless transitions between streams even in complex AV networks.

• Priority Stream Delivery: Critical NDI signals are automatically prioritized with Qos optimization.
• Flexible Matrix Switching: Clean, visual crosspoint interface for any-to-any NDI mapping.
• Intuitive Preset Routing: Effortlessly drag and drop sources with visual presets, and save or recall profiles for fast, repeatable workflows.

Scale Your AV Network with KiloLink Server
AVX24-4 Media HUB lets you easily expand your AV network by connecting multiple units, improving overall bandwidth and enhancing redundancy for more robust operation. When paired with KiloLink Server, all AVX units and connected devices are shown in a single, centralized view, creating a full-network topology with easy management that makes large-scale deployment simple, intuitive, and fully under your control.

Effortless AV Device Management for Everyone
Based on AVX24-4 Media HUB’s visual interface, managing all your AV devices has never been simpler. It automatically discovers all *KDDS-enabled devices and seamlessly manage supported third-party devices, showing shows their details and real-time status. Anyone can control multiple AVX units and connected devices from the single interface, with remote operations that allow rebooting, renaming, or configuring—even across multiple switches. Tasks that once required IT expertise are now intuitive, making network management reliable and fully under control. *KDDS (Kiloview Device Discovery Strategy) is Kiloview’s proprietary protocol for device detection and management. It enables automatic discovery, real-time monitoring, and remote control of devices. Compatible third-party KDDS-supported products can also be seamlessly managed.

Precision Time Synchronization – PTP-Based Microsecond Accuracy
AVX24-4 Media HUB leverages IEEE 1588-PTP to deliver sub-microsecond synchronization across all connected devices, keeping multi-camera and multi-source workflows perfectly aligned.This ensures seamless, perfectly synced audio and video for smooth, broadcast-ready production.

Simple & Easy Control at Your Fingertips

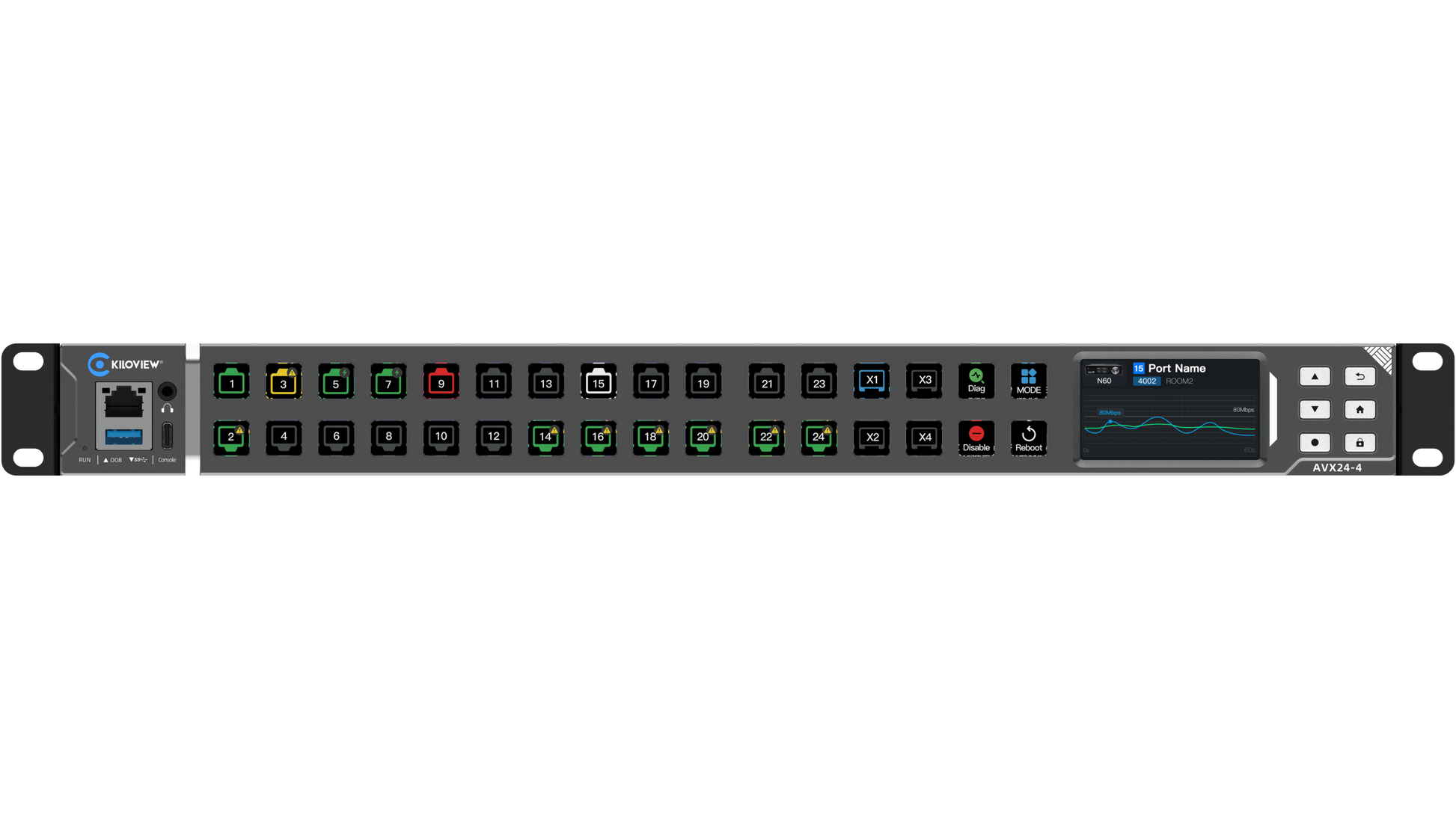

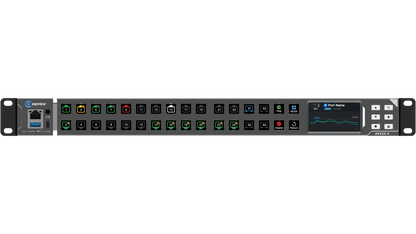

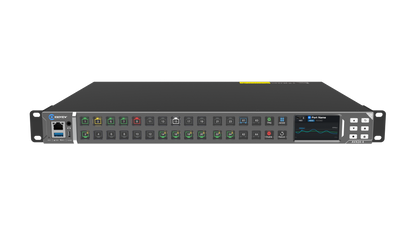

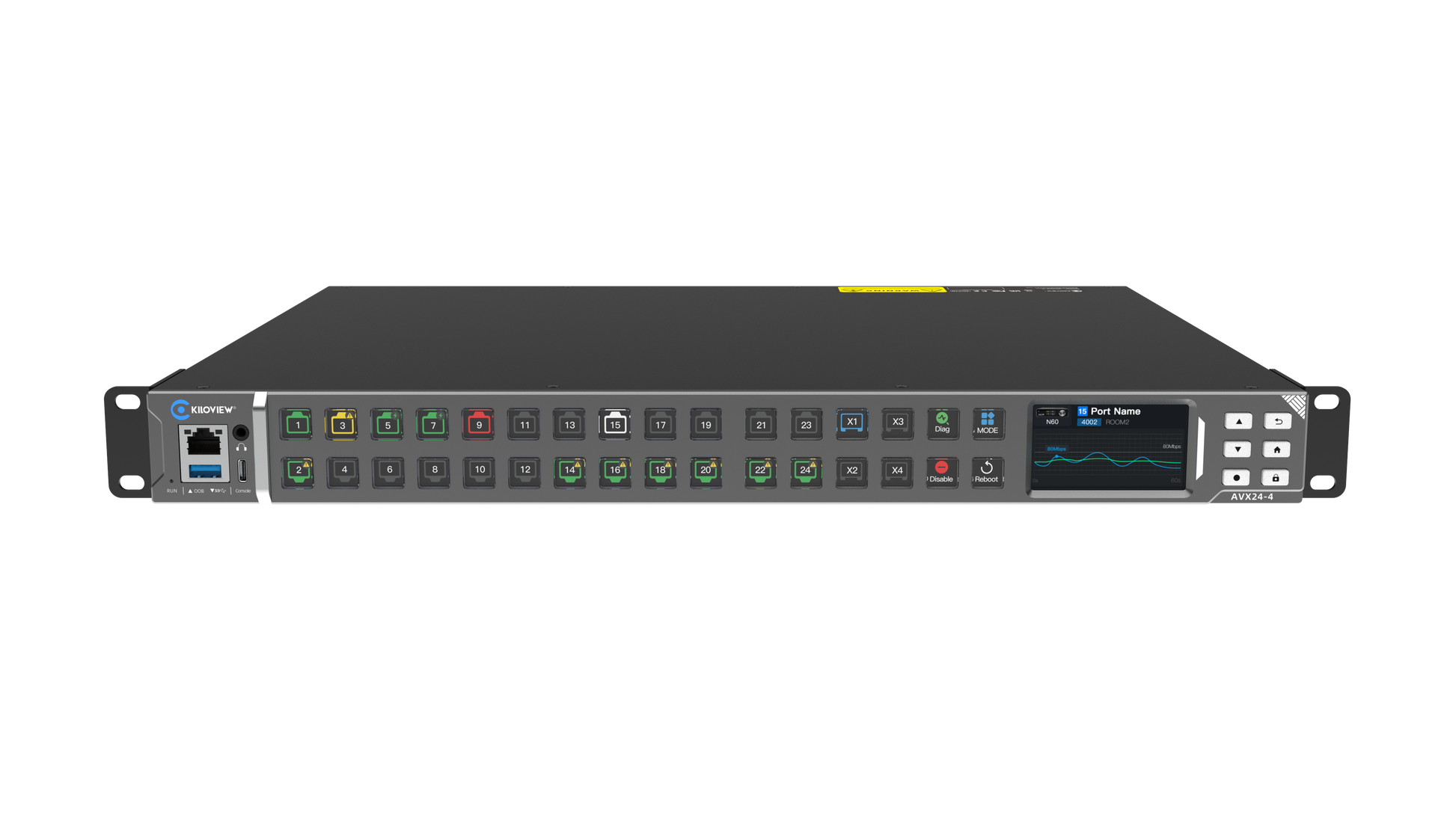

AVX24-4 Media HUB features a built-in physical control panel that enables fast, direct operation without a PC. The 22’’ high-resolution LCD and 32 customizable buttons provide clear feedback and quick access to key functions. With everything at your fingertips, you can monitor ports and system health, switch routes on the panel, and preview video with audio in real time. AVX24-4 Media HUB keeps daily AV operations fast, confident, and reliable.

Rock-solid 24/7 Reliability for High-performance Switching

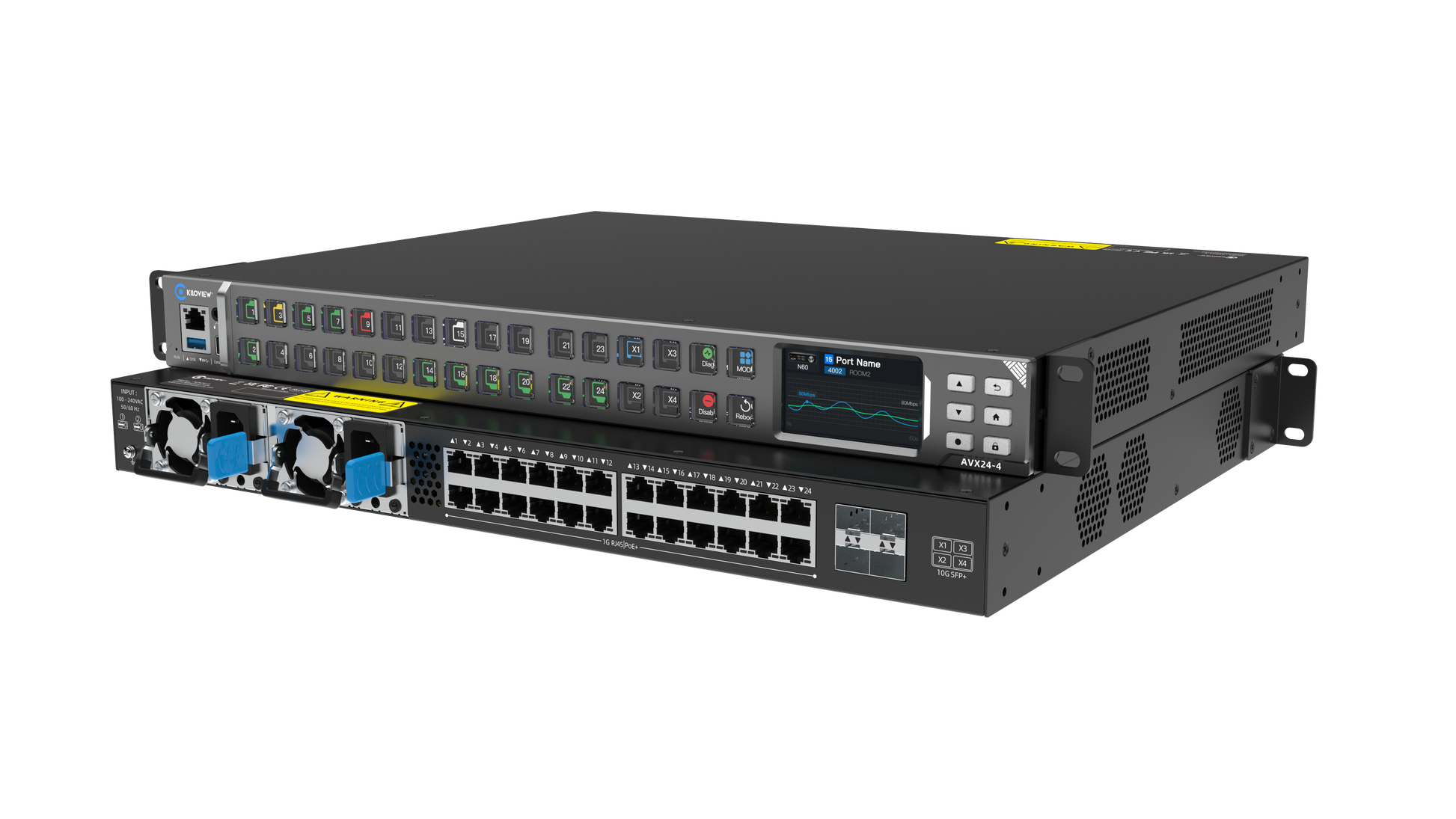

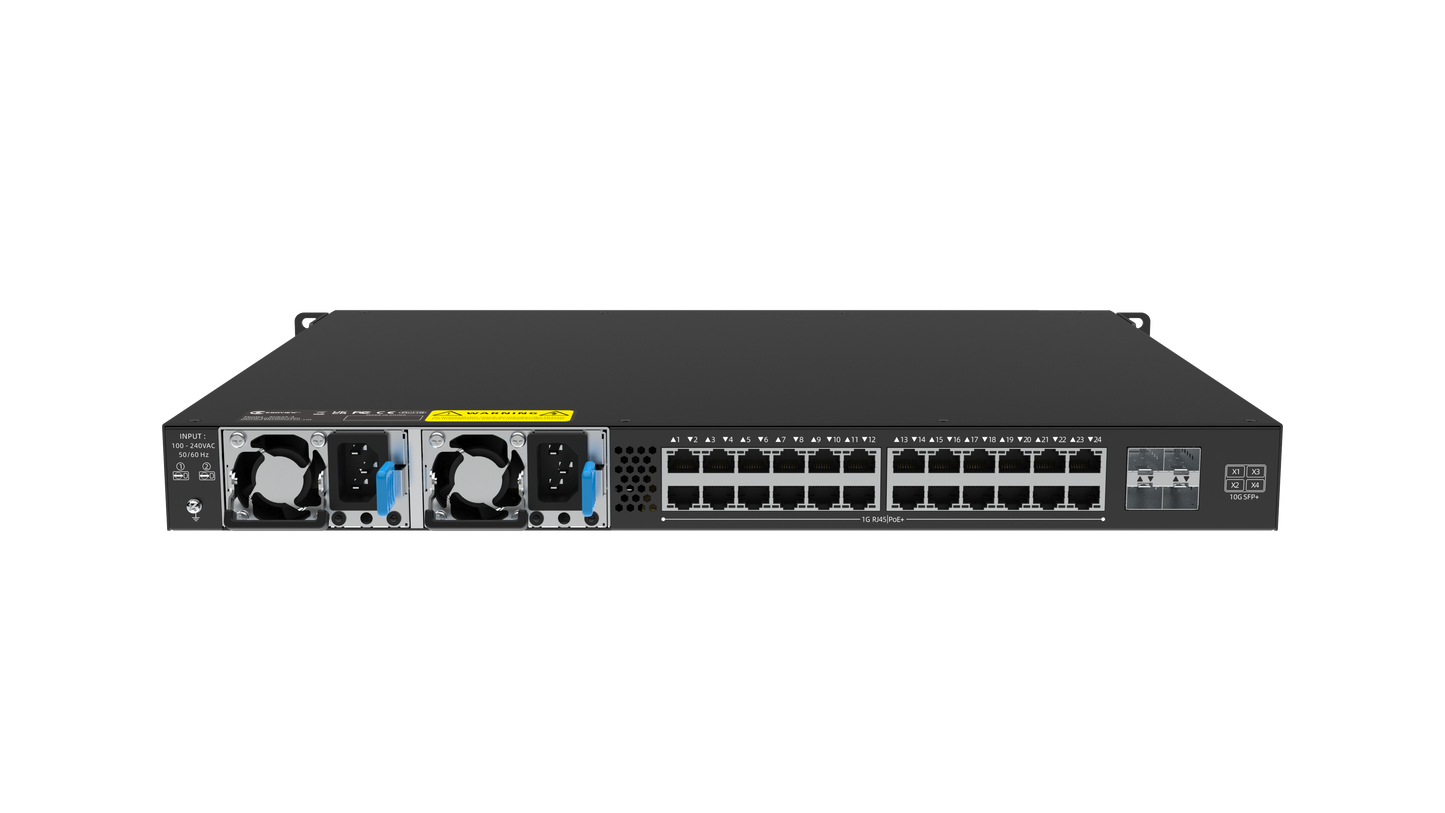

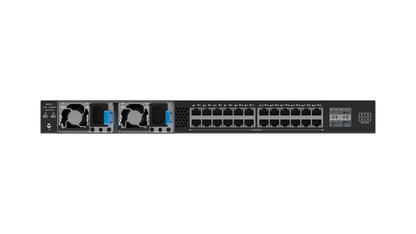

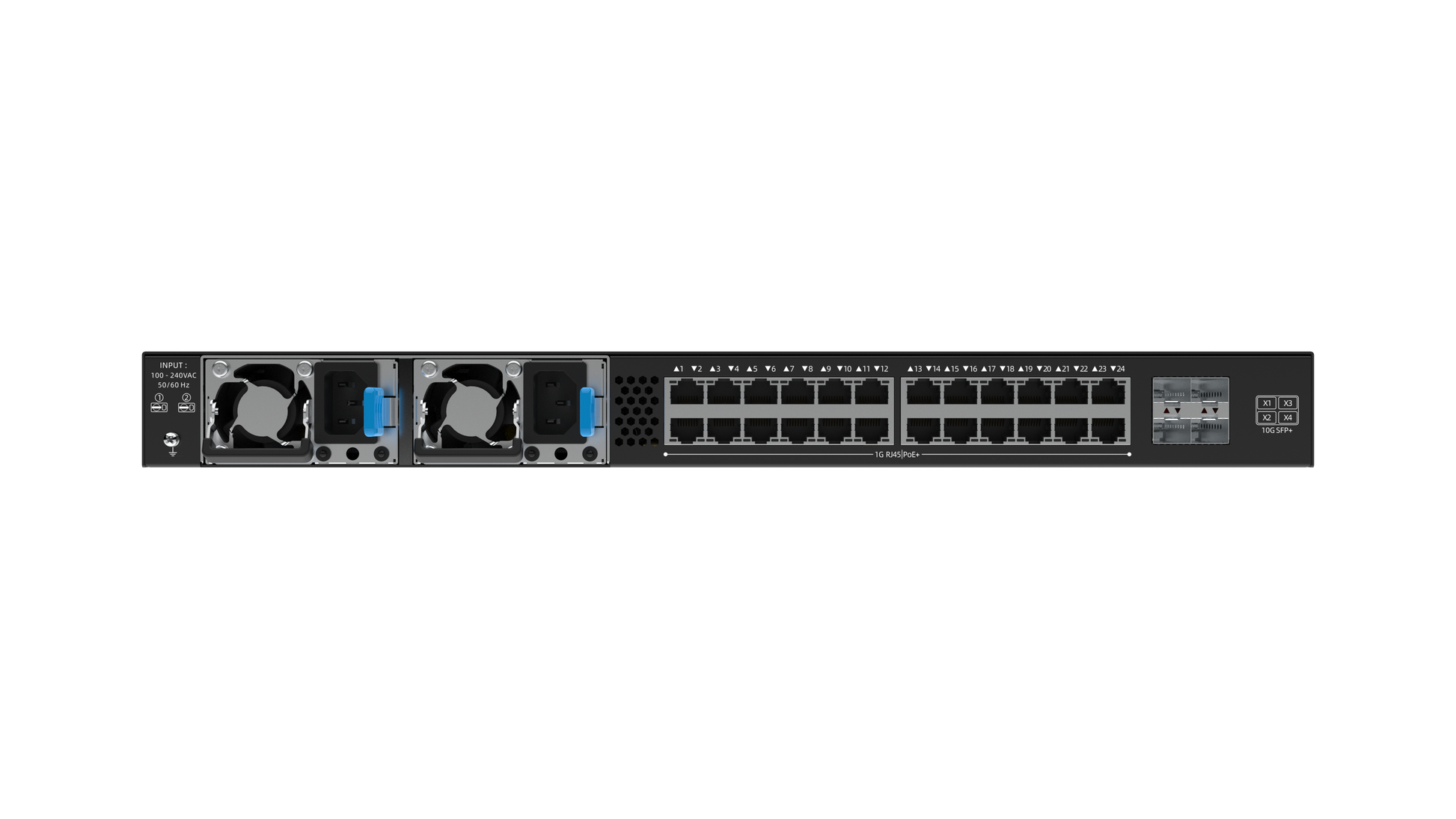

Built on a high-performance switching foundation, AVX24-4 Media HUB features 24 Gigabit PoE ports, 4×10G SFP+ uplinks, and a total switching capacity of 226 Gbps, pre-configured for AV workflows to ensure smooth, loss-free media delivery even in demanding, high-density scenarios. Advanced traffic management, VLAN support, IGMP Snooping, and ample MAC table capacity enable reliable aggregation and full-load operation, providing the backbone for stable and professional AV network performance.

Secure, Flexible Access for Your Team
AVX24-4 Media HUB keeps your AV network safe without slowing you down. Role-based permissions and customizable access policies protect critical systems, while enabling smooth, efficient collaboration across multiple users.

Reliable, 24/7 Professional Performance

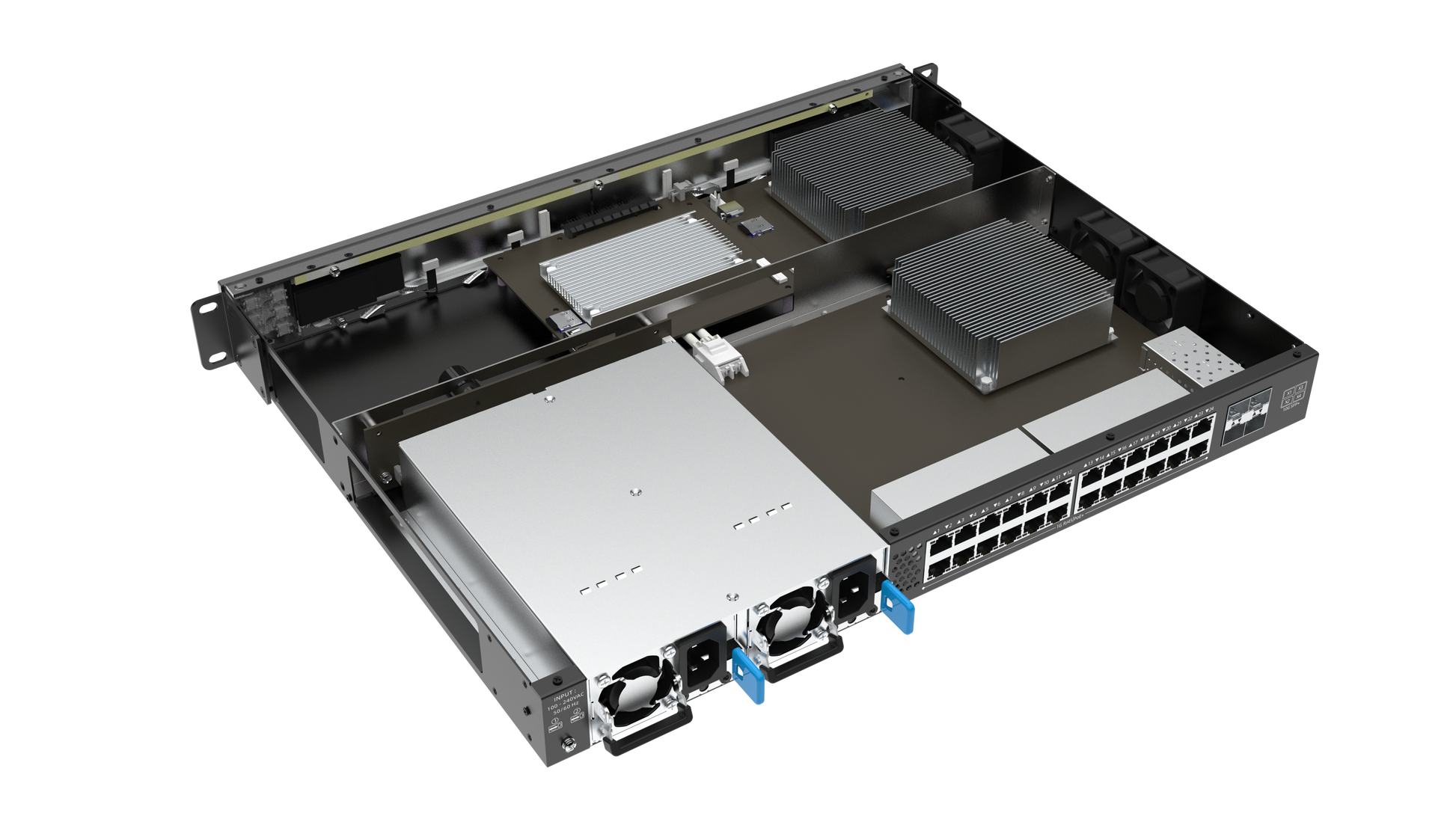

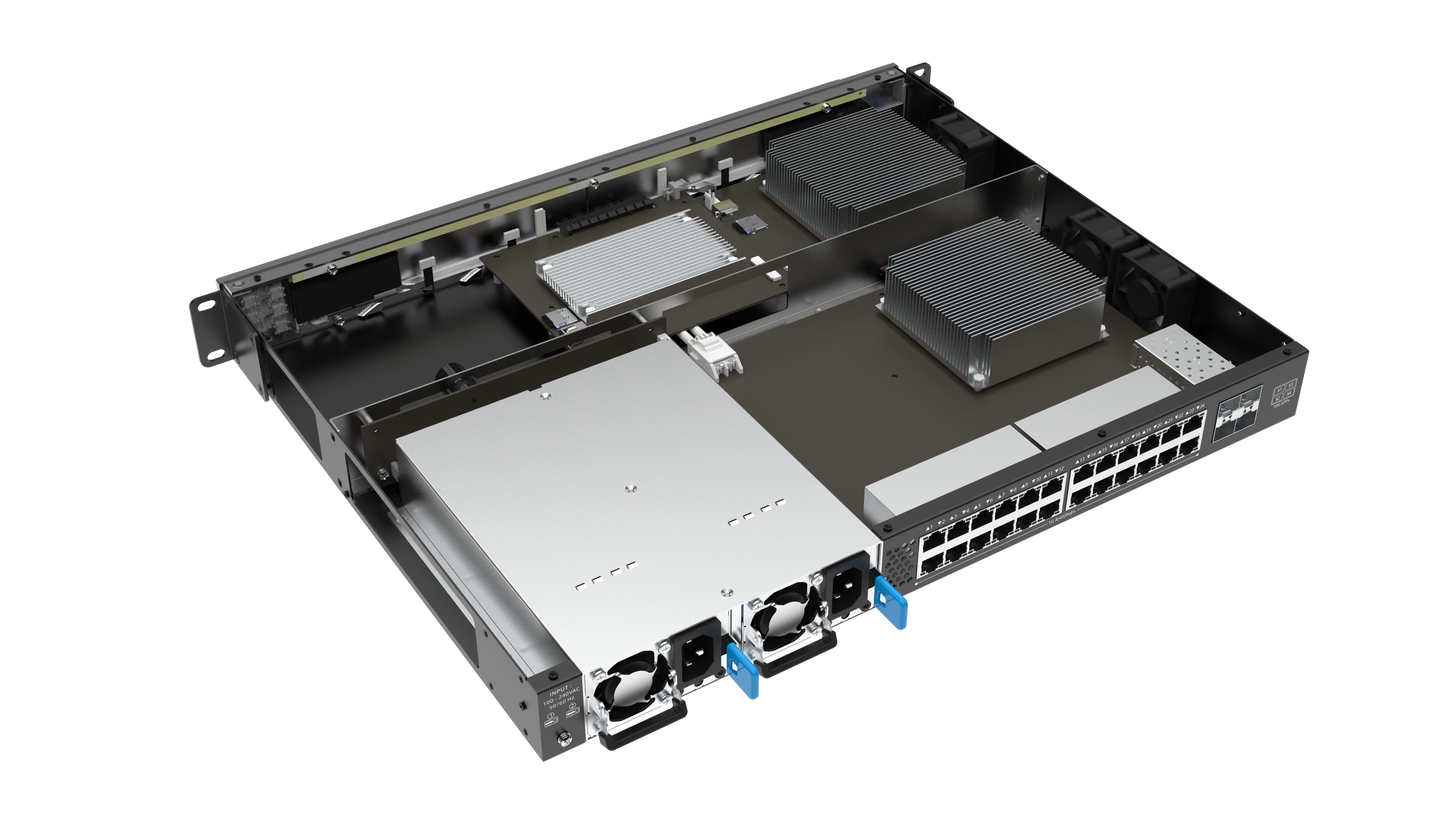

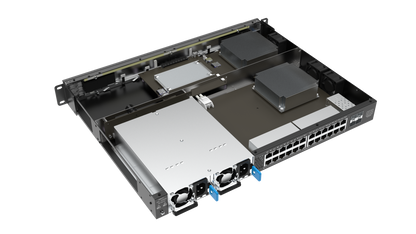

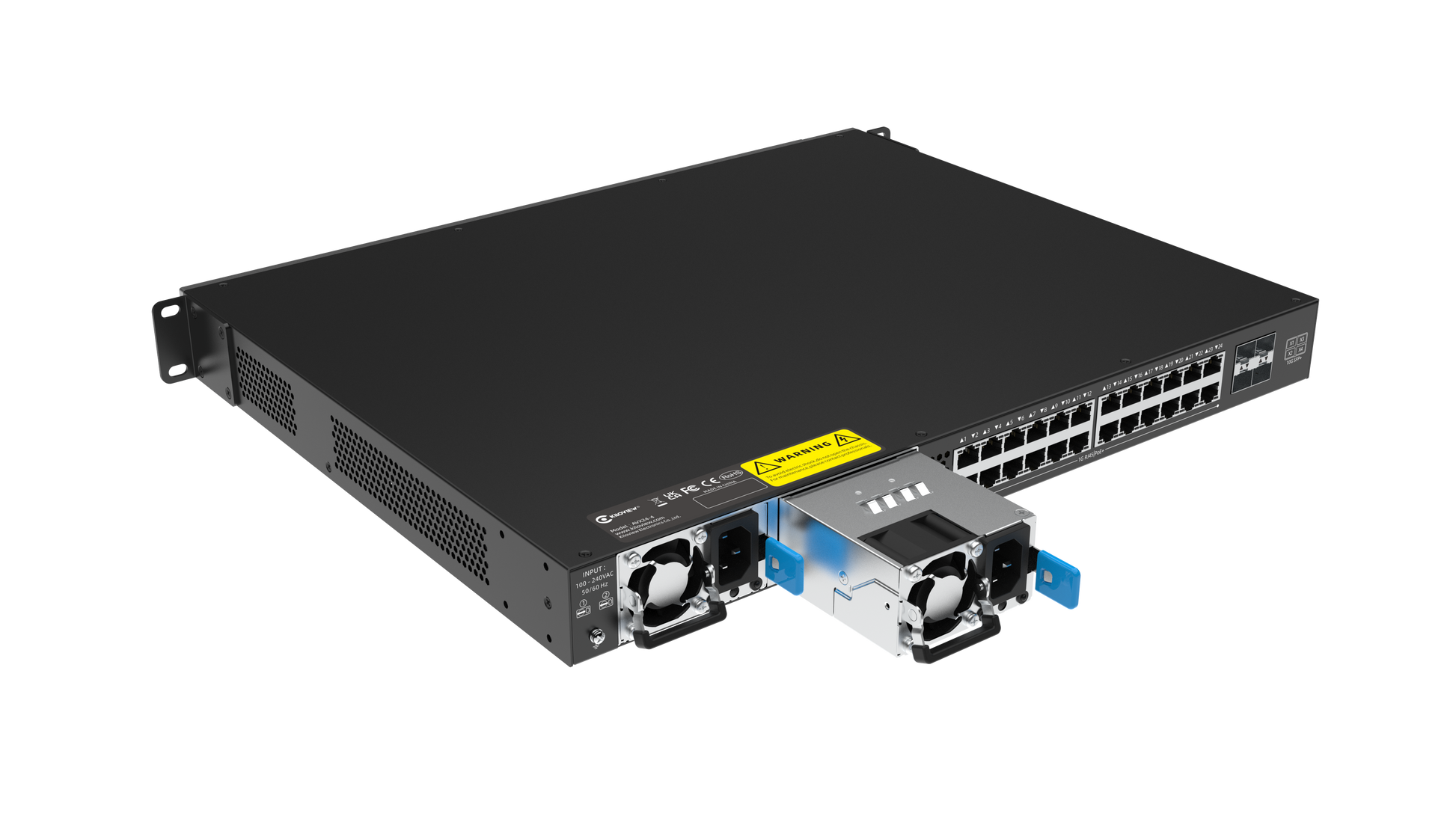

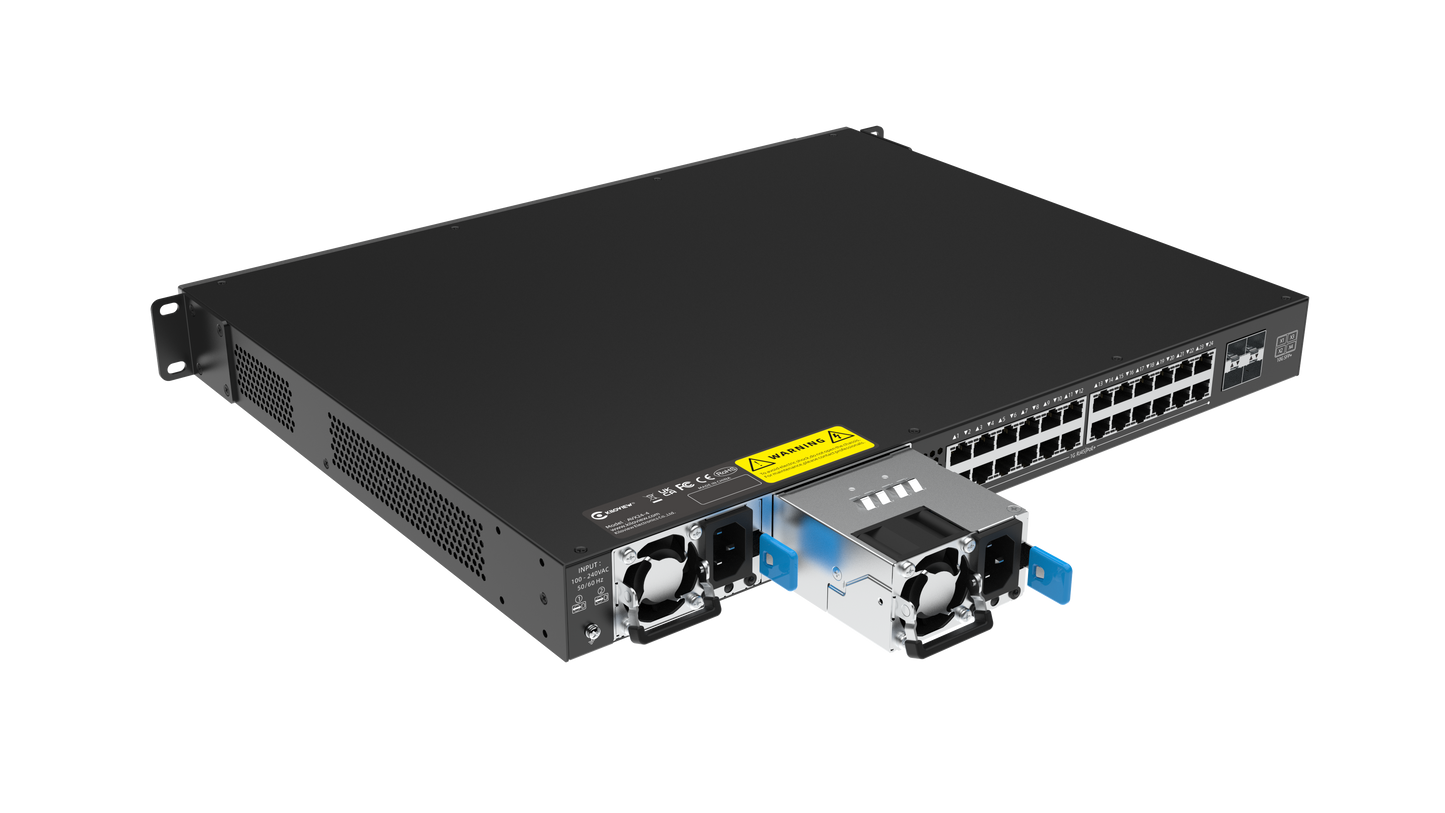

Equipped with high-reliability network modules, FPGA-based hardware-level monitoring, dual redundant hot-swappable power supplies, and an active cooling system, plus professional full-port load testing, the AVX24-4 Media HUB ensures stable operation to support high-density, low-latency professional AV applications around the clock.

Applications
AVX Media Hub is ideal for multi-camera studios, live events, concerts and performances, corporate conferences, remote classrooms, surgical broadcasts, houses of worship, large-scale events, and other scenarios requiring low-latency, high-reliability professional IP media networks.

• Display: 498×280 (16:9) LCD Screen
• Function Keys
  • 6 standard keys (Up, Down, Confirm, Back, Home, Lock)
  • 32 visual & editable crystal buttons
• Interfaces
  • 1x USB 3.0 Type-C
  • 1x USB3.0 Type-A
  • 1x 3.5mm headphone out
  • 1xRJ45 OOB (Out-of-Band management) port
  • 24× RJ45 Gigabit + full PoE (IEEE 802.3at ≥30W)
  • 4x 10G SFP+
• Cooling: Metal heatsink with active fan cooling
• Power Supply: Dual redundant 920W (hot-swappable)
• Management: Local console and HTTP/HTTPS web interface
• MAC Address Table: 32K entries (32768)
• VLAN Support: 4K (4096)
• Packet Buffer: 32MB
• Switching Capacity: 226Gbps
• Forwarding Rate: 168.14 Mpps
• 1588 Version: V2.1
