Kiloview CUBE X1 NDI CORE

CUBE X1 NDI Routing & Distribution System

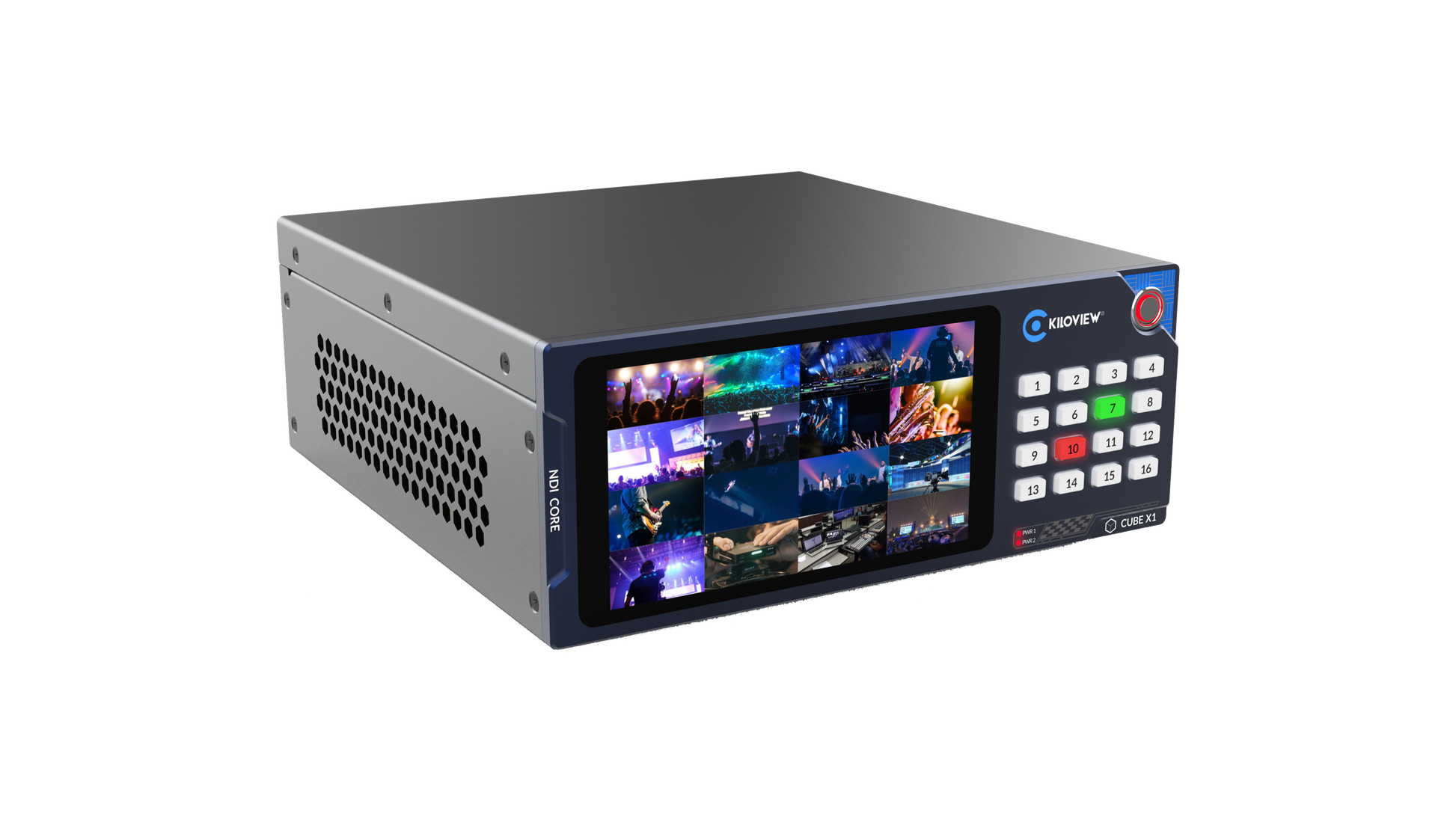

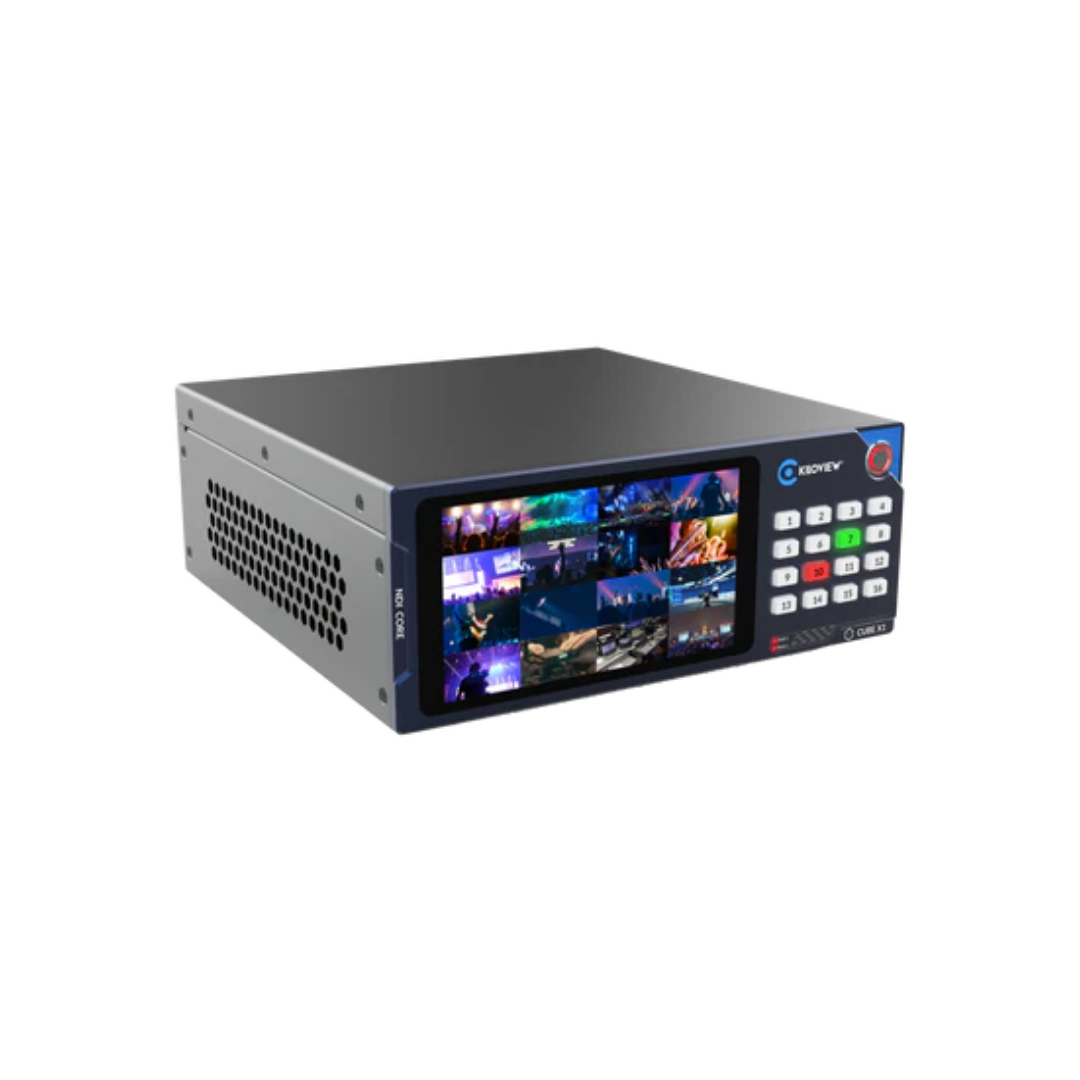

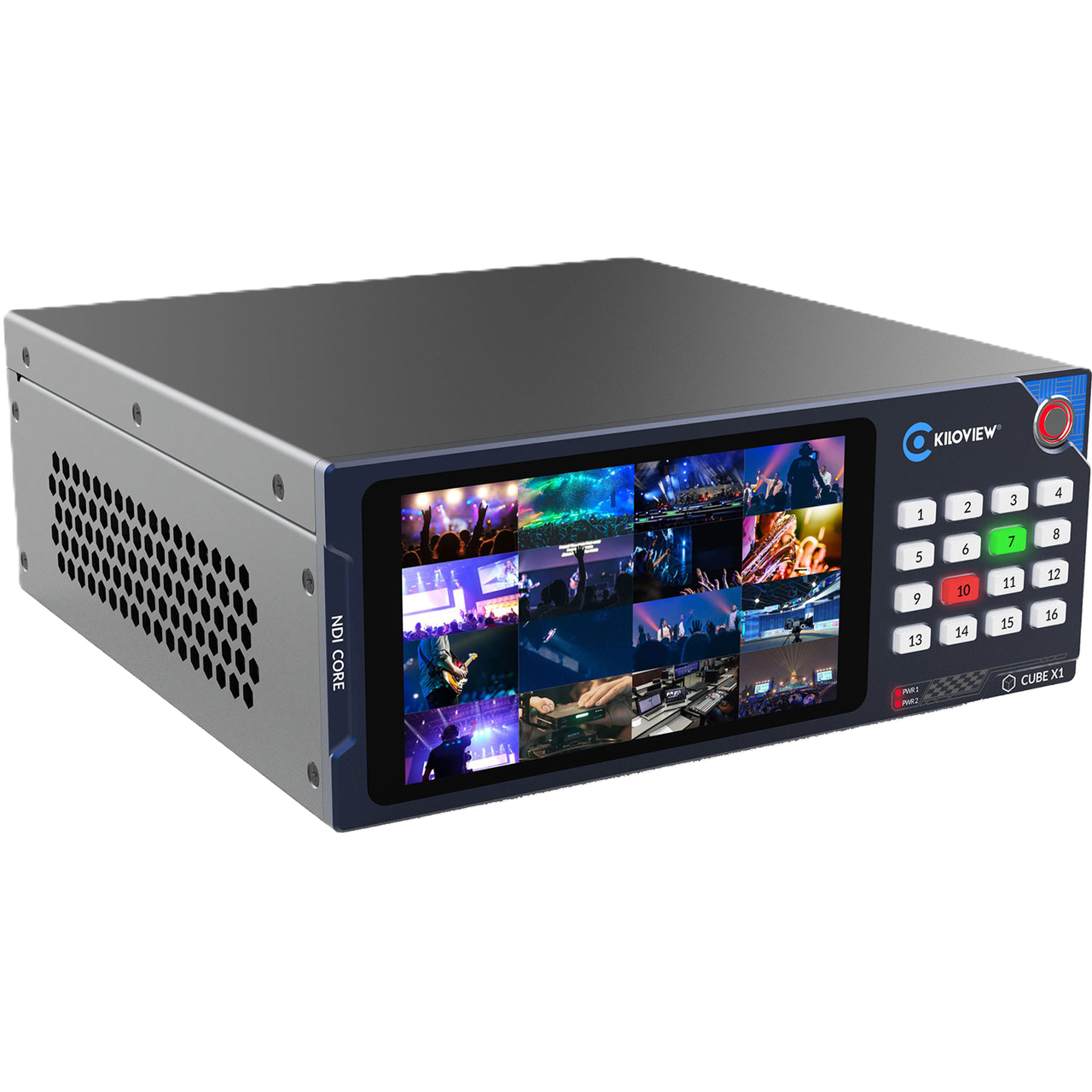

The CUBE X1 NDI is a compact half-2U device featuring an integrated software and hardware design. It functions as a unified platform for signal management, switching, and distribution, offering a lightweight workstation solution. The system supports up to 16 inputs and 32 outputs in NDI HX mode (or 13 inputs and 26 outputs in NDI High Bandwidth mode), enabling seamless switching across all signals. Additionally, it supports Router distribution mode, multi-channel NDI distribution, multi-service group management, and NDI signal rotation playback. Compatible with various formats including NDI HX2 and NDI HX3, the CUBE X1 accepts NDI inputs at any resolution (UHD/HD) and is ideal for diverse applications such as multi-signal switching, studio production, OB vans, EFP systems, and new media broadcasting/streaming production.

Why CUBE X1 Distribution System?
All the NDI sources are connected one-to-one to the Kiloview CUBE X1 NDI Distribution System for switching and distribution.
Enable Router Mode to let decoders pull NDI streams directly from sources, bypassing the matrix. Cuts bandwidth usage by and maximizes X1 device performance.
Multiple virtual outputs can be created within the CUBE X1 that can be connected to any NDI destination; it is also capable of seamless input/output switching.

Seamless Switching, More Professional
Kiloview CUBE X1 can automatically discover and manually input NDI sources. It supports access to all NDI sources, enabling replication, distribution, and switching of ​16-channel input/32-channel output for NDI HX2​ (or ​13-channel input/26-channel output for NDI High-Bandwidth). There are two options for switching panels: the crosspoint panel and the IO panel.

Multiplex Distribution of NDI Sources
Unlike a simple routing switching mechanism, Kiloview CUBE X1 supports access to all NDI data sources, achieving seamless NDI signal switching and unlimited distribution. When you need to use the same NDI video source in multiple targets, the system can create multiple NDI outputs as needed, or the same output can support multiple targets connected at the same time.

Customizable Control Panel
With a customizable control panel, users can easily format different groups and independently set the group inputs and outputs to suit different scenarios. Two switching panels, the IO panel, and the crosspoint panel are provided as standard

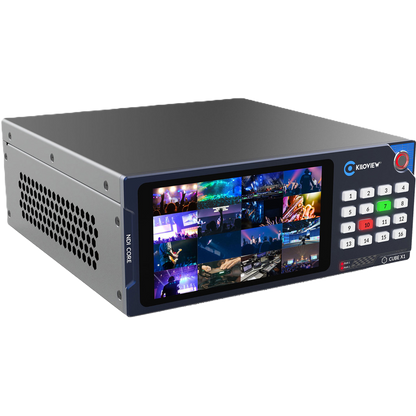

Touch Screen One-Button Operation

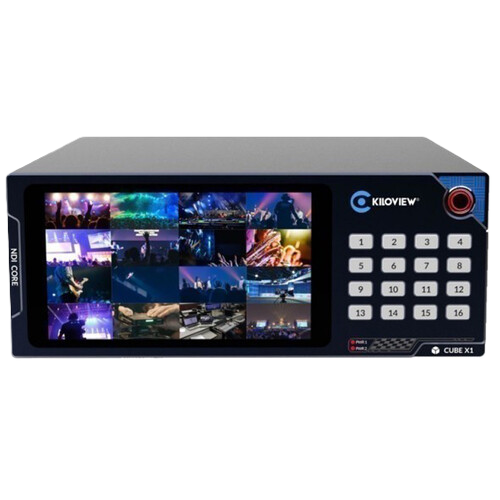

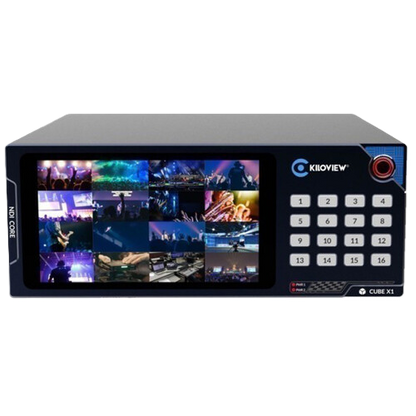

The CUBE X1 NDI Distribution System features with an LCD touch screen and operation button design, the built-in 5.5-inch HD screen will display all the video operations. Without an external display screen, the appropriate input/output source can be easily selected through a button or touch for monitoring, distribution. In addition, a VU meter is enabled for the user to monitor the audio status.

Compatible with NDI Signals of Any Formats/Devices
The CUBE X1 is compatible with any formats of NDI input of any resolution such as UHD/HD/NDI/NDI|HX, etc. and works seamlessly with NDI conference cameras, NDI mobile phones/computers, NDI encoders/decoders, NDI production systems, and other NDI hardware and software systems. CUBE X1 enables users to set the NTP server to all NDI devices*.

Log & Permission Management, Secure Your Workflow
Featuring log and permission management options, the CUBE X1 guarantees the security of the whole process of video transmission, production, and management. Assigning permission levels to different users, the CUBE X1 allows easy viewing of operation logs and log management at any time.

Compatible with NDI Signals of Any Formats / Devices
The CUBE X1 is compatible with any formats of NDI input of any resolution such as UHD/HD/NDI/NDI HX2 etc. and works seamlessly with NDI conference cameras, NDI mobile phones/computers, NDI encoders/decoders, NDI production systems, and other NDI hardware and software systems.

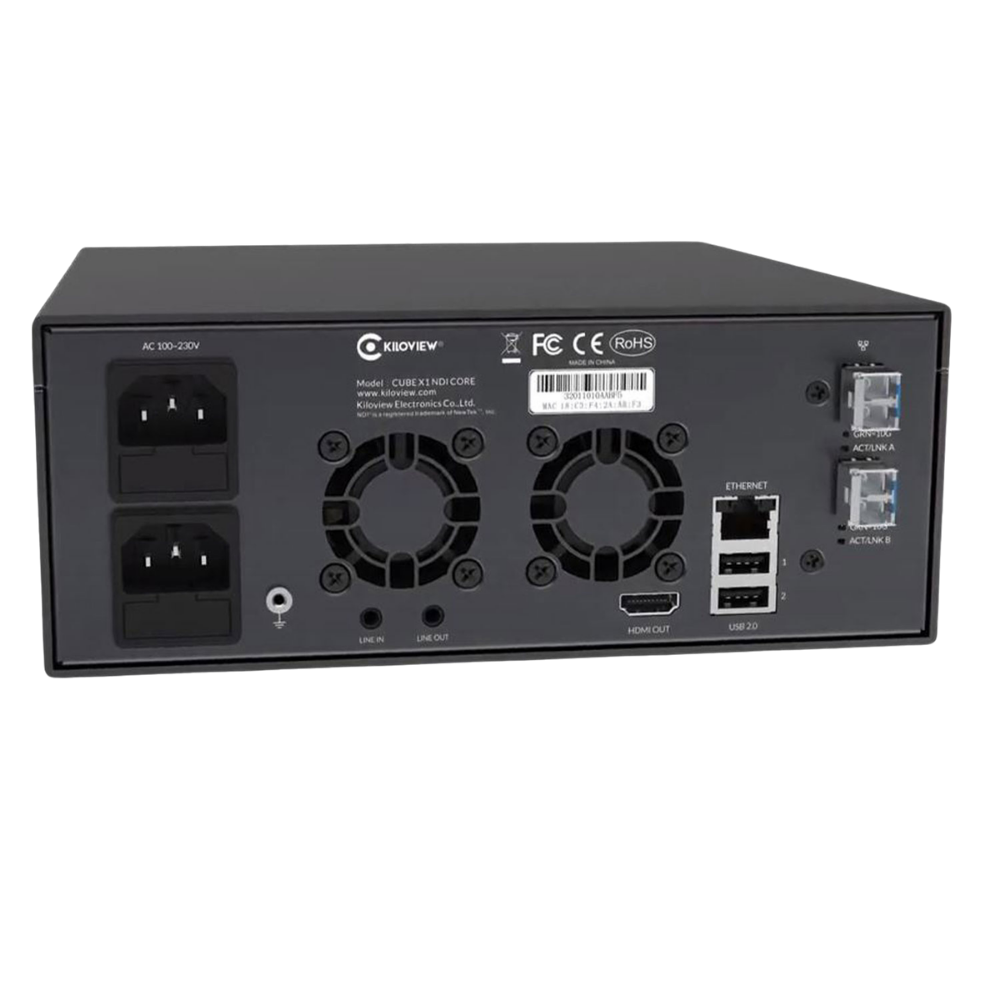

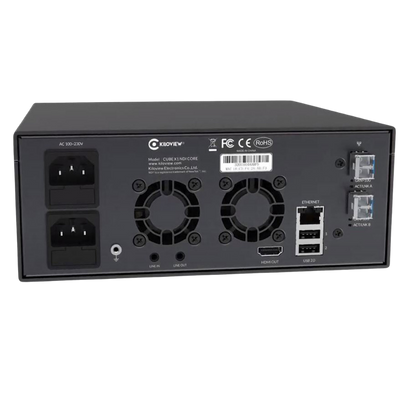

Dual Power Backup
Redundant power supply, better security.

Cooling Fans
Dual built-in cooling fans with extensive ventilation mesh design, operating quietly 24/7.

Dual 10GbE NIC
Equipped with dual 10GbE SFP+ fiber Ethernet ports and one 1GbE RJ45 Ethernet port, delivering reliable bandwidth for multi-channel HD video transmission.

Applications
Multiplex signal switching, studio, OB van, OB production company, EFP system, media broadcasting, schools and various enterprises and institutions, IP video signal management within campus network, signal scheduling, signal backup switching, etc.

• Inputs/Outputs
  • 4KP60 up to 5 inputs & 10 outputs (NDI High Bandwidth)
  • 1080P60 up to 13 inputs & 26 outputs ((NDI High Bandwidth)
  • 1080P60 up to 16 inputs and 32 outputs(NDI HX2/3)
• Total input bandwidth not exceeding 2.5 GbpsTotal output bandwidth not exceeding 5 Gbps
• NDI Formats: NDI HB / NDI HX2 / NDI HX3
• Resolution: Up to 4Kp60
• USB Ports: 2*USB 2.0 (Type-A),Plug-in mouse and keyboard for switching input/output
• Network
  • 2 x 10GbE SFP port(The SFP+ module needs to be purchased separately based on your specific switch model)
  • 1 x 1GbE RJ45 Ethernet port
• Buttons: 16 buttons+1 Power
• Display: 5.5" LCD touch screen
• CPU: 8 CORE ARM64 Processor
• RAM: 12GB
• ROM: 16GB
• Power supply: Redundant power, 100~230V AC
• System: Linux
• Weight: 2.00kg
• Management: Web UI
• Dimension (mm): 220*231.45*88mm（Combine two CUBE X1 to 2RU）

• Kiloview CUBE X1 NDI CORE
• 2 x Power Cord
• Warranty: Limited 1-Year Manufacturer Warranty
