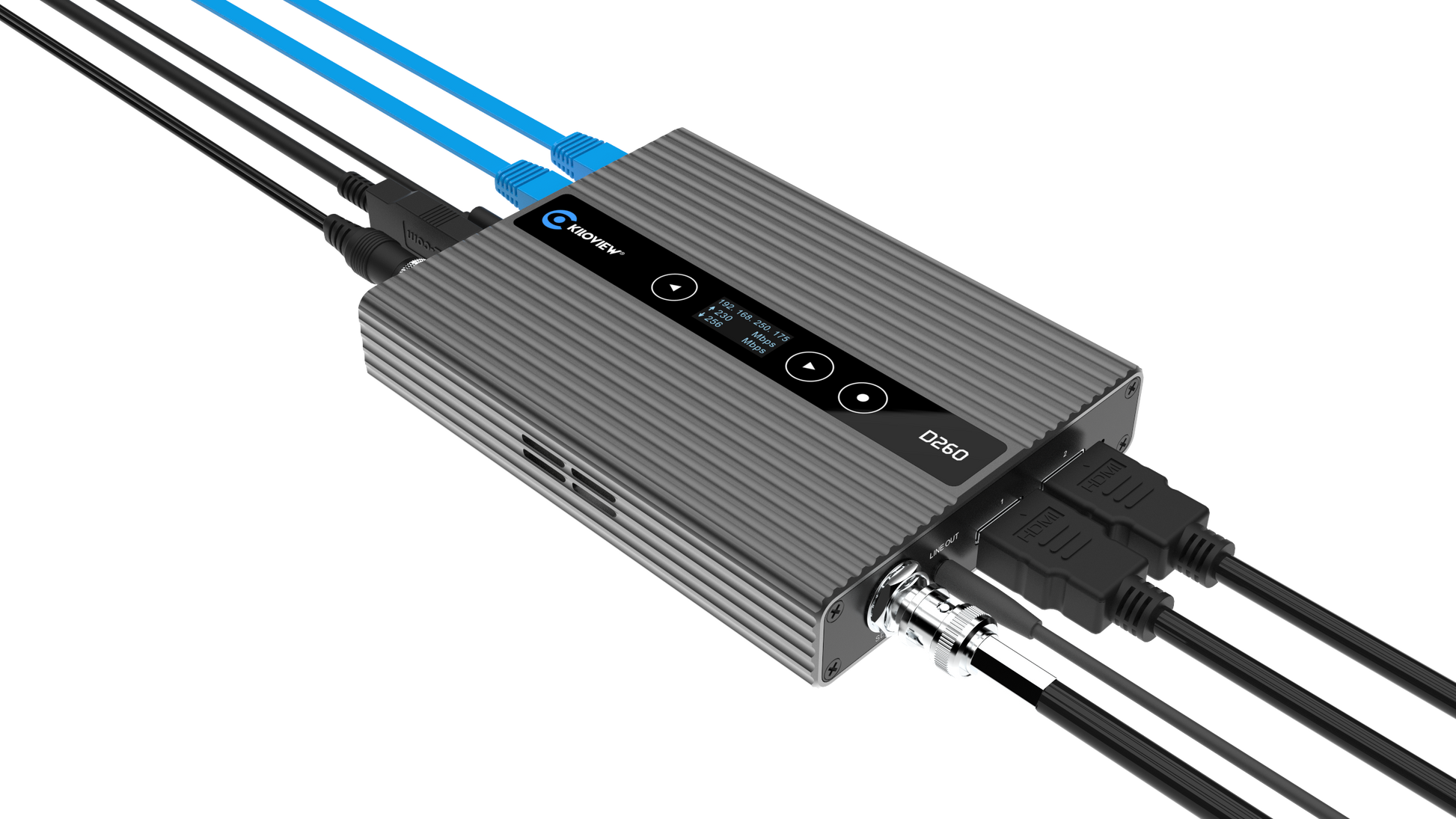

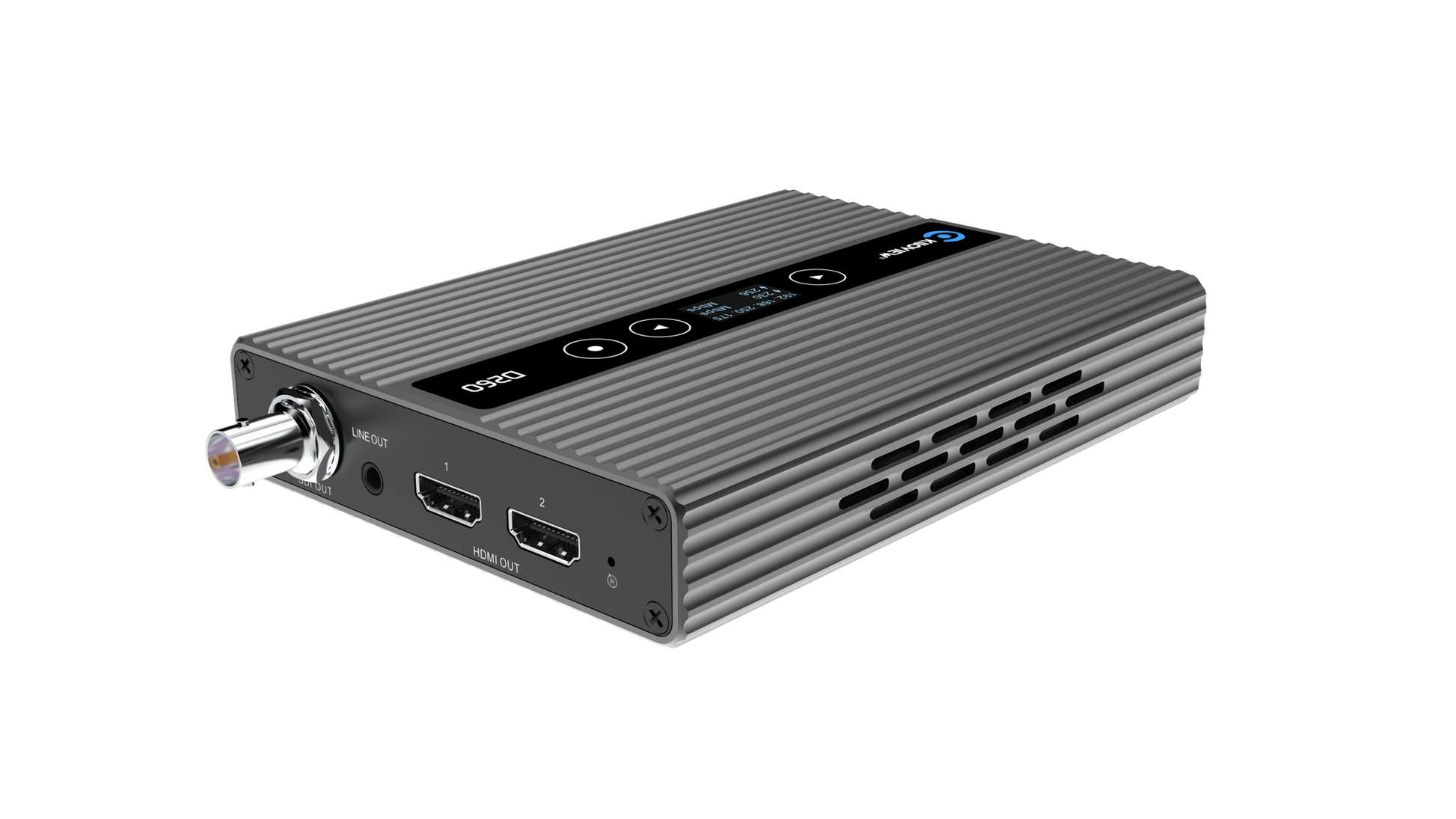

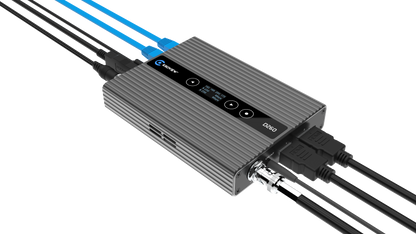

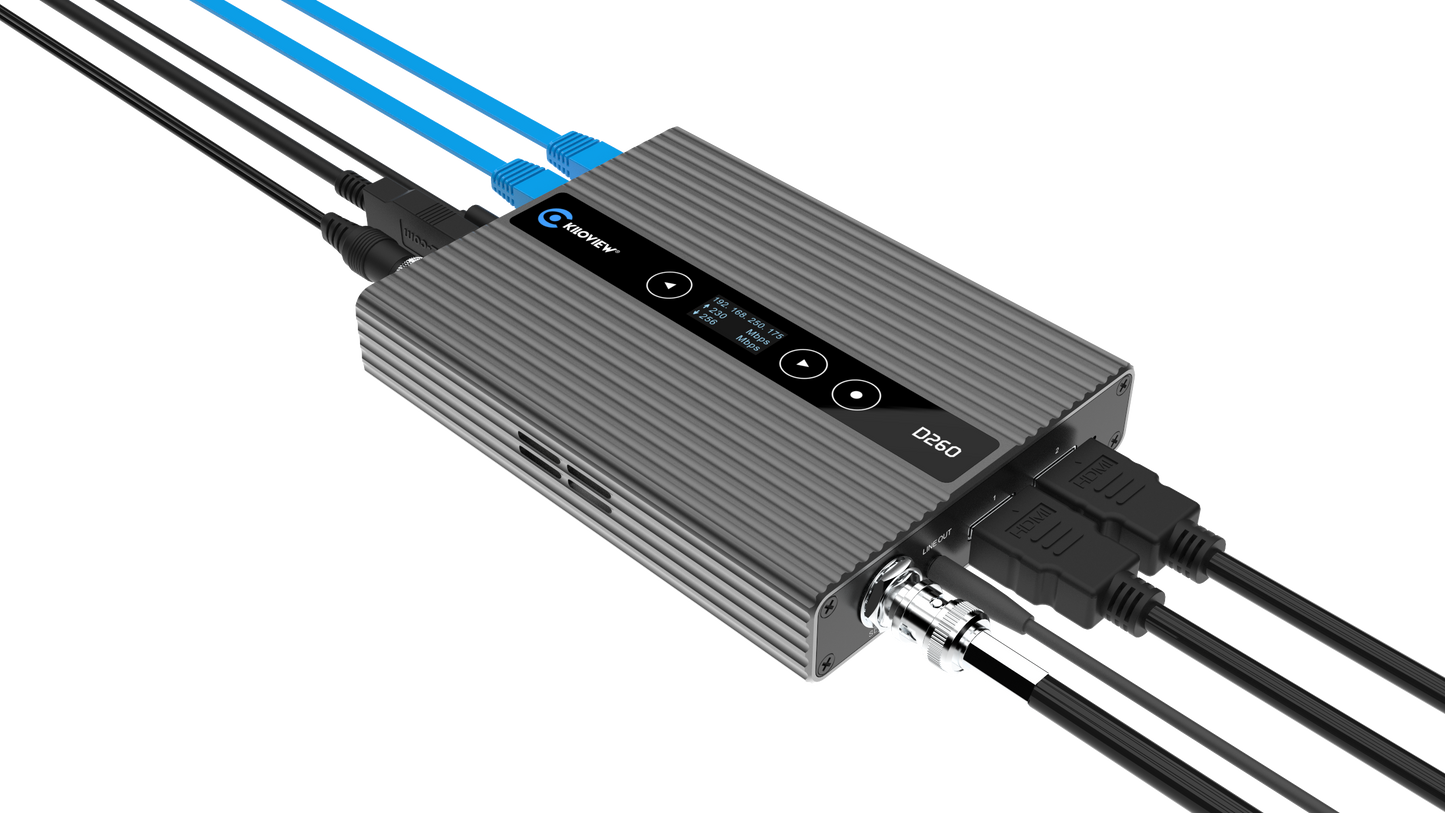

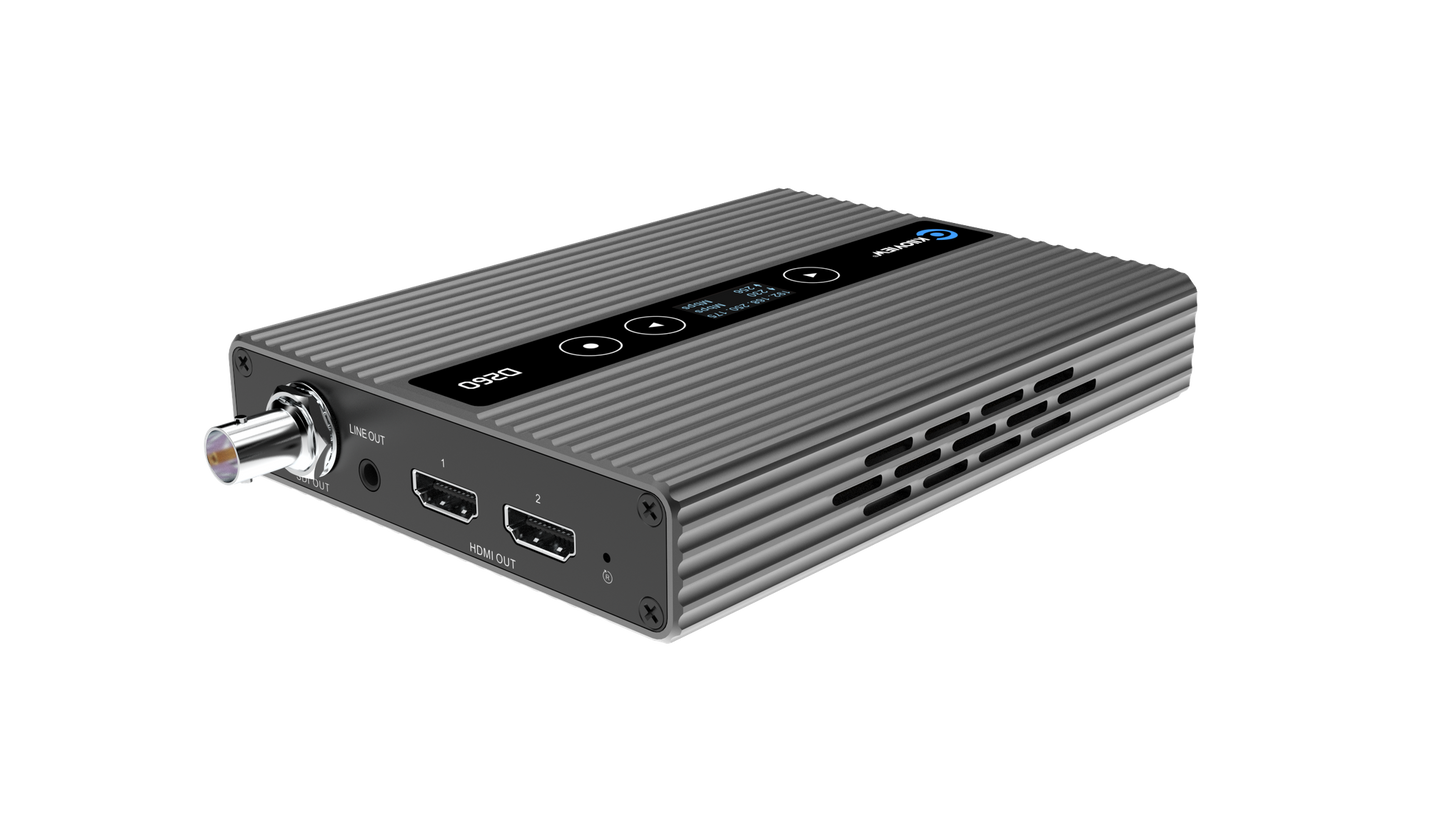

Kiloview D260 HD IP to SDI/HDMI/VGA Video Decoder

D260 HD Multi-functional Video Decoder
D260 is a cost-efficient video decoder that can decode up to 4 video/audio streams simultaneously with both 3G-SDI HDMI output. It supports H.265/H.264. D260 video decoding with protocols like NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTMP, RTMPS, HLS, and TS over UDP, RTP, and RTSP, making it suitable for multi-service decoding and wall display splitting. Its intuitive UI is designed and optimized to offer features like custom layouts, dynamic switching, and background/LOGO overlay. Additionally, D260 supports VU meter and PTZ control, further enhancing the device’s practicality and flexibility.

Outstanding Video Decoding
D260 supports simultaneous decoding of up to 4 video streams in H.264 (AVC) / H.265 (HEVC) format, each at 1080p60 (backward compatible). All 4 video outputs are available through both HDMI and SDI, ensuring a stable and reliable video decoding experience.

Exceptional Audio Decoding
D260 supports decoding and output of various audio formats, including AAC, MPEG-4, MPEG-2, G.711, Opus, and LPCM. It features multi-channel audio mixing and gain control, allowing flexible audio output via HDMI, SDI, or 3.5mm Line-out, ensuring high-quality audio for video wall displays and audio mixing.

Comprehensive Protocol Support
D260 supports full protocol decoding, including NDI High Bandwidth, NDI HX2/HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP and RTSP. No matter the source or format, the D260 keeps your workflow running smoothly.

100% Customizable Layout
Users can fully customize the layout for 1/2/3/4 grids through the backend graphical interface, adjusting parameters such as position, size, and more. You can easily achieve real-time video preview and quick output switching. Additionally, you can save custom layout as a template for quick access and apply it to the current layout.

Personalized Template For Custom Output
The new OSD feature in D260 provides users with an unprecedented personalized output experience. Users can freely create colorful OSD templates for output, incorporating elements such as images, text, colors, and more (e.g., logos, borders, image and text overlays). The designed templates can be directly applied to the corresponding output screens, making them more dynamic and personalized.

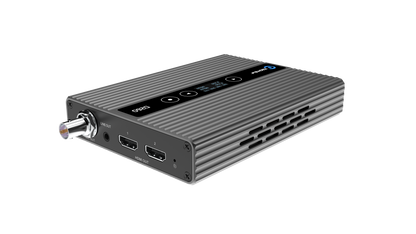

Extended Output Interfaces

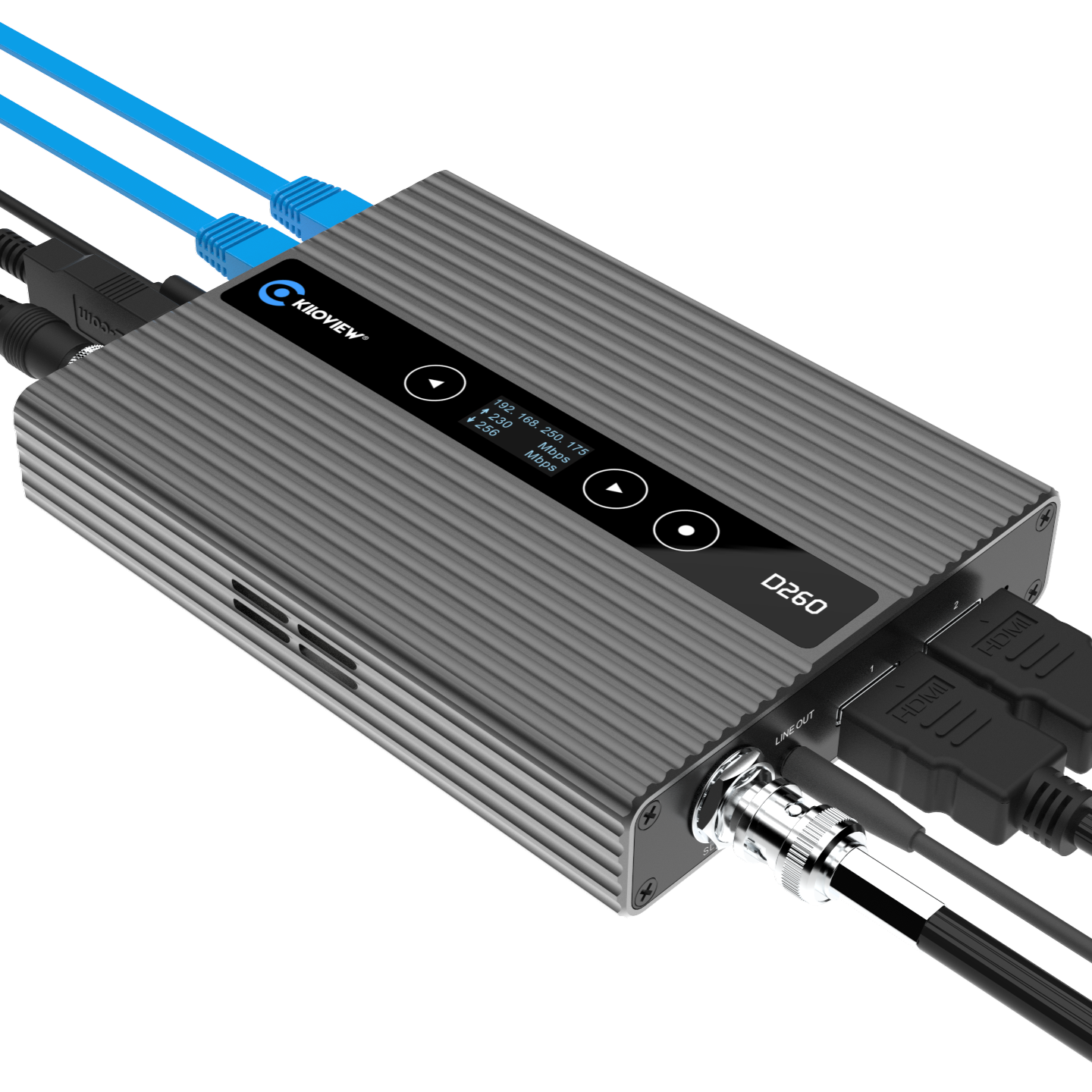

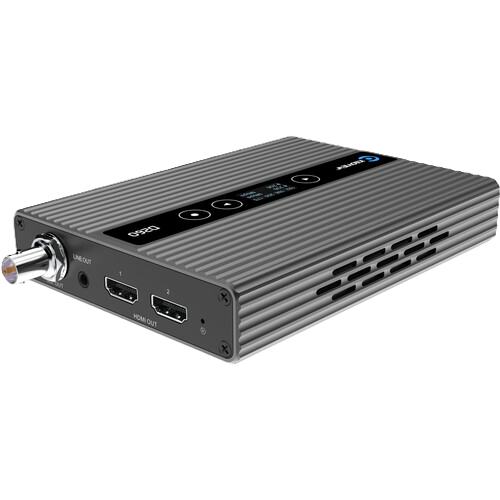

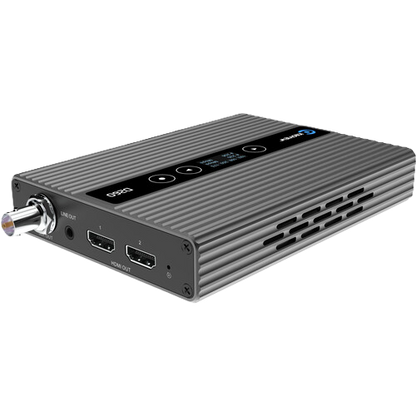

D260 features 3G-SDI + 2*HDMI for simultaneous multi-interface output, with a maximum resolution of 1920×1080@60Hz. The multiple video outputs can be independently, combined, or simultaneously mirrored across 2 HDMI and 1 3G-SDI ports. Each interface allows dynamic selection of 1/2/3/4 video streams for display, with adjustable output resolution, scan mode (progressive/interlaced), and frame rate.

Brand New UI for Easy Operation
The new UI is intuitive, combining the main screen and sidebar preview for easy viewing of multiple video streams. Drag-and-drop functionality enables seamless real-time previews and output switching. All features are integrated into the web interface for clarity, with support for VU meter monitoring and reverse PTZ control for effortless management during monitoring.

Preview & Output Switching
D260 supports “preview + output” mode, allowing multiple video streams (based on your hardware performance) to be previewed while selecting 4 streams for simultaneous display on the screen. This feature also supports monitoring (PVW/PGM) for dynamic and flexible output management.

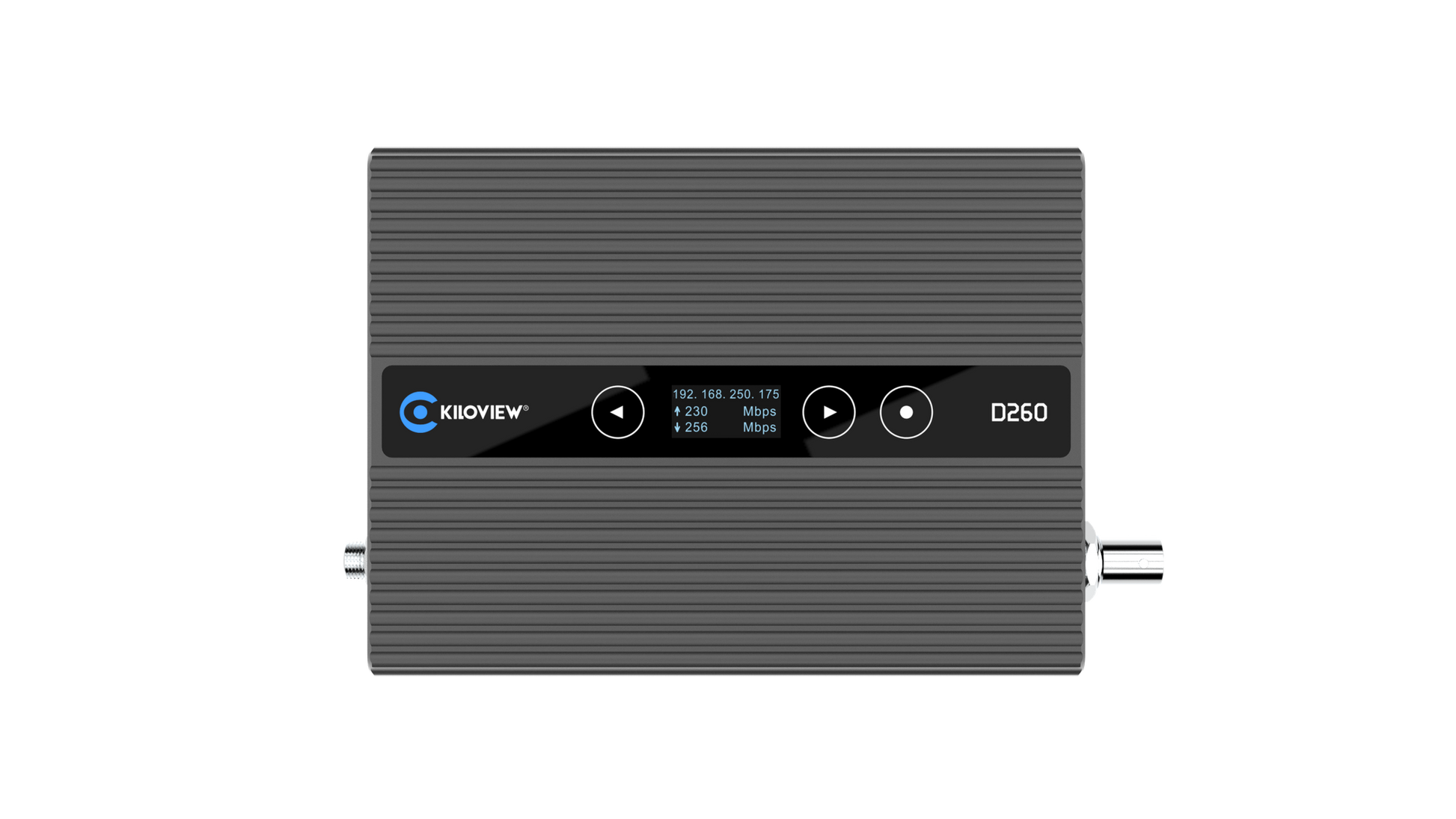

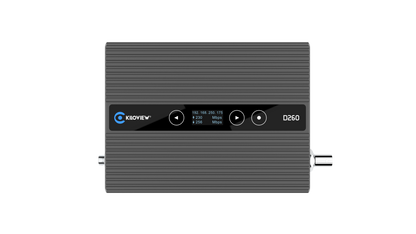

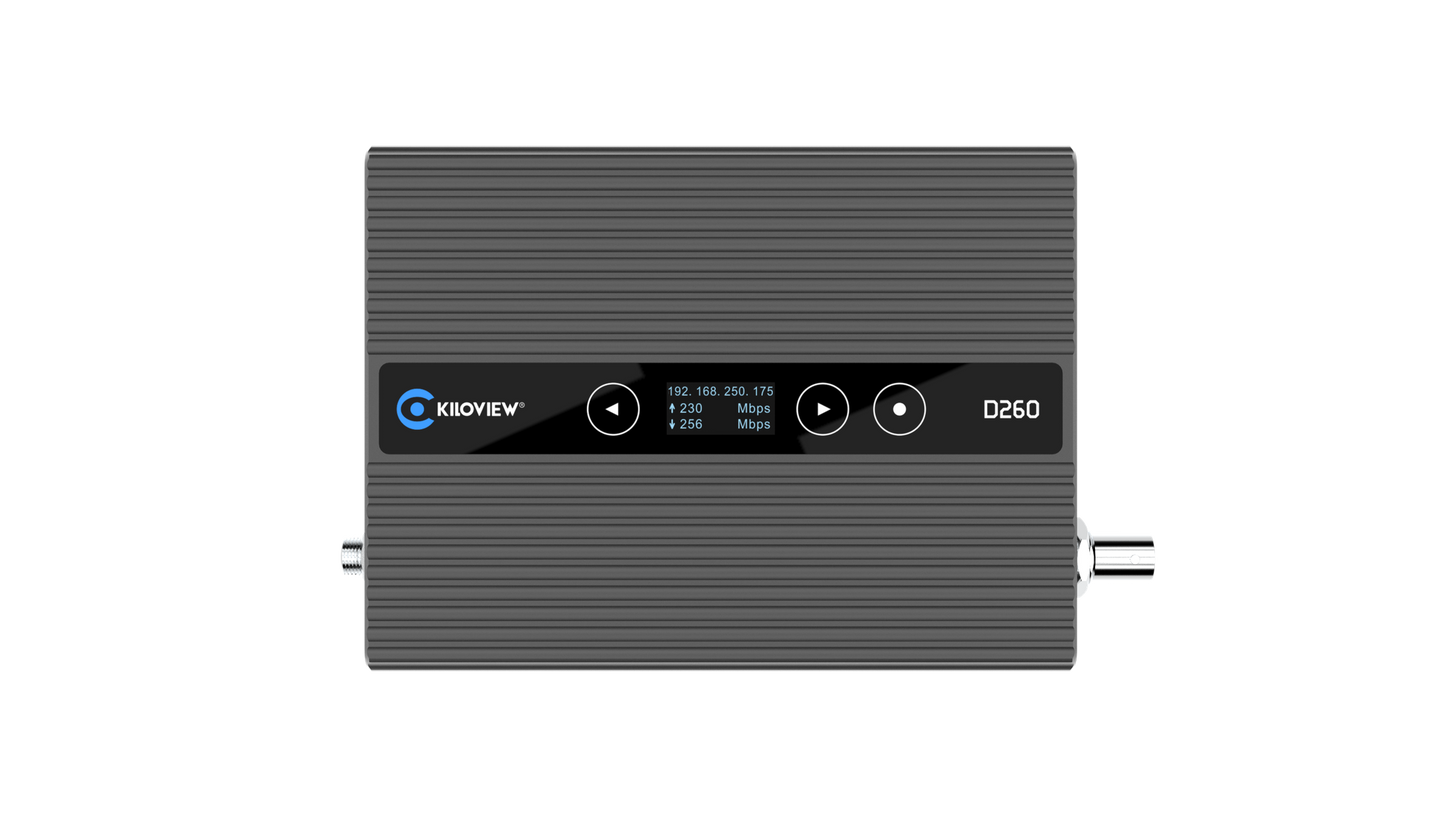

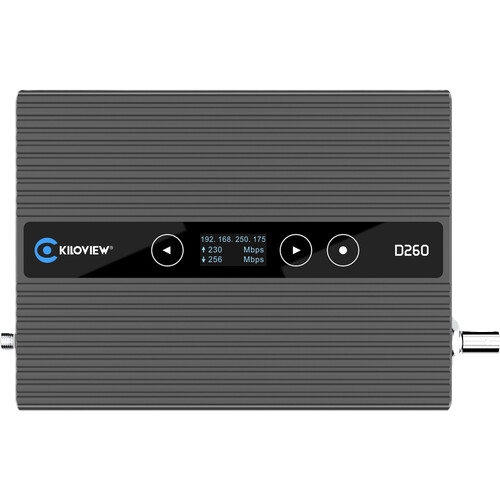

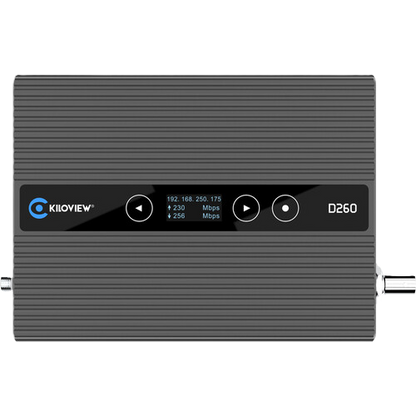

LCD Display And Touch Buttons
D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

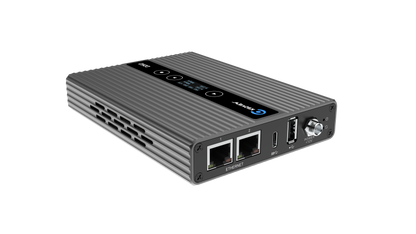

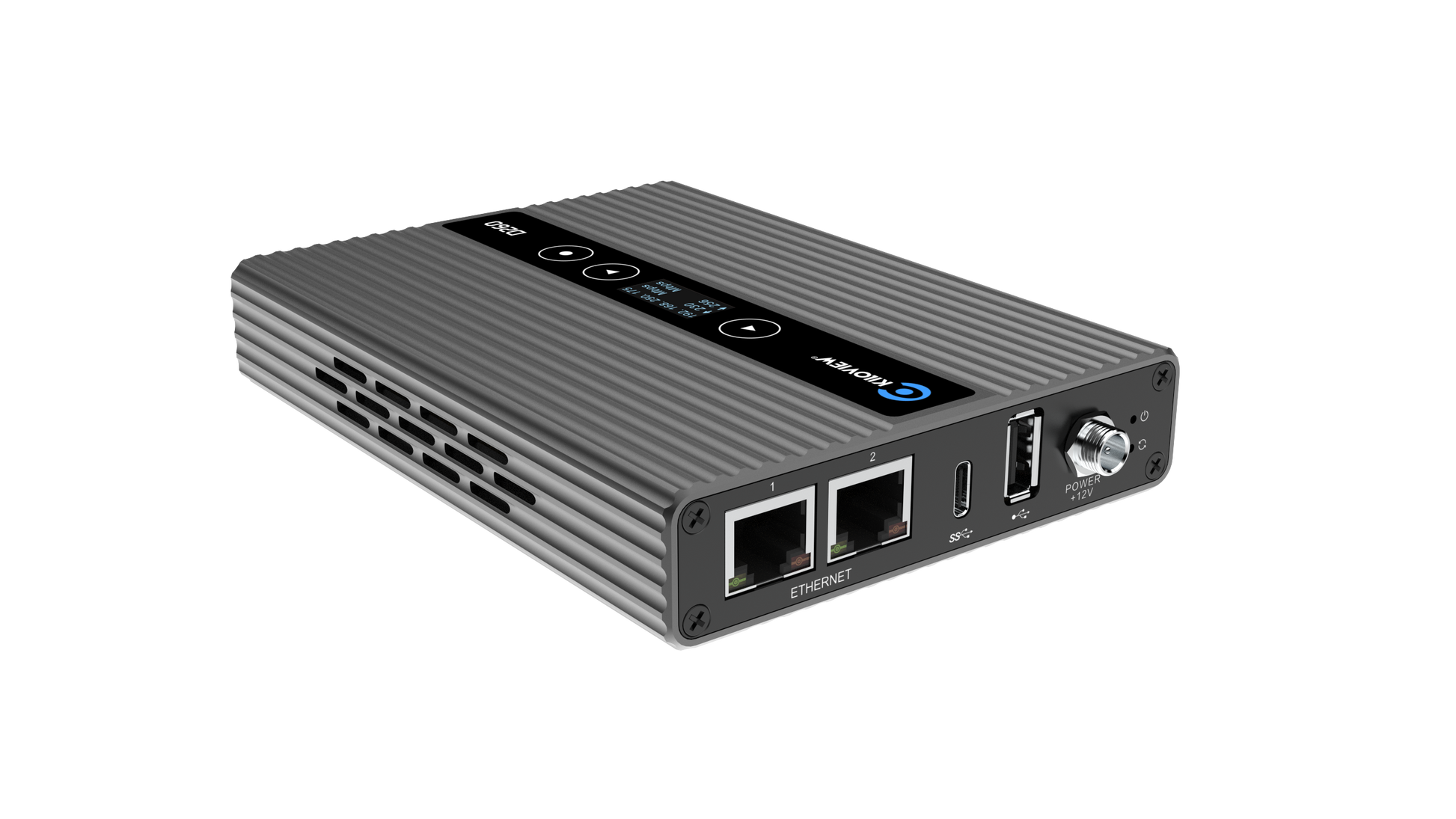

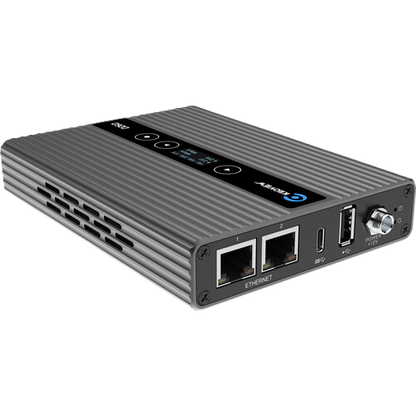

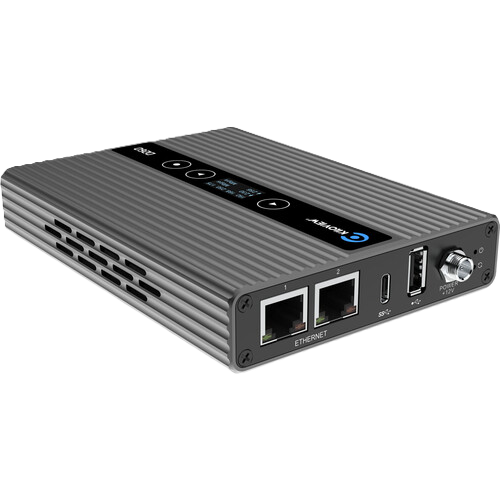

Dual Gigabit Ethernet Secure And Stable
D260 features dual gigabit Ethernet ports for seamless data transmission between internal and external networks, optimizing network efficiency. With dual-port redundancy, it guarantees uninterrupted network connectivity for reliable service.

Audio and Intercom Capabilities
Supports external USB headsets ​and enables multi-party voice communication through the Kiloview Intercom Server (KIS).

Centralized Management With KiloLink Server
D260 seamlessly connects to the KiloLink Server Pro once registered, enabling centralized remote management with real-time monitoring of device status, including connectivity, video preview, bandwidth, and IP address—all in one interface for streamlined oversight.

Standard API Provided for Easy Integration
With optimized API, D260 offers a more convenient interface for video stream functionality development. Utilizing the included demo program, developers can quickly integrate and call features, streamlining the development process and improving efficiency.

• Video Resolution
  • HDMI Output:
  • 1920*1080p 60/50/30/25/24fps
  • 1920*1080i 60/50fps
  • 1280*720p 60/50/30/25/24fps
  • SDI Output:
  • 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps
  • 1920*1080i 60/59.94/50fps
  • 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps
• Video Decoding Capability: 4-channel simultaneous 1080P60 decoding (1 channel for NDI High Bandwidth)
• Video Port
  • 1*3G-SDI
  • 2*HDMI
• Video Decoding; H.264(AVC), H.265(HEVC)
• Streaming Protocols: NDI High Bandwidth/ NDI HX2 / NDI HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTP / RTSP
• Multi-View Layouts: Custom 1/2/3/4-screen layouts
• Interlaced Video Support: support Interlaced & Progressive IP stream decoding
• Audio Decoding: AAC / MPEG-4 / MPEG-2 / G.711 / Opus / LPCM
• Audio Channels
  • 4-channel SDI embedded audio
  • 2-channel HDMI embedded audio
  • 1× 3.5mm Line-out (2-channel)
• Network Port: 2× 1000Mbps Ethernet ports
• Physical Controls: 0.96" OLED (monochrome) + touch-sensitive keys
• OSD/Graphics Overlay: Custom background images + text/graphics overlay
• Management: Web-based control or centralized management via KiloLink Server Pro
• Voice Intercom: Supports USB headsets and communicate via Kiloview Intercom System (KIS)
• PTZ Control: Reverse PTZ control support
• USB Port
  • 1*USB 2.0 Type-A
  • 1*USB 3.0 Type-C
• Power Supply:  DC 12V/1A
• Power Consumption: 8W(MAX)
• Weight: 360g
• Dimensions: 140mm*104mm*25mm
• Working Temperature: -20℃~60℃

• D260 decoder / 1 SET
• DC12V/1A power adaptor / 1PC
• Quick start guide /1PC
• Certificate/Warranty card /1PC
• Warranty: Limited 1-Year Manufacturer Warranty
