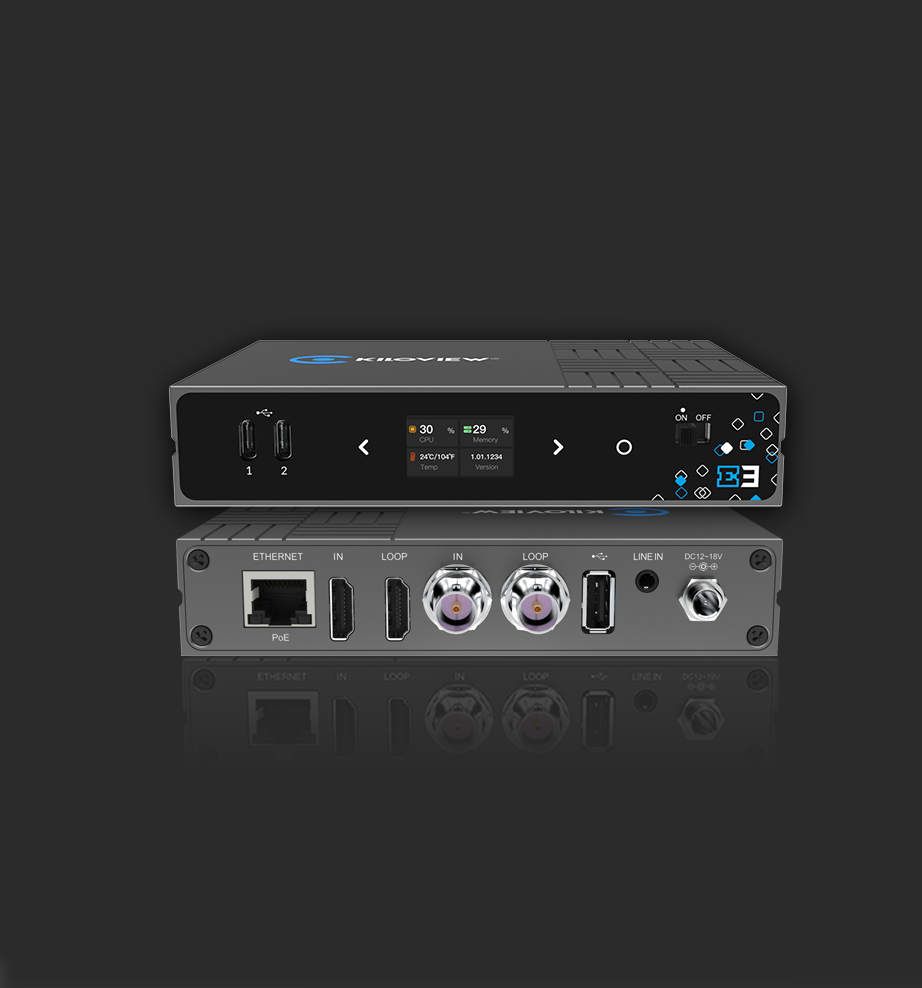

Kiloview E3 Dual-Channel 4K HDMI & 3G-SDI HEVC Video Encoder

E3 4K Multi-interface Video Encoder
E3 is a new-generation professional video encoder that combines powerful performance and flexibility in a compact unit. It supports HDMI input up to 4Kp30, 3G-SDI input up to 1080p60, and USB input, encoding in both H.264 (AVC) and H.265 (HEVC) formats. E3 can encode either HDMI or SDI video independently, or combine both in PIP (Picture-in-Picture) or PBP (Picture-by-Picture) modes. Designed for professional IP-based workflows, E3 supports a comprehensive range of protocols including NDI HX3/HX2, SRT, RTMP/ RTMPS, RTSP, HLS, WHIP, TS over UDP, and RTP, with support for up to 8 concurrent streams.

H.265 Encoding with 50% Bandwidth Savings
E3 supports HEVC (H.265), enabling up to 50% lower bitrate compared to H.264 without sacrificing image quality. This reduces network load and ensures stable transmission, even under limited bandwidth conditions—while maintaining excellent visual fidelity.

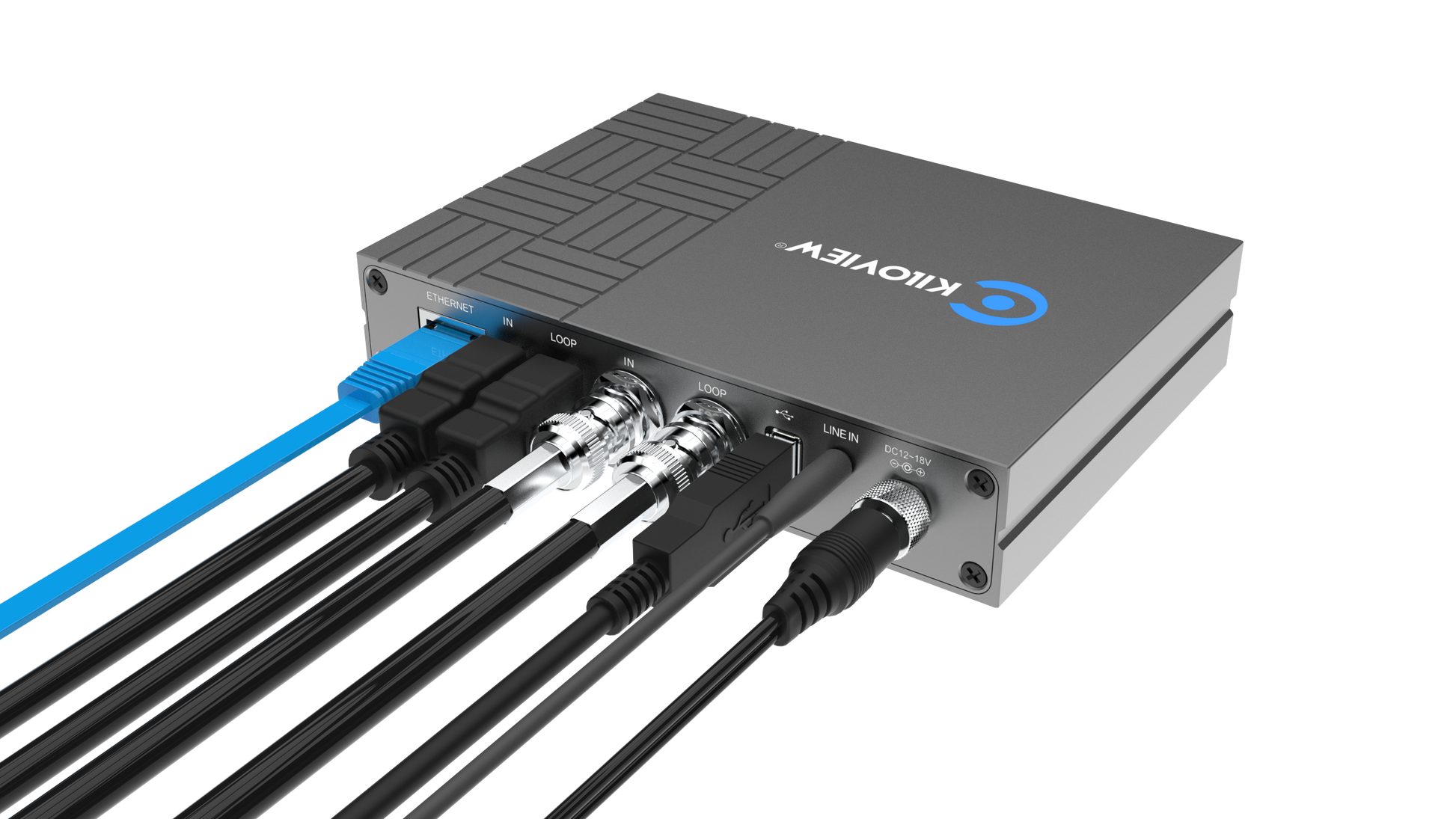

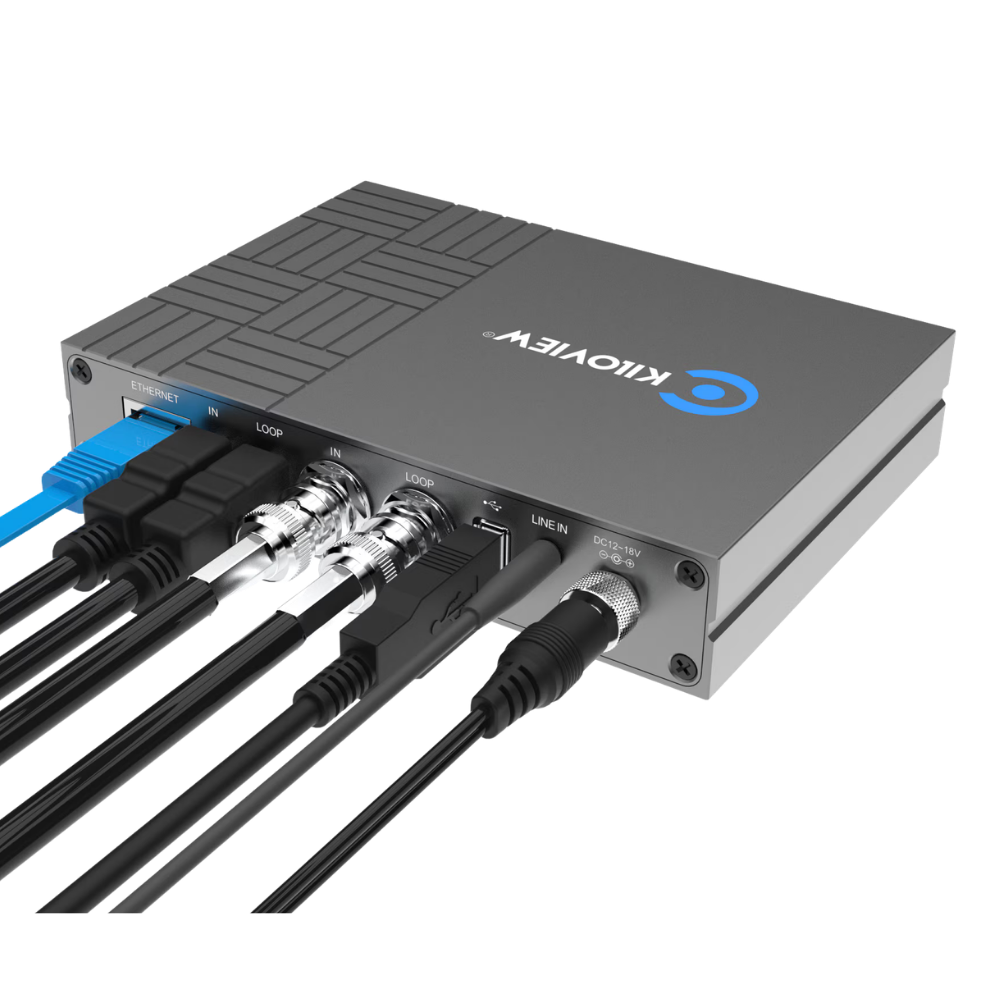

Multiple Inputs, Flexible Encoding

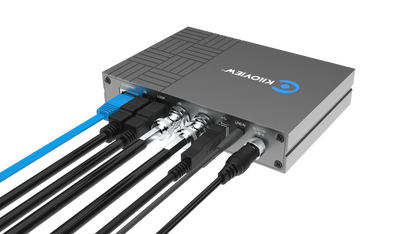

The E3 features 4K ​HDMI, 3G-SDI, and USB inputs​ (HDMI/SDI support loop through)，enabling it to be flexibly applied in either broadcast level production or pro-AV scenerios. E3 can support seamless switching among three inputs and encode either source independently, or it supports simultaneous encoding from both inputs up to 1080p60, even it support for PIP (Picture-in-Picture) from HDMI and SDI inputs.

Multi-Protocols, More Streams Simultaneously
E3 supports a complete range of streaming protocols including NDI HX3 / NDI HX2, SRT, RTMP / RTMPS, HLS, TS over UDP, RTSP, WHIP, and RTP. It supports up to 8 destinations simultaneously, making it possible for live production with NDI HX, remote production with SRT, live streaming with RTMP or any transmission with all different protocols at the same time. Note: Total combined bitrate for simultaneous streaming should not exceed 160 Mbps.

Pro-Level Video Processing
The E3 goes beyond basic encoding—you can crop and rotate your video, making it easy to adapt footage for portrait-mode live streaming or other mobile-phone friendly use cases. It also packs pro-level features like mirroring, VU meter displays, safety area, center line, color adjustments, OSD with text, image, logo etc. Whatever your workflow demands—the E3 has the tools to make it happen.

Reliable Recording While Streaming
All inputs of E3 can be recorded in MOV/MP4 through 3 USB ports or NAS storage. It supports streaming and recording simultaneously for post-production and redundancy.

Rich USB Expanded Functionalities
In addition to accepting USB video input, E3 can also support a versatile expanded functions through USB including Tally, USB headset for Intercom, PTZ control， USB Storage or recording and other applications through its numerous USB interfaces.

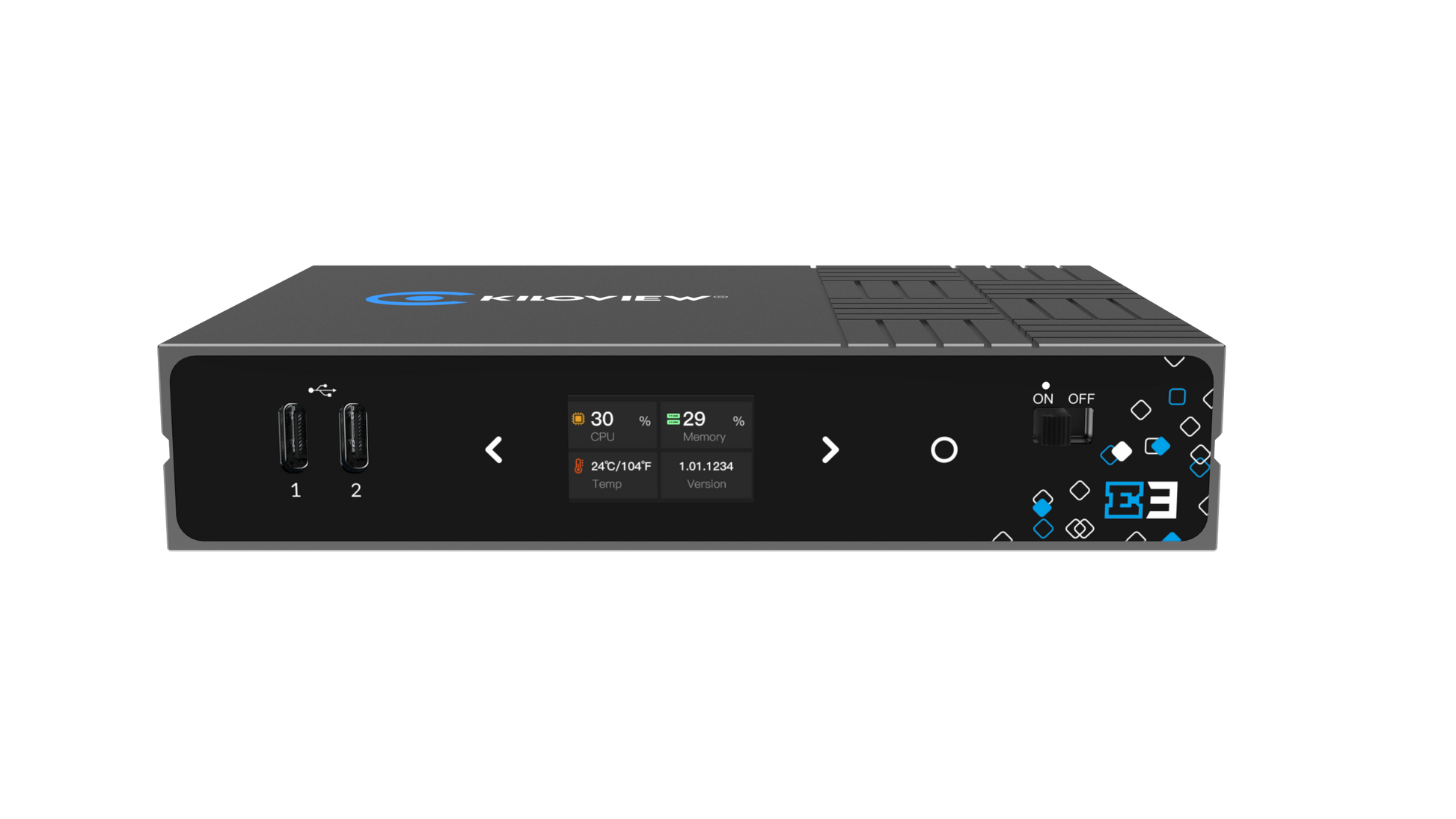

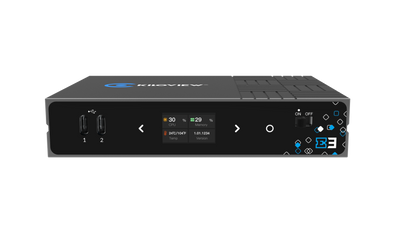

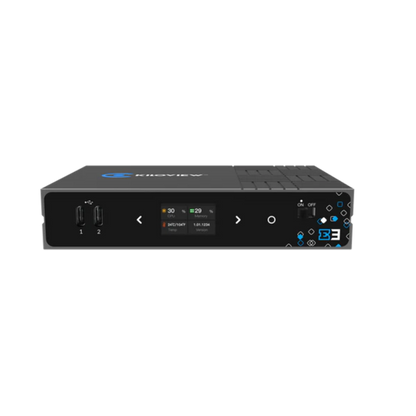

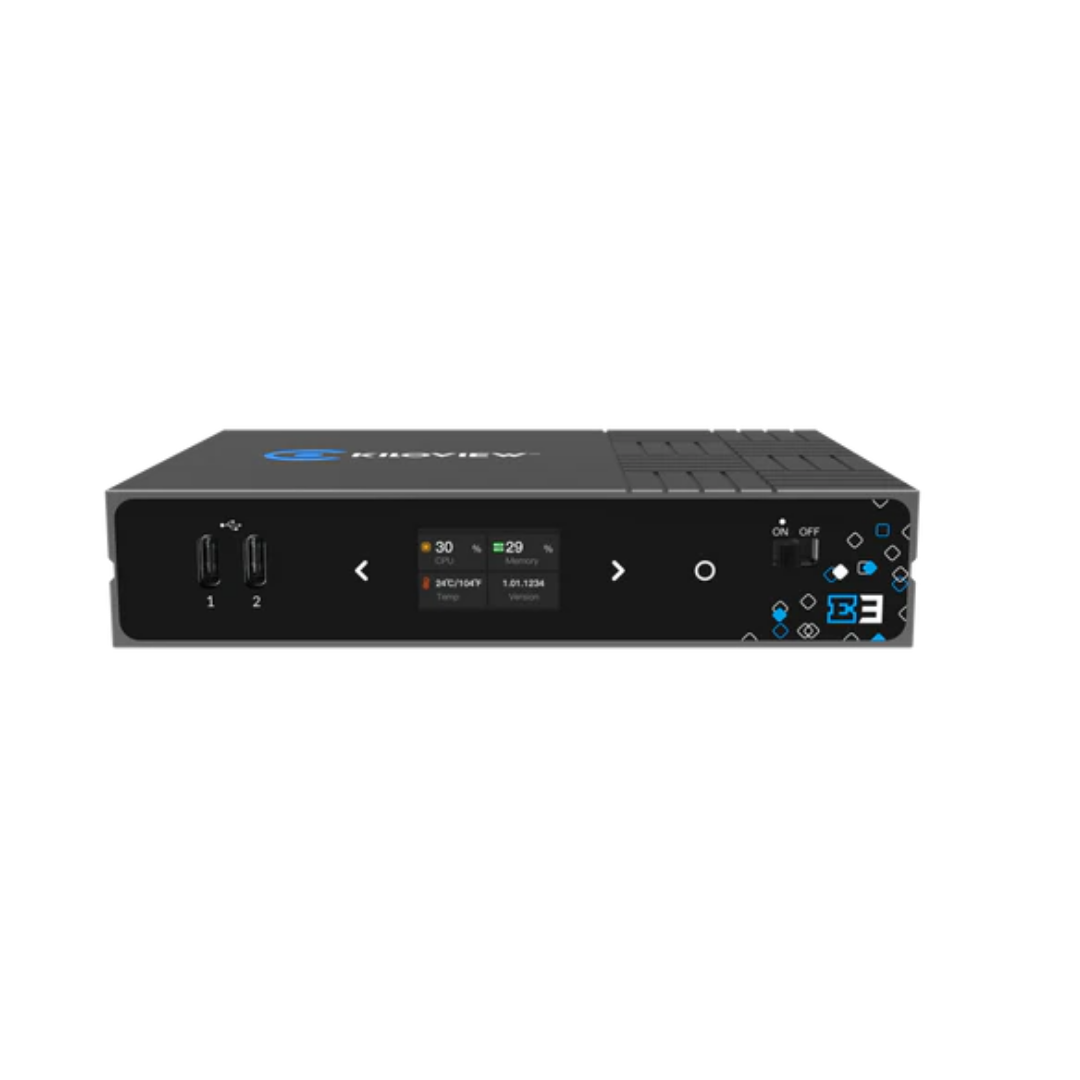

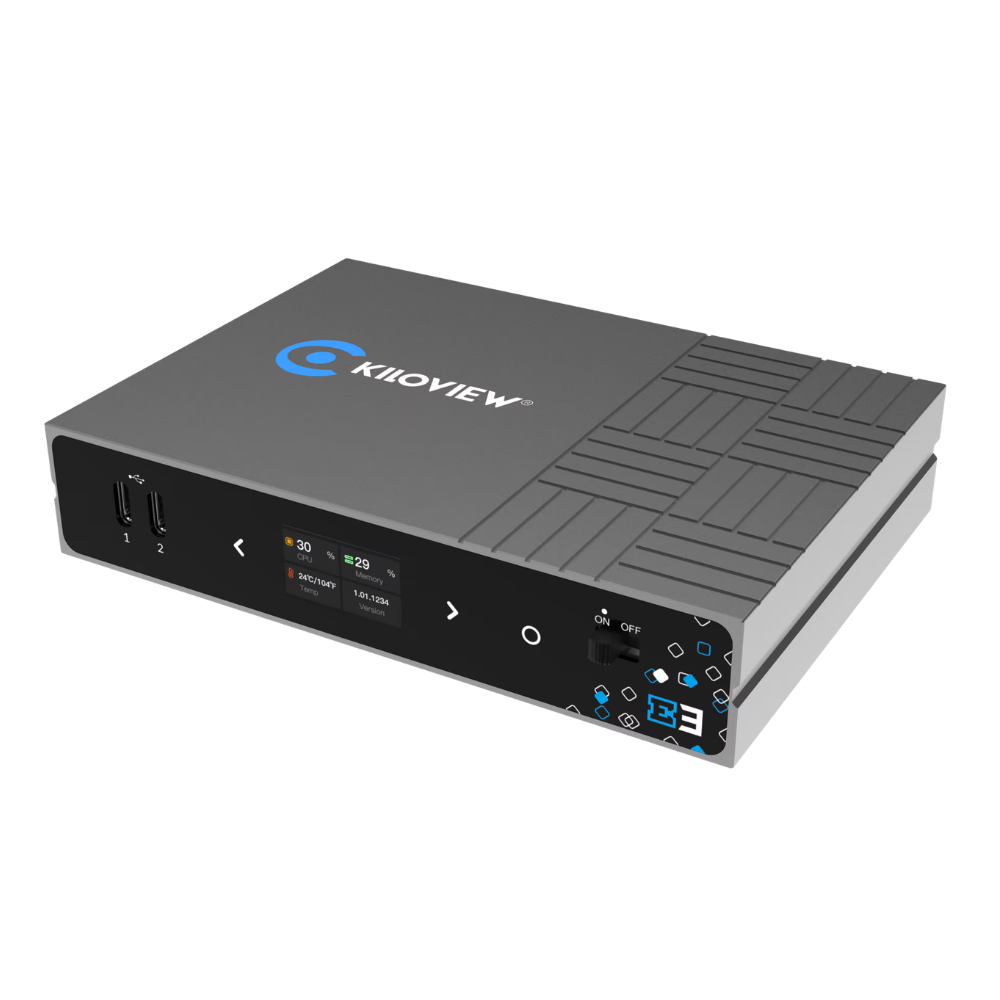

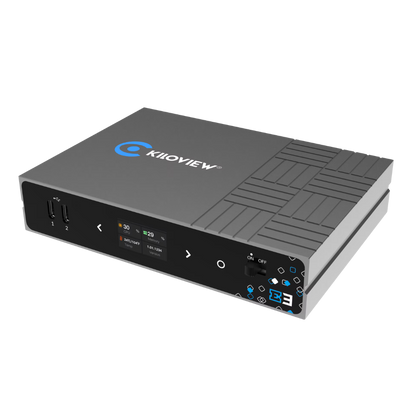

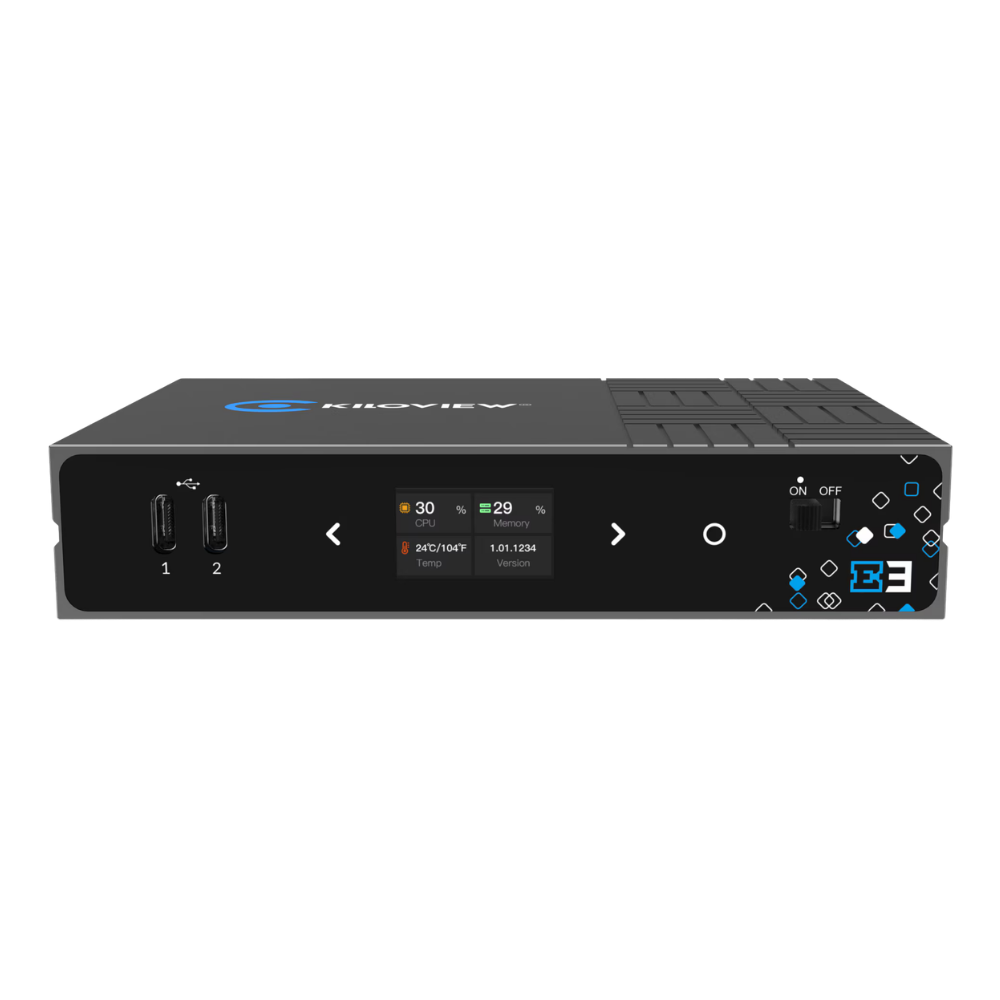

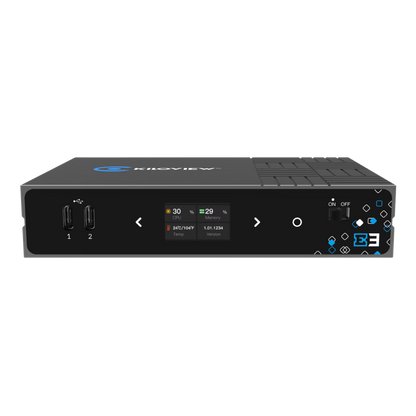

Built-in LCD Screen and Touch Controls
E3 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU usage, memory usage, resolution and tally status in real-time. The LCD Screen is also a big-sized Tally to display the preview/program status.

PoE Powered
E3 supports Gigabit Ethernet interface with PoE power supply, A single network cable that carries Power and data transmission as well as Tally and PTZ Control.

Real-time communication with KiloLink Intercom Server
With extend the headset via USB, it supports multi-party voice intercom, you can deploy Kiloview KIS System for real-time collaboration.

Remote Centralized Management
E3 can be seamlessly connected to the KiloLink Server Pro, as long as the device is registered to the KiloLink Server Pro platform and establishes a connection, you can carry out remote centralized management, remote monitoring and control of the device including online status detection, device configuration, firmware update etc.

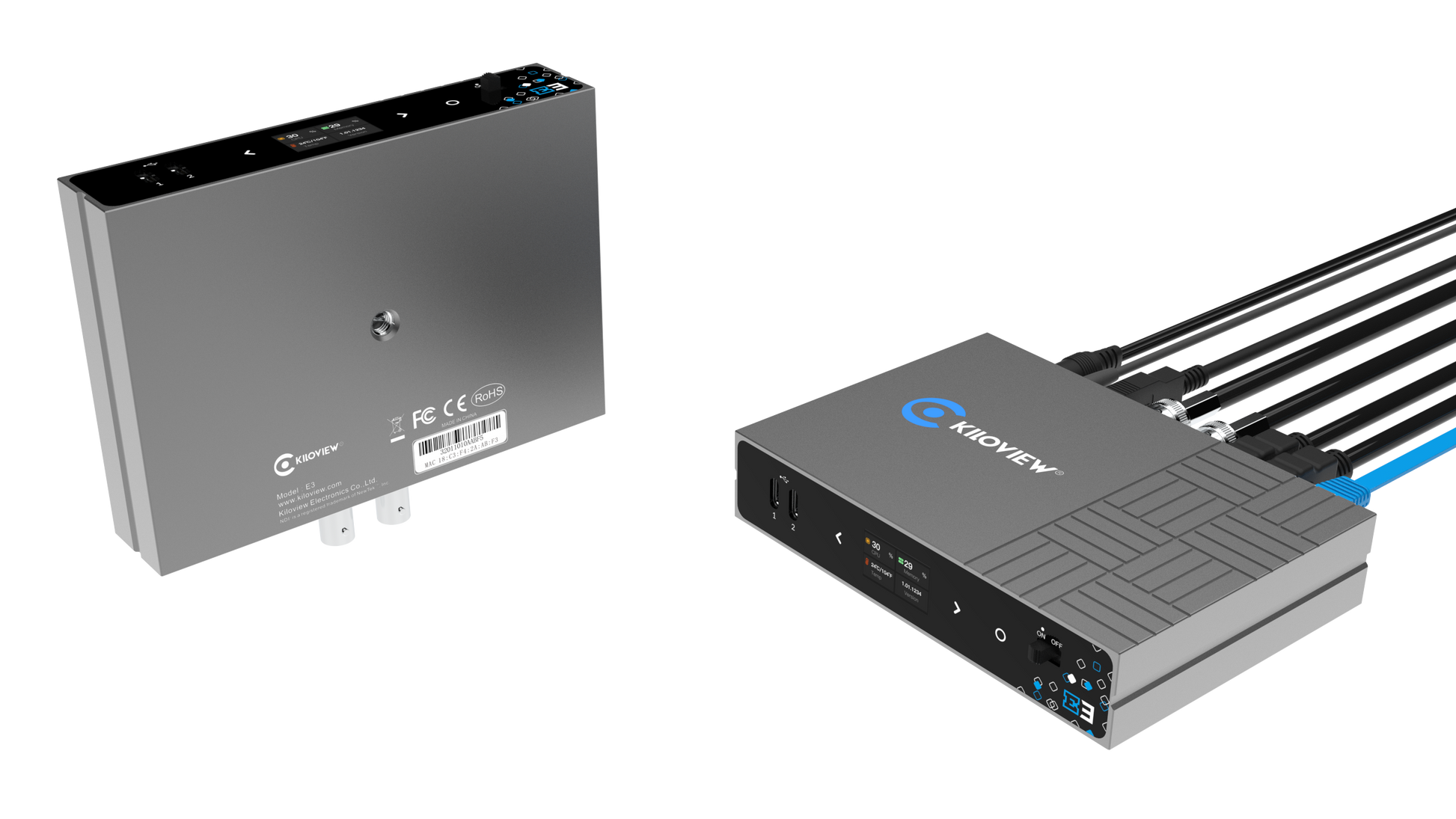

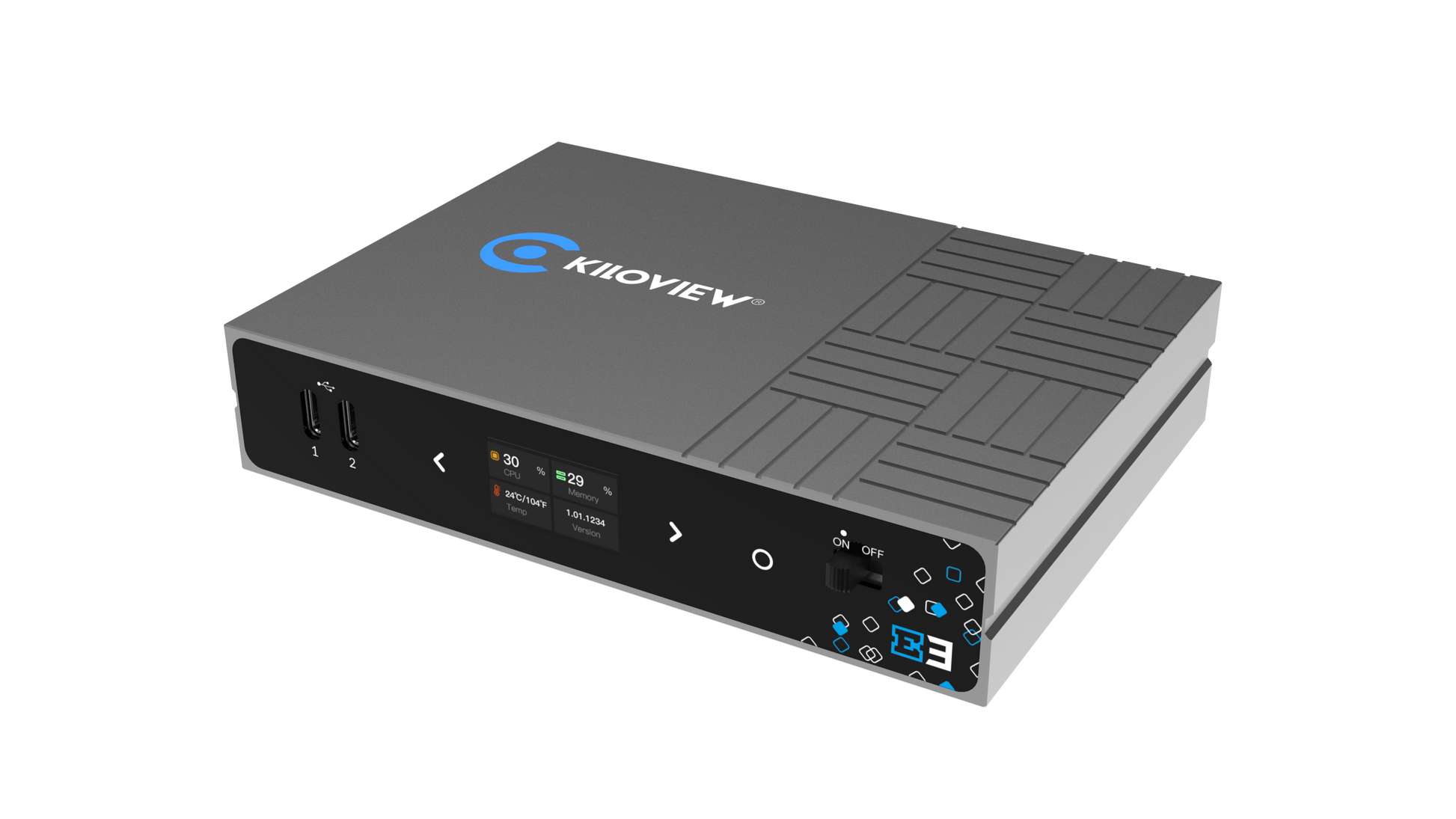

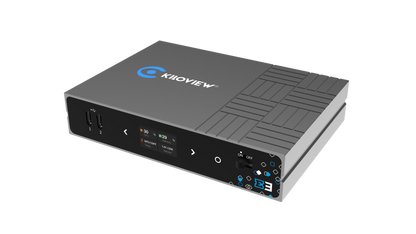

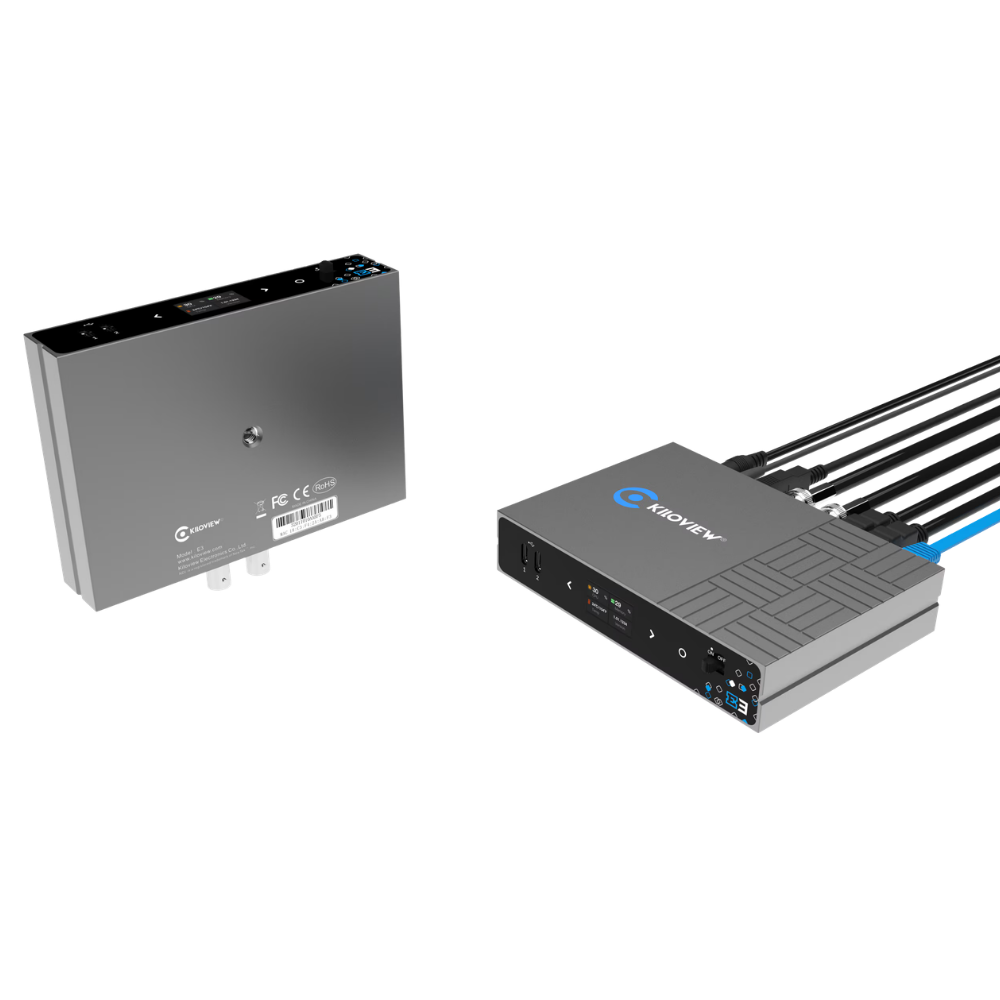

Lightweight, Portable and Easy to use

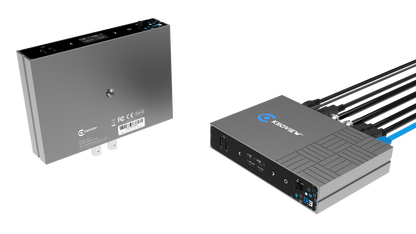

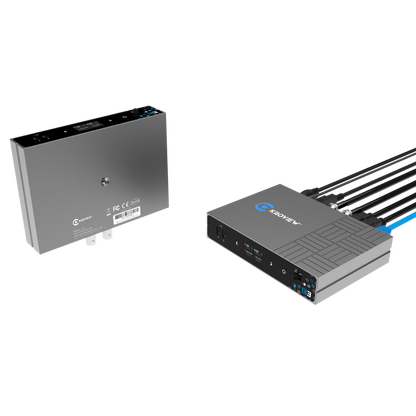

E3 is lightweight with compact design, it can be easily fixed on the camera with cold-shoe mount. Its intuitive web-based UI allows for quick setup and real-time monitoring from any browser—no software installation needed.

Open API for Seamless Integration
E3 provides open API support, enabling easy integration with your existing workflows and systems

• Video Resolution
  • HDMI Input/Loop out：
  • 3840×2160p 30fps
  • 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • 1920×1080i 50/59.94/60fps
  • 1280×720p 29.97/30/50/59.94/60fps
  • 720×576i 50fps (PAL SD)
  • 720×480i 59.94fps (NTSC SD)
  • SDI
  • Input/Loop out:
  • 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • 1920×1080i 50/59.94/60fps
  • 1280×720p 25/29.97/30/50/59.94/60fps
  • 720×576i 50fps (PAL SD)
  • 720×480i 59.94fps (NTSC SD)
  • USB Input：
  • 1920×1080p 24/25/30/50/60fps
  • 1280×720p 30/50/60fps

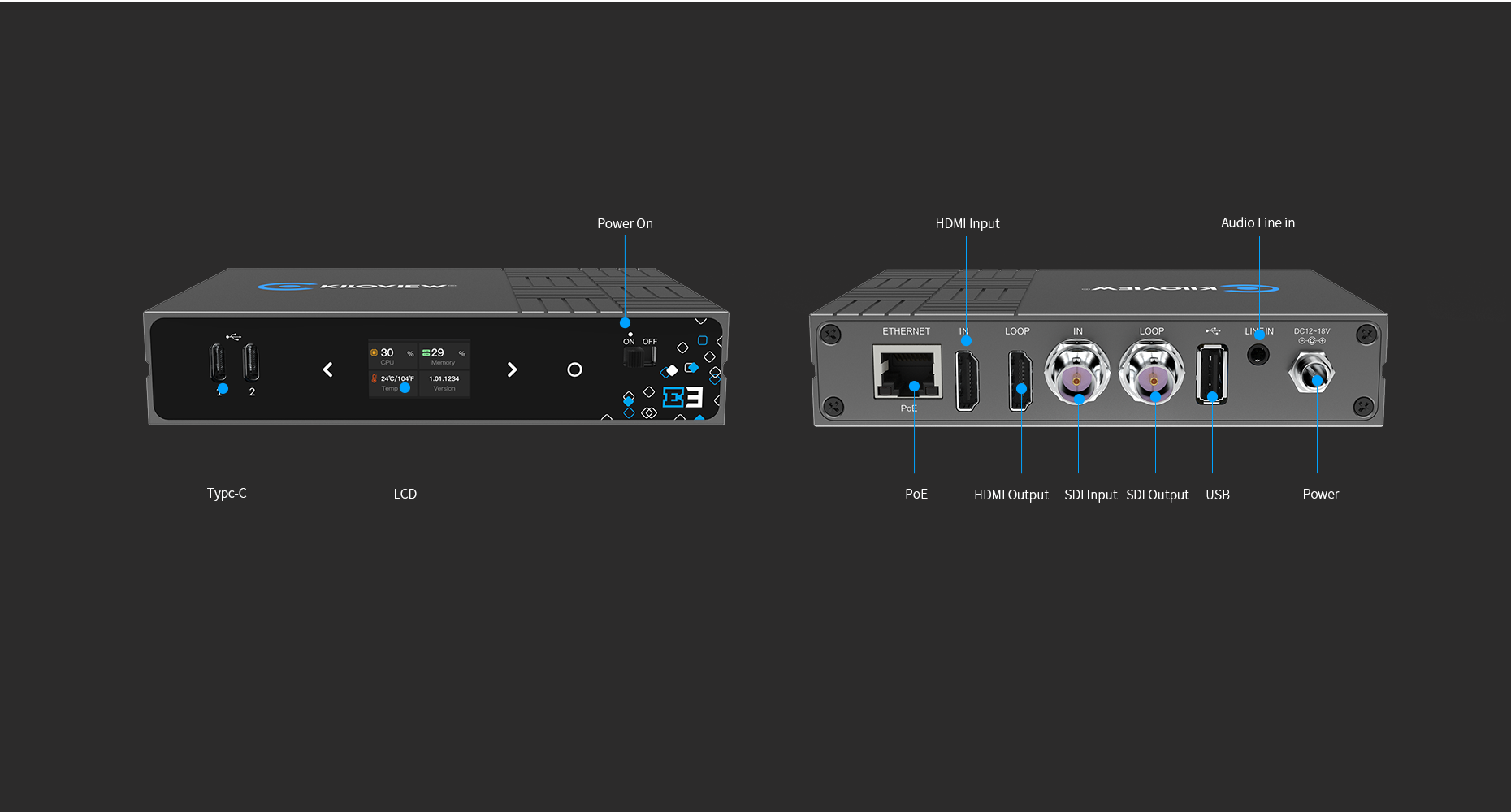

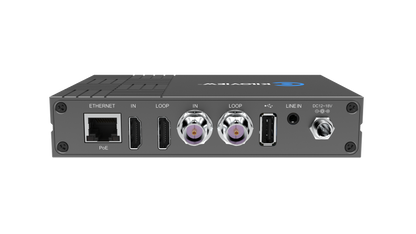

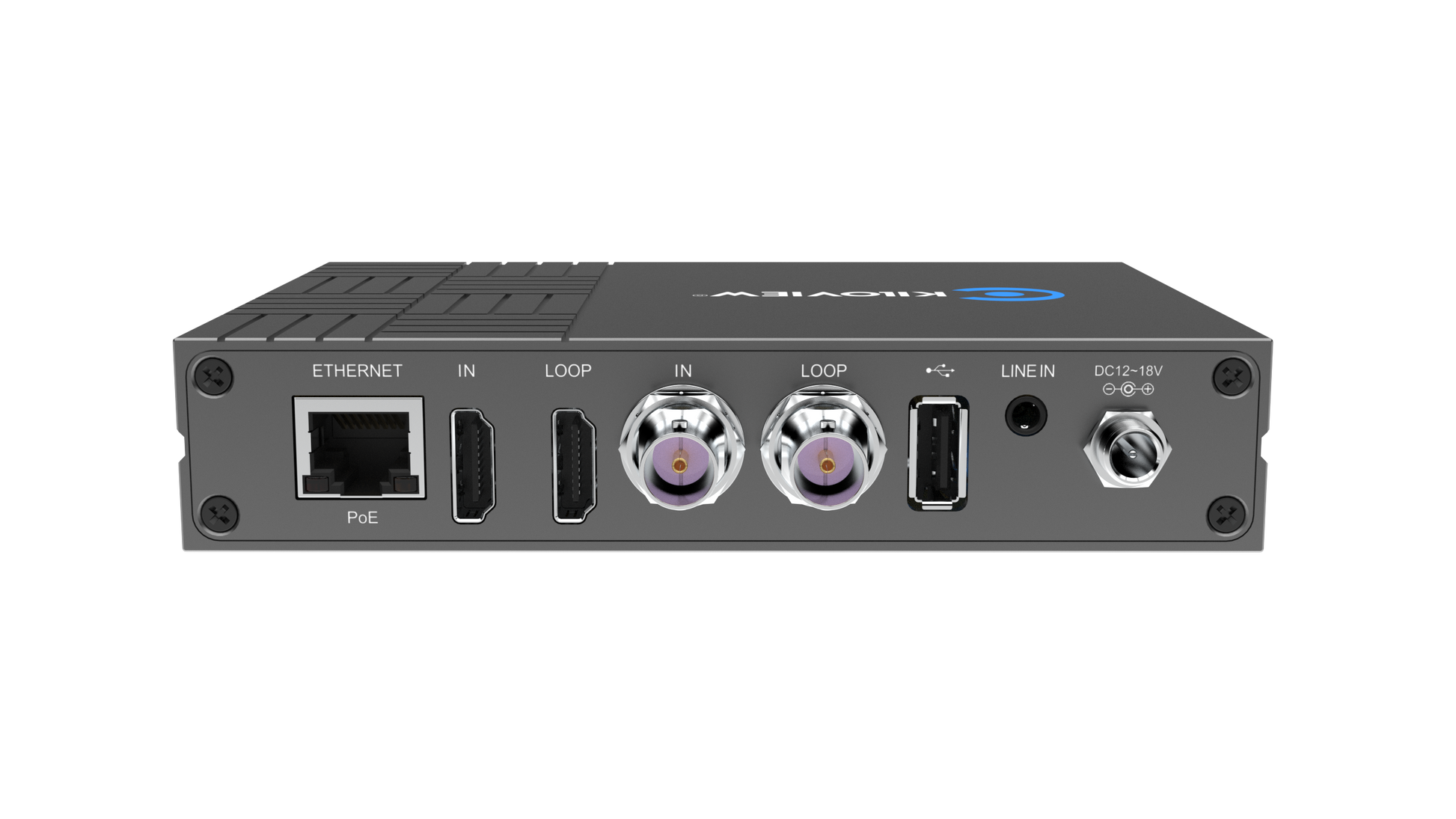

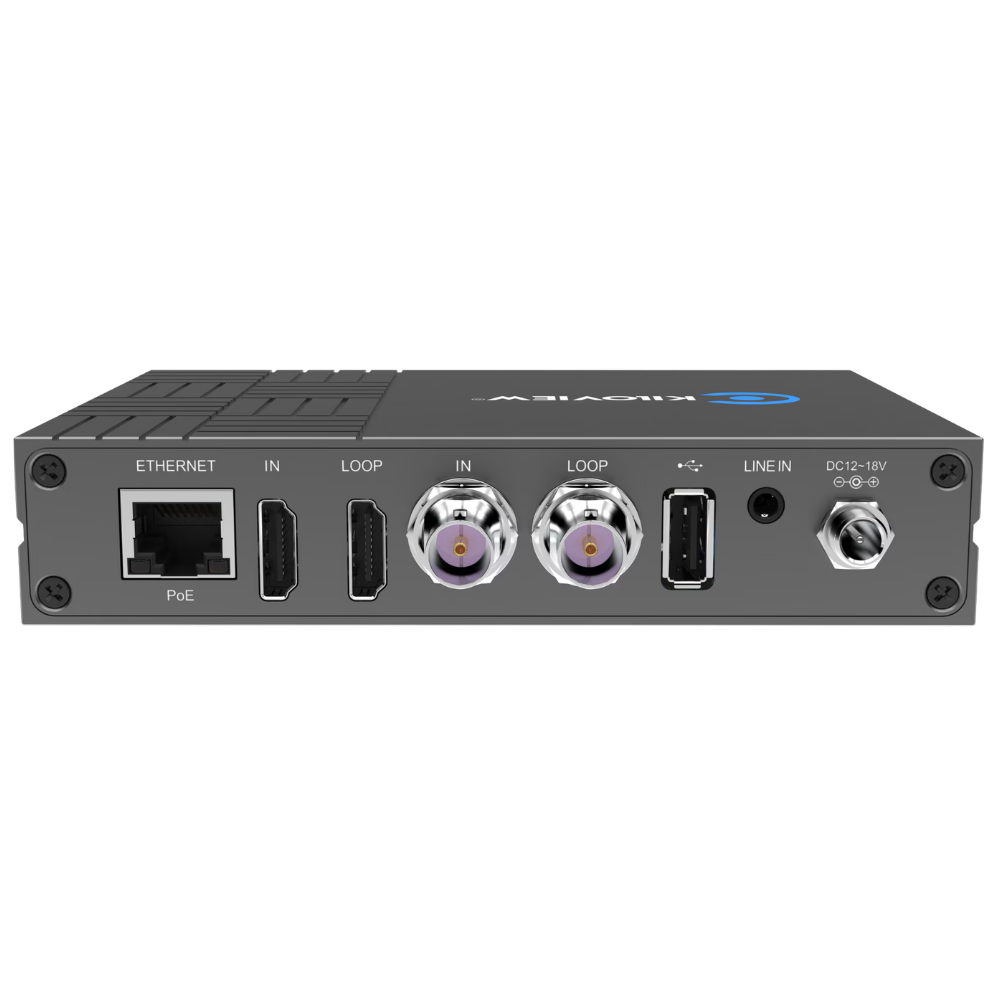

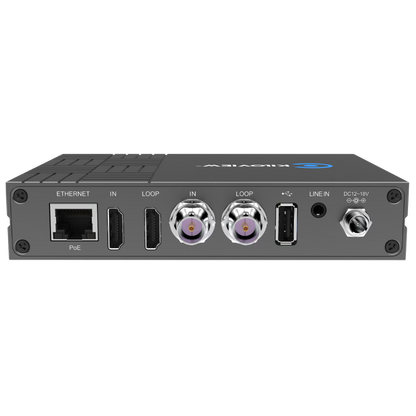

• Video Port

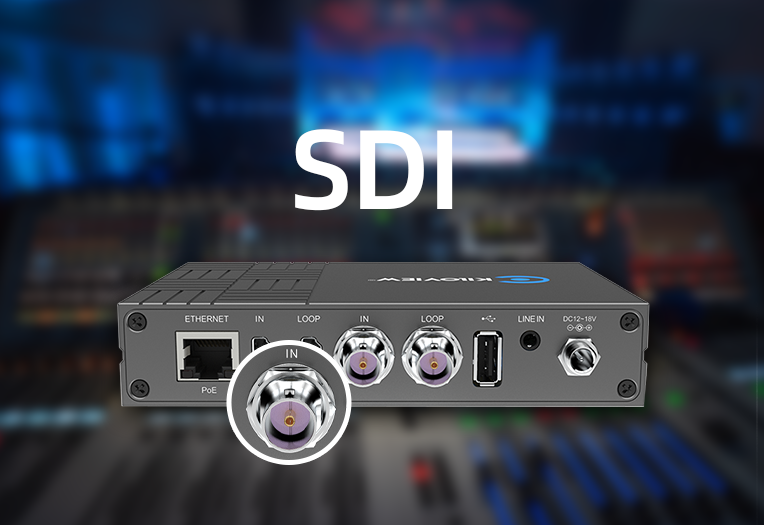

  • 1× 3G-SDI

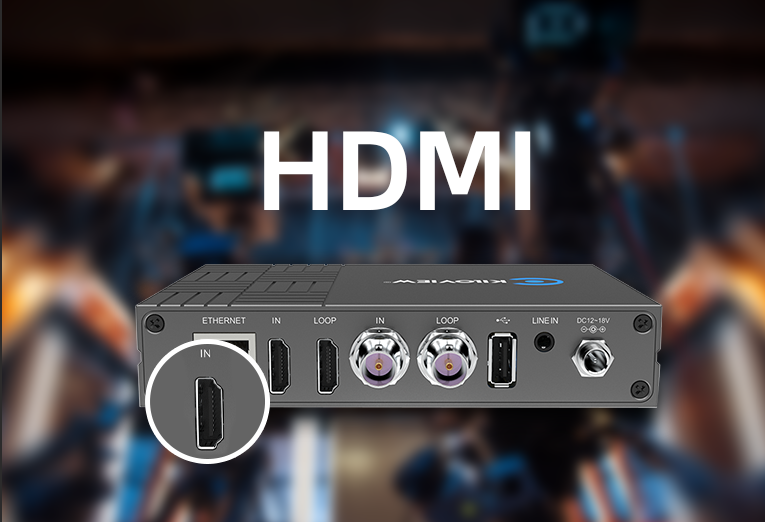

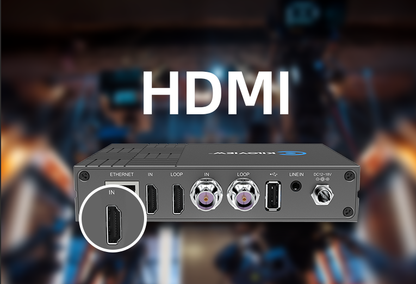

  • 1× HDMI 1.4b
  • 1*USB-C or 1*USB-A
• Video Encoding: H.265(HEVC)，H.264(AVC)，M-JPEG
• Streaming Protocols: NDI HX3/NDI HX2/NDI HX3/SRT/RTMP/ RTMPS/ WHIP/HLS/TS over UDP/RTSP
• Interlaced Video Support: Supports interlaced video input but only progressive encoding and streaming output
• Audio Port: 1*3.5mm Line in
• Audio Encoding: AAC，G.711，MP2，MP3
• Audio Channels
  • 4-channel SDI embedded audio
  • 4-channel HDMI embedded audio
  • 4-channel USB embedded audio
  • 1*3.5mm Line in 2-channel audio
• Network Port    1 × 1000Mbps Ethernet Ports (supports PoE)
• Physical Controls: 1.14" LCD color display, touch bottons
• Pre-encoding Processing: Rotation, Mirroring, Cropping
• SEI Timecode: Synchronized to NTP or system time
• Camera Start/Stop Synchronization: SDI Interface supports REC-RUN mode
• OSD/Graphics Overlay: Custom images can be added
• Management: Web-based UI or centralized management via Kilolink Server Pro
• Tally: LCD display serves as Tally
• Voice Intercom: Supports USB headsets and communicate via Kiloview Intercom System (KIS)
• Recording and Storage: External USB storage or NAS
• Recording Formats: MP4，MOV, TS
• PTZ Control
  • External PTZ control via USB-to-Serial converters (RS-232/RS-485/RS-422)
  • Network protocol support (e.g. Sony VISCA, Pelco-D, Pelco-P)
  • UVC PTZ control compatibility
• USB Port
  • 2× USB 2.0 Type-C (Front Panel)
  • 1× USB 2.0 Type-A (Rear Panel)
• Mounting: Cold shoe mounting
• Power Supply: DC 12V/1A, PoE (Power over Ethernet)
• Power Consumption: <6W
• Weight: 400g
• Dimensions: 140*100*28mm
• Working Temperature: -20℃~45℃

• E3 encoder /1 SET
• Power adapter/1PC
• Cold shoe /1PC
• Quick start guide/1PC
• Certificate/Warranty card/1PC
• Warranty: Limited 1-Year Manufacturer Warranty. Registration Extension: 1-Year
