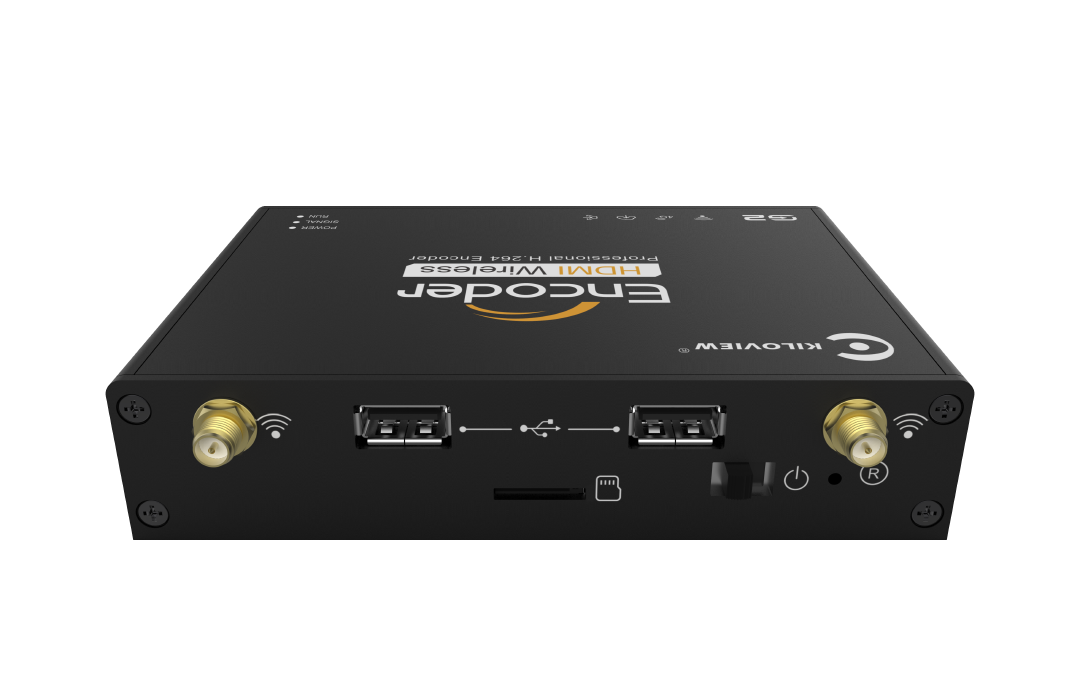

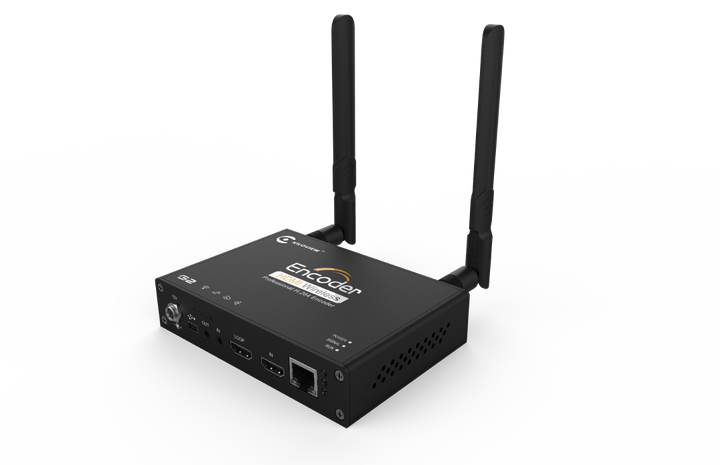

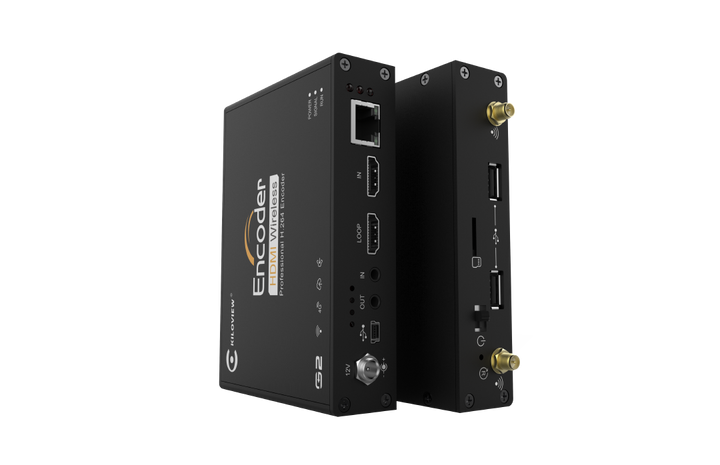

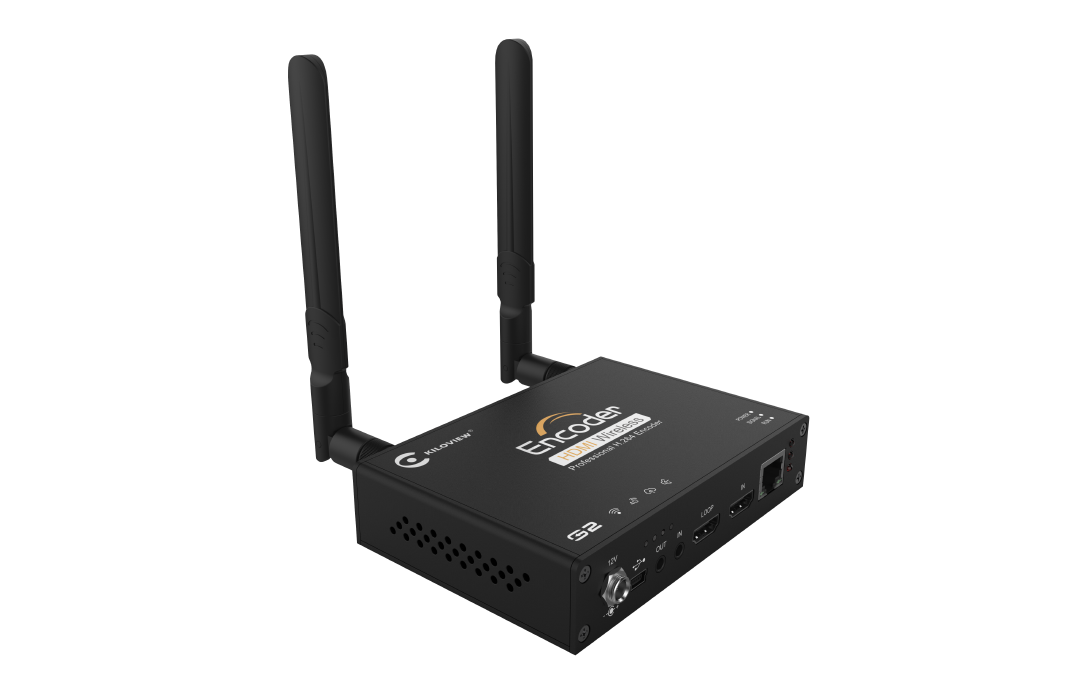

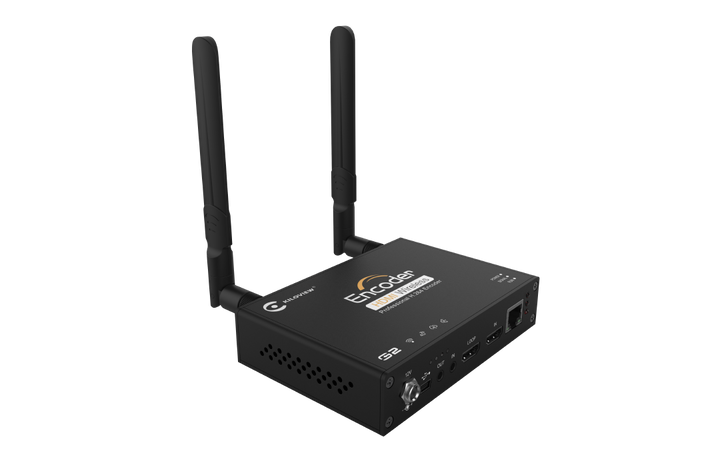

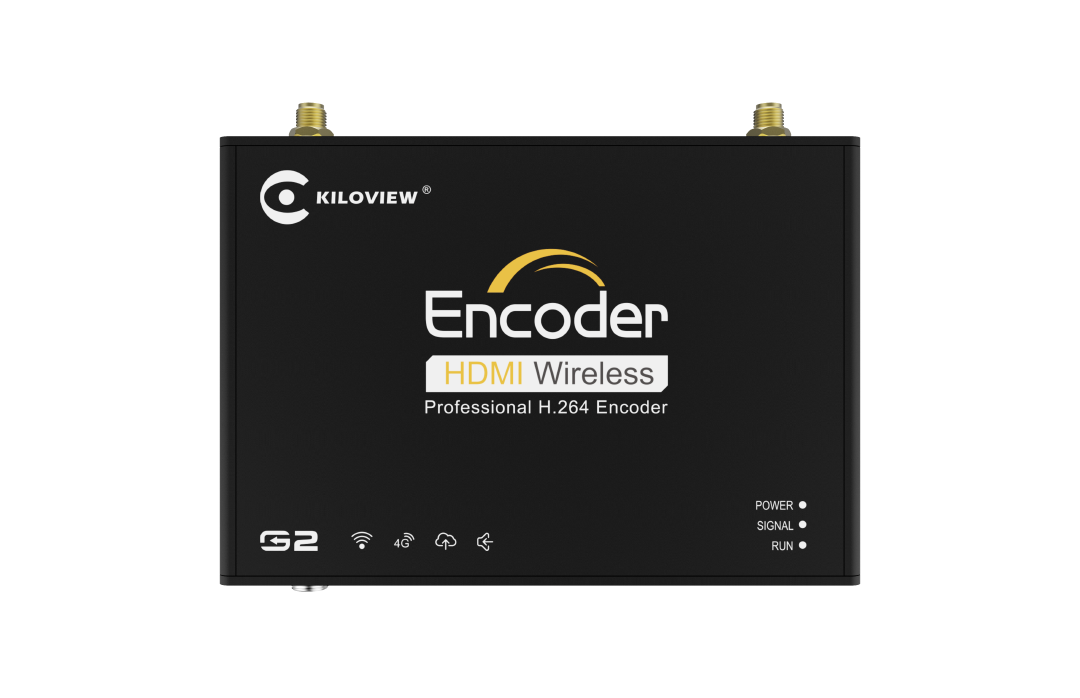

Professional Wireless H.264 Video Encoder
Kiloview G series wireless video encoders can encode SDI/HDMI video sources into network streams through WIFI/Ethernet, and realize long-distance high-definition transmission/live video transmission on Internet WAN or local area network LAN. G series fully support SRT, RTMP, RTMPS, HLS, UDP, RTP, RTSP, Onvif and other protocols.

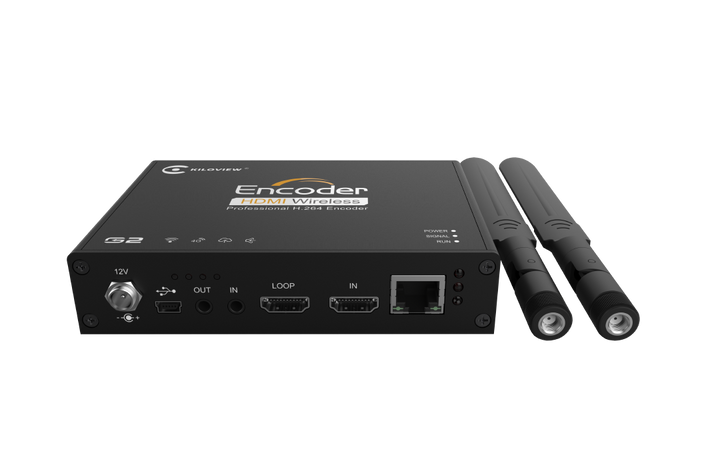

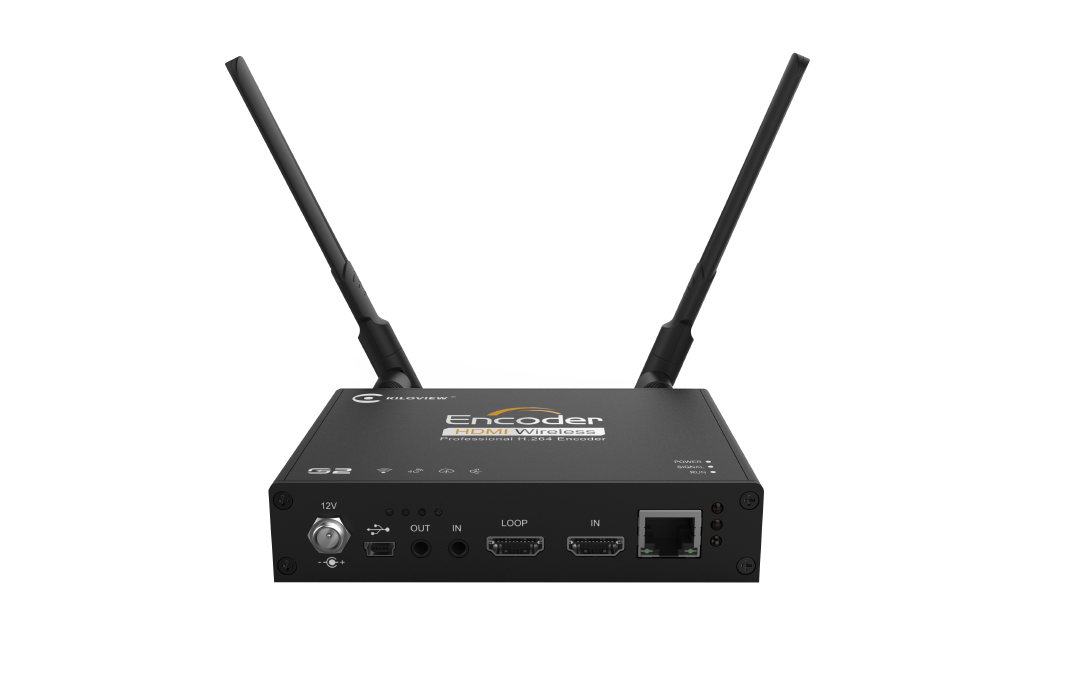

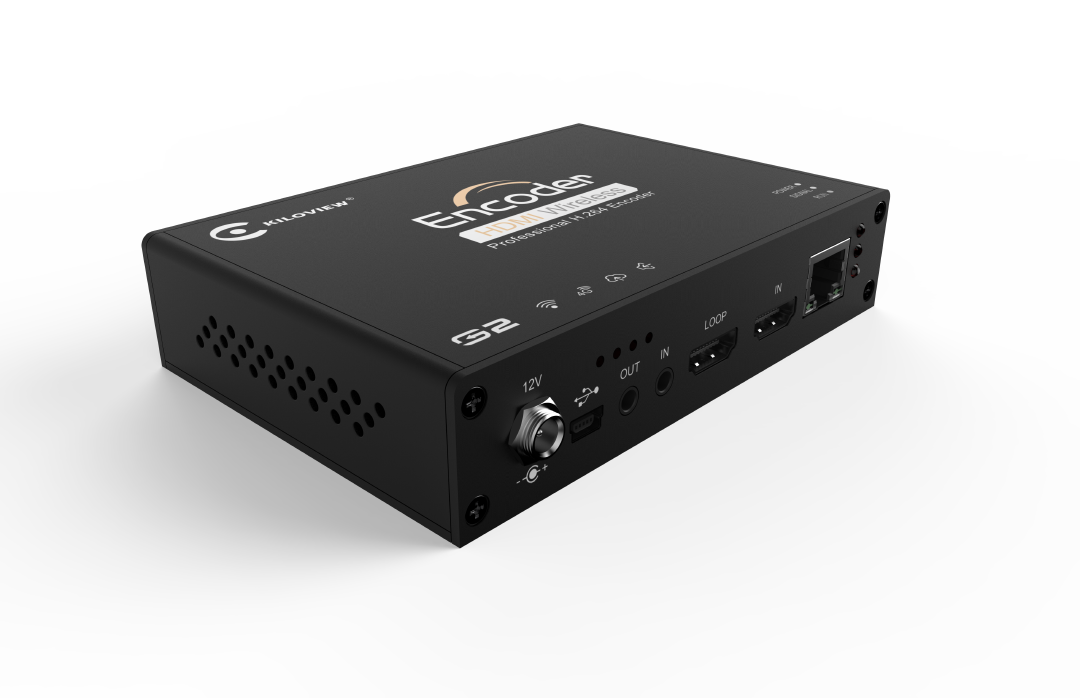

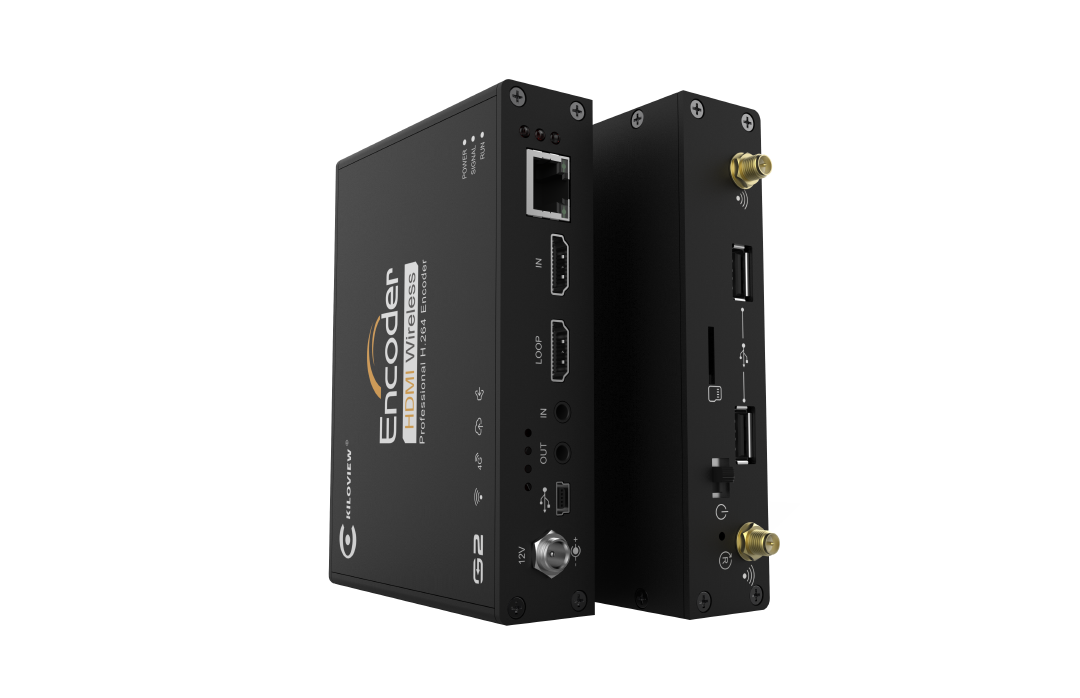

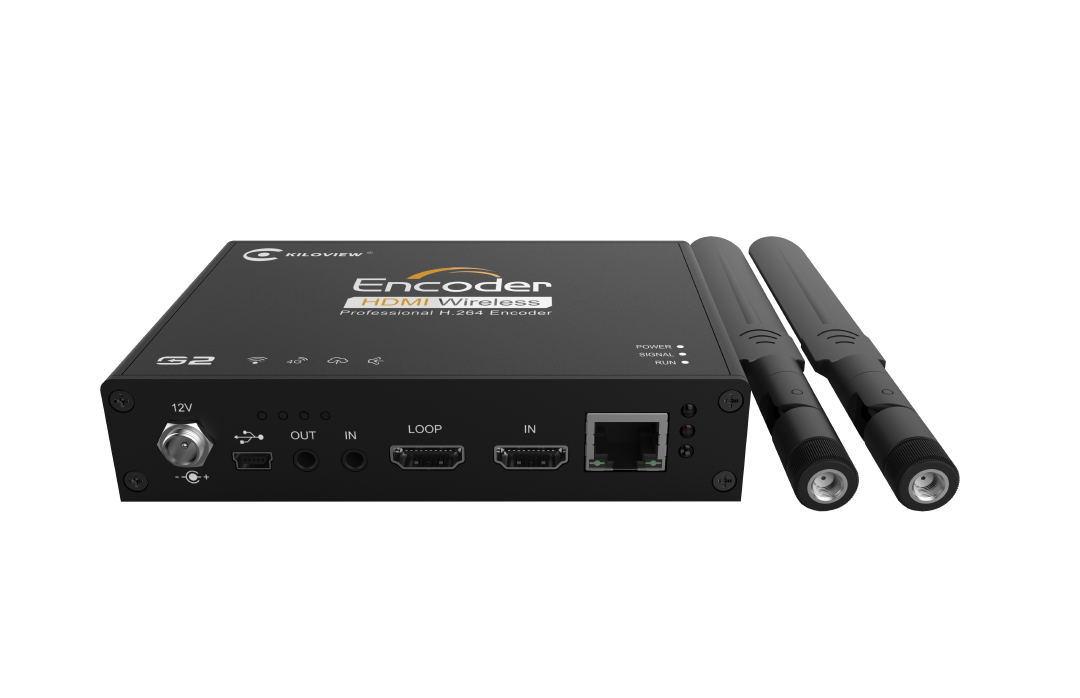

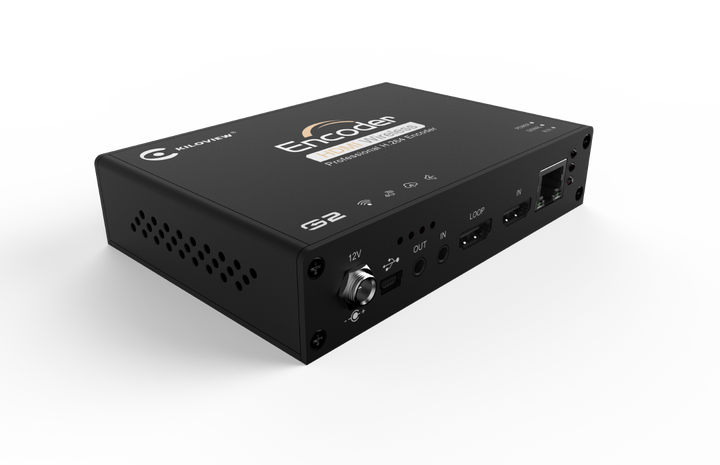

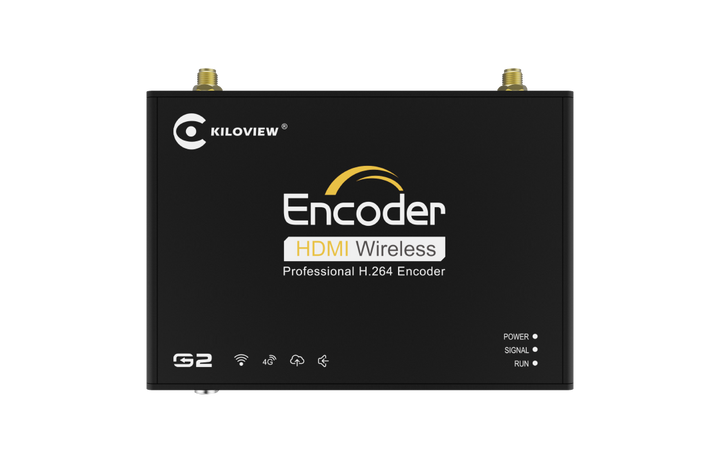

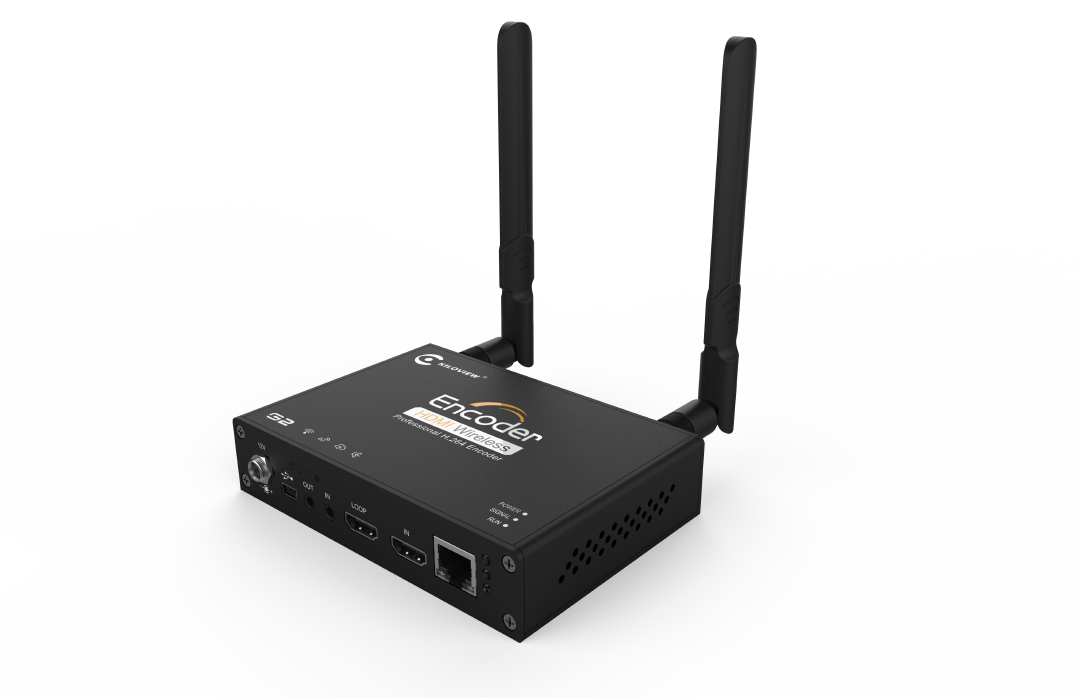

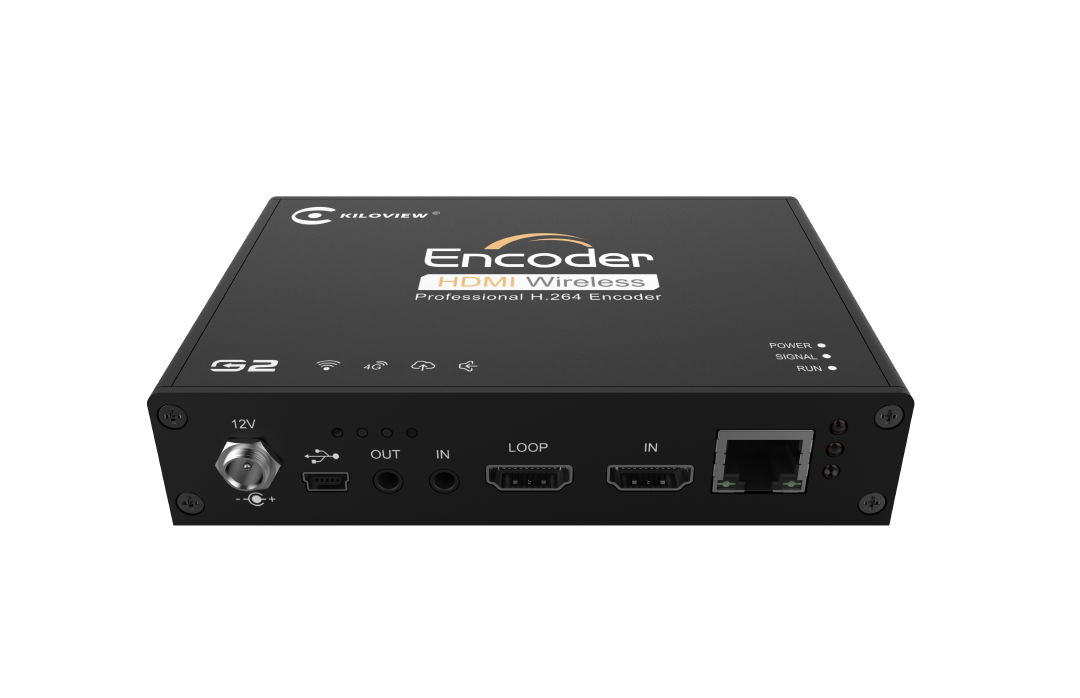

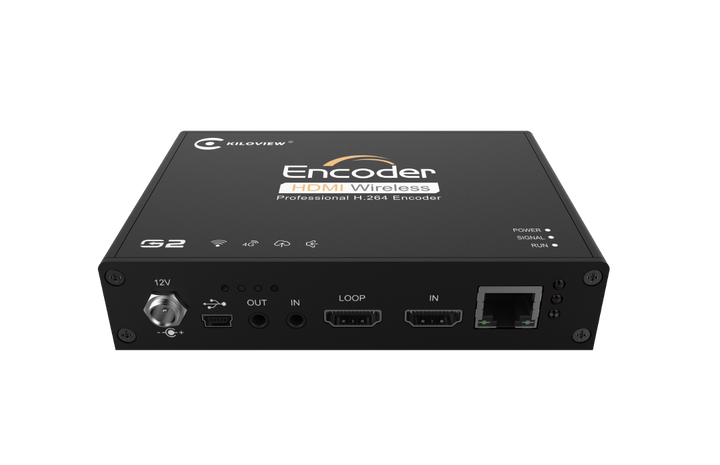

G2: HDMI input/loop out.
Stable Wireless Connection
The G series has a built-in dual-band (2.4G/5GHz) WiFi module, which achieves more stable wireless transmission.
Real HD 1080P60 Video supported
It supports real HD video input with resolution up to 1920*1080P@60FPS to ensure that the image quality is perfect.
Faster While Better
G series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.
- Encoding delay ≤ 67ms
- Adjustable bitrate 64kbps～40Mbps
- Low bandwidth 1.5Mbps@1080p
Live Broadcast on Multiple Platforms
Dual stream output (main stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platforms (with main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz).
More Protocols Compatible
G series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System
Analog and intercom supported - More than video
G1 G2 supports embedded and 3.5mm analog audio encoding, so you can use KILOVIEW voice intercom software to realize real-time calls.
Let’s go social
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.
LOGO/ Image/ Text Overlay
Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!
It's a Recorder
Recording prepares for future. Kiloview G series provides simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro SD/TF/USB/NAS with recording files in the format of .ts, .mp4, .mov,.mkv, avi.
TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports
- Embedded Audio
- SDK/API Development
- 3.5mm Analog Audio Input
- High-end ChipReal-time Loop
- Web-based Interface
- USB-extended PTZ
- 7 * 24h Operation
Analog video input
- 2*USB 2.0 Type-A
- 1*Micro SD/TF Card storage interface
- WIFI (2.4G/5G Hz)/Ethernet/Satellite
- 1*BNC SDI or 1*HDMI
- Up to 1080P60Hz:
- SDI model：1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz
- HDMI model: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P/30/50/59.94/60Hz; below 1920x1200
- H264/AVC, Motion-JPEG
Media transmission protocols
- SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP /Onvif, customize for SIP
Image and text overlay
