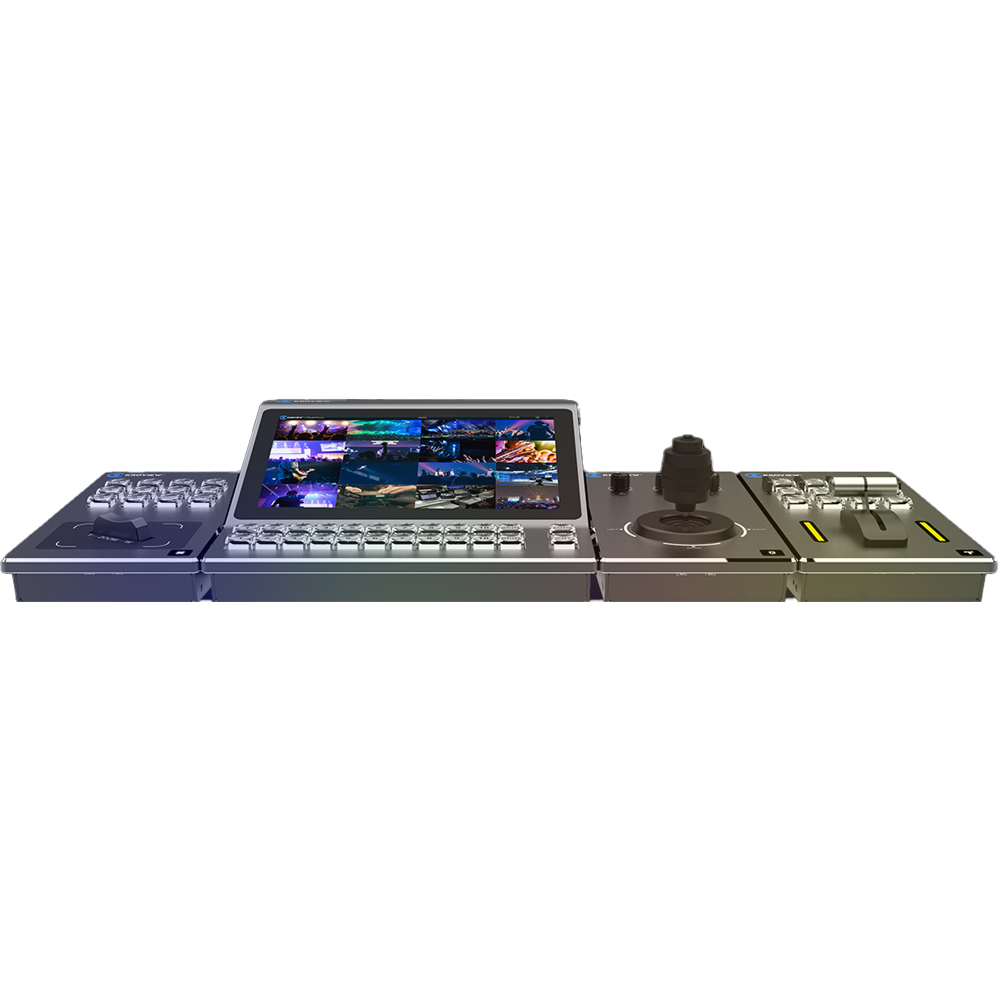

Kiloview LinkDeck 4 Bundle
INSTANT SAVINGS of $269.01!!
Videoguys Part # (SKU):
LINKDECK4BUN
Short Description:
- Free Shipping & Tech Support
Entice customers to sign up for your mailing list with discounts or exclusive offers. Include an image for extra impact.
The Kiloview LinkDeck Series consists of four unique design decks including Panel Deck, Take Deck, Zoom deck and the PTZ Deck, and can control all aspects of Kiloview hardware and software based on RTC technology. LinkDeck enables users to manage the whole Kiloview ecosystem including NDI ONAIR / NDI CORE*/ NDI RECORDER* / NDI Encoder / NDI Decoder / Multiview / KiloLink Server*. By developing a 3rd-party plug-in based on Python, Linkdeck even allows interaction with systems like TriCaster and vMix.
One Cable Is All You Need
LinkDeck is an IP-based solution that delivers safe and stable transmission. All the control and management for the system is controlled by one PoE cable.
Modular Design Brings Huge Scalability
LinkDeck consists of four unique design decks including Panel Deck, Take Deck, Zoom deck and the PTZ Deck. Each deck can be combined to your own specification to create an exclusive workbench with fully customised content. This unique design also offers easy assembly and installation for an optimised user experience.
Panel Deck - All Under Control
The Panel Deck, equipped with a 10.1” touch screen and a bi-color LED keyboard, provides the easy operation and an intuitive user experience. The 10.1” screen allows you to customize whatever product you want to control. Both soft keys and physical keys control all aspects of your workflow, with DC and PoE providing the power source to your entire suite of Decks.
Easy TAKING - TAKE Deck
Take Deck helps you to switch like a pro with a “T” stick and dual LED displays. 12 buttons are available to control Switching / FTB* / Recording* / Live streaming / Lock screen with one single press, making every step of the process easy to operate.
Pro PTZ Control - PTZ Deck
The PTZ Deck offers single handed control of all your PTZ cameras, with the simple movement of the joystick and switches to adjust focus, aperture and white balance.
ZOOM it! - ZOOM Deck
With Zoom Deck’s rocker, you can simply zoom in / out whenever you want. It also has 11 soft buttons for all your personal customization.
Material
Panel Deck is made of robust aircraft-grade materials and designed for bringing the studio experience to you, wherever you are with its own whole set of pro-level joystick/buttons/switches/selectors and ports.
Applications
Flexible to apply to different scenes including Studio production, Production truck, Concert, Live streaming, Live event, Video conference, etc.
Panel Deck DP-01
Display
10.1" multitouch LCD screen
Resolution
1920 x 1200
Keyboard
24 keys(Bi-color tally)
CPU
8-core CPU
Memory
2GB
FLASH Storage
16GB
Video Output
1 x HDMI output up to 1080P60
Intenet Input
1GbE port with PoE
Power Supply
DC5.5/2.5 12V
HDMI Port
1
Key
24, user-defined keys
USB Port
7×Type-C 2.0
DC Port
Single DC5.5/2.1
Dimension / Weight
6.65lb/285.33*260.00*110.10mm(11.2"x10.2"x4.3")
Operating Temperature
-20℃~45℃
PTZ Deck DQ-01
USB
2 × USB Type -C 2.0
Key
1
Control Knob
3
Joystick
1
Tally
3(2 in white,1 in RGB based on settings)
Dimension / Weight
3.30lb/ 260.00*130.00*107.45mm(10.2"x5.1"x4.2")
Zoom Deck DZ-01
Keys
13
ZOOM Rocker
1
USB
2 ×Type-C 2.0
Dimension / Weight
3.04lb/260.00*130.00*53.68mm (10.2"x5.1"x2.1")
Take Deck DT-01
USB
2 × Type-C 2.0
Keys
13
T Stick
1
Dimension / Weight
3.22lb/ 260.00*130.00*74.00mm(10.2"x5.1"x2.9")
