NDI & NDI|HX. Encoding & Decoding. All In One
Full-functional NDI&NDI|HX Converter

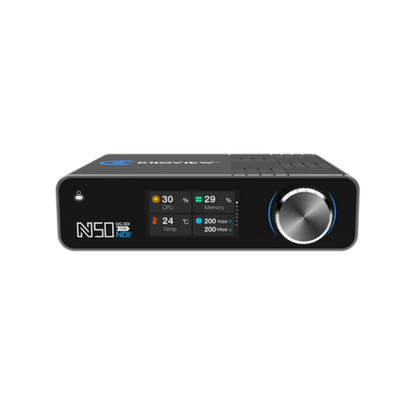

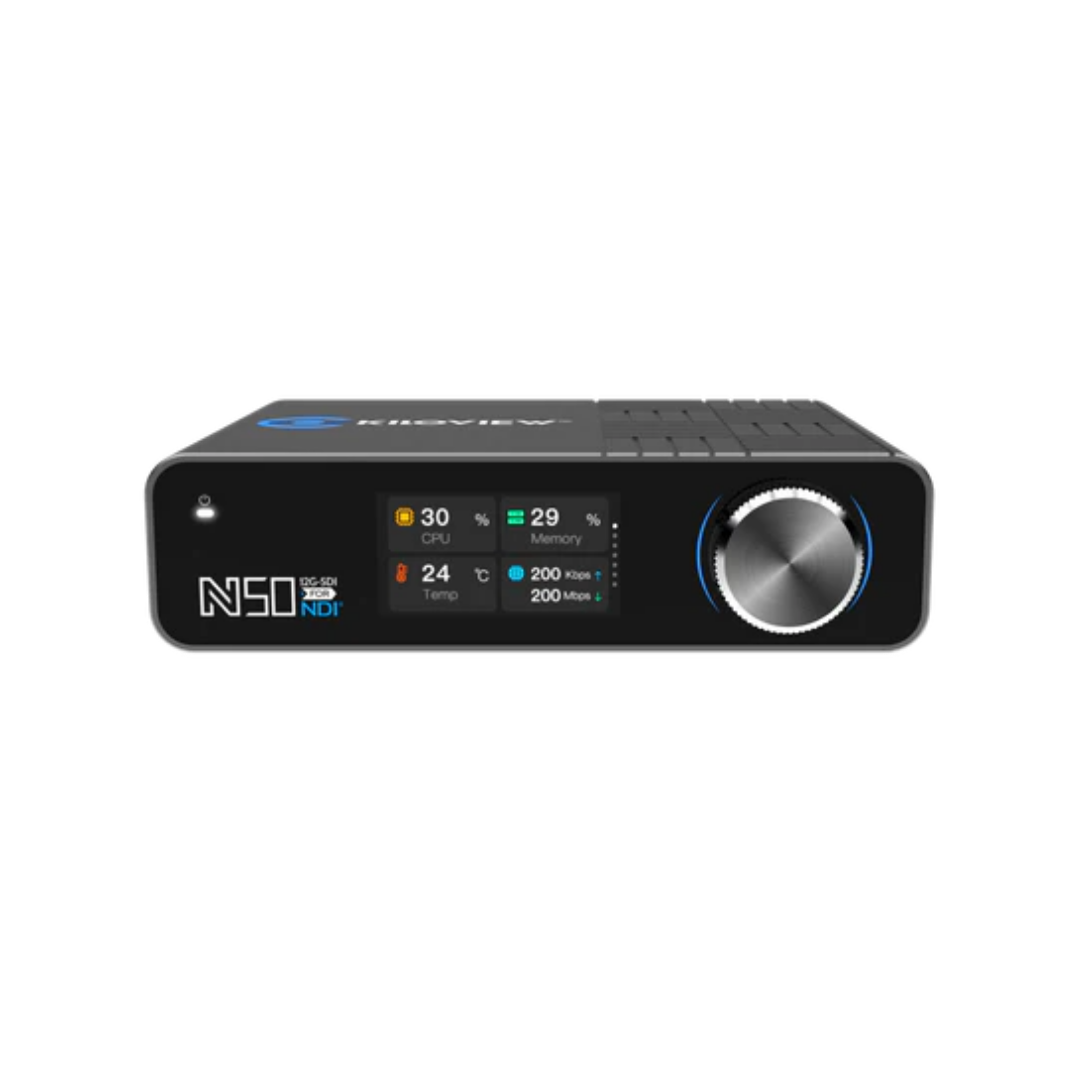

Kiloview N50 is a full-functional NDI converter that uses the leading FPGA technologies, advanced-level AVC/HEVC algorithm, and NDI algorithm. It supports encoding/decoding within one unit which meets all your demands regarding IP-based video transmission. N50 supports 12G-SDI format encoding/decoding of both NDI High-bandwidth and NDI|HX2/3 by H.264/H.265.
Encoding & Decoding with Ultra-low Latency
In the encoding mode, the N50 easily converts a 4K 12G-SDI video signal into an NDI and NDI|HX stream. While in decoding mode, it will automatically adapt the NDI and NDI|HX format as your end needs. N50 handles your NDI transmission easily with low latency of less than 80ms.
Pro-level Color Performance
N50 supports a professional YCbCr 4:2:2 color space and a 10-bit color depth (the common 8-bit color depth is also available). N50 provides higher color and image quality to match the high standard in the broadcast and medical industries.

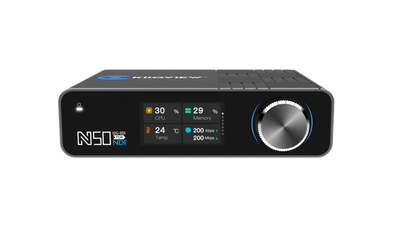

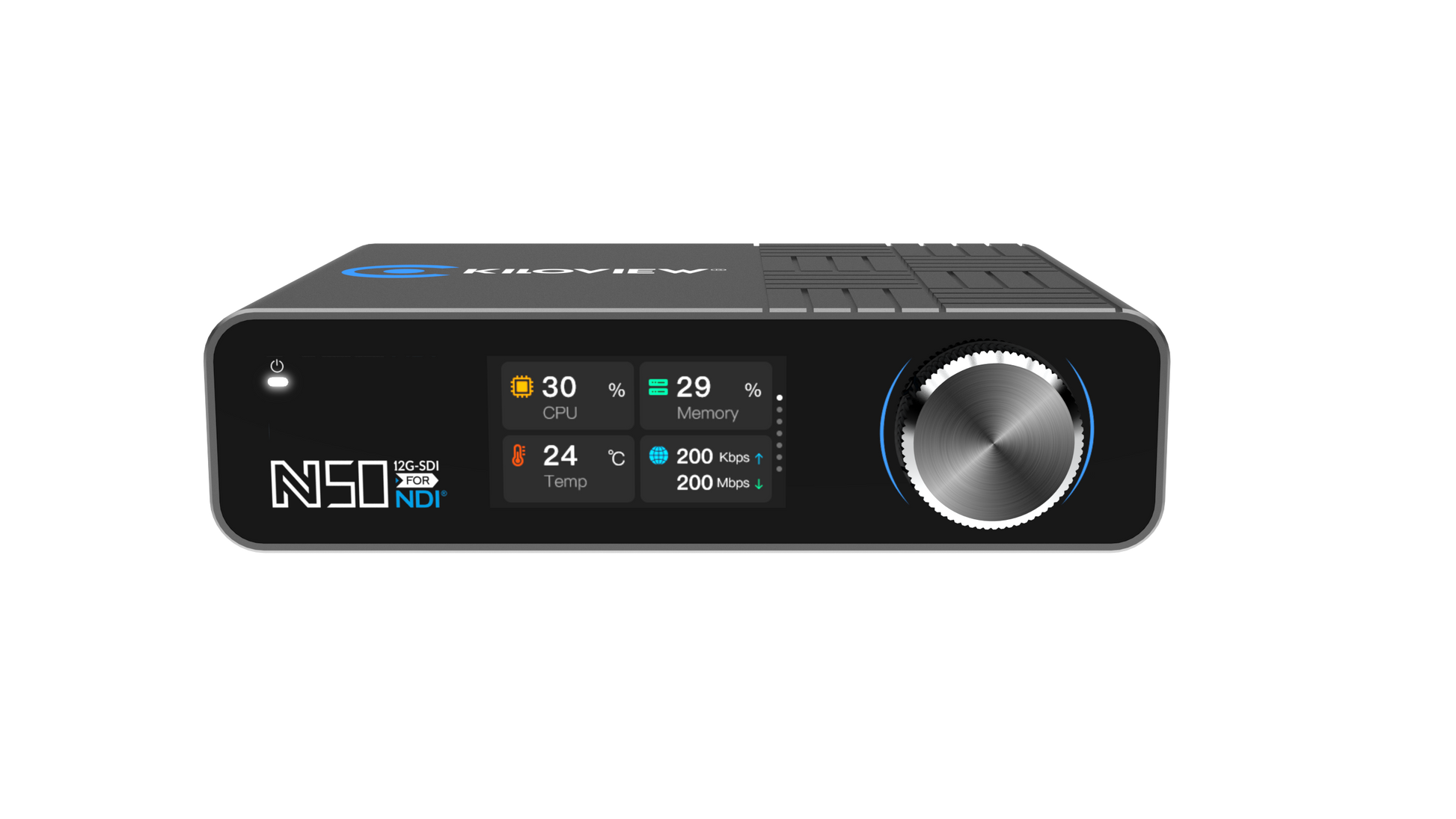

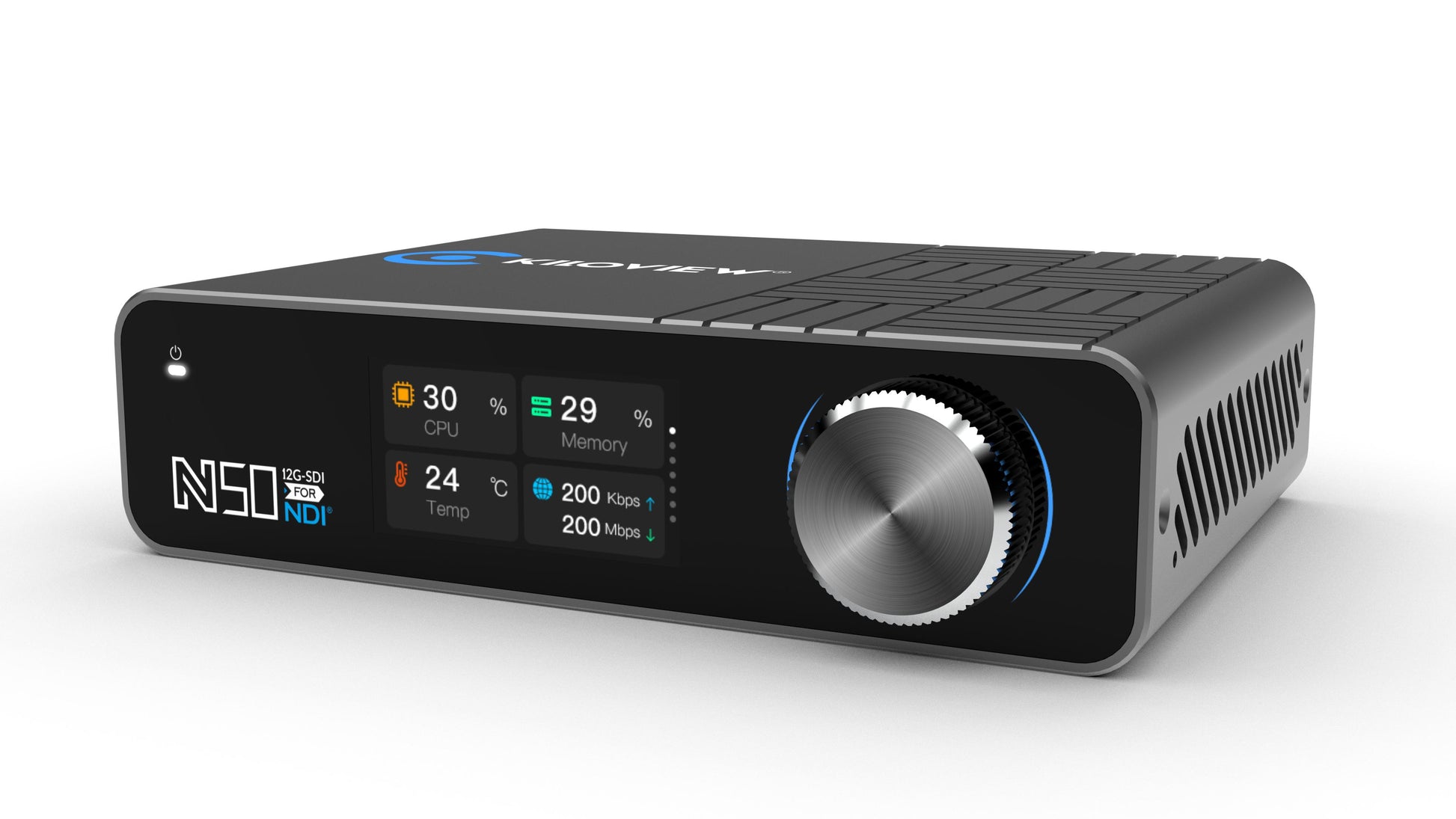

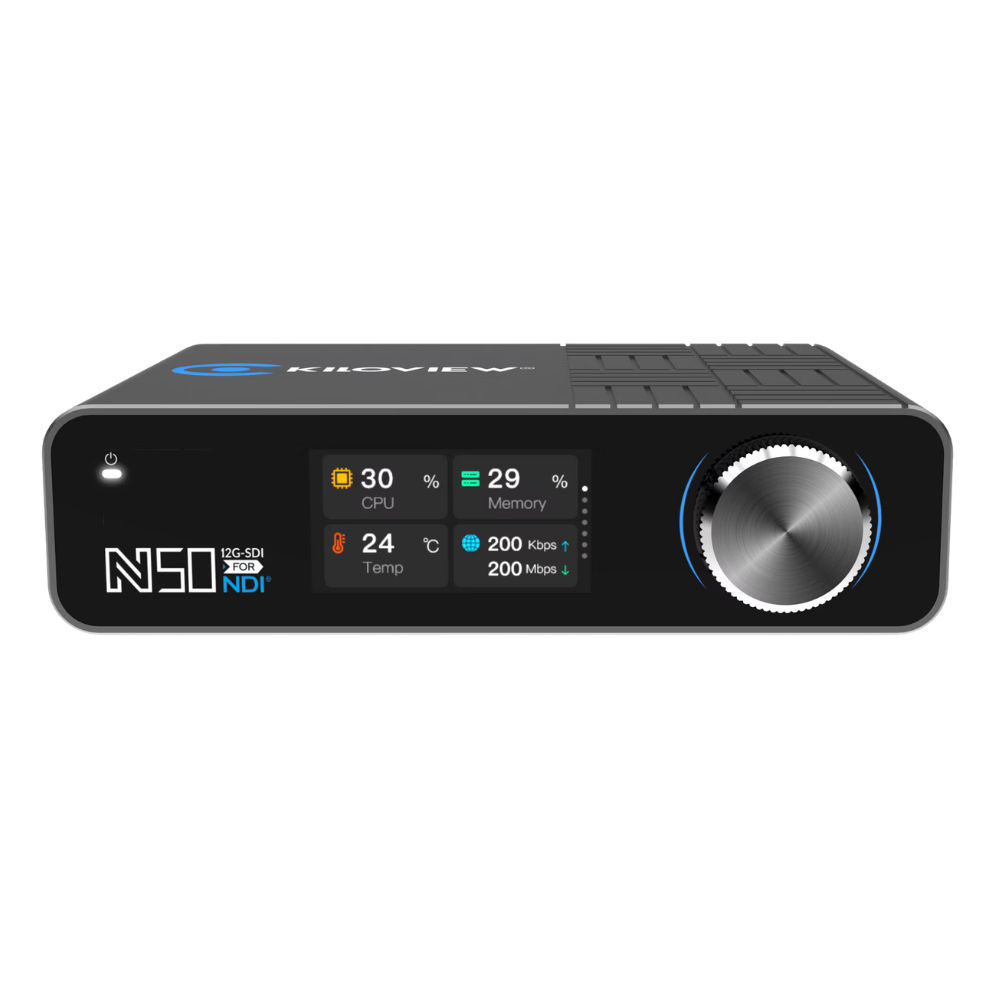

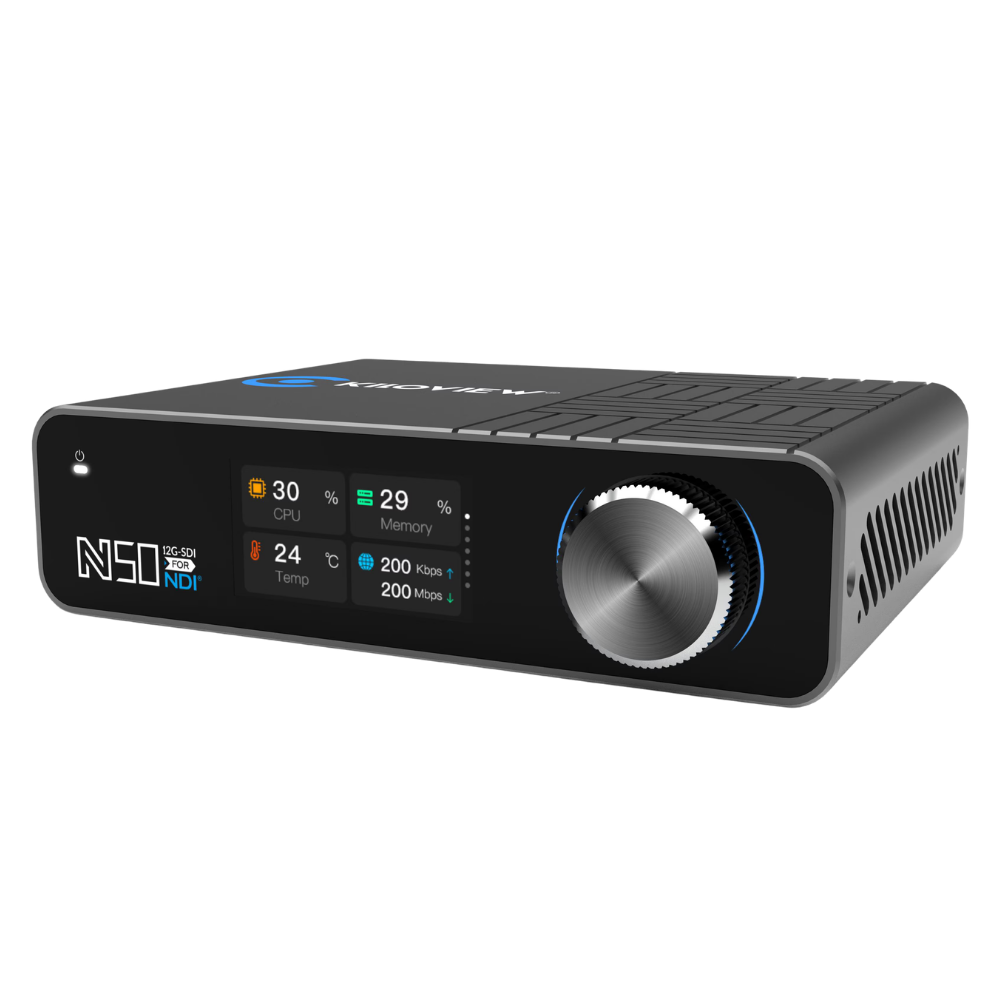

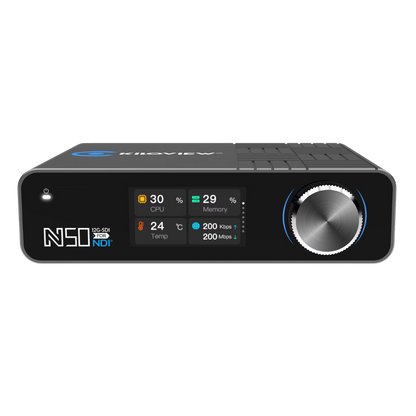

Built-in LCD Screen and Scroll Wheel

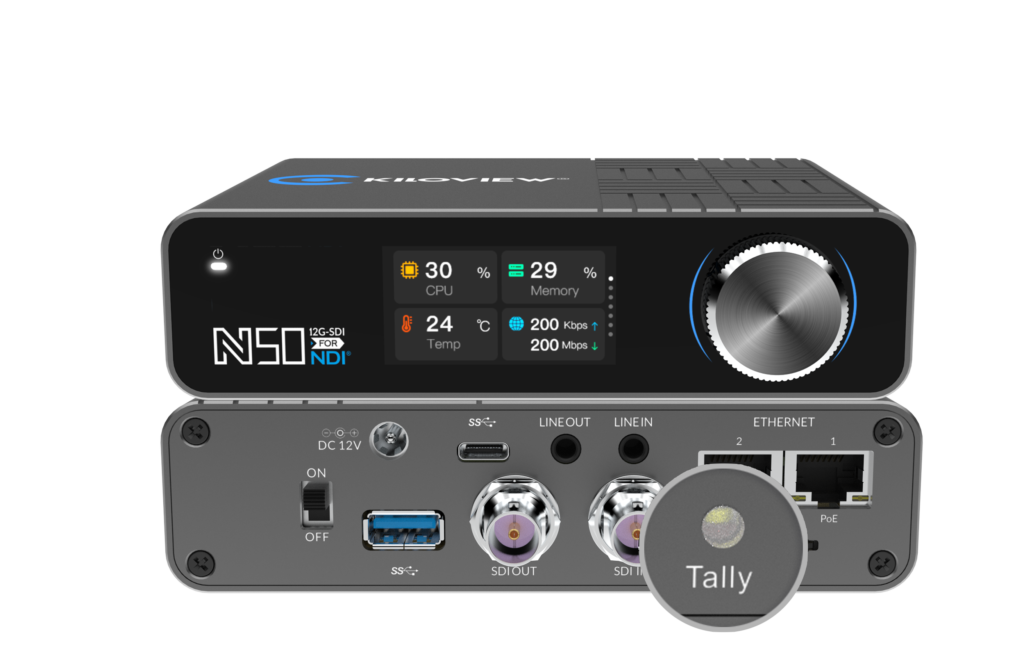

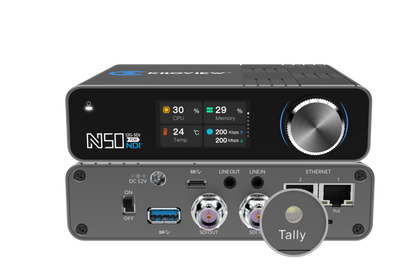

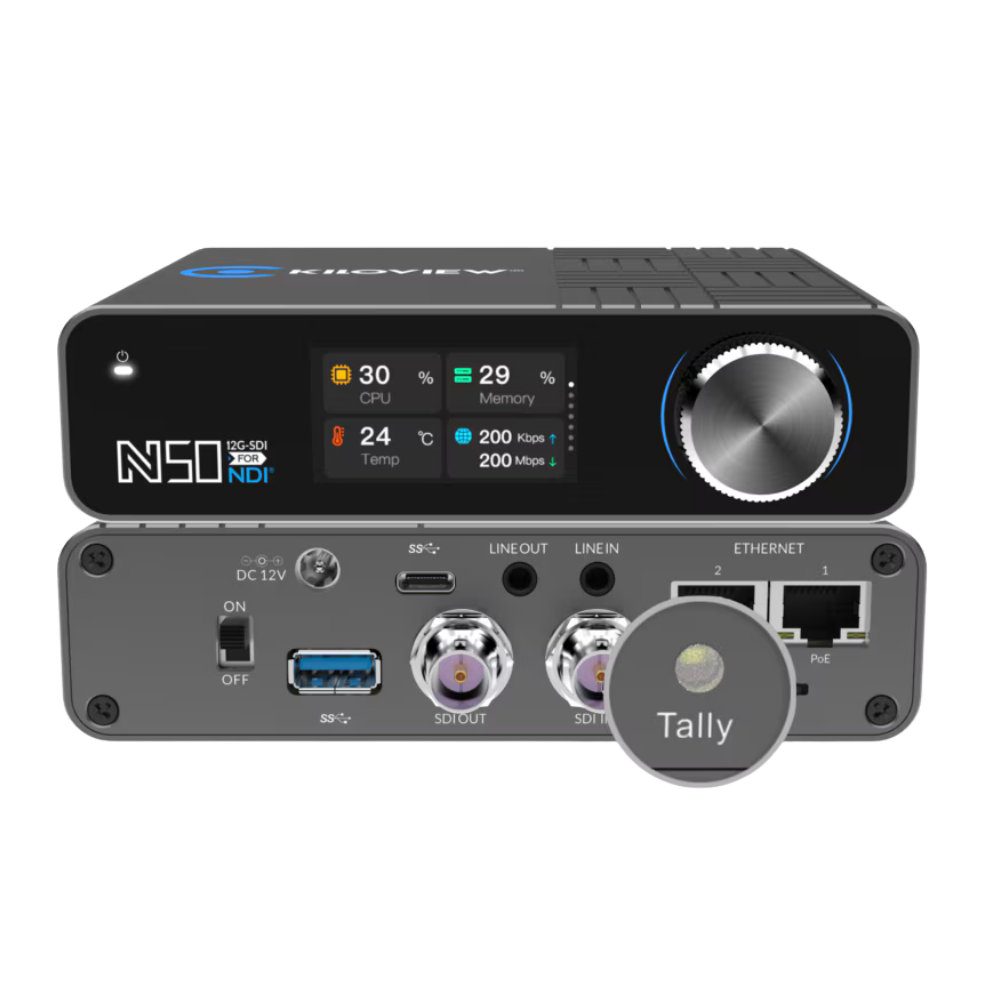

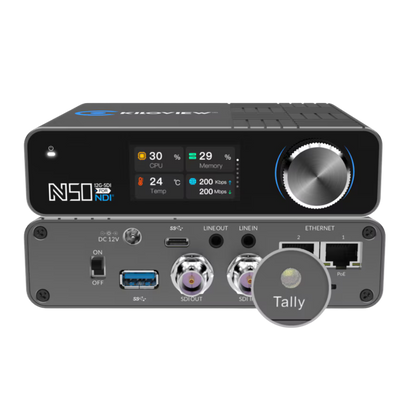

As a 12G-SDI version of Kiloview N60, the N50 cares about user experiences the same way. The N50 is equipped with a big color LCD screen for users to check the unit parameters anytime, anywhere. It can also be used as a big tally and works in conjunction with the small tally on the back panel, making it easy for all personnel in the field to check the PVW or PGM status in real-time. The scroll wheel enables users to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.

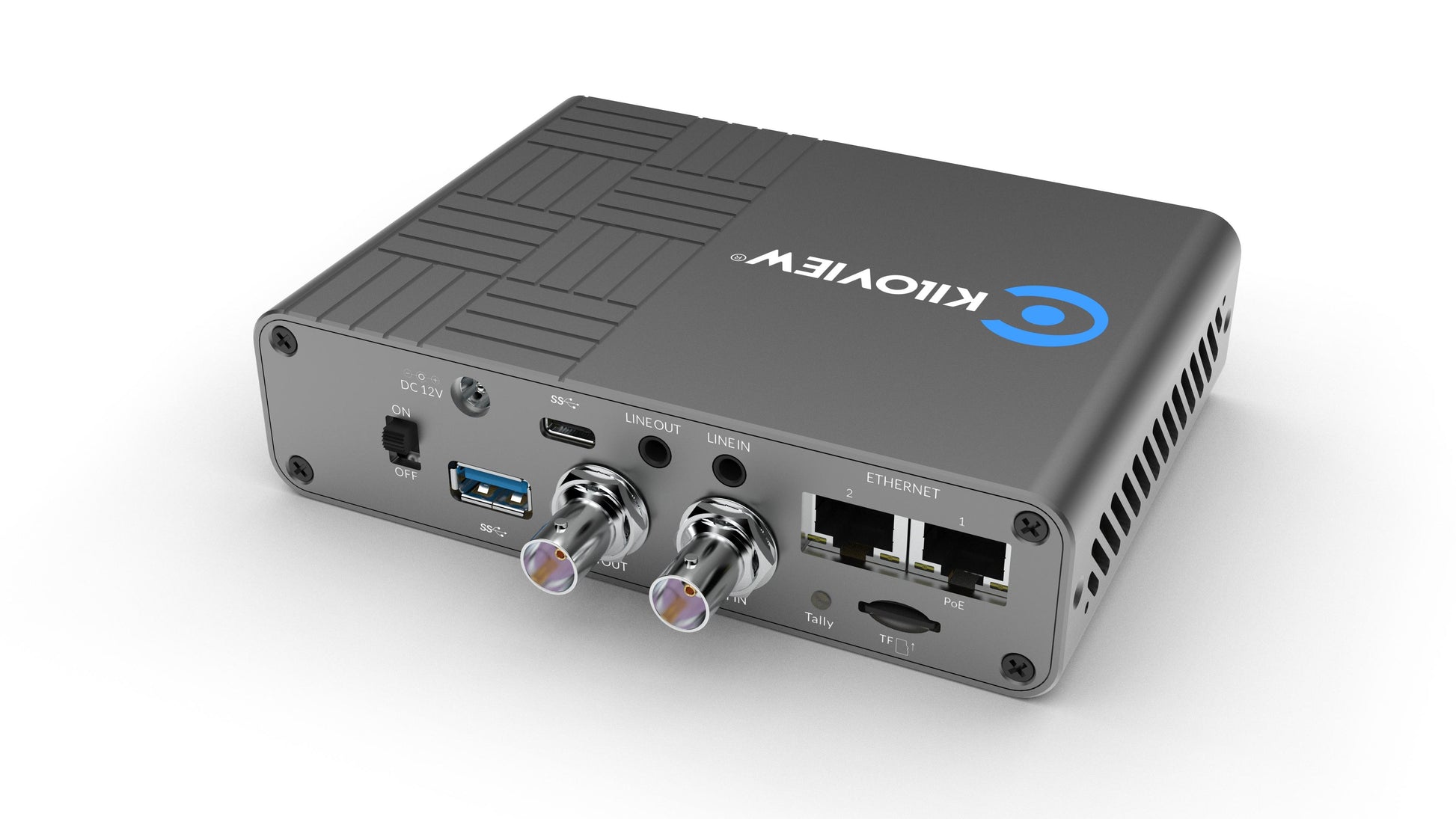

N50 has both USB 3.0 Type-A and USB 3.0 Type-C interfaces for users to :
Access a Web Camera via USB 3.0 Type-A as a video input source for encoding;
Connect to PC via USB 3.0 Type-C as a USB video input;
Control PTZ Camera via USB expansion.
Users can achieve unlimited possibilities with USB extensions by seamlessly bringing NDI technology to such applications as video conferencing, image processing, and PTZ camera control.
Audio and Intercom
N50 supports 12G-SDI embedded audio and 3.5mm analog audio encoding/decoding. It supports an extended USB audio interface (e.g., USB headset), to realize an end-to-end real-time intercom among the Kiloview devices operators and the associated Kiloview Intercom System (KIS) group.
N50 supports PTZ control through USB to serial RS-232/RS-485/RS-422. It also adopts network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.
Power Supply: PoE and DC

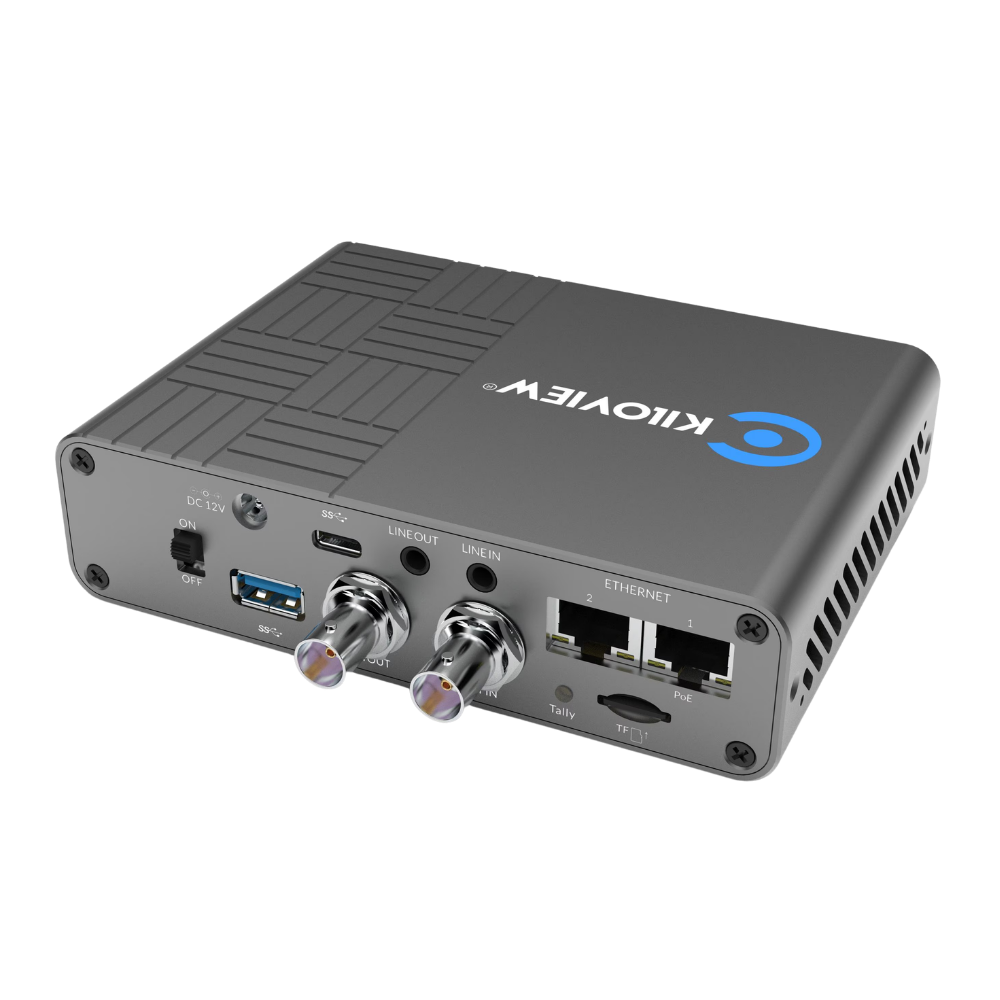

N50 has 2 interfaces of Ethernet, one of which supports the PoE（IEEE 802.3AT）power supply. Just plug in a network cable, and you can easily access both the power supply and network transmission. It also supports DC 12V power supply and can easily power the device with a portable charger or camera battery.
N50 offers a TF storage extension that eases your recording of encoding NDI video directly into a TF card (local recording supports MOV. format). TF storage prevents your recording process from losing video frames caused by network delay, network interruption, or fluctuation.
Central Management with Kilolink Server
N50 can connect to KiloLink Server seamlessly which optimizes media transmission by any Kiloview products using any available network links. It helps to manage, monitor and control all the devices throughout the process.
Compatible with TriCaster, vMix, OBS, and other commonly used tools.
Carry out your video production anytime, anywhere.

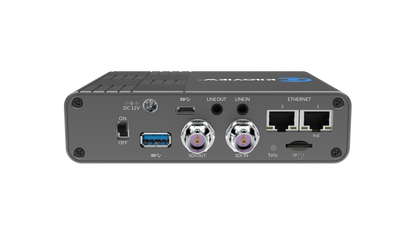

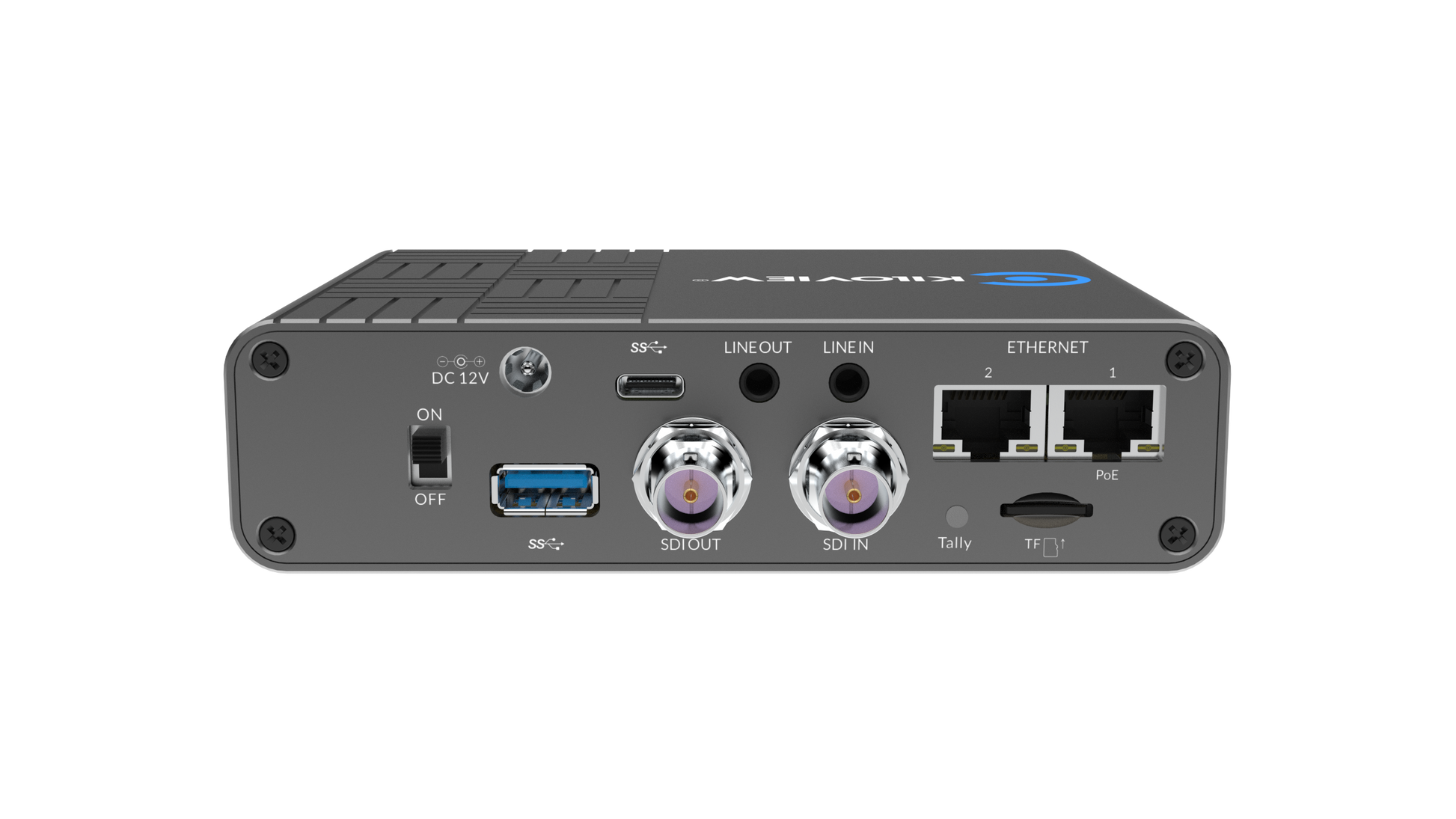

NDI Bandwidth Requirement
Resolution: Default Bitrate

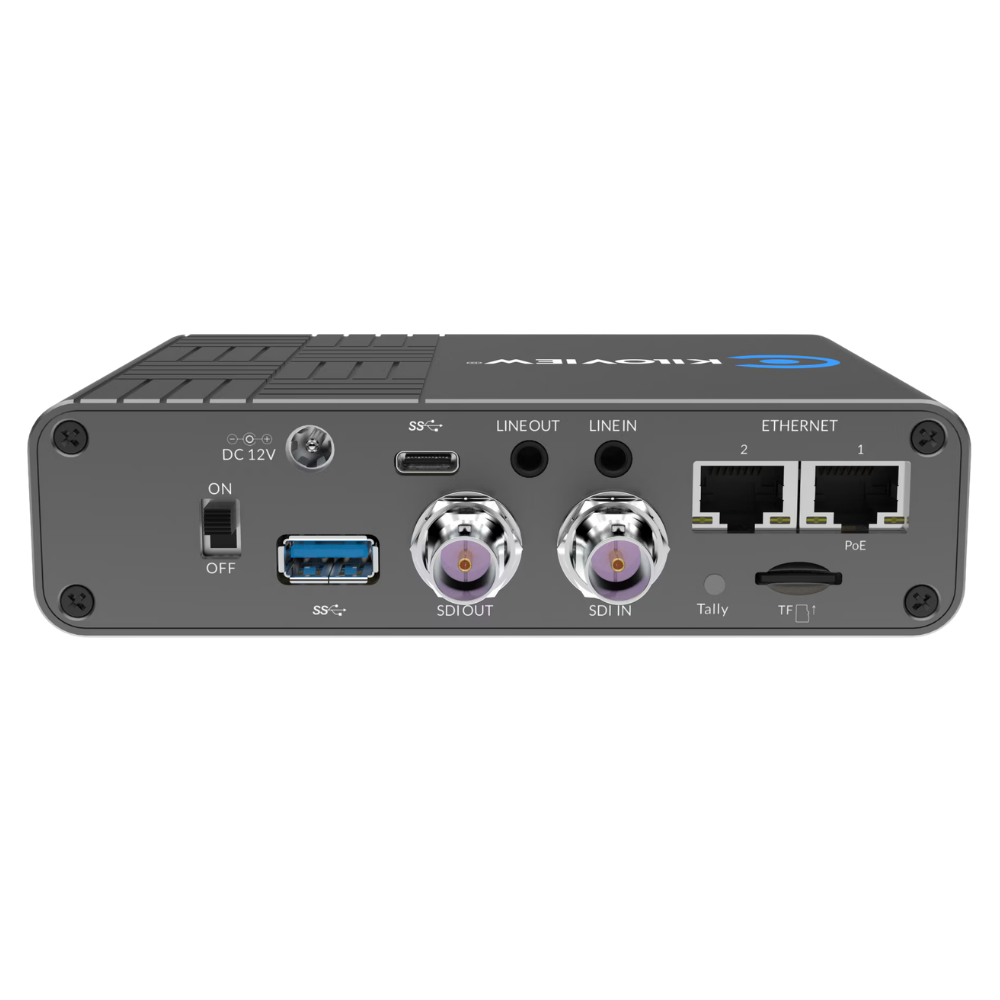

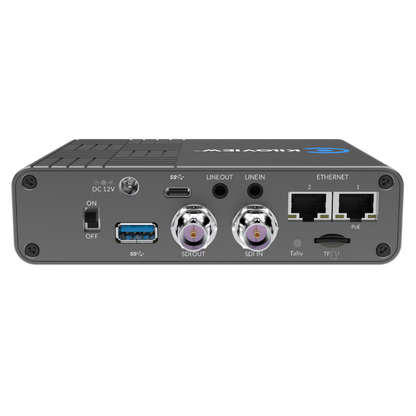

1*4Kp60 12G-SDI 2.0
1*4Kp60 12G-SDI 2.0（Loop or decoding output）
1*3.5mm Line in
1*3.5mm Line out
2*RJ45 1000Mbps Ethernet port
Ethernet 1 with PoE (IEEE 802.3AT, 24W Max)
Input: up to 3840x2160 60fps (4Kp60), lowest 720p50
Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p50
NDI® codec capacity
1x NDI® FB/HX encoding or 1x NDI® FB/HX decoding
SpeedHQ (NDI CODEC): SHQ0, SHQ2
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265
AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
Audio encoding and decoding
NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion
1*USB3.0 (type A)
1*USB3.0 (type C)
1.96〞LCD screen, KILOVIEW Magic Rotor
Support TF card for recording, capacity up to 2TB
Built-in OLED panel available as front/rear Tally
DC 12V （5.5/2.5）or PoE
Support both NDI and NDI|HX 2.0 (Note: It will support NDI|HX 3.0 in the near future)
SpeedHQ (NDI CODEC):
4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps
Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60).
Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60).
TF card available for local storage to .mov filles.
Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required).
Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server.
Support PTZ control through USB to serial RS232/485/422;
or PTZ control over IP with different protocols, no extra cable required
Input with Web Cam via USB
Support video input from Web Cam via USB 3.0 (Note: license required)
Connection with PC via USB
Support connection with PC via USB Type-C, as a video capture device (Note: license required)
Web UI and remote management with KILOVIEW KiloLink Server
Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server
Support cold-shoe mounting and V-mounting
