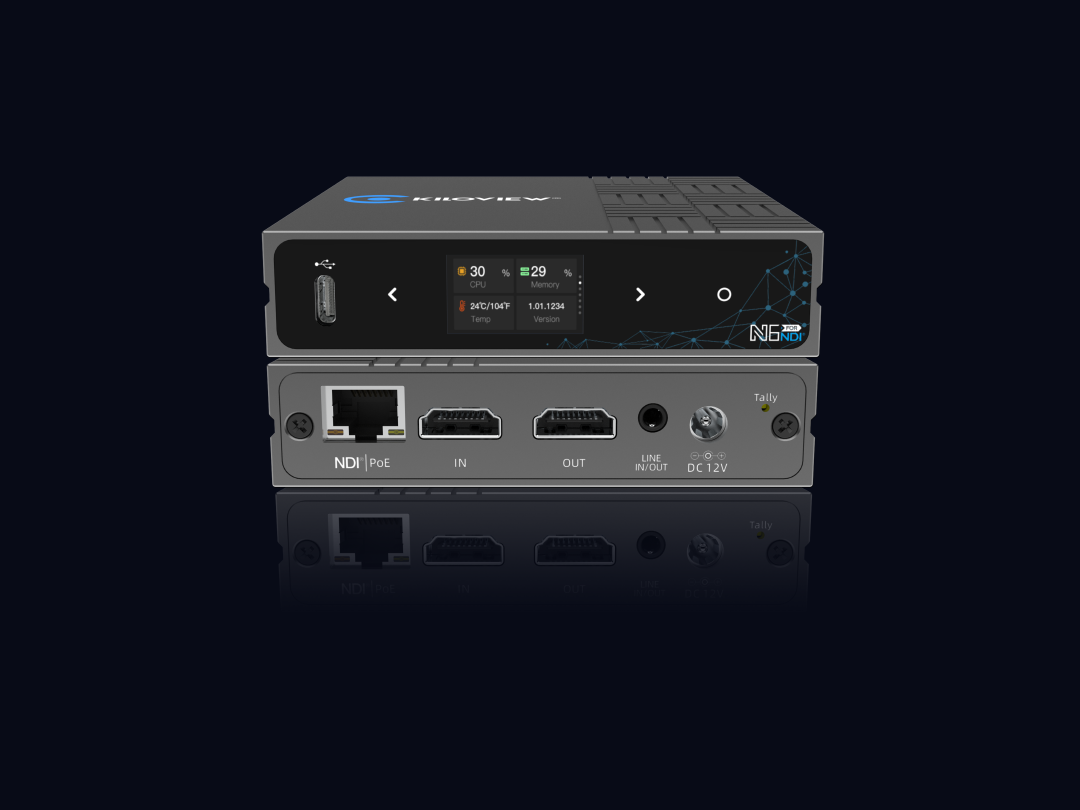

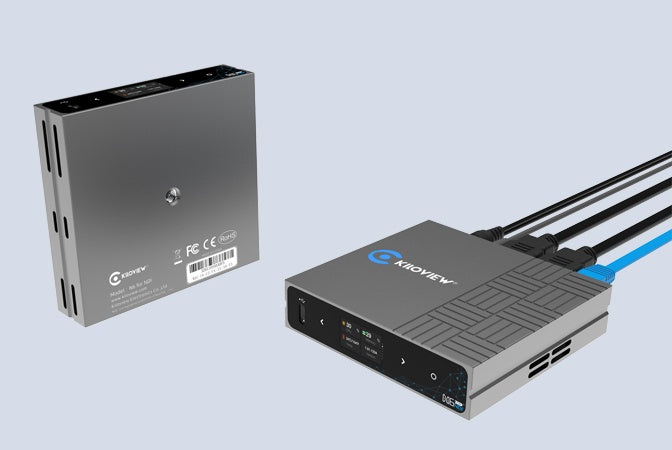

Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder
Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder
Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder
Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder
Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder
Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder

Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder

Regular price$399.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): N6
MFR Part # (MPN): N6

Short Description:

Kiloview N6 1080P60 HDMI Full NDI and NDI|HX encoder/decoder

Full-Functional NDI Converter
Kiloview N6 HDMI/NDI converter is a bi-directional converter that supports HDMI input (encoder) to both NDI high bandwidth and NDI|HX2/3 with loop through for view on monitor, or HDMI video output (decoder) from any NDI sources coming from any camera, software or device from any brand, either from NDI high bandwidth or NDI|HX2/3.

Featured with powerful functions such as PoE, LCD display with big-sized tally , PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, centralized management, N6 is the easiest way to get access to the fabulous NDI world for low latency and high image quality with versatile choices.

2-IN-1 for NDI Encoding & Decoding
Kiloview N6 supports encoding/decoding of NDI High Bandwidth and NDI|HX2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.

In encoding mode, N6 can encode HDMI signal into an NDI High Bandwidth/NDI|HX2/3 video stream.

In decoding mode, N6 will automatically adapt the NDI High Bandwidth/NDI|HX2/3 and output through HDMI.


Audio And Intercom
Kiloview N6 supports 3.5mm analog audio line in/out or embedded audio. Max 4 CH audio encoding will be supported.

It also supports voice intercom between all Kiloview devices and the control PC/phone, with Kiloview Intercom server.

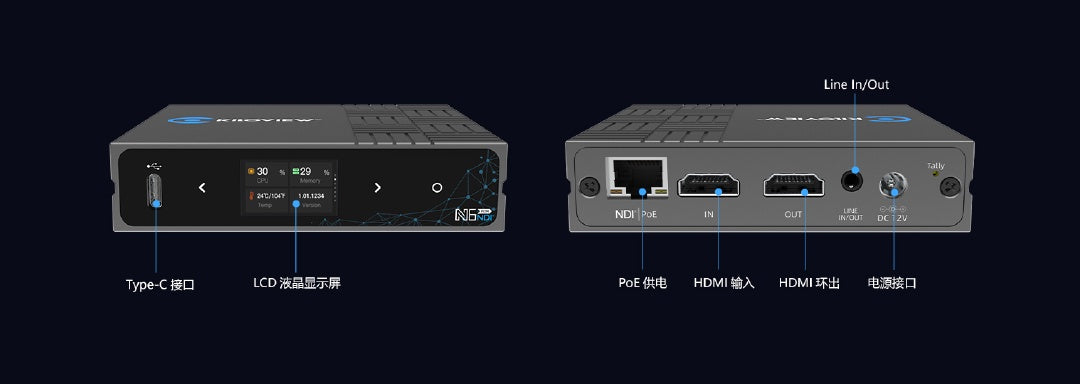

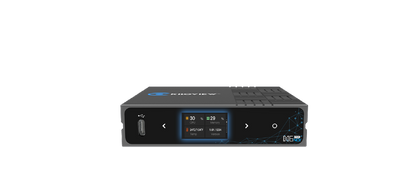

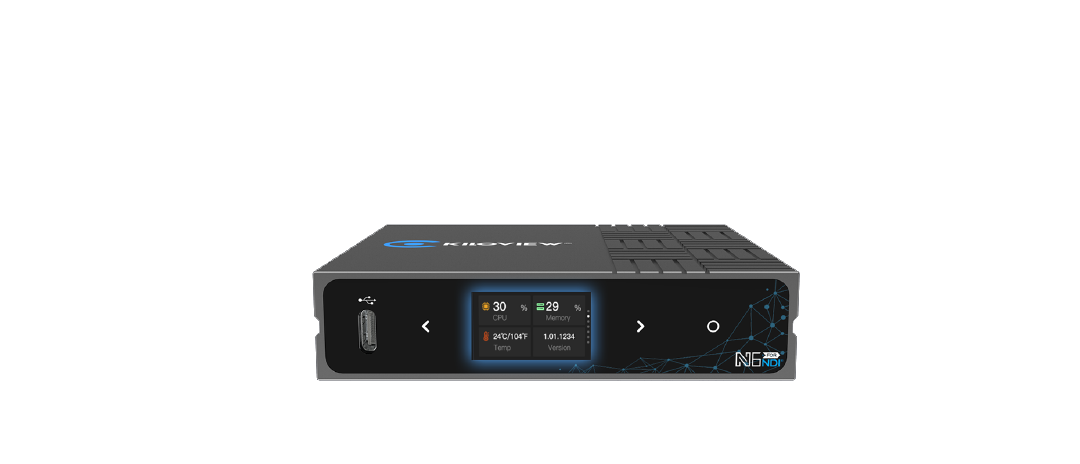

Built-in LCD Screen and Touch Button
N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.

Seamless Switching
In decoding mode, you can preset up to 9 NDI sources from the web UI and choose one to output without suffering from black screen, flashing and lagging.

PTZ Control
Kiloview N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required.

Control with a USB Keypad
In decoder mode, you can preset the NDI sources from numbers 0~9. Connect the decoder with a USB keypad, you can easily choose the output source with a single press.

Or you can even use the USB keypad to control a PTZ camera-the cheapest PTZ keyboard you can get.

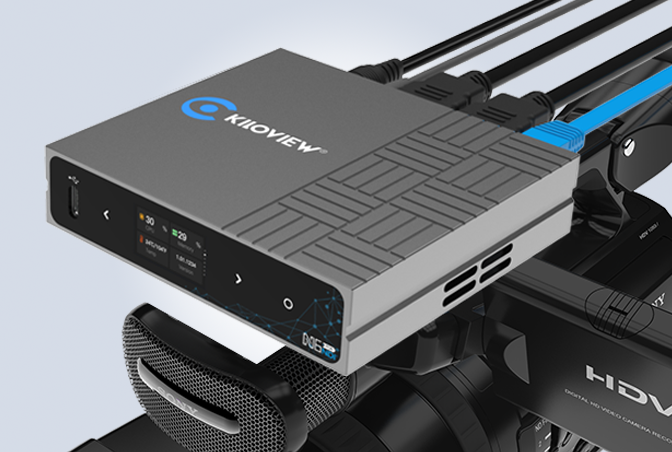

Power It as You Wish
With PoE, the N6 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or a camera battery.

More Features

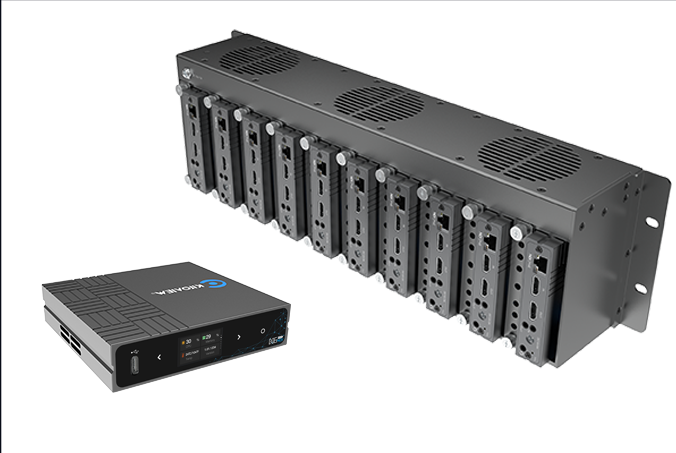

  • Centralized Management
  • Tally
  • Easy Mounting

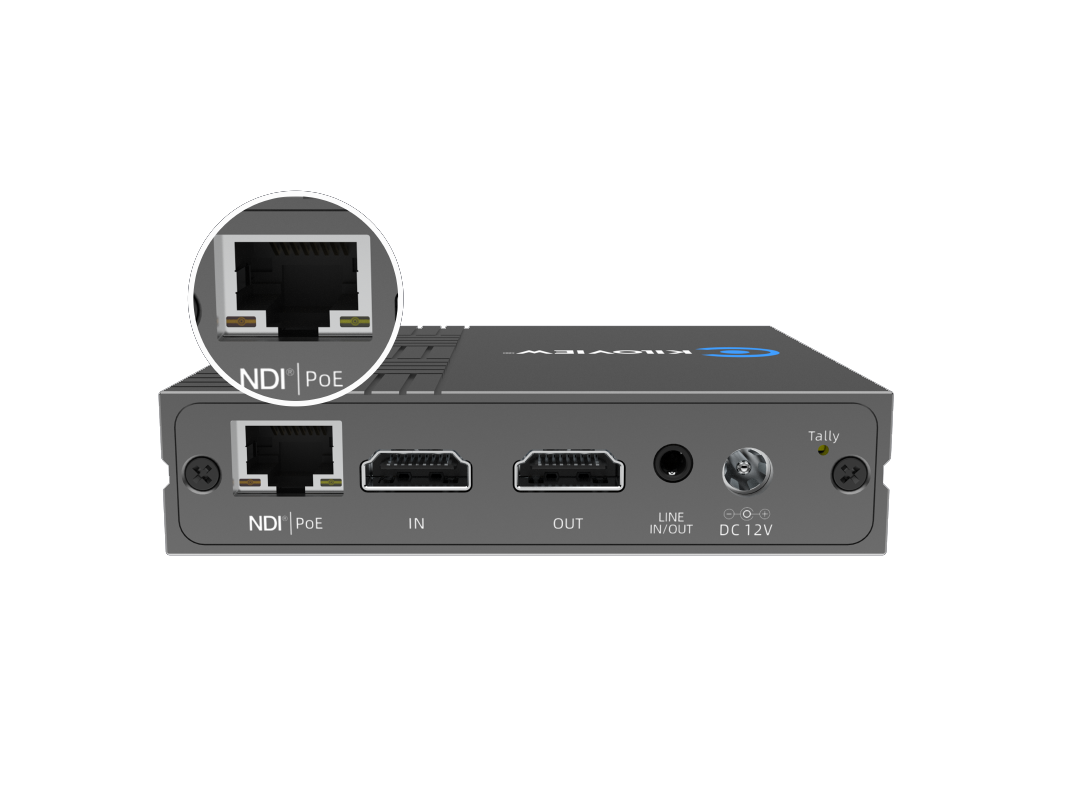

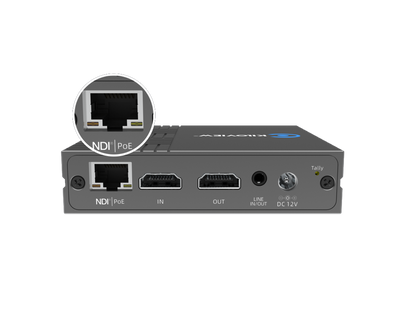

Video Input

  • 1*HDMI
Video Output
  • 1*HDMI(Loop-out)
Audio Ports
  • 1*3.5mm Line In
  • 1*3.5mm Line Out
Network Connections
  • 1*RJ45 1000Mbps Ethernet port (with PoE)
Video Formats
  • 1920x1080P23/24/25/50/59/59.94/60
  • 1280x720p30/50/59/60
  • 1280x1024P60
  • 1152x900P60
  • 1152x864P60
  • 1024x768P60
  • 800x600P60
NDI Codec Features
  • NDI Highbandwidth: YCbCr 4:2:2 8bit 125Mbps@1080p60
  • NDI|HX: YCbCr 4:2:0 8bit 80Mbps@1080p60
Tally
  • Yes
Power Supply
  • PoE/DC/D-tap
Intercom
  • Yes
PTZ Control
  •  Yes
DHCP
  •  Yes
Management
  • WebUI/KiloLink Server
Power Consumption
  • 6w
Operating Temperature
  • -20~45℃
Storage Temperature
  • -20~70℃
Size
  • 100mm*80mm*24 mm
Weight
  • 272g
