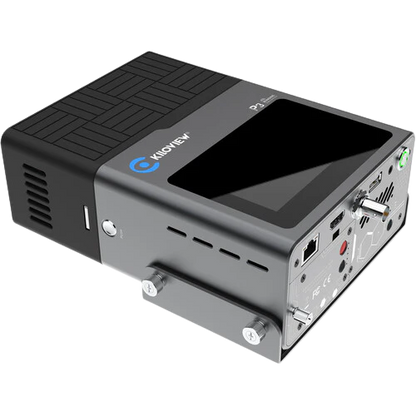

Kiloview P3 Cellular Bonding Encoder

Your Ultimate Choice for Outdoor Streaming
Kiloview P3 Cellular Bonding Encoder is a new generation of 5G bonding video encoder based on KiloLink, supporting multi connections bonding: 4-channel 5G cellular network, WIFI and Ethernet. P3 is equipped with dual video inputs of 3G-SDI and HDMI with resolution up to 4Kp30 through its HDMI input and up to 1080p60 through its SDI input. Upgraded H.265 encoding capability and perfectly adaption to KiloLink Server ensure the best quality of multi-protocol live streaming and video transmission.

Up to 6-channel Connections Bonding

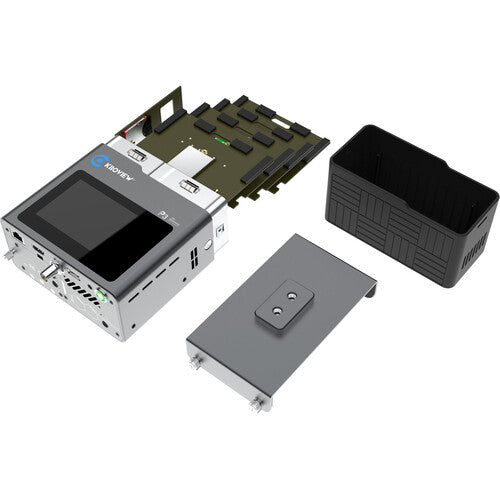

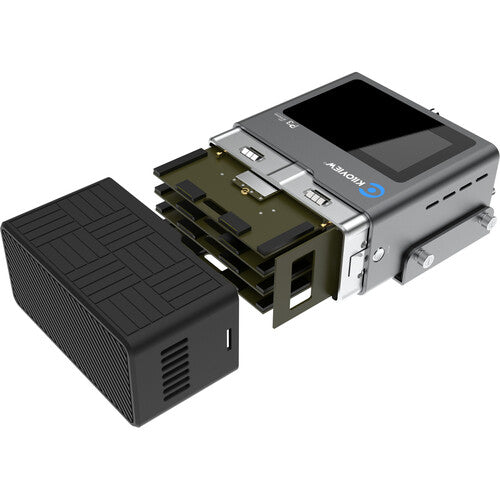

With Kiloview P3 Cellular Bonding Encoder’s modular design, end users can flexibly pick the 5G/4G/WiFi modems to adapt the most challenging field scenarios. P3 supports up to 6 connections bonding to maximize the video transmission capacity: 4-channel 5G cellular, WiFi and Ethernet. Each 5G modem can also be replaced by 4G modem or WIFI modem to achieve the bonding of up to 10* IP Connections. Besides, P3 can support Wi-Fi hot-spot for data and file transmission over 4G. It can be expandable up to 10-channel in the future.

4K HDMI+3G-SDI with H.265 & H.264 Encoding
P3 supports H.265 and H.264 encoding. H.265 (HEVC) encoding can achieve a lower encoding rate, saving over 50% bandwidth comparing with H.264 under the same conditions. It also supports HDMI input up to 4Kp30Hz and 3G-SDI input up to 1080p60.

NDI | HX, RTMP, SRT, RTSP, HLS
P3 supports a wide range of streaming protocols including NDI | HX, RTMP, SRT, RTSP, HLS. It can realize simultaneous live streaming on major mainstream platforms through its touch screen.

4.3-inch Touch LCD Screen
P3 is equipped with a 4.3-inch touch LCD screen for real-time viewing of IP address, network status, video resolution, Tally status, CPU, and temperature. You can preview the input video picture in real-time through KiloLink, a proprietary technology innovated by Kiloview. You can also receive 1CH of return video by purchasing the extra service.

Constantly Working with Dual Battery Module
Kiloview P3 Cellular Bonding Encoder is equipped with dual battery module (the power of a single battery is up to 6000mAh@7.2V 43.2W, which can keep running for more than 4 hours under the condition of full operation of 4-channel 5G cellular network). When the power of external battery runs out, it will automatically switch to the internal battery , which can ensure the power supply and achieve all-day operation. In addition, P3 supports external power input.

KiloLink Server - Safe and flexible bonding software
With enhanced KiloLink Server Pro, you can manage all your registered devices on the server end, such including monitoring device status, previewing, settings, firmware updating. Real time connection status and data statistics are also available on server end. Kilolink Server Pro can also support streaming service for P series with up to 8CH of protocol conversion, etc.

Pro-Level Video Processing
P3 can process rotate/crop and add custom overlays including images, texts or other OSD to the output video for advanced applications, it’s suitable for your webcast.

Reliable Recording and Streaming
P3 supports streaming and recording simultaneously for post-production and further application.

Audio And Intercom
P3 supports voice intercom with featured KIS Intercom Server either on premise or on cloud, making anytime anywhere live streaming available.

• Video Resolution
  • HDMI Input/Loop out：
  • 3840×2160p 30fps
  • 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • 1920×1080i 50/59.94/60fps
  • 1280×720p 29.97/30/50/59.94/60fps
  • 720×576i 50fps (PAL SD)
  • 720×480i 59.94fps (NTSC SD)
  • SDI
  • Input/Loop out:
  • 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • 1920×1080i 50/59.94/60fps
  • 1280×720p 25/29.97/30/50/59.94/60fps
  • 720×576i 50fps (PAL SD)
  • 720×480i 59.94fps (NTSC SD)
  • USB Input：
  • 1920×1080p 24/25/30/50/60fps
  • 1280×720p 30/50/60fps

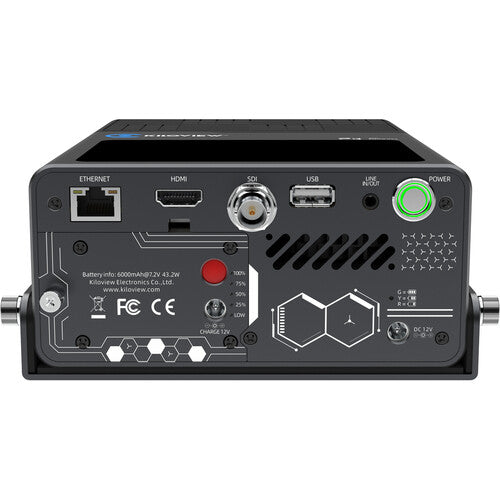

• Video Port
  • 1× 3G-SDI
  • 1× HDMI 1.4b
  • 1*USB-A
• Video Encoding: H.265(HEVC)，H.264(AVC)，M-JPEG
• Streaming Protocols: NDI HX2/NDI HX3/SRT/RTMP/ RTMPS/ HLS/WHIP/TS over UDP/RTSP
• Audio Port: 1*3.5mm Line in
• Audio Encoding: AAC，G.711
• Audio Channels
  • 4-channel SDI embedded audio
  • 4-channel HDMI embedded audio
  • 4-channel USB embedded audio
  • 1*3.5mm Line in 2-channel audio
• Bonding Performance: 4 channels of 5G/4G cellular network, WiFi (2.4G/5G), Ethernet
• Network Port: 1 × 1000Mbps Ethernet Ports
• Wireless Connectivity
  • 4× 4G/5G cellular modules
  • 1× Wi-Fi 5 module
• Physical Controls: 4.3" LCD touchscreen
• Pre-encoding Processing: Rotation, Mirroring, Cropping
• SEI Timecode: Synchronized to NTP or system time
• Camera Start/Stop Synchronization: SDI Interface supports REC-RUN mode
• OSD/Graphics Overlay: Custom images can be added
• Management: Web-based UI or centralized management via Kilolink Server Pro
• Voice Intercom: Supports USB headsets and communicate via Kiloview Intercom System (KIS)
• Recording and Storage: SD card, External USB storage or NAS
• Recording Formats: MP4，MOV, TS
• PTZ Control
  • External PTZ control via USB-to-Serial converters (RS-232/RS-485/RS-422)
  • Network protocol support (e.g. Sony VISCA, Pelco-D, Pelco-P)
  • UVC PTZ control compatibility
• Battery
  • 1× Built-in Battery Module (Non-removable) / Capacity: 3300mAh
  • 1× Removable Battery Module / Capacity: 6600mAh
• Battery Life: ≥5 hours (without battery replacement)
• Power Supply: DC 12V/3A
• Weight: 2000g (Main unit only)
• Dimensions: 211*143*68mm
• Working Temperature: -15℃~45℃

• P3 Cellular Bonding Encoder
• Brackets
• Redundant batteries
• PSU
• Warranty: Limited 1-Year Manufacturer Warranty
