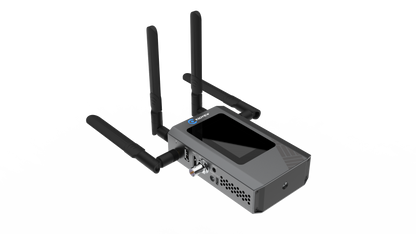

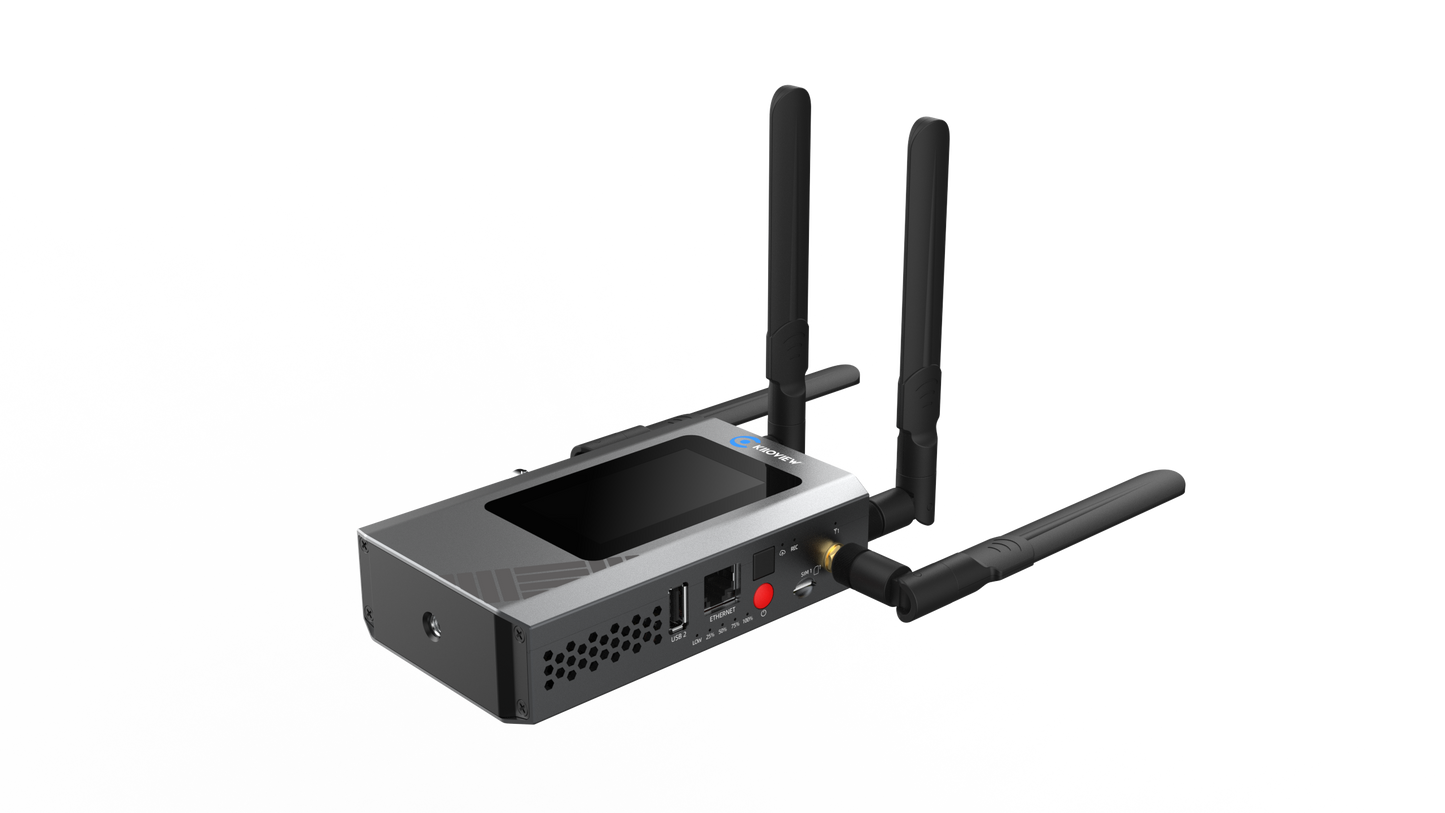

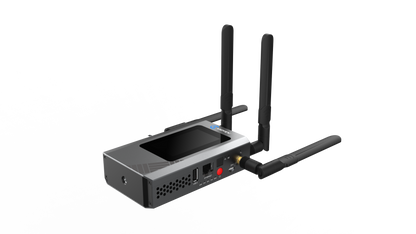

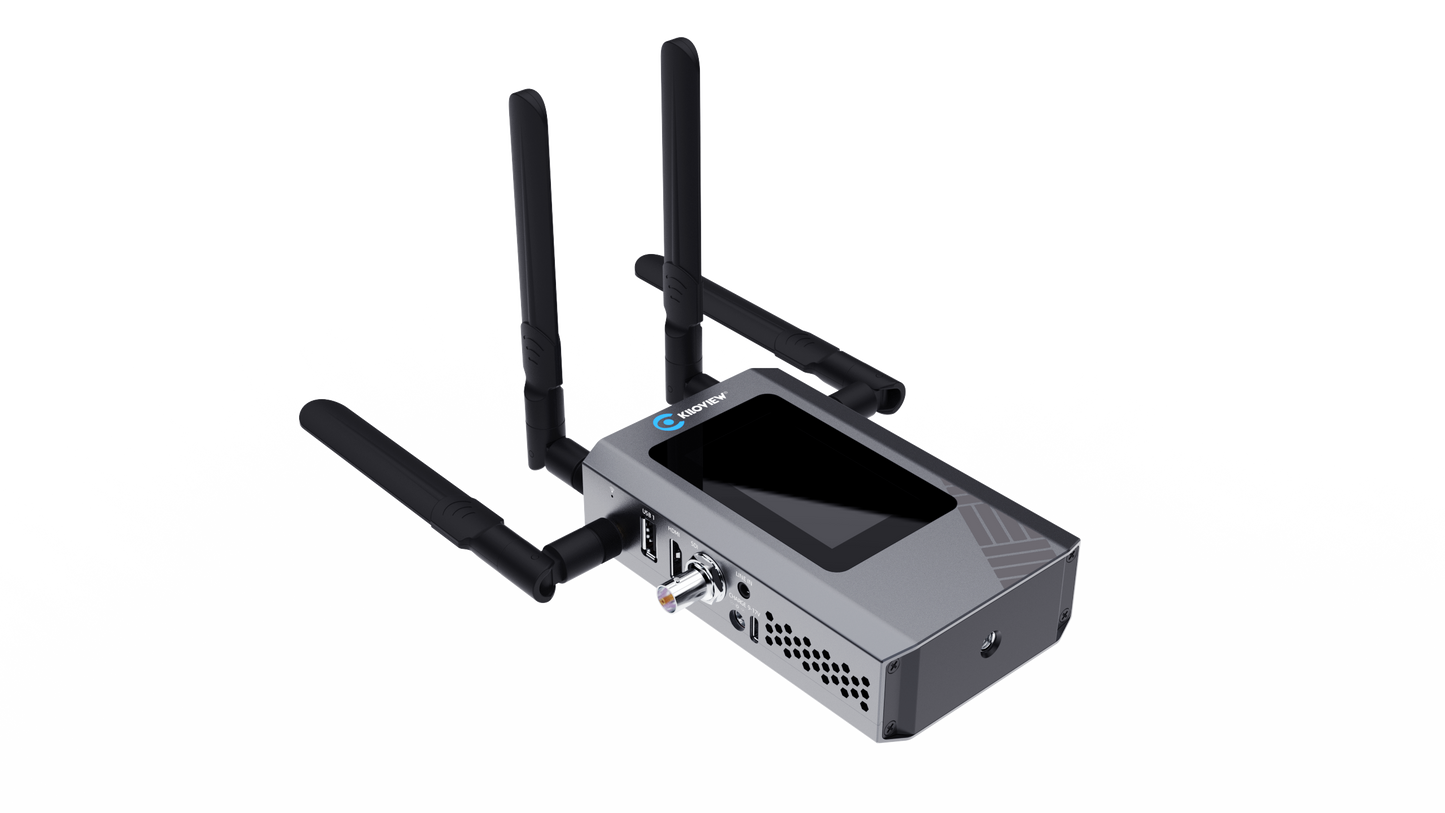

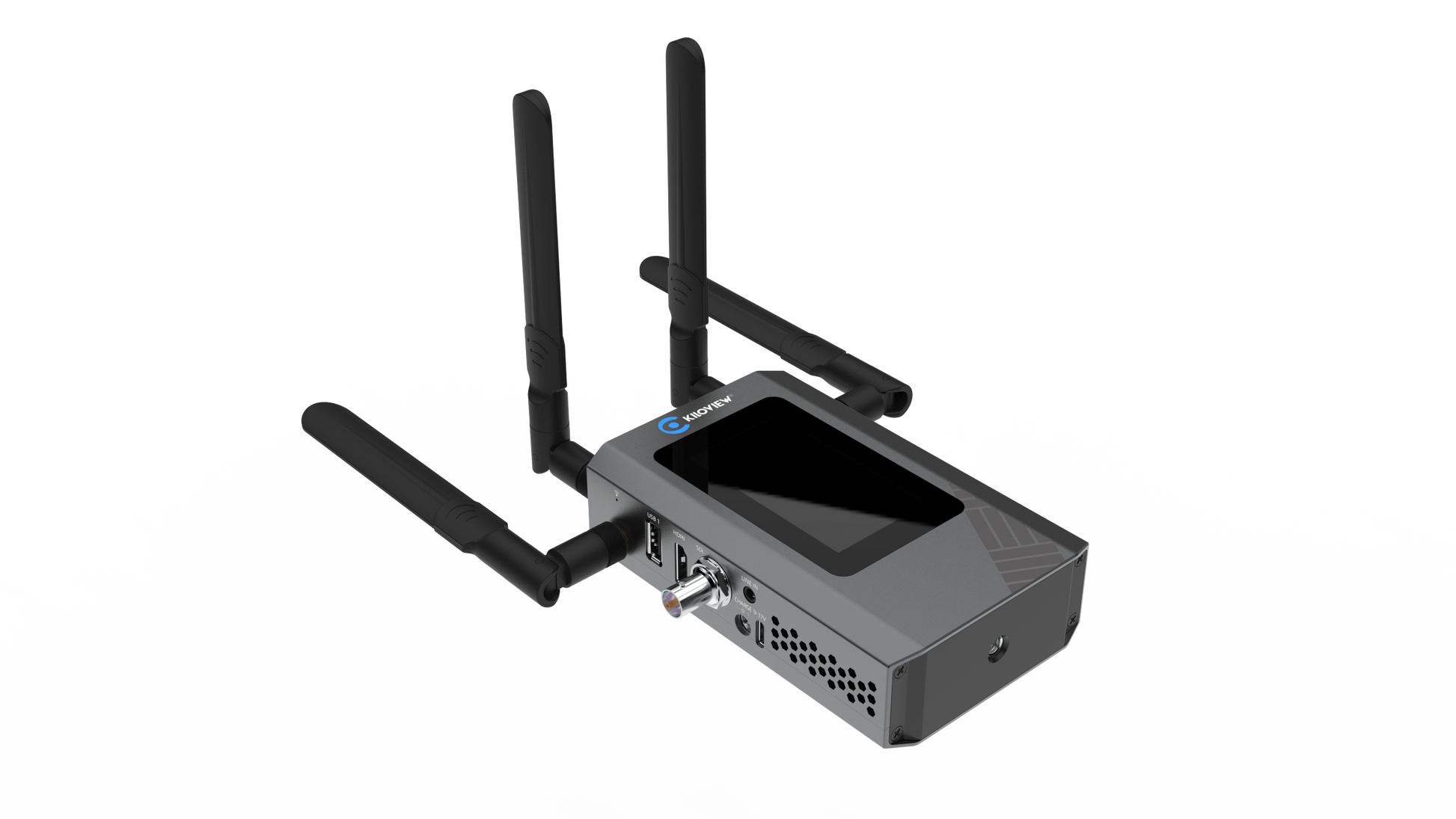

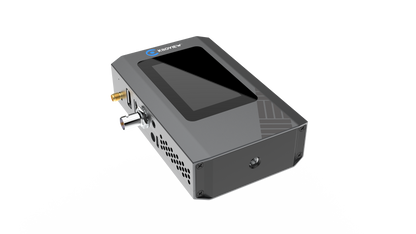

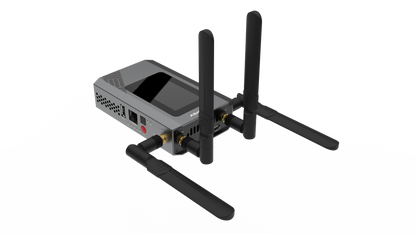

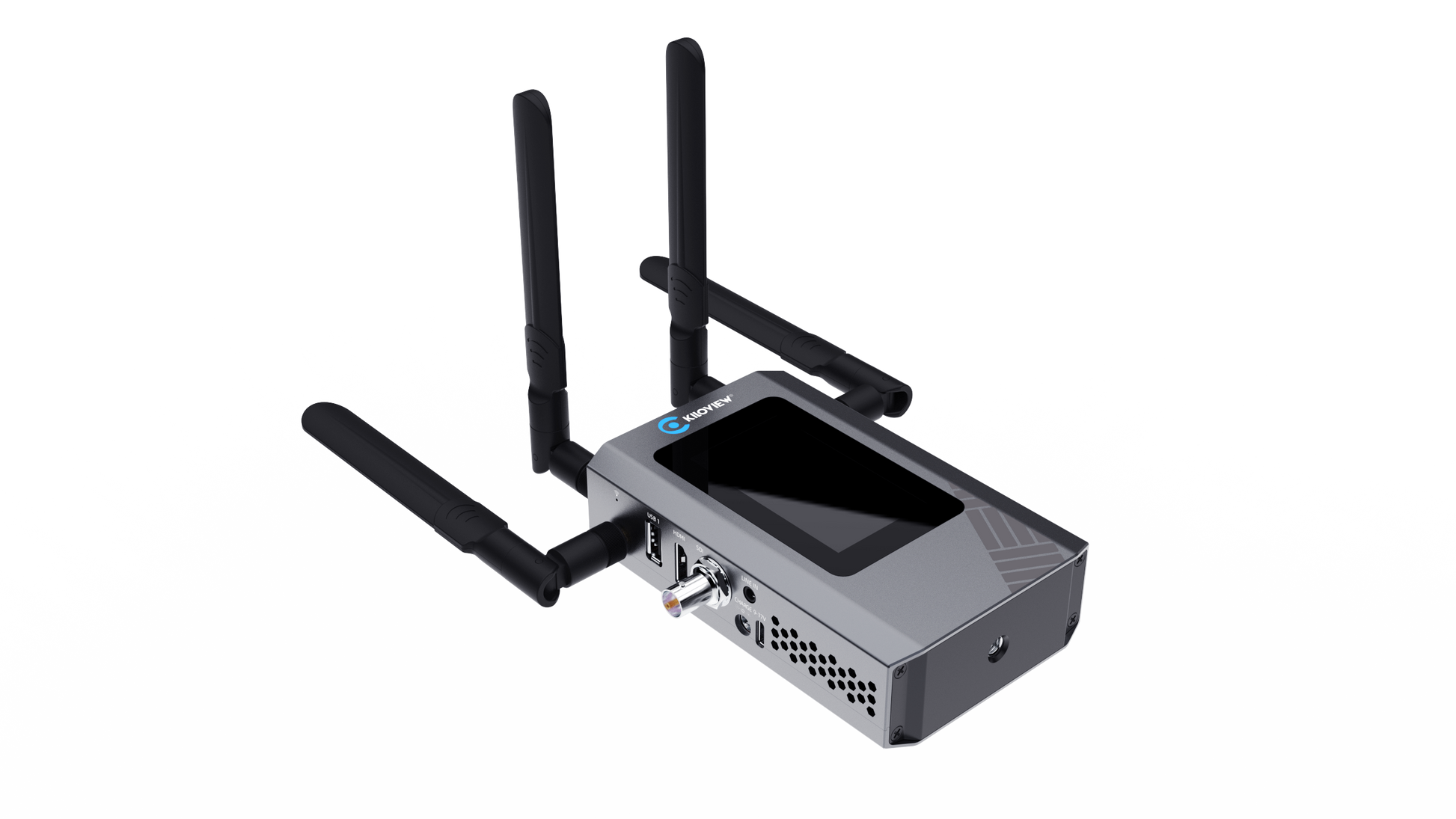

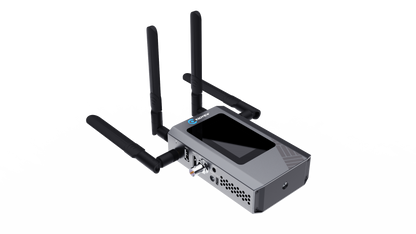

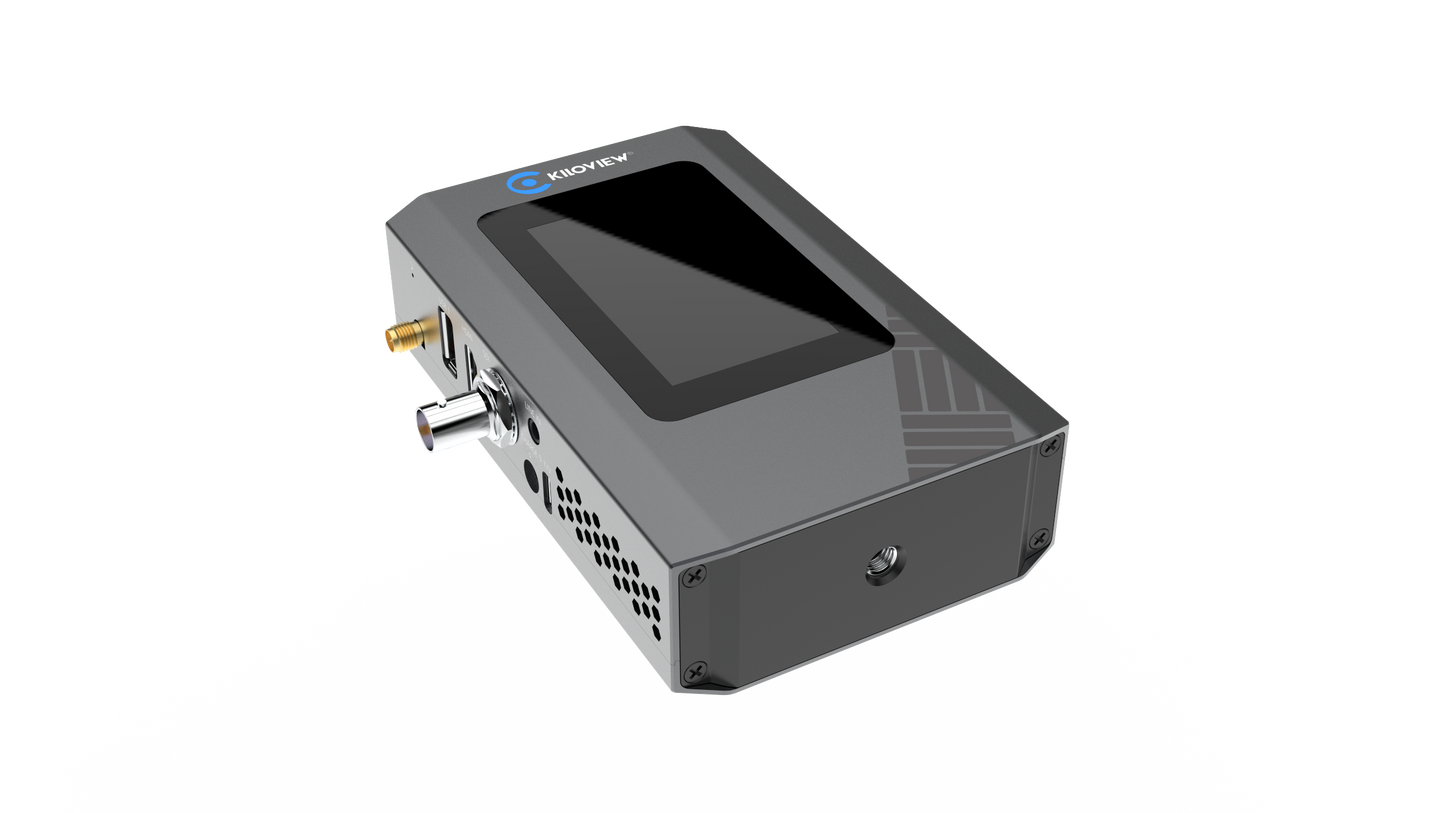

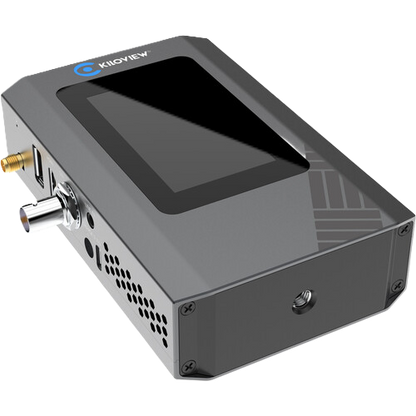

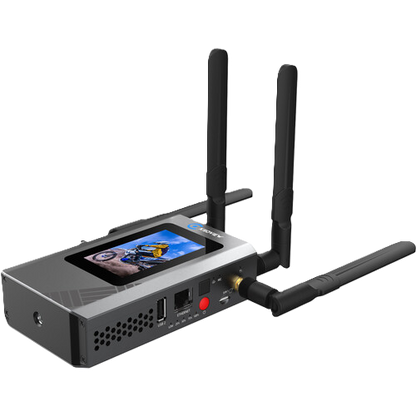

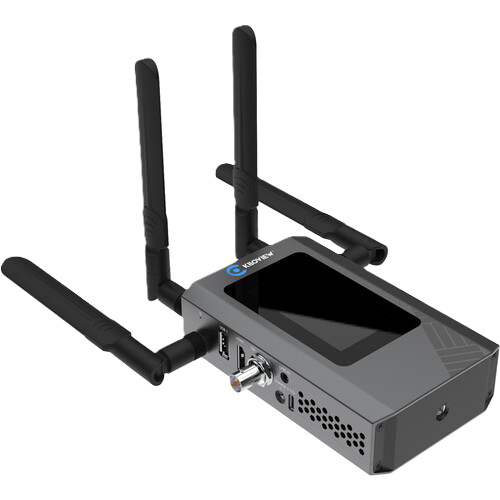

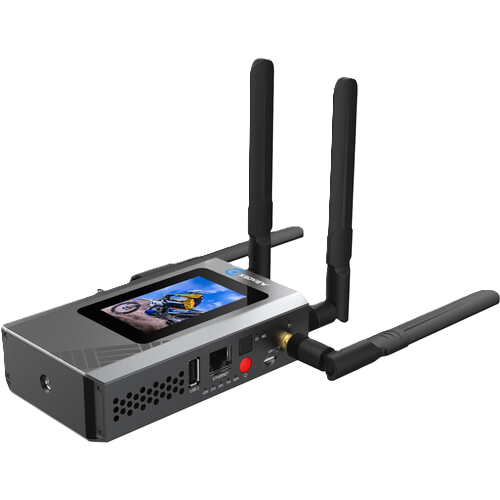

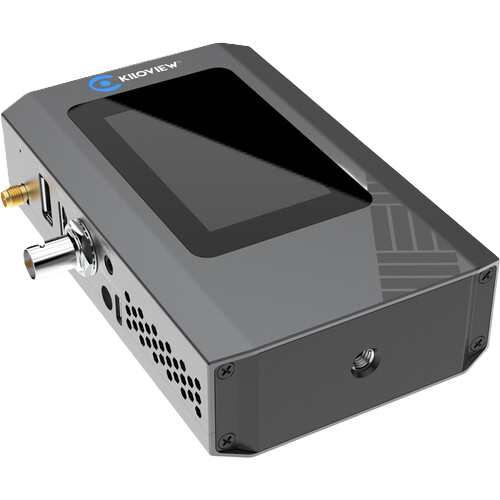

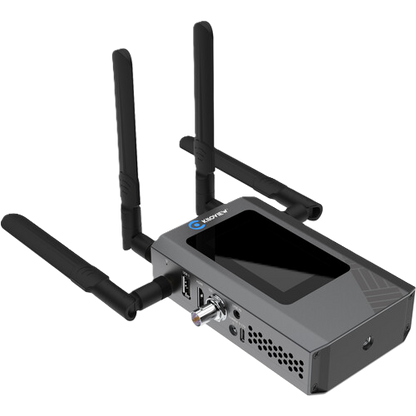

Kiloview P3 Mini 4G Wireless Bonding Encoder

The P3 mini 4G Wireless Bonding Encoder is the perfect outdoor live streaming device built on patented KiloLink bonding transmission technology, serving also as the upgraded version of P1/ P2. The P3 mini features professional-grade antenna isolation design, allowing for the effective bonding and connection of multiple channels (supporting 3*4G cellular network + 1WiFi + 1*RJ45 Ethernet port), boasting exceptional anti-interference capability and stable transmission performance. It is equipped with dual input interfaces for 3G-SDI and HDMI, supporting up to 1080P60 video resolution. Additionally, the P3 mini is equipped with a 5000mAh battery with 4-hours continuous operation and supports PD fast charging, fully meeting versatile application scenarios.



Efficient, Stable, and Secure Bonding Transmission
The P3 mini is equipped with KiloLink’s patented multi-link bonding transmission technology, which utilizes encryption algorithms to achieve functions such as bandwidth overlay, load balancing, and dynamic bitrate auto-adjustment. This ensures seamless bonding of five networks (3*4G cellular network + WiFi + Ethernet), enabling uninterrupted live streaming experiences. Users can flexibly choose between private, local, or cloudbased deployment of bonding servers to ensure efficient and stable audiovisual transmission. And most importantly, the use of KiloLink is free of charge.

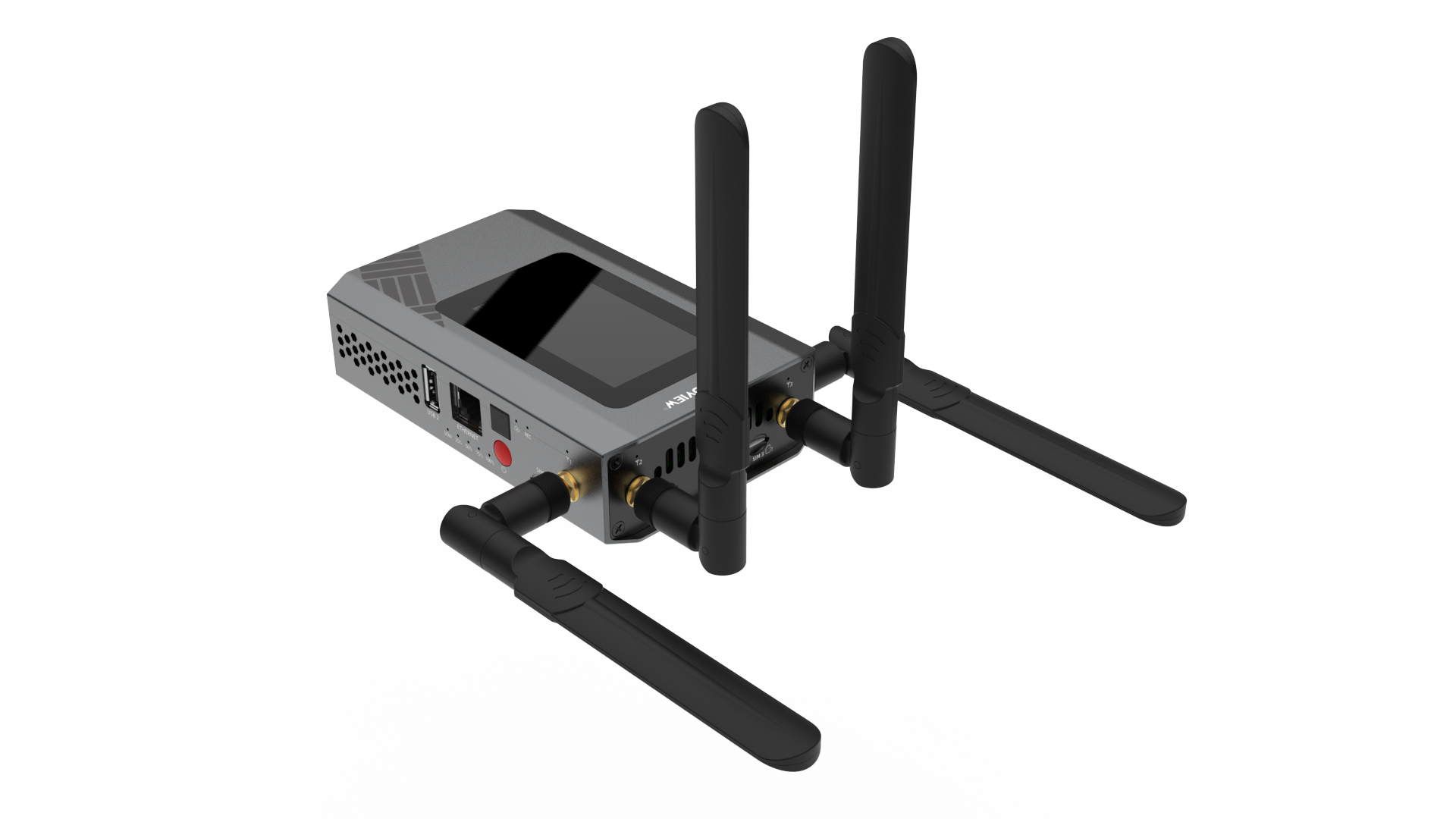

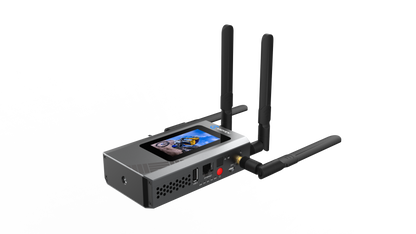

Professional Antenna Design for Superior Anti-Interference
To ensure the stability of outdoor signal transmission, the P3 mini undergoes professionalgrade antenna isolation design. This minimizes adverse effects such as screen freezing and intermittent sound caused by signal issues, ensuring the stability and reliability of signal data transmission.



PD Fast Charging for Extended Battery Life
Equipped with a 5000mAh  battery and supporting PD fast charging, the P3 mini not only provides sufficient battery reserves but also rapidly replenishes power. This enables continuous operation, ensuring seamless support for outdoor LIVE production.

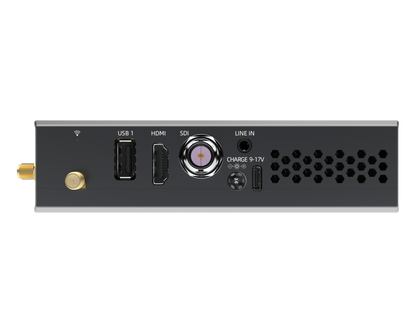

H.265 Encoding, Dual Interface Inputs for SDI+HDMI
Supports H.265/H.264 encoding formats, with a maximum resolution of 1080P60 HDMI and 3G-SDI dual interface inputs. It is comprehensively supporting mainstream media protocols such as NDI HX/RTSP/RTMP/SRT/HLS. Combined with the KiloLink Server bonding platform, it  simultaneously supports stable, highquality, low-latency streaming on multiple mainstream live streaming platforms.

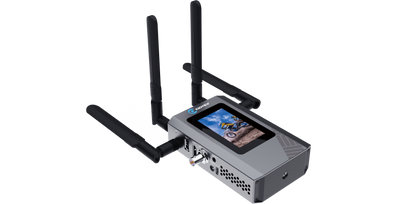

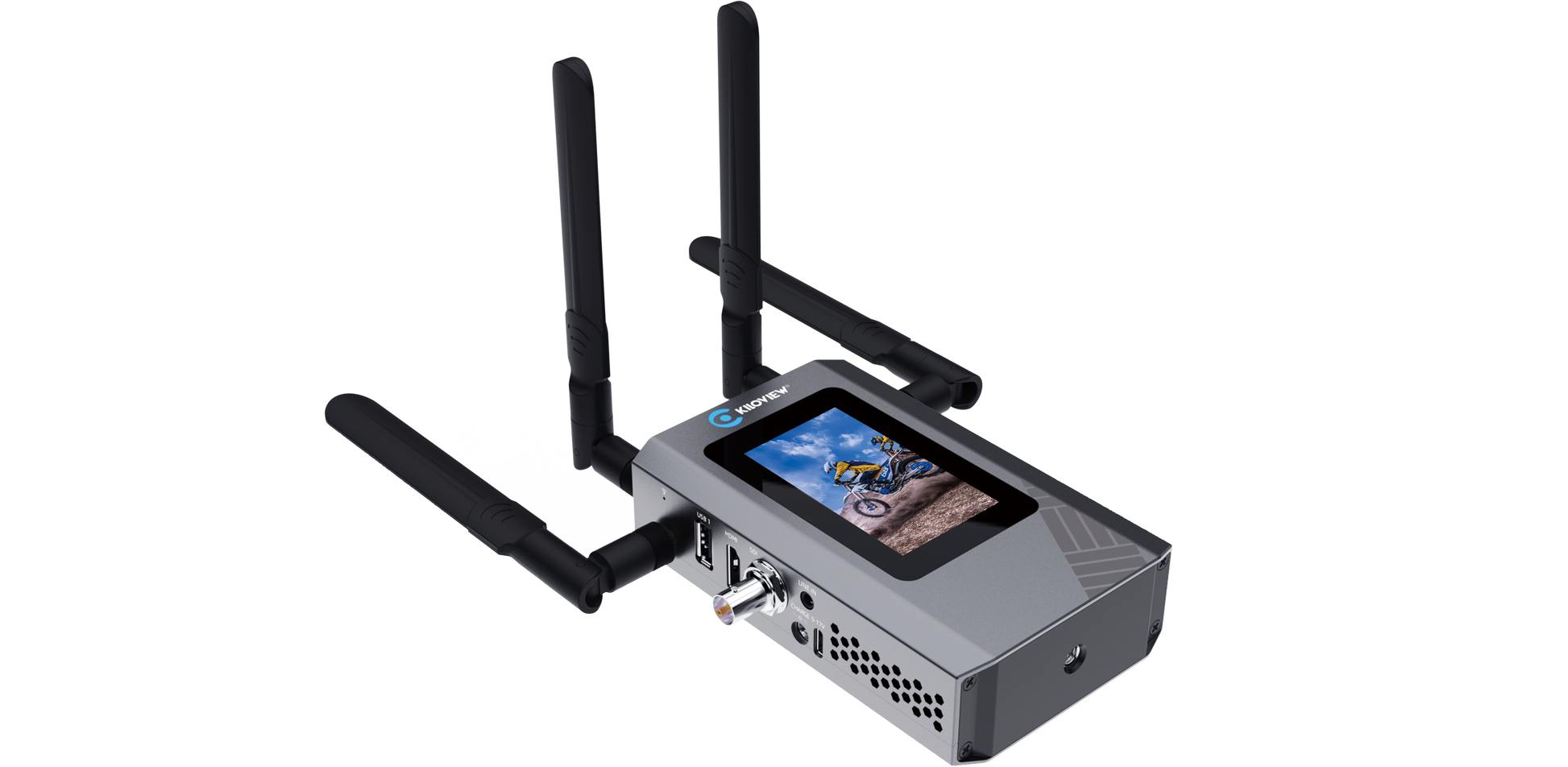

High Sensitivity Touchscreen LCD Display

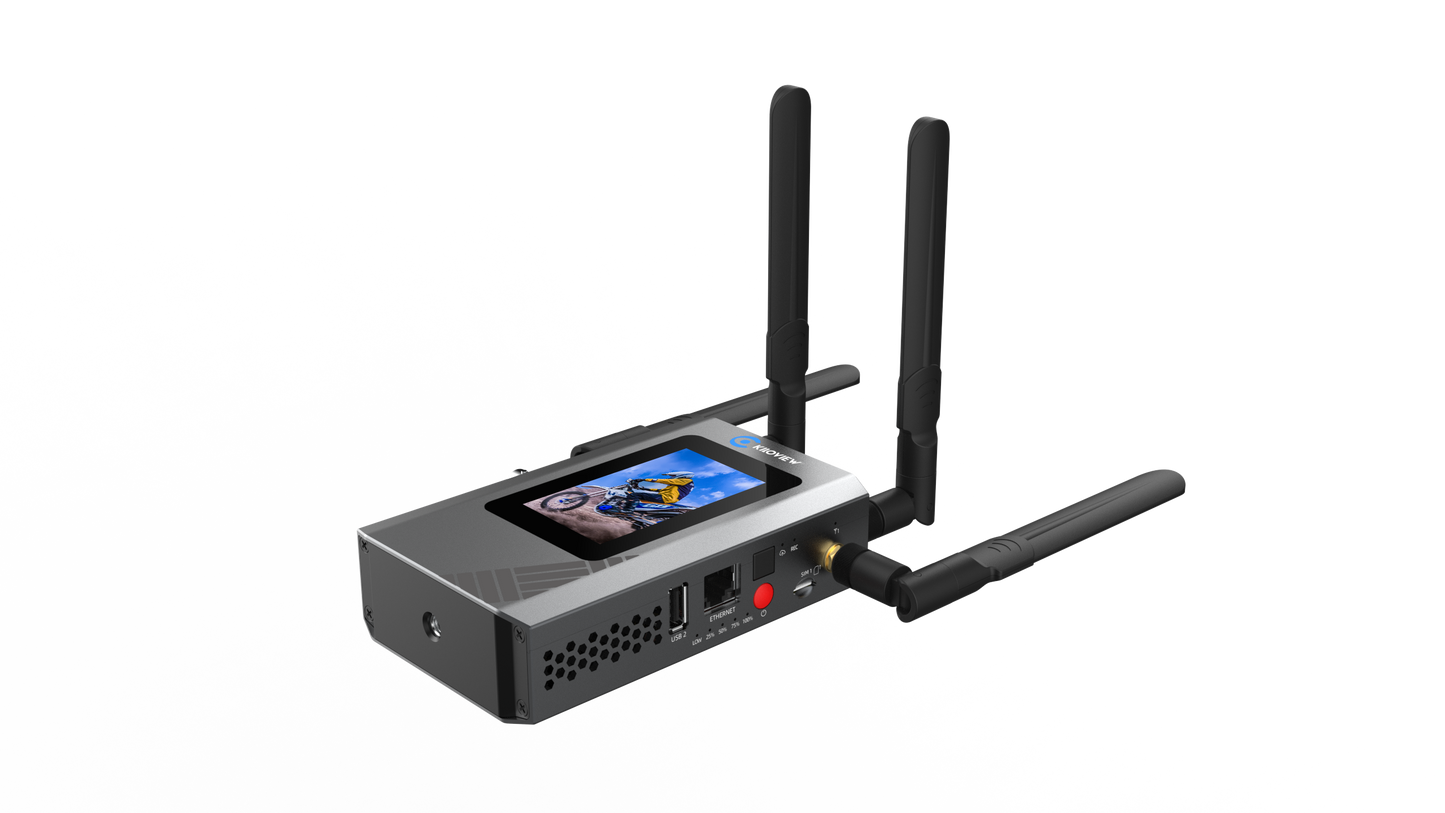

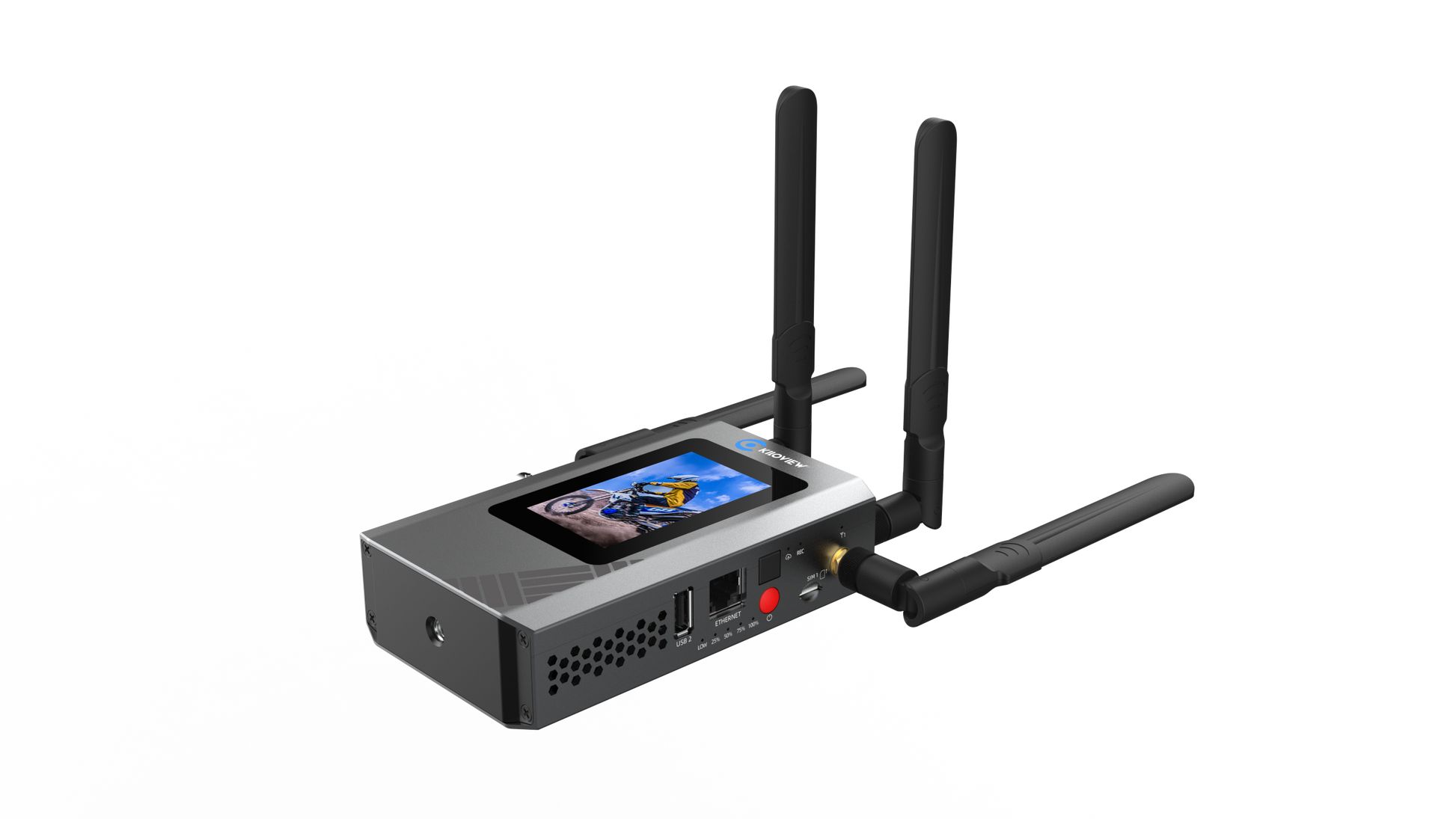

Equipped with a 3-inch touchscreen, users can preview video in realtime and easily monitor the device’s status, including IP address, network status, video resolution, Tally lights, CPU usage, device temperature, etc.



Dual USB Ports Offering Infinite Possibilities
The P3 mini is equipped with dual USB ports, allowing flexible expansion to connect keyboard input, PTZ camera control, achieving integrated multifunctional operation.

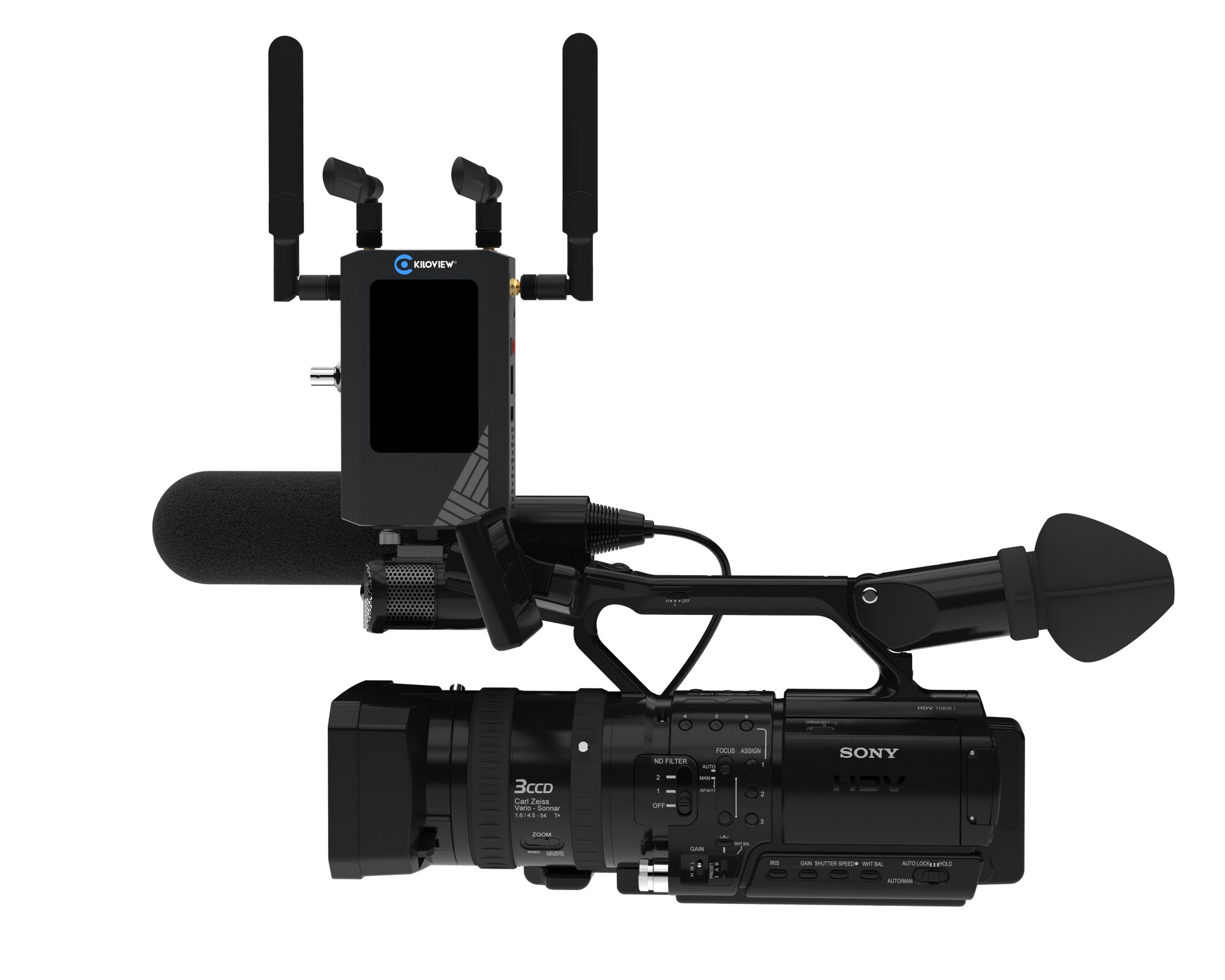

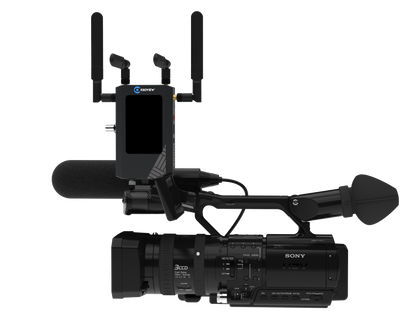

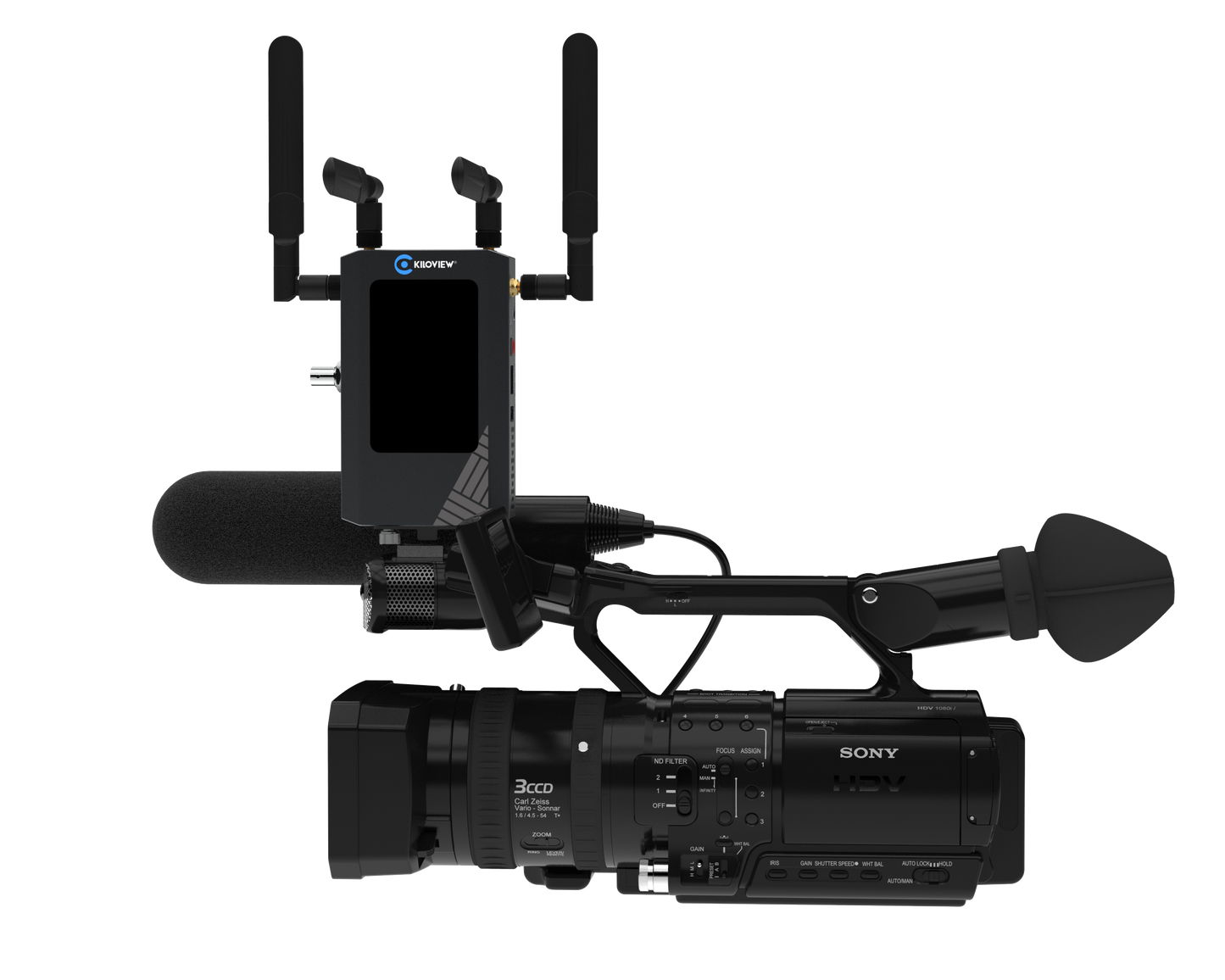

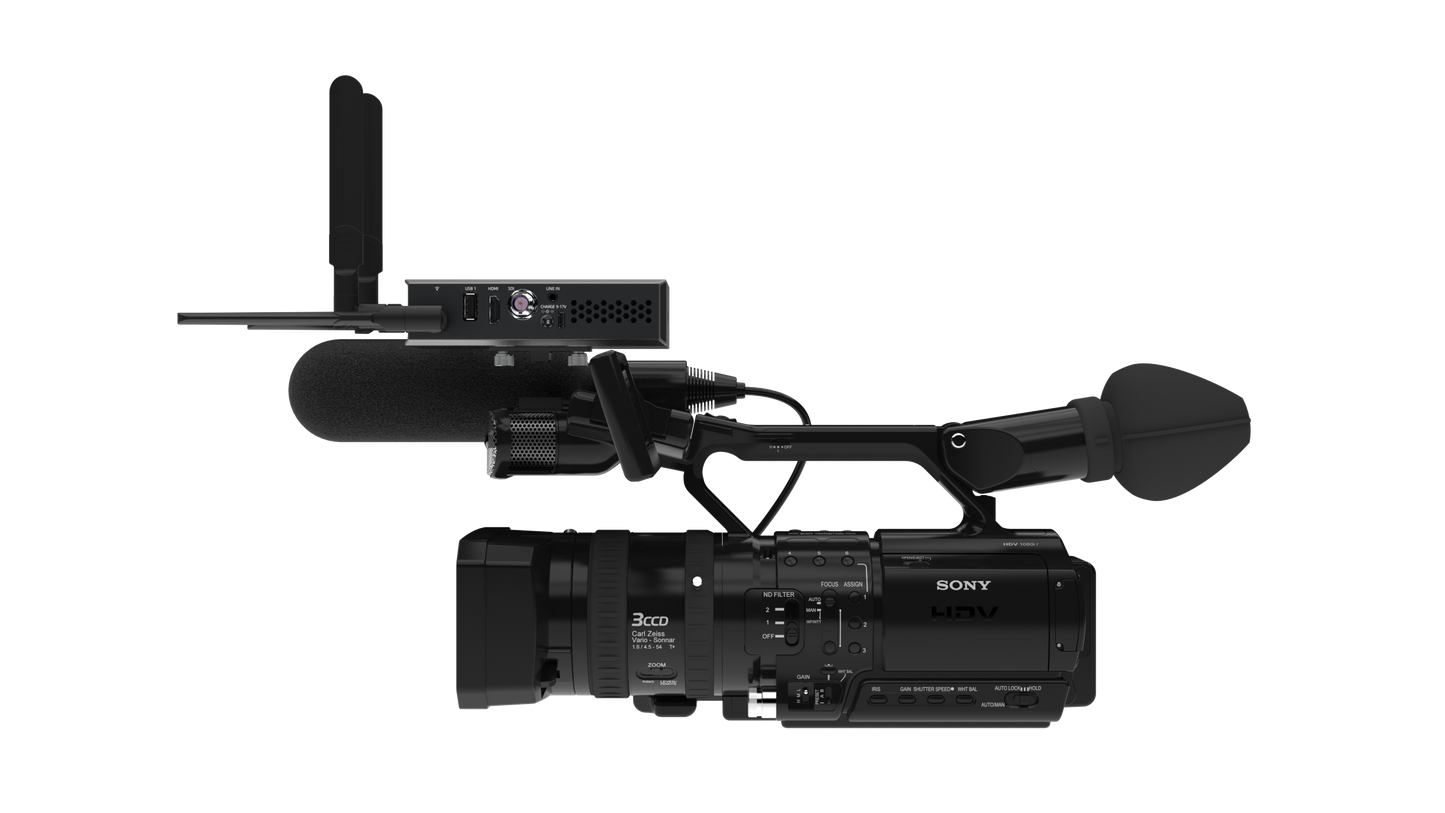

Compact Size, Supports Multiple Mounting Options

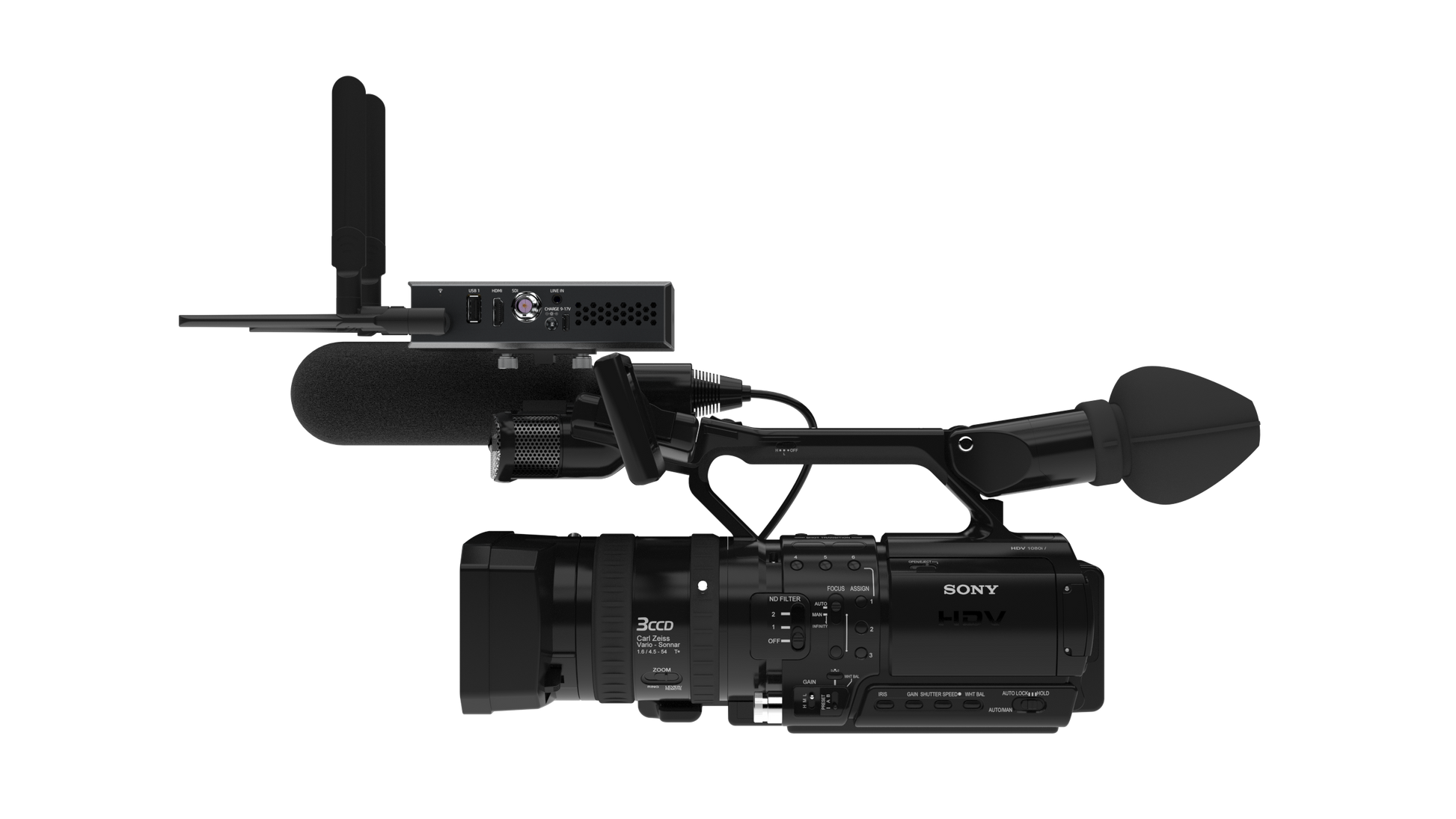

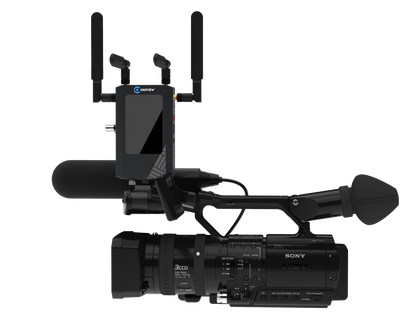

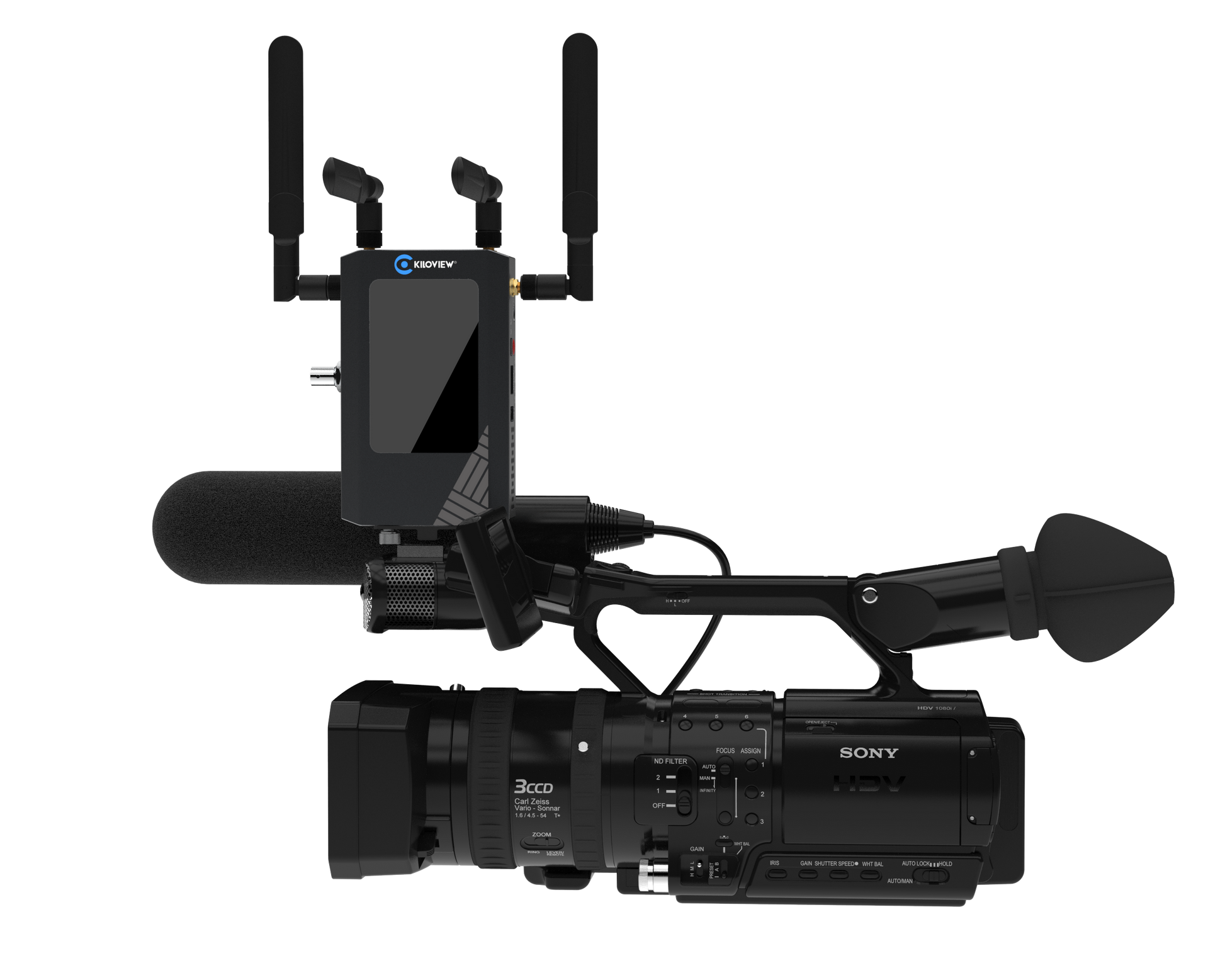

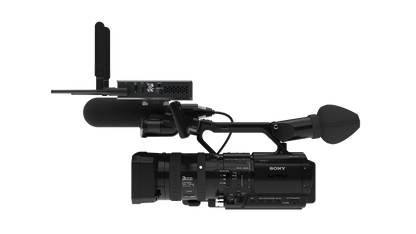

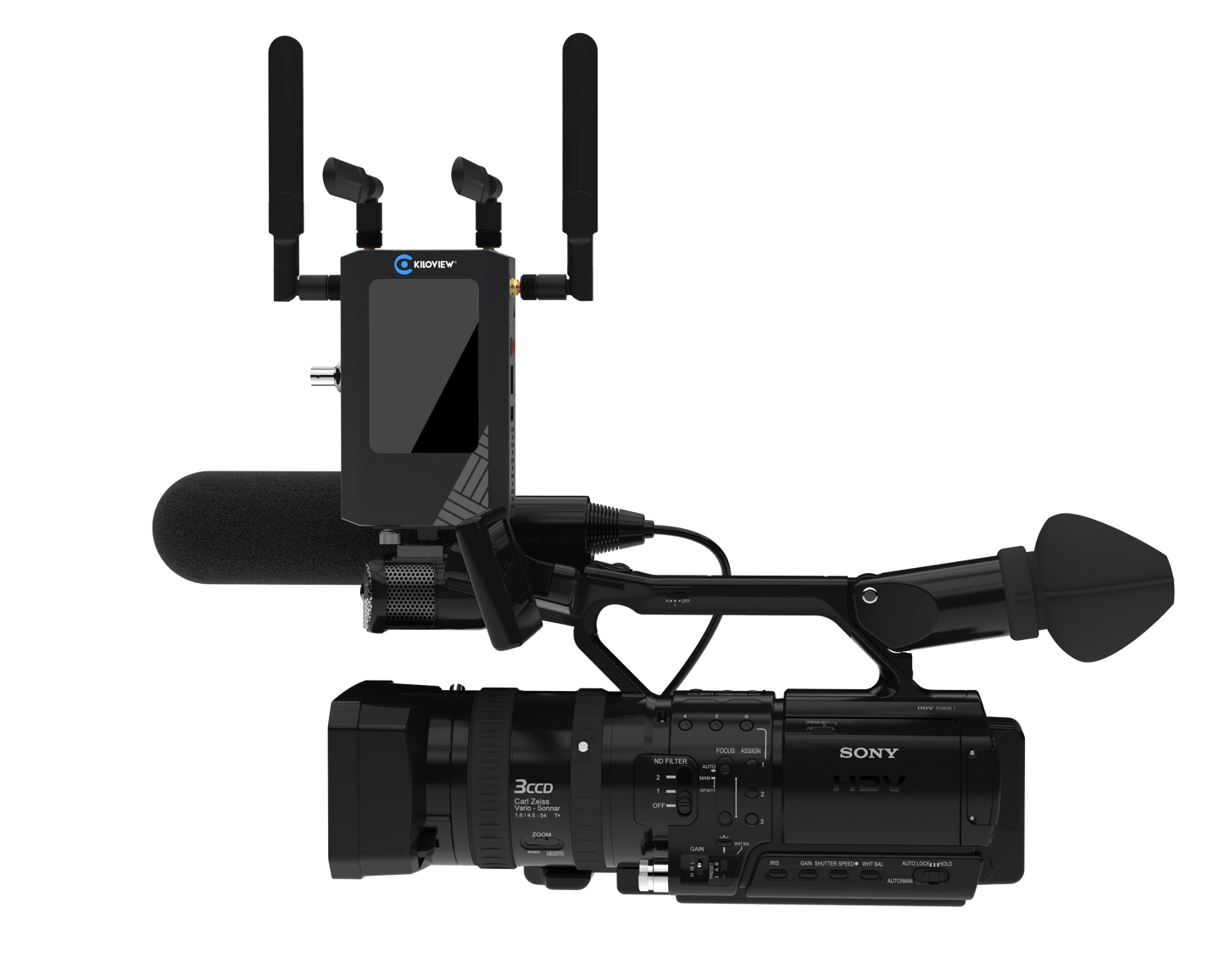

The P3 mini is portable, supporting both vertical and horizontal installation. It seamlessly integrates with various cameras, allowing for perfect completion of live streaming tasks anytime, anywhere.



Application Scenarios
Outdoor live streaming, outdoor program production, news reporting, emergency command, vehicle-mounted mobile video transmission, multi-media project engineering, hospital external network video transmission, and other scenarios requiring wireless video transmission.

• Video Resolution
  • HDMI Input：
  • 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • 1920×1080i 50/59.94/60fps
  • 1280×720p 29.97/30/50/59.94/60fps
  • 720×576i 50fps (PAL SD)
  • 720×480i 59.94fps (NTSC SD)
  • SDI Input：
  • 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • 1920×1080i 50/59.94/60fps
  • 1280×720p 25/29.97/30/50/59.94/60fps
  • 720×576i 50fps (PAL SD)
  • 720×480i 59.94fps (NTSC SD)
  • USB Input：
  • 1920×1080p 24/25/30/50/60fps
  • 1280×720p 25/30/50/60fps

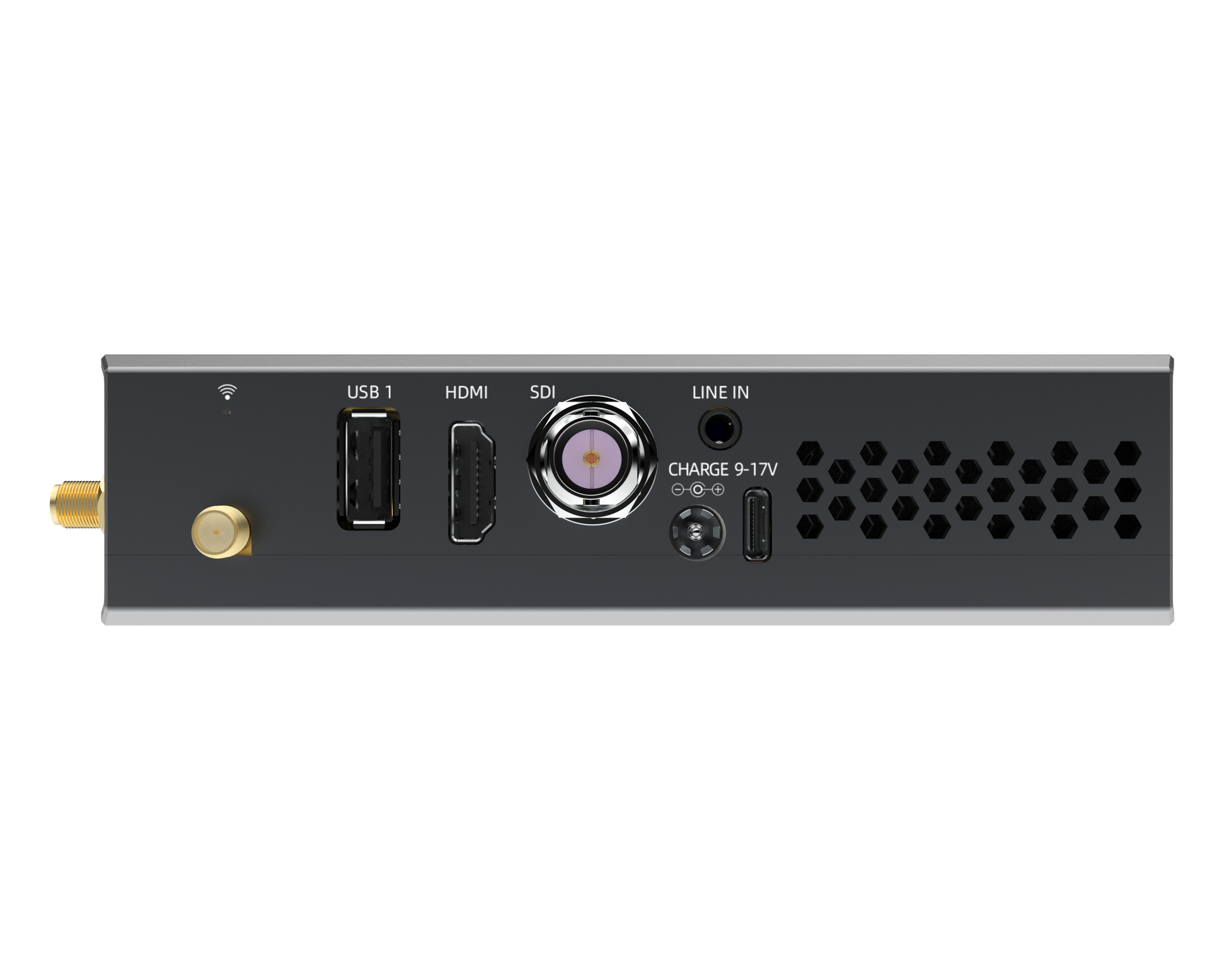

• Video Port
  • 1× 3G-SDI
  • 1× HDMI 1.4b
  • 1* USB-A USB-C
• Video Encoding and Decoding: H.265(HEVC)，H.264(AVC)，M-JPEG
• Streaming Protocols: NDI HX2 / NDI HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTSP
• Audio Port: 1*3.5mm Line in
• Audio Encoding: AAC，G.711
• Audio Channels
  • 4-channel SDI embedded audio
  • 4-channel HDMI embedded audio
  • 4-channel USB embedded audio
  • 1*3.5mm Line in 2-channel audio
• Bonding Performance: 3 channels of 4G cellular network, WiFi (2.4G/5G), Ethernet
• Network Port: 1 × 1000Mbps Ethernet Ports
• ​Wireless Connectivity
  • 3× 4G cellular modules
  • 1× Wi-Fi 5 module
• Physical Controls: 3" LCD touchscreen
• Pre-encoding Processing: Rotation, Mirroring, Cropping
• SEI Timecode: Synchronized to NTP or system time
• Camera Start/Stop Synchronization: SDI Interface supports REC-RUN mode
• OSD/Graphics Overlay: Custom images can be added
• Management: Web-based control or Kilolink Server centralized management
• Voice Intercom: Supports USB headsets and communicate via Kiloview Intercom System (KIS)
• Recording and Storage: External USB storage or NAS
• Recording Formats: MP4，MOV, TS
• PTZ Control
  • External PTZ control via USB-to-Serial converters (RS-232/RS-485/RS-422)
  • Network protocol support (e.g. Sony VISCA, Pelco-D, Pelco-P)
  • UVC PTZ control compatibility
• USB ports: 2* USB 2.0 Type-A
• Battery: 4900mAh
• Power Supply: 4 hours under typical operating conditions
• Power Supply: DC 12V/3A, PD-compliant
• Weight: 600g
• Dimensions: 138x85x35mm
• Working Temperature: -15℃~45℃

• P3 Mini Video encoder/1SET
• Power adapter (12V/3A)/1PC
• External Antenna/1PC
• Power bank bracket/1PC
• Cold shoe /1PC
• Quick start guide/2PC
• Certificate/Warranty card/1PC
• Warranty: Limited 1-Year Manufacturer Warranty
