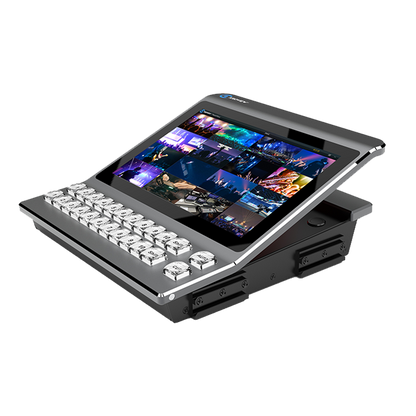

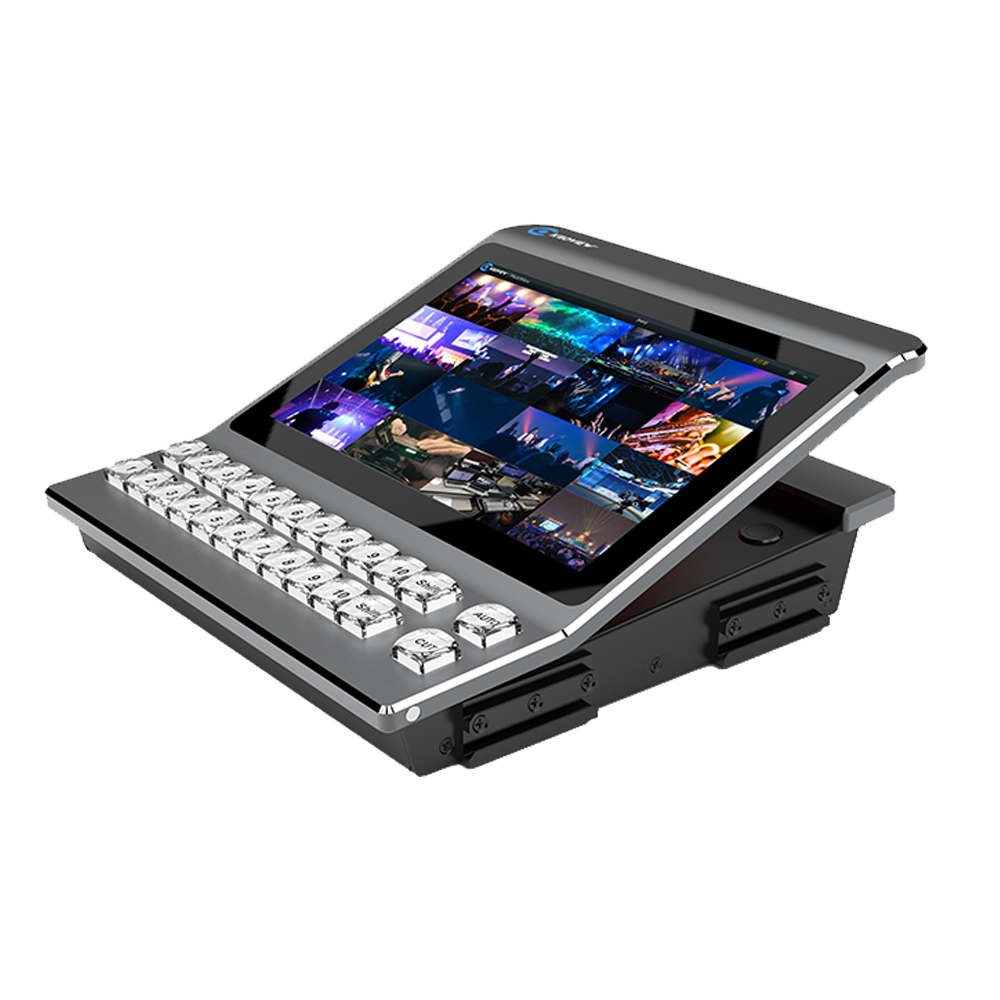

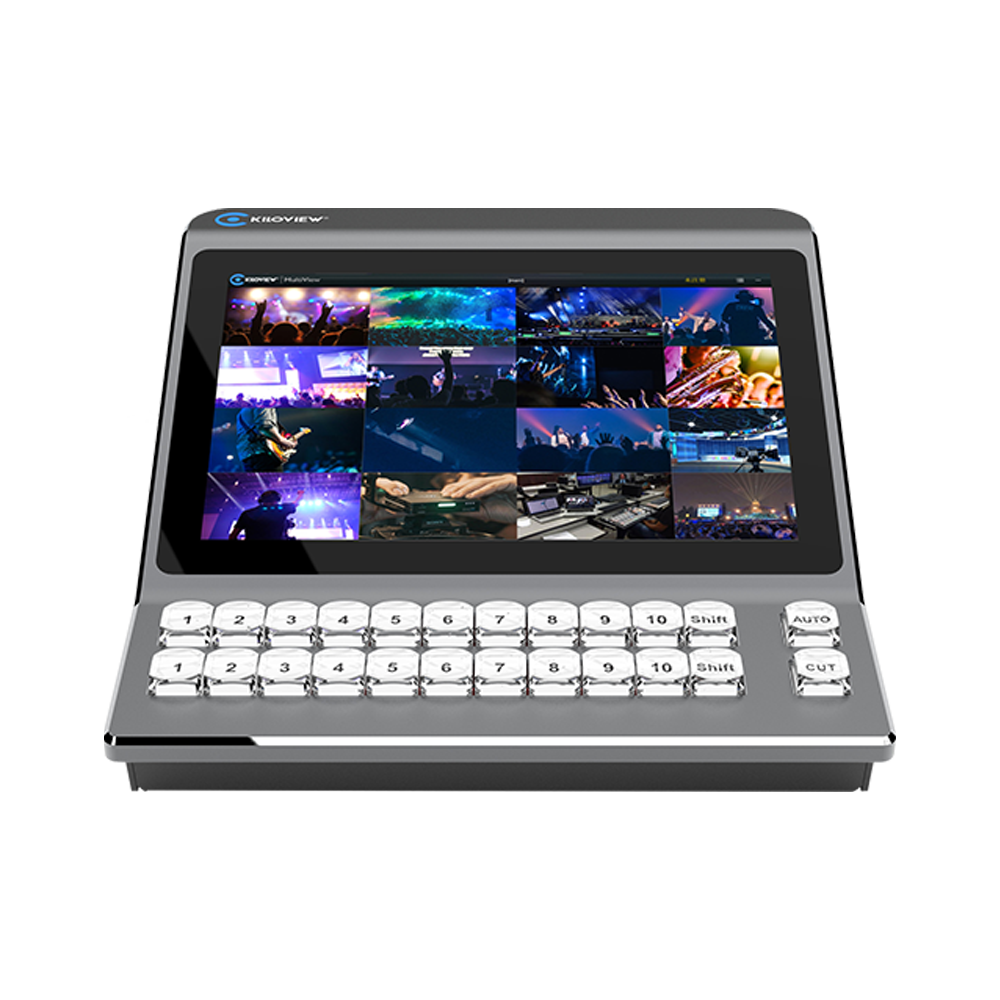

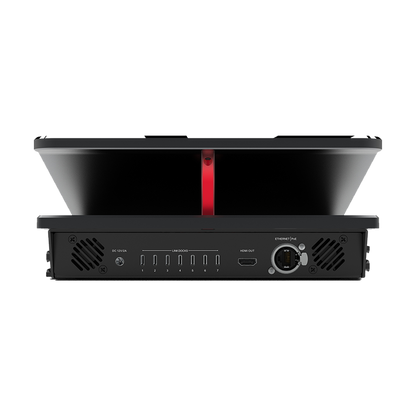

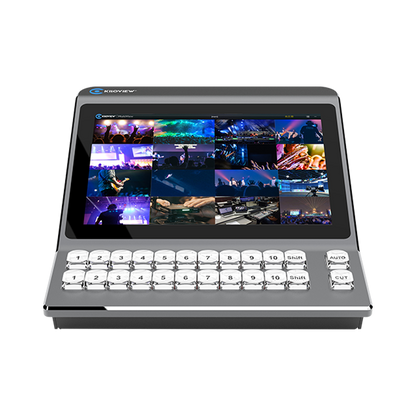

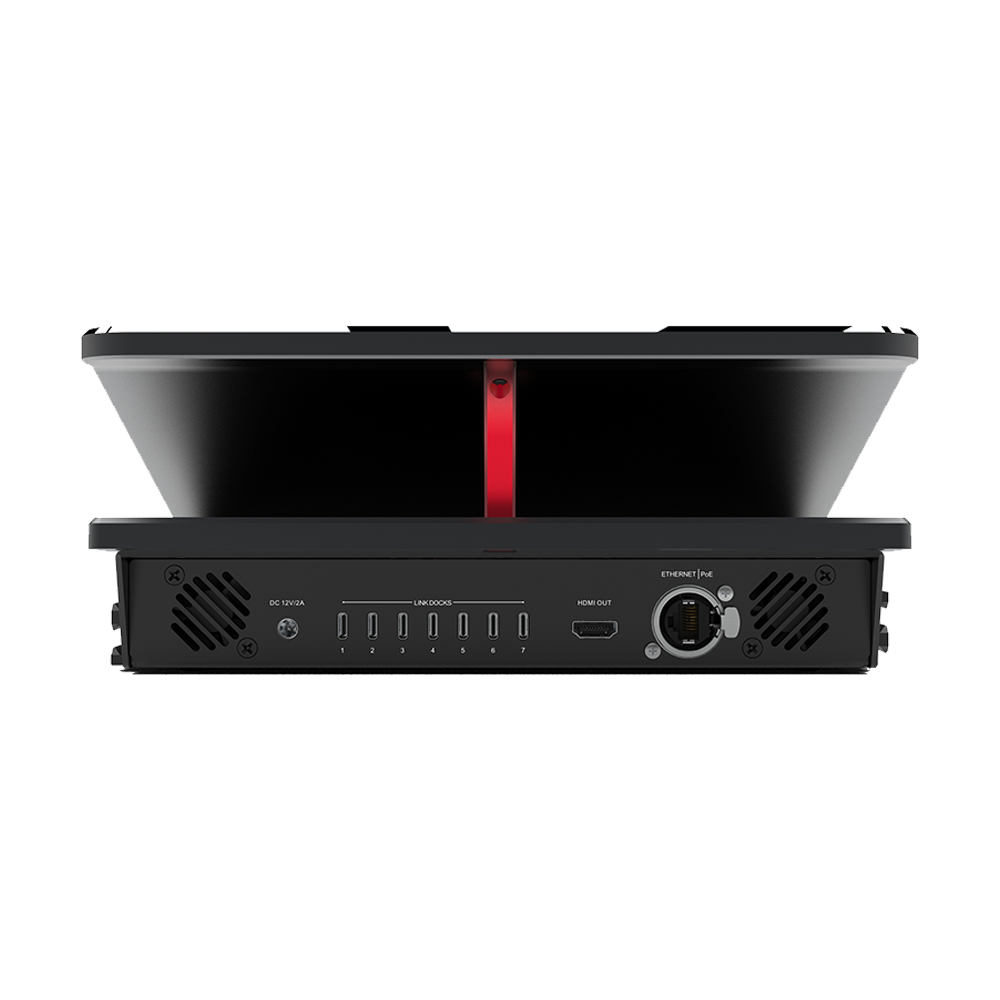

Kiloview Panel Deck

The Panel Deck, equipped with a 10.1” touch screen and a bi-color LED keyboard, provides the easy operation and an intuitive user experience. The 10.1” screen allows you to customize whatever product you want to control.

Both soft keys and physical keys control all aspects of your workflow, with DC and PoE providing the power source to your entire suite of Decks.

Panel Deck is made of robust aircraft-grade materials and designed for bringing the studio experience to you, wherever you are with its own whole set of pro-level joystick/buttons/switches/selectors and ports.

Display
10.1" multitouch LCD screen

Resolution
1920 x 1200

Keyboard
24 keys（Bi-color tally）

CPU
8-core CPU

Memory
2GB

FLASH Storage
16GB

Video Output
1 x HDMI output up to 1080P60

Intenet Input
1GbE port with PoE

Power Supply
DC5.5/2.5 12V

HDMI Port
1

Key
24, user-defined keys

USB Port
7×Type-C 2.0

DC Port
Single DC5.5/2.1

Dimension / Weight
6.65lb/285.33*260.00*110.10mm(11.2"x10.2"x4.3")

Operating Temperature
-20℃~45℃
