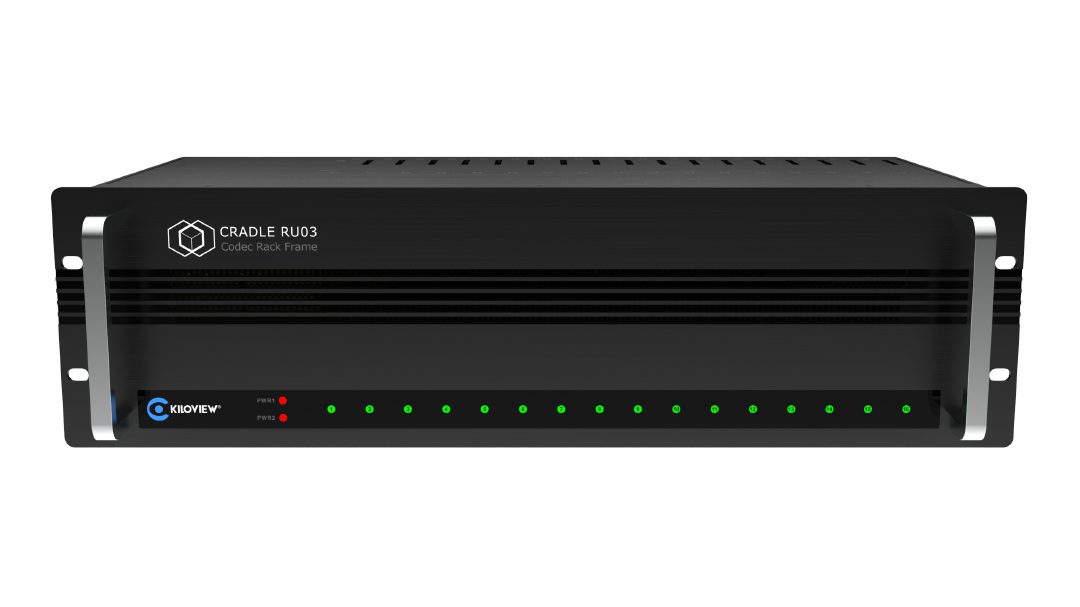

Kiloview RU03 Rackmount Codec

A Free Mixture of 4/16/32 Channel
The Kiloview Cradle Series include RU01 or RU03 rack-mounted frame, freely mixed with 4 channels (RU01),16 channels/32 channels (RU03) codec modules. It comes with redundant power modules, centralized heat dissipation, ensuring longtime stable operation, and benefits your IP video deployments of any size and complexity.

High Density
You may need to use multiple devices in a workflow, and sources may change over time or from day-to-day. With Cradle, you can design 4 encoder and decoder modules in an RU01 chassis, 16x or even 32x in an RU03 chassis to make them work perfectly in your environment.

All inserted encoding and decoding module support SDI/HDMI+3.5mm audio, and the decoding module supports HD or 4K video output.

High Flexibility
SDI? HDMI? All in, all out

No matter what video sources you have, SDI or HDMI, the Cradle is your ideal choice. 1RU/3RU is compatible with SDI and HDMI of both input and output; freely insert encoding and decoding modules in a chassis.

Cradle supports the most IP media protocols like SRT/RTMP/RTSP/UDP/HTTP/HLS and benefits NDI® HX version optional. So, a Cradle can be applied to many business scenarios.

High Reliability
Cradle is equipped with redundant power as standard, effectively preventing power failure. At the same time, dual cooling fans give Cradle Intelligent temperature control for automatic heat dissipation, ensuring stable and 24h continuous operating. For convenient use, Cradle offers power indicator light and operation indicator light to monitor working status.

Numerous Protocols Covered
All codec modules support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols, and you can also choose to customize NDI|HX function.

Easy to use
Cradle adopts a plug-in card structure to make sure card installation and replacement as easy as possible. You are free to mix and insert encoding and decoding modules with flexible application and replacement.

Production with Creative Features
Cradle Series support 3.5mm audio input, H.264 encoding, image and text overlay, video cropping, NAS network storage and other professional functions.

Decoding with HD/4K Output

H.265/H.264 HD Decoding Module: 3G-SDI + HDMI*2 Output, 3.5mm Independent Audio, with NDI|HX3/NDI|HX2/RTMP/SRT Service

H.265/H.264 4K Decoding Module: 3G-SDI + HDMI*2 Output, Splitting Display, with NDI|HX3/NDI|HX2/RTMP/SRT Service

Streaming with Multiple Protocols
Media Gateway Module: Easily bridges most IP protocols, multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS

Input

RE-1

• 1*BNC SDI

 RE-100

• 2*BNC SDI

RE-2

• 1*HDMI

REN-1（NDI)

• 1*BNC SDI

REN-100

•  2*BNC SDI

REN-2（NDI）

• 1*HDMI

Loop


RE-1

• 1*BNC SDI

 RE-100

• 2*BNC SDI

RE-2

• 1*HDMI

REN-1（NDI)

• 1*BNC SDI

REN-100

•  2*BNC SDI

REN-2（NDI）

• 1*HDMI

Applicable frame

RE-1

• RU01, RU03, RU03S

 RE-100

• RU03S

RE-2

• RU01, RU03, RU03S

REN-1（NDI)

• RU01, RU03, RU03S

REN-100

•     RU03S

REN-2（NDI）

• RU01, RU03, RU03S

Analog audio port

RE-1

•  1*3.5mm

 RE-100

• /

RE-2

• 1*3.5mm

REN-1（NDI)

• 1*3.5mm

REN-100

•     /

REN-2（NDI）

•  1*3.5mm

NDI|HX

REN-1（NDI)

• NDI|HX 1.0 and 2.0


REN-100

•     NDI|HX 1.0 and 2.0

REN-2（NDI）

• NDI|HX 1.0 and 2.0

Protocols

SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif


Video encoding

• H264/AVC, Motion-JPEG


Resolution

• Up to 1080P60Hz


Audio encoding

• AAC/G.711


Network

• 1*100M RJ45 Ethernet


Image and text overlay

• User-defined text and image overlay


Video rotation and cropping

• Support


Management Portal

• Web UI and remote management with KILOVIEW KiloLink Server
