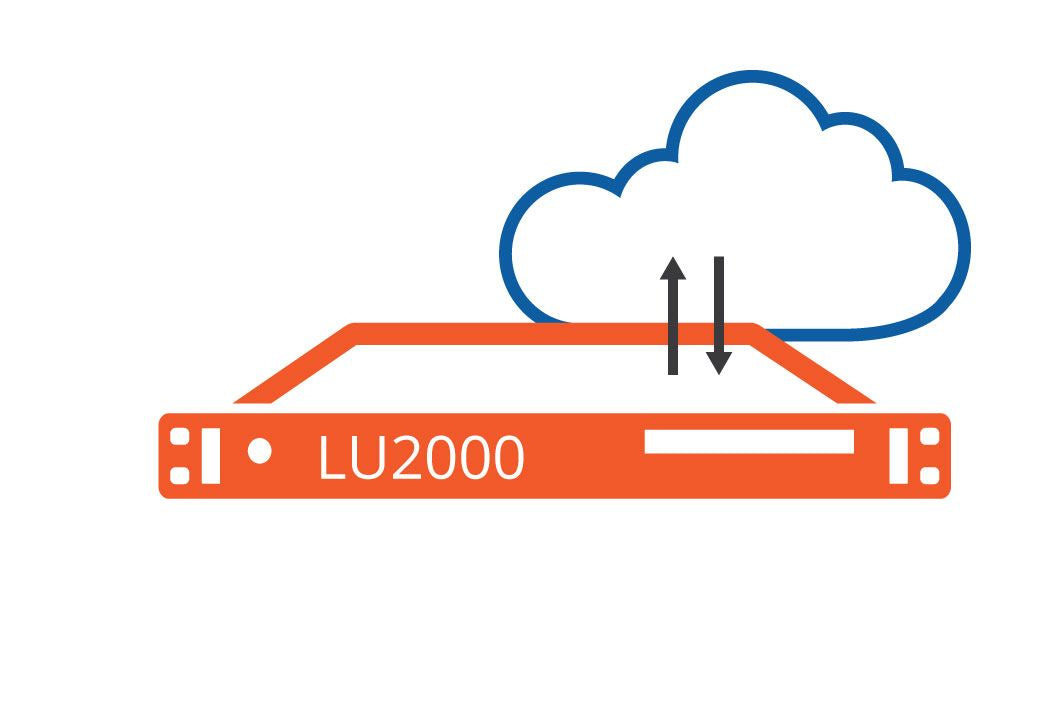

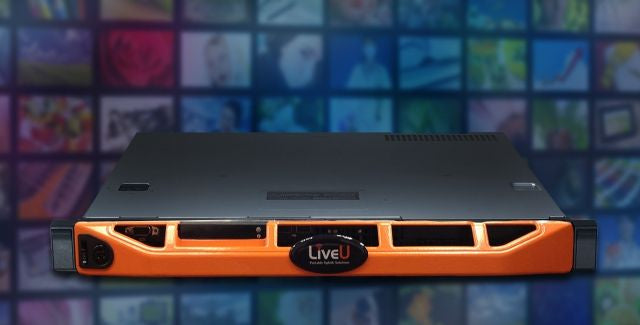

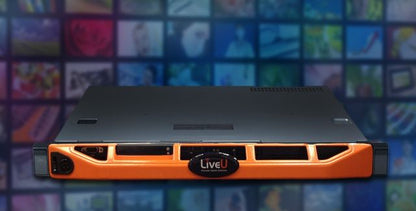

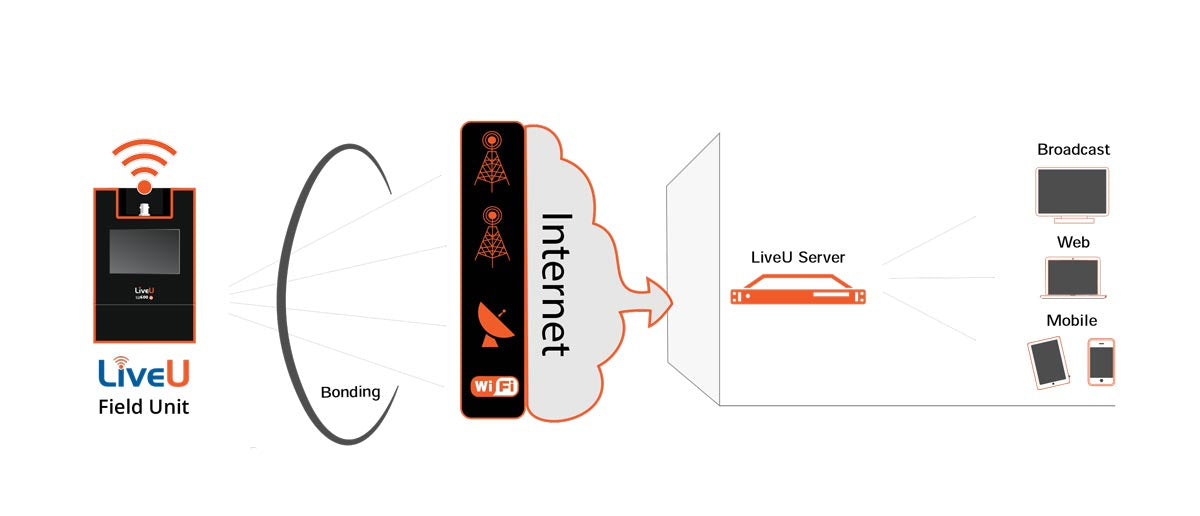

The LU2000 Bonded Video Transceiver unit is used to receive, reconstruct and playout any bonded video stream sent by LiveU’s range of field units. The LU2000 can also be used as a transmission node when configuring LiveU’s MultiPoint transmission service.
The LU2000 comes in a range of configurations, from hardware-hosted MMH software, to cloud server solutions, and uses LiveU Reliable Transport (LRT), which includes patented Dynamic Adaptive Bitrate control and Forward Error Correction, allowing it to optimize live video delivery to different classes of receiver, dynamically adjusting bitrate and quality for the best viewer experience at any time.

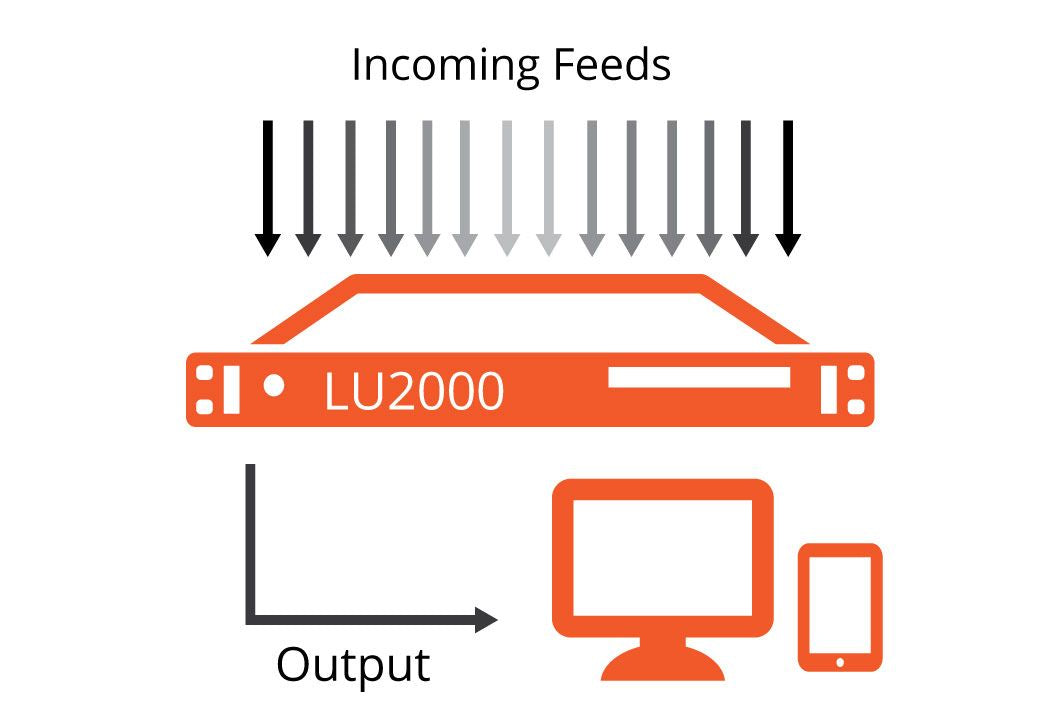

Each LU2000 can receive up to 14 simultaneous LiveU live feeds, allowing the remote operator to select the feed that is actually sent out over SDI for local consumption, or streamed over the network for CDN or any other online video streaming. The LU2000 integrates seamlessly with LiveU’s multi-layered live video ecosystem, allowing operators to monitor and control live streams via LiveU Central, the unified management platform for LiveU’s field and studio units.
Customer must sign LiveU purchase agreement before Product Ships.
FORM FACTOR: 1U RACK-MOUNTABLE SERVER
SOFTWARE: PRE-INSTALLED WITH LIVEU LRT DECODER SOFTWARE
VIDEO DECODER: H.264/HEVC
CONFIGURATIONS: SINGLE SIMULTANEOUS SDI OUTPUTS
RESOLUTIONS: 1080p50/60/25/30/24, 1080i/50/60, 720p50/60/25/30/24, PAL, NTSC
HW INTERFACES: 3G/HD/SD-SDI
NETWORK INTERFACE: 1000/100/10 RJ-45
NETWORK INTERFACE COUNT: 2
POWER SOURCES: 110-240V 50/60HZ
CONTROL: FULL CONTROL USING CLOUD MANAGEMENT VIA LIVEU CENTRAL
PREVIEW: TRANSCODES AND OUTPUTS PREVIEW VIA LIVEU CENTRAL
DIMENSIONS: 1.7” (43MM) HIGH, 17.2” (437MM) WIDE, 14.5” (369MM) DEEP, 1U RACKMOUNT
WEIGHT: 16.5 LBS / 7.48 KG
