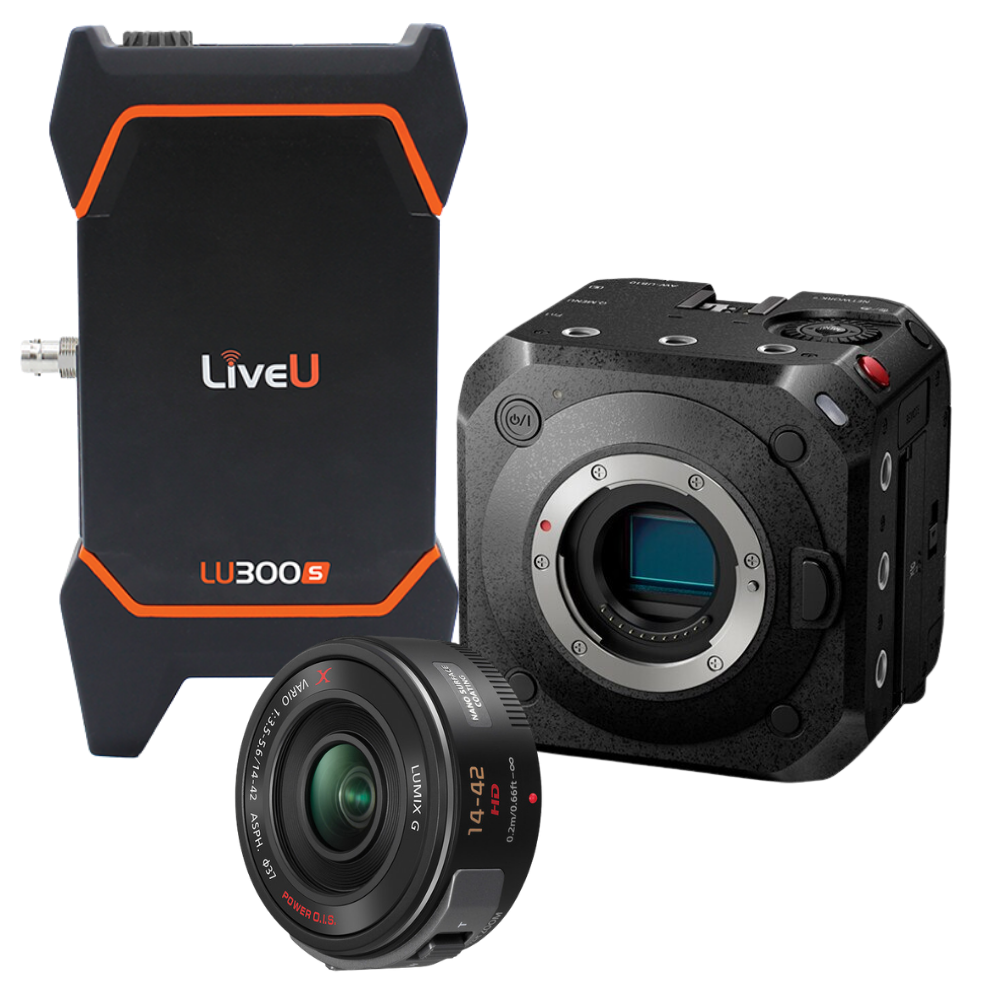

LiveU LU300S with LUMIX AW-UB10 Live Anywhere Bundle

LiveU LU300S with Panasonic LUMIX UB10 Live Anywhere Bundle

Professional 4K Live Streaming Bundle with 5G Bonding Technology

Stream live from anywhere with the LiveU LU300S with Panasonic LUMIX UB10 Live Anywhere Bundle. Designed for broadcasters, sports production, news gathering, houses of worship, corporate events, and live event professionals, this complete solution delivers reliable 4K HDR live streaming over bonded 5G, 4G LTE, Wi-Fi, and Ethernet connections.

The bundle combines the Panasonic AW-UB10 4K box camera, LUMIX G X 14-42mm Power Zoom lens, and the LiveU LU300S portable encoder with everything needed to begin professional live production immediately. In addition, it includes a full year of LiveU services, making it an ideal solution for remote productions and on-location streaming.

What's Included

• Panasonic AW-UB10 4K Multipurpose Box Camera
• Panasonic LUMIX G X Vario PZ 14-42mm f/3.5-5.6 Power O.I.S. Lens
• LiveU LU300S Portable 5G Video Encoder
• 1-Year 180GB Pooled Data Plan
• LiveU LU2000 Dual HD Output Server (Upgradeable to Quad HD)
• 1-Year LiveU Studio Basic License (100 Hours)

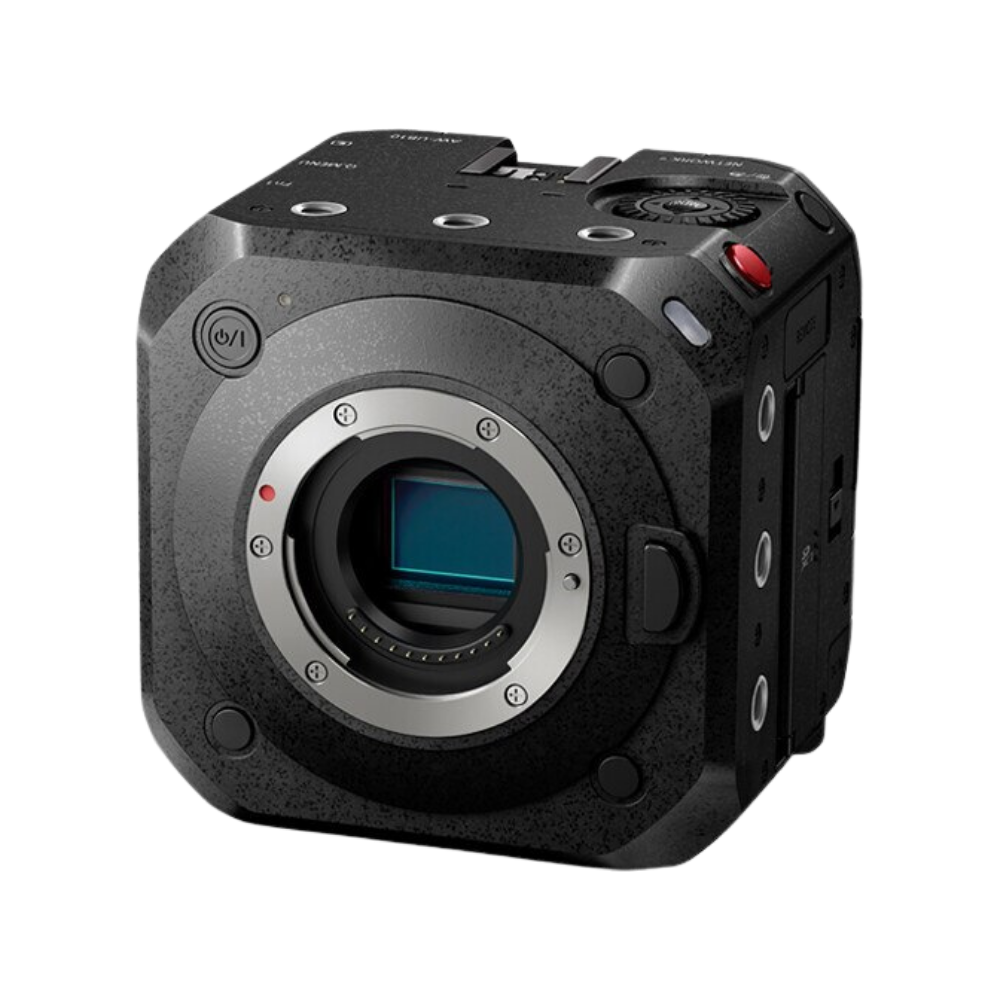

Panasonic AW-UB10 4K Box Camera

The Panasonic AW-UB10 is a compact professional box camera featuring a 10.3MP 4/3-inch MOS sensor that delivers exceptional image quality for live production and video creation. Its compact design makes it easy to install in studios, houses of worship, classrooms, sports venues, and production facilities where space is limited.

Because it shares Panasonic's IP control protocol with Panasonic PTZ cameras, the AW-UB10 integrates seamlessly into existing multi-camera workflows. It also supports Panasonic Media Production Suite for centralized camera management.

AW-UB10 Features

• 10.3MP 4/3-inch MOS sensor
• Cinematic image quality with V-Log (13-stop dynamic range)
• Compact design under 4 inches on each side
• Dual Native ISO for outstanding low-light performance
• Dual SD card slots
• Multiple professional I/O connections
• Compatible with Panasonic PTZ camera systems
• Supports Panasonic Media Production Suite
• Planned support for NDI® HX2, RTMPS, and SRT
• Interchangeable lens design for flexible production setups

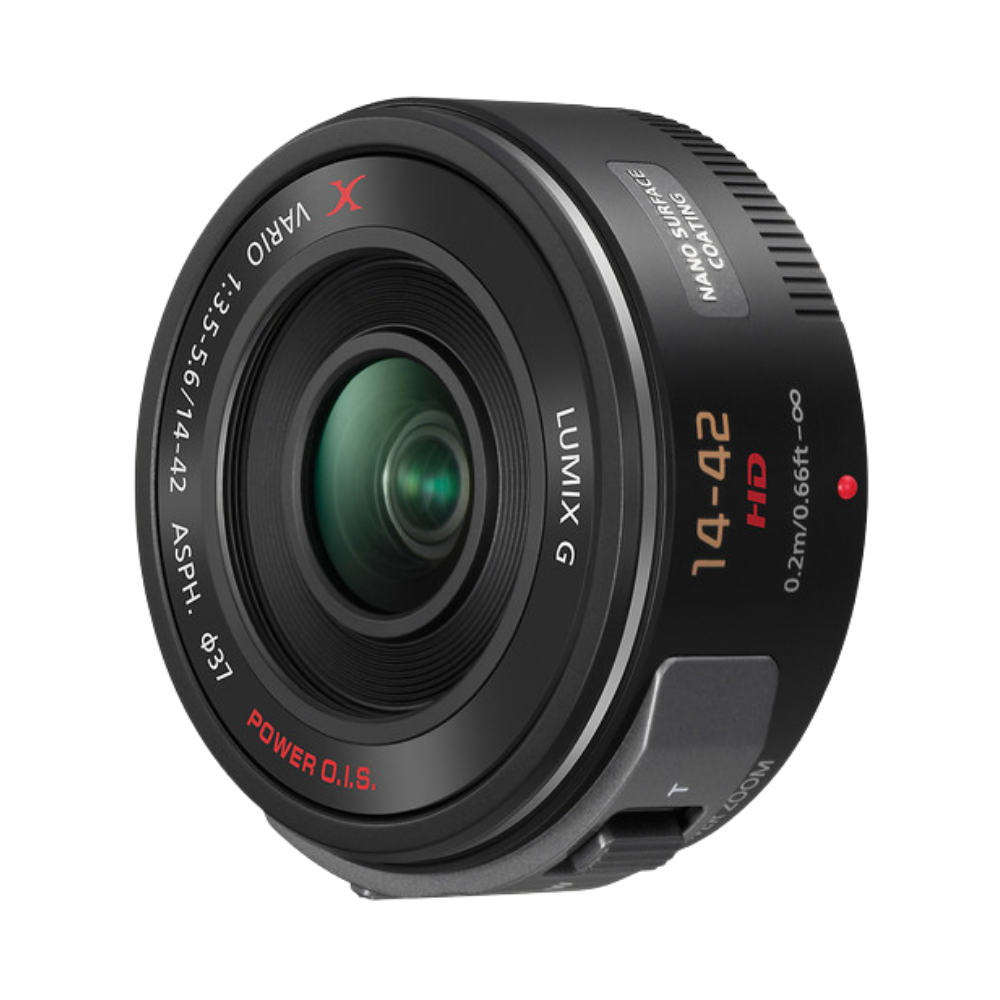

Panasonic LUMIX G X 14-42mm Power Zoom Lens

The included LUMIX G X Vario PZ 14-42mm lens offers exceptional versatility while remaining incredibly compact. Its retractable design makes the camera easy to transport without sacrificing image quality.

Power zoom and optical image stabilization provide smooth video, while silent autofocus ensures professional-looking footage during live productions and recordings.

Lens Features

• 14-42mm (28-84mm equivalent) zoom range
• Compact retractable pancake design
• Power Zoom operation
• Power O.I.S. image stabilization
• Nano Surface Coating minimizes flare and ghosting
• Quiet autofocus ideal for video production
• Lightweight design weighing only 95g

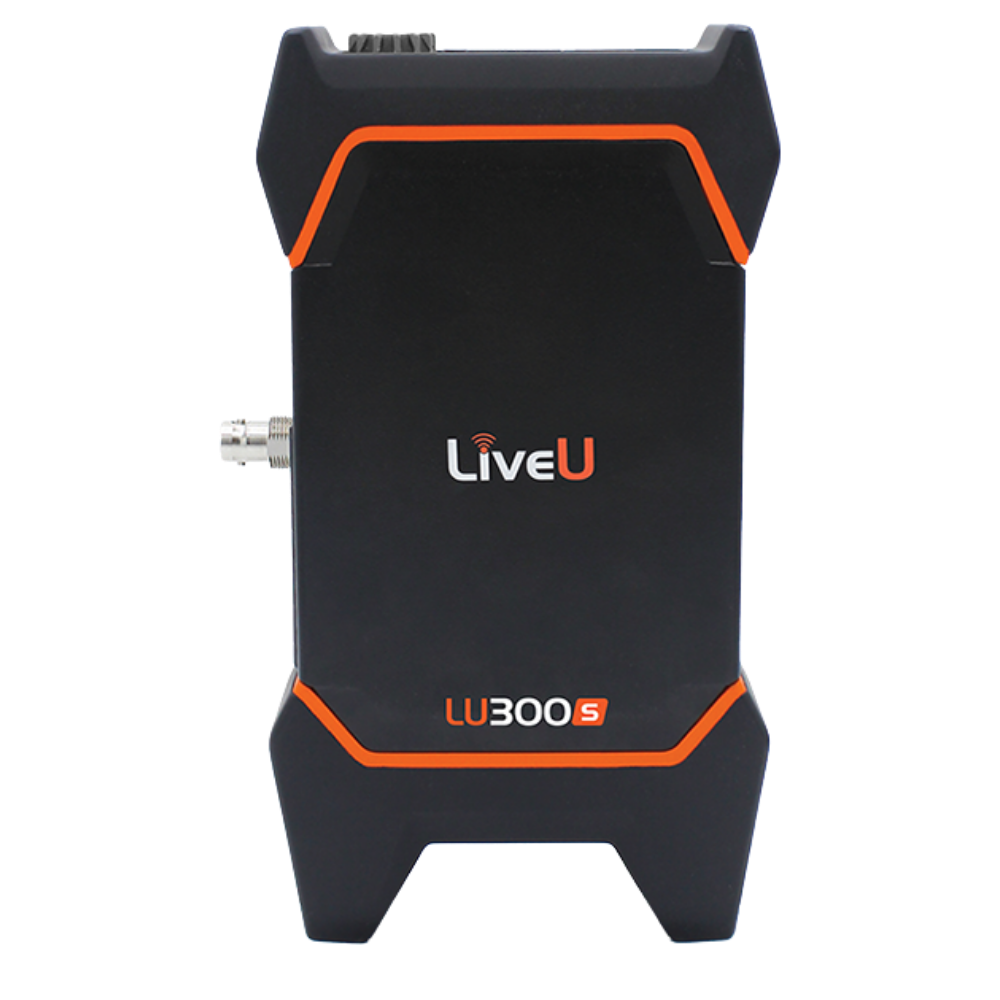

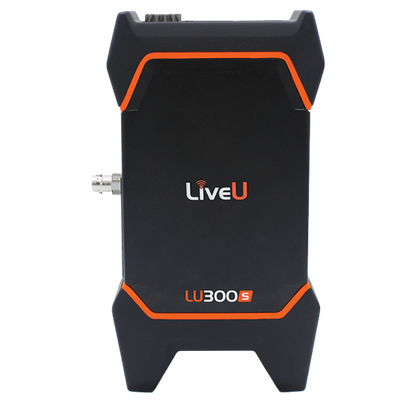

LiveU LU300S Portable 5G Video Encoder

The LiveU LU300S is a professional portable encoder built for dependable live streaming from virtually anywhere. Using LiveU's patented HEVC bonding technology, it combines multiple network connections into one resilient transmission path for exceptional reliability.

Supporting up to 4Kp60 10-bit HDR, the LU300S delivers broadcast-quality video with ultra-low latency, making it ideal for live sports, breaking news, corporate events, government meetings, education, and remote productions.

With support for up to six simultaneous network connections, crews can confidently stream from challenging locations while maintaining professional video quality.

LU300S Features

• Portable 5G live video encoder
• Supports 4Kp60 10-bit HDR streaming
• LiveU HEVC bonded transmission technology
• Up to six bonded IP connections
• Two internal dual-SIM 5G/4G modems
• Support for two external cellular modems
• Wi-Fi and Gigabit Ethernet connectivity
• LiveU Reliable Transport (LRT™) protocol
• Up to 30 Mbps transmission
• 12G-SDI and HDMI inputs
• Up to eight embedded audio channels
• Rugged field-ready construction
• Lightweight design at just over 2 pounds

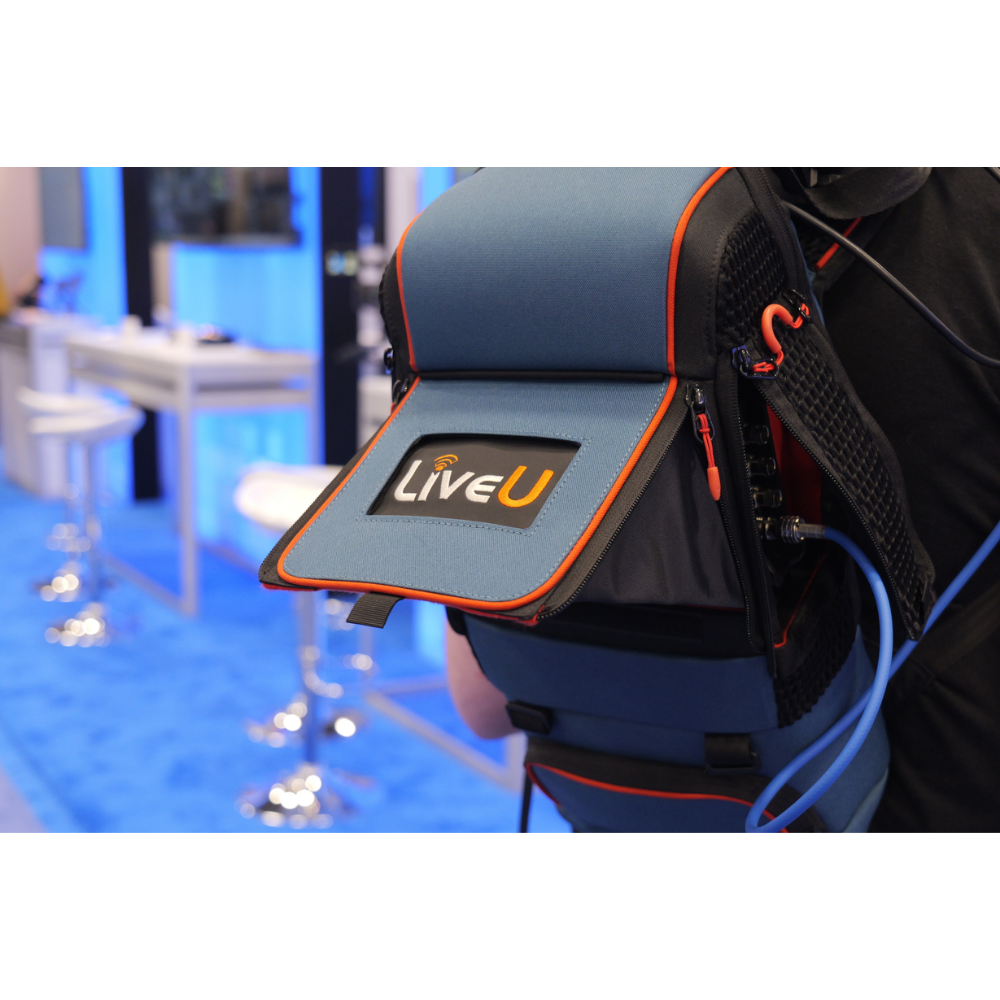

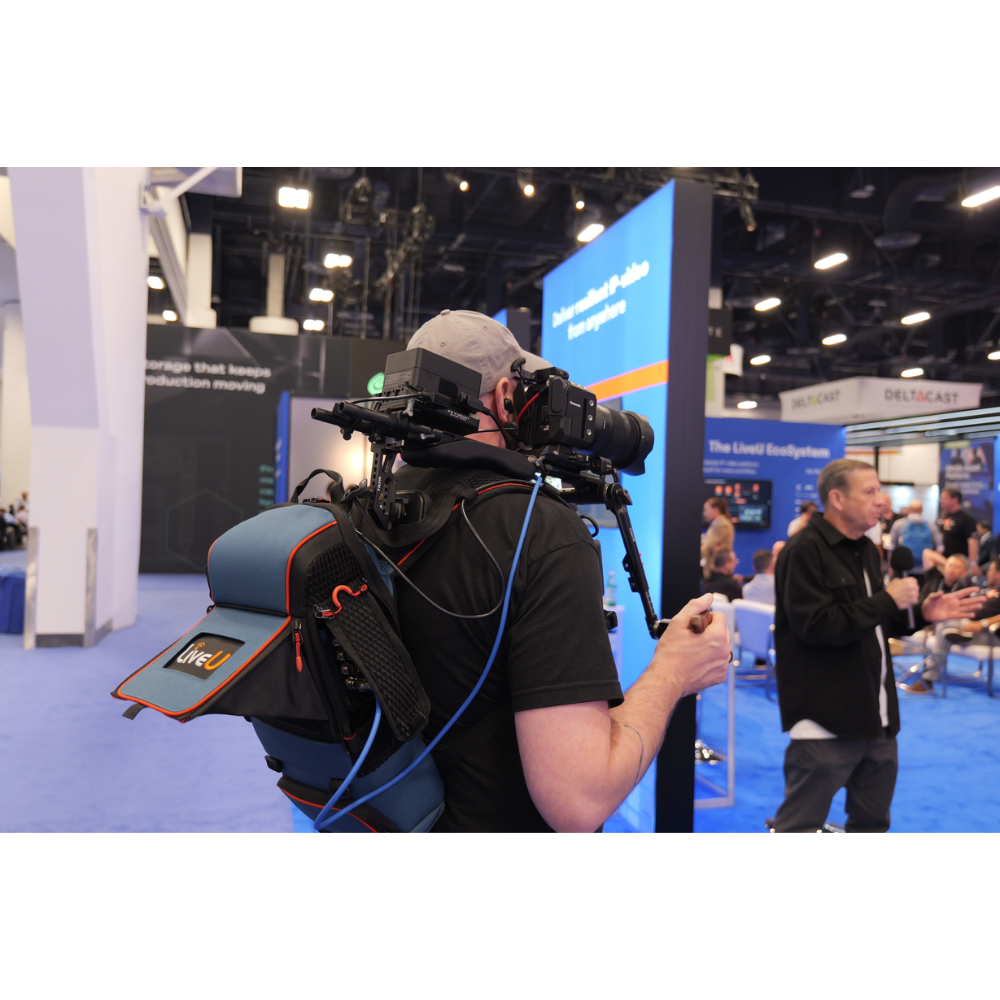

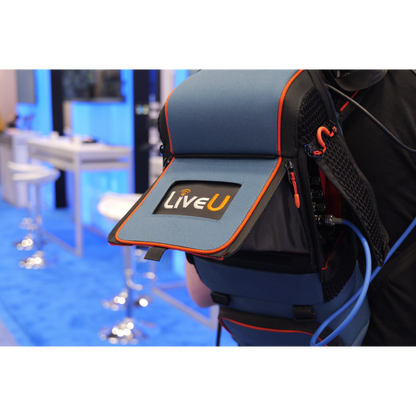

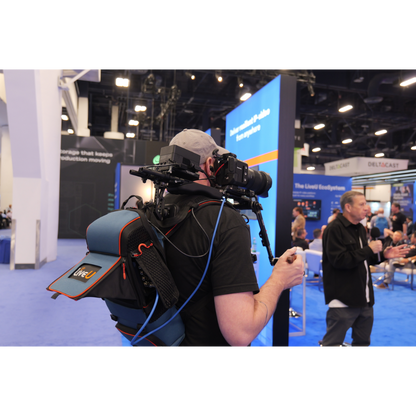

• Camera mount, shoulder pack, and belt pack compatibility

Built for Professional Live Production

Whether you're covering live sports, broadcasting worship services, streaming corporate events, producing educational content, or reporting breaking news, this bundle provides the tools needed to produce reliable, broadcast-quality live video from virtually any location.

By combining Panasonic's professional imaging technology with LiveU's industry-leading bonded cellular transmission platform, you'll capture stunning 4K footage and stream confidently—even in demanding network environments.

Ideal For

• Live Sports Production
• Broadcast News
• Houses of Worship
• Corporate Live Streaming
• Government Meetings
• Education & Lecture Capture
• Remote Video Production
• Concerts & Live Events
• Field Reporting
• Hybrid Events

Why Choose the LiveU LU300S with Panasonic AW-UB10 Bundle?

This complete solution eliminates the guesswork by providing a camera, lens, encoder, cloud services, and connectivity in one package. The result is a dependable, professional live streaming workflow that is ready for production right out of the box.

Whether you're building a mobile broadcast kit or expanding an existing live production system, the LiveU LU300S with Panasonic LUMIX UB10 Live Anywhere Bundle delivers professional-quality 4K streaming with the reliability today's productions demand.

Panasonic LUMIX UB-10 4K Camera

• Power When using Lithium-ion battery pack: 7.28 V
• Power When using included AC adapter: 12 V/3 A
• PoE: PoE+, IEEE802.3at compliant
• Power Consumption when recording: 7.9 W (When the interchangeable lens H-ES12060 is attached)
• Power Consumption when playing back: 6.7 W (When the interchangeable lens H-ES12060 is attached)
• Operating Temperature: -10 °C to 40 °C (14 °F to 104 °F)
• Operating Humidity: 10 % to 80 %
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Storage Humidity: 0 % to 90 %
• Weight: Approx. 545 g / 1.2 lb (body only)
• Dimensions: W 93.0 mm x 93.0 mm x 78.0 mm (3.66 inches x 3.66 inches x 3.07 inches) (excluding protrusions)
• Imaging Sensor: 4/3" MOS x 1
• Effective Pixels: Approx. 10.3 megapixels
• Latitude: V-Log L: 13 stops
• Lens Mount: Micro Four Thirds mount
• Focus mode: AF / MF
• Focus AF mode:
  • Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
  • Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area
  • (Tethered photo shooting with LUMIX Tether for Multicam software)
• ISO Sensitivity (Standard Output Sensitivity):
  • AUTO / 160 to 51200 (When [Extended ISO] is set: AUTO / 80 to 204800)
  • AUTO / 0 dB to 50 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 62 dB)
  • *ISO sensitivity can be changed in 1/3EV steps
• Creative Video Mode: [Custom Mode C1] to [Custom Mode C12]
• White Balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent lights / White Set 1, 2, 3, 4 / Color temperature 1, 2, 3, 4
• DC IN: DC 12 V (11.4–12.6 V), EIAJ Type4、PoE+ (IEEE802.3at compliant)
• External Microphone: φ3.5 mm for external microphone / external audio device | MIC (Plug-in Power) / MIC / LINE is selectable
• AUDIO IN: XLR (3-pin) x 2 (INPUT1, INPUT2) LINE / MIC / MIC+48V is selectable
• GENLOCK IN: BNC x 1
• HDMI Out: HDMI Type A
• SDI OUT: BNC x 1、0.8V[p-p]、75Ω、3G-SDI
• Headphone: φ3.5mm
• TC IN/OUT: BNC x 1
• USB: USB Type-C (uper Speed USB3.1 GEN1)
• LAN: Remote Control: LAN Terminal (RJ-45) | Power Supply: PoE+ (IEEE802.3at compliant)
• REMOTE IN: φ2.5mm
• Recording Media: SD Memory Card, SDHC Memory Card,* and SDXC Memory Card* for dual-slot recording (* Slots 1 and 2 compatible with UHS-I/UHS-II UHS Speed Class 3 and UHS-II Video Speed Class 90)

LUMIX G X VARIO PZ 14-42mm F3.5-5.6 ASPH. Power O.I.S.

• Focal Length: 14 to 42mm (35mm Equivalent: 28 to 84mm)
• Aperture
  • Maximum: f/3.5 to 5.6
  • Minimum: f/22
• Lens Mount: Micro Four Thirds
• Lens Format Coverage: Micro Four Thirds
• Angle of View: 75° to 29°
• Minimum Focus Distance: 7.87" / 0.2 m
• Magnification
  • 1:5.9 Macro Reproduction Ratio
  • 0.17x Magnification
• Optical Design: 9 Elements in 8 Groups
• Aperture/Iris Blades: 7, Rounded
• Focus Type: Autofocus
• Image Stabilization: Yes
• Filter Size: 37 mm (Front)
• Dimensions ø: 2.4 x L: 1.1" / ø: 60.96 x L: 27.94 mm
• Weight: 0.21 lb / 95 g

LiveU LU300S Encoder Field Unit with 5G Modems (Gold Mount)

• VIDEO RESOLUTIONS: 4Kp60/50/25/30/24, 1080p50/60/25/30/24, 1080i50/60, 720p50/60, PAL, NTSC
• VIDEO INTERFACES: 12G/3G/HD/SD-SDI and HDMI 2.0
• VIDEO ENCODER: H.265/HEVC, H.264, 10-bit/HDR
• AUDIO ENCODER: AAC-HE/LC, up to 8 audio channels
• PORTABILITY: Professional-grade cross-shoulder pack, camera mount and belt pack options
• SIMULTANEOUS BONDING: Up to 6 network links: 2 x internal 4G/5G cellular modems, 2 x external cellular modems (4G/5G), internal WiFi and Ethernet
• OPERATIONAL MODES
  • Live: Down to 0.3 seconds ultra-low latency transmission mode
  • Live & Store: live streaming with local high-quality recording on unit
  • Store & Forward: stream in three quality-levels (for optimal quality vs speed)
  • FTP: bonded file transfer
  • DataBridge: high-speed mobile broadband connectivity from the unit Audio Connect Intercom
• EXTERNAL MODEMS: LU Net 4G/5G with high-efficiency antennas for worldwide support
• MULTI-TARGET OUTPUT: Diverse A/V output through SDI and H.264 streams including connectivity for CDNs (server side)
• POWER SOURCES: 3 hours internal battery, DC IN: 12V-19V AC/DC adaptor or external battery
• LOCAL CONTROL: Full monitoring and control using local 2.2” display and user-friendly rotating jog
• REMOTE CONTROL: Full web-based remote control from smartphones, laptops, tablets or web browsers
• DISPLAY INFORMATION: Video preview; per network cellular connectivity status incl. throughput, network delay etc.
• RESILIENCY AND QUALITY: Includes LiveU Reliable Transport (LRTTM), featuring proprietary algorithms such as automatic Adaptive Bit Rate (ABR), automatic Forward Error Correction (FEC) and other lost packet recovery algorithms
• CLOUD PRODUCTION – NTP FRAME SYNC: Synchronize SRT-based multi angle production feeds based on NTP timecodes
• INTERFACES: 2 x USB 2.0, micro USB, RJ-45 Ethernet, 3.5mm in/out audio jack, micro-SD card, SIM cards
• WIRELESS INTERFACES
  • WiFi 802.11 a,b,g,n,ac support with internal MIMO antennas
  • 2 x internal 4G/5G modems with high-efficiency antennas for worldwide support
• DIMENSIONS: 112.5mm x 203mm x 54.5mm / 4.4” x 8” x 2.1” (W x H x D)
• WEIGHT: 955g (2.1lbs) with two internal modems and battery
• TEMPERATURE Operating: -5C to +45C (23F to 1 13F

• Panasonic LUMIX UB-10 4K Camera
• LUMIX G X VARIO PZ 14-42mm F3.5-5.6 ASPH. Power O.I.S.
• LiveU LU300S Encoder Field Unit with 5G Modems (Gold Mount)
• Annual 180GB Pooled Data Plan - 1  year
• LU2000 Dual HD Output Server (Upgradable to Quad)
• Yearly LiveU Studio Basic License 100 Hours
