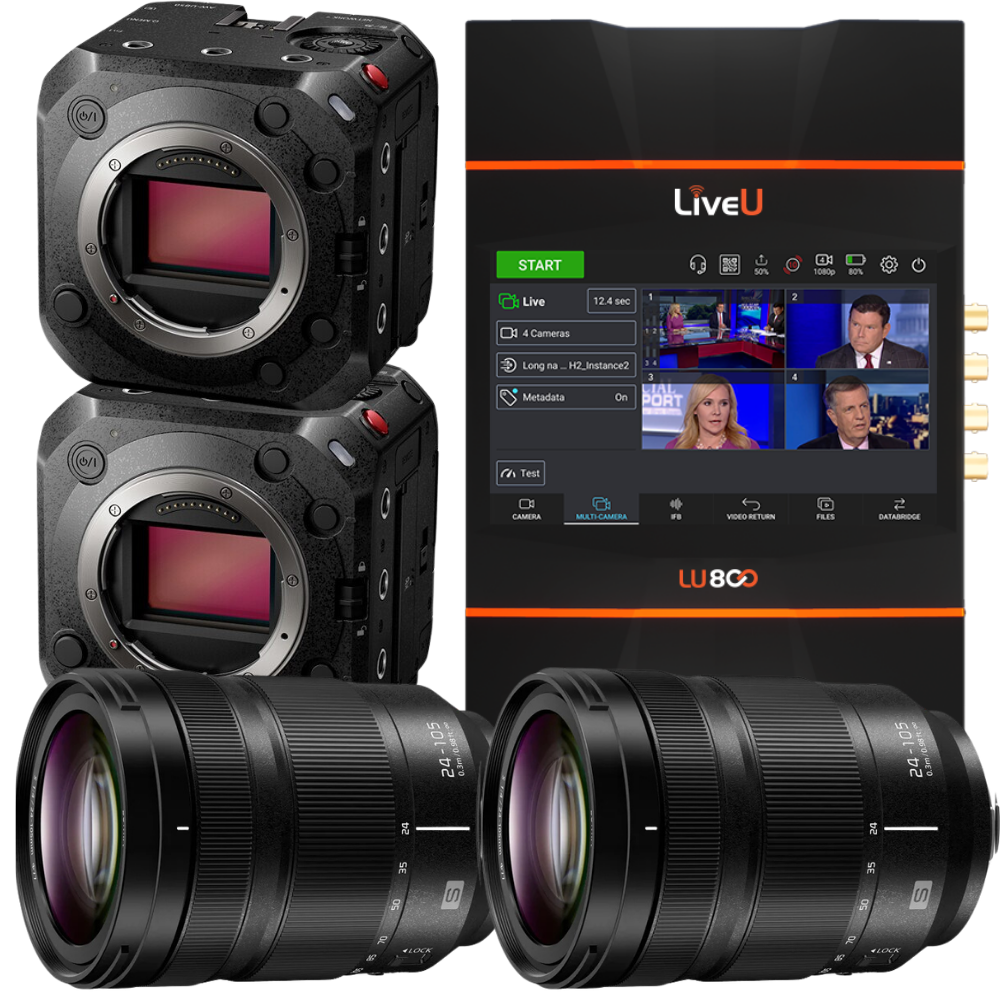

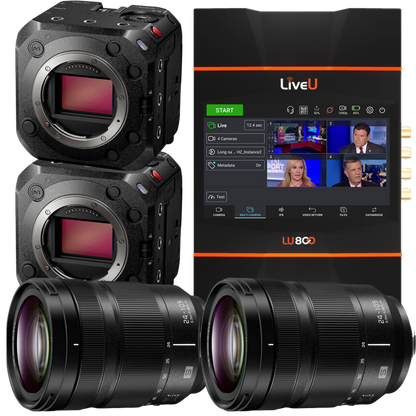

LiveU LU800 Pro with LUMIX AW-UB50 Multicamera Live Anywhere Bundle

LiveU LU800 Pro with Lumix UB50 Multicamera Live Anywhere Bundle

Professional 4K Multi-Camera Live Streaming Bundle

The LiveU LU800 Pro with Lumix UB50 Multicamera Live Anywhere Bundle is a complete professional solution for broadcasters, live event producers, sports organizations, houses of worship, universities, and production companies that need reliable 4K live streaming from anywhere. Combining the powerful LiveU LU800 PRO bonded cellular encoder with two Panasonic AW-UB50 4K Full Frame Box Cameras and professional LUMIX lenses, this bundle delivers cinematic image quality, dependable transmission, and flexible multi-camera production.

Whether you're covering breaking news, sporting events, concerts, corporate productions, or remote broadcasts, this complete LiveU bundle gives you everything you need to produce professional live video with confidence.

What's Included

• 2 × Panasonic AW-UB50 4K Full Frame Box Cameras
• 2 × Panasonic LUMIX S 24-105mm f/4 Macro O.I.S. L-Mount Lenses
• LiveU LU800 with Multi-Camera PRO Video Card
• LU800-PRO2 Multi-Camera License
• Annual 500GB LiveU Pooled Data Plan (1 Year)
• LU2000 Dual HD Output Server (Upgradeable to Quad HD)
• LiveU Studio Basic License (100 Hours)

Live Stream from Virtually Anywhere

The LiveU LU800 is designed for mission-critical live production. Using LiveU's industry-leading bonded cellular technology, it combines multiple network connections into one highly reliable transmission path. As a result, you can stream from virtually any location without relying on traditional satellite or fiber connections.

Key LiveU features include:

• Native 5G and LTE bonded cellular transmission
• Support for up to four synchronized camera feeds
• Up to 4K60 10-bit HDR live streaming
• Bond up to 14 network connections
• Eight internal dual-SIM 5G/4G modems
• AI-powered LiveU IQ (LIQ™) network optimization
• Up to 16 channels of embedded audio
• Low-latency, broadcast-quality video transmission

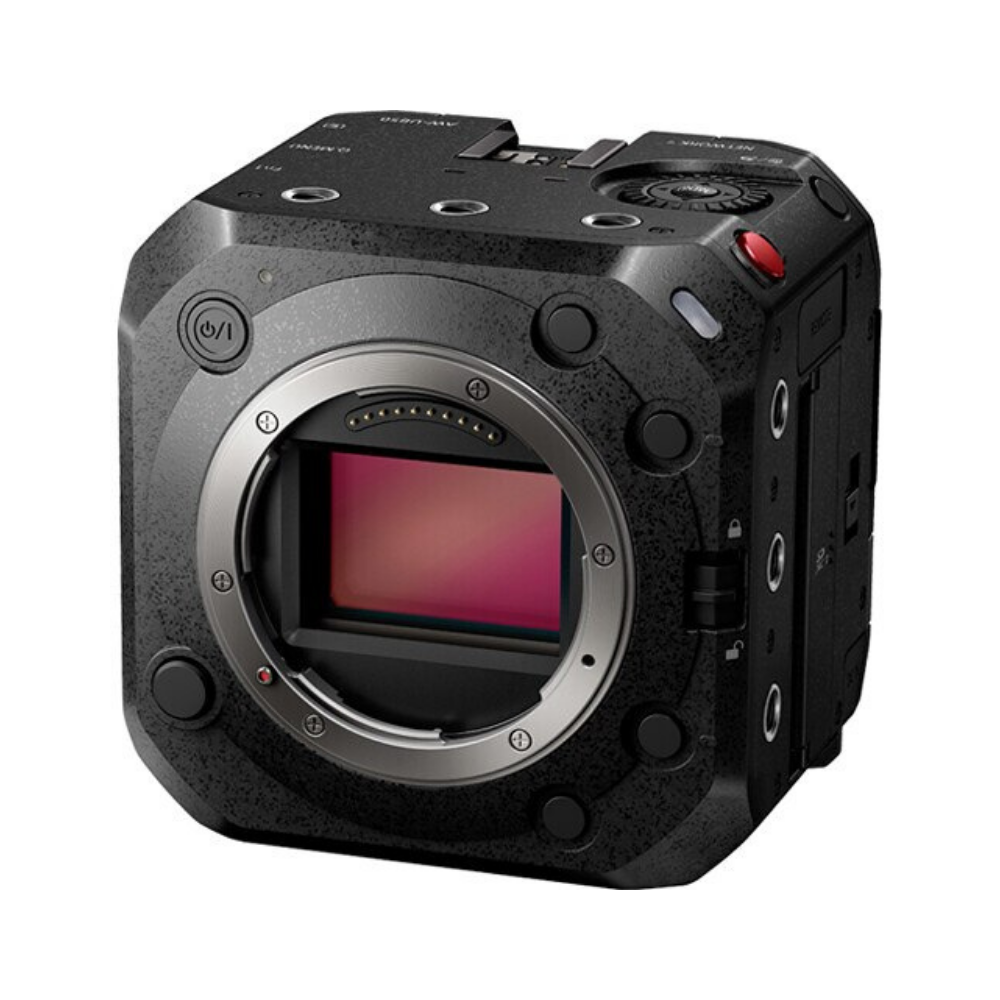

Panasonic AW-UB50 4K Full Frame Box Cameras

The Panasonic AW-UB50 delivers exceptional image quality in an incredibly compact design. Its 24.2MP full-frame MOS sensor captures stunning detail, beautiful color reproduction, and cinematic shallow depth of field for professional productions.

These cameras also integrate seamlessly with Panasonic PTZ camera systems, making them ideal for multi-camera workflows.

Camera Features

• 24.2MP full-frame MOS sensor
• Up to 14+ stops of dynamic range with V-Log
• Dual Native ISO for outstanding low-light performance
• Compact box-style design
• Unified Panasonic IP camera control
• Dual SD card slots
• Multiple professional I/O connections
• Compatible with Panasonic Media Production Suite
• Planned support for NDI® HX2, SRT, and RTMPS workflows
• Flexible interchangeable L-Mount lens system

Whether you're producing concerts, sporting events, church services, or corporate broadcasts, the AW-UB50 delivers professional-quality 4K video in almost any environment.

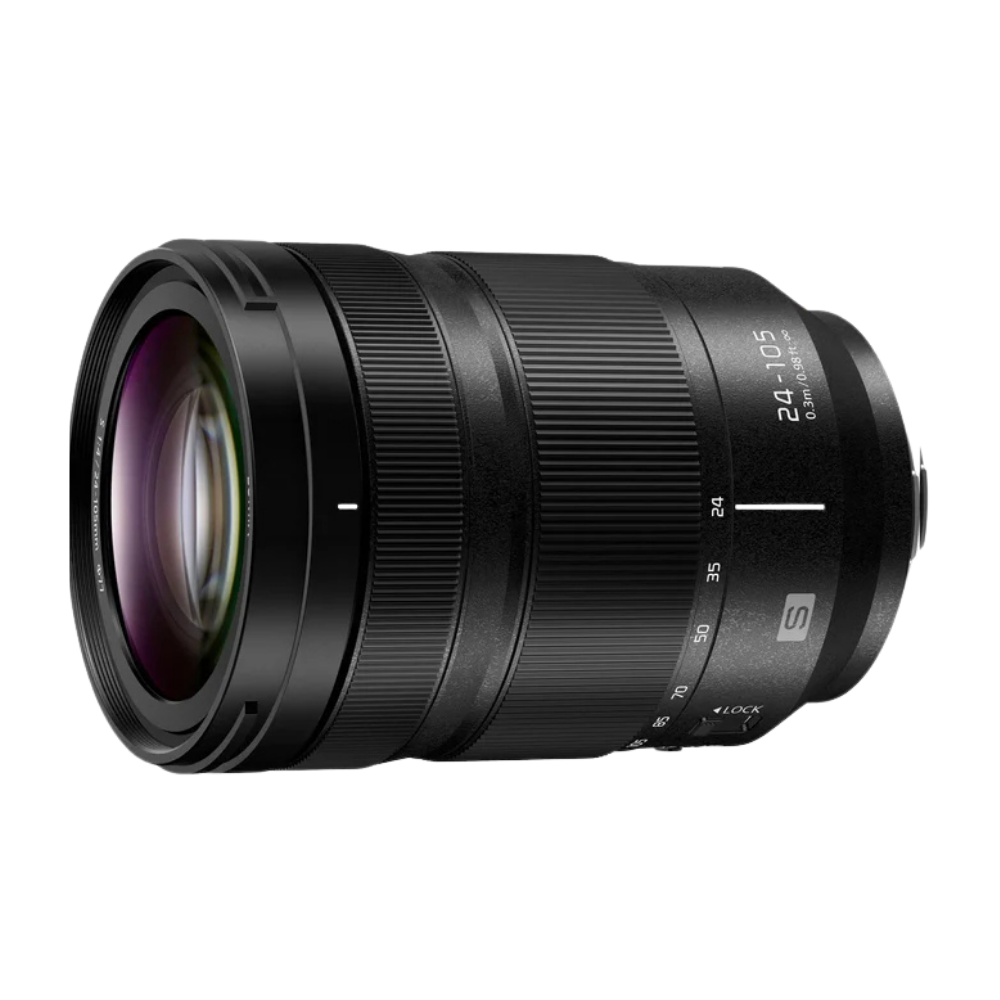

Panasonic LUMIX S 24-105mm f/4 Macro Lens

Each camera includes the versatile LUMIX S 24-105mm f/4 Macro O.I.S. lens, giving you exceptional flexibility for wide shots, interviews, close-ups, and live productions.

Lens highlights include:

• 24-105mm full-frame zoom range
• Constant f/4 aperture
• Optical Image Stabilization (O.I.S.)
• 0.5x macro capability
• Minimum focusing distance of just 0.3m
• Weather-, dust-, splash-, and freeze-resistant construction
• High-resolution optics with aspherical and ED lens elements

The built-in stabilization helps reduce camera shake, making handheld shooting smoother even in challenging environments.

Built for Professional Multi-Camera Production

This bundle is ideal for organizations that require dependable, broadcast-quality live production.

Perfect for:

• Live sports broadcasting
• News gathering
• Remote television production
• Houses of worship
• Corporate events
• University productions
• Government meetings
• Concerts and festivals
• Live streaming studios
• Hybrid events

Why Choose the LiveU LU800 Pro Bundle?

Unlike traditional streaming systems, the LiveU LU800 provides reliable bonded cellular transmission while supporting synchronized multi-camera workflows. Combined with Panasonic's cinematic full-frame cameras, this bundle delivers professional production quality from virtually any location.

From remote news coverage to professional sports broadcasts, you'll have everything needed to produce high-quality live video with confidence.

Key Features at a Glance

• Complete professional multi-camera live production bundle
• Two Panasonic AW-UB50 4K full-frame box cameras
• Two LUMIX S 24-105mm f/4 Macro O.I.S. lenses
• LiveU LU800 native 5G bonded cellular encoder
• Multi-camera PRO license included
• LiveU Studio Basic license (100 hours)
• 500GB annual pooled data plan
• LU2000 Dual HD Output Server
• Up to four synchronized live camera feeds
• Up to 4K60 HDR transmission
• Professional low-latency remote production
• Ideal for sports, news, events, education, worship, and broadcast applications

Panasonic AW-UB50 4K Full Frame Box Cameras

• Power When using Lithium-ion battery pack: 7.28 V
• Power When using included AC adapter: 12 V/3 A
• PoE: PoE+, IEEE802.3at compliant
• Power Consumption when recording: 8.1 W (When the interchangeable lens S-R24105 is attached)
• Power Consumption when playing back: 6.9 W (When the interchangeable lens S-R24105 is attached)
• Operating Temperature: -10 °C to 40 °C (14 °F to 104 °F)
• Operating Humidity: 10 % to 80 %
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Storage Humidity: 0 % to 90 %
• Weight: Approx. 585 g / 1.29 lb (Body only)
• Dimensions: 3.66 inches x 3.66 inches x 3.1 inches (excluding protrusions)
• Imaging Sensor: 35 mm full-size (35.6 mm x 23.8mm) MOS x 1
• Effective Pixels: Approx. 24.2 megapixels
• Latitude: V-Log: 14+ stops
• Lens Mount: L-mount
• Focus mode: AF / MF
• Focus AF mode
  • Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
  • Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area
  • (Tethered photo shooting with LUMIX Tether for Multicam software)
• ISO Sensitivity (Standard Output Sensitivity)
  • AUTO / 100 to 51200 (When [Extended ISO] is set: AUTO / 50 to 204800)
  • AUTO / 0 dB to 54 dB (When [Extended Gain Setting] is set: AUTO / -6 dB to 66 dB)
  • * ISO sensitivity can be changed in 1/3EV steps
• Creative Video Mode: [Custom Mode C1] to [Custom Mode C12]
• Shutter Speed Still: 1/8,000 - 1 (Tethered photo shooting with LUMIX Tether for Multicam software)
• Shutter Speed Movie: 1/16,000 - 1/2
• White Balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent lights / White Set 1, 2, 3, 4 / Color temperature 1, 2, 3, 4
• Recording file format: JPEG (DCF, Exif 2.31) * Tethered photo shooting with LUMIX Tether for Multicam software
• File size: 6000 x 4000 (L) / 4272 x 2848 (M) / 3024 x 2016 (S)
• DC IN: DC 12 V (11.4–12.6 V), EIAJ Type4、PoE+ (IEEE802.3at compliant)
• External Microphone: φ3.5 mm for external microphone / external audio device | MIC (Plug-in Power) / MIC / LINE is selectable
• AUDIO IN: XLR (3-pin) x 2 (INPUT1, INPUT2) | LINE / MIC / MIC+48V is selectable
• GENLOCK IN: BNC x 1
• HDMI Out: HDMI Type A
• SDI OUT: BNC x 1、0.8V[p-p]、75Ω、3G-SDI
• Headphone: φ3.5mm
• TC IN/OUT: BNC x 1
• USB: USB Type-C (uper Speed USB3.1 GEN1)
• LAN: Remote Control: LAN Terminal (RJ-45)
• Power Supply: PoE+ (IEEE802.3at compliant)
• REMOTE IN: φ2.5mm
• Recording Media: SD Memory Card, SDHC Memory Card,* and SDXC Memory Card* for dual-slot recording (* Slots 1 and 2 compatible with UHS-I/UHS-II UHS Speed Class 3 and UHS-II Video Speed Class 90)
• Compatible Protocol: RTP / RTSP

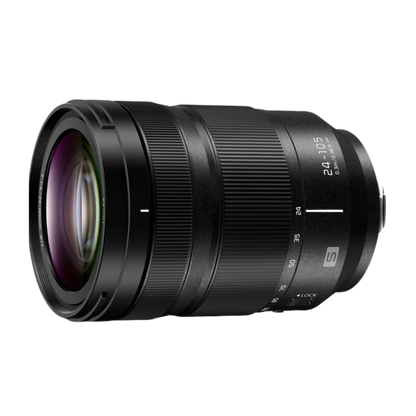

Panasonic LUMIX S 24-105mm f/4 Macro O.I.S. L-Mount Lenses

• Lens Construction: 16 elements in 13 groups (2 aspherical ED lenses, 2 aspherical lenses, 1 UED lens, 2 ED lenses)
• Mount: L-Mount
• Optical Image Stabilizer: Yes
• Focal Length: f=24-105mm
• Aperture Type: 9 diaphragm blades / Circular aperture diaphragm
• Maximum Aperture: F4.0
• Minimum Aperture: F22
• Closest Focusing Distance: 0.30m / 0.98ft
• Maximum Magnification: 0.5x
• Diagonal Angle of View: 84°(Wide) - 23°(Tele)
• Dust and Splash Resistant: Yes* (*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.)
• Recommended Operating Temperature: -10℃ to 40℃ (14℉ to 104℉)
• Filter Size: φ77mm
• Max Diameter: φ84mm / 3.31inch

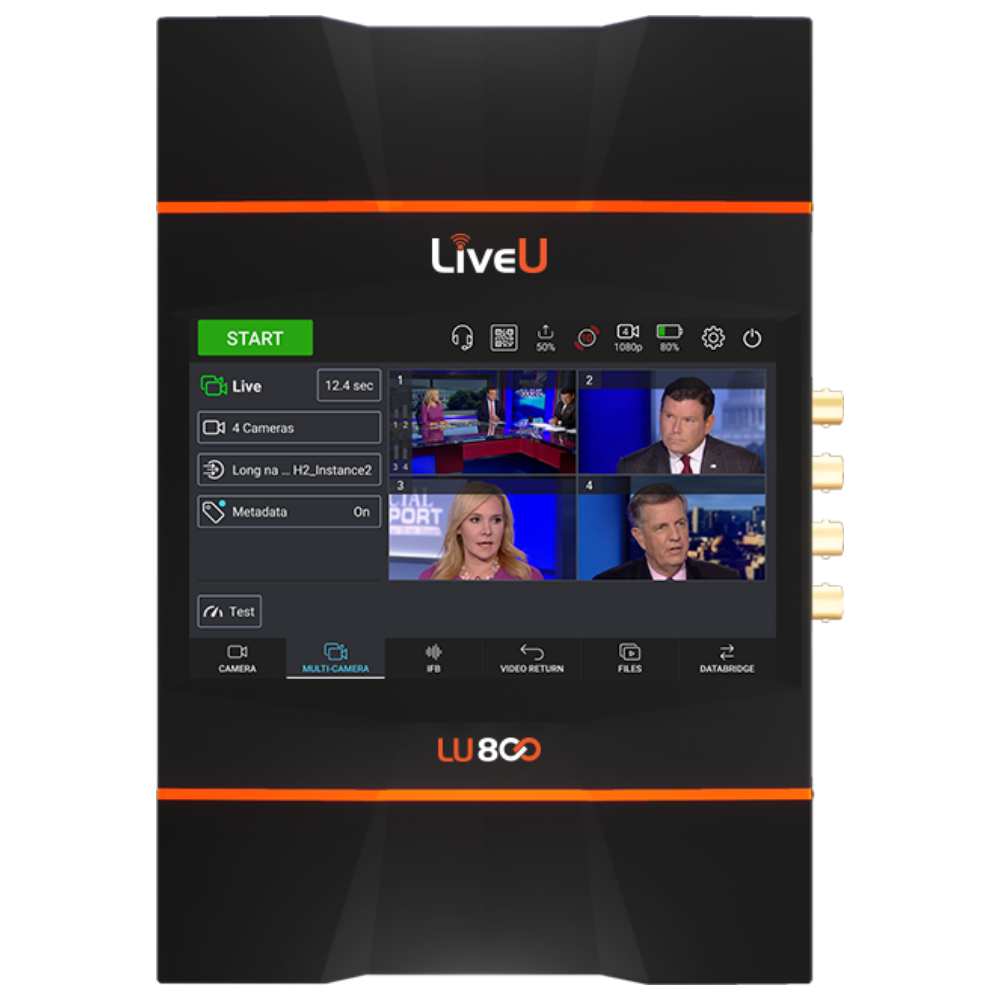

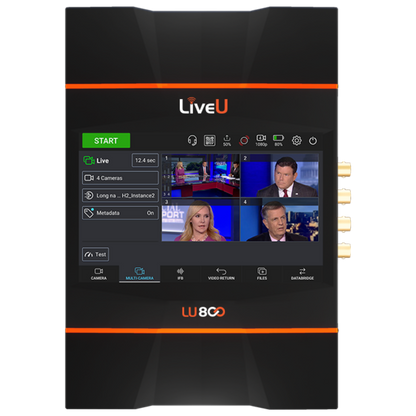

LiveU LU800 with Multi-Camera PRO Video Card

• VIDEO RESOLUTIONS: 4Kp50/60/25/30/24, 1080p50/60/25/30/24, 1080i50/60, 720p50/60/25/30, PAL, NTSC
• VIDEO INTERFACES:4KxSDI (12G/3G/HD/SD)
• VIDEO ENCODER: H.265/HEVC, H.264
• 10-BIT HDR: No
• AUDIO CHANNELS: Up to 8
• SUPPORTED BITRATES: Up to 60Mbps

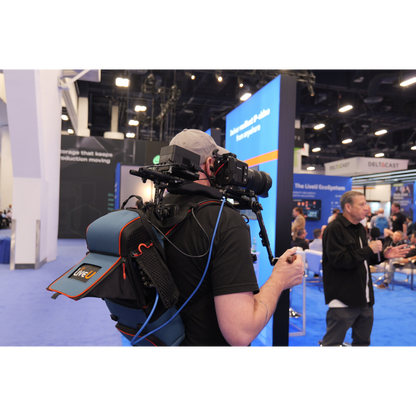

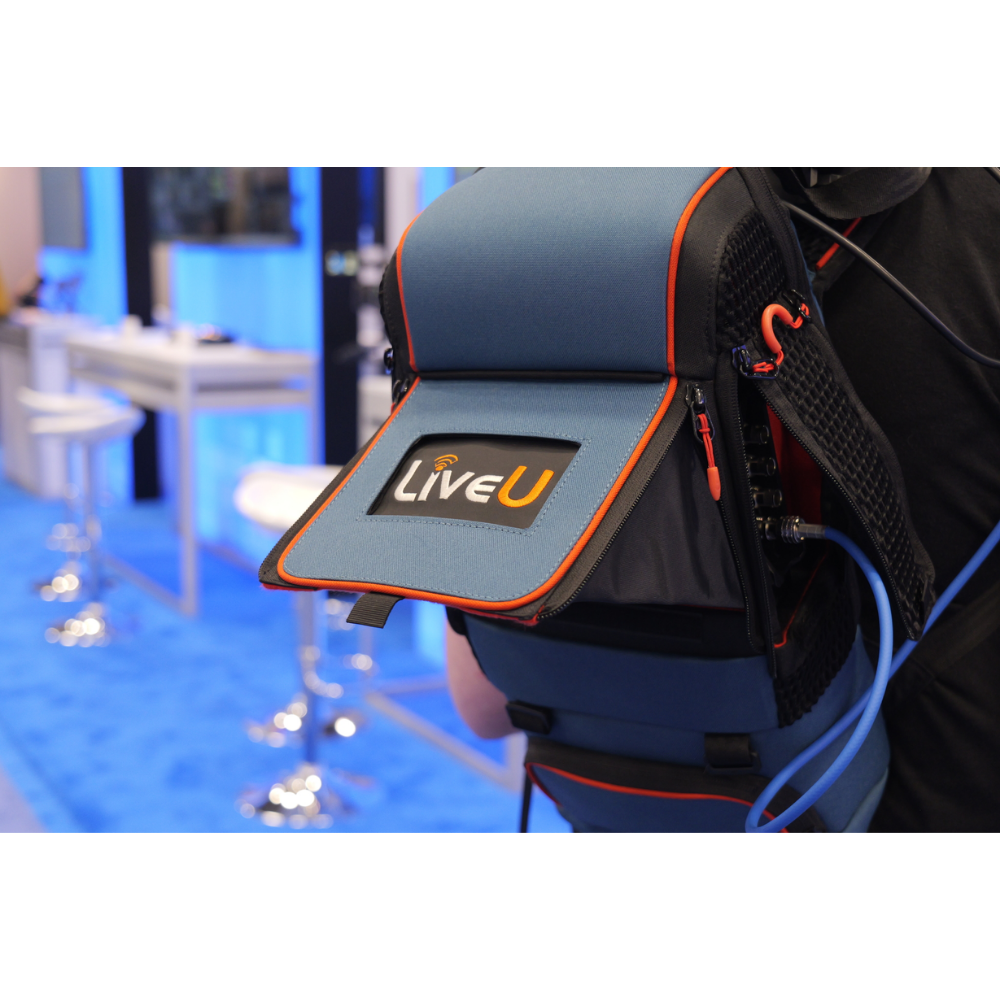

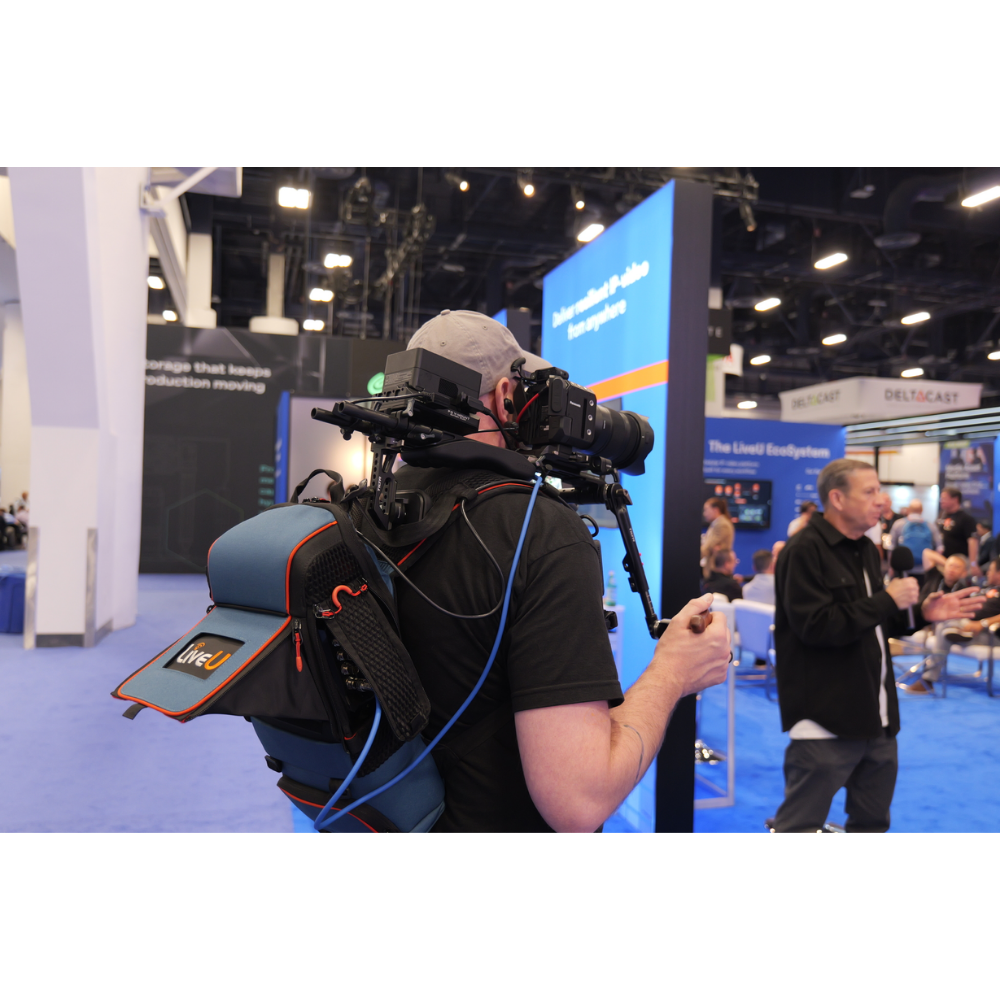

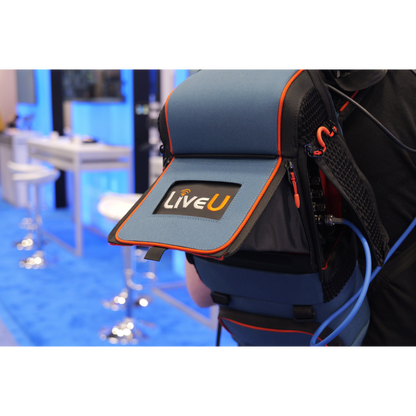

• PORTABILITY: Professional-grade backpack with wired remote control; car cradle
• SIMULTANEOUS BONDING: Up to 14 network links: 8 x internal 5G/4G/3G dual-SIM modems + 2 external 5G/4G/3G modems + 2 internal WiFi and 2 Ethernet ports
• SUPPORTED TECHNOLOGIES: 5G/4G /3G and internal WiFi 2.4/5GHz, 802.11ac/b/g/n support, IP Satellite (KA/BGAN)
• ANTENNA ARRAYS: Benefits in video quality, resiliency, coverage, operation in areas of poor coverage, on-the-move, and even in crowded areas; enhanced support for all common wireless frequencies including sub 6GHz 5G & LTE
• MULTI-CAMERA: Available for LU800-PRO with PRO2/PRO4 license
• MODES: Live & Store, Store & Forward (three quality levels), File Transfer, DataBridge with access point
• VIDEO RETURN: Sub-second video return on the LU800 screen or over an external display via HDMI port
• MULTI-TARGET DECODER OUTPUT: Diverse A/V output through SDI/SMPTE-2110/NDI and H.264 RTMP/MPEG-TS streams including integrated connectivity to social media & CDNs
• LOCAL CONTROL: Full monitoring and control using 7” sensitive capacitive touch-screen and smooth user interface
• REMOTE CONTROL: Full web-based remote control using LiveU Central management system or LiveU Control mobile app
• RESILIENCY AND QUALITY: Includes LiveU Reliable Transport (LRTTM), featuring proprietary algorithms such as automatic Adaptive Bit Rate (ABR), automatic Forward Error Correction (FEC) and other lost packet recovery algorithms
• INTERFACES: Full size SD Card Slot, HDMI out, USB 2.0, USB 3.0, USB-C, 2 Ethernet ports, audio jack (in + out), 16 SIM interfaces (dual SIM), Quick-Connect option for external cellular antennas & GPS
• WIRELESS INTERFACES: Up to 8 x 5G/4G/3G internal modems with high-efficiency antennas for worldwide support (modem count may vary by territory); 2 x WiFi (2.4/5GHz, 802.11ac/b/g/n) with internal MIMO antennas
• POWER: 4 hours internal battery
• Power input: 19V (external AC/DC adaptor 110V to 240V)
• Dedicated external battery input: 12-17V
• DIMENSIONS: 175mm x 280mm x 65mm / 6.9” x 11” x 2.5” (W x H x D) – with 4hr battery
• WEIGHT: 1.74kg (61oz) without battery, 2.1kg (76oz) with battery

• 2x Panasonic AW-UB50 4K Full Frame Box Camera
• 2x Panasonic LUMIX S 24-105mm f/4 Macro O.I.S
• 1x LU800 with Multi-camera PRO video card
• 1x LU800-PRO2 Multi-Camera license
• 1x Annual 500GB Pooled Data Plan - 1  year
• 1x LU2000 Dual HD Output Server (Upgradable to Quad)
• 1x Yearly LiveU Studio Basic License 100 Hours
