Regular price$499.99
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): CV508
MFR Part # (MPN): CV508

Short Description:
  • Free Shipping & Tech Support

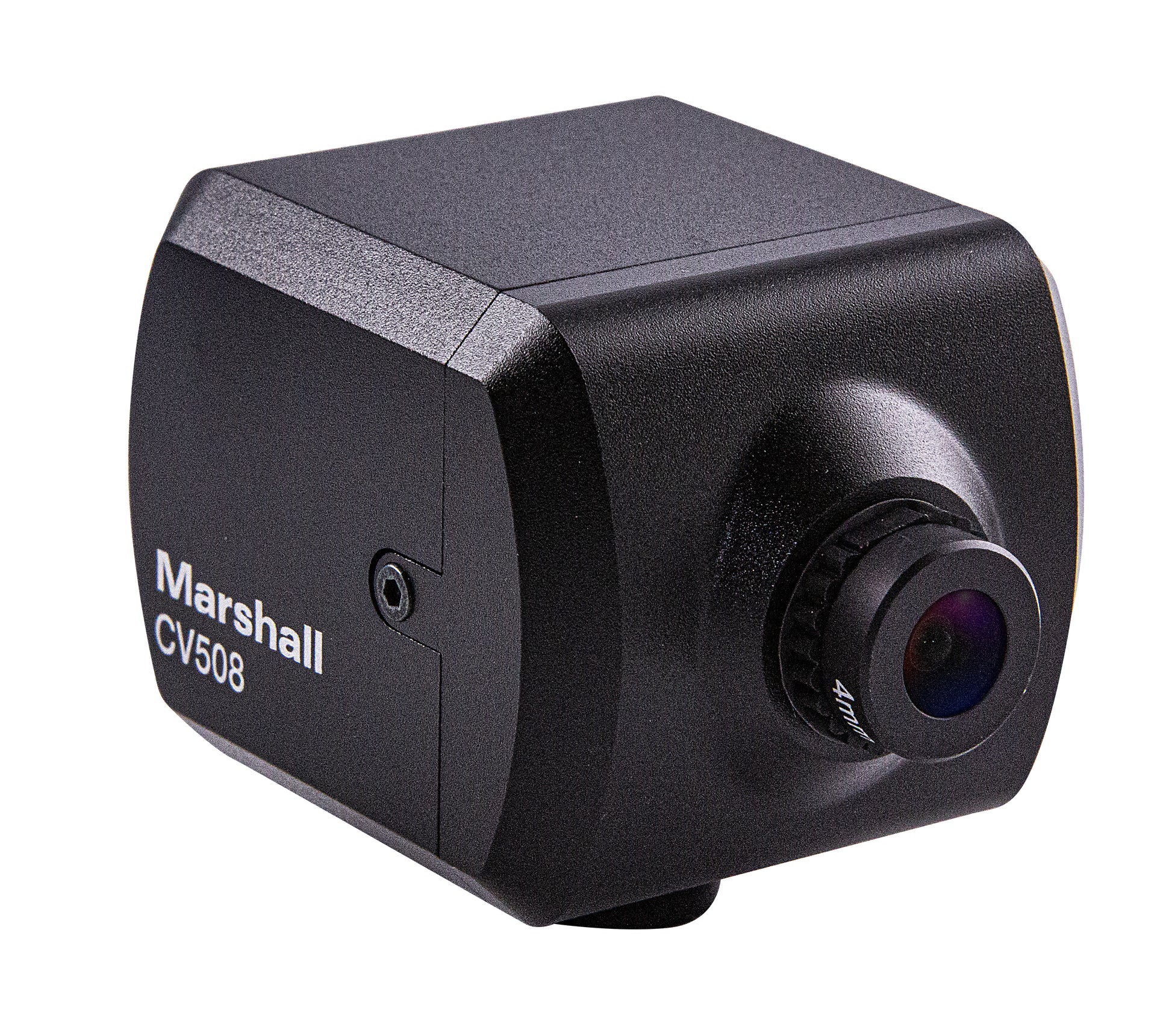

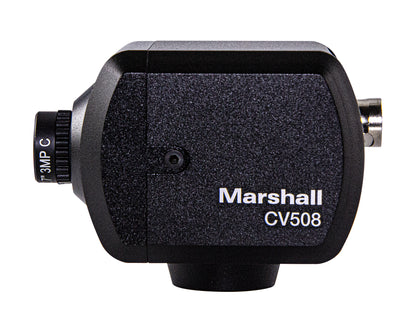

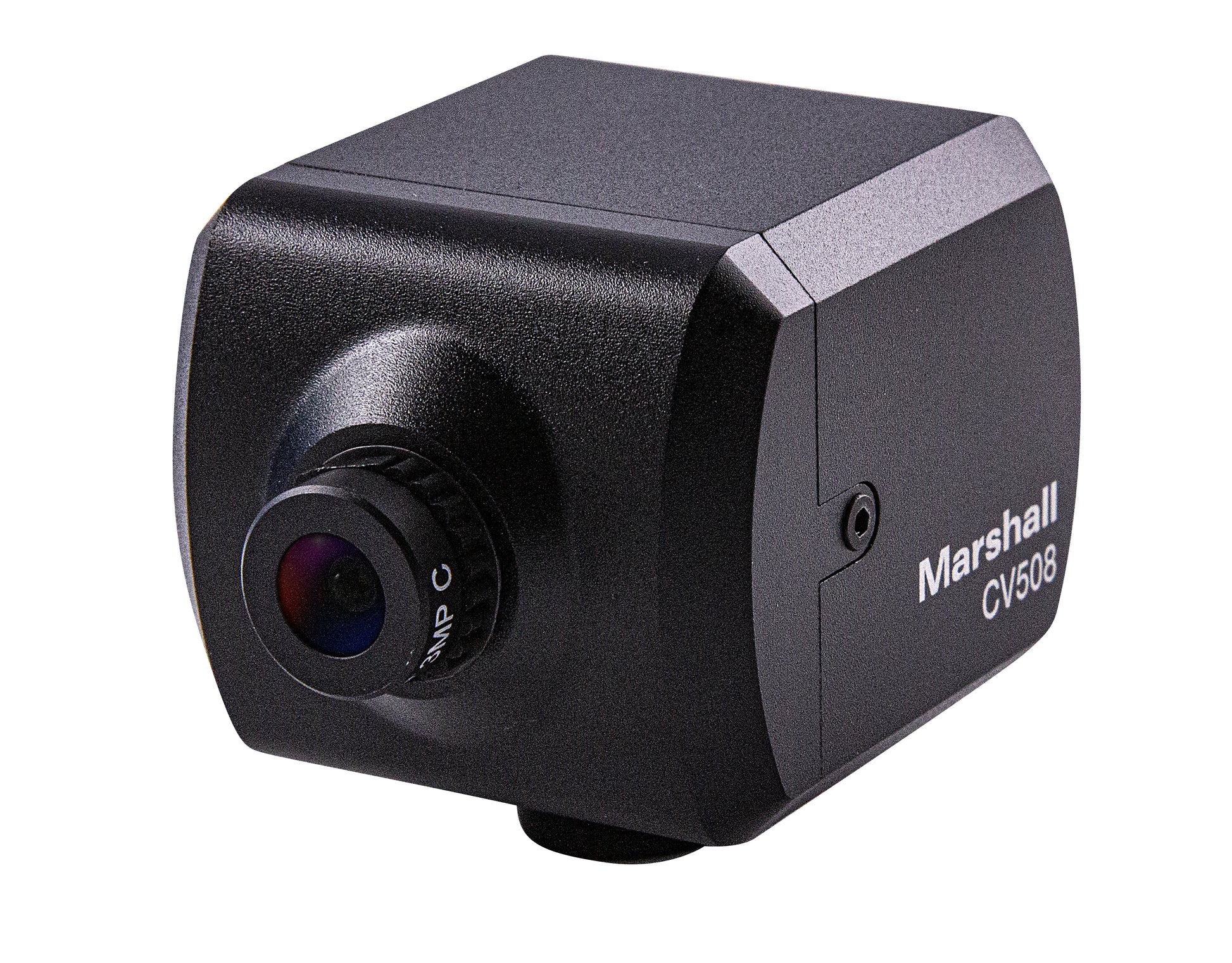

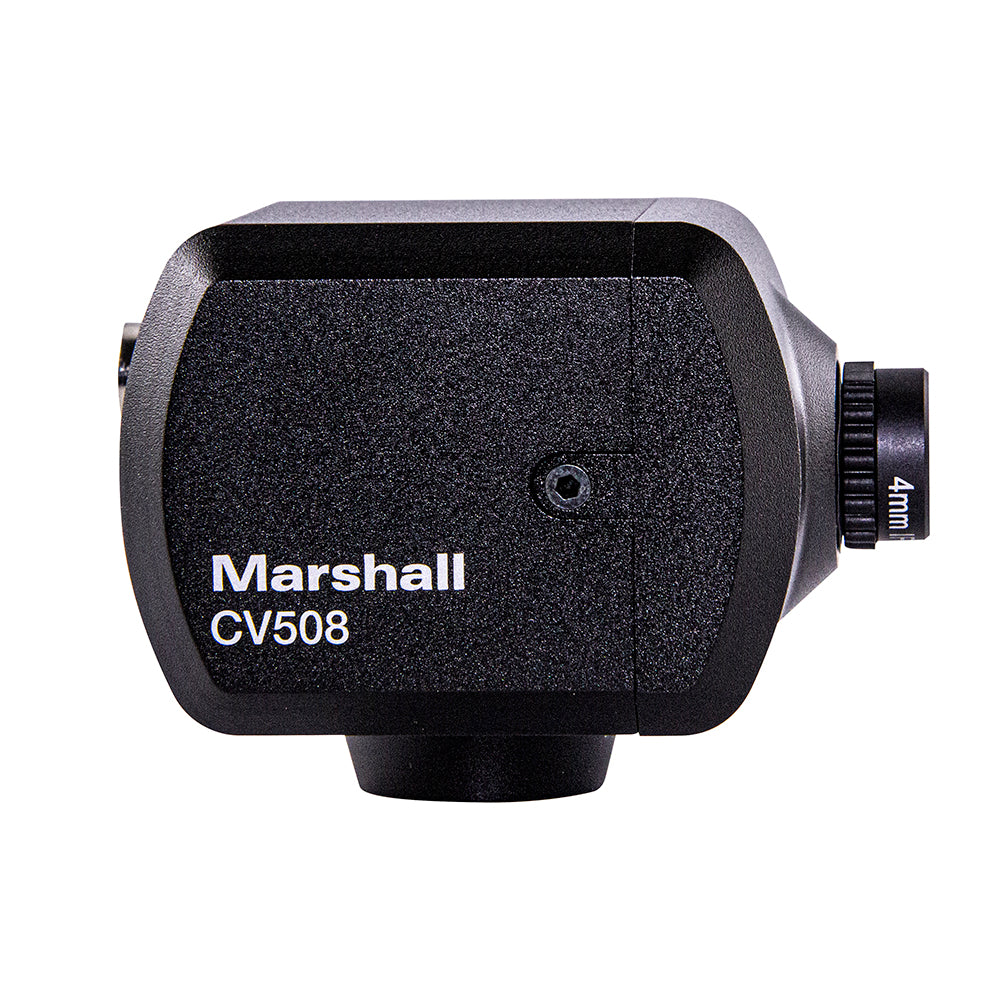

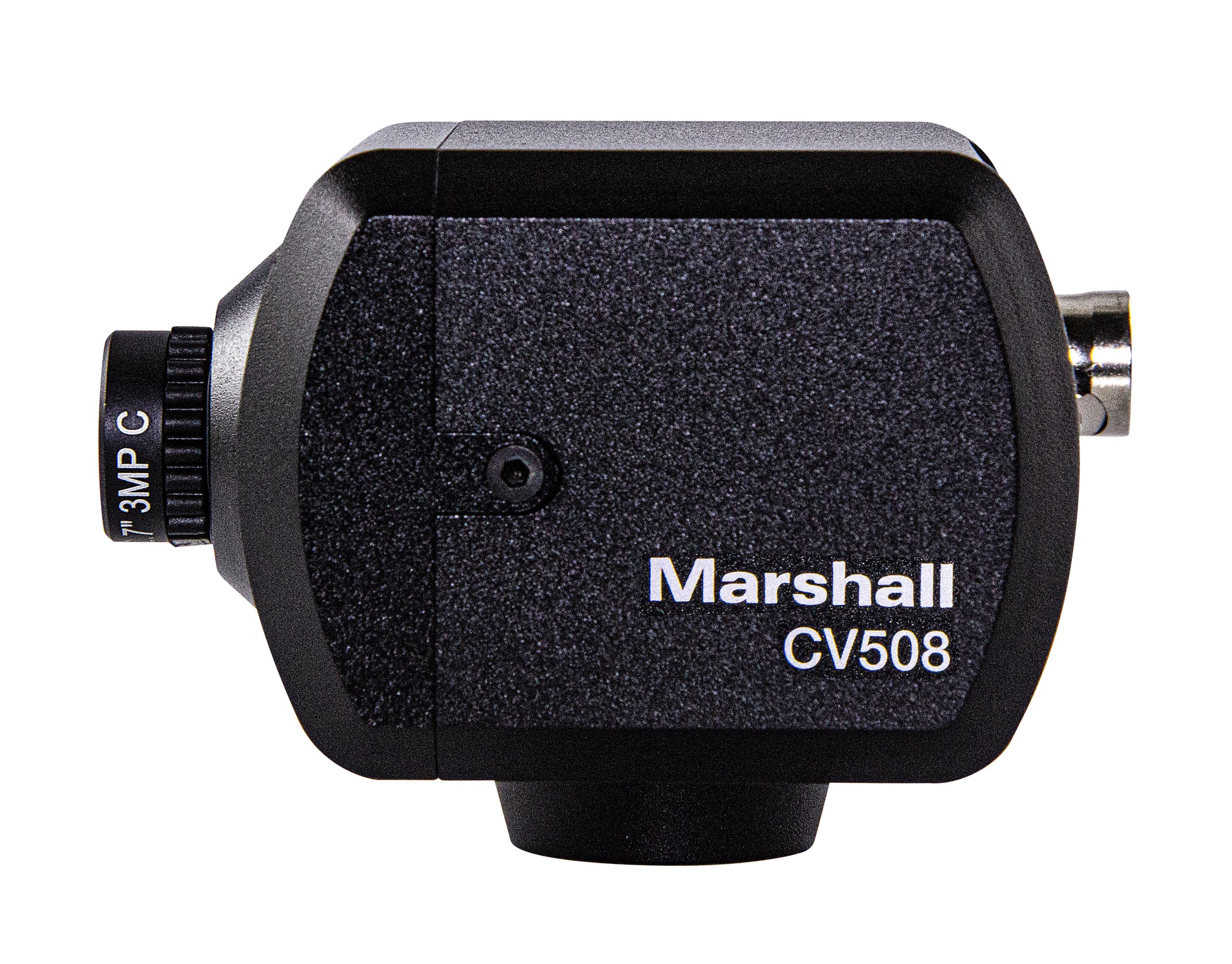

The Marshall CV508 camera is a broadcast quality POV camera delivering exceptional 10-bit HD 4:2:2 video performance (BT.709) from a durable and discreet aluminum alloy body with flexible interchangeable lenses. The new Sony sensor offers rich color accurate video with enhanced low-light sensitivity and refined remote adjust and match features making it the most powerful POV camera on the market.


New Sony 1/2.8" (6.46mm) Solid-State Image Sensors
The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.

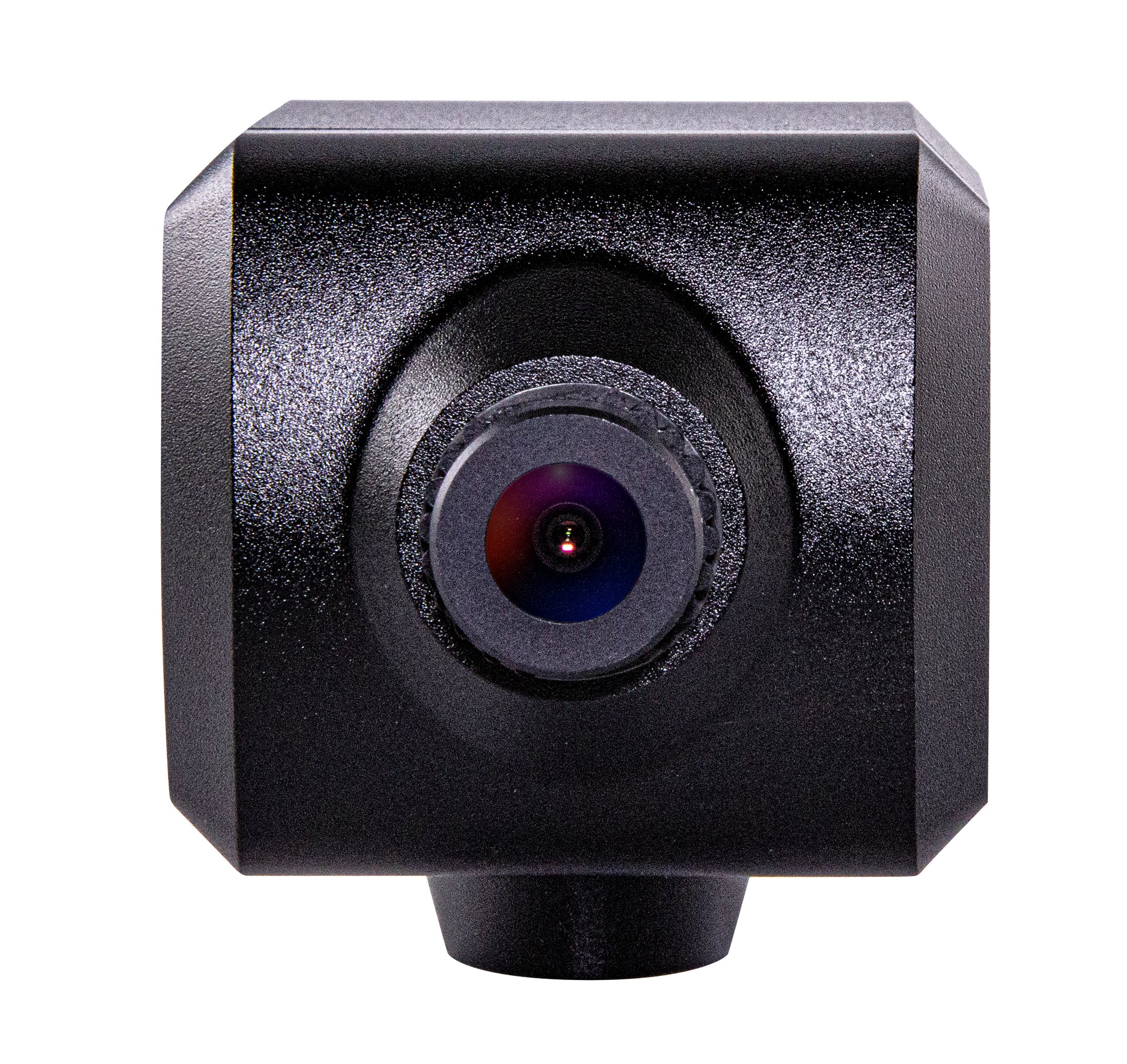

Interchangeable M12 Lenses
Marshall CV508 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application..


Durable, Flexible, Powerful
The durable CV508 body is chiseled from a block of aluminum alloy with rear panel connector protection. CV508 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.


Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.



  • 2.2 Megapixel Sony sensor with square pixel array and larger pixels
  • Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV
  • HDMI & 3GSDI (10bit, 4:2:2, BT.709) with remote adjust & match
  • 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
  • Micro-USB port for field upgradeable firmware via PC
  • Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
  • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
  • Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
  • Power: 12V+/-10% drawing 2.76W (max 6W)

SENSOR

  • Image Sensor: Sony 1/2.8” IMX CMOS Solid-state Image Sensor with Square Pixel Array
  • Color: 10bit, 4.2.2, ITU BT.709
  • Pixel Size: 2.9 µm x 2.9 µm
  • Effective Pixel: 1920 (H) x 1080 (V) - 16:9 HD ratio
  • Min. Illumination: 0.01Lux (Day), 0.005Lux (Night)


OPTICS

  • Lens: CV504/CV504-WP/CV508 = Interchangeable M12, 4mm (85º H.AOV); CV348 = CS/C mount lenses (sold separate)


FUNCTIONS

  • Back Light Compensation: WDR, BLC, HLM
  • Exposure: Auto / Manual / AGC Fix / Shutter Fix
  • White Balance: ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push
  • Day & Night System: Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism
  • Electronic Shutter: 1/30~1/10000
  • Functions: Privacy Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom, DIS (Digital Image stabilizer), NegArt, Freeze

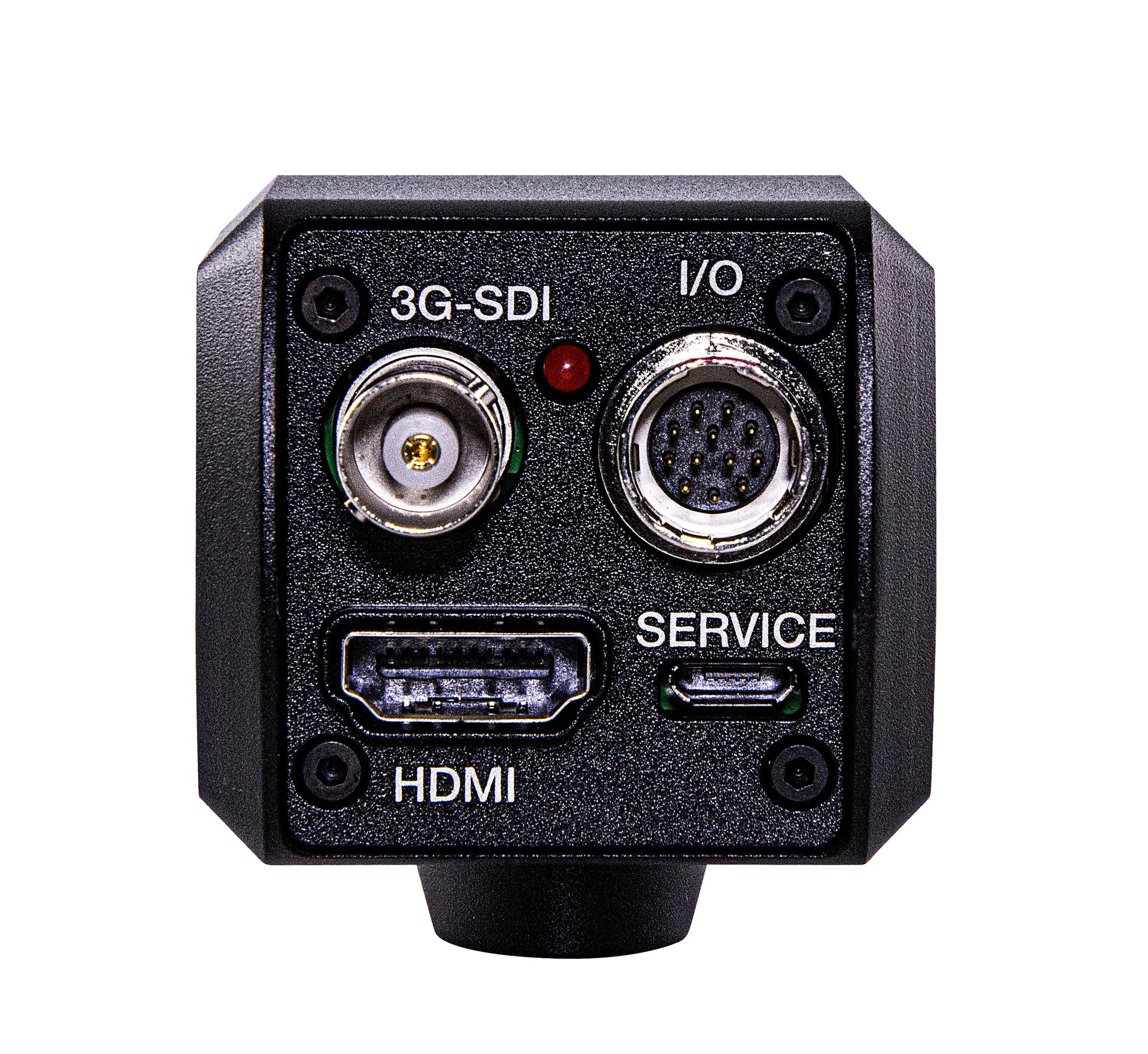

VIDEO OUTPUTS

  • HDSDI: SMPTE 292M(1.485Gbps): 1920x1080p @ 23.976, 24, 25, 29.97, 30. 1920x1080i @ 50, 59.94, 60. 1280x720p @ 50, 59.94, 60
  • 3GSDI: SMPTE 424M(2.97Gbps): 1920x1080p @ 50, 59.94, 60fps / 800mVp-p, 75Ω, unbalanced generator (single-ended)
  • HDMI (+Audio)=CV508 only: HDMI 1.3 compliant on CV508 simultaneous to 3GSDI outputs


AUDIO INPUTS

  • Mic Input: TRS Stereo, Mic/Line Level input with 1.7V Mic bias / 48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400~115200bps


CONTROL INTERFACE

  • Visca over RS485: SONY-VISCA protocol, Camera ID#, Baudrate 2400~115200


GENERAL

  • Operation Temperature: -10℃ ~ 50℃
  • Power Input: 12V DC (7V to 15VDC)
  • Power consumption: Max 6W: CV504/CV504-WP = 2.64W, CV508 = 2.76W, CV348 = 3.6W
