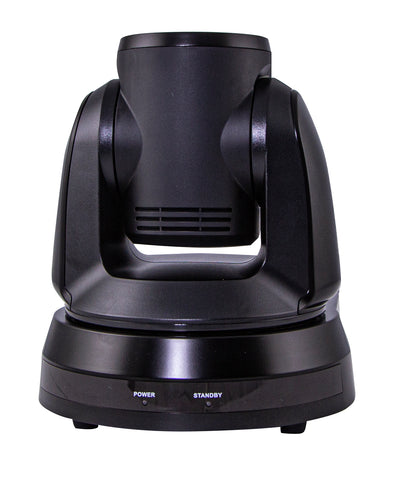

Marshall CV620-BI 20X Full-HD60 IP PTZ Camera (Black)

Marshall CV620-BI/WI features a 20x optical zoom range and flexible IP, 3GSDI, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-IP controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks.

Crisp Full-HD Video Output
The CV620 is built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p.

Versatile Camera Position
The CV620 is equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.

Easy I/O and Control
Simultaneous IP, 3GSDI and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).

Flexible Control Sources
Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-IP or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.

• 2 Megapixel Full-HD Sensor (Sony 1/2.8")
• 20x Optical zoom (5.3mm~110mm) starting at 60° H.AOV
• 340° pan and 120° tilt range with various PT selectable speeds
• 3GSDI, HDMI and IP (H.264) available outputs
• IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
• Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
• 60, 59.94, 50, 29.97, 25 frames per second
• 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
• 12V Power cable included (16W max) or PoE+ (18W max)
• Operating Temp: 0 to 40°C, Storage Temp: -20 to 60°C
• Free-D protocol support and CGI protocol commands
