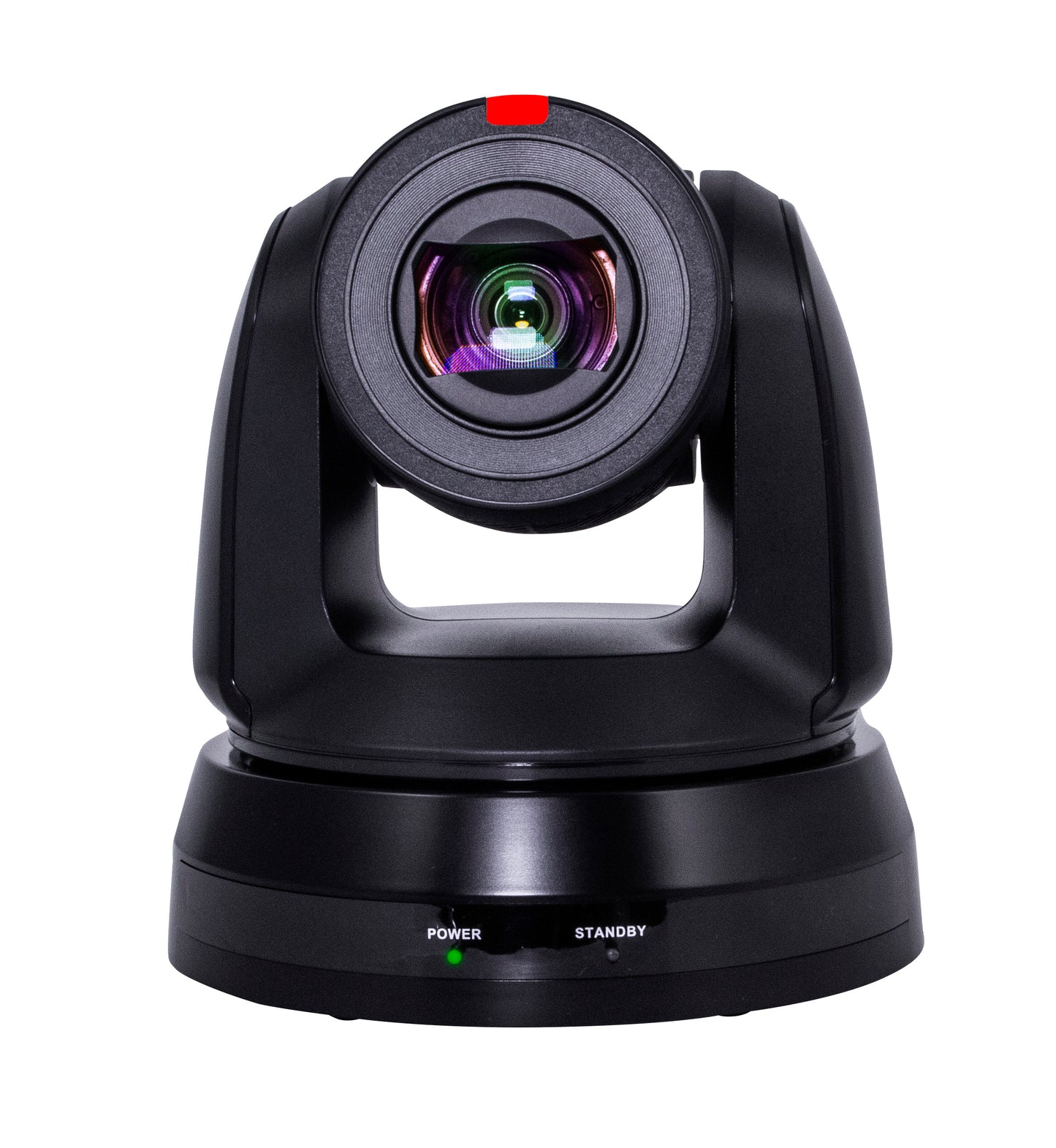

Marshall CV630-IP 30x UHD30 IP (HEVC) PTZ Camera (Black)
Marshall CV630-IP 30x UHD30 IP (HEVC) PTZ Camera (Black)
Marshall CV630-IP 30x UHD30 IP (HEVC) PTZ Camera (Black)

Marshall CV630-IP 30x UHD30 IP (HEVC) PTZ Camera (Black)

Regular price $2,499.99 Sale price$1,899.00
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $600.99!!

Videoguys Part # (SKU): CV630IP
MFR Part # (MPN): CV630-IP

Short Description:
  • Free Shipping & Tech Support

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.

High Performance Video Output
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

Versatile Camera Positioning
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms. Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest

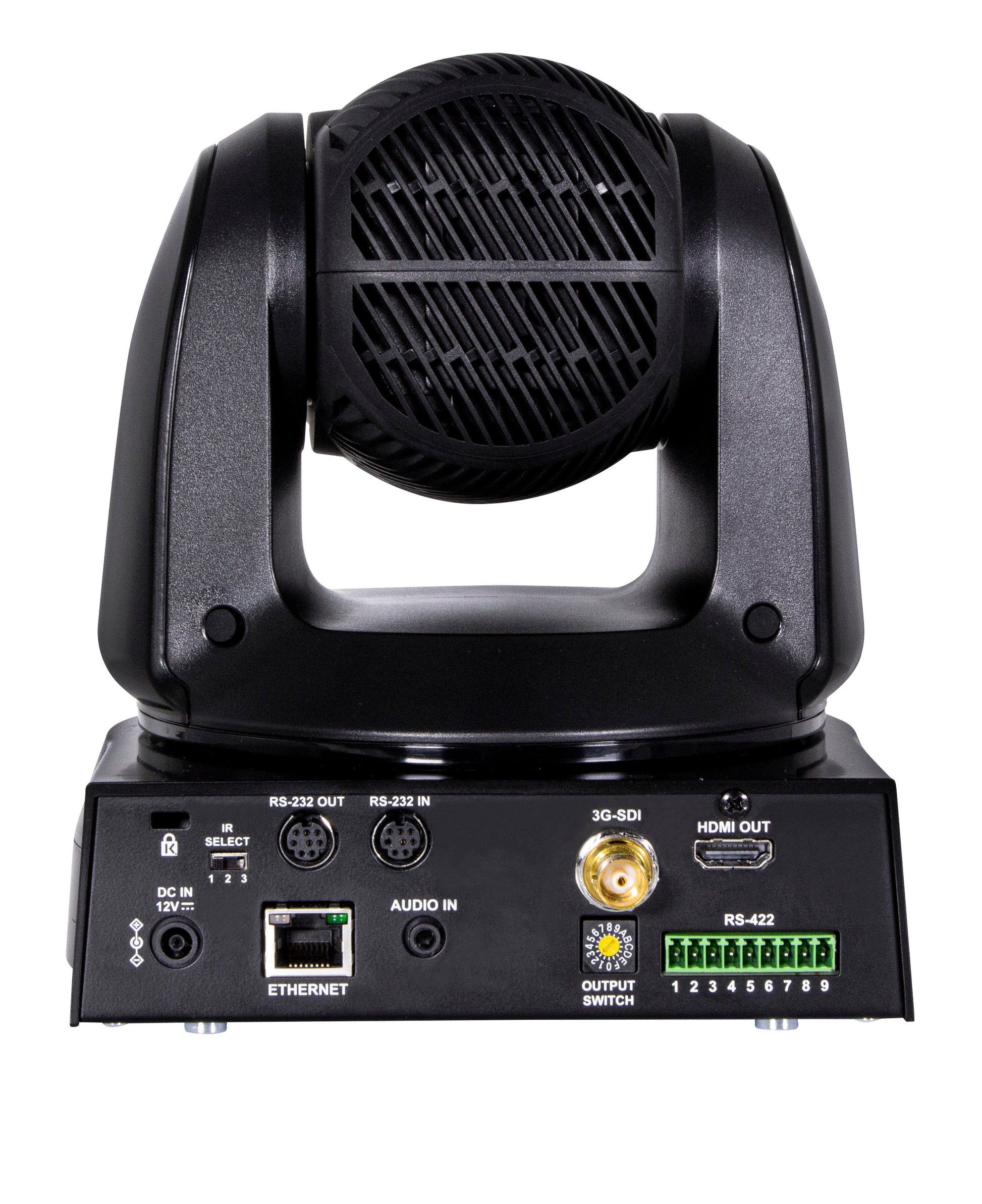

  • 3GSDI, HDMI, and IP simultaneous outputs
  • Simultaneous pan, tilt, and zoom
  • H.265 (HEVC) and H.264 (triple-stream) networked outputs
  • IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
  • 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Front tally light
  • Free-D protocol support and CGI protocol commands

Sensor
1/2.5" 8MP CMOS

Lens
30x optical zoom

Angle of view (H)
68~3.5°

Minimum working distance
1.5m (Tele/Wide)

Motor

Pan
+/-170° (Max speed: 100°/sec.)

Tilt
-30 °~+90° (Max speed: 100°/sec.)

Minimum
°/step    0.062° ±5%

Interface

Power
1. Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
2. POE+ (802.3at)

Output
HDMI/3G-SDI/Ethernet

Control
RS-232/RS-422/Ethernet

OSD
English/Chinese

Ouput resolution
"Resultion : 4K*/1080p/720p
Frame Rate : 59.94/50/29.97/25
*4K 29.97/25"

Video Compression
HEVC/H.264

Multiple Video Stream
Main :HEVC 4K 30fps
Second :H.264 1080p 30fps
Third : H.264 640x360 30fps

Audio in
x1

Audio Compression Format
AAC/G.711

IR Select Switch
x1

Output Switch
x1

Infrared signal output
Yes

Preset groups
256

Function

Electronic shutter
1/1 to 1/10,000 s

Flip / Mirror
Yes

White balance
Auto / Manual

Gain
Auto / Manual

AE control
Auto / Manual

Brightness control
Yes

Backlight compensation
On / Off

Flicker cancel
Sync with output mode

Focusing system
Auto, One-push AF, Manual

Noise Reduction
Yes

Protocols
VISCA, PELCO D, VISCAIP, ONVIF

Storage temperature
–20°C to +60°C (-4°F to 140°F)

Operating temperature
0°C to 40°C (32°F to 104°F)

Power consumption
<30W

Form Factor

Color
Black/White

Dimension(WxHxD)
174x190x187 mm

Weight
2.0Kg

  • Camera
  • M3 Screws (Silver 8x, Black 2x)
  • Remote Control
  • Power Cord (appearance may very depending on country/region)
  • Power Adapter
  • RS-422 Connector
  • Metal Plate A
  • Metal Place B
