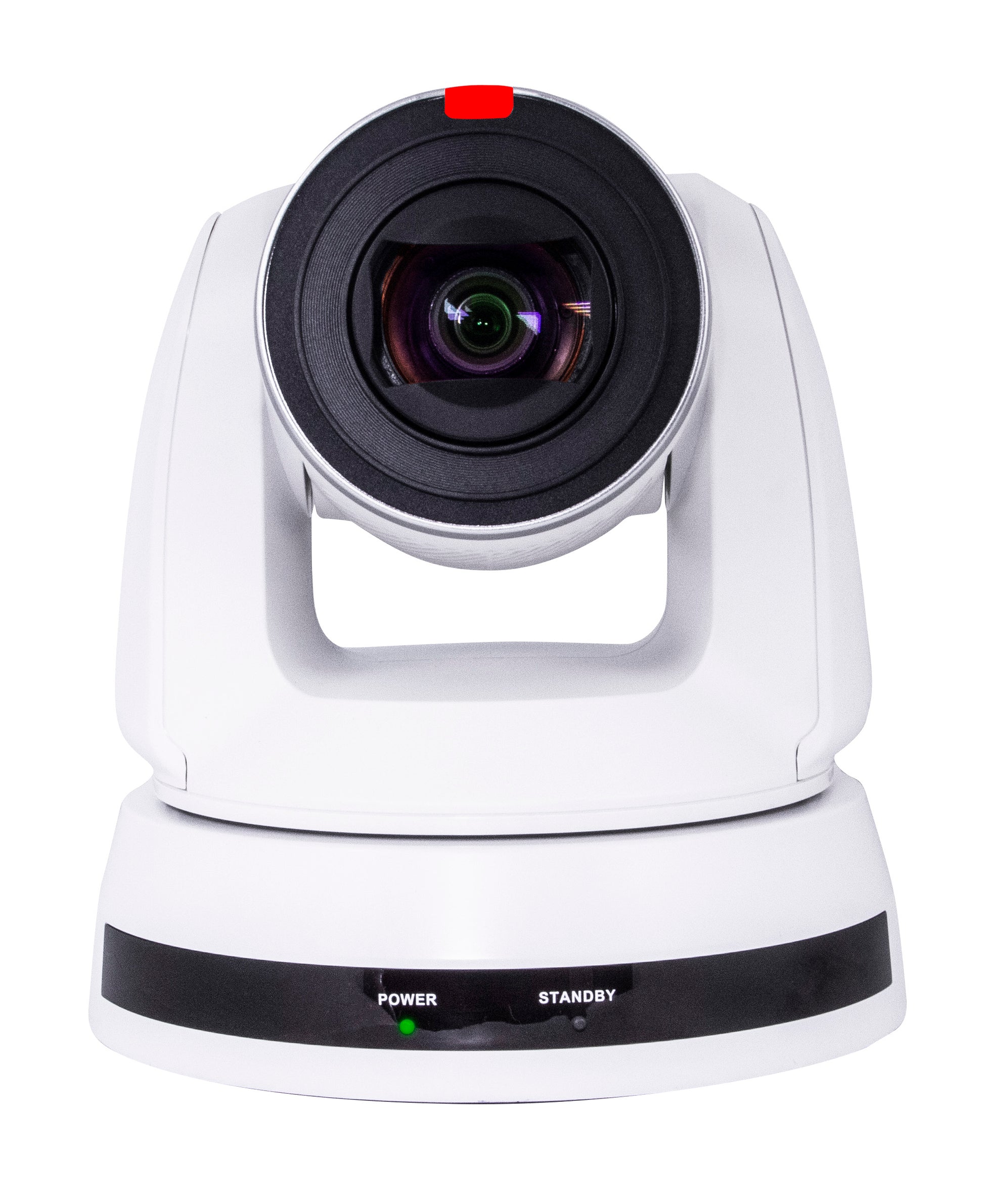

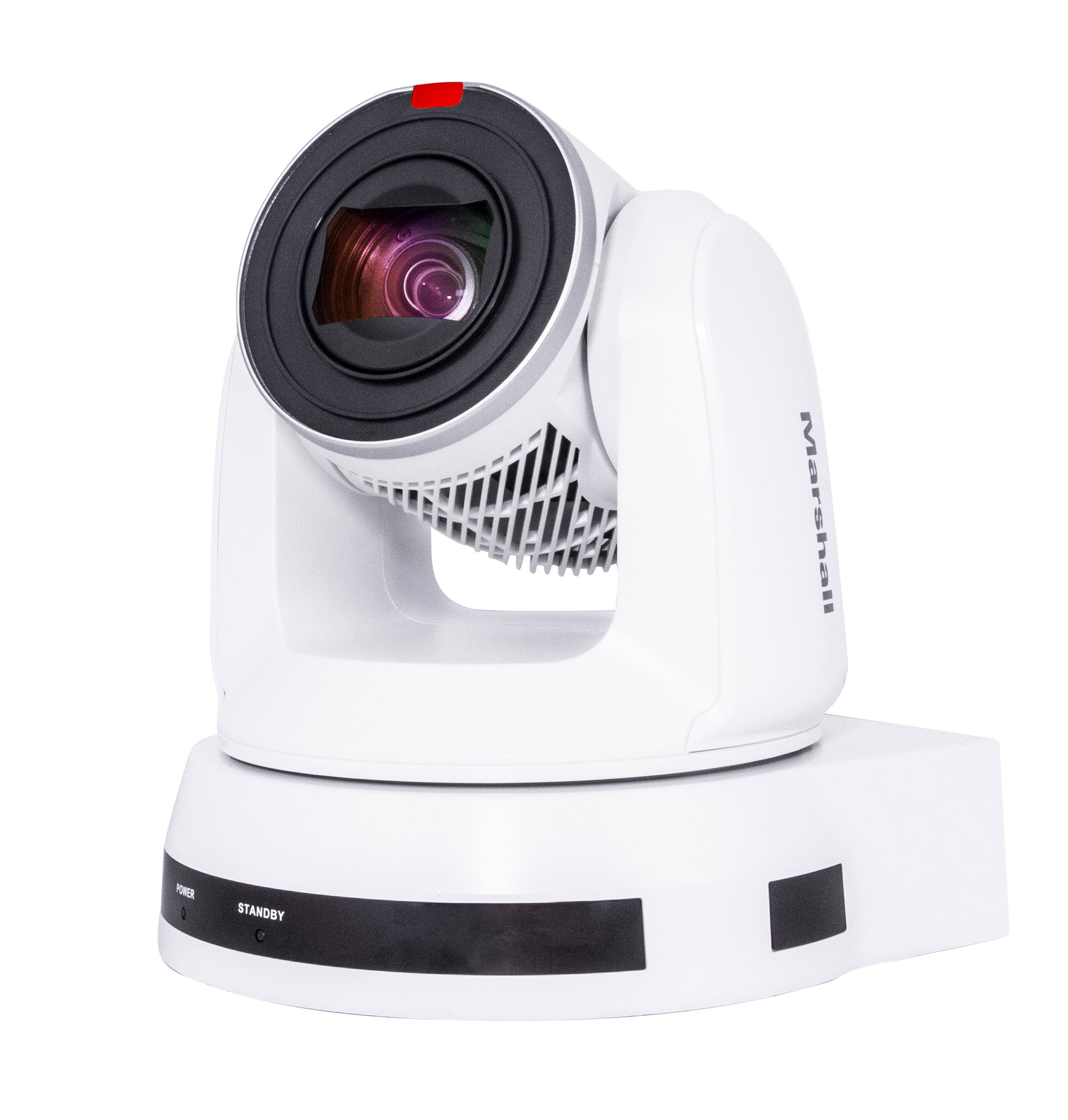

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
High Performance Video Output
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
Versatile Camera Positioning
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms. Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
Sensor
1/2.5" 8MP CMOS
Lens
30x optical zoom
Angle of view (H)
68~3.5°
Minimum working distance
1.5m (Tele/Wide)
Motor
Pan
+/-170° (Max speed: 100°/sec.)
Tilt
-30 °～+90° (Max speed: 100°/sec.)
Minimum
°/step 0.062° ±5%

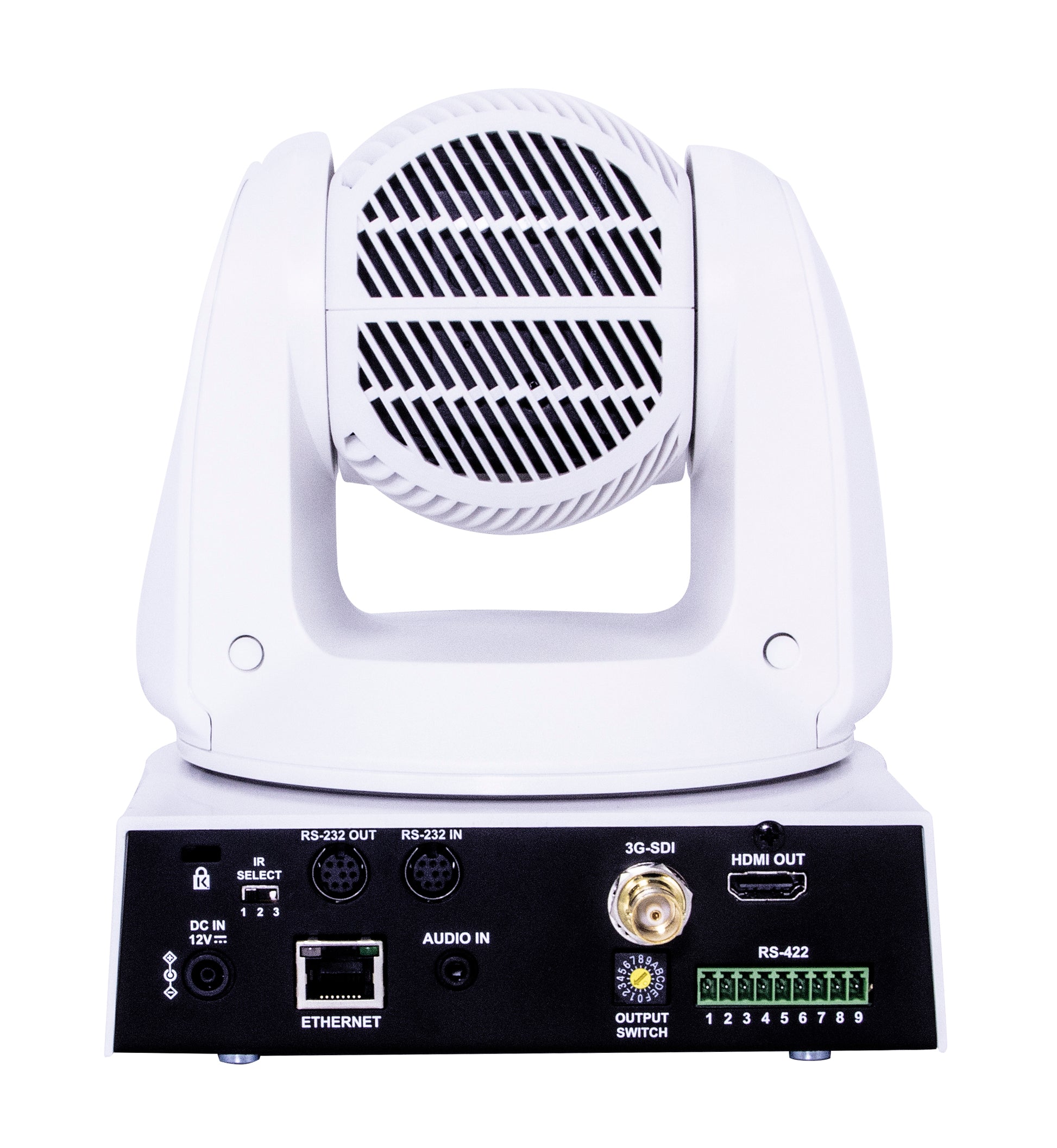

Interface
Power
1. Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
2. POE+ (802.3at)
Output
HDMI/3G-SDI/Ethernet
Control
RS-232/RS-422/Ethernet
OSD
English/Chinese
Ouput resolution
"Resultion : 4K*/1080p/720p
Frame Rate : 59.94/50/29.97/25
*4K 29.97/25"
Video Compression
HEVC/H.264
Multiple Video Stream
Main :HEVC 4K 30fps
Second :H.264 1080p 30fps
Third : H.264 640x360 30fps
Audio in
x1
Audio Compression Format
AAC/G.711
IR Select Switch
x1
Output Switch
x1
Infrared signal output
Yes
Preset groups
256
Function
Electronic shutter
1/1 to 1/10,000 s
Flip / Mirror
Yes
White balance
Auto / Manual
Gain
Auto / Manual
AE control
Auto / Manual
Brightness control
Yes
Backlight compensation
On / Off
Flicker cancel
Sync with output mode
Focusing system
Auto, One-push AF, Manual
Noise Reduction
Yes
Protocols
VISCA, PELCO D, VISCAIP, ONVIF
Storage temperature
–20°C to +60°C (-4°F to 140°F)
Operating temperature
0°C to 40°C (32°F to 104°F)
Power consumption
<30W
Form Factor
Color
Black/White
Dimension(WxHxD)
174x190x187 mm
Weight
2.0Kg
