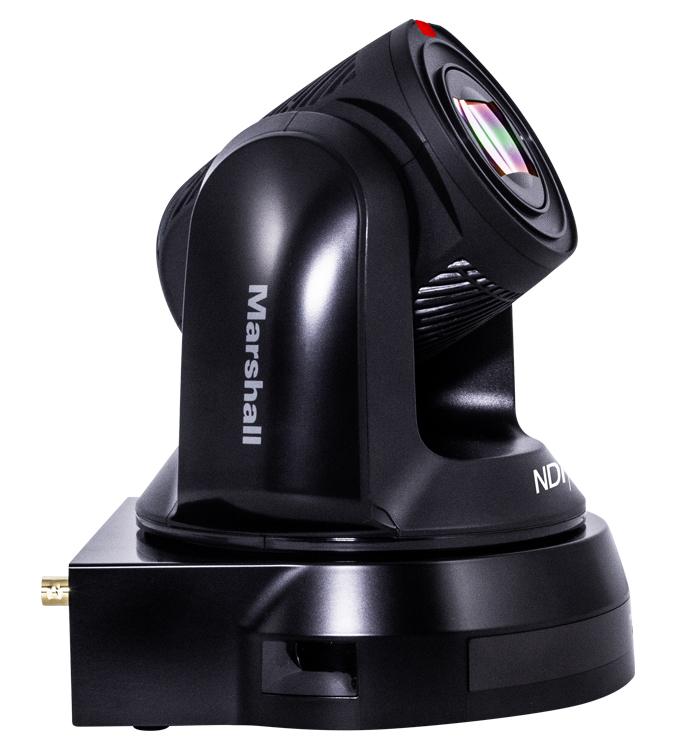

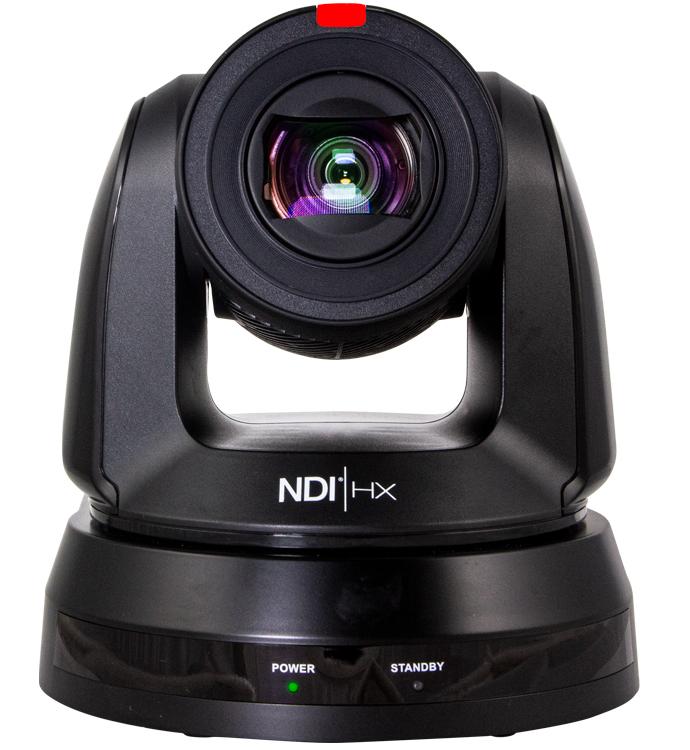

The Marshall CV630-NDI PTZ camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile NDI® networked video solution. NDI®|HX provides low latency, high quality, frame-accurate video, and audio in real time to NDI® workflows. Use NDI® Tools to easily discover, monitor, adjust and open up remote video sources into your production workflow.
High Performance Video Output
Featuring NDI®|HX2. with simultaneous HDMI and 3GSDI from a professional level 8-megapixel UHD sensor and smooth synchronous movements. At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video at 30fps, with support for HD resolutions.
Versatile Camera Positioning
The CV630-NDI is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.
Simultaneous Networked and Streaming Outputs

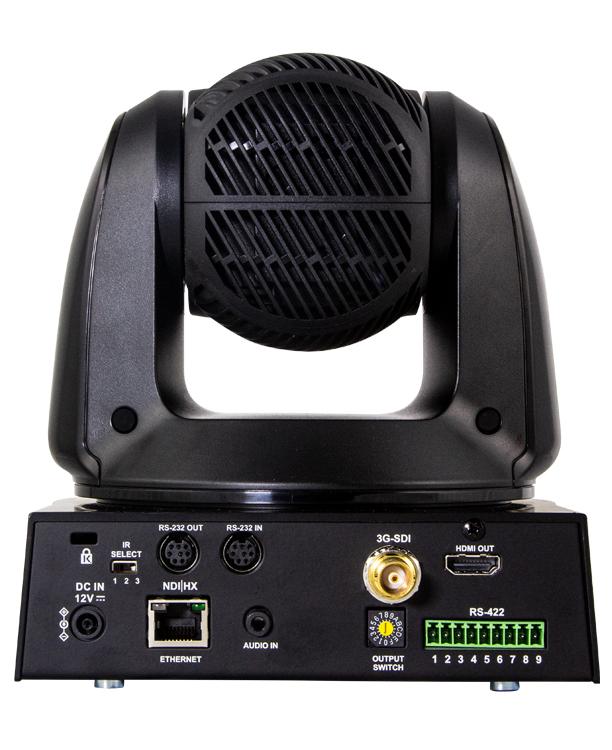

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and NDI®|HX2.. Install one-cable to camera with NDI®|HX2. for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for Power/Preview and other outputs (3GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.
Flexible Control Options
The CV630-NDI offers easy control over broadcast settings controllable from NDI® Tools such as NDI Studio Monitor and other NDI® Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-NDI is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.
- 8MP 1/2.5" sensor
- 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
- Simultaneous 3GSDI and HDMI with NDI®|HX2. plug and play
- Simultaneous pan, tilt, and zoom
- 3840x2160p, 1920x1080p, and 1280x720p
- Stereo audio input (mic or line level) embedding
- 340° pan, 120° tilt, and 30X zoom range
- Simply Connect to any Ethernet Port - THAT'S IT
- Video, Audio, Control, Tally, and Power (PoE+) over ONE ETHERNET CABLE
The CV630-NDI is suitable for use in live NDI®|HX2. broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
NDI® and NDI®|HX2. are registered trademarks of NewTek, Inc.
