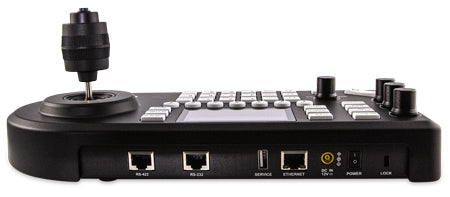

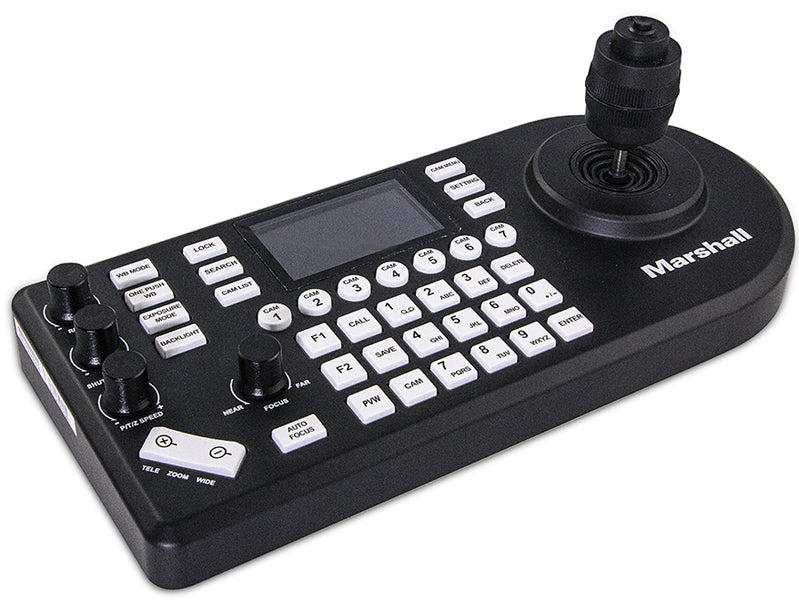

Marshall PTZ NDI Controller RS232/RS422/IP
Marshall PTZ NDI Controller RS232/RS422/IP

Marshall PTZ NDI Controller RS232/RS422/IP

Regular price $1,149.99 Sale price$999.99
Free Shipping & Tech Support.

INSTANT SAVINGS of $150.00!!

Videoguys Part # (SKU): VSPTC300
MFR Part # (MPN): VS-PTC-300

Short Description:

Marshall PTZ NDI Controller RS232/RS422/IP

  • Free Shipping & Tech Support

The Marshall VS-PTC-300 PTZ NDI® Camera Controller is designed to operate seamlessly across multiple camera protocols on a single network. Used for live event production and content creation, the VS-PTC-300 offers detailed operation through a high-quality PTZ joystick, professional zoom rocker, and individual fine-tune adjustment knobs for iris, white balance, exposure, red/blue, shutter speed, focus, pan/tilt speed, and zoom speed. The VS-PTC-300 offers cross protocol mix-control on one controller operating RS232/RS422/RS485 and IP, as well as ONVIF, and VISCA over IP. The VS-PTC-300 can setup 7 cameras via RS232, 14 cameras via RS422, and 255 cameras via NDI/IP; all selectable through a single controller. Easy NDI®/IP camera discovery function automatically searches for all available NDI®/IP cameras on a network.

The VS-PTC-300 can store up to 6 selectable ASSIGN function keys and save up to 256 camera presets with memory of image setting parameters. Dedicated knobs and control buttons simplify direct access to frequently used functions without needing to use on-camera menus.



  • Simultaneously control via IP, NDI, RS232/RS422 or IP, USB, RS232/RS422
  • Protocol support: VISCA, PELCO D/P, ONVIF, NDI, and VISCA over IP
  • High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
  • Tactile feel with professional rocker/seesaw switch for zoom control
  • Automatically search available IP/NDI cameras in a network and assign IP addresses easily
  • Supports RTSP and NDI Preview on 3" LCD Screen
  • Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
  • Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
  • Multi-color key/button illumination indicator directs operation to specific functions
  • Control firmware upgrade available via USB or product webpage



  • Black



  • 3" LCD 360x640


Keypad with backlight

  • Yes



  • 4-axis (Left/Right, Up /Down, Zoom In/Zoom Out)


Zoom Control

  • x1 (Zoom Seesaw Lever)


Speed Control Pan/Tilt, Zoom

  • x1 (1 Knob)

Focus Control

  • x1 (1 Knob)


Auto Focus Button Switch Mode

  • x1


R/B Gain Control

  • x1 (1 Knob)


WB Mode Button

  • x1


On Push WB Button

  • x1


IRIS/Shutter/G Control

  • x1 (1 Knob)


Exposure Mode Button

  • x1


Backlight Button

  • x1

Assign Button

  • x2
    -Picture Freeze
    -P/T Reset
    -Picture Flip
    -Picture LR_Reverse
    -Tracking Mode
    -Framing Mode
    -Auto Tracking On
    -Auto Tracking Off
    -Auto Framing On
    -Auto Framing Off
    -Custom Commands


Preview Button

  • x1


Camera Button

  • x7



  • x1


Cam List

  • x1


Cam Menu

  • x1


Preset Call

  • x1


Preset Save

  • x1


Tally Light

  • No actual button. It's the function in the menu.



  • x1


Numbers 0~9

  • x10


Enter For Keyboard control

  • x1


Delete For Keyboard control

  • x1

Camera Control NDI preset limit: 100 sets

  • VISCA Address : 1~7

IP Stream For Preview






Baud Rate For RS232/RS422

  • 2400/4800/9600/38400/115200 bps

DC12V In

  • x1 (EIAJ-04)


RS-232 Out

  • RJ45 x1



  • RJ45 x1



  • RJ45 x1 (PoE)


Storage temperature

  • -20 to 60 °C


Operating temperature

  • 0 °C to 40 °C
