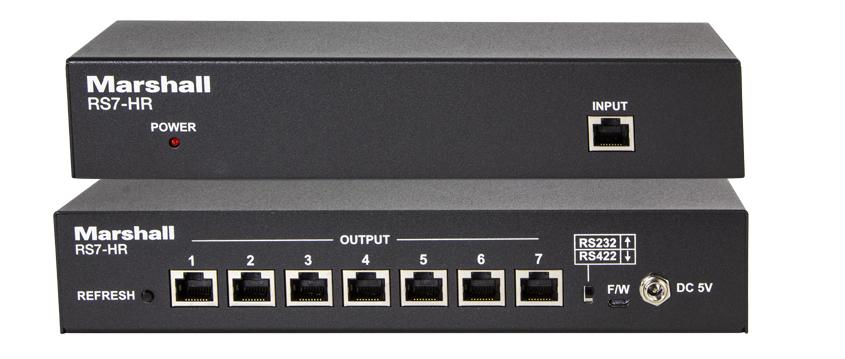

Rack mountable RS232 / RS422 Distribution box for up to 7 Pan Tilt Zoom Cameras. RS7-HR is compatible with CV610-U3/W-V2, CV620-BK4/WH4, CV612HT-4K, CV630-IP/IPW, CV630-NDI/NDIW, CV730-BK/WH, CV730-NDI/NDIW currently not compatible with CV610-UB
- Splits one Cat (RJ45) control cable to 7 cameras via Home Run.
- Easy and clean setup from Marshall Controllers (VS-PTC-IP, VS-PTC-200) and others.
- Extends usable RS232 Cat cable runs for control of cameras to 100m from controller to RS7-HR box and another 100m to each of seven camera locations (200m total). Using RS422 its extends (300m + 300m for a total of 600m).
- Easy access dip switches to switch between RS232 and RS422.
- Refresh button is used when any changes are made (add/remove, dip switch change)
- Rack mount ears provided (1 pair) for 1RU 19" rack mount and small ears (1 pair) for optional table or wall mount.
