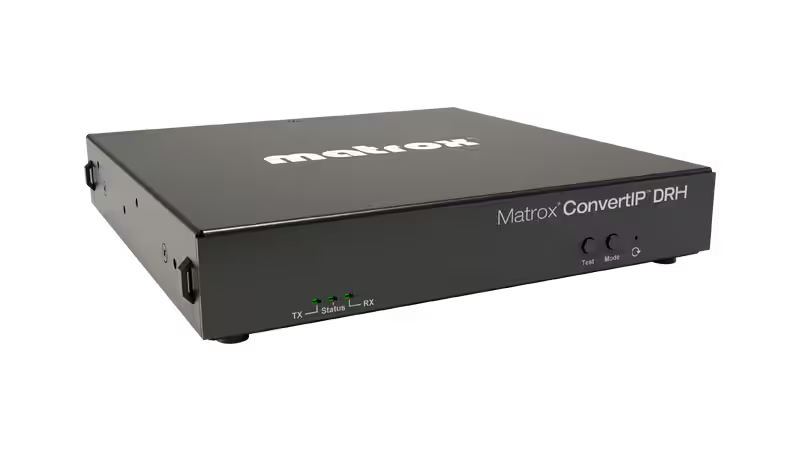

Matrox ConvertIP DRH

Dual-channel RJ45 HDMI-to-IP transmitter/receiver
Matrox ConvertIP DRH is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Featuring HDMI I/O and three RJ45 ports on a single device, ConvertIP DRH is designed for 1G AV workflows and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.

Key features


• HDMI I/O
• Multi-network support
• 2x RJ45 (1G & 2.5G network support for Media and Control)
• 1x RJ45 (1G network support for independent control network)
• Transmit or receive IP signals from a single device
• Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
• Fanless design for quiet cooling
• Zero-latency HDMI loop-out
• Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
• Compact form factor mounts easily to the back of a monitor
• Web-based user interface for managing ConvertIP devices
  Complimentary ConvertIP Manager Windows application for simple commission and deployment


Transport formats

• IPMX ready
• Colibri codec for visually lossless transmission of compressed of media over 1G network
• Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
• Glass-to-glass latencies of 1ms achievable


Connectivity

Video input

• 1x HDMI

Video output

• 1x HDMI (zero latency pass-through in TX mode)

Video resolution

• Most desktop resolutions up to 4Kp60

Audio input/output

• Up to 8 channels of audio embedded in HDMI signal
• Unbalanced analog stereo input via 1/8″ (3.5mm) jack1
• Line Level

Network connector

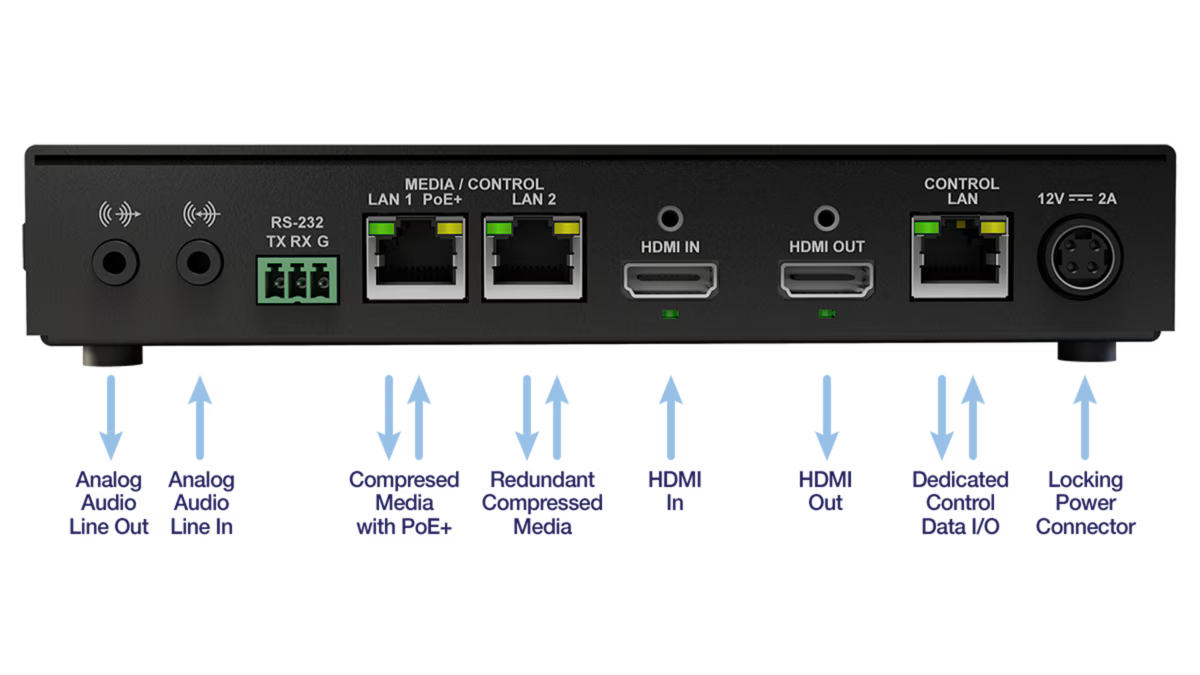

3x RJ45 ports

• LAN 1 for Media and Control with PoE+ (1/2.5G)
• LAN 2 for redundant Media and Control (1/2.5G)
• Control LAN for Control data only (100/1000 Mbps)

RS-232

• Yes

Control and management

• Matrox ConvertIP Command Center (web UI)
• Matrox ConvertIP Manager (software application)

Performance

Maximum video resolutions

• 4096 x 2160 60p
  *All standard desktop GPU resolutions supported

Bit depth and color space

• YCbCr 4:2:0 10-bit1 and 8-bit1
• YCbCr 4:2:2 10-bit
• RBG 4:4:4 8-bit
• SDR/HDR

Video and Audio Processing

Video scaling

• High Quality multi-tap 10-bit Up/Down Scaler

Video deinterlacing

• Yes

Color space conversion

• Yes

HDCP support

• Yes

Encoding Formats

Video
Default compressed bitrates: 200 Mbps for HD content, 820 Mbps for 4K content

• Colibri codec included
  -4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
• JPEG-XS codec upgrade required3
  -4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps

Audio

• Uncompressed PCM (~1 Mbps/ch)

Latency

• Less than a 1/4 frame (<4 ms)

Network

IP addressing

• IPv4
• IPv6
• DHCP (default) and static IP

Supported protocols

• SMPTE ST 2110 (-10, -22, -30)
• SMPTE 2059 (-1, -2)
• IPMX ready

Redundancy

• Yes (ST 2022-7)

Command and control

• HTTPS over TCP

Discovery, registration and control

• NMOS discovery and control according to standards IS-04 v 1.2 and 1.3 and IS-05 1.0 and 1.1

PoE+

• Yes (IEEE 802.3at Type 2)

Physical

Product dimensions

• 7.13 (D) x 7.53 (W) x 1.42 (H) inches
• 181 (D) x 191 (W) x 36 (H) mm

Unit weight

• 1.40 lbs / 635 g

Cooling

• Fanless

Power

• Device: Input: 12 volts, max 18 Watts
• PoE+
• Optional PSU (sold separately)
  -Line Voltage: 100-240 V a.c., 0.5A
  -Frequency: 50-60 Hz
  -Input: IEC320-C14
  -Output: DIN4 locking power connector

Hardware and Software

Hardware included

• ConvertIP DRH appliance

Optional hardware

• ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA)

Accessories (sold separately)

• ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK)4
• Rackmount kit (Part #: RMK-19TR-A)5
• Angled bracket kit (Part #:  RMK-6BRKT-A)
• Secure cable solution for HDMI (Part #: SK-SLND-4)
• NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)

Optional software

• JPEG-XS codec license
• Crestron Module to expand existing controlled environments

Environmental

Operating conditions

• Temperature: 0 to 45 degrees Celsius
• Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m)
• Humidity: 20% to 80% non-condensing

Storage conditions

• Temperature: -40 to 70 degrees Celsius
• Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)
• Humidity: 5% to 95% non-condensing

General

EMC/EMI device class

• Class A

EMC/EMI compliance

• CE (EU)
• FCC (USA)
• ICES-003 (Canada)
• KC (Korea)
• RCM (Aus/NZ)

Environmental compliance

• China RoHS
• EU RoHS
• REACH

Warranty

• Three-year limited warranty with free online or telephone support
