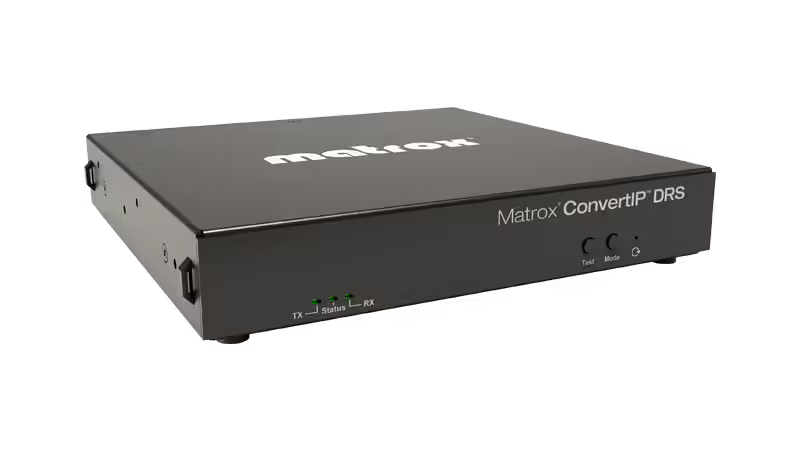

Matrox ConvertIP DRS

Dual-channel RJ45 SDI-to-IP transmitter/receiver

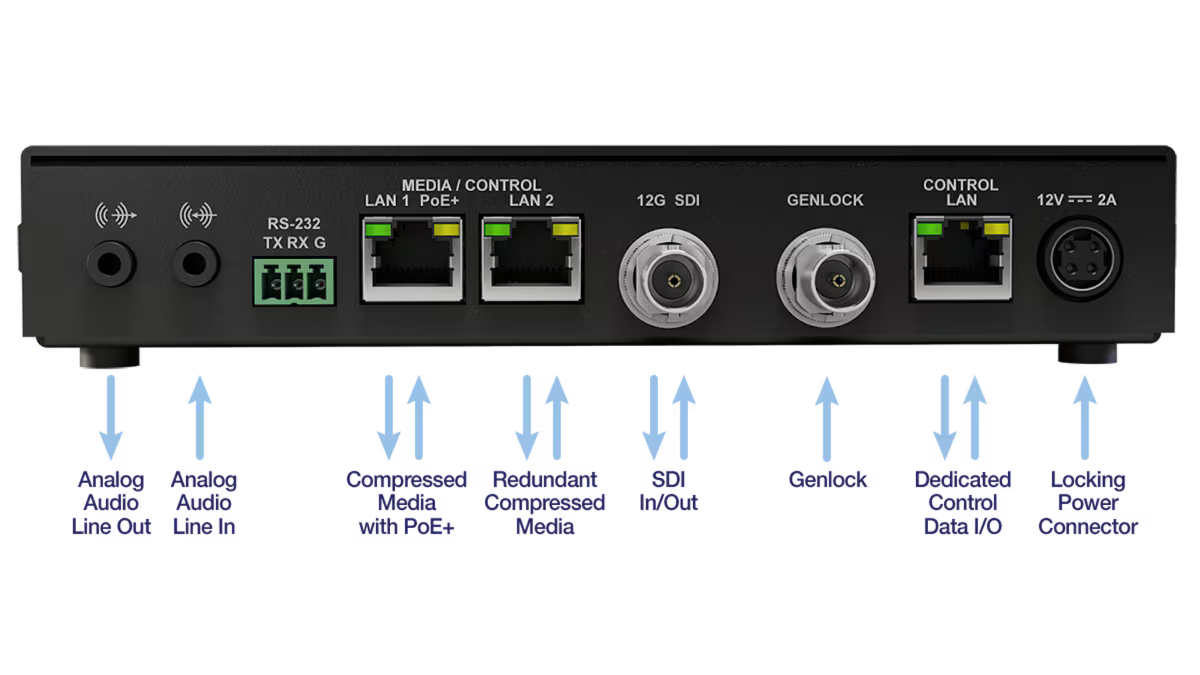

Matrox ConvertIP DRS features 12G-SDI, genlock, and three RJ45 ports on a single device. ConvertIP DRS is designed for 1G AV workflows and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.

Key features


• 12G-SDI I/O
• Multi-network support
  -2x SFP28 (10G & 25G network support for Media and Control)
  -1x RJ45 (1G network support for independent control network)
• Transmit or receive IP signals from a single device
• Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
• Fanless design for quiet cooling
• PTP-derived genlock output support
• Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
• Compact form factor mounts easily to the back of a monitor
• ConvertIP Command Center web interface for managing ConvertIP devices
• Complimentary ConvertIP Manager Windows application for simple commission and deployment

Transport formats


• Uncompressed HD and UHD support per SMPTE ST 2110-20
• Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
• IPMX ready
• Colibri codec for high-quality transmission of compressed media (adjustable up to 6 Gbps)
• Glass-to-glass latencies of 1ms achievable in compressed and uncompressed workflows
