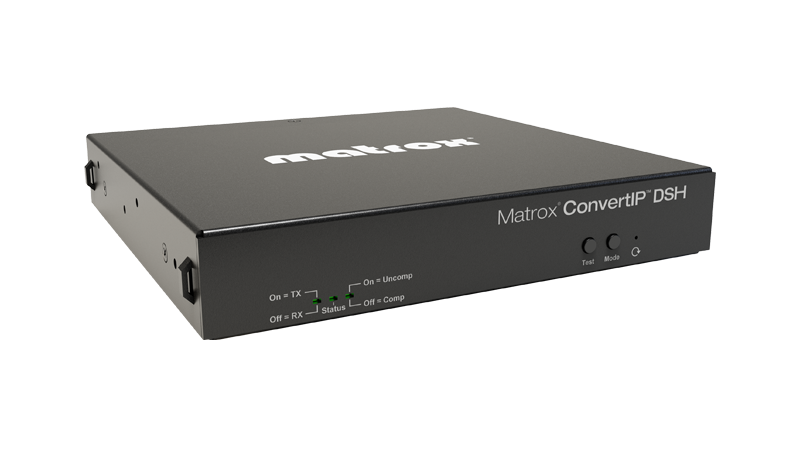

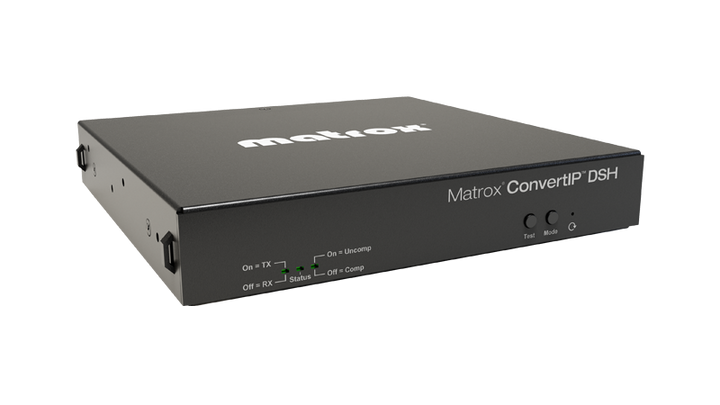

Matrox ConvertIP DSH

Dual-channel SFP HDMI-to-IP transmitter/receiver

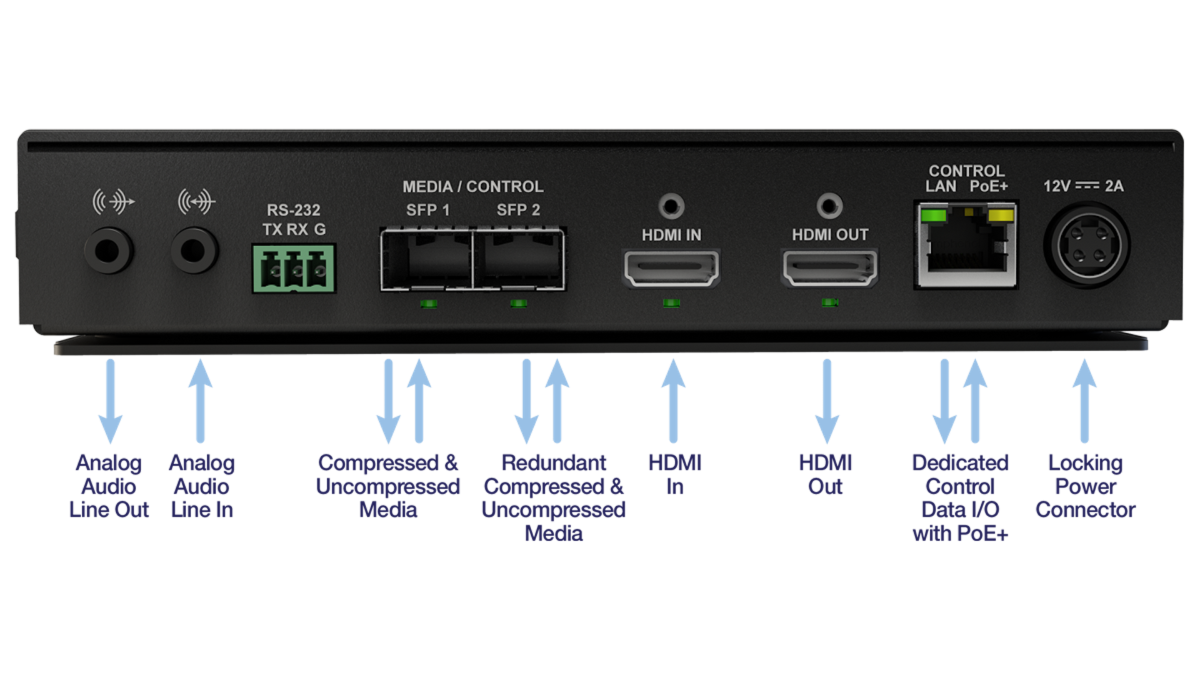

Matrox ConvertIP DSH is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Featuring HDMI I/O, one RJ45, and two SFP28 ports on a single device, ConvertIP DSH is designed for compressed or uncompressed workflows up to 25G and is optimal for an ultra-low latency experience. The device can deliver power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.

Key features


• HDMI I/O
• Multi-network support
  -2x SFP28 (10G & 25G network support for Media and Control)
  -1x RJ45 (1G network support for independent control network)
• Transmit or receive IP signals from a single device
• Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
• Fanless design for quiet cooling  Zero latency HDMI loop-out
• Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
• Compact form factor mounts easily to the back of a monitor
• ConvertIP Command Center web interface for managing ConvertIP devices
• Complimentary ConvertIP Manager Windows application for simple commission and deployment


Transport formats


• Uncompressed HD and UHD support per SMPTE ST 2110-20
• Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
• IPMX ready
• Colibri codec for high-quality transmission of compressed media (adjustable up to 6 Gbps)
• Glass to glass latencies of 1ms achievable in compressed and uncompressed workflows
