Matrox ConvertIP DSS

$1,850.00
/
Free Shipping & Tech Support.
MFR Part # (MPN): CIP-DSS
Videoguys Part # (SKU): CIPDSS
Short Description:
  • Free Shipping & Tech Support

Dual-channel SFP SDI-to-IP transmitter/receiver

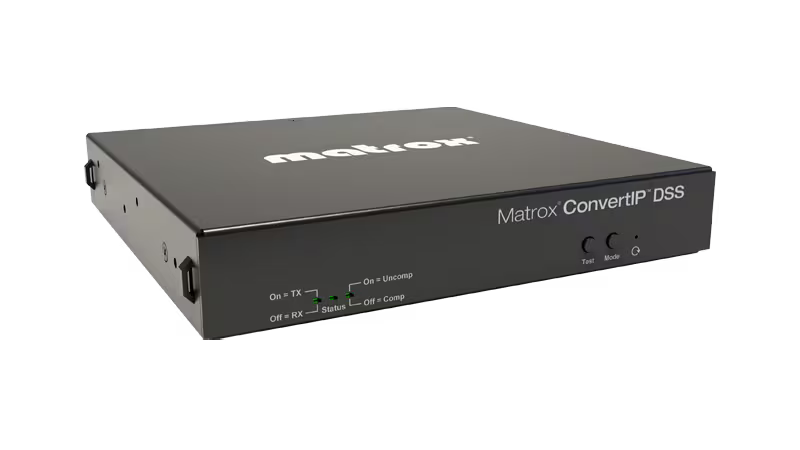

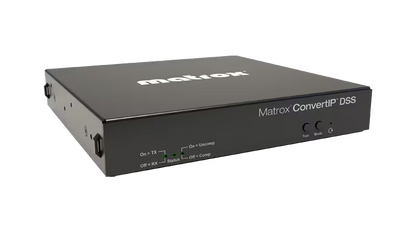

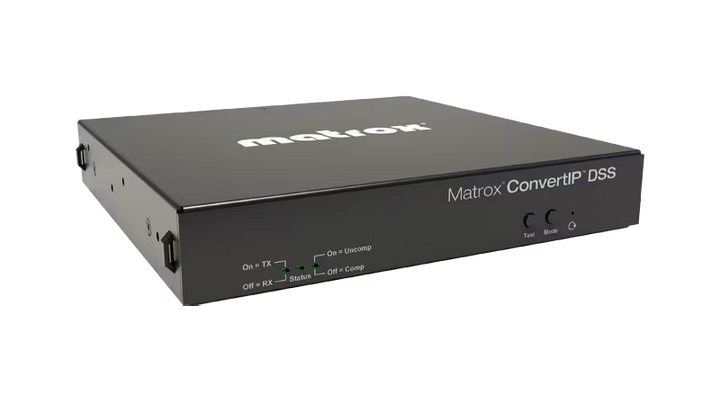

Matrox ConvertIP DSS is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Featuring 12G-SDI, genlock, one RJ45, and two SFP28 ports on a single device, ConvertIP DSS is designed for compressed or uncompressed workflows up to 25G and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.

Key Features


  • 12G-SDI I/O
  • Multi-network support
  • 2x SFP28 (10G & 25G network support)
  • 1x RJ45 (1G network support)
  • Transmit or receive IP signals from a single device
  • Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
  • Fanless design for quiet cooling
  • PTP-derived genlock output support
  • Genlock support for house sync input
  • Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately) Compact form factor mounts easily to the back of a monitor
  • Web-based user interface for managing ConvertIP devices
  • Complimentary ConvertIP Manager Windows application for simple commission and deployment



Transport formats


  • IPMX ready
  • Colibri codec for visually lossless transmission of compressed of media over 1G network
  • Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
  • Glass-to-glass latencies of 1ms achievable

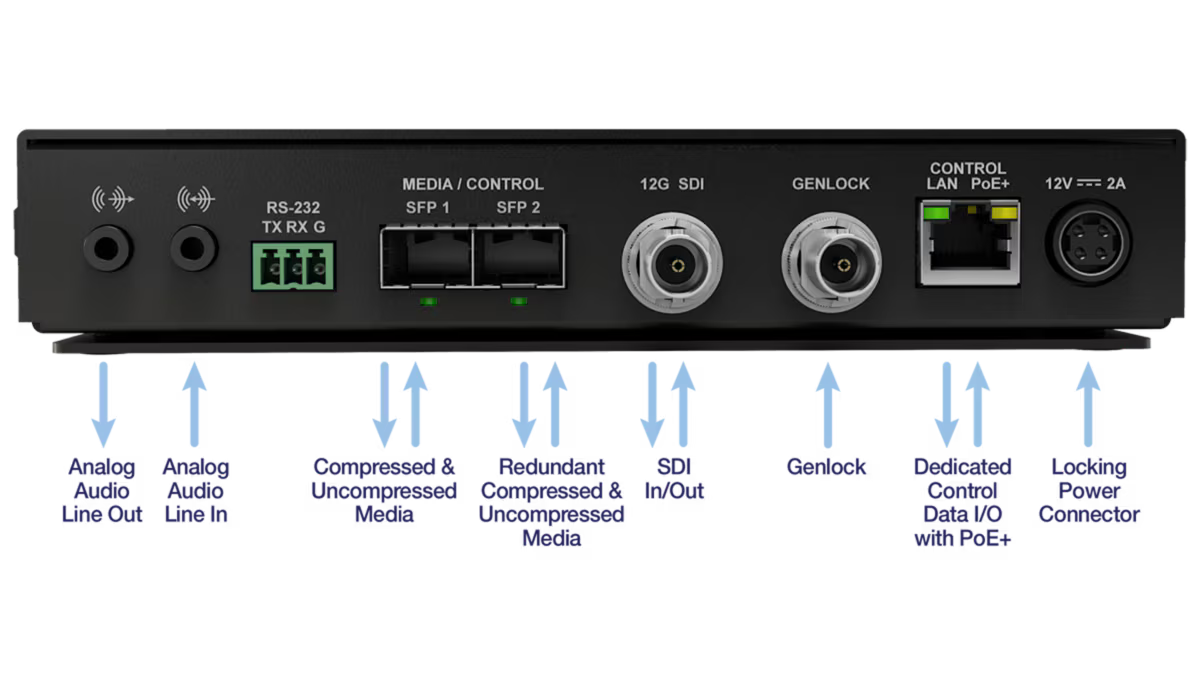

Connectivity

Video input

  • TX mode: 1.5G, 3G, and 12G SDI
  • RX mode: No input

Video output

  • TX mode: No output
  • RX mode: 1.5G, 3G, and 12G SDI

Video resolution

  • HD and 4K resolutions (including broadcast)

Genlock

  • Bi-Level genlock input support

VANC ancillary data processing

  • Yes1

Audio input/output

  • Up to 16 channels of audio embedded in SDI output signal
  • Unbalanced analog stereo input via 1/8″ (3.5mm) jack1
  • Line Level

Network connector

  • 2x SFP28 cages for ST 2110 media and In-band control on LAN 1 and LAN 2
    -10 GbE IEEE 802.3ae (10GBASE-SR/LR fiber module)
    -25 GbE IEEE 802.3by (25GBASE-SR/CR/CR-S)
    -25 GbE IEEE 802.3cc (25GBASE-LR)
  • LAN2 for redundancy mode only
  • Dedicated RJ45 management network interface for control only with PoE+ (100/1000 Mbps)

RS-232

  • Yes1

Control and management

  • Matrox ConvertIP Command Center (web UI)
  • Matrox ConvertIP Manager (software application)



Performance

Maximum video resolutions

  • 4096 x 2160 60p

Bit depth an(more...)
