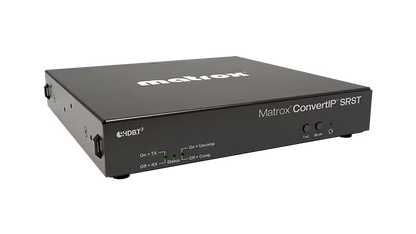

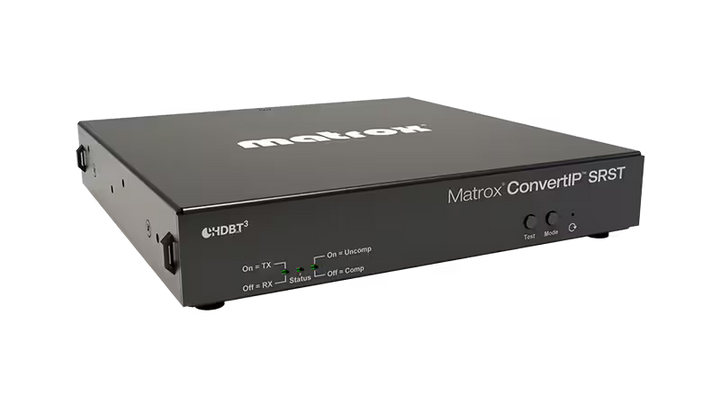

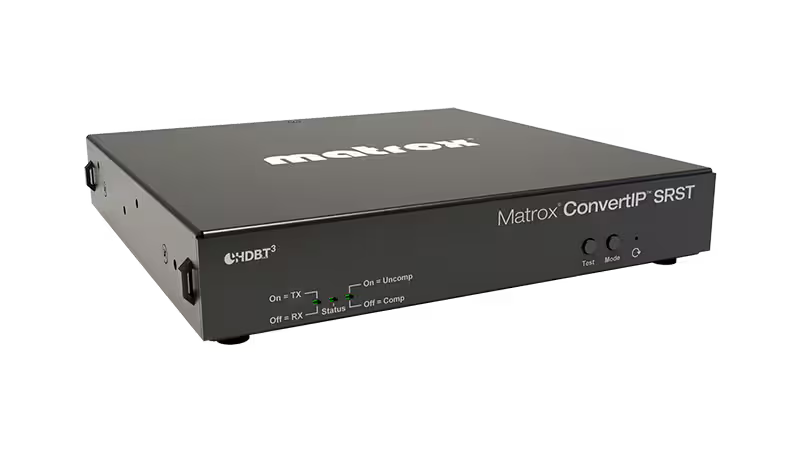

Matrox ConvertIP SRST

Single-channel HDBaseT™-to-IP transmitter/receiver
For businesses and organizations outfitted with HDBaseT installations, moving to new infrastructure can be complicated and costly. Matrox ConvertIP SRST transmitter/receiver device now enables you to scale existing HDBaseT network infrastructure—by integrating HDBaseT content into and from the IP network—without the additional cost and hassle of upgrading your current equipment or infrastructure. Based on open standards, ConvertIP SRST is IPMX-ready and compatible with a SMPTE ST 2110 network.

Key features

• HDBASE-T I/O
• Multi-network support
• 1x SFP28 (10G & 25G network support)
• 1x RJ45 (1G & 2.5G network support)
• Transmit or receive IP signals from a single device
• Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
• Fanless design for quiet cooling
• Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
• Compact form factor mounts easily to the back of a monitor
• Web-based user interface for managing ConvertIP devices
• Complimentary ConvertIP Manager Windows application for simple commission and deployment

Transport formats


• IPMX ready
• Colibri codec for visually lossless transmission of compressed of media over 1G network
• Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
• Glass-to-glass latencies of 1ms achievable

Deliver the ultimate AVoIP experience
A compact Input/Output device, Matrox ConvertIP SRST is designed to both receive or transmit HDBaseT signals in a single, standalone device. Featuring both RJ45 and SFP28 ports on a single device, ConvertIP SRST enables you to leverage your 1 GbE network to transmit full 4K video at 60 fps over IP in near-real time or uncompressed workflows up to 25 GbE—without ripping out and replacing your current  HDBaseT equipment.

Fanless design, quiet operation, maximum efficiency
ConvertIP’s fanless design and whisper-quiet operation means that ConvertIP is made for control rooms, operation centers, and other critical environments that require a noise level of 25 dB and less.
