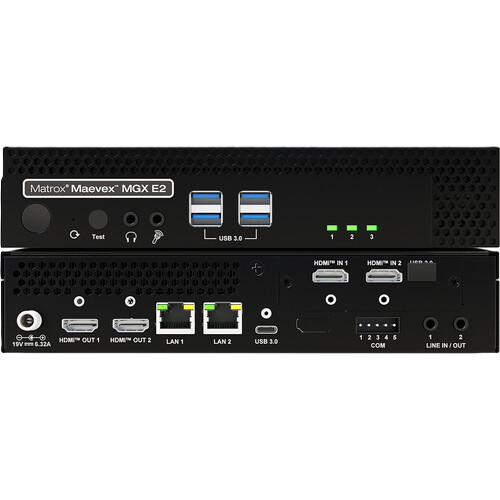

Matrox Maevex MGX E2 Dual 4K60 Encoder

Maevex MGX Series - 4K60 H.265/H.264 IPMX-ready video encoders and decoders
The Matrox Maevex MGX Series encoders and decoders deliver industry-leading low-latency 4K60 AV-over-IP streaming with H.265 4:4:4 image quality at up to 1/20th the bitrate of virtually all other ProAV codecs. Its highly efficient streaming architecture dramatically reduces network congestion, complexity, and infrastructure costs, creating a paradigm shift in the way video moves over IP. Built for enterprise and mission-critical environments, Maevex MGX supports both open-standard IPMX and Matrox IQ Mode, enabling organizations to optimize for interoperability or maximum performance depending on their workflow needs. With advanced codec support, multi-protocol streaming, and integrated USB functionality for interactive workflows, Maevex MGX goes beyond traditional video distribution, enabling real-time collaboration, remote access, and scalable network deployments, all while dramatically reducing bandwidth requirements.

Maevex MGX E2

• Type: Encoder
• HDMI Channels: 2 inputs
• Max Encode/Decode Capability: Encode sx 4K60p
• Matrox IQ Mode Latency Glass-to-Glass: 1 frame
• Multiview: Yes: 2x1

Exceptional quality and latency at a fraction of the bandwidth

• Achieve 4K60 and 4:4:4 visual fidelity with exceptionally low latency while dramatically reducing network demands.
• H.265/H.264 support delivers exceptional image quality and bandwidth efficiency
• Industry-leading low latency performance as low as 1 frame for real-time responsiveness
• Comparable quality and latency at a fraction of the bandwidth to virtually all ProAV 1GbE light compression solutions, reducing network congestion and complexity and infrastructure costs while supporting scalable deployments

Flexible streaming modes with simultaneous multi-protocol delivery

• Adapt to diverse workflows with multiple streaming modes from a single device.
• Choose between IPMX or Matrox IQ Mode, or use both simultaneously with multi-stream support
• Local output enables both on-site operation and control while simultaneously streaming your content to decoders and other endpoints
• Additional support for RTSP, MPEG-TS, and SRT streaming increases deployment flexibility across AV environments

Integrated USB extension for interactive and collaborative workflows

• Extend beyond video with built-in USB support for full remote interaction and collaboration.
• Keyboard, mouse, and webcam extension for capturing and controlling desktop content remotely
• Enables real-time interaction industry-leading low latency for a seamless user experience, at 1/20th the bitrate of other USB-enabled ProAV solutions
• Supports collaborative meeting spaces, control rooms, and secure remote operations

Corporate AV Distribution
Maevex MGX enables exceptionally high-quality distribution of executive communications, town halls, and company-wide events across corporate AV environments. Built for reliability, it ensures employees receive clear, consistent messaging whether they are in the auditorium, an overflow room, a regional office, or working remotely. Ideal for corporate campuses, headquarters, and hybrid workplaces, Maevex MGX delivers industry-leading low-latency 4K60 video with synchronized audio and video for a natural viewing experience inside or outside the room. HEVC 4:4:4 encoding enables operating at 1/20th the bandwidth of traditional ProAV solutions, reducing network complexity and making AV distribution possible even on data-rich corporate networks.

Control room contribution and distribution
Maevex MGX enables secure, exceptionally high-quality contribution of content into control rooms, as well as distribution within and beyond the control room environment. Designed for enterprise-grade security, it supports mission-critical operations where reliability and control are essential. Ideal for government and defense, industrial operations, security monitoring, and real-time crime centers, Maevex MGX delivers industry-leading low latency 4K60 video with precise, responsive control at ultra-low bandwidth.

Connectivity

• Input - HDMI: 2x HDMI (Type A) with retention screw
• Input - Audio: HDMI digital LPCM two-channel stereo audio
• Input - Microphone: 1x 3.5mm port
• Input – Line In: 1x 3.5mm port
• Output - HDMI: 2x HDMI (Type A) with retention screw
• Output - Headphone: 1x 3.5mm port
• Output – Line out: 1x 3.5mm port
• Network
  • Lan 1: 1000/2500 Base-T RJ45
  • Lan 2: 1000/2500 Base-T RJ45
  • Separate MAC addresses
• USB ports
  • 4x USB Type A (front)
  • 1x USB Type C (back)
  • USB type C support for USB host connection
• COM port: 5 Pin Com port*

Performance

• Baseband Video Input Resolutions: All common resolutions and refresh rates up to 4096x2160@60Hz (Progressive and Interlaced*)
• Baseband Video Output Resolutions: Passthrough: All common resolutions and refresh rates up to 4096x2160@60Hz (Progressive only)
• Encode
  • H.265 (in 4:2:0 or 4:4:4): Up to 2x 4Kp60
  • H.264 (in 4:2:0 only):   Up to 2x 4Kp60
• Decode: —
• Recording: Available in future firmware release*
• Latency
  • Matrox IQ Mode (glass-to-glass): as low as 32ms (1 frame)
  • IPMX (glass-to-glass): as low as 120ms

Video and Audio Processing

• Video Scaling: Yes
• Video Compositing: Yes, fixed formats including Picture-in-Picture (PiP), Picture-by-Picture (PbP)
• Preview mode: Yes
• HDCP Support: 1.4 and 2.3
• Audio Encoding Format: MPEG-4 AAC-LC (Raw and ADTS)
• Audio Bitrates: Up to 1152 Kbps (AAC-LC)
• Codecs and Color Space Support
  • H265 (HEVC), 4:2:0 8/10-bit:  4:4:4: 8/10-bit up to 100 Mbps
  • H264/MPEG-4 part 10 (AVC): 4:2:0 8-bit up to 100 Mbps
  • Uncompressed audio: for IPMX & Matrox IQ Mode
  • AAC - LC: 32 to 1152 Kbps per stereo pair

Supported Codecs

• Encoder/Decoder Video Bitrate: 50Kbps to 400Mbps (per stream)
• Encoding level: Up to 6.0
• Encoding profile
  • H.264 Baseline
  • H.264 Main
  • H.264 High
  • H.265 Main
  • H.265 Main 10 bits
  • H.265 Main 4:4:4
  • H.265 Main 4:4:4 10 bits
• Encoding rate control
  • Adjustable GOP size
  • Constant Bitrate (CBR)
  • Variable Bitrate (VBR)

Network

• Network Standard
  • Auto speed
  • Half/full duplex
  • IGMP Version 2 and 3
• Routing scheme
  • Unicast
  • Multicast
  • Multi-unicast
• IP Addressing
  • IPv4
  • IPv6
  • DHCP (default) and static IP
• Command and control
  • mDNS and LLMNR
  • HTTPS over TCP
• Streaming formats
  • IPMX
  • Matrox IQ Mode
  • RTP/RTSP
  • SRT [caller, sender and rendez-vous]
  • MPEG2-TS
• Discovery, registration and control: NMOS discovery and control according to standards IS-04 and IS-05

Physical

• Product dimensions: 206mm(L) x 185mm(W) x 46mm(H)
• Unit weight: Device only:  1.265kg
• Regulatory
  • CE (EU) Class A, FCC (US) Class A, ICES-003 (Canada) Class A, KC (S. Korea) Class A, RCM (Aus/NZ) Class A, UKCA (UK) Class A
  • Environmental Compliance China RoHS, EU RoHS, REACH, WEEE
• Operating conditions: 0 - 40 ºC (32-104 °F)
• Form Factor: Standalone appliance , Rack mountable (1U, 1/2R horizontal)

• Maevex MGX E2 Encoder
• Power supply: 110-240V AC, 19VDC 120W
• Warranty: 2-Year standard warranty
