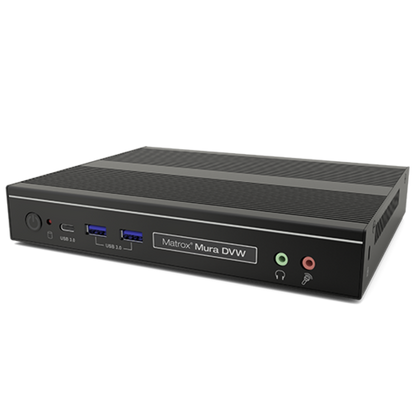

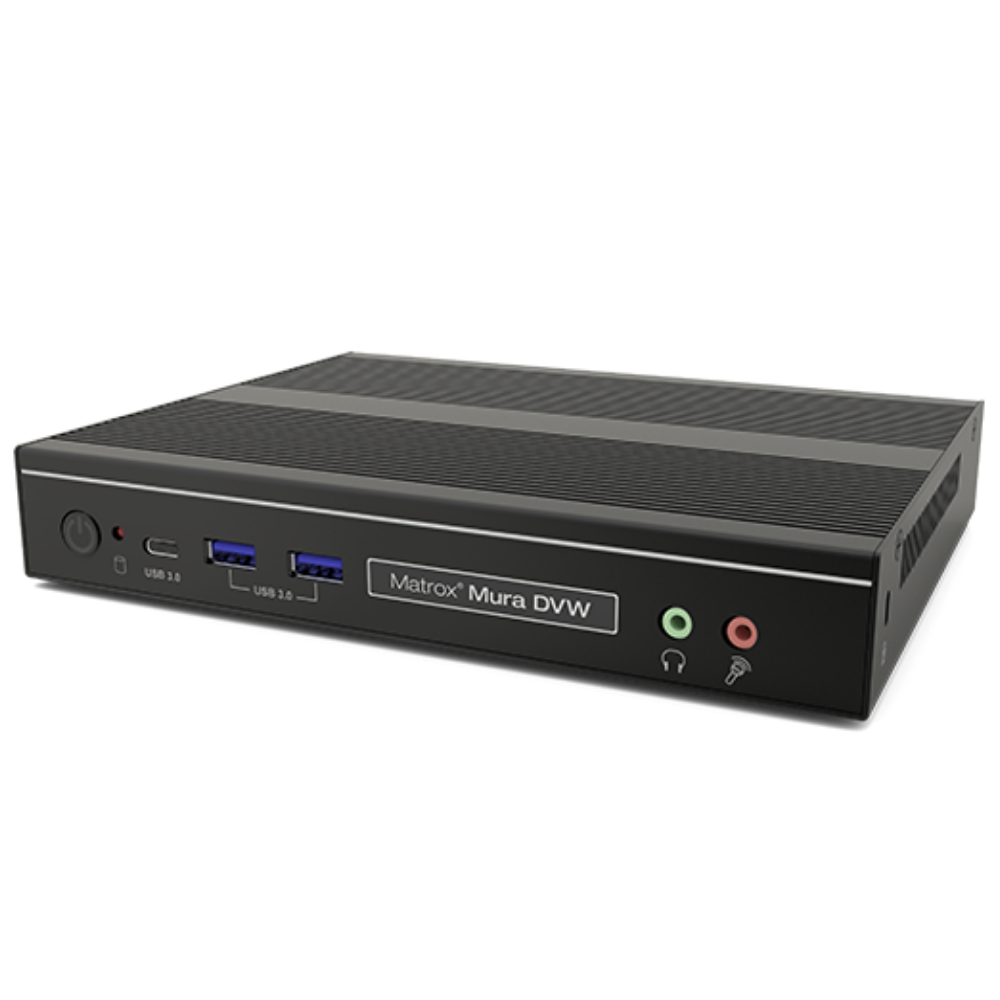

Matrox Mura DVW IP-Based Distributed Video Wall Appliance

Seamless, scalable, synchronized video walls
Matrox Mura DVW is a high-performance, IP-based 4K distributed video wall appliance that lets you combine multiple units to easily create a fully synchronized video surface across a wide range of sizes and rectangular layouts. Mura DVW integrates advanced computing, networking, video decoding, and graphics processing to deliver seamless visual experiences with maximum security. Mura DVW supports high-density, flexible decoding of H.265 (HEVC) and H.264 (AVC) video streams, as well as HTML5 web pages and dashboards. It is also fully TAA compliant.

Perfect video synchronization
Drive up to 64 4K synchronized displays, or 256 full HD when combined with Matrox QuadHead2Go, from a range of sources and eliminate tearing by synchronizing DVW appliances together using IP-based PTP framelocking.  With its built-in Best Master Clock Algorithm (BMCA), facility-wide synchronization across Mura DVW appliances can be achieved when a PTP Grandmaster is present.

High-performance video wall
Each Mura DVW appliance supports high-density IP stream decoding—handling up to one 8K60, six 4K60, twelve 4K30, eighteen 1080p60, thirty-four 1080p30 or 720p60 and seventy-two 720p30 H.264/H.265 4:2:0 streams simultaneously. Output is supported across up to four 4K60 HDMI displays per device, ensuring smooth, ultra-high-resolution playback.

High-quality desktop content
Mura DVW leverages the HEVC 4:4:4 codec to deliver full-color depth for maximum image quality and system compatibility. This advanced compression enables low-bitrate transmission of visually rich content over IP—ideal for applications demanding color accuracy, compression efficiency, and high performance. Mura DVW also supports widely used codecs like H.264 and H.265 in 4:2:0 format, ensuring seamless integration with most modern COTS equipment.

Simple installation, serverless operation
Lower deployment costs by reducing additional hardware, dedicated server, and cabling requirements. Mura DVW further simplifies your video wall deployment by eliminating the need for a separate server and the additional complexity and cost of running a server.

Robust, built-in security
Mura DVW is engineered with multi-layered security to protect your video wall infrastructure. All communication is encrypted and uses secure protocols like HTTPS, authenticated RTSP, and SRT. User authentication is required for all access and control, while hardware-level encryption ensures no data can be extracted from the device. Powered by a custom-built, locked-down Matrox OS, the system minimizes attack surfaces by tightly controlling software components. Regular vulnerability scans and updates ensure resilience against evolving threats. With Mura DVW, your video wall is not only powerful—but secure by design.

Perfectly seamless, scalable video walls
Display perfectly synchronized streams from a range of sources, including PTZ cameras, encoders, media servers, and web. Mura DVW video walls are flexible and scalable, enabling you to build fully distributed video walls of any size with performance that improves as you add more Mura DVW units to your setup.

Product

• Cooling: Dual ball bearing fan

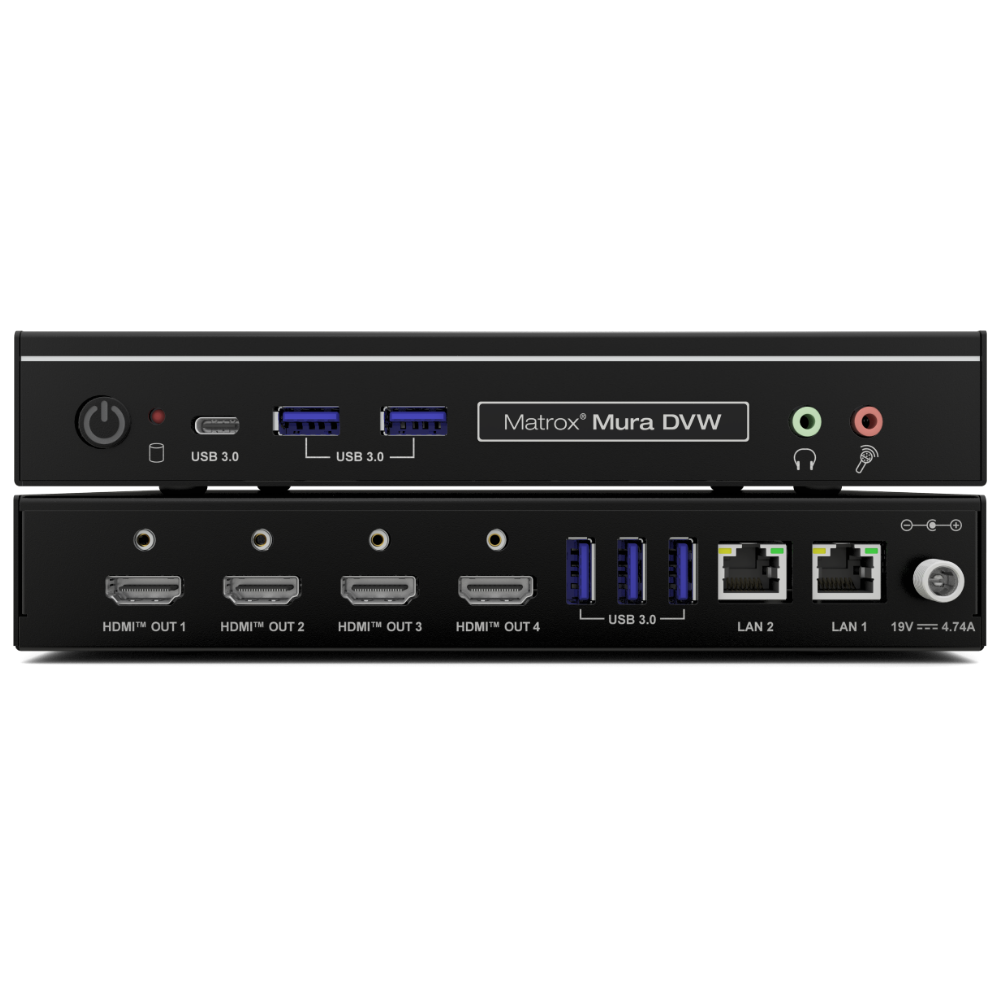

• Connectors
  • 4x HDMI outputs with locking mechanism,
  • 2.5 and 1GbE1 RJ45 ethernet
• Maximum output resolutions: Max. 4096x2160 @ 60Hz
• Form factor: Standalone appliance, 1U, 1/2 rack (horizontal)

Network Interface

• Standard: Ethernet 10/100/1000/2.5G base-T, auto-detect, half/full-duplex
• Connector: RJ45
• IP version: IPv4/IPv6
• Distributed method: Unicast, multicast and multiple unicast
• IP addressing: DHCP (default) and Static IP

Streaming & Control Protocols

• Streaming protocols: RTSP, SRT, MPEG2-TS
• Command & control protocols: Telnet and HTTPS

Color Space

• Pixel formats
  • RGB: 8:8:8, 10:10:101 (24/32 bits per pixel),
  • YUV: 4:4:4, 4:2:0 (8/101 bits per component), color space conversion support

Video & Audio Processing

• Video compositing: Multi-channel video composite/key/blend/crop/mirror/flip
• Audio: Future software feature

Video Decoding

• Codec engine
  • H.264/MPEG-4 Part 10 (AVC), up to level 5.2, 4:2:0 8-bit
  • H.265 (HEVC), up to level 6.2, 4:2:0 and 4:4:4 8-bit
• H.264 and H.265 decode
  • For both H.264 and H.265, 4:2:0 8-bit, displayed across four 4K60 monitors:
  • 1x 8K60, 6x 4K60, 12x 4K30, 18x 1080p60, 34x 1080p30, 34x 720p60, 72x 720p30
• Rate control:Constant bitrate (CBR), variable bitrate (VBR), VBR with constraints, configurable GOP (group of pictures) structure

Environmental & Power Conditions

• Operating conditions
  • Temperature: 0 to 403 degrees Celsius
  • Humidity: 10% to 90% non-condensing
• Storage conditions
  • Temperature: -20 to 70 degrees Celsius
  • Humidity: 20% to 80% non-condensing
• Typical power consumption: 45W (12-19V)
• Power supply: 19V, 90 Watt PSU with locking mechanism

General Specifications

• Dimensions: L: 19cm (7.48in) x W: 14.8cm (5.83in) x H: 3cm (1.18in)
• Rackmount: VESA mount bracket included, rackmount compatible
• Regulatory compliance: Class A: FCC, CE, RCM, ICES-003, KC, UKCA
• Environment compliance: RoHS, China RoHS, REACH, WEEE
• Warranty: 2 years

• Matrox Mura DVW IP-Based Distributed Video Wall Appliance
• VESA mount bracket
• Warranty: 2 years
