MOTU Thunderbolt™/USB 2 audio interface with DSP, networking and MIDI
MOTU Thunderbolt™/USB 2 audio interface with DSP, networking and MIDI

MOTU Thunderbolt™/USB 2 audio interface with DSP, networking and MIDI

Regular price$995.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): 828es
MFR Part # (MPN): 9380

Short Description:

MOTU Thunderbolt™/USB 2 audio interface with DSP, networking and MIDI

60 simultaneous audio channels
28 inputs and 32 outputs, all independent
Connect all your studio gear, including microphones, guitars, synths, keyboards, drum machines, outboard processors, MIDI gear, optical expanders - even a foot pedal. All I/O is available simultaneously.

Superb analog audio quality
Renowned ESS Sabre32 Ultra™ DAC technology
New in the 828es, renowned ESS Sabre32™ DAC technology delivers 123dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248.

High-performance Thunderbolt and USB drivers for Mac and PC
Ultra-low latency and renowned rock-solid performance
Round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt™ with high-performance DAW hosts.

Universal connectivity
USB and Thunderbolt for Mac, PC and iOS
Connect to your Mac or PC with Thunderbolt™ or Hi-speed USB 2.0, with up to 256 audio channels (128 in and 128 out) over Thunderbolt. Or stream dozens of audio channels to and from your Mac over AVB/TSN Ethernet using a standard, affordable CAT-5e cable up to 100 meters long. Class-compliant firmware and industry standard drivers work with any audio apps. Connect to your iPad™ with a standard camera connection kit (adapter).

Redesigned mic channels
Cutting-edge components deliver ultra-transparent sound
Capture your recorded material in its truest, most natural form with -108 dB THD+N, 118dB dynamic range and -128dBu EIN performance. Each mic channel has individual preamp gain, pad, 48V phantom power and digital remote control. Do you work with outboard EQs and compressors? Each 828es mic input offers a pre-converter, hard-wired send for mono or stereo mic channel outboard processing.

Control room features
Take control of your recording sessions
Take control of your recording sessions with the built-in talkback mic and front-panel talk button. Connect two sets of speakers and check your mixes instantly with front-panel A/B speaker select buttons.

DSP mixing and effects
Console-style mixing with 48 channels and 12 busses
A full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.

Modeled vintage effects processing
Vintage processing with 32-bit float precision
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs. The 828es DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Flexible matrix routing and splitting
Route your audio anywhere with one-click ease
Send any input to any output, or multiple outputs. Includes routing
to and from the computer, plus any devices on the audio network.

Web app control from any device
Control everything from your laptop, tablet and smartphone
The software that you use to control the 828es doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 828es on-board DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network.

Touch Console
The art of the mix on your touchscreen
Designed specifically for touchscreen operation, Touch Console™ delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the 828es. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time

Stand-alone operation with wireless control
No computer or laptop needed
Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

Solid metal chassis
MOTU interfaces are built to last
Like all MOTU interfaces, the 828es aluminum alloy chassis is lightweight, yet incredibly sturdy and durable, and designed to withstand the rigors of the studio, stage, and tour bus. In a world awash with cheap plastic, the solid feeling of the 828es metal exterior in your hands is a reassuring reminder that you are holding quality engineering and construction.

System expansion / networking
Expand your system with more I/O and Wi-Fi control
  • Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e Ethernet cable.
  • Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).
  • Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
Advanced Extras
The engineering behind the 828es runs deep
to give your audio recordings the depth of quality they deserve
Two banks of optical
Two optical banks provide 16 channels of ADAT optical at 48 kHz, 8 channels of S/MUX optical I/O at 96 kHz or a single stereo TOSLink pair at rates up to 96kH
S/PDIF digital I/O
Stereo digital transfers are an essential fact of daily studio life. The 828es's standard RCA S/PDIF input and output make stereo digital transfers a snap, with optional external clocking and support for sample rates up to 96kHz.
MIDI I/O
Connect MIDI gear without the need for a separate MIDI interface.
Foot switch input
Connect a standard foot pedal switch (sold separately) for hands-free talkback or punch-in while recording. Or map the pedal to any keystroke function in your host software.
Time code support
Dedicated time code input and output jacks. Converts SMPTE time code (LTC) to MIDI Time Code (MTC) and passes MTC on to any MTC-compatible host software
Direct Digital Synthesis™ (DDS)
DSP-driven phase lock engine and internal clock source produces imperceptibly low jitter characteristics (below the noise floor), even when the 828es is resolved to an external clock source via SMPTE time code.
DC-coupled TRS outputs
Use the 828es to manipulate sequence voltage-controlled modular synthesizers from a host DAW.
Two headphone jacks
Each headphone output can be programmed with the same or different mixes, with independent front-panel volume control.
Balanced analog
828es balanced I/O connections are well-protected against RF interference, AC hum, and other noise-producing environmental factors.
Audio analysis tools
Includes an oscilloscope, real-time FFT, X-Y Plot, and graphic phase analysis.

AudioDesk
Powerful audio workstation technology for Mac and Windows
Includes AudioDesk® workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.

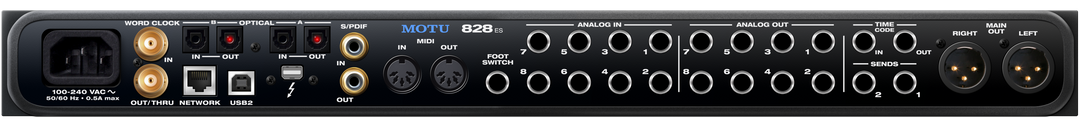

Technical Specifications

Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/instr inputs: 2 x XLR/TRS "combo style" inputs
Preamp gain: 0 to +63 dB (digitally controlled)
Analog inputs: 8 x 1/4" TRS line inputs (balanced/unbalanced)
Max level: +24 dBu (digitally adjustable -96 to +22)
Analog outputs: 8 x 1/4" TRS line out (balanced, DC coupled)
Max level: +20 dBu (digitally adjustable -4 to +20)
2 x male XLR with +20 dBu max
2 x 1/4" TRS stereo headphone
2 x 1/4" TRS sends (pre-converter)
Digital I/O: 2 banks (16 ch) of ADAT optical at 1x sample rates
2 banks (8 ch) of SMUX optical at 2x sample rates
1 bank switchable to TOSLink (optical S/PDIF)
1 x stereo S/PDIF on RCA (up to 96 kHz)
Total I/O: 28 in / 32 out (60 total) at 1x sample rates
20 in / 24 out (44 total) at 2x sample rates
10 in / 14 out (24 total) at 4x sample rates
Computer I/O: 1 x Thunderbolt 1 (Mac and Win)
      Thunderbolt 2 & 3 compatible
1 x USB 2.0 audio class compliant
      USB 3.0 and iOS compatible
Computer I/O channels Thunderbolt: 128 in/out at 1x or 2x (44.1 to 96 kHz)
64 in/out at 4x (176.4 to 192 kHz)
Computer I/O channels USB: 64 in/out at 1x (44.1 to 48 kHz)
32 in/out at 2x (88.2 to 96 kHz)
24 in/out at 4x (176.4 to 192 kHz)
MIDI I/O: 1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host
Foot switch: 1 x 1/4" pedal input
Sync I/O: 1 x BNC word clock in/out
1 x 1/4" time code in/out
Network I/O: 1 x RJ45 AVB/TSN Ethernet (1 Gbps)
AVB streams (8 channels per stream): 4 in / 4 out @ 44.1 or 48 kHz
4 in / 4 out @ 88.2 or 96 kHz
2 in / 2 out @ 176.4 or 192 kHz
Headphone: 2 x 1/4" TRS stereo phone (assignable)
Phantom power: 2 x individual +48V

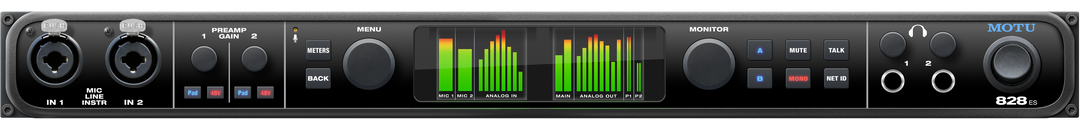

Front panel: 2 x 1/4" TRS headphone output
2 x XLR/TRS combo inputs
2 x digital rotary encoders • phone vol
2 x digital rotary encoders • mic/instr input gain
2 x large digital rotary encoders • main vol / menu
4 x small switches • (2) Pad / (2) 48V Phantom pwr
8 x large switches • menu nav / A/B mon select, etc.
2 x LCD (128 x 160) for level meters / menu nav
Power: International 100-240V autoswitching supply
50-60 Hz • 0.5A max
Dimensions and weight: (width x depth x height, enclosure only)
19 x 7 x 1.75 inches
48.3 x 17.75 x 4.5 cm
4.1 lbs / 1.9 kg
with rack brackets removed:
17.25 inches (43.8 cm) wide
4.0 lbs / 1.8 kg

Mac System Requirements
  • 1 GHz Intel-based Mac or faster
  • 2 GB RAM; 4 GB or more recommended
  • Mac OS X version 10.8 or later
  • Available Thunderbolt 1/2/3, USB 2/3 or AVB/TSN Ethernet port*
  • A large hard drive (at least 500 GB for recording)
  • *AVB/TSN Ethernet audio interface operation requires OS X El Capitan or later
Windows System Requirements
  • 1 GHz Pentium-based PC compatible or faster
  • 2 GB RAM; 4 GB or more recommended
  • Windows 7*, 8 or 10
  • Available Thunderbolt 1/2/3 or USB 2/3 port
  • A large hard drive (at least 500 GB for recording)
Web App Support
  • Any web client platform: Mac, Windows, Linux, iOS, Android
  • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.


Included Software
  • Thunderbolt and USB 2.0 drivers
  • MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
  • MOTU Discovery App for iOS (available from Apple App Store)
  • MOTU Pro Audio Control web app (served from the hardware itself)
  • MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
  • AudioDesk for Mac & Windows (separate download)

Operating Systems
  • For computer audio I/O: Mac OS X 10.8 or later; Windows 7* or later
  • For web app control: Mac, Windows, Linux, iOS, Android
Compatible Mac Software
The 828es ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Apple Logic Pro
  • Apple Logic Express
  • Apple Garage Band
  • Apple SoundTrack Pro
  • Ableton Live
  • Presonus Studio One
  • Propellerhead Record & Reason
  • Steinberg Cubase
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via compatible host)
Compatible Windows Software
The 828es ships with standard ASIO and Wave drivers for Windows 7*, 8 and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Ableton Live
  • Cakewalk Sonar
  • Cockos Reaper
  • Image Line FL Studio
  • Native Instruments Kontakt
  • Presonus Studio One
  • Propellerhead Record & Reason
  • Sony Vegas Pro
  • Sony Sound Forge
  • Sony Acid
  • Steinberg Cubase
  • Waves stand-alone apps (and plug-ins, via compatible host)
