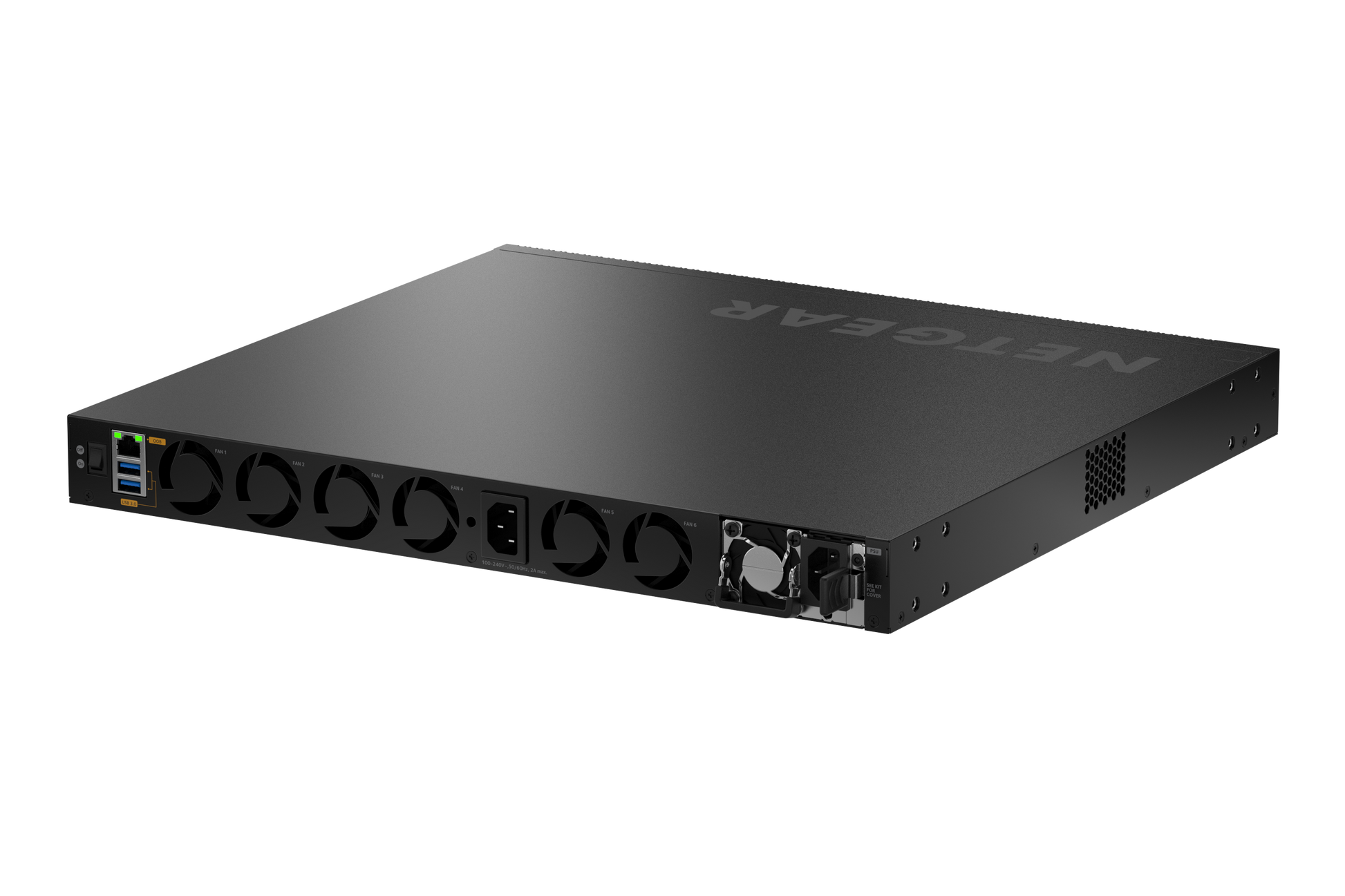

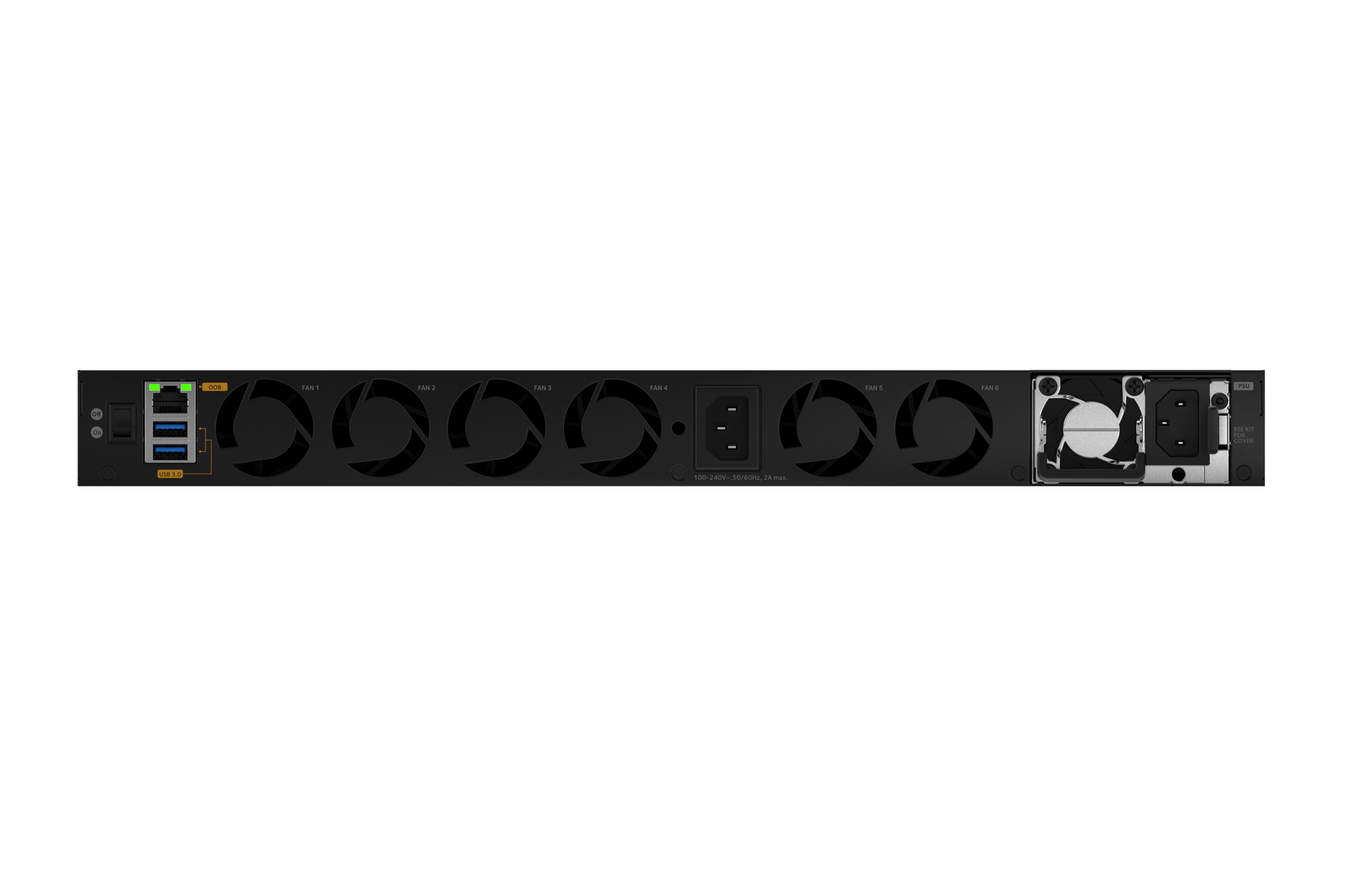

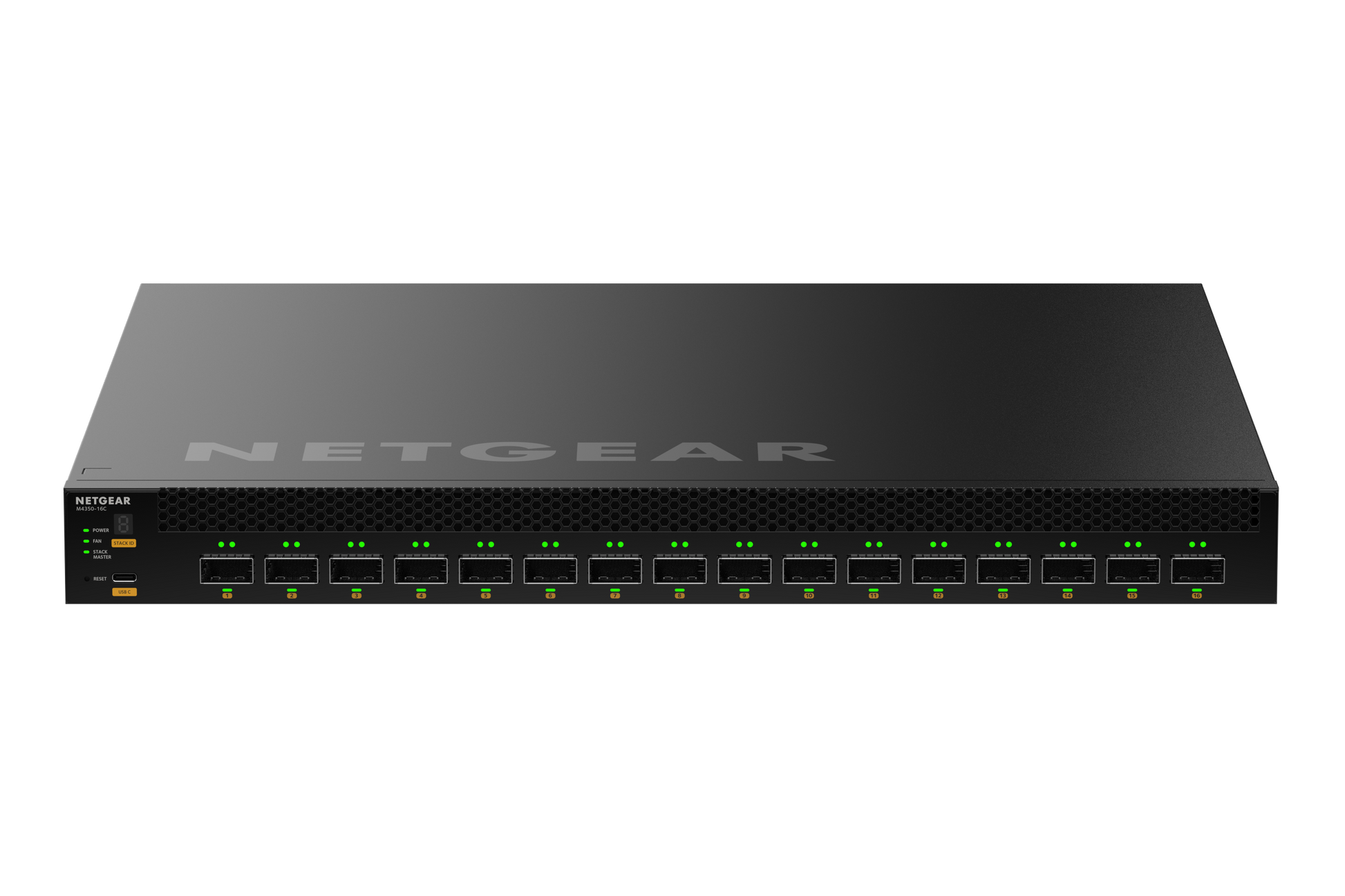

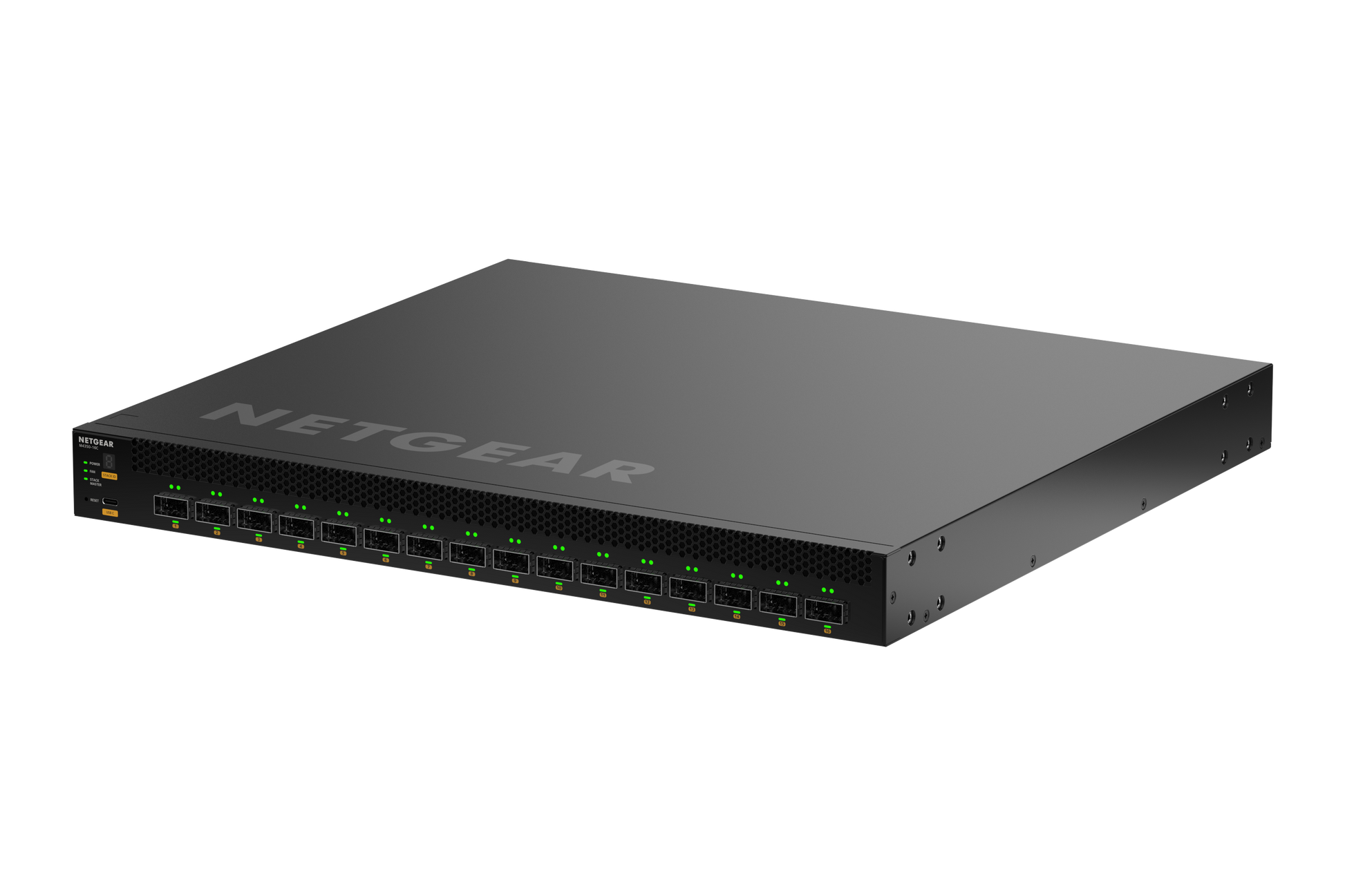

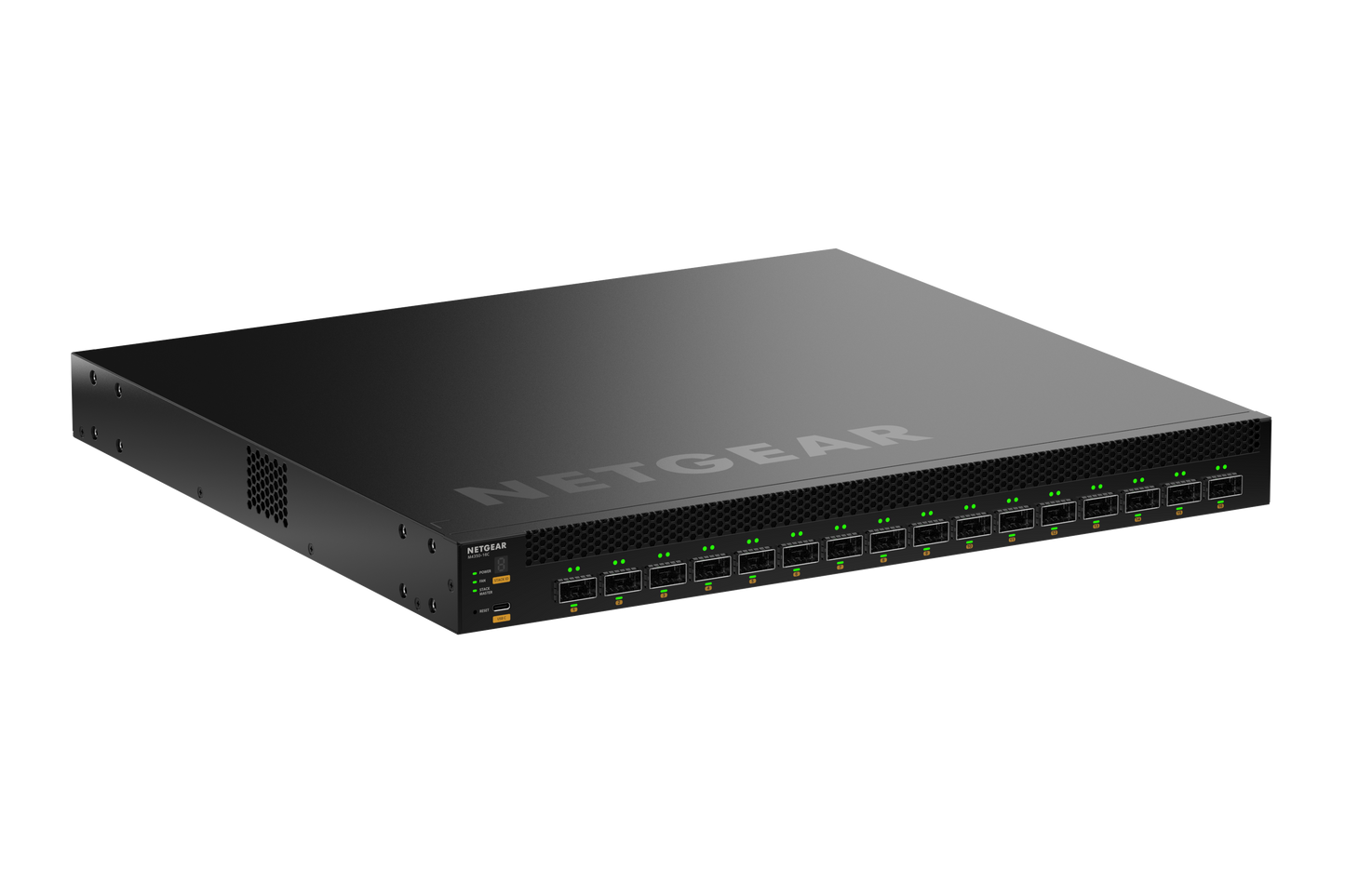

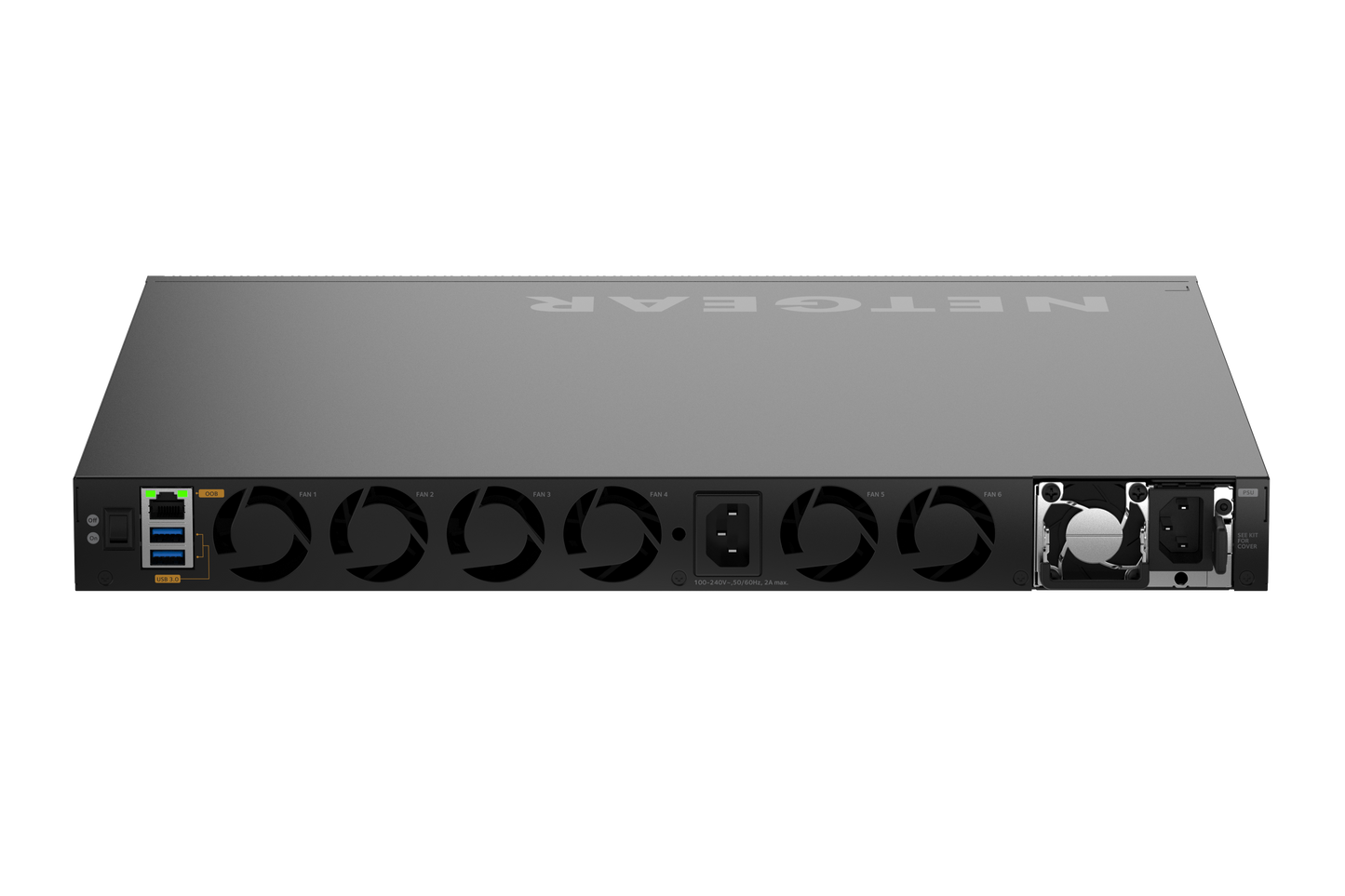

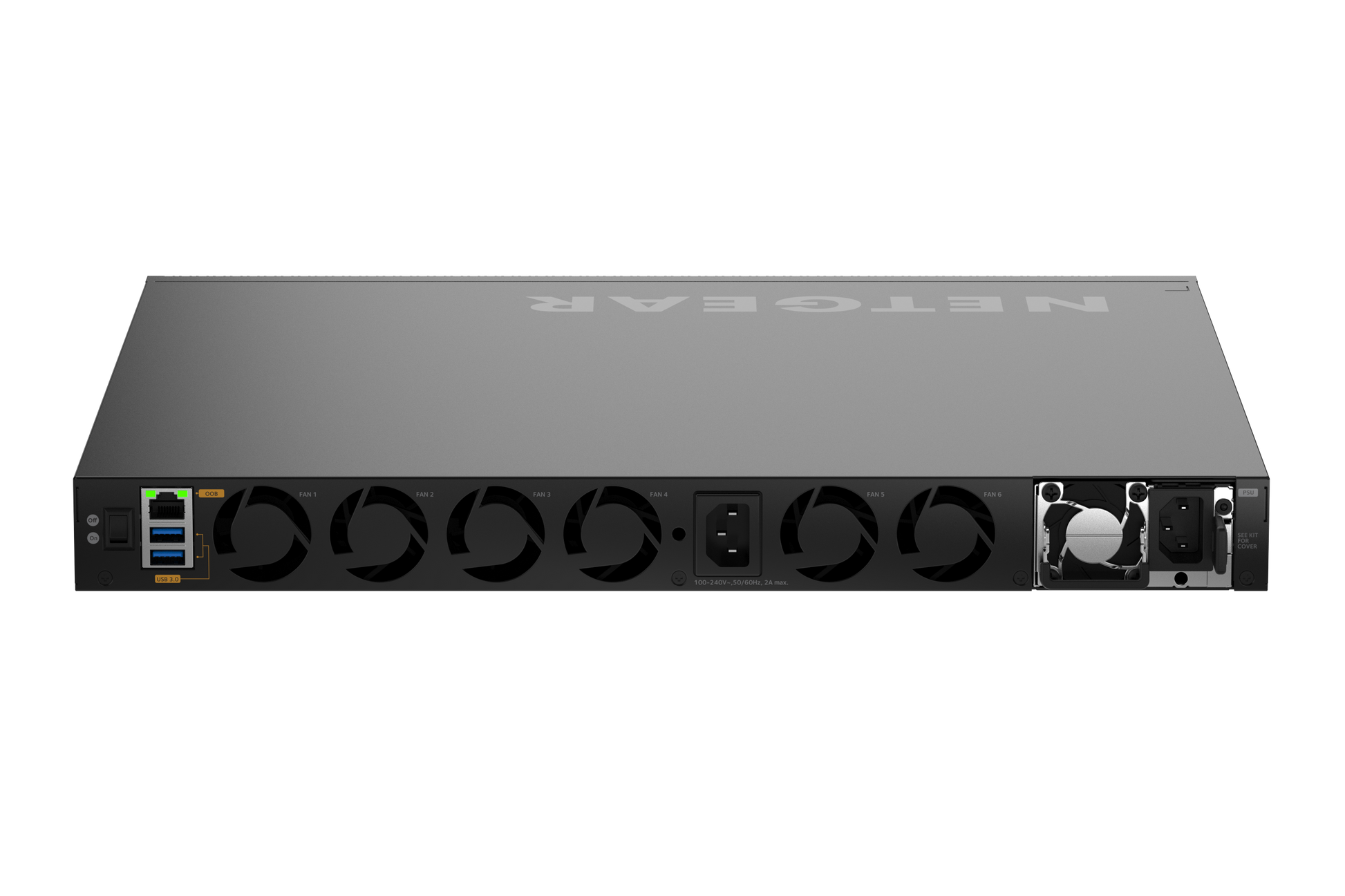

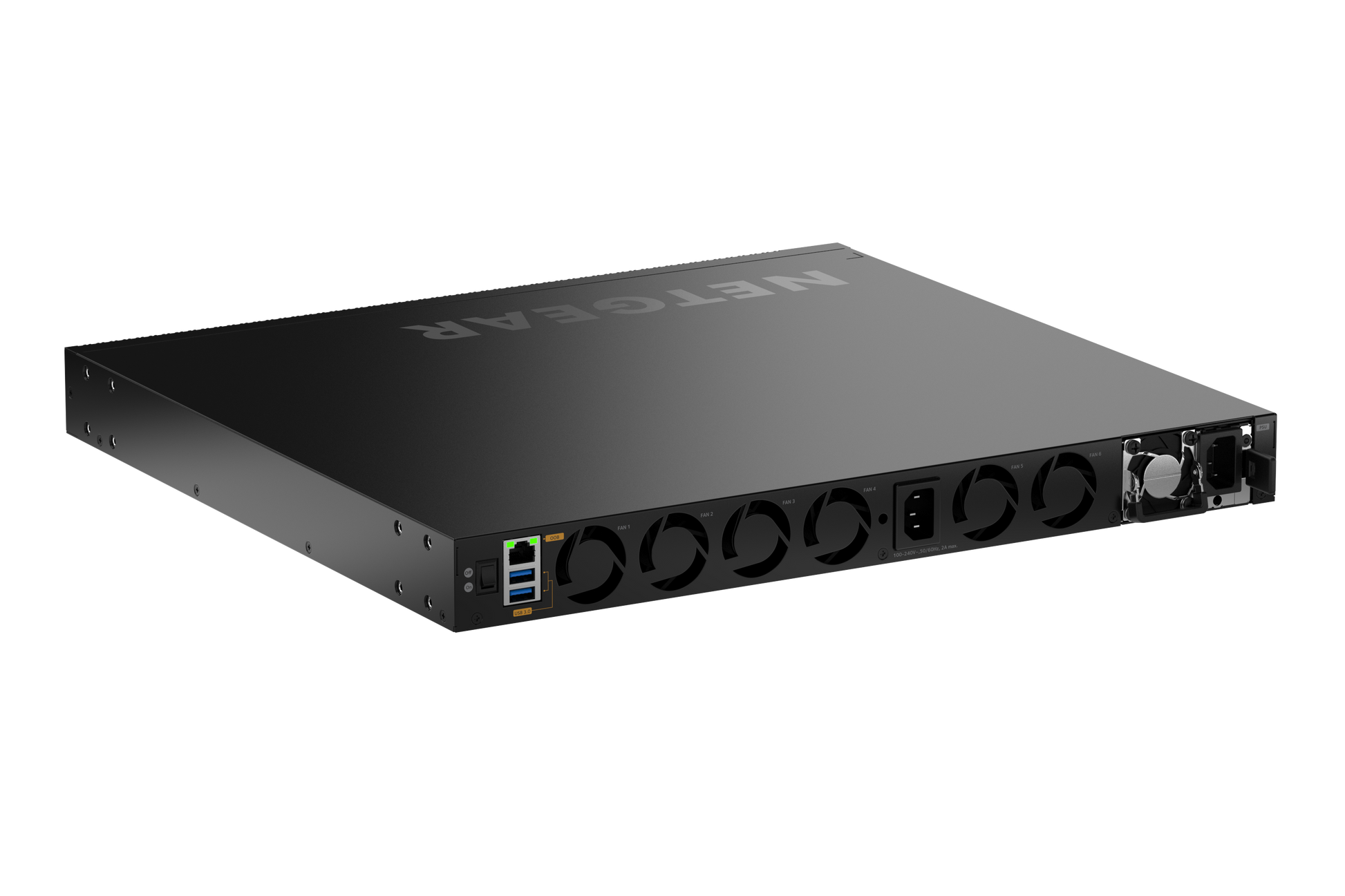

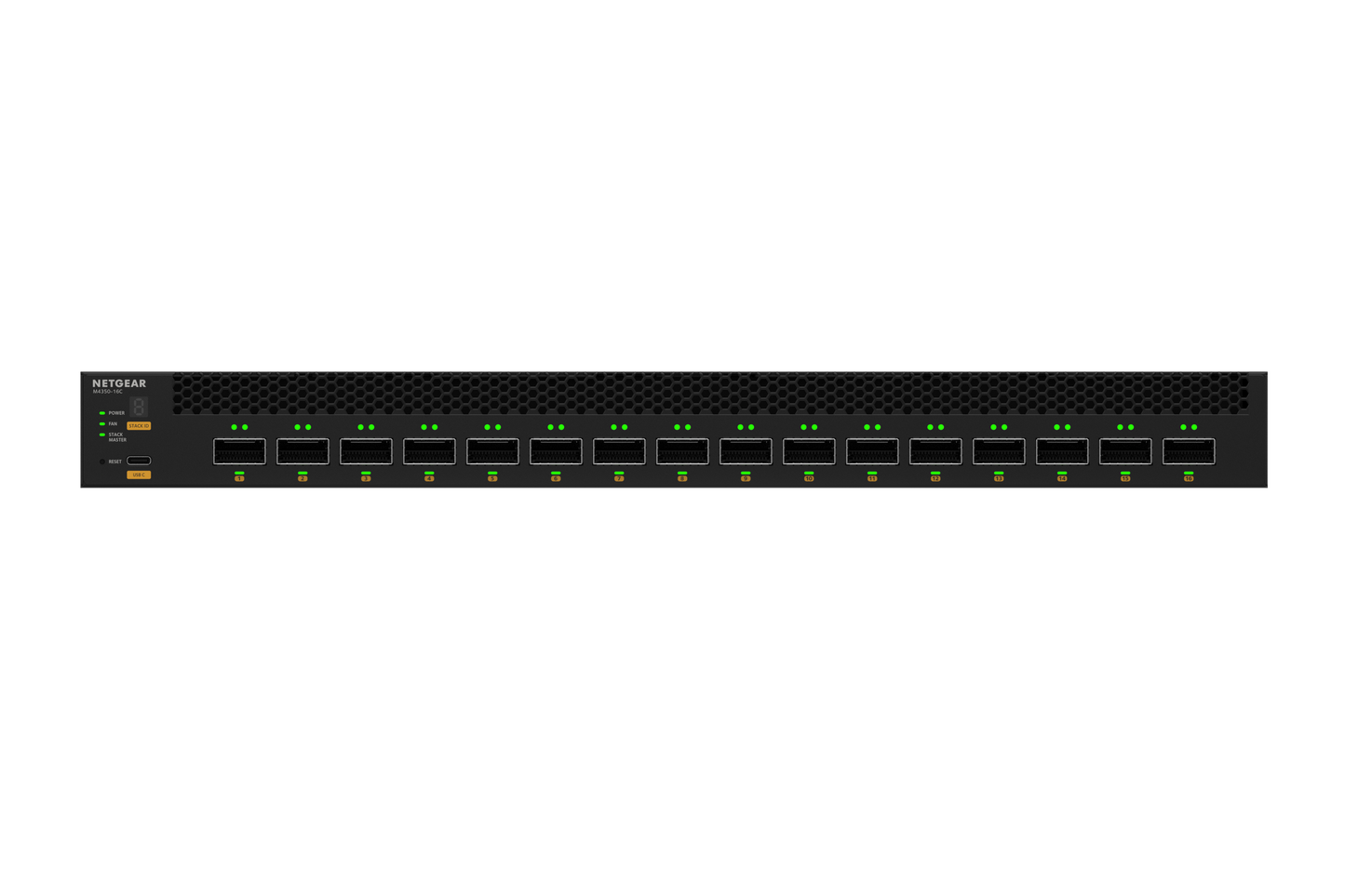

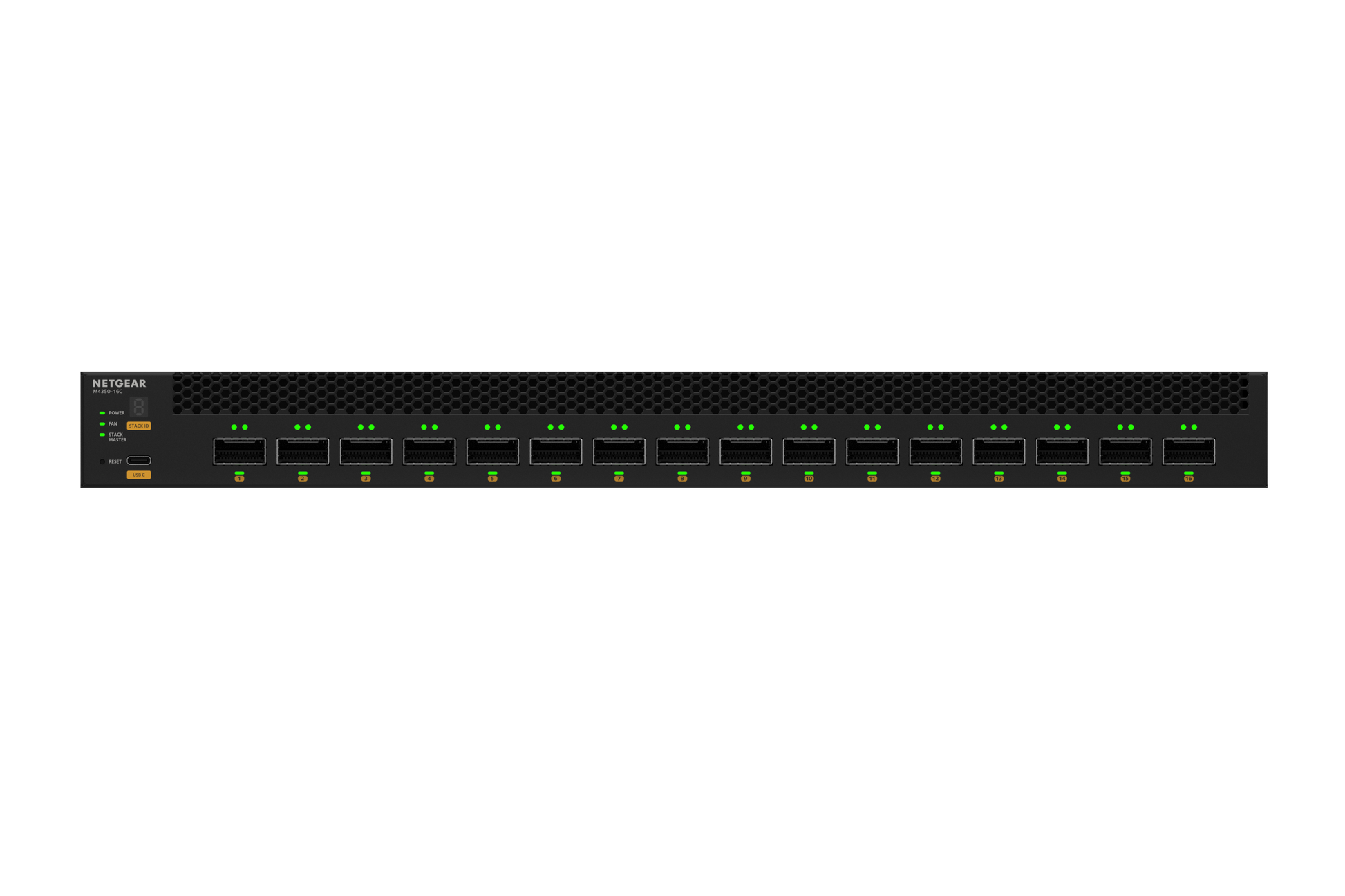

NETGEAR CSM4316 16x 100G QSFP28 Fully Managed Switch TAA Approved

NETGEAR CSM4316 16x 100G QSFP28 Fully Managed Switch TAA Approved

• Ports: 16 Ports
• Port Types: 16 x 100G QSFP28 ports
• PoE Budget: N/A
• TAA Approved

Features:

• TAA Approved
• 420W internal power supply
• 1 slot for modular power supply (1+1 redundancy)
• Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
• Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus™, NETGEAR AV OS™, and Engage Controller speed up AV installations
• SMPTE ST 2110 Grandmaster Clock and Boundary Clock support for AES67 and ST2059-2 applications
• Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller
• NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
• Lifetime Next Business Day Hardware Replacement

Power and Throughput
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Fast, Easy Configuration for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.

Designed For AV Over IP Right out of the Box
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

• Width: 440mm
• Depth: 400mm
• Height: 43.2mm
• Weight: 8.03kg (17.70lb)
• Primary Port Speed: 100 Gigabit
• Number of Ports: 16 (16 x 100G QSFP28)
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• TAA Approved
• Acoustics: Quiet Mode 30.4dB@25ºC
• Power Consumption
  • Maximum: 161.9W/552.40Btu/hr
  • Standby (no port connection): 69.1W/235.43Btu/hr
• PSU Compatible Models
  • APS600Wv3A
  • APS1200Wv2
  • APS2000Wv2

• 1x M4350-16C (CSM4316)
• 1x Power cord(s)
• 1x Console USB Type-C cable
• 1x Rack-mounting standard bracket set
• 1x Set of longer brackets for recessed mounting
• 4x Rubber footpads for tabletop installation
• 1x Installation guide
• Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration within 90 days of purchase.
