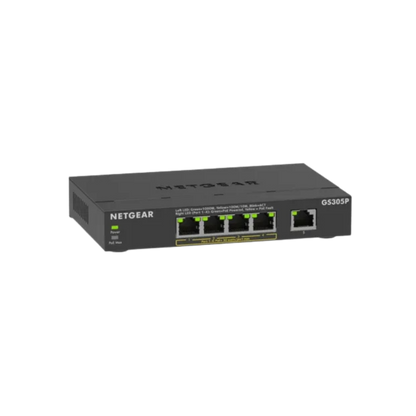

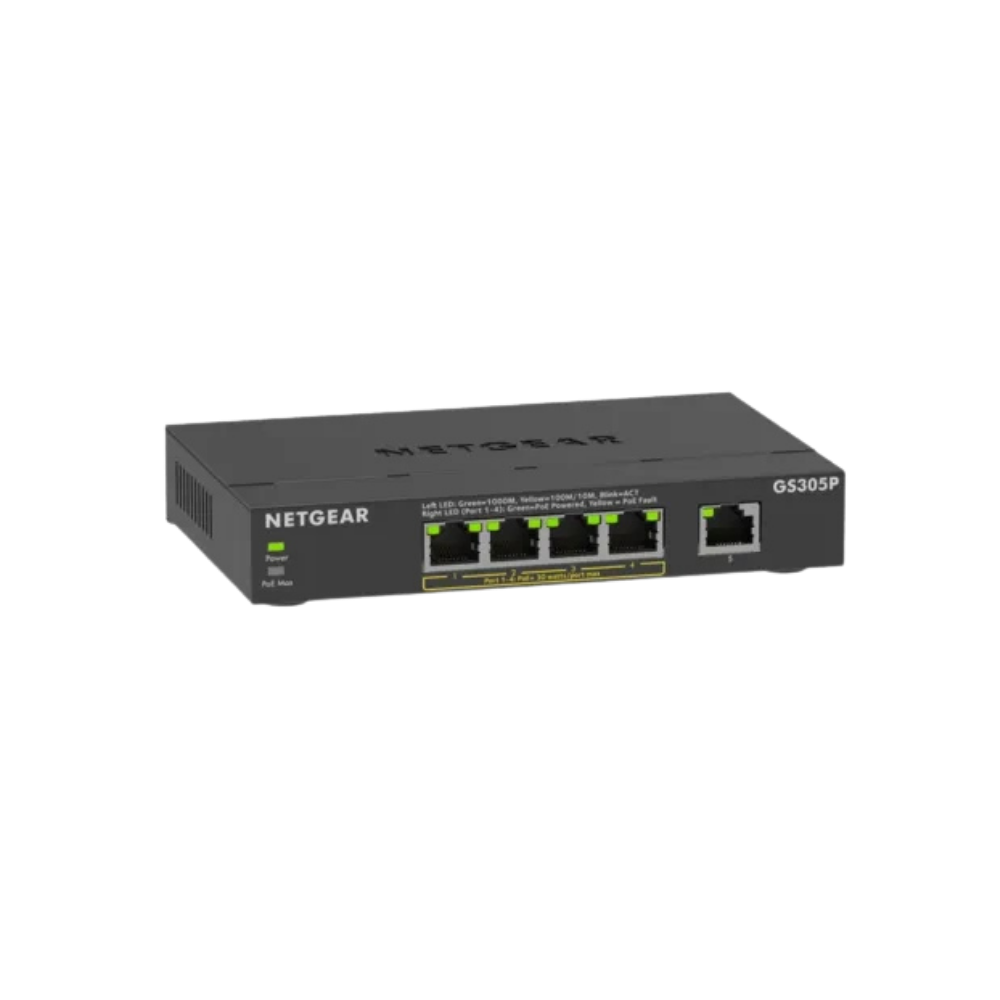

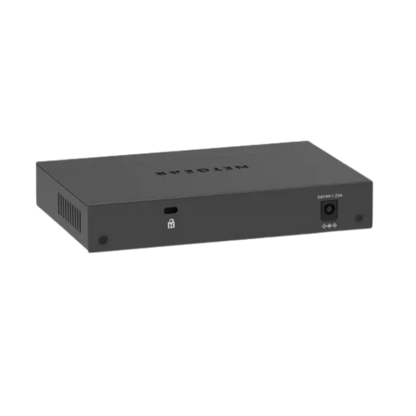

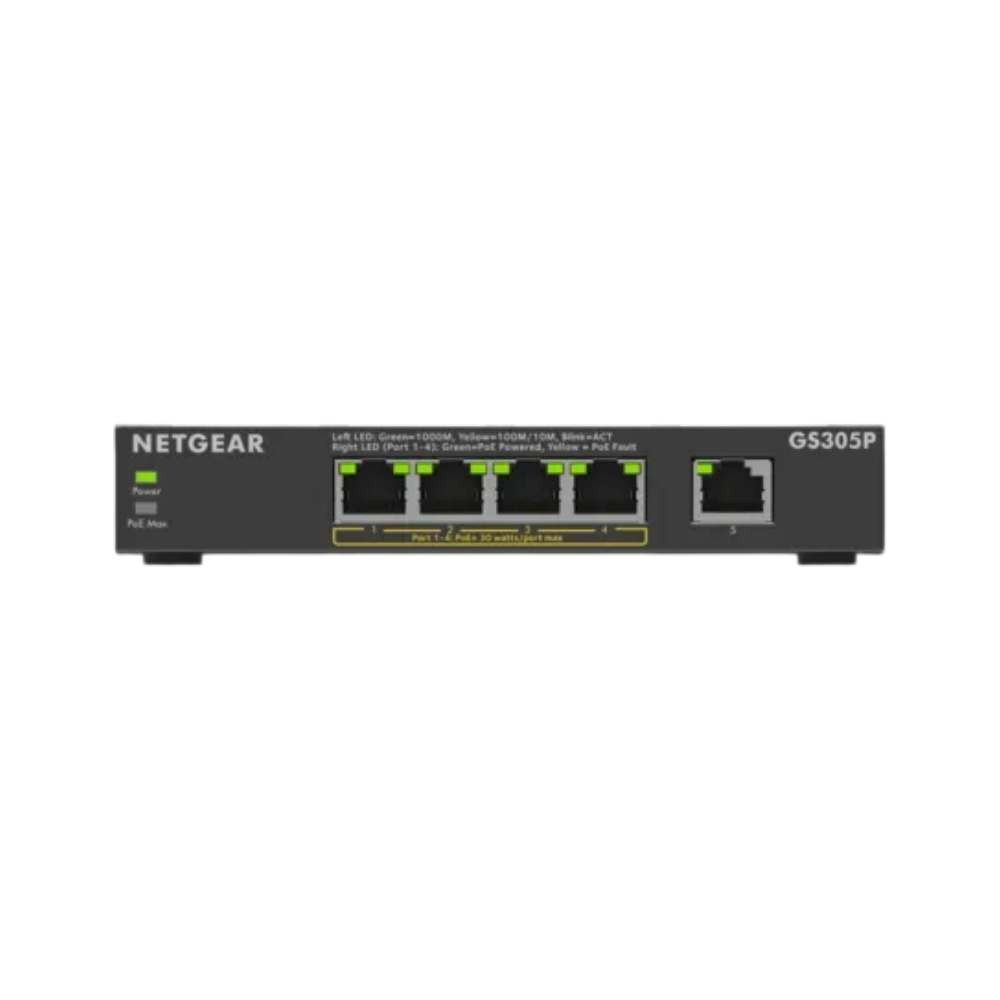

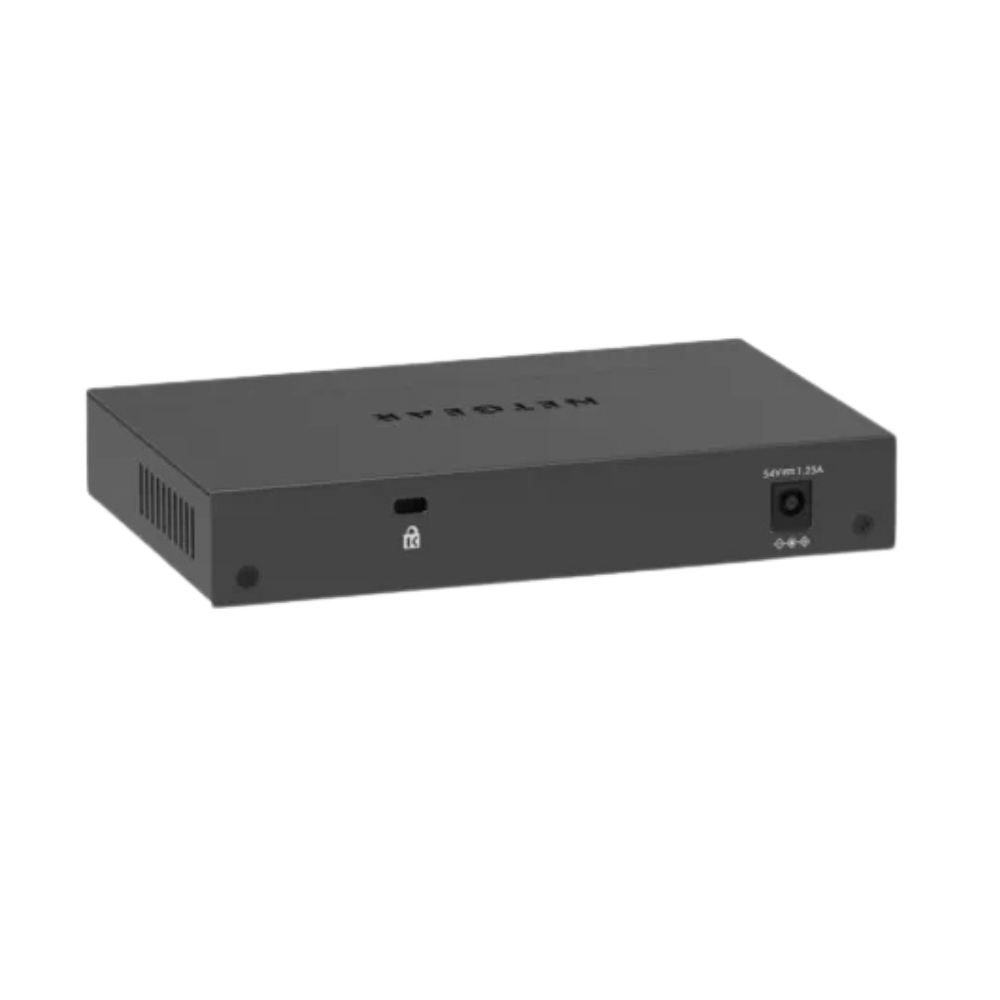

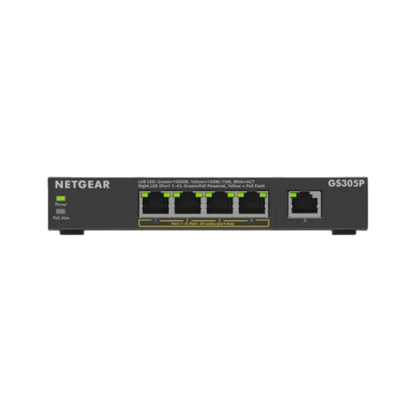

NETGEAR GS305P 5-Port Gigabit Ethernet Unmanaged PoE+ Essentials Switch (63W)

NETGEAR GS305P 5-Port Gigabit Ethernet Unmanaged PoE+ Essentials Switch (63W)

Key Features:

• Ports: 5 Ports
• Port Types:
  • 5 x 10/100/1000Mbps Ports (Auto Uplink)
  • 4 x 802.3af PoE Ports
  • 4 x 802.3at PoE+ Ports
• PoE Budget: Up to 63W Total
• Details: 5-Port Gigabit Unmanaged PoE+ Essentials Switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more.

ETHERNET PORT CONFIGURATION

5 Gigabit ports

PLUG-AND-PLAY

Simple set up with no software to install or configuration needed and zero maintenance

FULL PERFORMANCE

Non-blocking switching architecture for maximum throughput at wire speed

POWER-OVER-ETHERNET

4 PoE+ ports with 63W total power budget to power wireless AP, IP Cameras, IP Phones and much more

PoE POWER AUTO-BALANCE AND ALLOCATION

NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.

SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

ENERGY EFFICIENT

Designed to optimize power usage lowering its cost to operate.

VERSATILE MOUNTING OPTIONS

Supports desktop and wall placement. Includes wall mount kit in the box

STANDARDS-BASED DESIGN

Ensure interoperability with any standards-based PDs

• Dimensions (W x D x H): 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in)
• Weight: 0.40kg (0.88 lb)
• Speed: Gigabit
• Number of Ports: 5, 4 PoE+ @ 30W each until budget is met
• PoE budget: Up to 63W Total
• Energy Efficient Ethernet Support (IEEE 802.3az): Yes
• Jumbo frame support: 9,216 bytes
• Queue WRR Ratio: 1:2:4:8
• MAC table size: 2k
• Packet buffer size: 128KB
• IEEE 802.1p QoS: Yes
• Power Consumption (Max/Standby): 66.78W/1.02W
• Operating Temperature: 0-40°C (32°F - 104°F)
• MTBF (hours): 4,113,947 hrs (469.32 years)
• FCC Class: Class B
• Fans: 0
• Acoustic Noise Level @25C: Fanless

• NETGEAR GS305P 5-Port Gigabit Ethernet Unmanaged PoE+ Essentials Switch (63W)
• Warranty: This product is backed by NETGEAR limited lifetime hardware warranty.​
