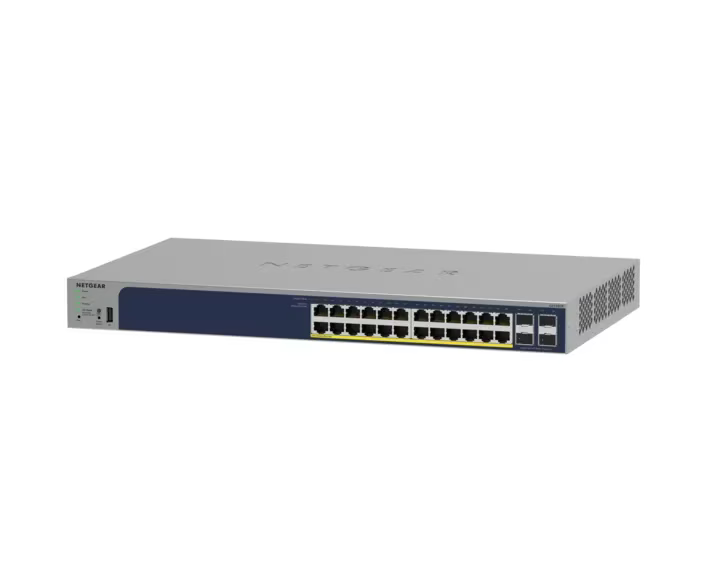

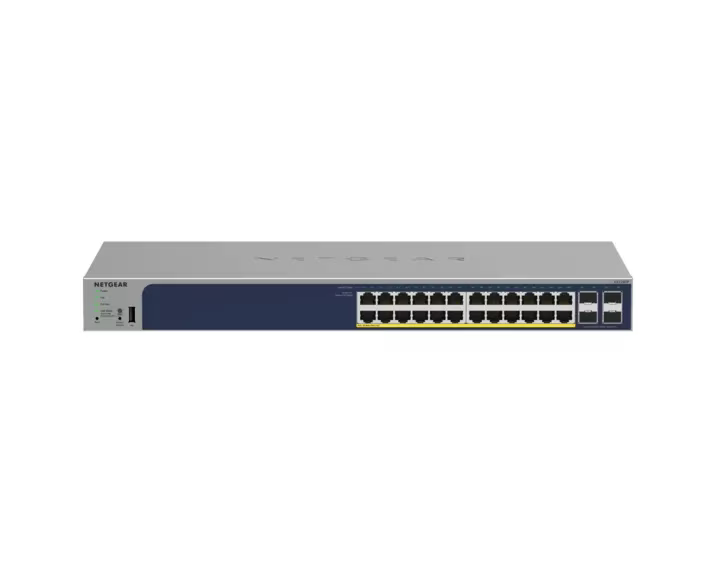

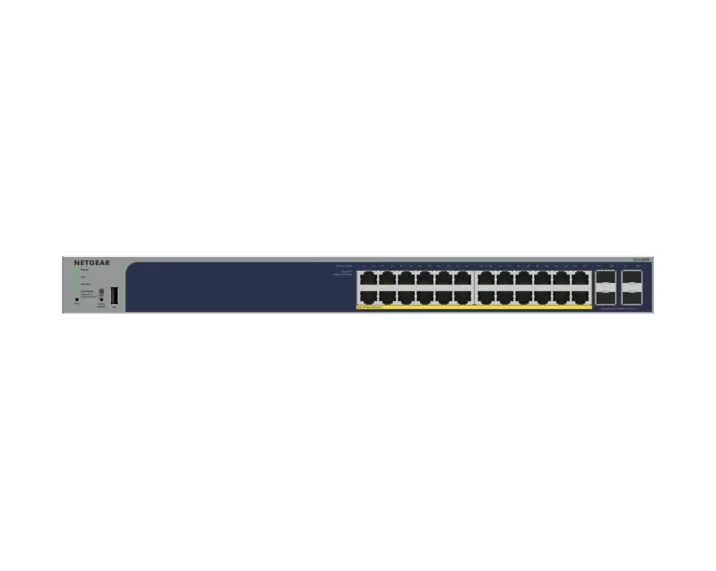

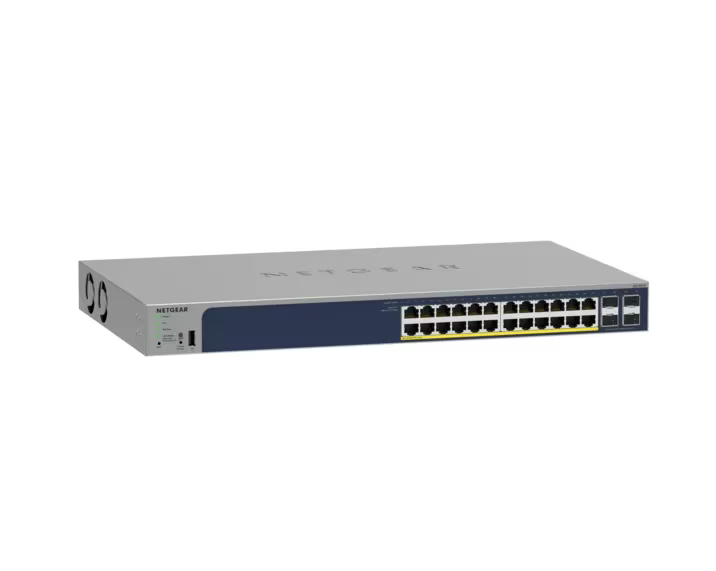

NETGEAR GS728TP 24 Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP Ports (190W)

Traffic Management

• Auto Negotiation of speed and duplex modes
• IEEE 802.3x Flow Control
• Dynamic MAC address management
• IEEE 802.1Q-based VLAN
• Auto Voice VLAN
• Auto Video VLAN (selected models)
• VLAN routing (selected models)
• QoS based on WRR, strict priority, or both
• Port-based and IEEE 801.2p-based QoS
• TCP/UDP-based QoS
• DiffServ
• IPv4 and IPv6-based QoS (selected models)
• DSCP Support
• Rate Limiting (ingress, or egress)
• Link Aggregation and LACP

Switch Management

• Web browser-based management GUI
• Smart Lite CLI Software for multi-switch management
• IP Access List
• IPv6 Management
• Configurable Management VLAN
• SNMP v1/v2c and v3
• Standard MIBs (RFC1213, RFC1643, and RFC1493)
• RMON group 1, 2, 3, 9
• Firmware download (to switch) and upload (to server) through TFTP/HTTP
• Configuration and Image Upload (to PC) through HTTP
• Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Security

• MAC lockdown
• MAC lockdown by number of MACs
• IEEE 802.1x port authentication (EAP) - MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP
• IEEE 802.1x port authentication - EAP: GS510TLP, GS510TPP, GS418TPP, GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS724TPv2, GS728TP, GS728TPv2, GS728TPP, GS728TPPv2, GS752TP, GS752TPv2, GS752TPP
• Dynamic VLAN Assignment
• Guest VLAN
• TACACS+
• 3 HTTPS /SSL versions (except FS728TLP)
• TLS session (except FS728TLP)
• Trusted MAC
• IPv4, L4-based Access Control List (ACL)
• IPv6-based ACL (selected models)

Multicast Efficiency

• IGMP snooping, v1, v2 and v3
• IGMP snooping querier
• Blocking of unknown multicast traffic

Spanning Tree, Routing and Stacking

• IEEE 802.1D, IEEE 802.1w RSTP and MSTP
• Option to enable/disable BPDU flooding when STP is disabled
• Static routing with 32 static routes (Selected models)
• Hosted ARP table size of 512 (Selected models)

Reliability, Performance and Troubleshooting

• Port mirroring both on ingress and egress traffic
• Jumbo frame support
• Broadcast Storm control
• Cable diagnostics
• Loop Detection
• DoS Prevention
• IEEE 802.1ab LLDP
• LLDP-MED
• Dual Image
• SNTP
• Option to enable/disable the flooding of EAPOL when 802.1x is disabled
• Protected ports
• DNS client (except FS728TLP)
• DHCP clients
• DHCP snooping (except FS728TLP)
• Ping and traceroute client (except FS728TLP)
• Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

• Dimensions (W x D x H): 440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)
• Weight: 3.78 kg (8.32 lb)
• Model Description: 24 Port Gigabit PoE+ Smart Switch with 4 SFP Ports (GS728TPv3)
• Management: Insight Remote/Cloud Manageable with 1 Year Insight subscription included
• 10/100Mbps ports: N/A
• Gigabit ports: 24
• SFP ports: 4
• Number of PoE ports: 24
• PoE+ (802.3at): 24
• Total PoE Power budget (Watts): 190W
• Max MAC entries: 16K
• Buffer size: 1.5MB
• VLAN (Number Supported): 256
• VLAN routing: Yes
• Dynamic VLAN assignment: Yes
• MLD Snooping: Yes
• Static route: 32
• Host ARP table: 512
• EEE: Yes
• DoS Prevention: Yes
• Internal/External: Internal 100-240VAC 50-60Hz
• Max consumption (Watts): 226W
• FAN: 2
• Acoustic Noise Level @25C (dBA): 26.80
• Operating Temperature: 0° to 50° C
• MTBF: 1,751,613 hours (200.0 years)
• ProSupport: CAT 1

• NETGEAR GS728TP 24 Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP Ports (190W)
• Warranty: This product is backed by a NETGEAR ProSAFE Limited Lifetime Hardware. Lifetime Next Business Day Hardware Replacement.
• Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
