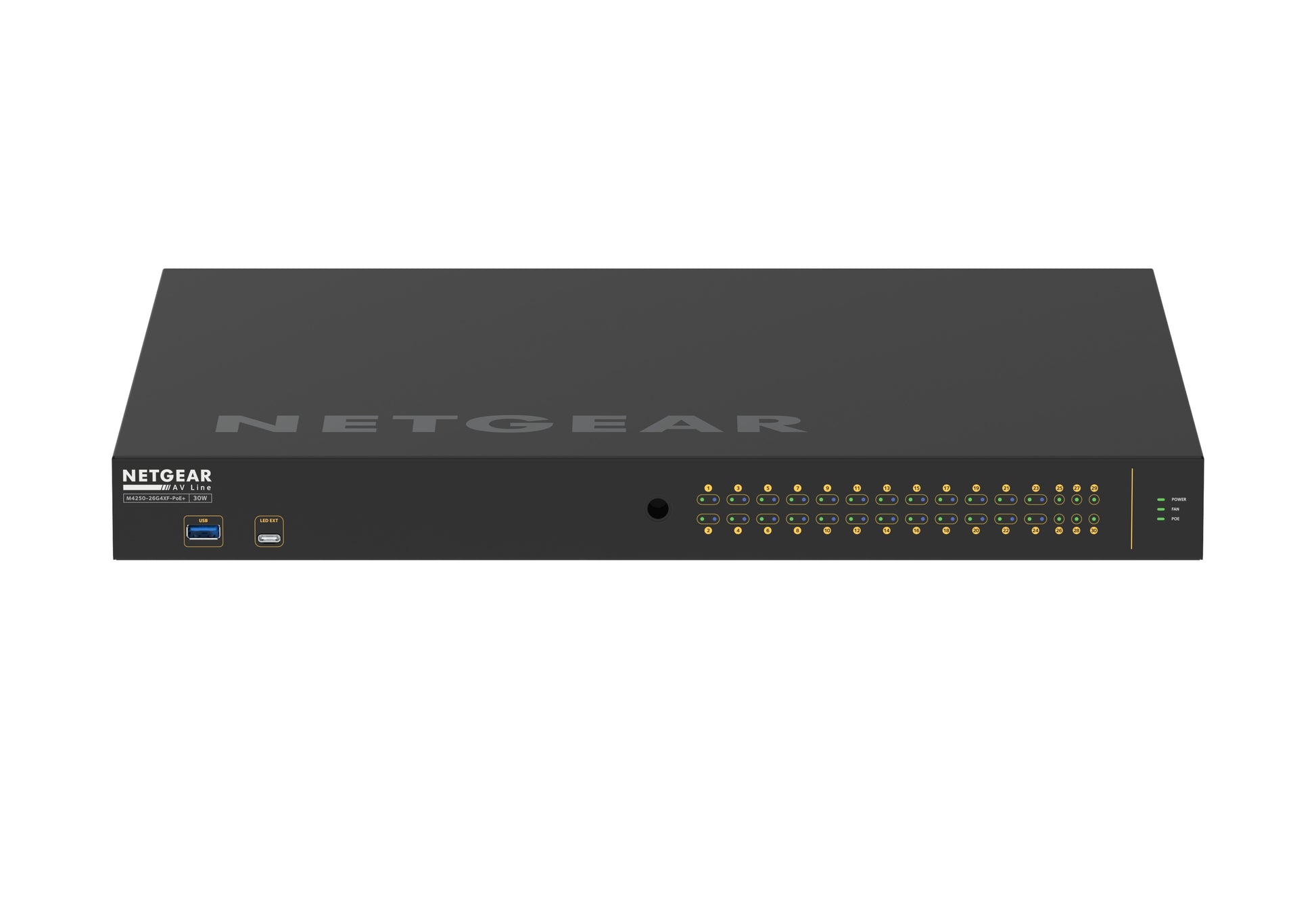

NETGEAR M4250-26G4XF-PoE+ (GSM4230PX) 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch (TAA Compliant)
NETGEAR M4250-26G4XF-PoE+ (GSM4230PX) 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch (TAA Compliant)

NETGEAR M4250-26G4XF-PoE+ (GSM4230PX) 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch (TAA Compliant)

Regular price $3,275.85 Sale price$2,099.99 Save 36%
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $1,175.86!!

MFR Part # (MPN): GSM4230PX-TAANAS
Videoguys Part # (SKU): GSM4230PXTAANAS

Short Description:
  • Free Shipping & Tech Support

NETGEAR M4250-26G4XF-PoE+ (GSM4230PX) 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch (TAA Compliant)


POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster


Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.


Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.


Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.


Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.


FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.


FOCUS ON THE EVENT, NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.


DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.


REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY

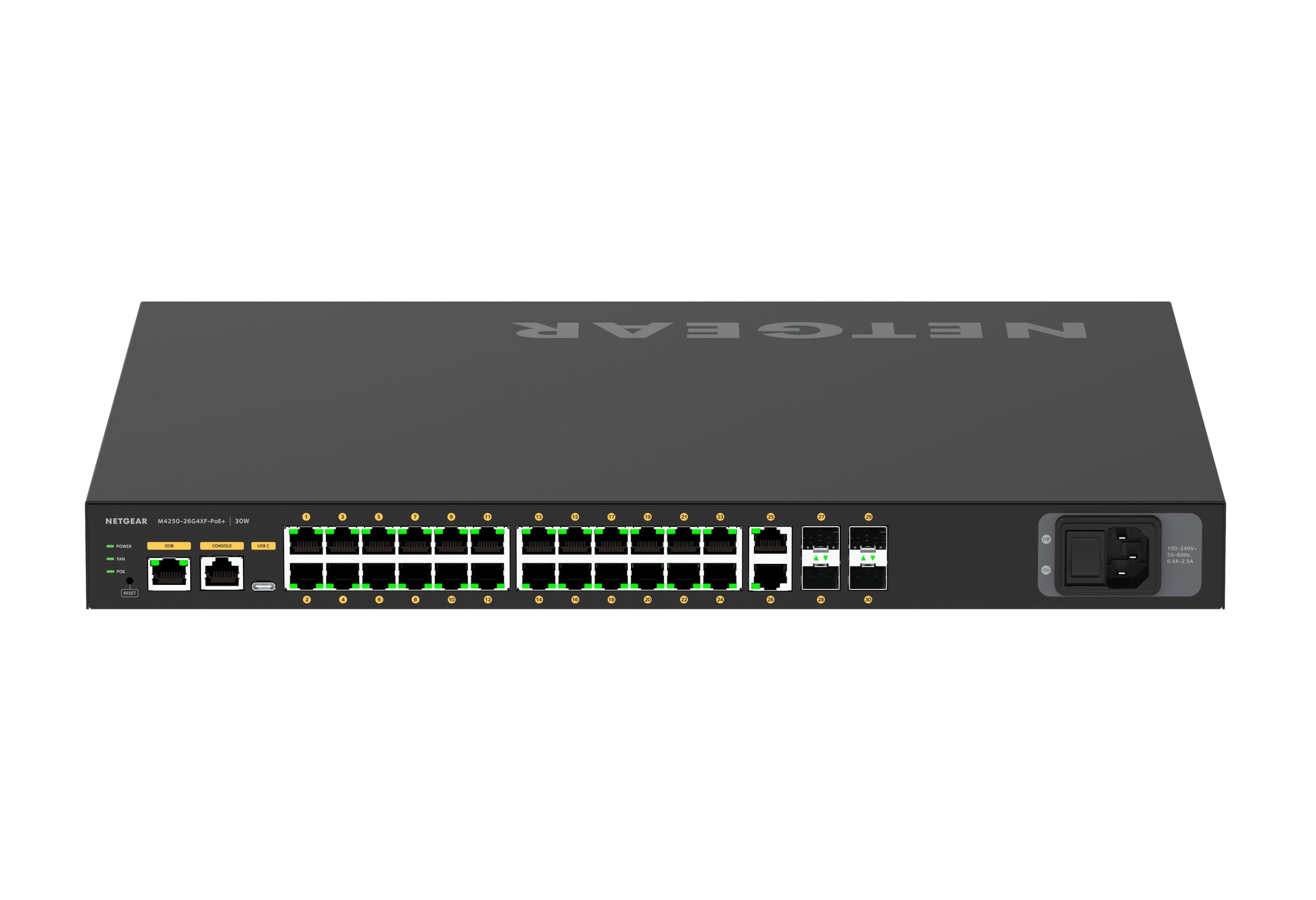

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.



  • Total Ports: 30
  • Port Types: 26x 1G,4x SFP+
  • Total PoE Budget: 480W
  • # PoE+ Ports: 24
  • # PoE++ Ports: 0
  • Rackmount: 1U
  • Form Factor: 440 x 43.2 x 400

  • Dimensions (WxDxH) : 440 x 400 x 43.2 mm
  • Weight : 5.45 kg (12.02lb)
  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
  • PoE Ports / Budget : 24 PoE+ (30W/port), 480W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230PX-10000S)
  • Acoustics : Fanless or 42dB@25ºC
  • TBD Power Consumption : With PoE: 614W/2096.2Btu/hr
  • Without PoE: 46.8W/159.78Btu/hr
  • Standby without any port connection: 33.9W/115.73Btu/hr
  • Third party support : Domotz

  • M4250-26G4XF-PoE+ (GSM4230PX)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
