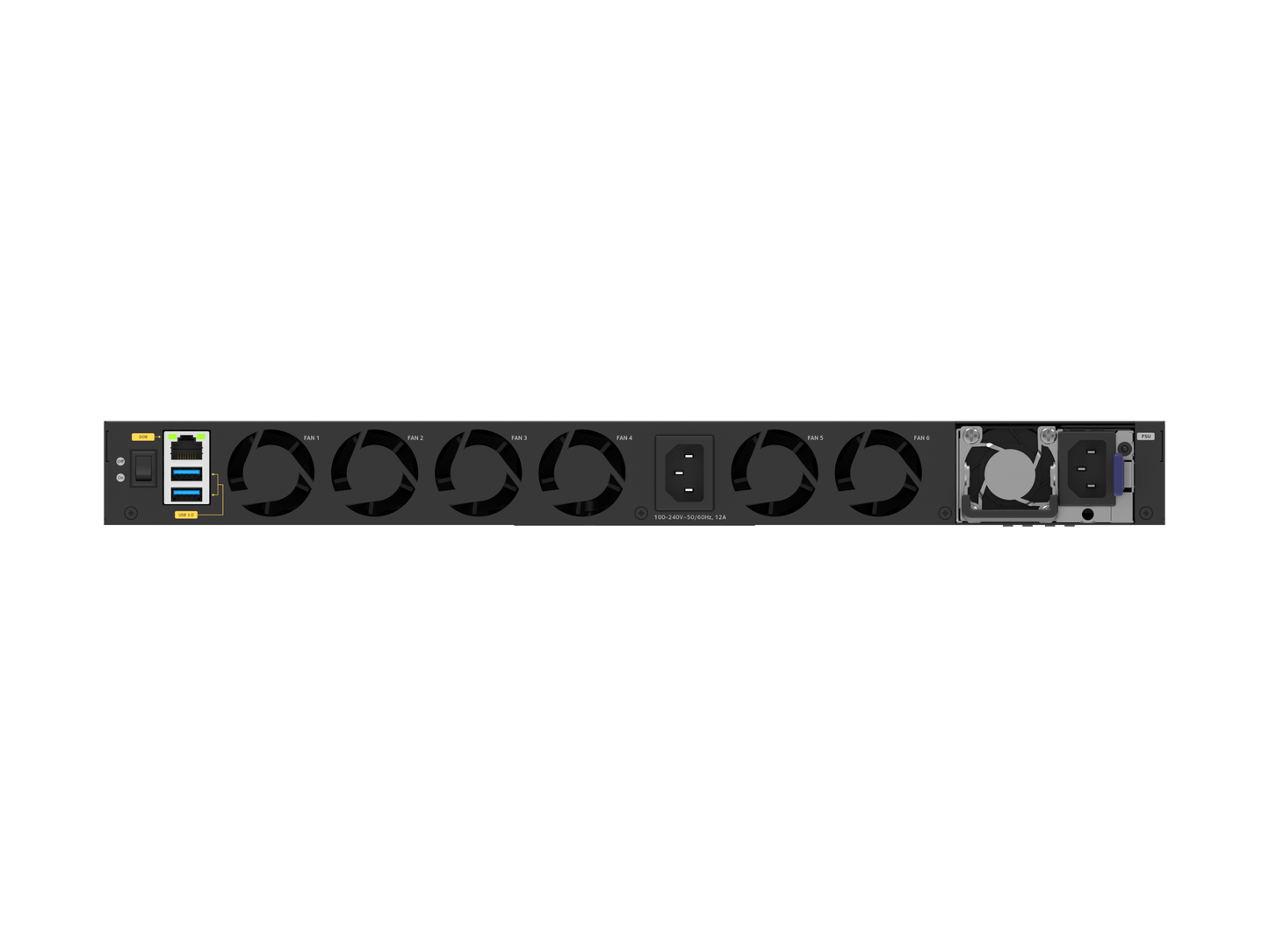

NETGEAR M4350-40X4C (XSM4344FC) 40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Fully Managed Switch

• 40 10GBASE-X SFP+ ports with 4 100GBASE-X QSFP28 uplinks
• 420W internal power supply
• 1 slot for modular power supply (1+1 redundancy)
• Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
• Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations
• SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications
• Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller.
• NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.


Fast, Easy, Configuration for AV Pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus on the Event, Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise

Designed for AV Over IP Right Out Of The Box
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box

• # Total Ports: 44

• Port Types: 40 x 10G SFP+, 4 x 100G QSFP28)





• Width:440mm
• Depth: 400mm
• Height: 43.2mm
• Weight: 7.38Kg (16.26lb)
• Primary Port Speed: 10 Gigabit
• Number of Ports: 44 (40 x 10G SFP+, 4 x 100G QSFP28)
• IGMP Support: Enhanced (NETGEAR IGMP Plus™)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• Acoustics: Quiet Mode 34.2dB@25ºC
• Power Consumption: Max: 213.6W/728.21Btu/hr
• Standby without any port connection: 65W/221.12Btu/hr

• PSU Compatible Models: APS600Wv3; APS1200Wv2; APS2000Wv2





WARRANTY: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support is provided for 90 days from the purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

• M4350-40F4C (XSM4344FC) X1
• Power cord(s) X1
• Console USB Type-C cable X1
• Rack-mounting standard bracket set X1
• Set of longer brackets for recessed mounting X1
• Rubber footpads for tabletop installation X4
• Installation guide X1
