- What's Included
- Demo Videos

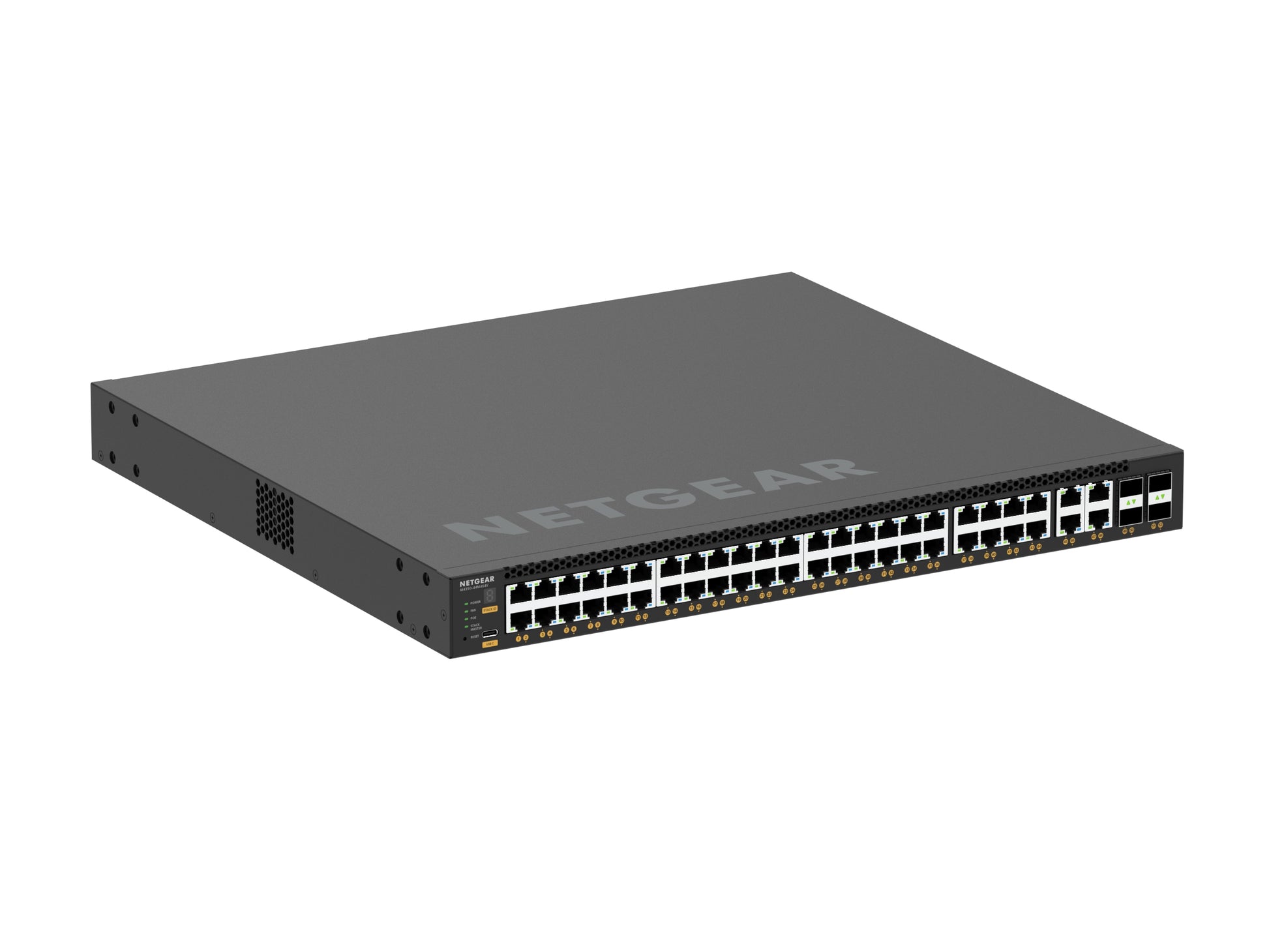

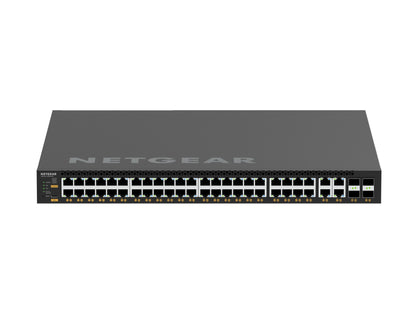

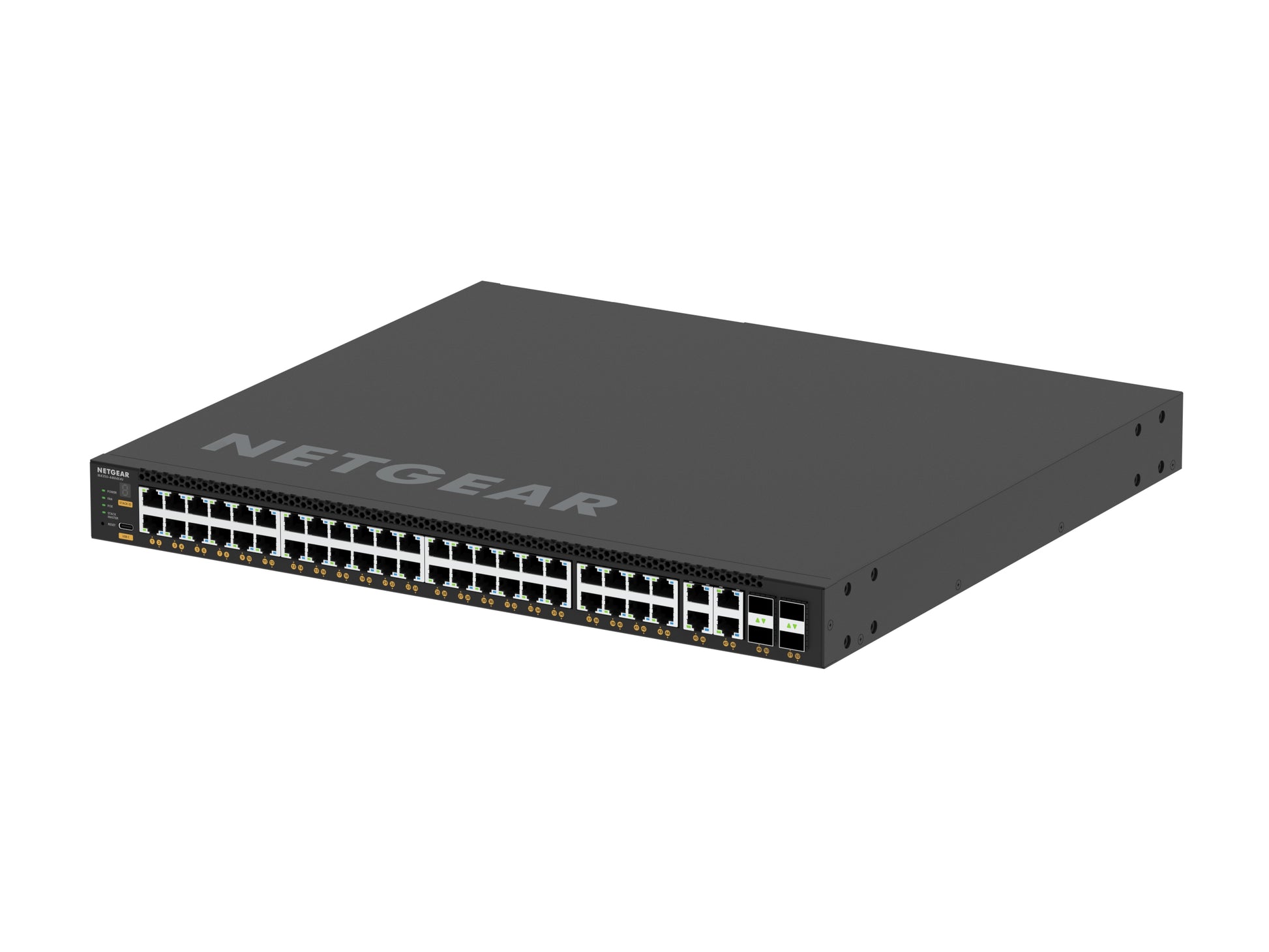

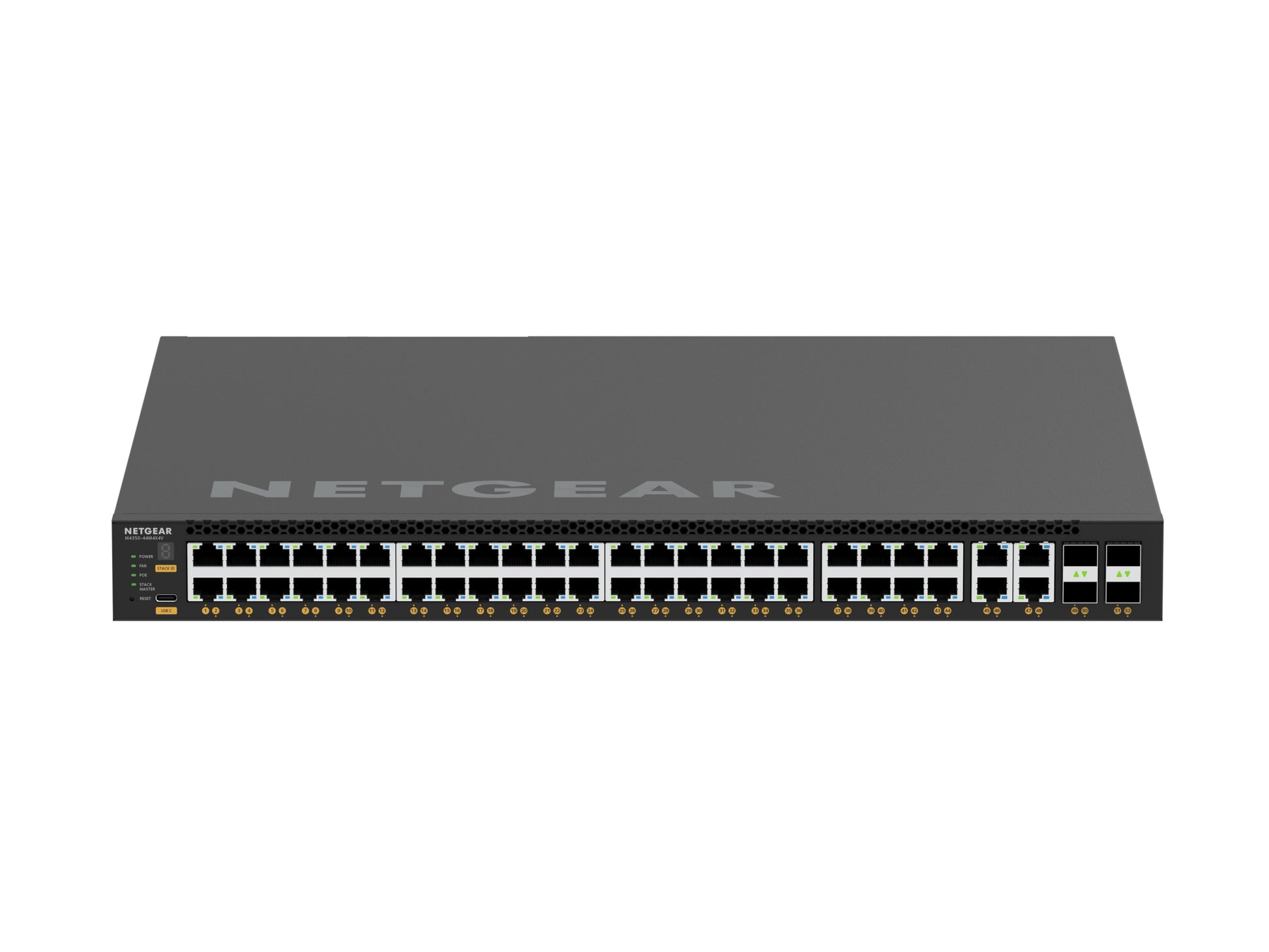

- 44 2.5G and 4 10G/Multi-gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
- 550W internal power supply providing 194W of PoE budget

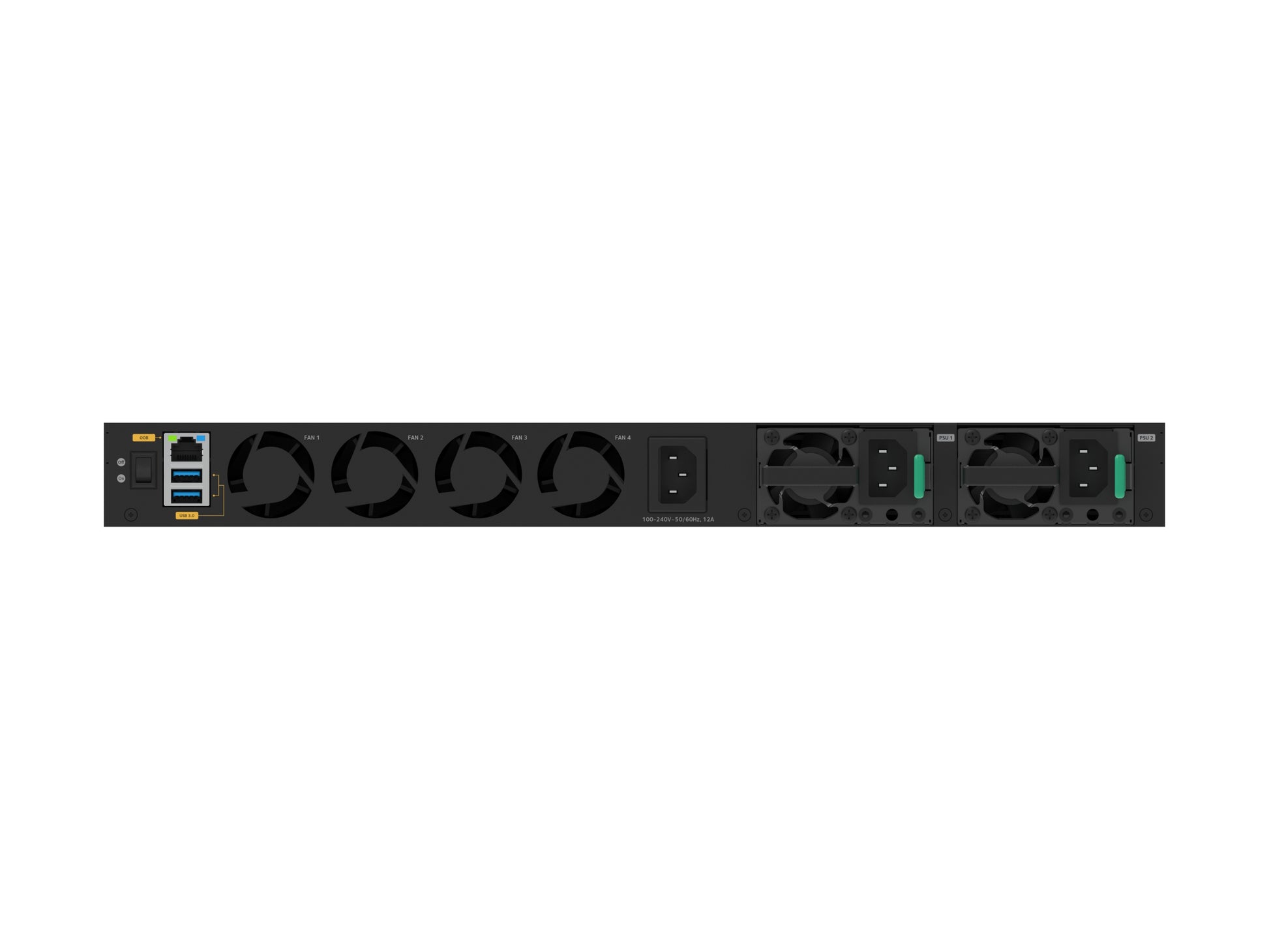

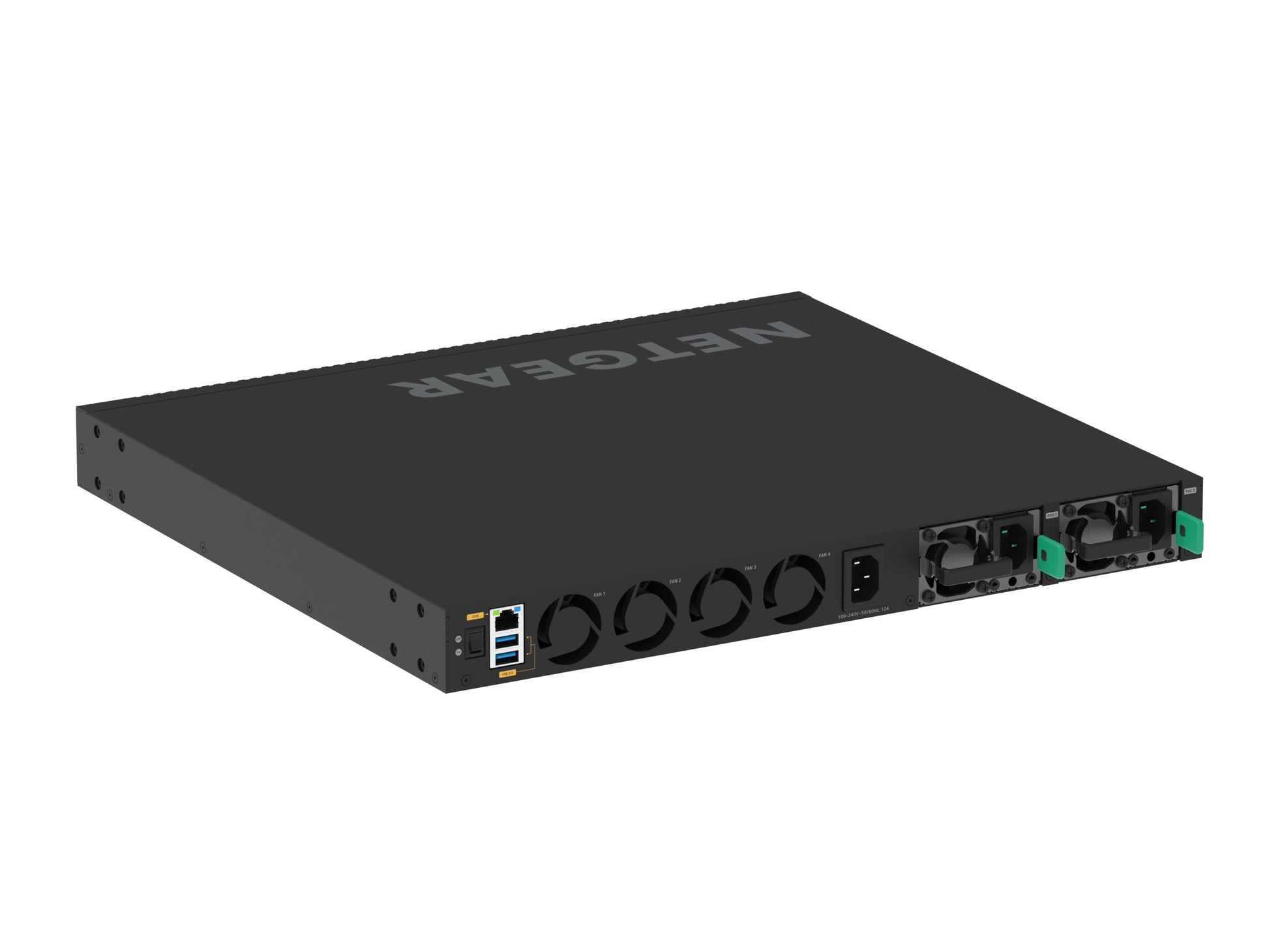

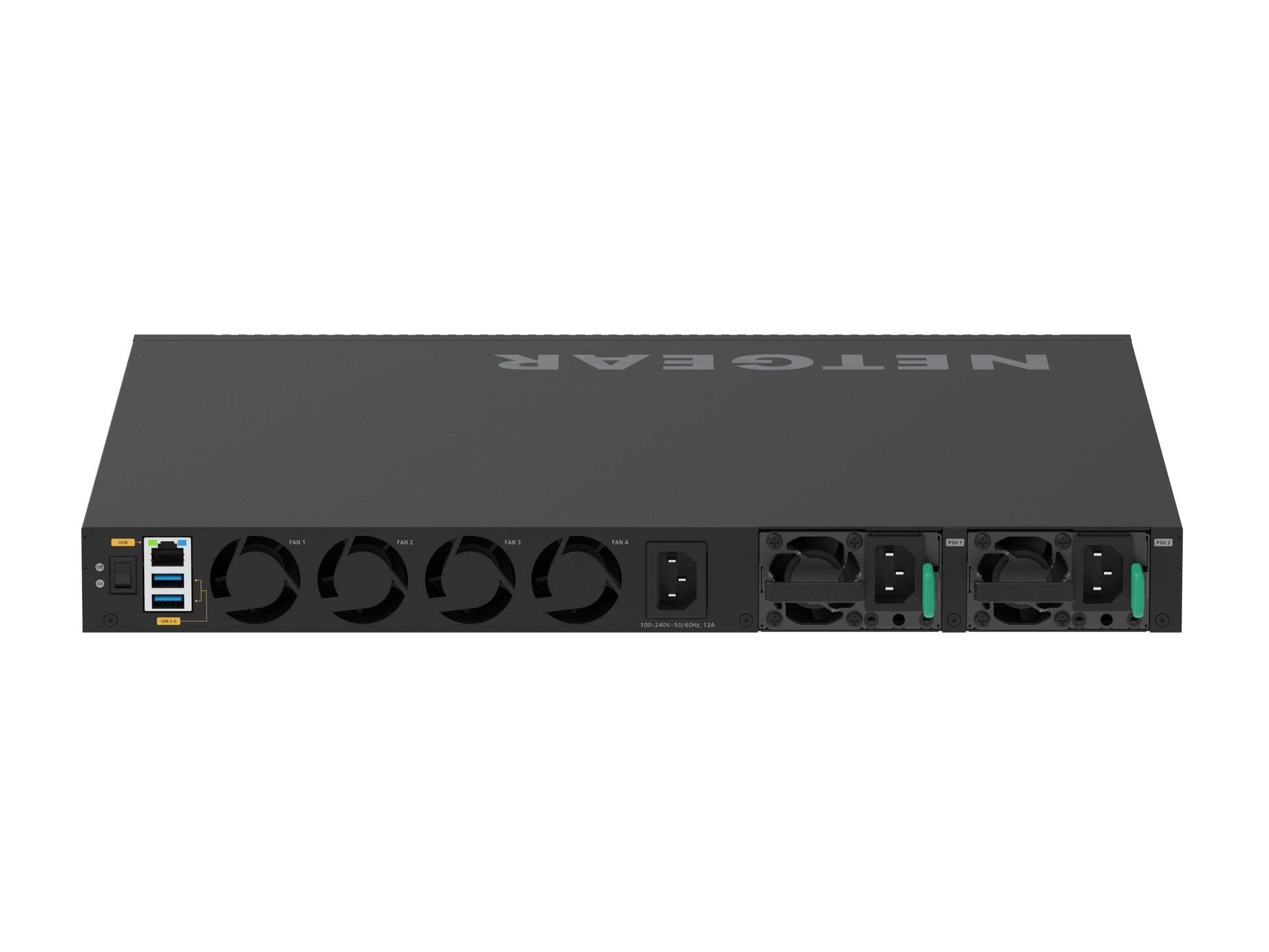

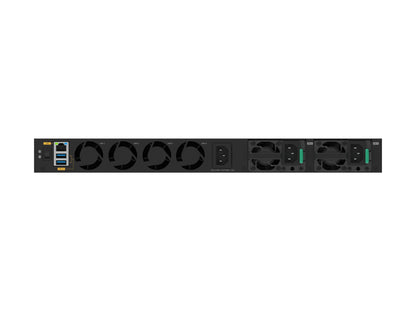

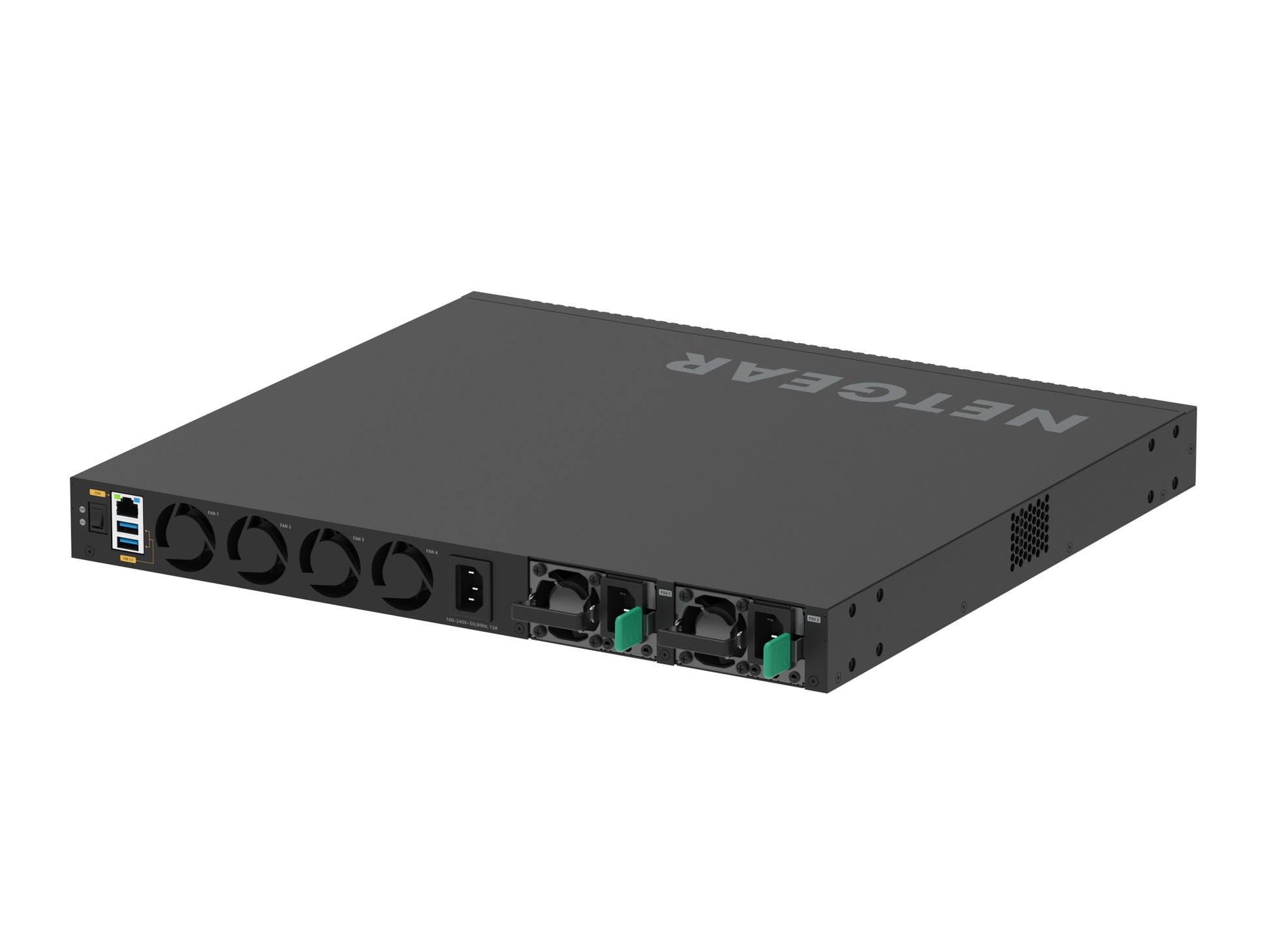

- 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 3,314W, the redundant PoE budget can reach 1,794W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
- TAA compliant SKU is available. Contact your sales representative
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT, NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
- # Total Ports: 52
- Port Types: 44x 1G/2.5G, 4x 1G/2.5G/5G/10G, 4x SFP28 (25G)
- Total PoE Budget: 94W -> 3,314W
- # PoE+ Ports: n/a
- # PoE++ Ports: 48
- Rack Mount: 1U
- Form Factor: 440 x 400 x 43.2
Primary Port Speed
Number of Ports

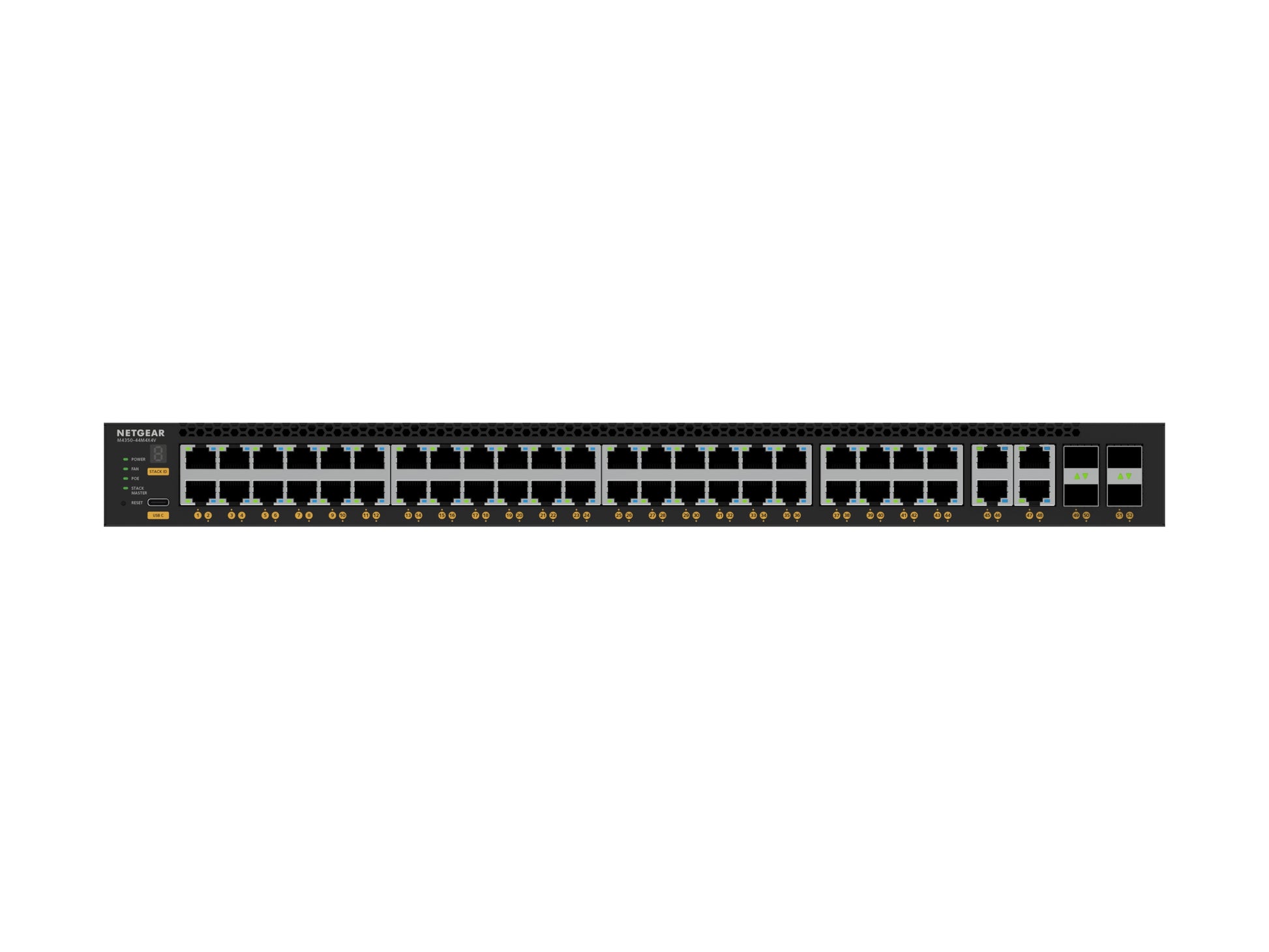

52 (44 x 2.5G PoE++, 4 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)
PoE Ports / Budget
48 PoE++ (90W/port), 194W Base, up to 3,314W Budget
Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support
Yes, up to 12kb
Quiet Mode 34dB@25ºC
With PoE: 351.5W/1198.62Btu/hr
Without PoE: 133.5W/419.19Btu/hr
Standby without any port connection: 56.5W/177.41Btu/hr
PSU Compatible Models
- M4350-44M4X4V (MSM4352)
- Power cord(s)
- Console USB Type-C cable
- Rack-mounting standard bracket set
- Set of longer brackets for recessed mounting
- Rubber footpads for tabletop installation (4x)
- Installation guide
