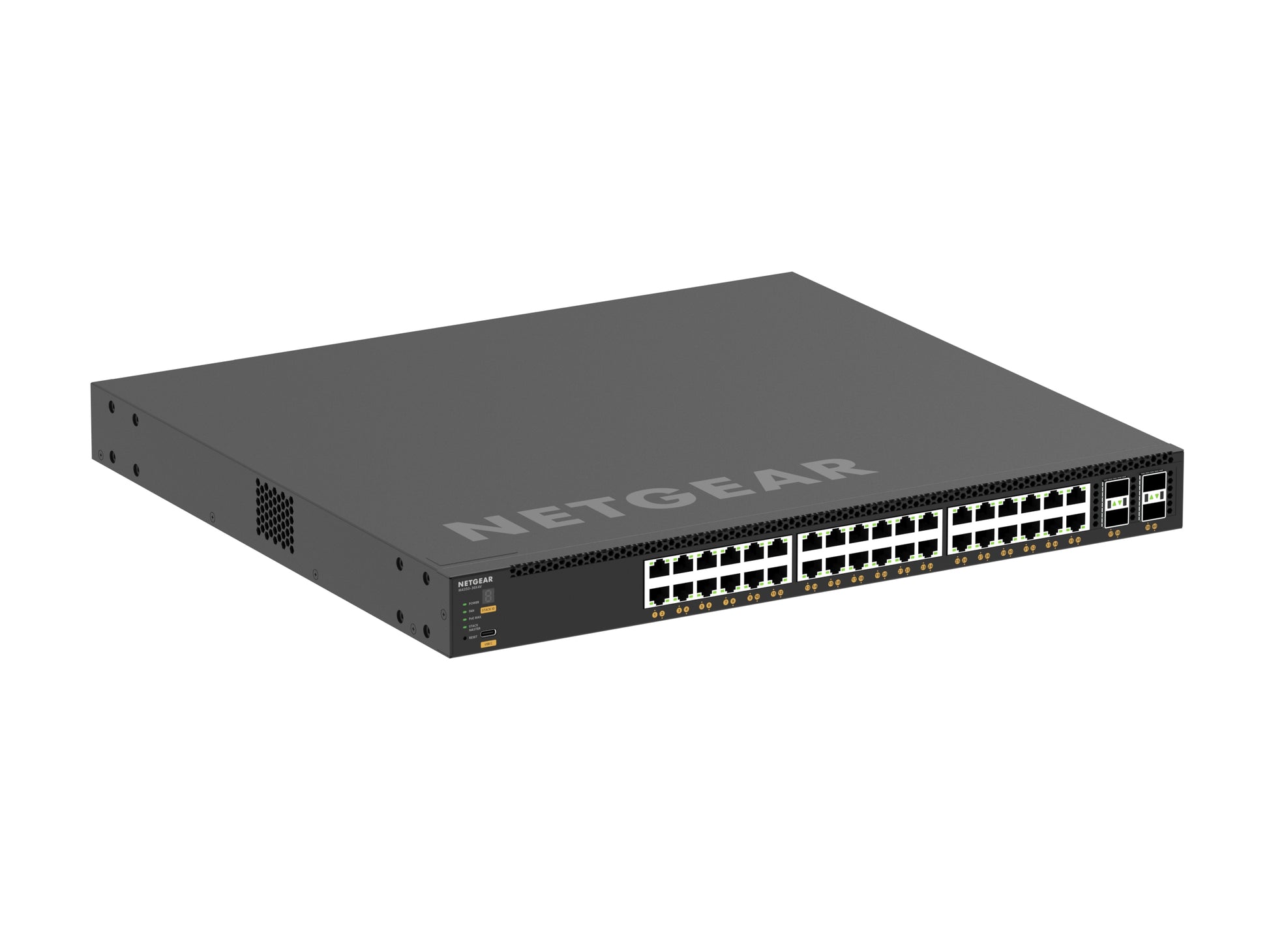

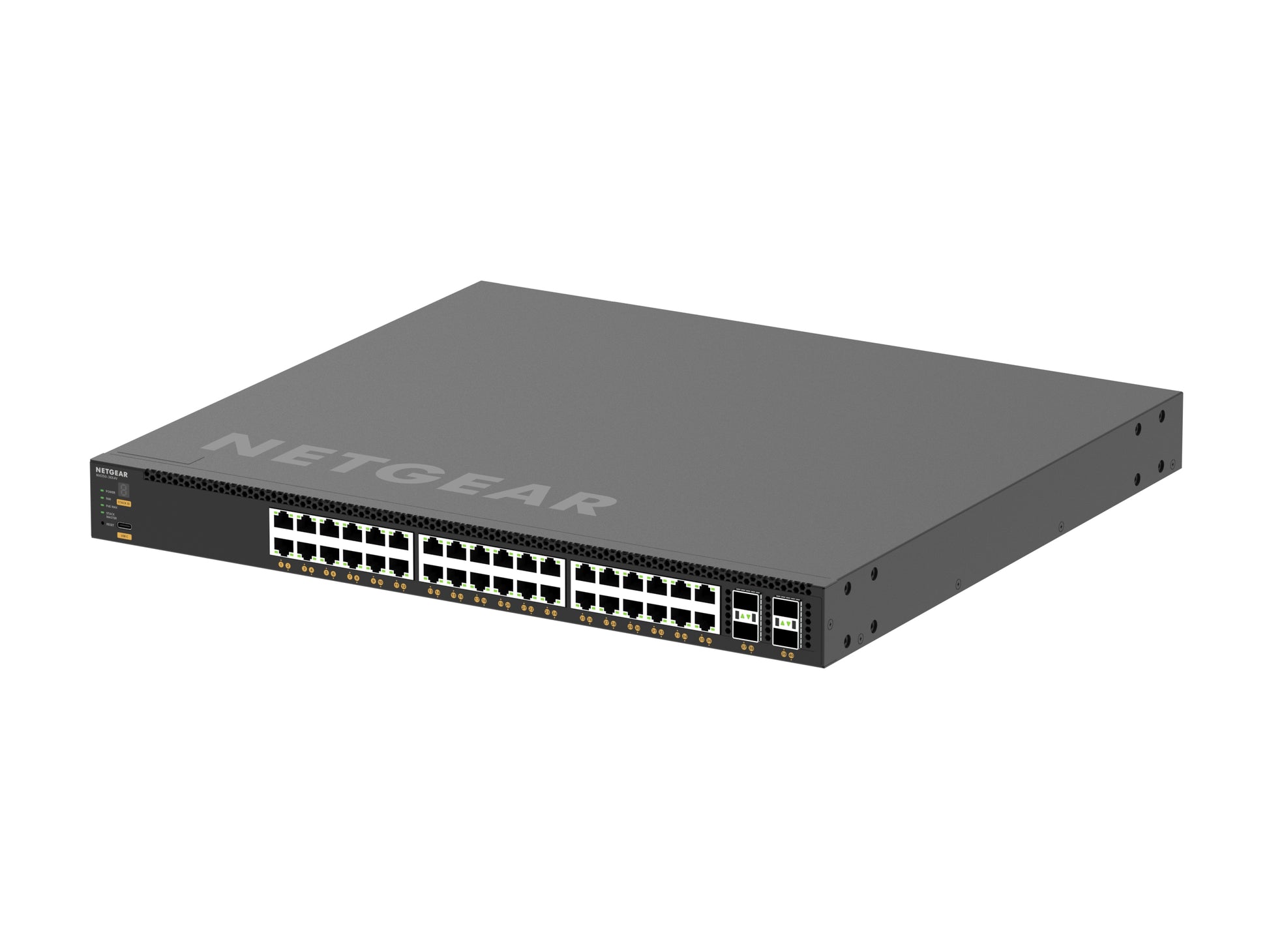

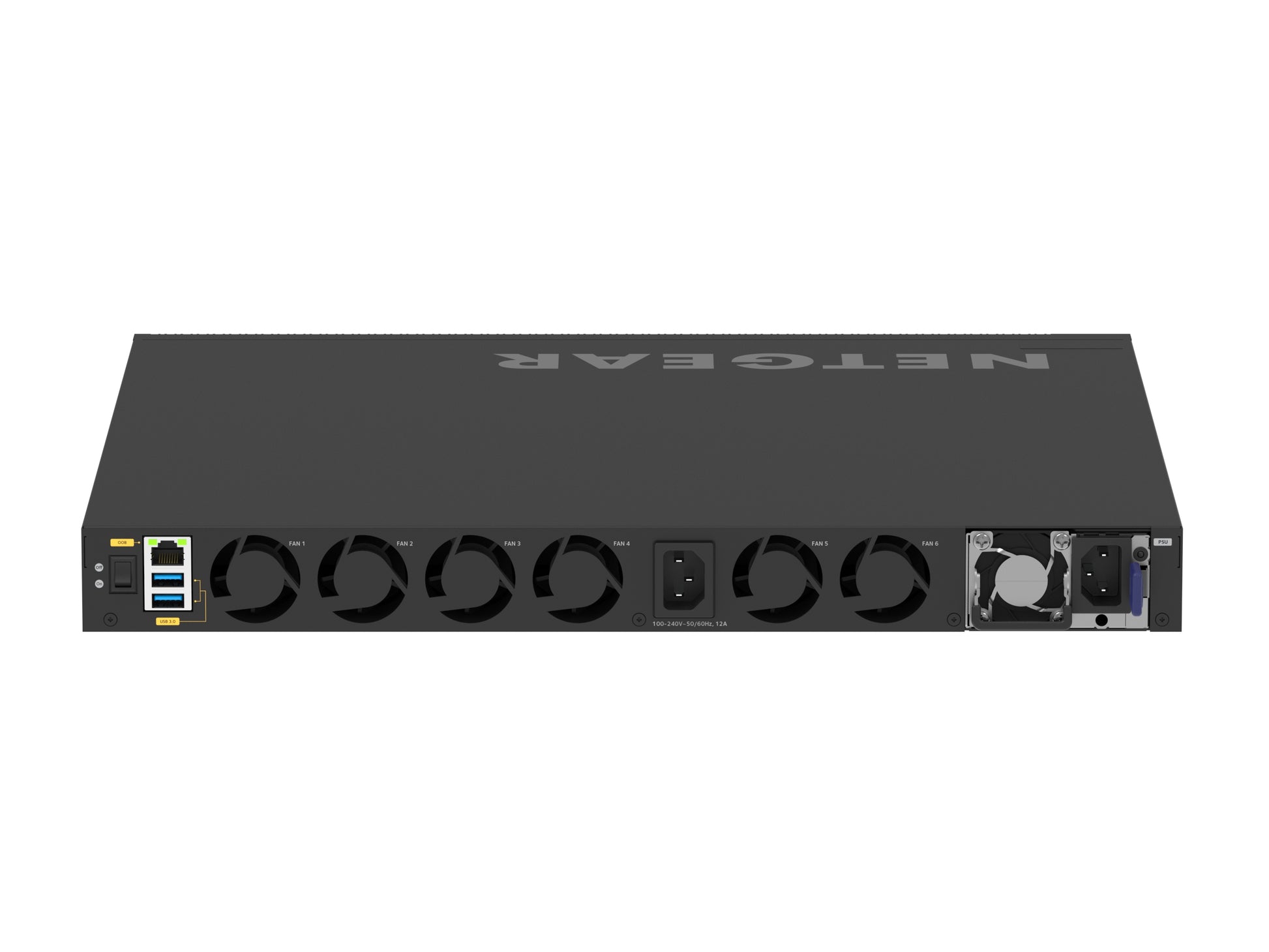

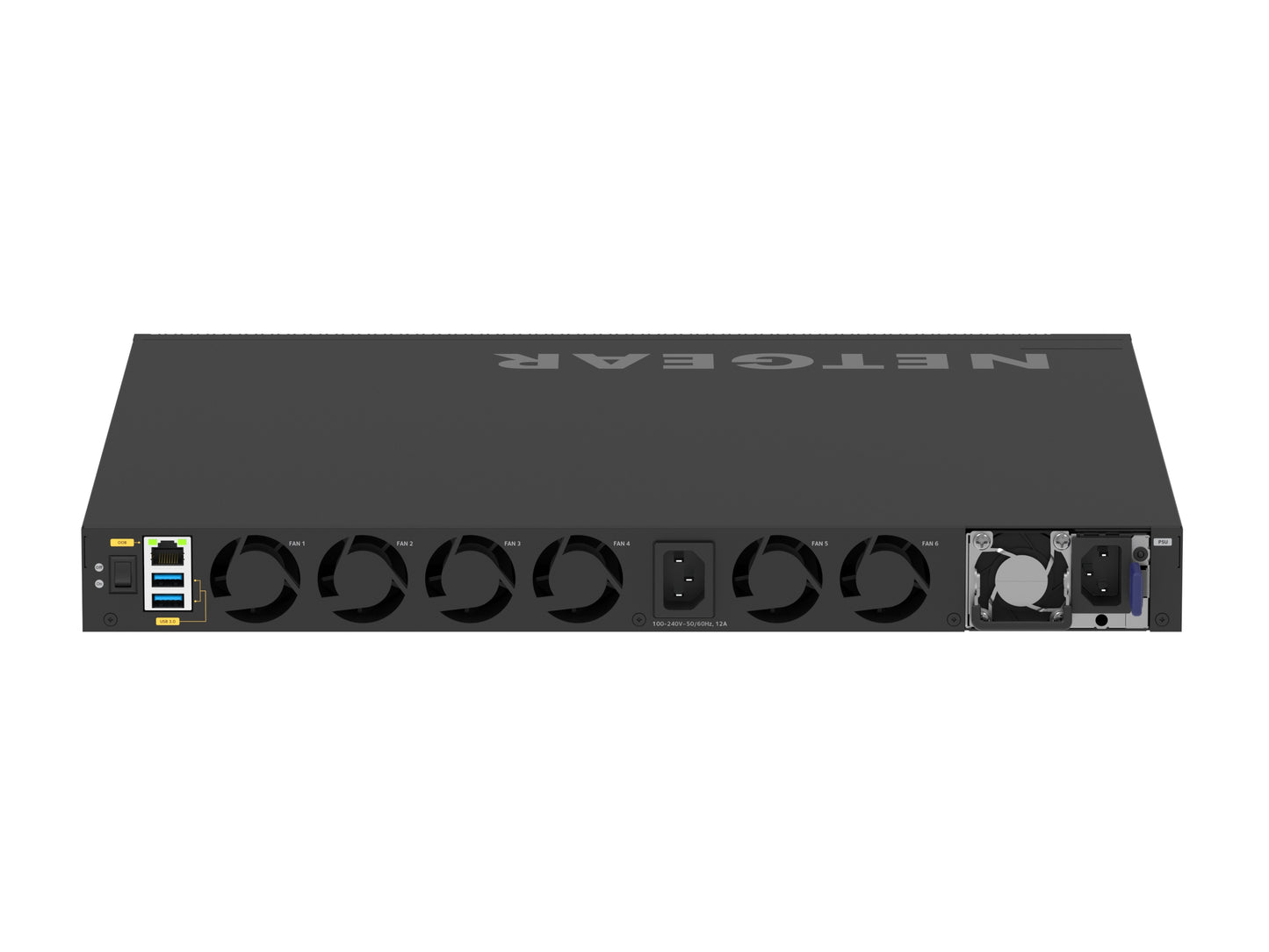

NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch
NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch

NETGEAR M4350 XSM4340CV 40-Port 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch

Regular price $10,919.52 Sale price$6,999.99
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $3,919.53!!

Videoguys Part # (SKU): XSM4340CV100NES
MFR Part # (MPN): XSM4340CV-100NES

Short Description:
  • Free Shipping & Tech Support
  • 36 10G/Multi-Gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
  • 750W internal power supply providing 280W of PoE budget

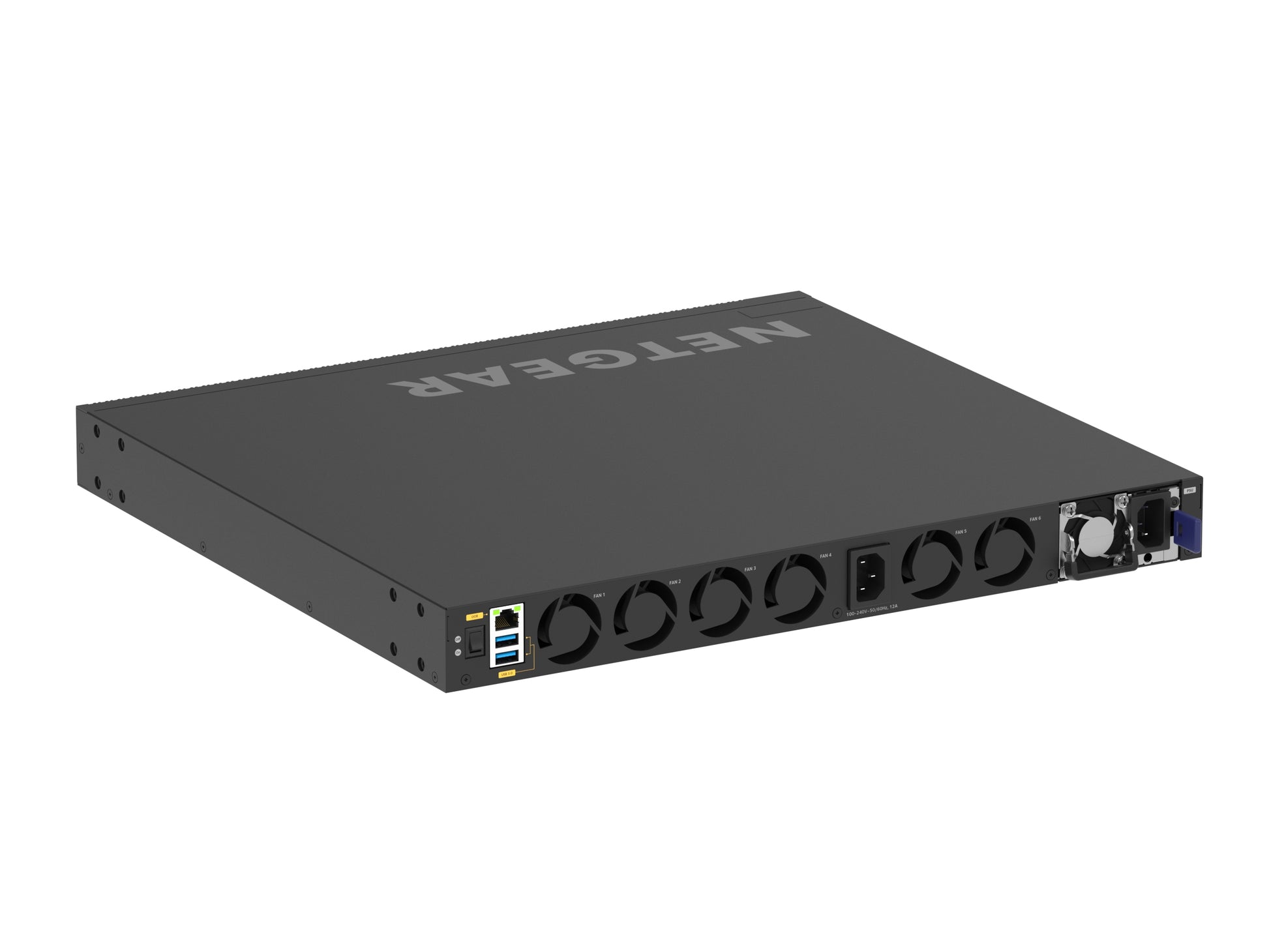

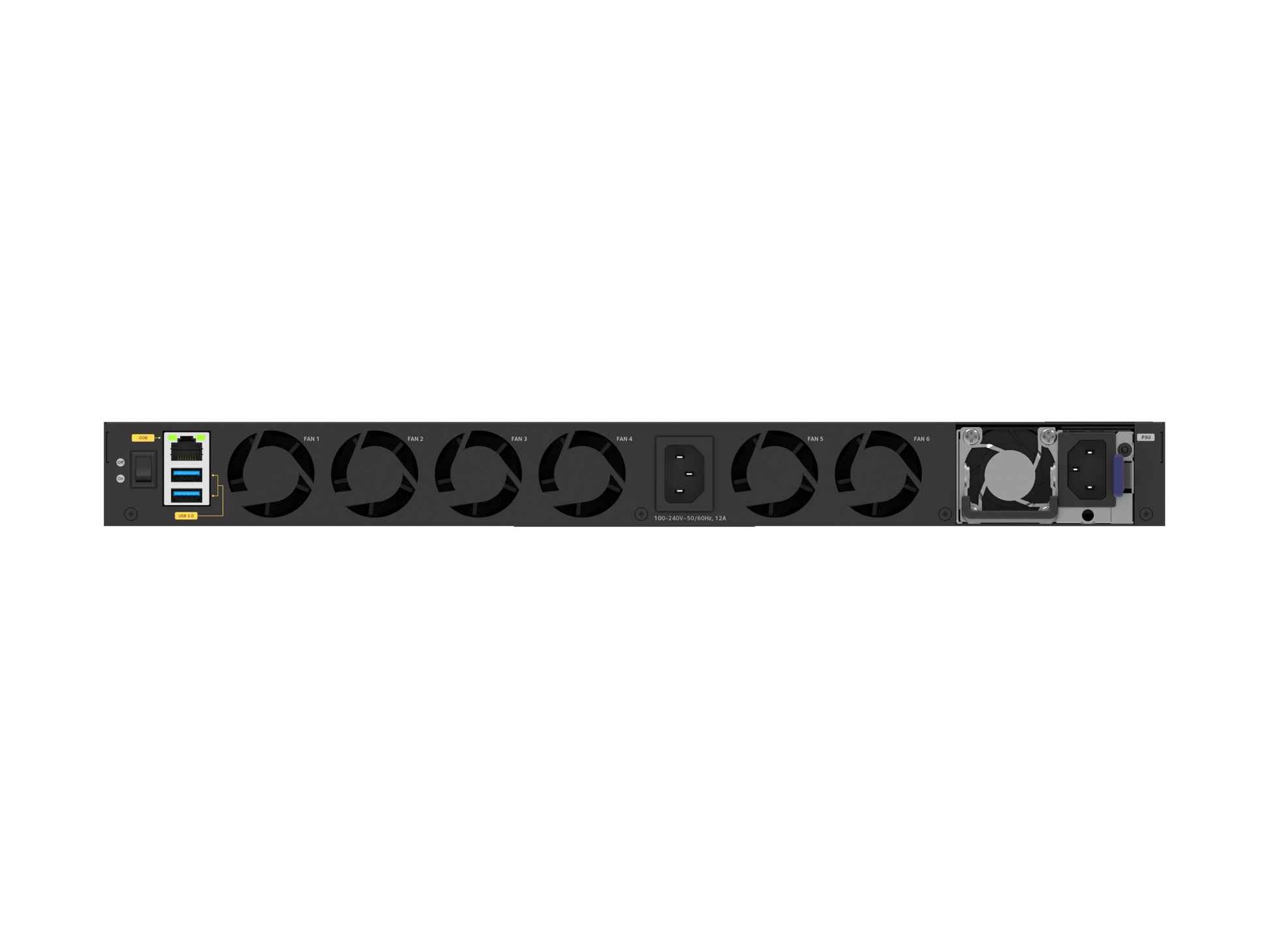

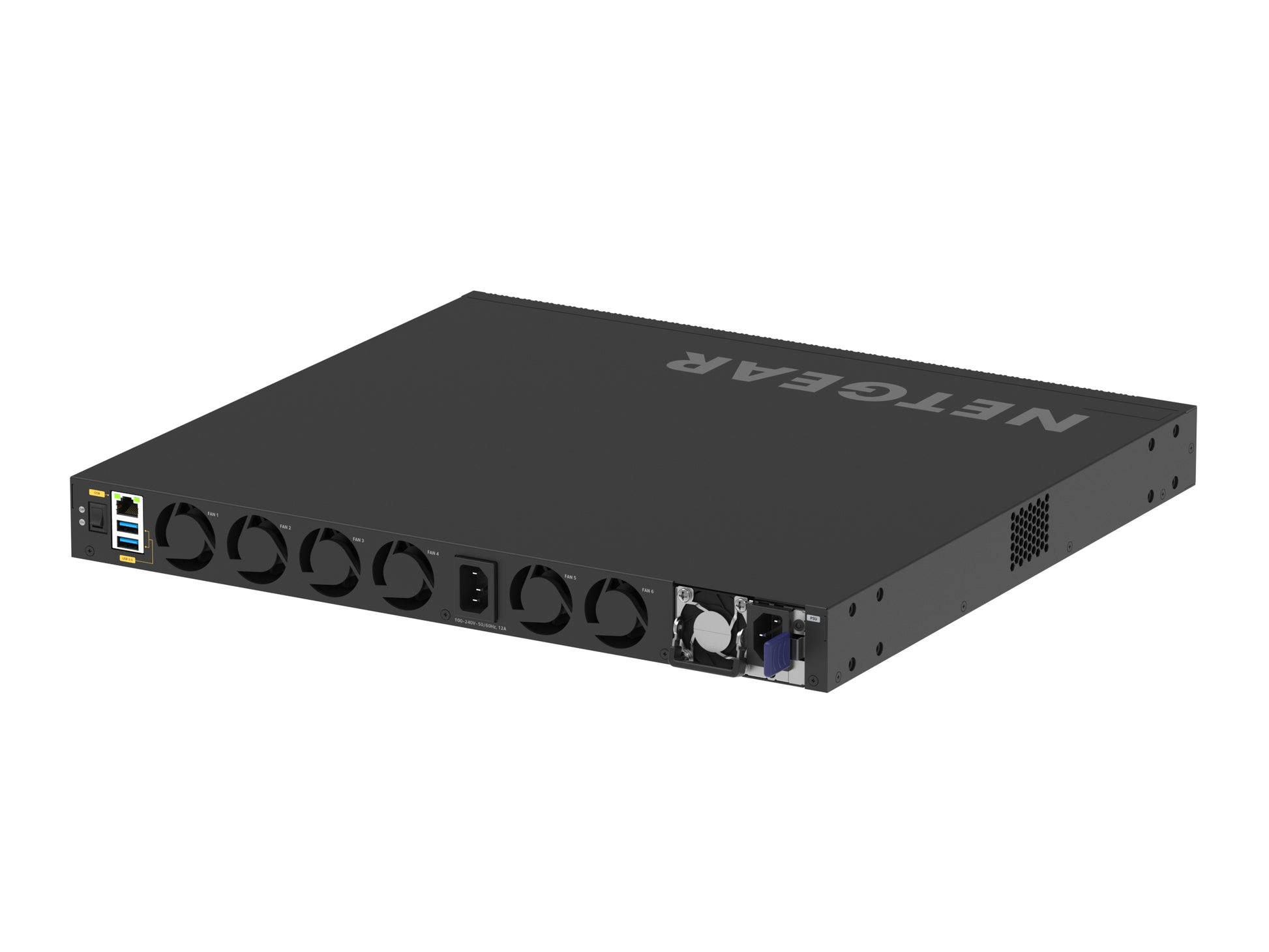

  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 1,760W, when the redundant PoE budget remains 280W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  • Lifetime Next Business Day Hardware Replacement



POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.



Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.



Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.



Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.



Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.



FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.



FOCUS ON THE EVENT, NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.



DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.



  • # Total Ports: 40

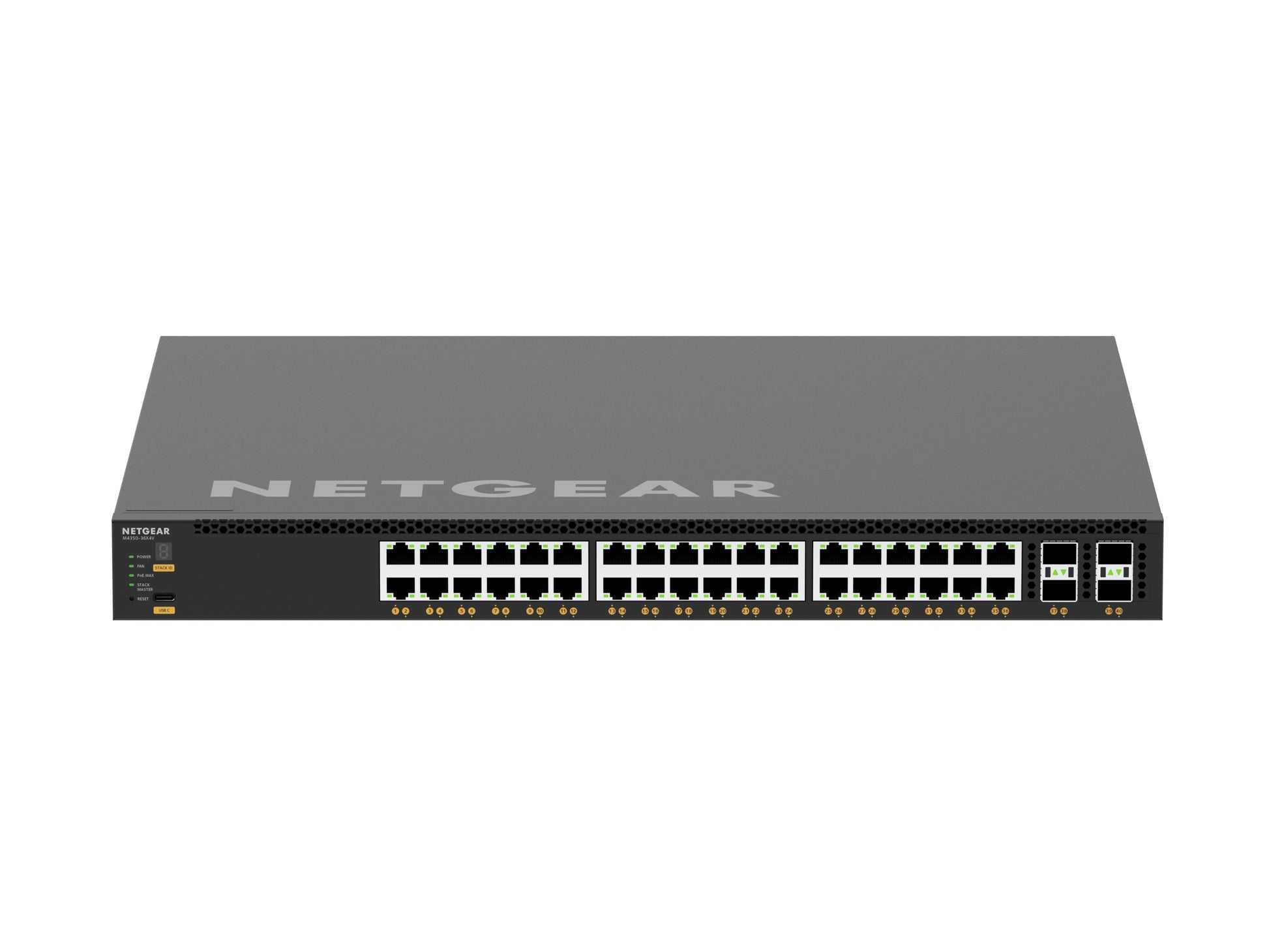

  • Port Types: 36x 1G/2.5G/5G/10G, 4x SFP28 (25G)
  • Total PoE Budget: 280W -> 1,760W
  • # PoE+ Ports: n/a
  • # PoE++ Ports: 36
  • Rack Mount: 1U
  • Form Factor: 440 x 400 x 43.2

Width
440mm


Depth
400mm


Height
43.2mm


Weight
7.33kg (16.16lb)


Primary Port Speed
10 Gigabit / Multi-Gig


Number of Ports
40 (36 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)


PoE Ports / Budget
36 PoE++ (90W/port), 280W Base, up to 1,760W Budget


IGMP Support
Enhanced (NETGEAR IGMP Plus™)


Jumbo Frame Support
Yes, up to 12kb


AVB Support
Yes, included


Acoustics
Quiet Mode 32.1dB@25ºC


Power Consumption
With PoE: 454W/1548.14Btu/hr
Without PoE: 148W/464.72Btu/hr
Standby without any port connection: 59.3W/186.2Btu/hr



PSU Compatible Models
APS600Wv3
APS1200Wv2
APS2000Wv2

  • M4350-36X4V (XSM4340CV)
  • Power cord(s)
  • Console USB Type-C cable
  • Rack-mounting standard bracket set
  • Set of longer brackets for recessed mounting
  • Rubber footpads for tabletop installation (4x)
  • Installation guide
