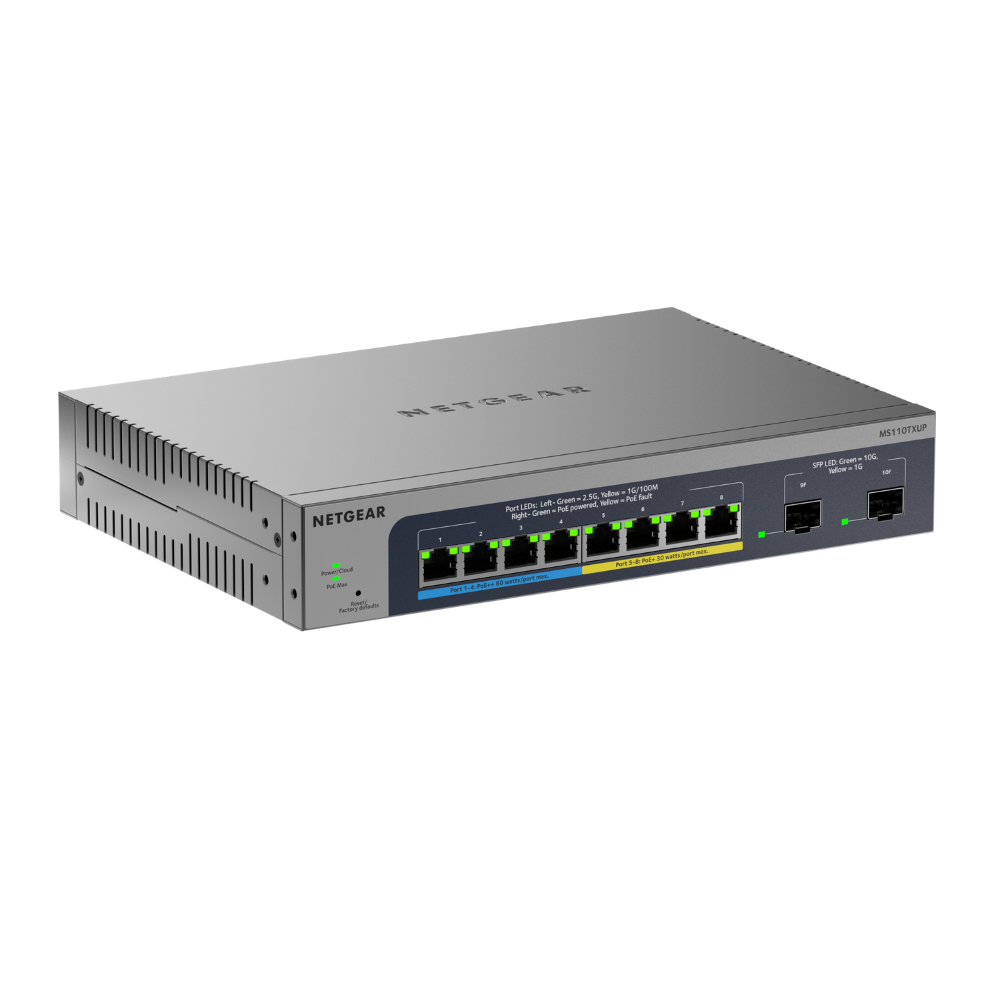

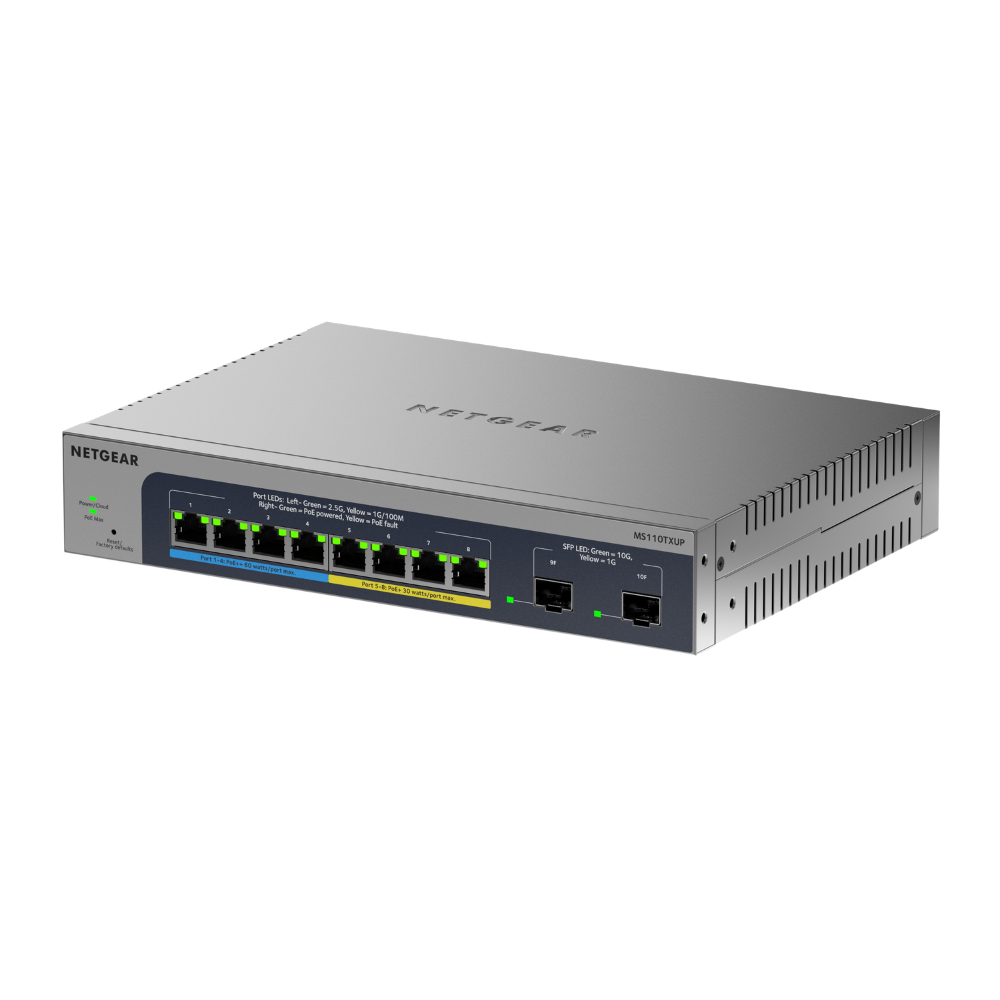

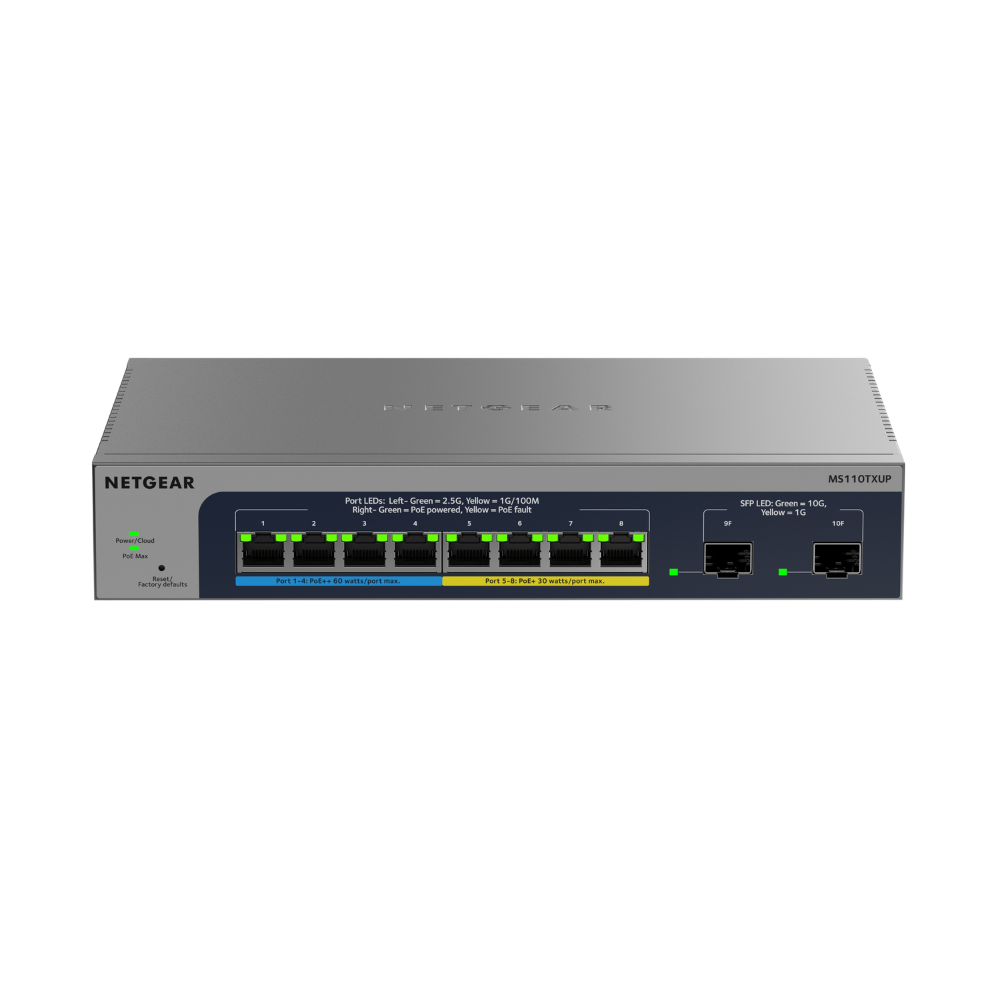

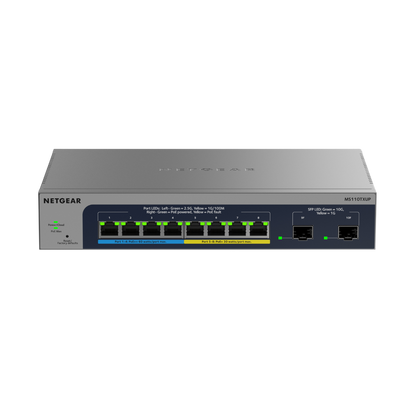

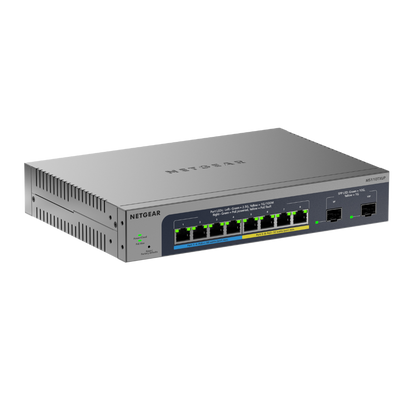

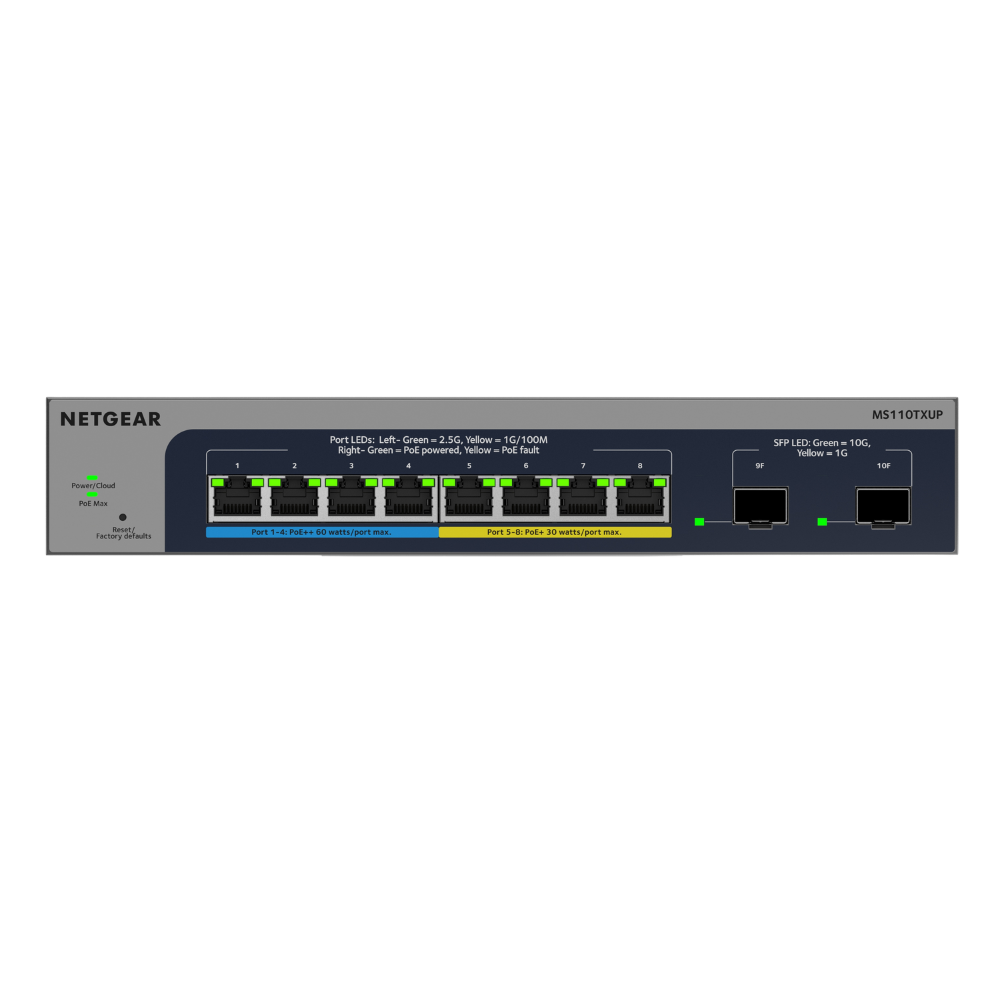

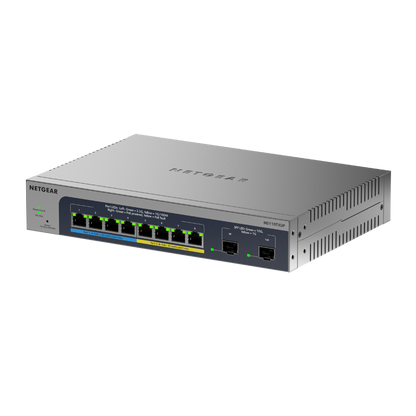

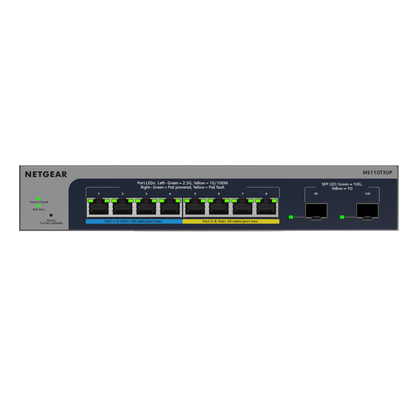

NETGEAR MS110TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Switch with 2 10G SFP+ Ports

NETGEAR MS110TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Switch with 2 10G SFP+ Ports

Key Features:

• Ports: 10 ports
• Port Types
  • 8x 1G/2.5G copper ports
  • 2x 10G SFP+ fiber uplinks
• Details
  • 8 x 2.5G ports for faster WiFi
  • 2 x 10G SFP+ uplinks to core
  • 4xPoE+ and 4xPoE++, 230W budget
  • Fanless, silent operation
  • NETGEAR Insight cloud management
  • Desktop, wallmount, or rackmount
  • Limited lifetime warranty, Fast RMA replacement

Built on your feedback. Designed for the way you work.

NETGEAR Insight 10.0—a smarter, simpler way to deploy, monitor, and manage your network.

POWER MORE DEVICES WITH A SINGLE SWITCH

PoE+ and PoE++ across all eight ports, with a 230W power budget, and simplify deployments by powering high-performance access points, IP cameras, and VoIP phones over a single cable.

FLEXIBLE MOUNTING

An 11-inch enclosure mounts on a desk, wall, or rack, and both models deliver enterprise-class performance that's right-sized for your network today—and ready for tomorrow.

QUIET ENOUGH FOR ANY ROOM

A fanless design delivers silent operation, making these switches ideal for classrooms, conference rooms, retail stores and open office spaces, not just wiring closets.

LITE L3 FEATURE SET

LANs, QoS, ACLs, STP/RSTP/MSTP, SNMP, Static Routing, DHCP Server/Relay, IGMP and MLD snooping, LACP, IPv4/IPv6 management, and LLDP-MED.

MANAGE IT FROM ANYWHERE

NETGEAR Insight provides centralized cloud management, allowing you to configure, monitor, and troubleshoot multiple sites remotely, reducing operational overhead and costly site visits.

SMART CLI

Scriptable control through a direct serial connection or a remote logical connection with telnet or SSH, providing rapid deployment at scale.

• Width: 253mm
• Depth: 180mm
• Height: 44mm
• Weight: 1.5kg
• Speed: 2.5G
• 1G/2.5G ports: 8
• 10G SFP+ ports: 2
• MAC Table Size: 16K
• Packet buffer size: 1.5 MB
• VLAN (Number Supported): 256
• VLAN routing: Yes
• ​Dynamic VLAN assignment: Yes
• ​MLD Snooping: Yes
• ​Static route: Yes
• ​Host ARP table: 1024
• ​EEE: Yes
• ​DoS Prevention: Yes

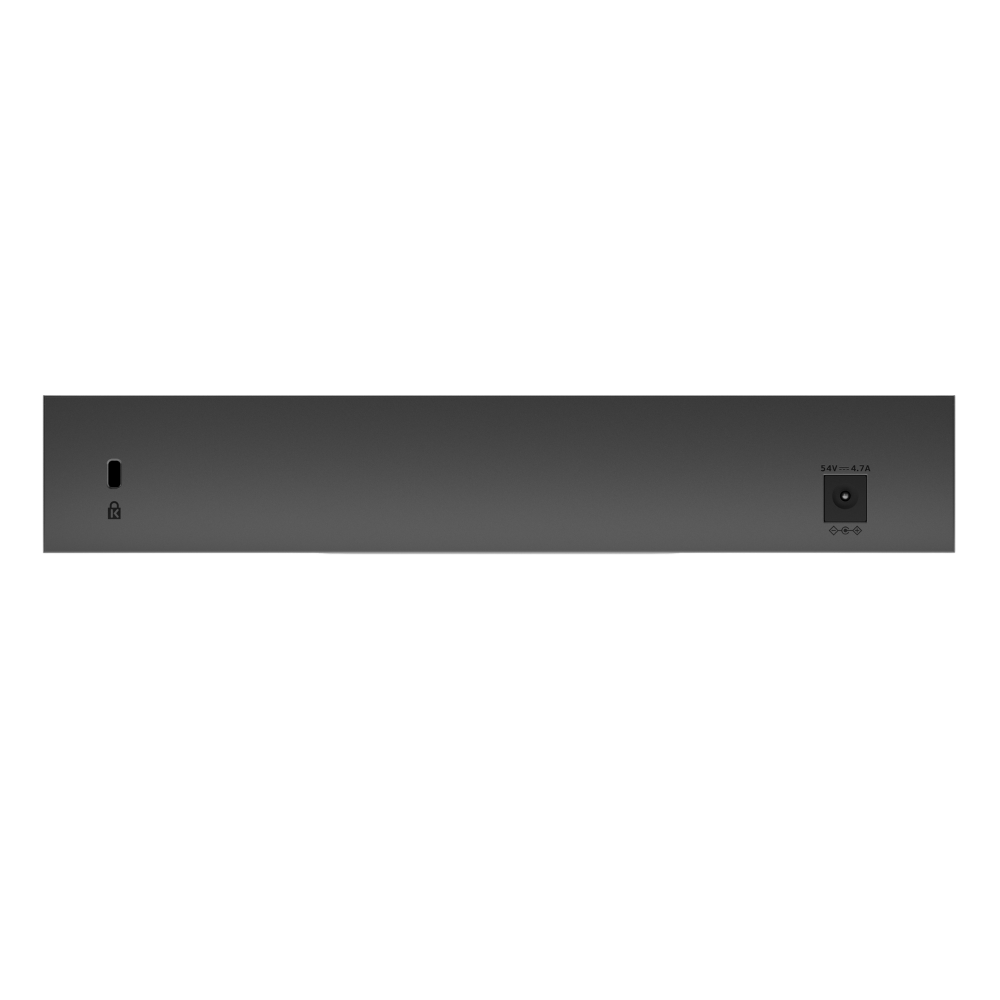

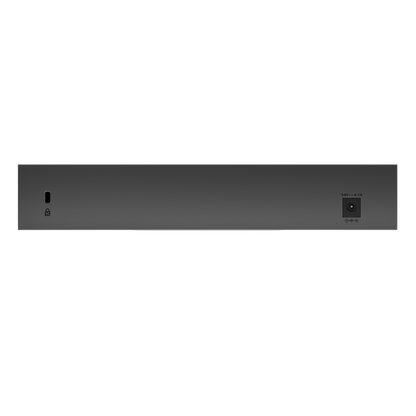

• Internal/External Power Supply/Adapter: External
• Power Consumption: 20.9W (no PoE)
• Max consumption (Watts): 273.4W (with PoE MAX)
• FAN: None, fanless
• Acoustic Noise Level @25C (dBA): 0 dBA
• Operating Temperature: 0° to 40°C
• MTBF: 1,528,747 hrs

• NETGEAR MS110TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Switch with 2 10G SFP+ Ports
• NETGEAR Insight Remote Cloud Management
• Warranty: This product is backed by NETGEAR limited lifetime hardware warranty.​
