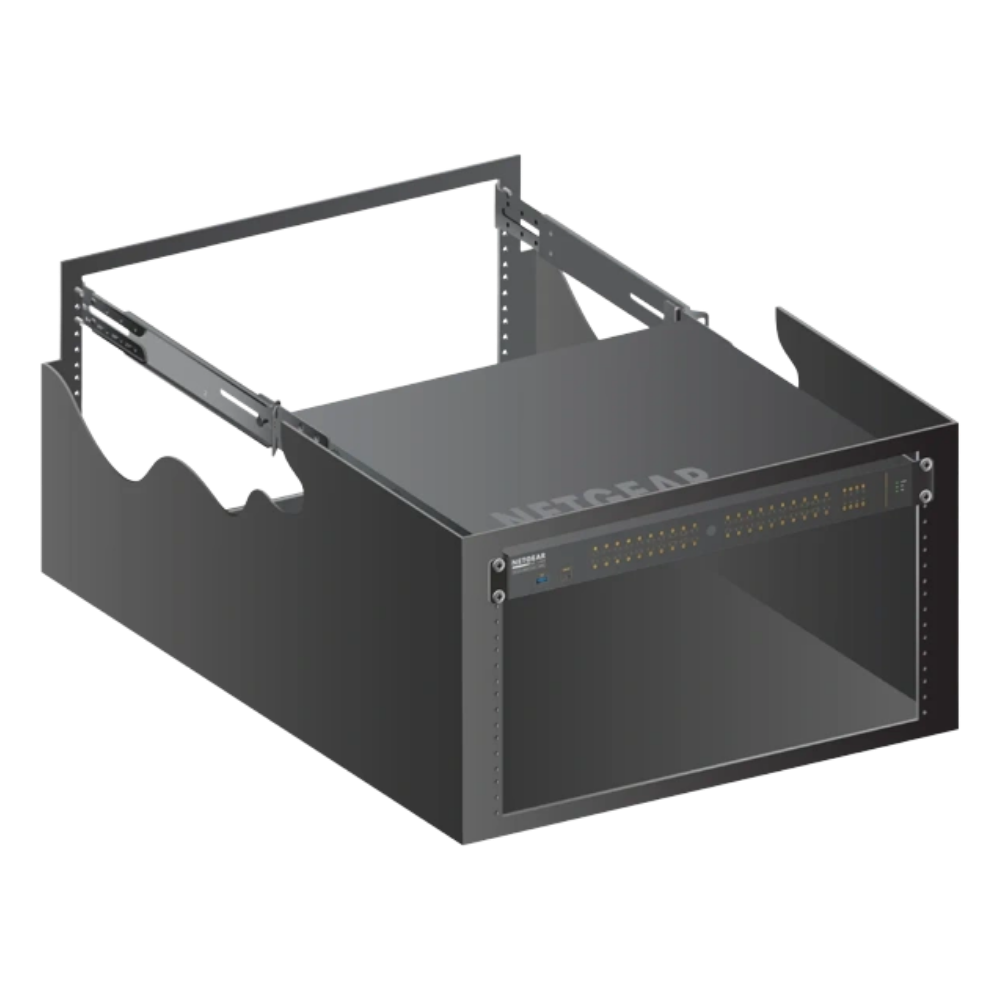

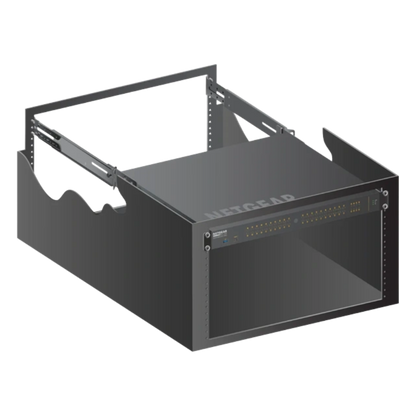

NETGEAR RBS1830 Adjustable Rear Bracket Support

NETGEAR RBS1830 Adjustable Rear Bracket Support

Key Features

• Provides sturdy 4‑post rack support for select M4250 and M4350 switch models
• Designed to accommodate switch depths from 350 to 432 mm (13.78 to 17 in)
• Compatible with both circular and square rack‑mounting holes (#10‑32 and #12‑24 thread types)
• Fits rack depths ranging from 18 to 30 inches
• Includes a 16‑piece, multi‑segment kit for robust 4‑post rack installation
• Can be installed from the front of the rack alone; side and rear installation possible when accessible
• Prevents heavier switches from sagging at the rear in stationary rack deployments
• Secures equipment during transport or mobile use in OB vans, road cases, flight cases, and similar environments

• Compatible Models: 8.35 inches (21.2 cm) — half-width form factor
• M4250 Series
  • M4250-26G4F-PoE++ (GSM4230UP)
  • M4250-26G4XF-PoE+ (GSM4230PX)
  • M4250-40G8F-PoE+ (GSM4248P)
  • M4250-40G8XF-PoE+ (GSM4248PX)
  • M4250-40G8XF-PoE++ (GSM4248UX)
• M4350 Series
  • M4350-24G4XF (GSM4328)
  • M4350-48G4XF (GSM4352)
  • M4350-16M4V (MSM4320)
  • M4350-24M4X4V (MSM4332)
  • M4350-44M4X4V (MSM4352)
  • M4350-24F4X (MSM4328F)
  • M4350-8X8F (XSM4316)
  • M4350-12X12F (XSM4324)
  • M4350-24X4V (XSM4328CV)
  • M4350-24F4V (XSM4328FV)
  • M4350-36X4V (XSM4340CV)
  • M4350-24X8F8V (XSM4340V)
  • M4350-32F8V (XSM4340FV)
  • M4350-16V4C (VSM4320C)
  • M4350-40X4C (XSM4344C)
  • M4350-40F4C (XSM4344FC)
  • M4350-16C (CSM4316

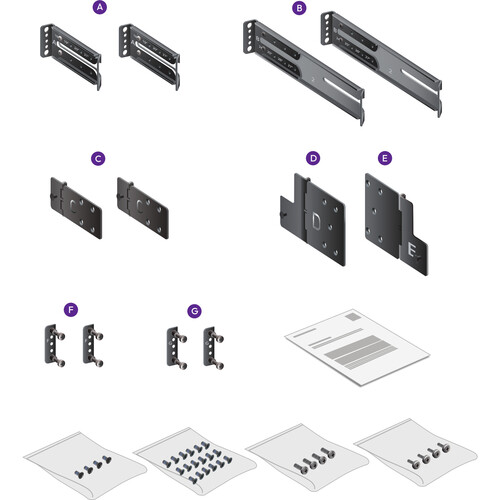

• Adjustable short support bracket, pre-assembled at 18 in. (45.7cm)
• Adjustable long support bracket, pre-assembled at 24 in. (61cm)
• 1U torsion hinge
• 2U left torsion hinge
• 2U right torsion hinge
• Front mount plate for #10-32
• Front mount plate for #12-24
• Mounting screws #10-32 when rear access
• Mounting screws #12-24 when rear access
• Small flat head black screws with blue thread locker
• Small black screws
• Hardware Installation Guide
• Warranty: This product is backed by NETGEAR limited lifetime hardware warranty.
