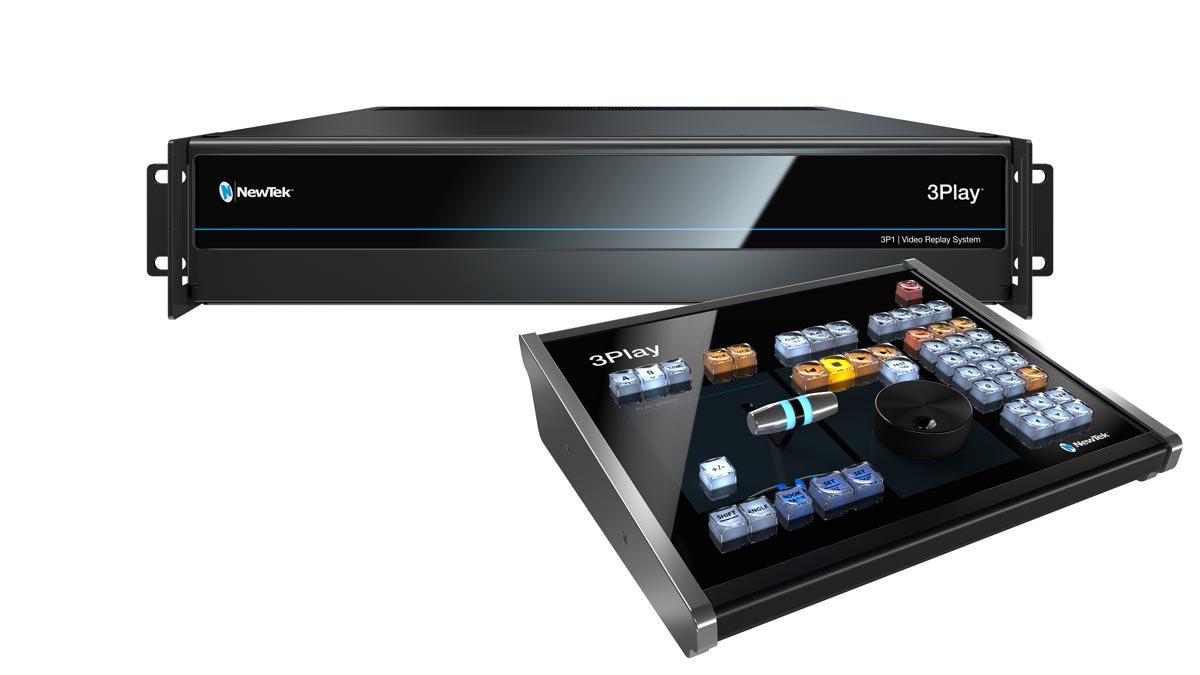

Vizrt 3PLAY 3P1 IP Replay System

The World's Most Complete Sports Production System
Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, NewTek 3Play 3P1 is the premier video solution for live game coverage, replay, training, and analysis, with the most complete set of real-time capabilities for modern sports production ever integrated into a single turnkey system, including native IP workflow integration and telestration. 3Play 3P1 integrates seamlessly with NewTek IP Series, TriCaster TC1, and NVG1 NewTek-Vizrt IP Graphics Server. This gives sports producers or anyone needing replay capability the power to utilize any NDI source on the network for recording and replay, and conversely SDI sources connected to 3Play 3P1 are available as NDI sources anywhere. An equally significant option is LivePanel for 3Play 3P1, which give users control of 3Play 3P1 from any web browser, on any device, using any OS. For both live sports and esports, delivering world-class replay, network-style presentation, and a phenomenal fan experience has never been easier or more affordable. 3Play 3P1 is truly replay redefined.

Product Highlights:
Engineered for the most demanding broadcast and media environments, 3Play 3P1 provides a winning combination of innovative technology and seamless workflow integration to power forward-thinking fan experiences that span from stadiums to screens to smartphones.

• Fully integrated sports production in resolutions up to 1080p 60
• SDI, hybrid, and end-to-end IP connectivity to adapt to your game plan
• Native software-driven processing for maximum production power and flexibility
• Integrated NDI® Telestrator Pro for live telestration from any compatible connected device, with support for remote video transport control
• Comprehensive camera coverage and delivery with support for 4 simultaneous external inputs and 2 outputs
• Synchronized continuous capture to full-resolution QuickTime® files for instant replay, live editing, post-production, and archive
• Versatile audio connectivity and capture, with support for digital, analog, and network audio, plus 8 channels of audio recording per input
• Multi-purpose video server with full frame-rate, multi-angle preview windows • Real-time social media sharing to Facebook, Twitter, YouTube, and more
• Custom playlist building and highlights packaging for live insert, export, or VOD
• Intuitive asset management and tagging system for metadata entry, navigation, organization, and content retrieval
• Powerful production automation with custom macro commands, cross-platform workflow integration, and flexible control options
• Enhanced creative capabilities, including real-time layering, motion graphics, animated transitions, and more
• Industry-standard 2RU system chassis with included hardware control panel

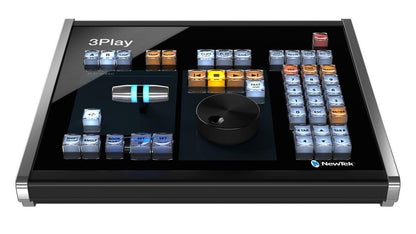

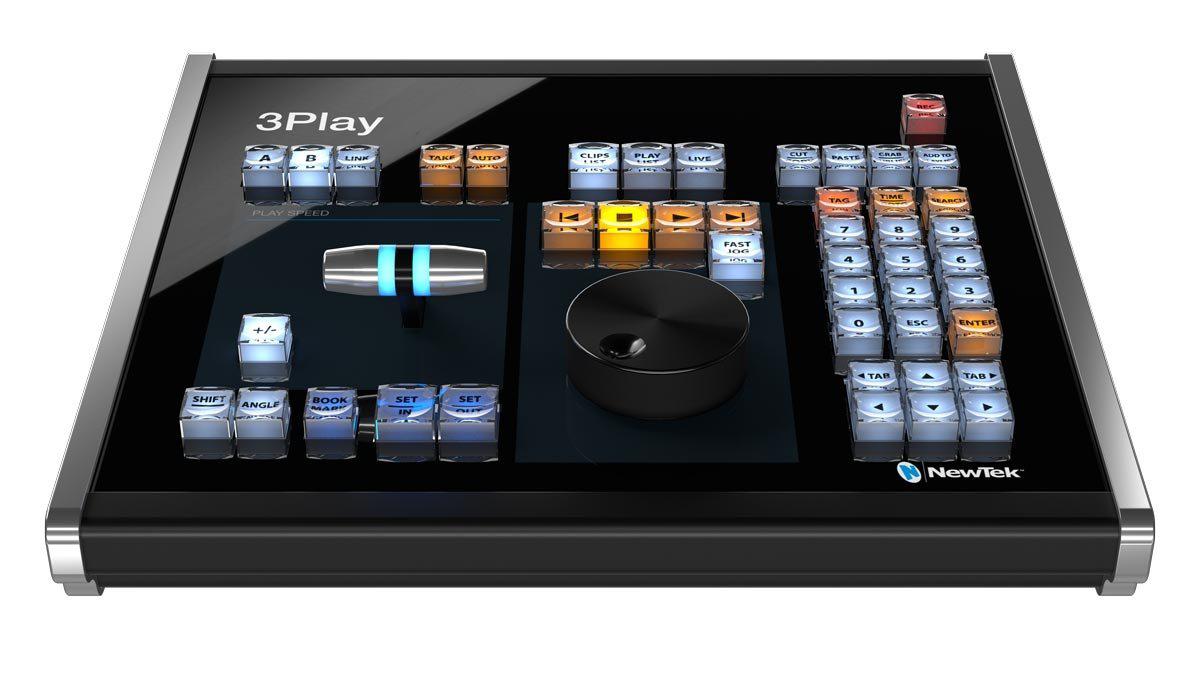

3Play 3P1 Control Panel Included
Run every sports production with the confidence of a team captain. With a professional hardware panel included, 3Play 3P1 brings blazing speed and airtight control to the operator’s chair so you can read, react, and replay in record time.

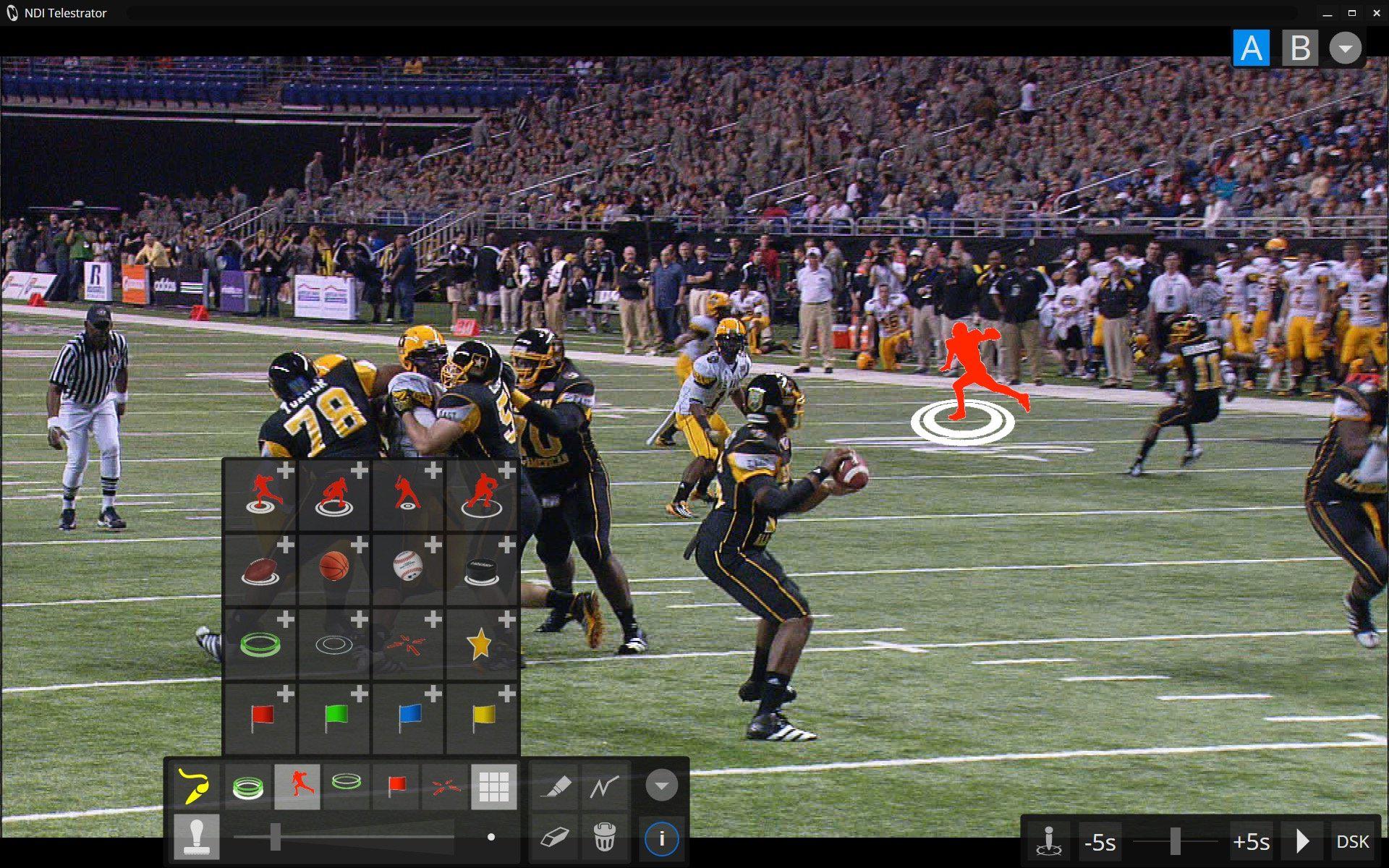

NDI® Telestrator Pro
Enlighten and entertain audiences, enhancing play-by-play and analysis with live telestration— right from the first replay. With NDI® Telestrator Pro included with 3Play 3P1, you can annotate on screen and roll immediate replays over the network from any compatible networked device— with only a single Ethernet cable required. NDI® Telestrator Pro supports telestration over either or both 3Play 3P1 output channels, offers a variety of professional paint tools, shapes, and customizable graphics, and includes responsive transport controls for remote playback. (External PC or touchscreen device with Microsoft® Windows 7 operating system (OS) or better required.)

• Video Input: 4 x simultaneous external video inputs, supporting any combination of compatible sources
• Network Video Input: 4 x resolution-independent IP video inputs via NDI®
• SDI Video Input
  • 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates1
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080i: 59.94, 50
  • 720p: 59.94, 50, 29.97, 25, 24, 23.976
  • 576i 50
  • 480i 59.94
  • Available frame rates determined by session video standard (NTSC or PAL)
• Video Output: 2 x session-format video outputs, with simultaneous delivery via IP and SDI
• Network Video Output: 2 x session-format IP video outputs via NDI®
• SDI Video Output: 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs
• Multiviewer Output
  • 3 x multiviewer outputs supporting standard display resolutions
  • 1 x DisplayPort (v1.4a)
  • 2 x HDMI (HDMI v2.1)
• Recording: 4 x simultaneous recording channels
• Recording Format:
  • QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)2
  • 2QuickTime Player not required for playback in common NLE applications
• Storage: 3 x 2TB internal drive
• Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
• Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
• DSK: 1 x DSK channel per output, with independent source selection and transition
• Transitions: Supports custom transitions between output channels and playlist clips
• Telestration: Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
• Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
• Local Audio Input
  • 4 x SDI embedded
  • 1 x Balanced XLR stereo pair (Line)
  • 3 x Balanced 1/4” stereo pairs (Line)
• Local Audio Output
  • 4 x SDI embedded
  • 1 x Balanced XLR stereo pair
  • 1 x Balanced 1/4” stereo pair
  • 1 x Stereo 1/4″ (phones)
• Network Audio: Native support for network audio input and output via NDI®
• Processing
  • Video: Floating Point YCbCr +Alpha Color Space, using 4:2:2:4
  • Audio: Floating Point, 96 kHz
• Throughput Latency: ~1.0-1.5 frames
• A/V Standards
  • 3G-SDI video conforms to SMPTE 424M (Level A)
  • HD-SDI video conforms to SMPTE 292M
  • SD video conforms to SMPTE 259M and ITU-R BT.656
  • Analog audio levels conform to SMPTE RP-155
• Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
• Macros: Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
• AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
• GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
• MIDI: Support for standard MIDI protocol enabling third-party device control
• System Drive: 120GB SSD
• NIC
  • 1 x 10 GbE LAN
  • 1 x 2.5 GbE LAN
  • 1 x 1 GbE LAN

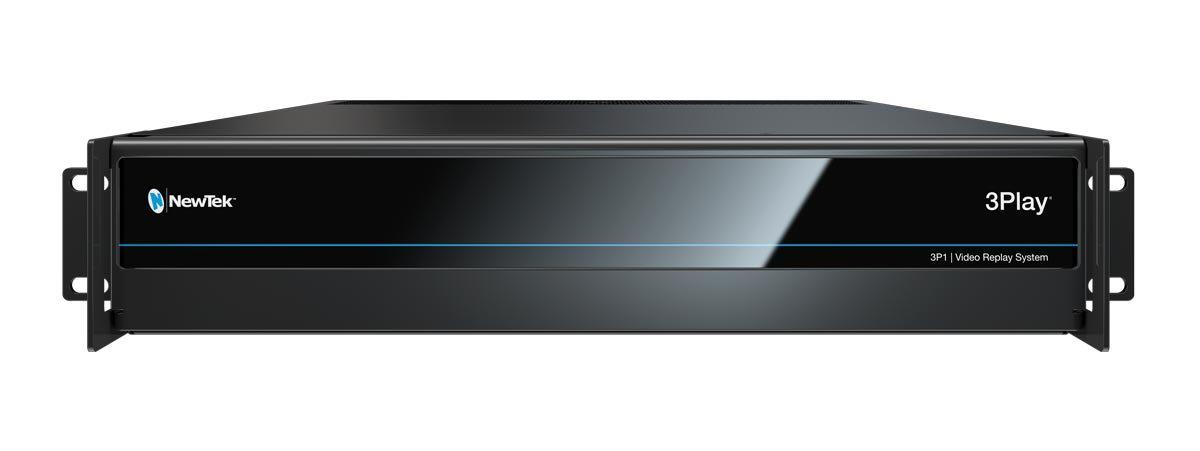

• System Physical: 2RU chassis with 500W PSU and multi-tiered hardware and software fail-safe
• Dimension: 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
• Weight: ~ 26 lbs (~12 kg)

• Vizrt 3Play 3P1 IP Replay System (2 RU)
• Control Panel
• Warranty: Limited 1-Year Manufacturer Warranty
