Regular price$4,695.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): PTZ3UHD
MFR Part # (MPN): FG-003270-R001

Short Description:

Vizrt PTZ3 UHD 30x PTZ Camera

  • Free Shipping & Tech Support

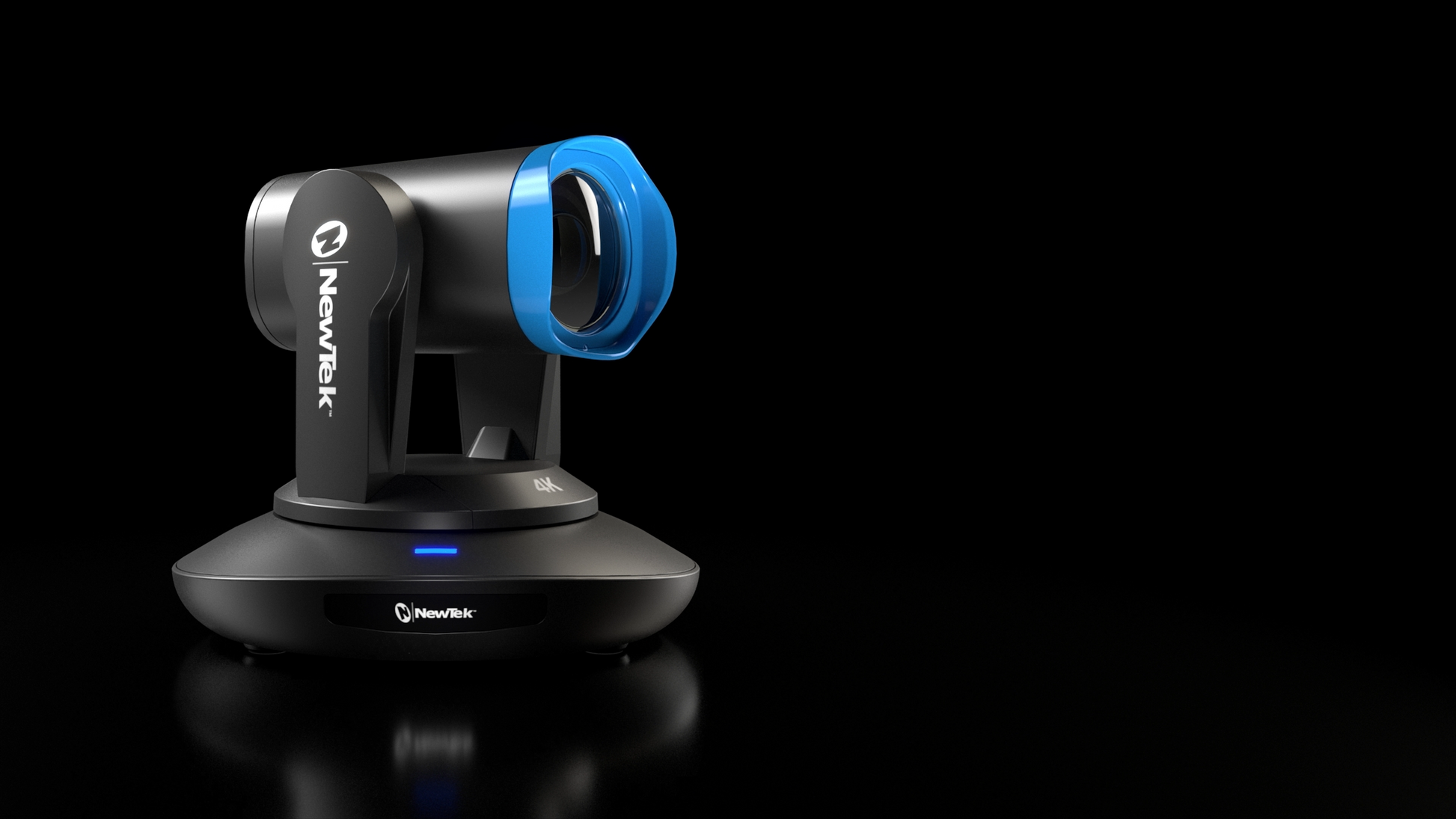

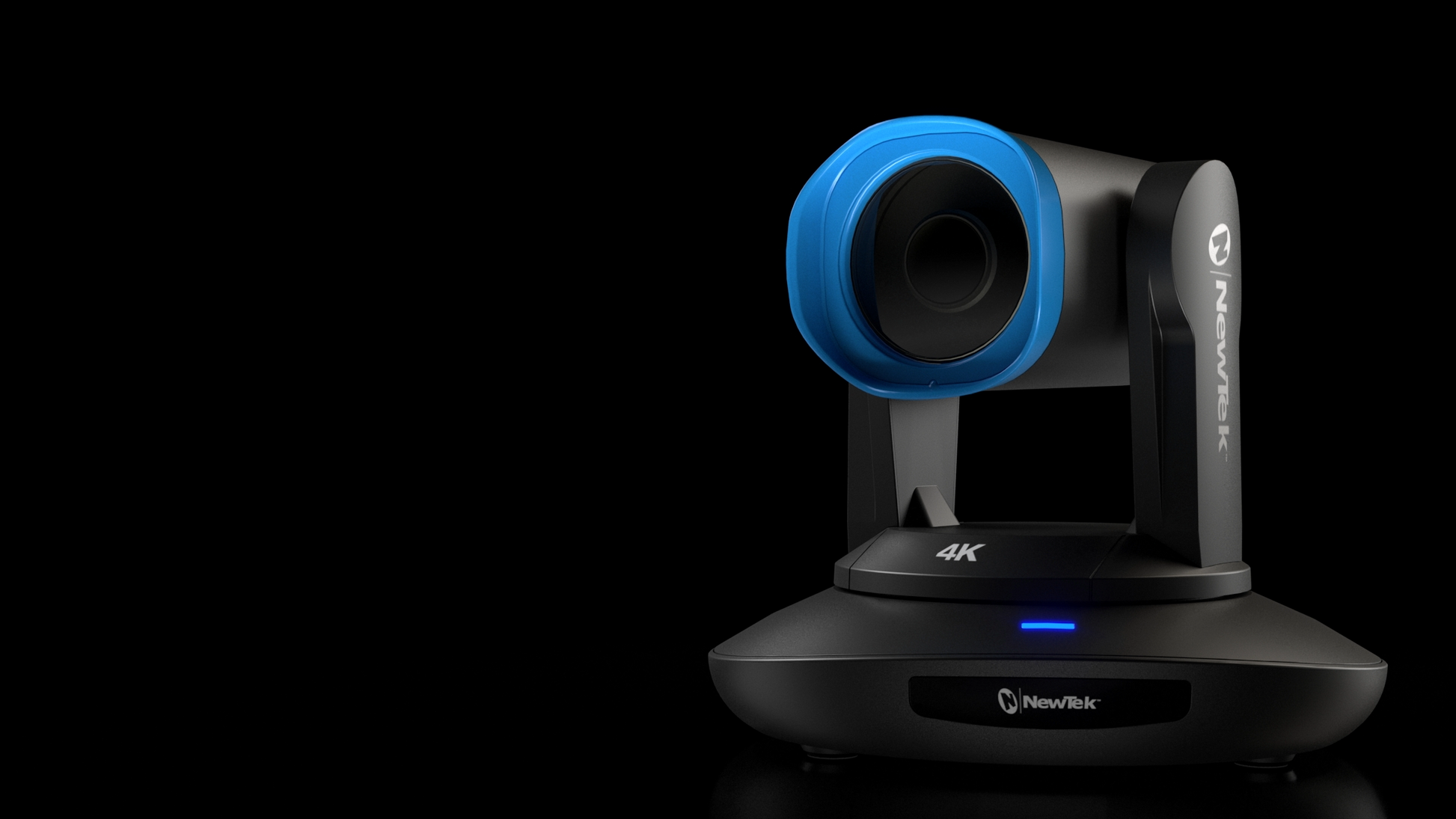

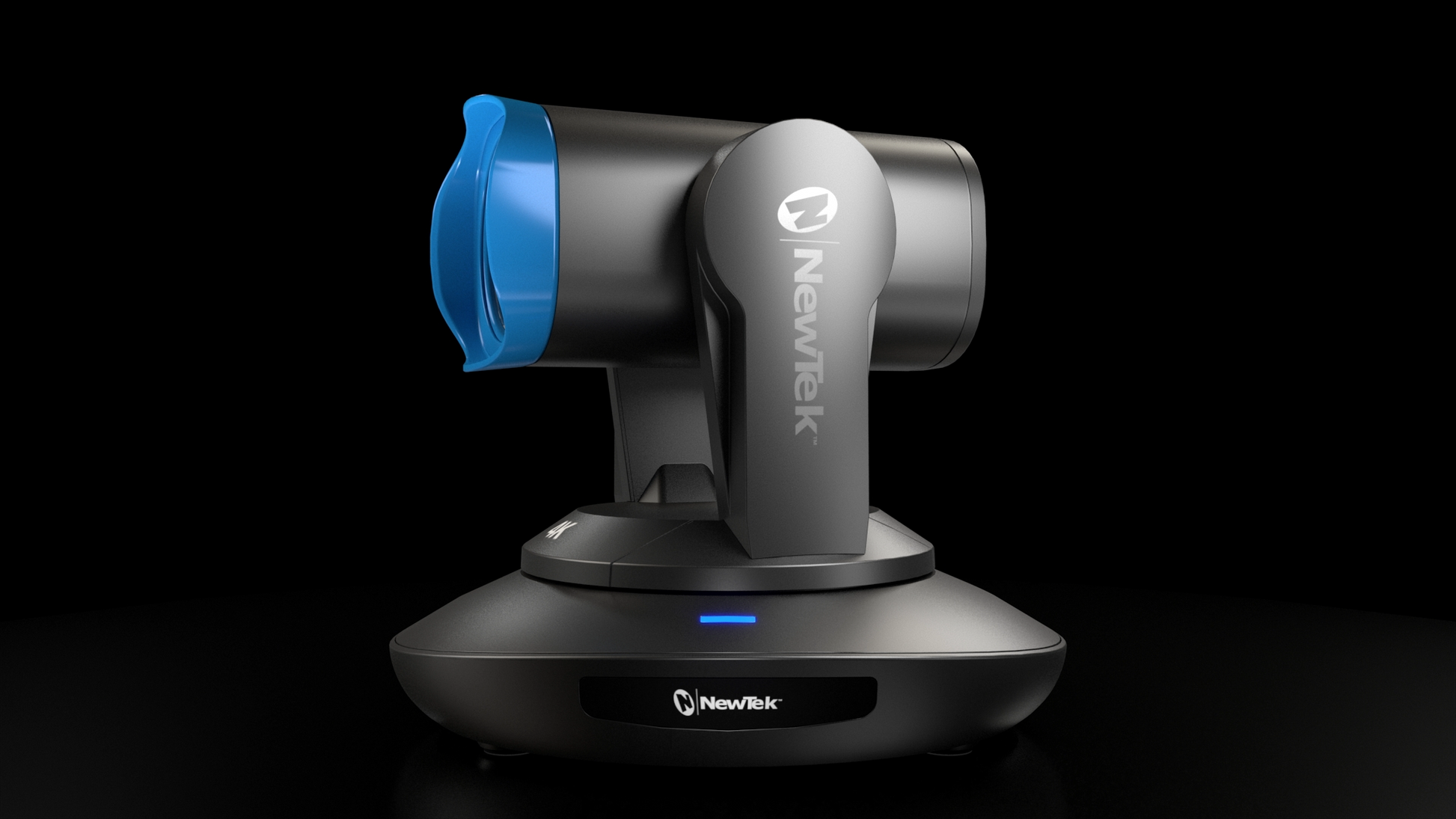

Introducing the expertly engineered PTZ3 UHD
Truly mastering the art of capture, the PTZ3 UHD is the best and easiest way of getting the highest quality video and audio onto any network and into any production.

Mastering Audio
For the first time in a NewTek UHD camera, Professional XLR audio input seamlessly runs with equipment such as microphones, mixers, amplifiers, and soundboards.

Mastering Video
The PTZ3 UHD takes pan/tilt/zoom quality to new levels; ease-in and ease-out movements deliver seamless, smooth transitions for a natural, superior quality production without jittery or stuttering movements.

Mastering Connectivity
Whether it's using a single cable for audio and video, PTZ control, tally and PoE for power or connecting via NDI®, NewTek PTZ Cameras simply appear on the network and can immediately be built into any workflow with ease.

Professional Audio, Pristine 4Kp60, Infinite Possibilities
The PTZ3 UHD is the only NewTek 4Kp60 camera on the market that offers both professional audio and ultra-high-definition video – all built on the unshakeable foundation of NDI®
  • One ethernet cable for audio and video, PTZ control and tally
  • Professional XLR audio connection
  • Sony 1/1.8” 12MP Sony Sensor
  • 30 x Optical Zoom
  • Ease-in and ease-out movements deliver seamless, smooth transitions
  • Pristine 4Kp60 UHD Video
  • Offers supports for NDI®|HX3
  • Support for H.264, H.265 via NDI®|HX
Exceptional video for any workflow.
Constructed with NDI® at its core, the PTZ3 UHD guarantees the tightest integration with any NewTek live production system and any NDI® workflow – offering professional audio, pristine 4Kp60 and infinite production possibilities.

Phenomenal PTZ At Your Fingertips
Bringing you the very best that PTZ cameras have to offer – all built with NDI at its core.

Vibrant Video
The only NewTek camera that offers 4Kp60 ultra-high-definition video and a state-of-the-art Sony sensor, it’s the very best way to deliver video into any IP environment.

Advanced Audio
The PTZ3 UHD has brought the need for superior audio right into focus with the Professional XLR audio input. Audio devices such as microphones and sound mixers are now easily connected.

Masterful Movement
The PTZ3 UHD offers far superior visual quality with ease-in and ease-out movements between camera presets offering natural, superior quality production, in any environment.

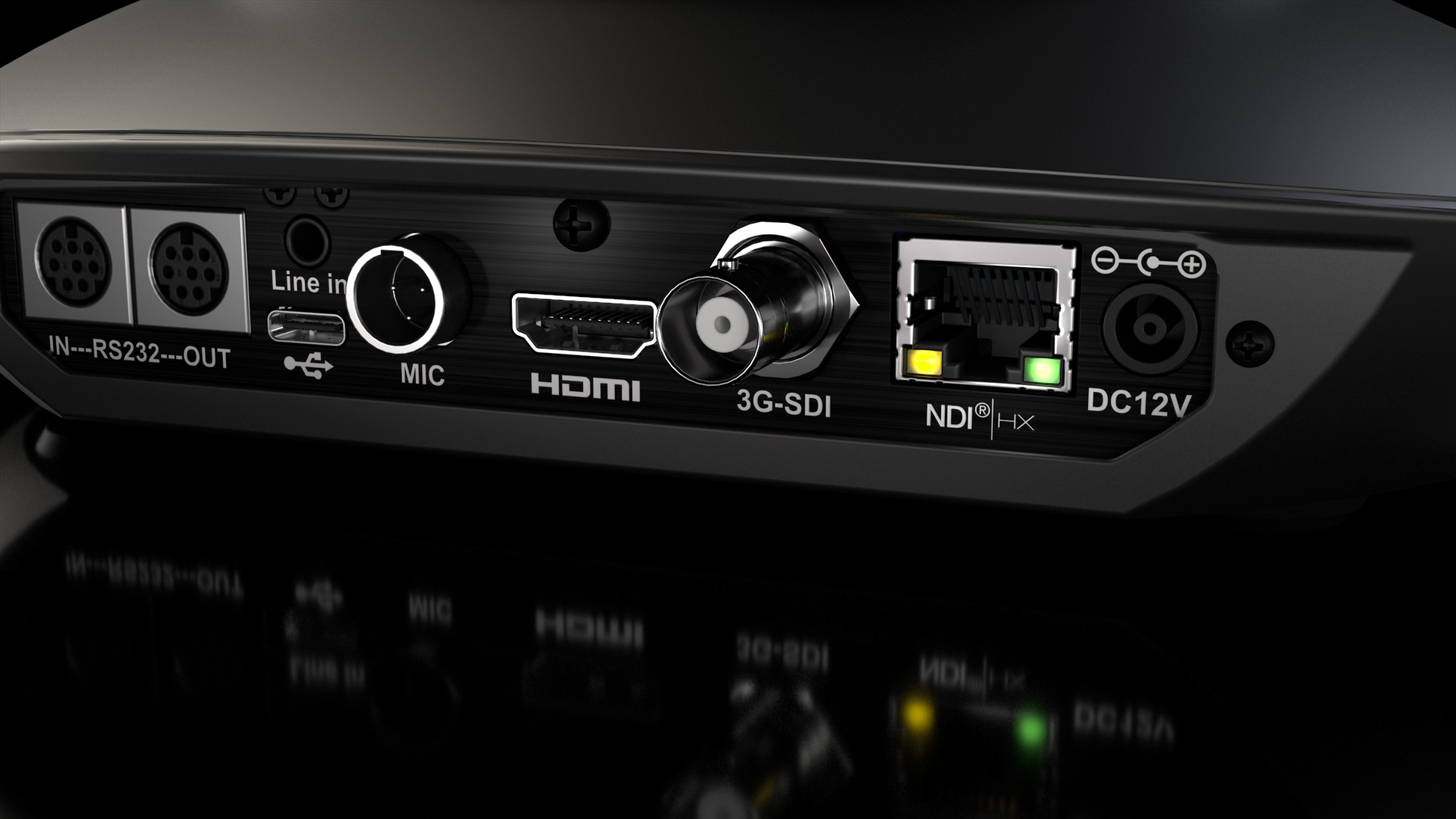

Connectivity At Its Core
Built to ensure that its the best and easiest way of getting the highest quality video and audio onto any network and into any production.

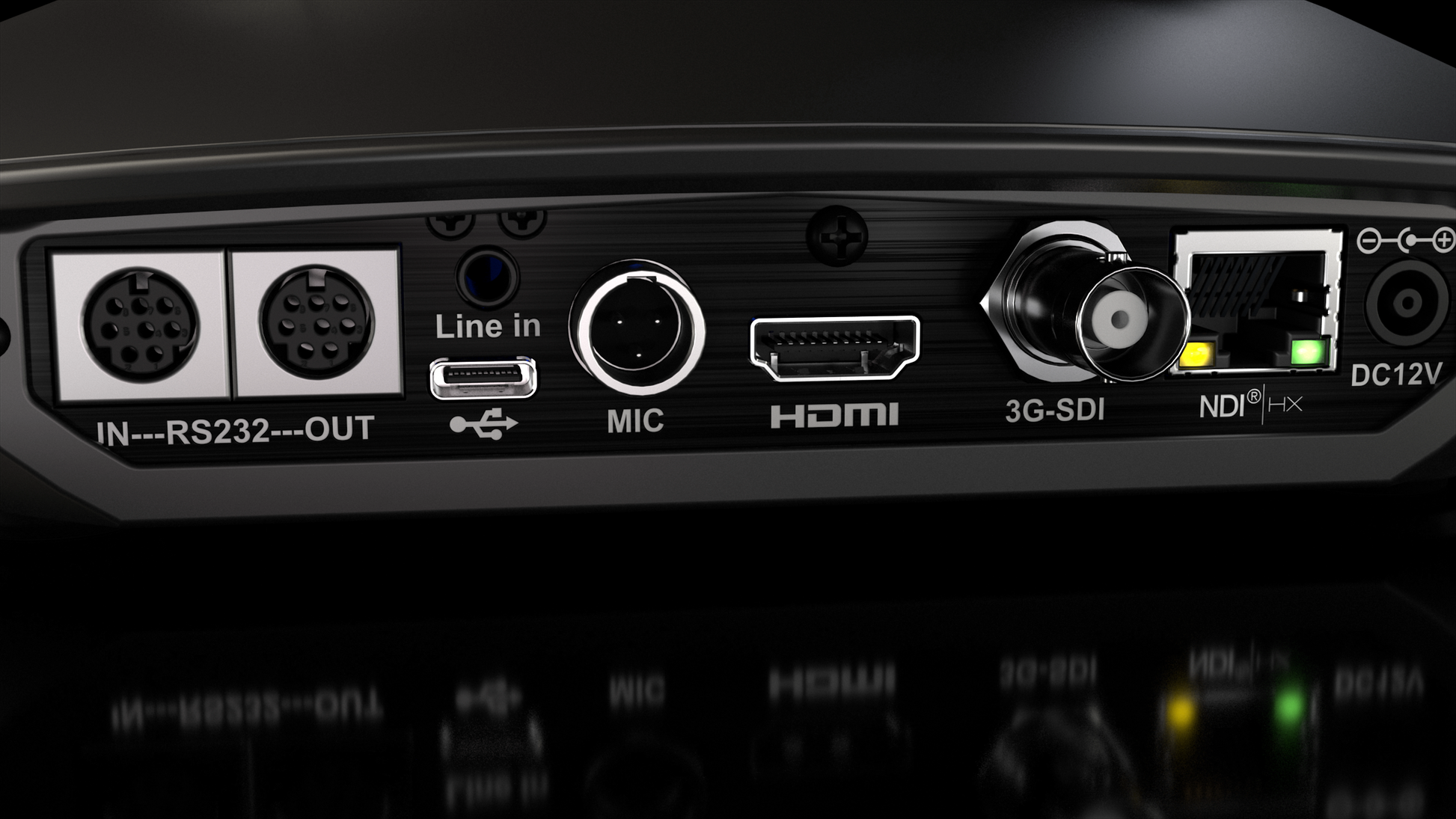

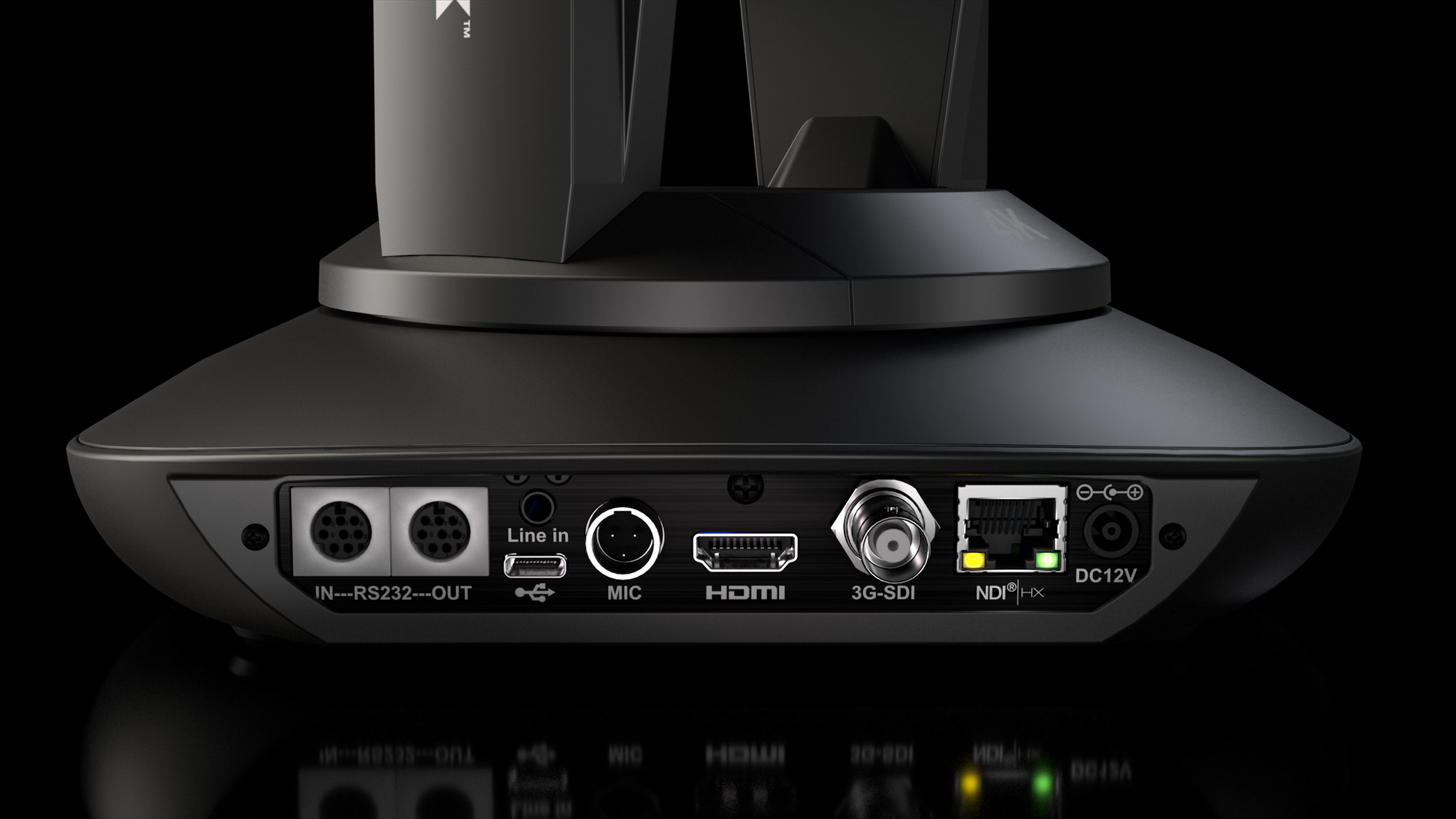

Video Output

  • NDI|HX, 3G-SDI, HDMI

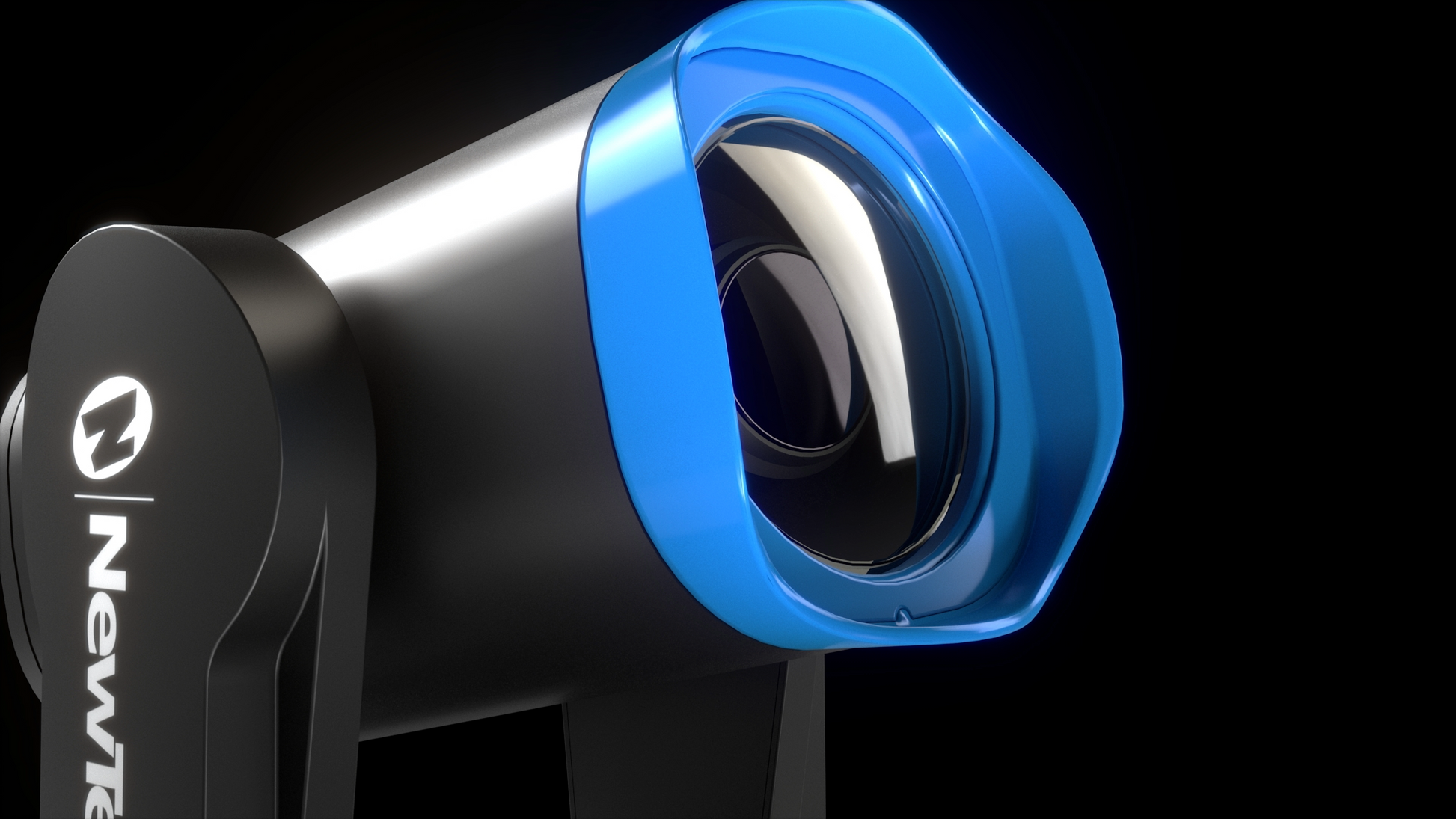

Zoom
  • 30 x Optical & 2x digital zoom
Audio Output
  • NDI|HX, HDMI, SDI
Video Formats
NDI|HX
  • 3840*2160P60/59.94/50/30/29.97/25
  • 1920*1080P60/59.94/50/30/29.97/25/24
  • 1280*720P60/59.94/50/30/29.97/25
HDMI
  • 1920*1080P60/59.94/50/30/29.97/25/24/23.98
  • 1920*1080I60/59.94/50
  • 1280*720P60/59.94/50/30/29.97/25
SDI
  • 1920*1080P60/59.94/50/30/29.97/25/24/23.98
  • 1920*1080I60/59.94/50
  • 1280*720P60/59.94/50/30/29.97/25
Sensor
  • Sony 1/1.8 inch 12MP sensor.
ColorSpace
8 bit
  • NDI - 4:2:0
  •    HDMI & SDI - 4:2:2
Shutter Speed
  • 1/30 to 1/10,000 sec
Panning Angle
  • -170° to +170°
Panning Speed
  • Max 120°/sec
Tilting Angle
  • 30° to +60°
Tilting Speed
  • Max 80°/sec
Aperture
  • F1.8 ~ F14
Focal Length
  • 6.91mm~214.64mm
Horizontal Angle of View
  • 60°(Far)-2°(Near)
Min. Object Distance
  • 1.5m (Wide/Tele)
Min. Illumination
  • 0.1 lux
Encoding
  • H.264/H.265, NDI|HX & HEVC
Audio Input
  • Mini XLR, 3.5mm stereo audio input (line)
Embedded Audio
  • NDI, HDMI,
Signal
  • Balanced (Mini XLR), Unbalanced (Line In)
Sample Rate
  • 48KHz
Frequency
  • 100Hz~20KHz
Total Harmonic distortion
  • -90dB

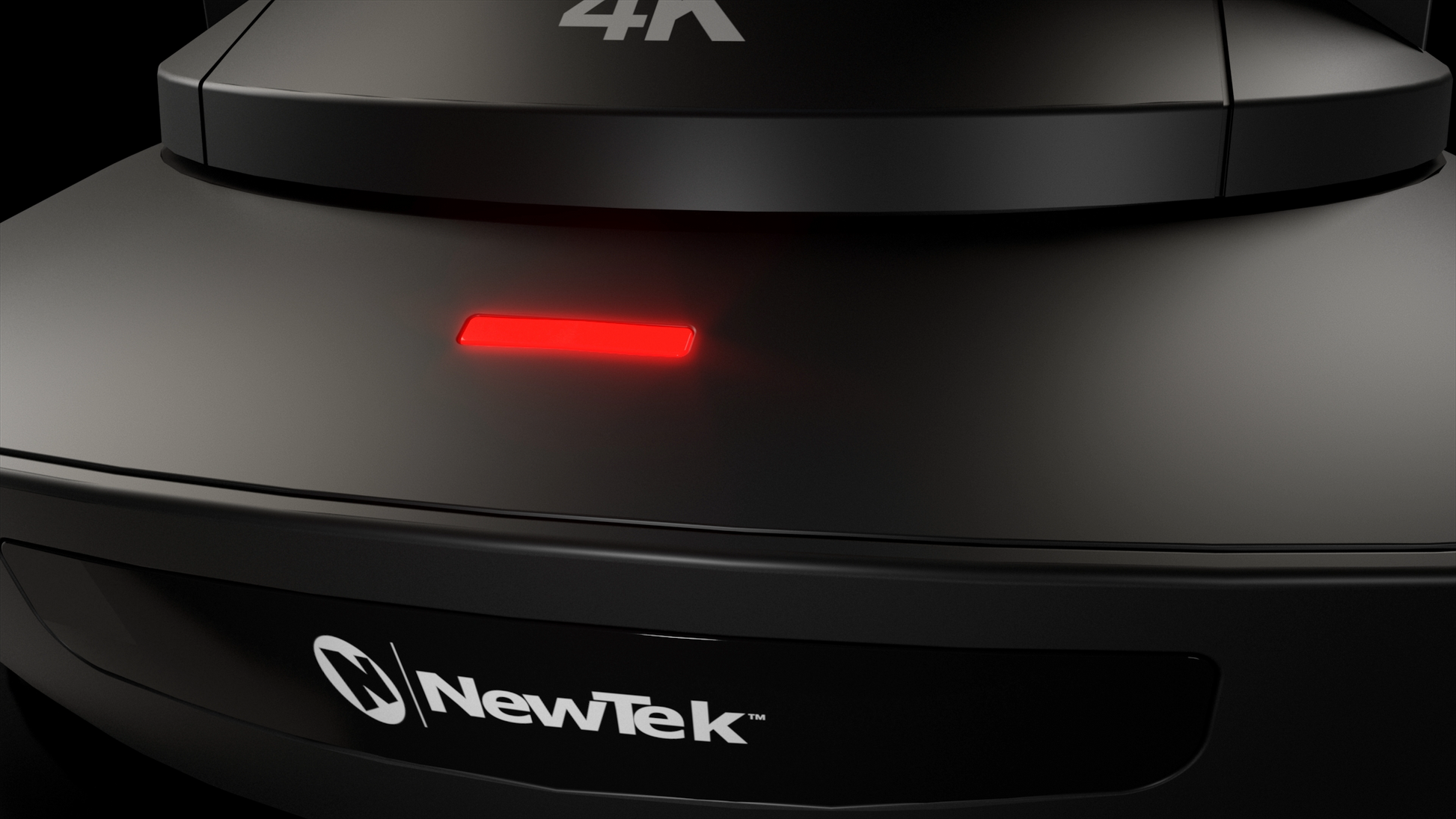

Tally
  • Supported
White Balance
  • Auto, Manual, Auto Tracking, One Push, Outdoor, Indoor
Exposure
  • Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Focus
  • Auto, Manual, Iris Auto, Manual Shutter Auto, Manual
Anti-Flicker
  • Off/50Hz/60Hz
Gain Control
  • Auto, Manual
Control
  • NDI
User Interface
  • Web based or NewTek NDI® Studio Monitor applications for remote configuration, control, and monitoring
POE+
  • POE+ (IEEE 802.3 at)
Direct Power
  • DC12V
Power Consumption
  • 12W
Operating Temperature
  •  -10°C~50°COperating Humidity    20%~80%
Physical
Dimensions\
  • 8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm)
Weight
  • 2.97lbs (1.35 kg)
Ceiling Mount
  • Included
Wall Mount
  • Included
Adapters
  • MiniXLR (f) to XLR(f) adapter included



  • PTZ3 UHD 30x PTZ Camera
  • PTZ3 Camera wall mount bracket and screw kit
  • PTZ3 In-ceiling mount bracket and screw kit
  • PTZ3 12V-2A Power Supply Adaptor – Includes EU, UK and US cords
  • PTZ3 Remote Control
  • PTZ3 Mini-XLR to XLR Adapter
